Echo Power Pruner PPSR-2122 User manual

Power PrunerTM
ShortReach
Operator'sManual
MODEL PPSR-2122 Type 1/1E
Serial Number 505000 & Up
PPSR-2433 Type 1/1E
Serial Number 504000 & Up
WARNING DANGER
Readrulesforsafeoperationandinstructionscarefully. ECHOprovidesanOperator'sManualanda
SafetyManual. Bothmustbereadandunderstoodforproperandsafeoperation.
WARNING
The engine exhaust from this
product contains chemicals known
to the State of California to cause
cancer, birth defects or other
reproductive harm.
89865026061
06/99
X7502303301

2
INTRODUCTION
Welcome to the ECHO family. This ECHO product was designed and manufactured to provide long life and on-the-
job-dependability. Read and understand this manual and the SAFETY MANUAL you found in the same package. You
will find both easy to use and full of helpful operating tips and SAFETY messages.
WARNING DANGER
Read rules for safe operation and instructions carefully. ECHO provides an Operator's Manual and a Safety
Manual. Both must be read and understood for proper and safe operation.
THE OPERATOR'SMANUAL --
contains specifications and information for operation, starting,
stopping, maintenance, storage and assembly specific to this product.
THE SAFETY MANUAL –
explains possible hazards involved with the use of Power Pruner™and
what measures you should take to make their use safer.
TABLE OF CONTENTS
Introduction ...............................................................2
- The Operator's Manual........................................2
- The Safety Manual .............................................2
ManualSafetySymbols & Important Information .....3
Safety .........................................................................3
- GeneralDescription .............................................3
- Decals..................................................................4
- International Symbols ......................................... 4
- Equipment ...........................................................4
- Fuel......................................................................5
- Personal Condition & Safety Equipment .............6
- Safe Operation .....................................................7
- Kickback..............................................................8
- ExtendedOperation/ExtremeConditions .............9
Description .............................................................. 10
- Contents ............................................................ 10
- Emission Control ............................................... 10
Specifications........................................................... 13
Assembly ................................................................. 14

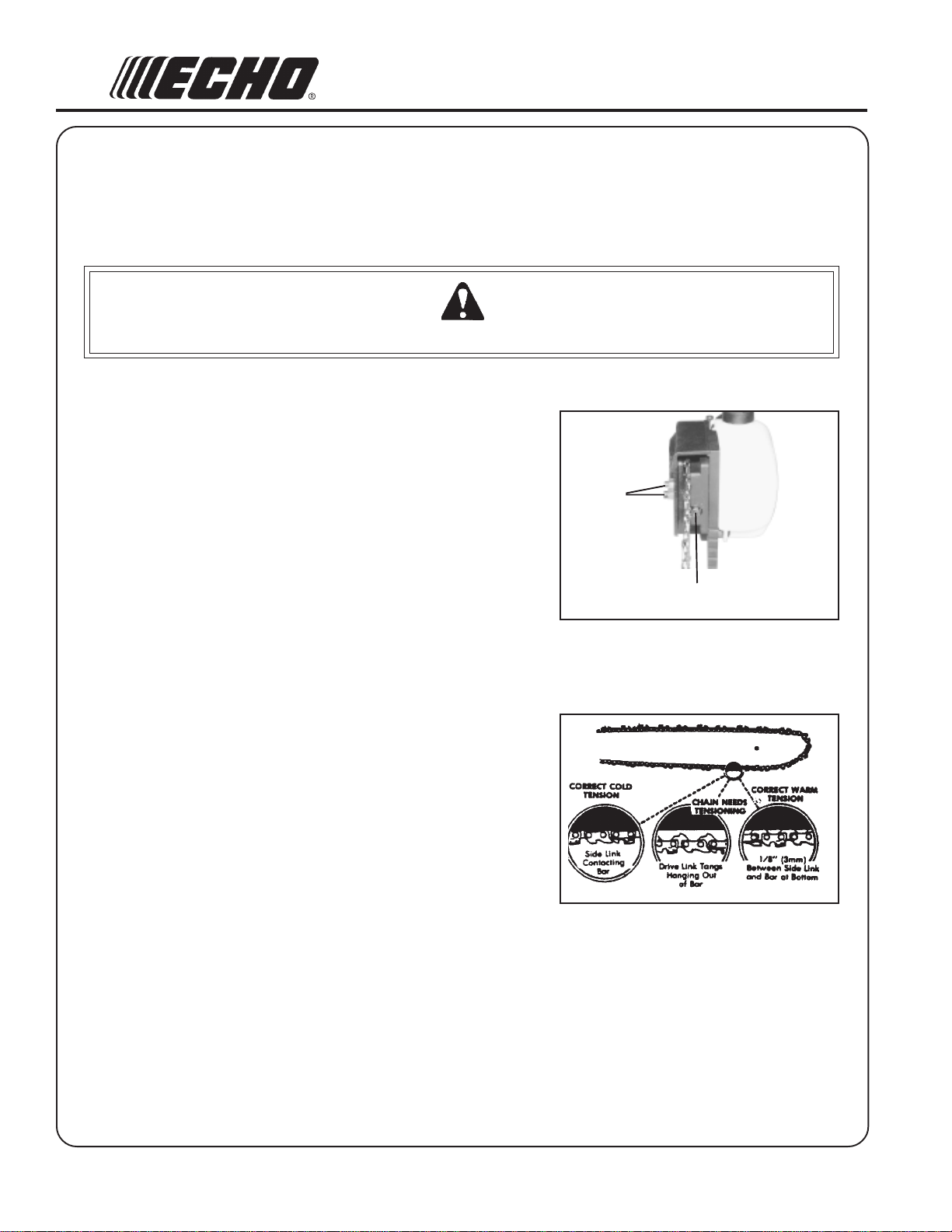

- Saw Chain Tension Adjustment ....................... 14
Pre-Operation ........................................................... 15
- Fuel ................................................................... 15
- Lubricatingthe Guide BarandSawChain ........ 16
- AdjustAutomaticOiler..................................... 16
- EquipmentCheck .............................................. 17
- DetermineOperationArea ................................ 17
Operation ................................................................. 18
- StartingColdEngine ......................................... 18
- StartingWarmEngine ....................................... 19
- Stopping Engine ............................................... 19
- Pruning Technics.............................................. 20
Maintenance ............................................................ 20
- SkillLevels ........................................................ 20
- Maintenance Intervals ...................................... 21
- AirFilter ............................................................ 22
- FuelFilter .......................................................... 22
- SparkPlug ......................................................... 23
- CoolingSystemCleaning.................................. 23
- ExhaustSystem ................................................. 24
- Carburetor Adjustment Emissions .................... 25
- Carburetor Adjustment Non Emissions ............ 26
- GuideBarandSawChainReplacement ............ 27
- FilingSawChain ............................................... 28
Troubleshooting ...................................................... 29
Storage ..................................................................... 30
ServicingInformation............................................... 32
- Parts .................................................................. 32
- Service .............................................................. 32
- ECHOConsumerProductSupport.................... 32
- Warranty Card .................................................. 32
- Additional or Replacement Manuals ................ 32
- Manual Ordering Instructions .......................... 32
Specifications, descriptions and illustrative material in this
literature are as accurate as known at the time of
publication, but are subject to change without notice.
Illustrations may include optional equipment and
accessories, and may not include all standard equipment.

P OWER P RUNER ™
O PERATOR ' S M ANUAL
3
IMPORTANT The enclosed message provides
information necessary for the protection of the
unit.
NOTE This enclosed message provides tips for
use, care and maintenance of the unit.

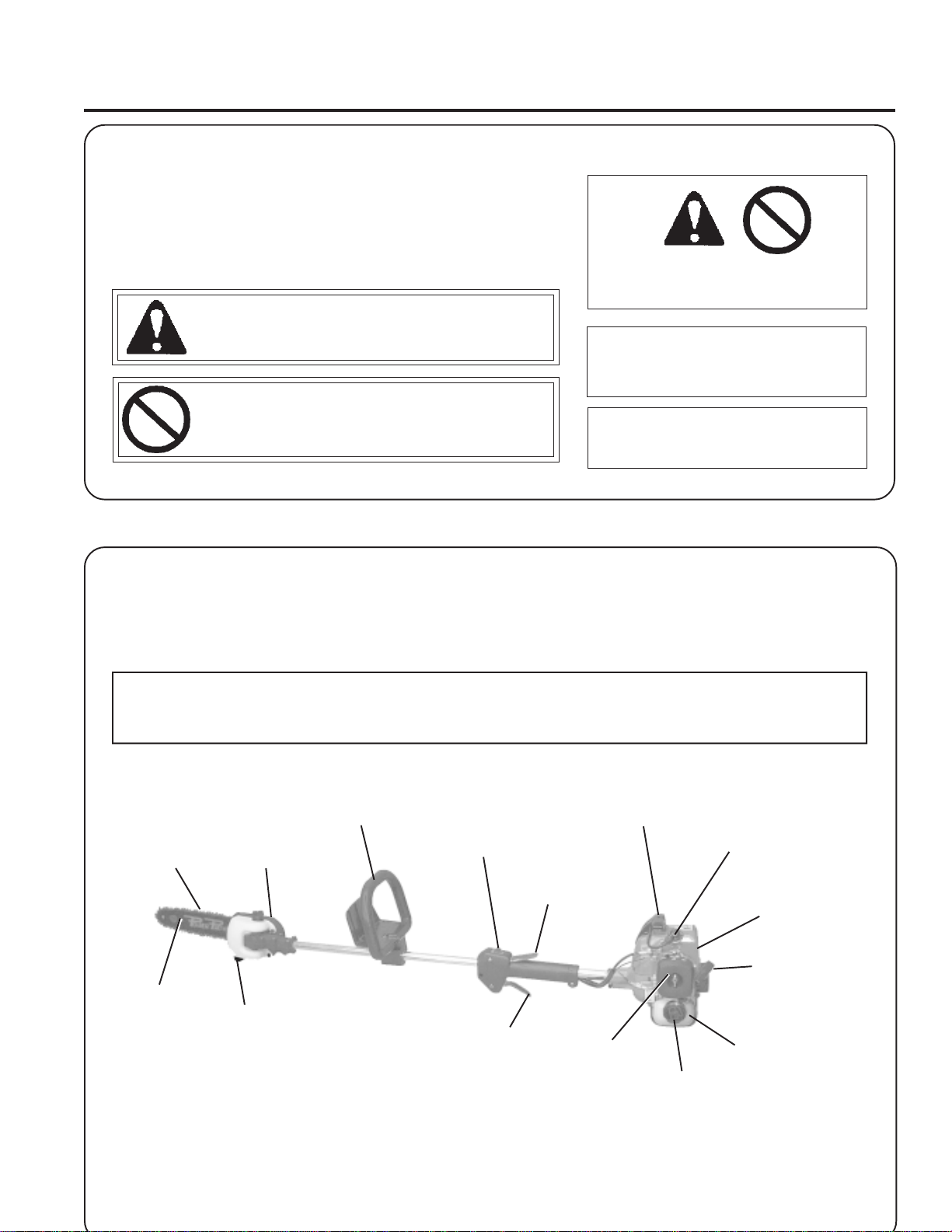

Throughout this manual and on the product itself, you will find safety
alerts and helpful, information messages preceded by symbols or key
words. The following is an explanation of those symbols and key words
and what they mean to you.
This symbol accompanied by the words WARNING and
DANGER calls attention to an act or condition that can lead
to serious personal injury to operator and bystanders.
The circle with the slash symbol means whatever is shown
within the circle is prohibited.
FRONT HANDLE
W/GUARD
CUTTING
ATTACHMENT STOP SWITCH
THROTTLE
LOCKOUT
ARM REST
SPARK PLUG
MUFFLER
RECOIL STARTER
HANDLE
FUEL TANK
FUEL CAP
AIR FILTER
THROTTLE
TRIGGER
CUTTING SHOE
GUIDE BAR
SAW
CHAIN
MANUAL SAFETY SYMBOLS AND IMPORTANT INFORMATION
IMPORTANT
NOTE
SAFETY
GENERALDESCRIPTION
IMPORTANT
See Description and Specification sections for full description and illustration of model variation in power head,
and handle type.

4
DECALS
Locate this safety decal on your unit. The complete unit illustration found in the "DESCRIPTION" section, will help you
locate them. Make sure the decals are legible and that you understand and follow the instructions on them. If a decal
cannot be read, a new one can be ordered from your ECHOdealer. See PARTS ORDERING instructions for specific
information.
Engine Cover
Symbol
description/application Symbol form/shape Symbol
description/application
Symbol form/shape
Hot
Surface
Carburetor adjustment
- Idle speed
Carburetor adjustment
- High speed mixture
Symbol
description/application Symbol form/shape Symbol
description/application
Symbol form/shape
Read and understand
Operator's Manual.
Wear eyes, ears and
head protection
Emergency stop
Fuel and oil mixture
Finger Severing
Carburetor adjustment
- Low speed mixture
Safety/Alert
Avoidall power
lines.This unitis
notinsulated
againstelectrical
current.
Do not operate
closerthan15M
(50 ft.) from
electrical
hazards.
Keepbystanders
atleast15meters
(50feet)away.
Planretreatpath
from falling
objects.
Wearhand
protection.Use
twohanded.
DONOTsmoke
nearfuel.
DONOT allow
flamesorsparks
nearfuel.
Wearslip
resistantfoot
wear.
Engine choke
control.
Ignition
ON/OFF
Chainlubrication
Primerbulb
INTERNATIONAL SYMBOLS
EQUIPMENT
Before operation a complete check of the unit must be performed;
• Check unit for loose/missing nuts, bolts and screws. Tighten
and/or replace as needed.
• Inspect fuel lines, tank and area around carburetor for fuel leaks.
DO NOT operate unit if leaks are found.
• Never adjust the guide bar or saw chain when the engine is operating.

P OWER P RUNER ™
O PERATOR ' S M ANUAL
5

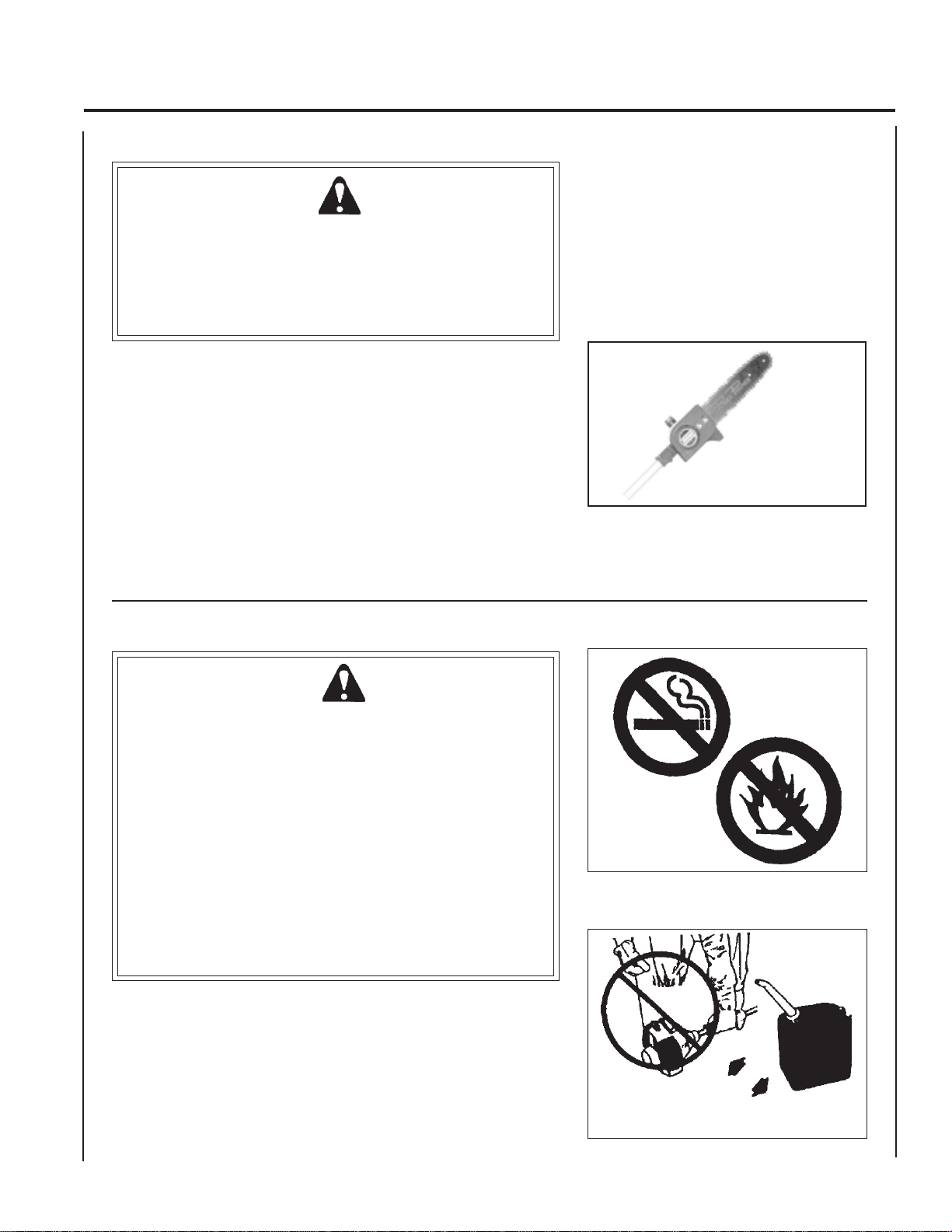

FUEL
WARNING DANGER
FuelisVERYflammable.Useextremecarewhenmixing,storingor
handling, or serious personal injury may result.
• Use an approved fuel container.
• DONOTsmokenearfuel.
• DONOTallowflamesorsparksnearfuel.
• Fuel tanks/cans may be under pressure. Always loosen fuel caps
slowly allowing pressure to equalize.
• NEVERrefuelaunit whentheengineisHOT!
• NEVERrefuel aunitwiththeenginerunning.
• DONOT fillfueltanksindoors. ALWAYSfillfuel tanksout
doors over bare ground.
• Securely tighten fuel cap after refueling.
• Inspect for fuel leakage. If fuel leakage is found, do not start or
operate unit until leakage is repaired.
After Refueling;
• Wipe any spilled fuel from the unit.
• Move at least 3 M (10 ft.) from refueling location before starting.
After Use;
• DO NOT store a unit with fuel in its tank. Leaks can occur. Return
unused fuel to an approved fuel storage container.
Guide Bar and Saw Chain
WARNING DANGER
• Serious injury may result from the use of non approved guide bar
and saw chain combinations. Read and comply with all safety
instructions listed in this manual.
•ECHO, INC. will not be responsible for the failure of cutting
devices or accessories which have not been tested and approved
by ECHO for use with this unit.
• Check that the cutting attachment, guide bar and saw chain is firmly
attached and in safe operating condition.
• Only use ECHO approved guide bar and saw chain.
• Do not hit rocks, stones, tree stumps and other foreign objects with
the saw chain.
• Do not cut into the ground with the saw chain.
• If saw chain strikes an obstruction, stop engine immediately and
inspect saw chain for damage.
• Do not operate with a dull, fractured or discolored saw chain.
• Removeallforeignobjectsfromworkarea.
• Always cover the guide bar and saw chain with guide bar cover
during transportation and in storage.
3 M
(10 ft.) Minimum

6

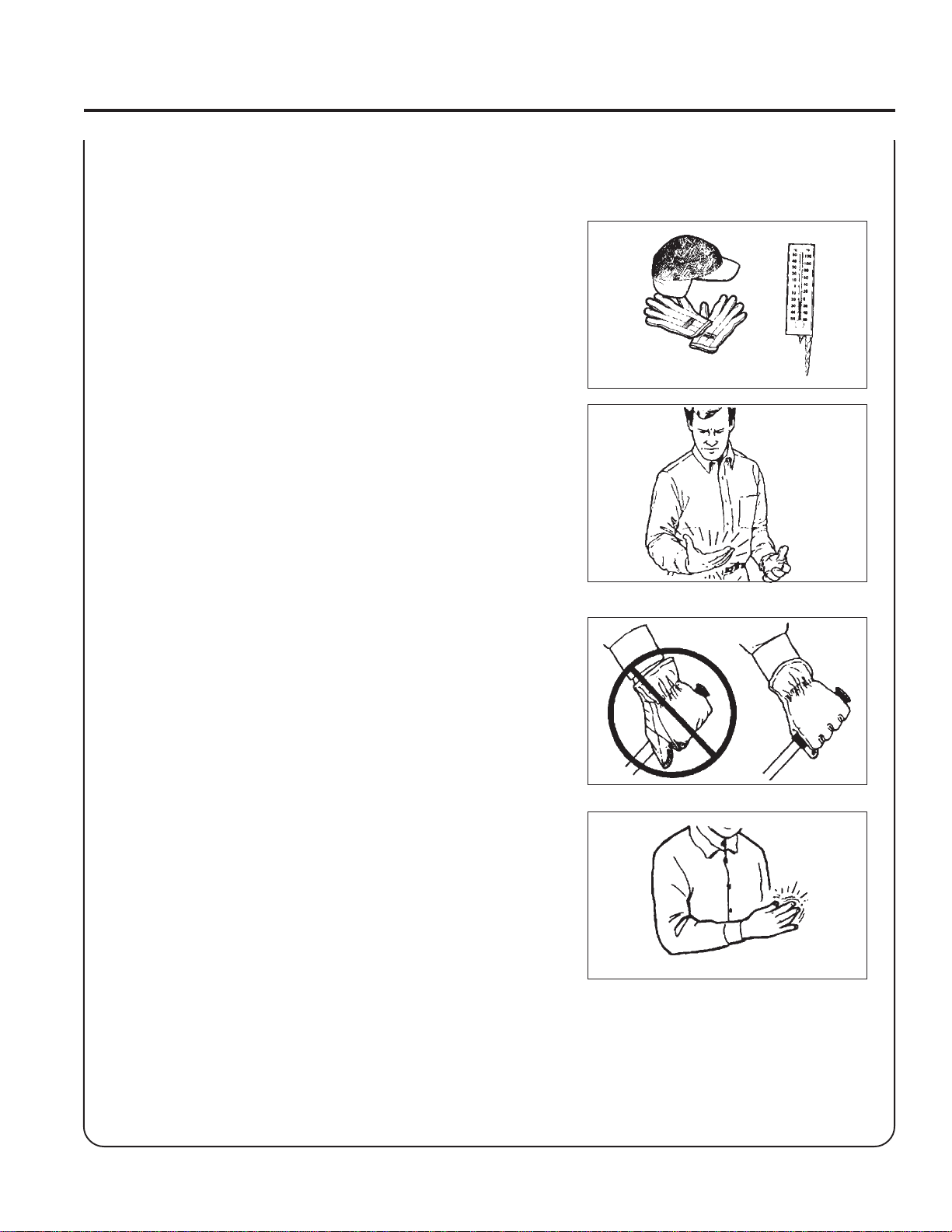

PERSONAL CONDITION &SAFETY EQUIPMENT
WARNING DANGER
Power Pruner™users risk injury to themselves and others if the Power Pruner™is used improperly and or safety
precautions are not followed. Proper clothing and safety gear must be worn when operating a Power Pruner™.
Physical Condition --
Your judgment and physical dexterity may not be good:
• if you are tired or sick,
•if you are taking medication,
• if you have taken alcohol or drugs.
Operate unit only if you are physically and mentally well.
Eye Protection --
Wear eye protection that meets ANSI Z87.1 requirements whenever you
operate the Power Pruner™.
Face & Head Protection --
When trimming overhead, always wear head protection meeting ANSI
Z89.1with a full face shield. Headprotectionwithfullface shield will
help protect you from falling branches and debris.
Hand Protection --
Wear no-slip, heavy duty work gloves to improve your grip on the
Power Pruner™handles. Gloves also reduce the transmission of
machine vibration to your hands.
Hearing Protection --
ECHO recommends wearing hearing protection whenever unit is used.
Proper Clothing --
Wear snug fitting, protective, durable clothing; (chainsaw safety pants
or chaps are recommended).
• Pants should have long legs, shirts with long sleeves.
• DONOTWEARSHORTS,
• DONOTWEARTIES,SCARVES,JEWELRY.
Wear sturdy, protective, safety shoes or boots with non-skid soles;
• DONOTWEAROPENTOEDSHOES,
• DONOTOPERATEUNITBAREFOOTED.

P OWER P RUNER ™
O PERATOR ' S M ANUAL
7

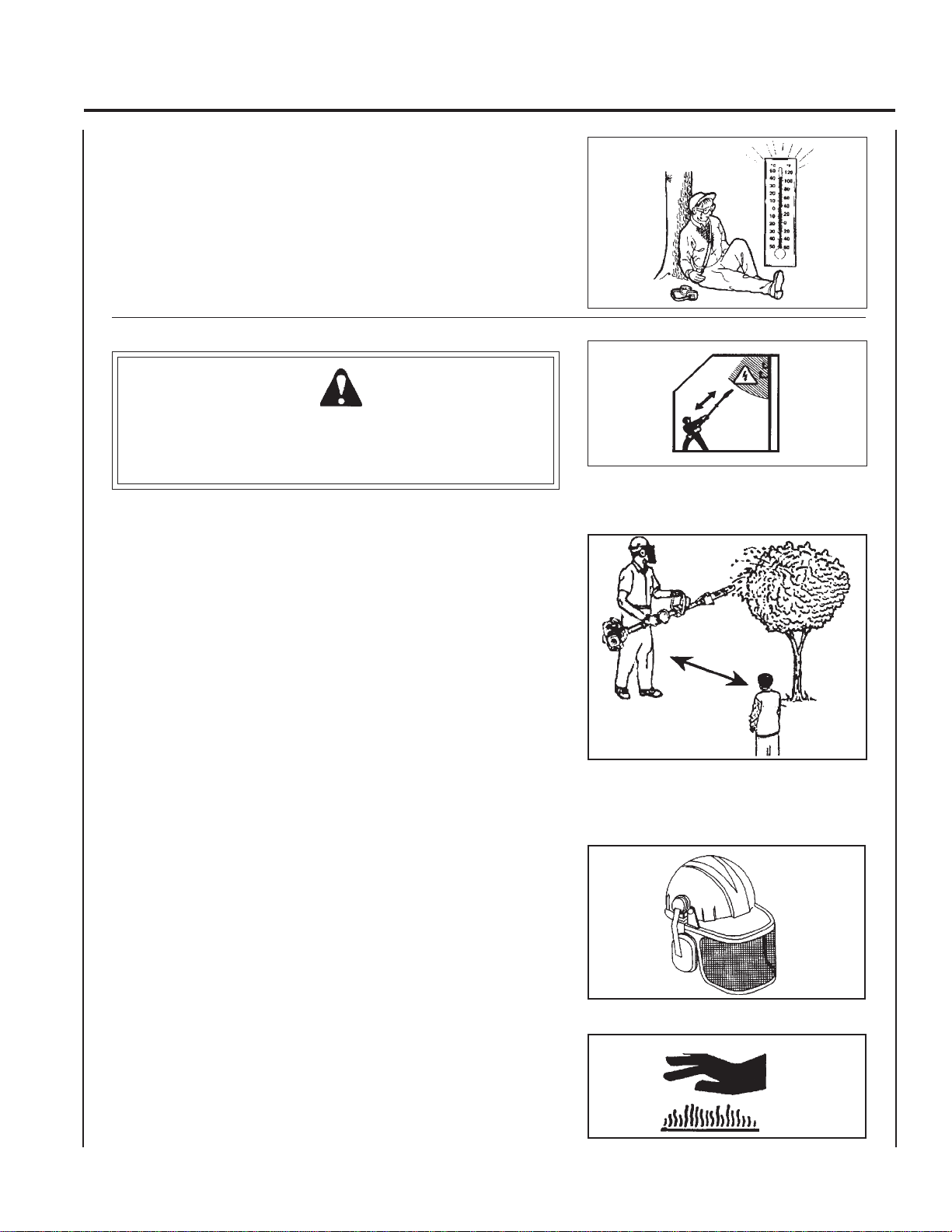

Hot Humid Weather --
Heavy protective clothing can increase operator fatigue which may lead
to heat stroke. Schedule heavy work for early morning or late afternoon
hours when temperatures are cooler.
SAFE OPERATION
WARNING DANGER
All over head electrical conductors and communications wires can
have electricity flow with high voltages. Never touch wires directly
or indirectly when pruning, otherwise serious injury or death may
result.
Determine Operation Area
• Provide all operators of this equipment with the Operator's Manual
and instructions for safe operation.
• Do not operate this product indoors or in inadequately ventilated
areas.
• Review the area to be trimmed. Look for hazards that could contribute
to unsafe conditions. DO NOT operate unit if any wires (power,
telephone, cable, etc.) are closer than 15 M (50 ft.) to any part of the
operator or unit.
• Spectators and fellow workers must be warned, and children and
animalspreventedfromcomingnearer than 15 M (50 ft.) while the
Power Pruner™is in use.
• Avoid all power lines. This unit is not insulated against electrical
current.
Operation
UseProperClothing&Equipment
• Before starting the unit, equip yourself and any other person
working within the 15 M (50 ft.) Safety Zone with the required
Protective Equipment and clothing.
• Always wear head protection with full face shield to help protect
against falling branches and debris.
AvoidHotSurfaces
• During operation, the complete unit, especially the power head,
muffler area and cutting attachment may become very hot, too hot to
touch.Avoid contact during and immediately after operation.
15 M
(50ft.)

8
KeepAFirmGrip
• Grip Power Pruner™with both hands with thumbs and fingers
encircling the front and rear handles.
KeepASolidStance
• Maintain footing and balance at all times. Do not stand on slippery,
uneven or unstable surfaces. Do not work in odd positions or on
ladders. Do not overreach.
• Operate the Power Pruner™only from the ground or out of an
approved bucket lift.
• Always evaluate the branches to be pruned for hazards such as loose
dead branches which may fall and strike the operator or helpers.
Remove hazards before pruning.
• Plan retreat path from falling objects.
• Cut branches bounce when striking ground.
• Turn the Power Pruner™off when moving from tree to tree.
• Avoid any contact with saw chain.

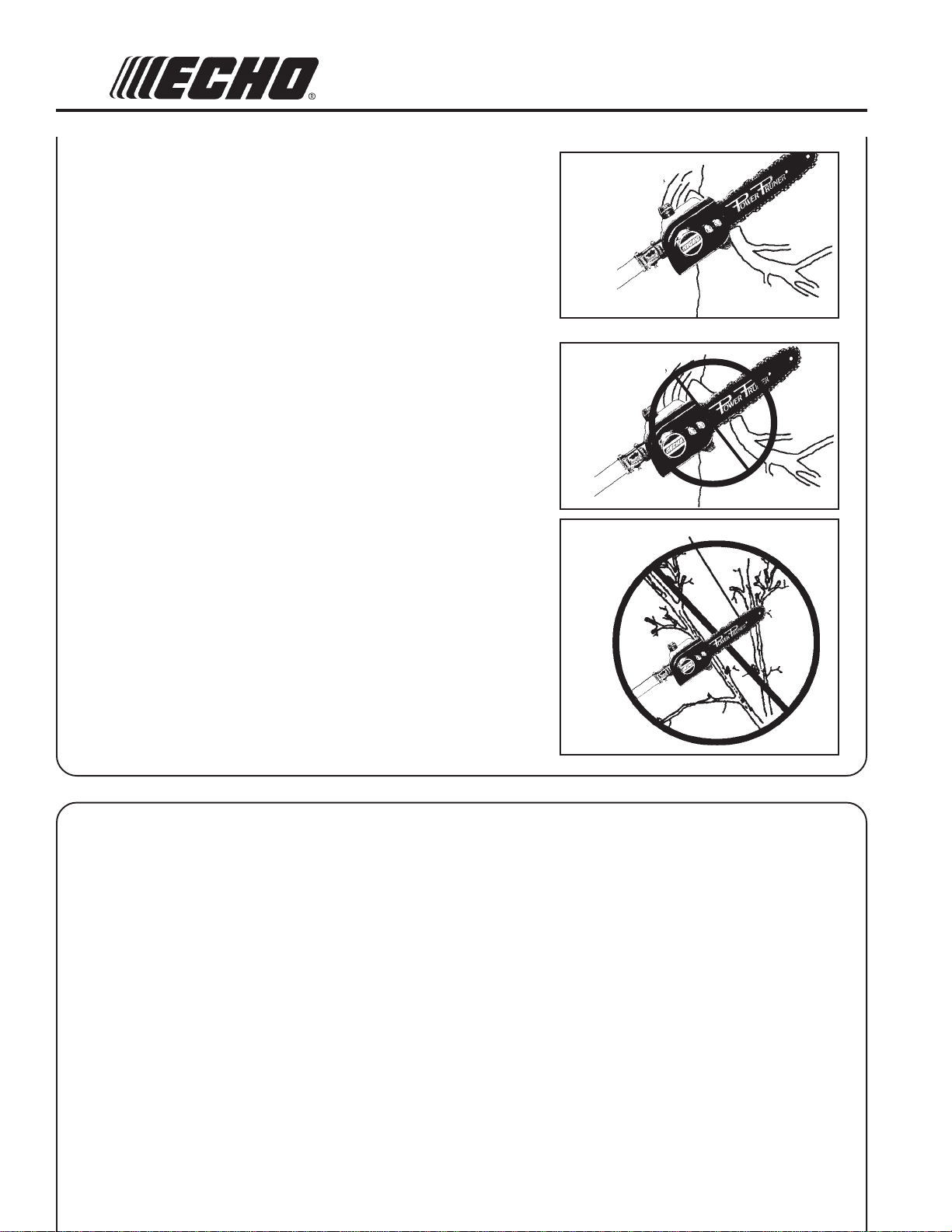

KICKBACK
WARNING DANGER
Kickback can lead to dangerous loss of control of the Power
Pruner™and result in serious injury to the operator or any one
standing close by. Hold the Power Pruner™firmly with both hands
with thumbs and fingers encircling the front and rear handles. Be
aware of the down and outward path the pruner will take after the
cut is made.
Kickback may occur when the moving saw chain at the nose or tip of
the guide bar touches an object, or when the wood closes in and
pinches the saw chain in the cut. In some cases this may cause a
lightning-fast reverse action, kicking the guide bar and saw chain up
and back or down and back towards the operator. Either of these
reactions may cause the operator to lose control of the Power Pruner™
which could result in serious personal injury.
With a basic understanding of kickback, you can reduce or eliminate the
element of surprise which contributes to accidents.
Avoid contact of the guide bar tip with any object while the saw chain
ismoving.
Cut only wood. Avoid striking concrete, metal, wire, or other obstruc-
tions which could cause kickback or damage to the saw chain.
If the saw chain does strike a foreign object, immediately stop the
engine, inspect and repair the Power Pruner™if necessary.

P OWER P RUNER ™
O PERATOR ' S M ANUAL
9
EXTENDED OPERATION/EXTREME CONDITIONS
Vibration and Cold
It is believed that a condition called Raynaud’s Phenomenon, which
affects the fingers of certain individuals may be brought about by
exposure to vibration and cold. Exposure to vibration and cold may
cause tingling and burning sensations followed by loss of color and
numbness in the fingers. The following precautions are strongly
recommendedbecausetheminimumexposurewhichmighttriggerthe
ailmentisunknown.
• Keep your body warm, especially the head, neck, feet, ankles, hands
and wrists.
• Maintain good blood circulation by performing vigorous arm
exercises during frequent work breaks and also by not smoking.
• Limit the hours of operation. Try to fill each day with jobs where
operating the trimmer or other hand-held power equipment is not
required.
• If you experience discomfort, redness and swelling of the fingers
followed by whitening and loss of feeling, consult your physician
before further exposing yourself to cold and vibration.
Repetitive Stress Injuries
It is believed that overusing the muscles and tendons of the fingers,
hands, arms and shoulders may cause soreness, swelling, numbness,
weakness and extreme pain in those areas. Certain repetitive hand
activities may put you at a high risk for developing a Repetitive Stress
Injury(RSI).AnextremeRSIconditionisCarpalTunnelSyndrome
(CTS), which could occur when your wrist swells and squeezes a vital
nerve that runs through the area. Some believe that prolonged exposure
to vibration may contribute to CTS. CTS can cause severe pain for
months or even years.
To reduce the risk of RSI/CTS, do the following:
• Avoid using your wrist in a bent, extended or twisted position.
Instead try to maintain a straight wrist position. Also, when grasping,
use your whole hand, not just the thumb and index finger.
• Take periodic breaks to minimize repetition and rest your hands.
• Reduce the speed and force with which you do the repetitive
movement.
• Do exercises to strengthen the hand and arm muscles.
• Immediately stop using all power equipment and consult a doctor if
you feel tingling, numbness or pain in the fingers, hands, wrists or
arms. The sooner RSI/CTS is diagnosed, the more likely permanent
nerve and muscle damage can be prevented.

10
EMISSION CONTROL TYPE 1EMODELS
The emission control system for this engine is EM
(EngineModification).
EmissionControlLabel locatedonEngine
(EXAMPLEONLY,informationonlabelvariesby
FAMILY).
DESCRIPTION
The ECHO product you have purchased does not require assembly.
After opening the carton, check for damage. Immediately notify your retailer or ECHODealer of damaged or missing
parts. Use the contents list to check for missing parts.
IMPORTANT ENGINE INFORMATION
ENGINE FAMILY : TEH021UB24RA
DISPLACEMENT : 21.2cc
THIS ENGINE MEETS U.S. EPA PHI AND 1995 -
1999 CALIFORNIA EMISSION REGULATIONS
FOR ULGE ENGINES. REFER TO OWNER’S
MANUAL FOR MAINTENANCE SPECIFICATIONS
AND ADJUSTMENTS.
CONTENTS LIST
__ Power Head/Shaft Tube/Cutting Attachment Assembly
__ PlasticBag
__ Operator's Manual
__ Safety Manual
__ How to Prune Manual
__ Warranty Registration Card
__ Warranty Statement
__ PlasticBag
__ CombinationT-Wrench
__ 1Bottle2-cycleEngineOil
__ Safety Glasses
__ GuideBarCover
IMPORTANTThissparkignitionsystemcomplieswithCanadianICES-002.

P OWER P RUNER ™
O PERATOR ' S M ANUAL
11
1
2
11
3
4
5
6
7
8
910
12
20
21
14
15
16
17
18
19
22
23
13

12
1. POWERHEAD-IncludestheEngine,Clutch,FuelSystem,IgnitionSystemandRecoilStarter.
2. REARHANDLE - Sturdy handle for right hand placement. Includes stop switch and throttle trigger.
3. THROTTLETRIGGERLOCKOUT-Asafetyleverwhichmustbedepressedbeforethethrottletriggercanbe
activated. Prevents accidental operation of throttle trigger.
4. STOP SWITCH - Mounted on top of handle assembly. Move switch forward to run, back to stop.
5. FRONTHANDLEW/HANDGUARD-Allpositiongripforlefthand
6. AUTOMATICOILERASSEMBLY-Selfoiling.Usehighquality,lowviscosity,non-detergentbarandchainoil.
7. SAWCHAIN-91VS 9.53mm(3/8in.)lowprofileOregon®sawchain.Runsapproximately609.6m/min(2000ft/
min)atfullthrottle.
8. GUIDEBAR- (PPSR-2122) 254mm(10in.)GuideBar,(PPSR-2433) 305mm(12in.)GuideBar.
9. CUTTING SHOE - Used to capture and stabilize branch while cutting. Place cutting shoe against branch, acceler-
ate and lower saw chain into branch.
10. CUTTINGATTACHMENT-Sealed,gearratiois1.5:1reduction.
11. THROTTLETRIGGER-Springloadedtoreturntoidlewhenreleased. Duringaccelerationpressthrottletrigger
gradually for best operating technique.
12. ARM REST - Provides arm rest during operation and protects arm from hot engine.
13. SPARKPLUG-Providessparktoignitefuelmixture.
14. PRIMERBULB-Pumpingprimerbulb beforestartingenginedraws fresh fuelfromthe fuel tankprimingthe
carburetor for starting. Pump the bulb 10 times until fuel is visible in clear fuel return line.
15. MUFFLER,SPARKARRESTER-Themufflercontrolstheexhaustnoisewhilethesparkarrestorpreventshot,
glowing particles of carbon from leaving the muffler where they could possibly start a fire.
16. RECOILSTARTER -Pullhandleslowlyuntilrecoilstarterengages,thenquickly and firmly. When engine starts
return handle slowly. DO NOT let handle snap back or damage will occur.
17. FUELTANK-Containsfuelandfuelfilter.
18. FUELTANKCAP-Coversandsealsfueltankopening.
19. AIRCLEANERASSEMBLY-Containsreplaceableairfilterelement.
20. CHOKE - Located above air cleaner housing. Controls operation of choke. Move choke to starting position (Close
Choke) and back to run position (Open Choke).
21. OPERATOR'SMANUAL- Read andunderstand this manualbefore operation.Keep manualin a safelocation for
future reference, i.e., operation, maintenance, storage and specifications.
22. SAFETY MANUAL - Read before operation and keep in a safe place for future reference to learn proper, safe
operating techniques.
23. GUIDE BAR COVER - Used to cover guide bar and saw chain during transport and storage. Remove guide bar
cover before using unit.

P OWER P RUNER ™
O PERATOR ' S M ANUAL
13
SPECIFICATIONS
Specifications, descriptions and illustrative material in this literature are as accurate as known at the time of publication, but are subject
to change without notice. Illustrations may include optional equipment and accessories, and may not include all standard equipment.
MODEL PPSR-2122 PPSR-2433
Len
g
th 112.1 cm (44.125 in.) 142.9 cm (56.25 in.)
Width 22.2 cm (8.75 in.)
Hei
g
ht 22.9 cm (9.0 in.)
Wei
g
ht (dry) 4.7 k
g
(10.3 lb.) 5.0 k
g
(10.9 lb.)
En
g
ine Type Air cooled, two-stroke, sin
g
le cylinder
g
asoline en
g
ine
Bore 32.2 mm (1.268 in.) 34.0 mm (1.34 in.)
Stroke 26.0 mm (1.04 in.)
Displacement 21.2 cc (1.29 cu. in.) 23.6 cc (1.44 cu. in.)
Exhaust System Spark Arrestor Muffler
Carburetor Diaphra
g
m, w/primer bulb
I
g
nition System CDI (capacitor dischar
g
e i
g
nition)
Spark Plu
g
NGK BPM-7A Gap 0.65 mm (0.026 in.) NGK BPM-7Y Gap 0.65 mm (0.026 in.)
Fuel Mixed (Gasoline and Two-stroke Oil)
Fuel/Oil Ratio 50:1 ECHO®Hi
g
h Performance, two-stroke air cooled en
g
ine oil
Gasoline 89 Octane unleaded. DO NOT use fuel containin
g
methyl alcohol,
more than 10% ethyl alcohol or 15% MTBE.
Oil 50:1 ECHO®Hi
g
h Performance, two-stroke air cooled en
g
ine oil
Fuel Tank Capacity 0.4 lit. (14.0 US fl. oz.)
Recoil Starter System Automatic Recoil Starter
Clutch Centrifu
g
al Type
Sprocket Type 6 tooth spur, 9.53 mm (3/8 inch) pitch
Shaft Tube Assembly 22.3 mm Dia. Polished Aluminum Tube - 1/4 in. Flexible
Gear Case Ratio 1.5:1
Oilin
g
System Automatic
Chain Oil Capacity 225 ml (7.6 oz.)
Handles Ri
g
ht hand
g
rip w/throttle tri
gg
er and throttle tri
gg
er lockout / Left hand loop w/hand
g
uard
Idle Speed (RPM) 2600 - 3100
Wide Open Throttle Speed (RPM) 9000 - 11000 11000 - 12000
Guide Bar and Saw Chain 254 mm (10 in.) ; 9.53 mm (3/8 inch) pitch chain 305 mm (12 in.) ; 9.53 mm (3/8 inch) pitch chain

14
ASSEMBLY
For your convenience the Power Pruner™has been shipped completely assembled. We recommend the power head
remain attached to the shaft tube at all times.
SAW CHAIN TENSION ADJUSTMENT
WARNING DANGER
Always wear gloves when handling saw chain, otherwise serious personal injury may result.
To Adjust Saw Chain Tension.
1. Loosen two (2) 10 mm (13/32 in.) guide bar nuts (A) located on
cutting attachment using the T-wrench provided.
2. Turn saw chain tensioner screw (B) (located next to guide bar in
sprocket cover) clockwise to tighten saw chain on guide bar.
Turning screw counter clockwise will loosen saw chain on guide
bar.
3. Tighten guide bar nuts firmly. Move saw chain backwards on
guide bar by hand. Saw chain should move freely on guide bar if it
is in proper mesh with sprocket.
Keep the saw chain lubricated and properly adjusted and the guide
bar nuts tightened firmly at all times. If saw chain is difficult to
rotate or binds on guide bar, it is too tight.
B
A

P OWER P RUNER ™
O PERATOR ' S M ANUAL
15
PRE-OPERATION
FUEL
Fuel Requirements
Gasoline - Use 89 Octane [ ] gasoline or gasohol known to be good
quality. Gasohol may contain up to 10% Ethyl (grain) alcohol or 15%
MTBE(methyltertiary-butylether). Gasoholcontainingmethanol
(wood alcohol) is NOT approved.
Two-StrokeOil - Atwo-strokeengineoilmeetingISO-L-EGDStandard
(ISO/CD13738),mustbeused.ECHO®brandPremium50:1oilmeetsthis
standard. Engine problems due to inadequate lubrication caused by
failuretouseanISO-L-EGDapprovedoil,suchasECHO®Premium50:1
Two-strokeOil,willvoidthetwo-strokeenginewarranty.(Emission
related parts only are covered for two years, regardless of two-stroke
oil used, per the statement listed in the EPA Phase I/California Emission
DefectWarrantyExplanation.)
Mixing - Follow directions on the oil container.
Handling Fuel
WARNING DANGER
FuelisVERYflammable.Useextremecarewhenmixing,storingor
handling, or serious personal injury may result.
• Use an approved fuel container.
• DONOTsmokenearfuel.
• DONOTallowflamesorsparksnearfuel.
• Fuel tanks/cans may be under pressure. Always loosen fuel caps
slowly allowing pressure to equalize.
• NEVERrefuelaunit whentheengineisHOT!
• NEVERrefuel aunitwiththeenginerunning.
• DONOT fillfueltanksindoors. ALWAYSfillfuel tanksout
doors over bare ground.
• Securely tighten fuel cap after refueling.
• Inspect for fuel leakage. If fuel leakage is found, do not start or
operate unit until leakage is repaired.
AfterRefueling;
• Wipe any spilled fuel from the unit.
• Move at least 3 M (10 ft.) from refueling location before starting
the engine.
Afteruse;
• DO NOT store a unit with fuel in its tank. Leaks can occur.
Return unused fuel to an approved fuel storage container.
Storage -
Fuel storage laws vary by locality. Contact your local government for
the laws affecting your area. As a precaution, store fuel in an approved,
air tight container. Store in a well ventilated, unoccupied building, away
from sparks and flames. Do not store fuel longer than 30 days.
R + M
2
3 M
(10ft.) Minimum

16
IMPORTANT
Stored fuel ages. Do not mix more fuel than you expect to use in
thirty (30) days, ninety (90) days when a fuel stabilizer is added.
IMPORTANT
Stored two-stroke fuel may separate. ALWAYS shake fuel con-
tainer thoroughly before each use.
SMTWTF S
1234567
8 9 10 111213 14
1516 17 1819 20 21
2223 24 2526 27 28
2930 31
LUBRICATING THE GUIDE BAR AND SAW CHAIN
Automatic Oiling System
1. Wipe debris from around oil fillcap.
2. Remove oil fill cap and fill reservoir withaquality,lowviscosity
guide bar and saw chain oil.
NOTE
The discharge volume of the automatic oiler is preset to deliver 3 to
4 cc/min. at normal operating RPM. During heavy or dry cutting
conditions the oil discharge volume may be adjusted to assure
adequate lubrication. Refill the oil reservoir with each tank of fuel.
IMPORTANT
To prevent plastic deterioration, do not use synthetic or silicone
based oil.
ADJUSTINGAUTOMATIC OILER
Toolsrequired: 10x19mm(13/32x3/4)T-Wrenchprovided
1. Remove two (2) 10 mm guide bar retaining nuts and sprocket cover.
2. From bottom of gear case, turn adjustment screw (A) clockwise to
decrease oil volume - counter clockwise to increase oil volume.
NOTE
Verylittle visible oil onthe saw chainwill providesufficient
lubrication.
A

P OWER P RUNER ™
O PERATOR ' S M ANUAL
17
EQUIPMENT CHECK
Before operation a complete check of the unit must be performed;
• Check unit for loose/missing nuts, bolts and screws. Tighten and/or
replace as needed.
• Inspect fuel lines, tank and area around carburetor for fuel leaks. DO
NOT operate unit if leaks are found.
• Check that the cutting attachment is firmly attached and the saw chain
is correctly tensioned on the guide bar. Dull, loose or damaged saw
chain should not be used. Refer to page 28 for correct Filing Saw
Chainprocedure.
DETERMINE OPERATION AREA
• Before staring the unit, equip yourself and fellow workers in the 15 M
(50 ft.) safety zone with the required protective equipment and
clothing.
• Review the area to be trimmed. Look for hazards that could
contribute to unsafe conditions.
• Spectators, children and animals must be prevented from coming
nearer than 15 M (50 ft.) while the pruner is in use.
15 M
(50ft.)

18

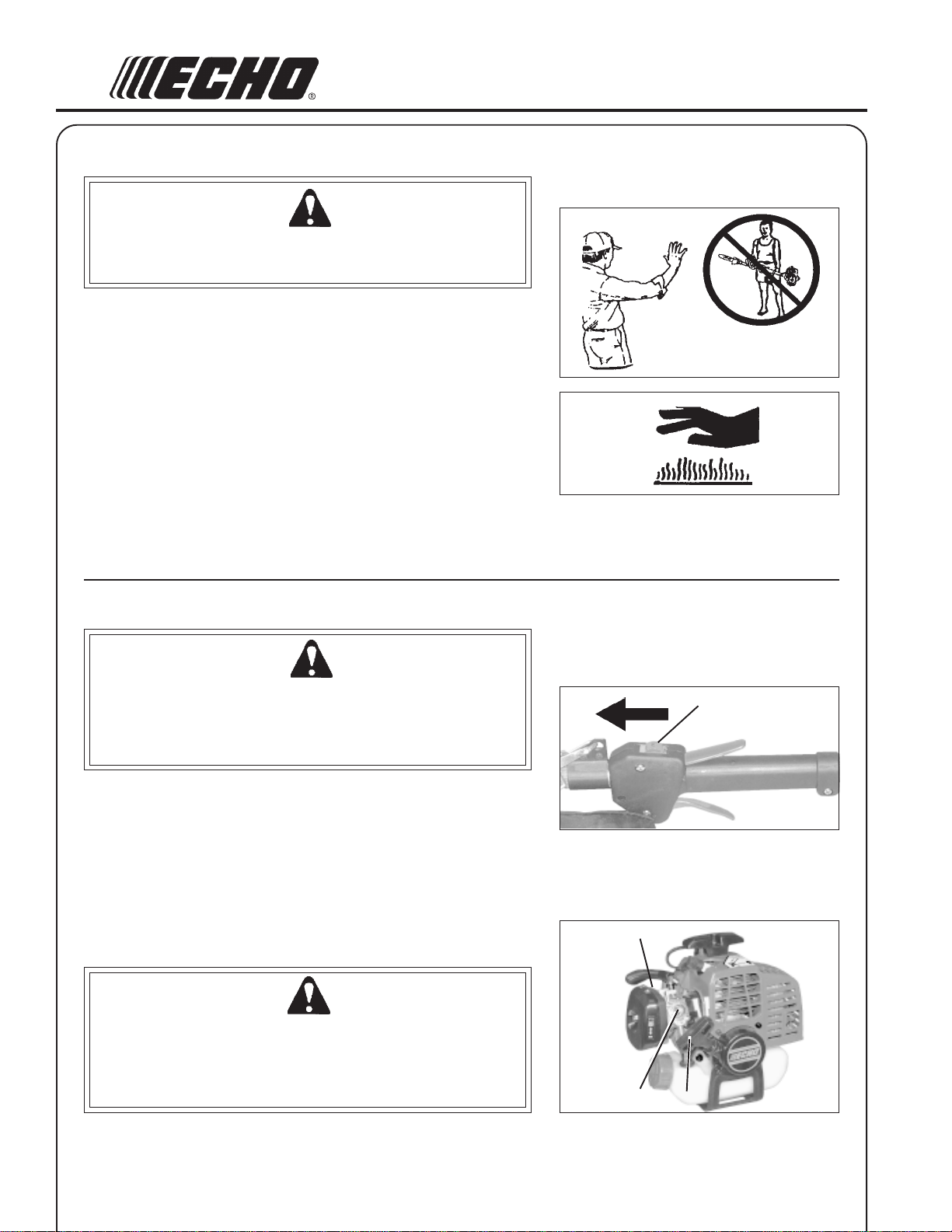

OPERATION
WARNING DANGER
Do not operate this product indoors or in inadequately ventilated
areas. Engine exhaust contains poisonous emissions which can
cause serious injury or death.
• Provide all operators of this equipment with the Operator's Manual
and instructions for safe operation.
• Before starting the unit, equip yourself and any other person
working within the 15 M (50 ft.) Safety Zone with the required
Protective Equipment and clothing.
• Always evaluate the area being cut for overhead hazards such as
dead branches which may fall and strike the operator or helpers.
• Be aware of branches bouncing when striking the ground.
• Larger branches should be removed in sections.
• During operation, the complete unit, especially the shaft tube and the
cutting attachment may become very hot, too hot to touch. Avoid
contact during and immediately after operation.
• Grip Power Pruner™with both hands with thumbs and fingers
encircling the front and rear handles.
STARTING COLD ENGINE
WARNING DANGER
The cutting attachment should not move at idle. If cutting attach-
ment moves, readjust carburetor according to "Carburetor Adjust-
ment" instructions in this manual or see yourECHO Dealer,
otherwise serious personal injury may result.
1. Stop Switch - Start/Run.
Move stop switch button (A) forward away from the STOP
position.
2. Choke-ColdStart.
Move choke (B) to “Cold Start” Position.
3. PrimerBulb-Purge.
Pumpprimerbulb(C)10times.Fuelwillbevisibleandflowfreelyin
the clear fuel tank return line.
WARNING DANGER
Inspect starting area for hazards such as rocks, glass, debris etc.
which could be contacted by the cutting attachment when starting.
Keep helpers and bystanders at least 15 M (50 ft.) from starting
area, otherwise serious personal injury may result.
A
B
CD

P OWER P RUNER ™
O PERATOR ' S M ANUAL
19

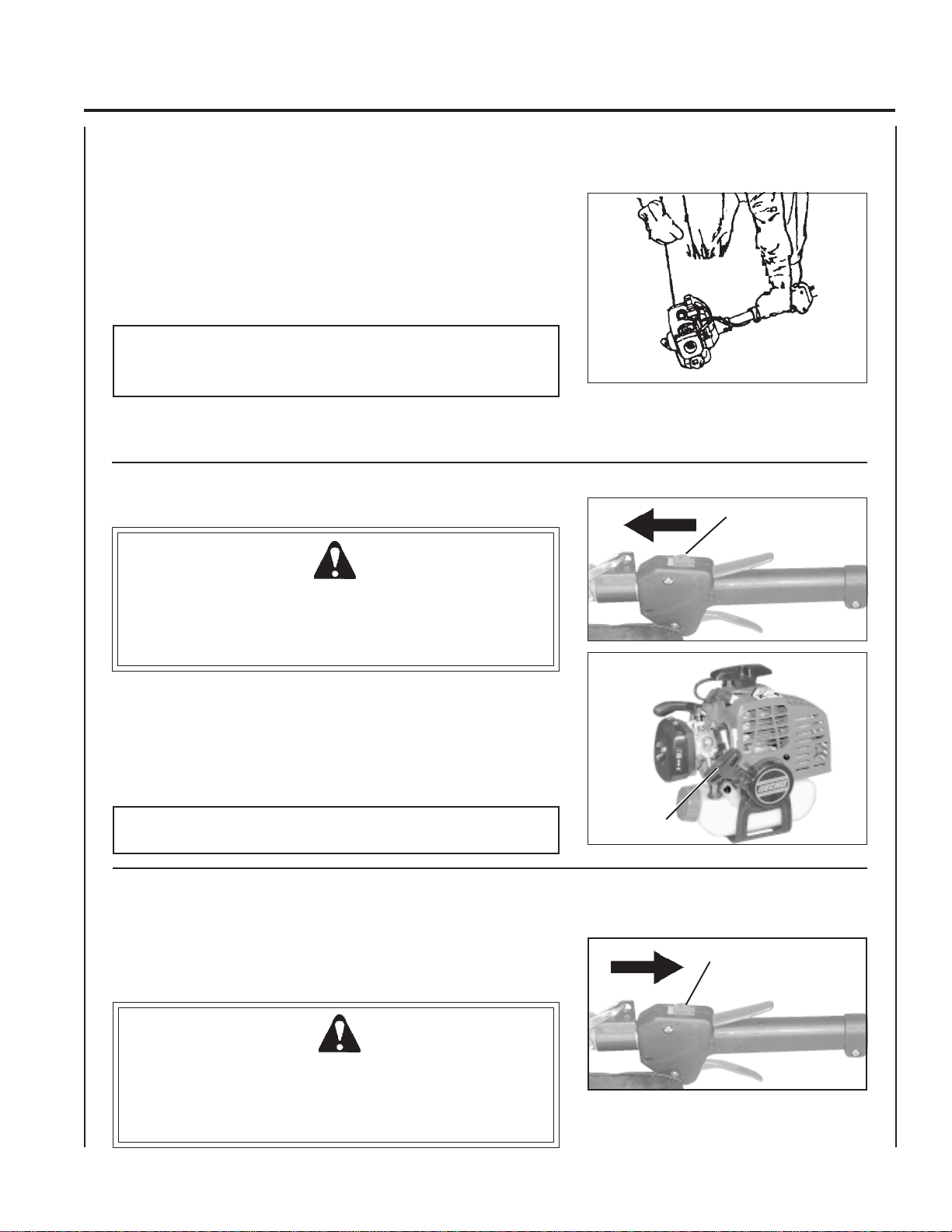

4. Lay the pruner on a flat clear area. Firmly grasp right hand grip and
throttle trigger lockout with left hand and fully depress throttle
trigger to wide open position. Rapidly pull recoil starter handle/
rope(D)untilenginefires(ormaximumfive[5]pulls).
5. After engine fires (or five [5] pulls), move choke lever back to
“Run” position. Hold throttle trigger and throttle trigger lockout
fully depressed and pull recoil starter handle/rope until engine
starts and runs. Release throttle trigger and allow unit to warm up
at idle for several minutes.
NOTE
If engine does not start with choke in “Run” position after 5 pulls,
repeat instructions.
6. After engine warm up, gradually depress throttle trigger to increase
engine RPM to operating speed.
STARTING WARM ENGINE
WARNING DANGER
The cutting attachment should not move at idle. If cutting attach-
ment moves, readjust carburetor according to "Carburetor Adjust-
ment" instructions in this manual or see your ECHO Dealer,
otherwise serious personal injury may result.
1. Stop Switch - Start/Run. Move Stop Switch button (A) forward
away from the STOP position.
2. Start - Pull Rope. Lay the pruner on a flat clear area and pull
the recoil starter handle (D) until the engine fires.
NOTE
If engine does not start after 5 pulls, use Cold Start Procedure.
STOPPING ENGINE
1. Release Throttle. Allow engine to idle for a minute.
2. Stop Switch - Stop. Move stop switch button (A) backward to
STOPposition.
WARNING DANGER
If engine does not stop when stop switch is moved to STOP
position, close choke - COLD START position - to stall engine.
Have your ECHO dealer repair stop switch before using pruner
again.
A
A
D

20
PRUNING TECHNIQUES
ThePowerPruner™isdesignedfor light to medium trimmingoflimbs
and branches up to 203 mm (8 in.) in diameter. Follow these tips for
successful operation.
• Plancutcarefully.Checkdirectionbranchwillfall.
• Long branches should be removed in several pieces.
• Do not stand directly beneath branch being cut.
• When ready to cut:
Hold "cutting shoe" against branch. This will prevent whipping of
the branch. DO NOT use back and forth sawing action.
• Look out for branches immediately behind the branch being cut. If
saw chain hits rear branch damage to the saw chain my occur.
• Accelerate to full throttle.
• Apply cutting pressure.
• Ease cutting pressure when nearing end of cut to maintain control.
• Whenpruningalimb 102mm(4 in.)diameterorlargercut asfollows:
1. Under cut1/4limb diameter neartreetrunk.
2. Finish top cut slightly farther out on limb.
3. Flush cut stub at trunk.
• DONOTuse for felling or bucking.
MAINTENANCE
Your ECHO Power Pruner™is designed to provide many hours of trouble free service. Regular scheduled maintenance
will help your pruner achieve that goal. If you are unsure or are not equipped with the necessary tools, you may want to
take your unit to an ECHO dealer for maintenance. To help you decide whether you want to DO-IT-YOURSELF or have
the dealer do it, each maintenance task has been graded. If the task is not listed see your ECHO dealer for repairs.
SKILL LEVEL
Level1= Easy to do. Most required tools come with unit.
Level2= Moderatedifficulty. Some specialized tools maybe required.
Level3= Experiencerequired.Specializedtoolsarerequired.
ECHO offers REPOWER™Maintenance Kits and Parts to make your maintenance job easier. Just below each task
heading are listed the various part numbers required for that task. See your ECHO dealer for these parts.
BLADEHITSREARBRANCH
NOT
CORRECT
CORRECT
GUIDEAGAINST
BRANCH
NOT
CORRECT
