Echo SRM-260 - 12-00 User manual

Grass Trimmer/Brush Cutter
Operator's Manual
MODELS, SRM - 260
SRM - 260S
Serial Number 04001001 - 04999999
WARNING DANGER
Read rules for safe operation and instructions carefully. ECHO provides an
Operator's Manual and a Safety Manual. Both must be read and understood for
proper and safe operation. Failure to do so could result in serous injury.
X7502096100 X750002010
12/00

2
INTRODUCTION
Welcome to the ECHO family. This ECHO product was designed and manufactured to provide long life and on-the-
job-dependability. Read and understand this manual and the SAFETY MANUAL you found in the same package. You
will find both easy to use and full of helpful operating tips and SAFETY messages.
WARNING DANGER
Read rules for safe operation and instructions carefully. ECHO provides an Operator's Manual and a Safety Manual.
Both must be read and understood for proper and safe operation.
THE OPERATOR'SMANUAL
contains specifications and information for operation, starting,
stopping, maintenance, storage and assembly specific to this product.
THE SAFETY MANUAL
explains possible hazards involved with the use of Grass Trimmers and
Brush Cutters and what measures you should take to make their use
safer.
TABLE OF CONTENTS
Introduction ........................................................................ 2
- The Operator's Manual ............................................ 2
- The Safety manual ................................................... 2
Manual Safety Symbols and Important Information .......... 3
Safety ................................................................................. 3
- Decals ...................................................................... 3
- International Symbols.............................................. 4
- Equipment ............................................................... 5
- Fuel .......................................................................... 6
- Personal Condition and Safety Equipment.............. 6
- Safe Operation ......................................................... 8
- Extended Operation/Extreme Conditions................ 9
Description ....................................................................... 10
- Contents ................................................................. 10
- Blade Terms and Definitions ................................. 11
- Emission Control ................................................... 11
Specifications.................................................................... 13
Assembly.......................................................................... 14
- PlasticShieldInstallation ....................................... 14
- Nylon Head Installation ........................................ 15
- Front Handle Installation....................................... 15
- Accessory Installation ........................................... 15
- Harness Clamp Installation ................................... 16
- Metal Shield Installation........................................ 17
- U-Handle Installation ............................................ 17
Pre-Operation ................................................................... 20
- Operation with Blades........................................... 20
- Fuel ........................................................................ 22
- Equipment Check .................................................. 23
- Determine Operation Area .................................... 24
Operation.......................................................................... 24
- StartingColdEngine .............................................. 25
- StartingWarmEngine ............................................ 26
- StoppingEngine..................................................... 27
Maintenance ..................................................................... 27
- SkillLevels............................................................. 27
- Maintenance Intervals ........................................... 28
- Air Filter ................................................................ 29
- Fuel Filter .............................................................. 29
- SparkPlug.............................................................. 30
- CoolingSystemCleaning ....................................... 30
- Exhaust System ..................................................... 31
- Carburetor Adjustment.......................................... 32
- Lubrication............................................................. 33
- Nylon Line Replacement ....................................... 34
- Sharpening Metal Blades ....................................... 35
Troubleshooting................................................................ 36
Storage .............................................................................. 37
ServicingInformation........................................................ 40
- Parts....................................................................... 40
- Service .................................................................... 40
- ECHO Consumer Product Support....................... 40
- Warranty Card ....................................................... 40
- Additional or Replacement Manuals ..................... 40
Specifications, descriptions and illustrative material in
this literature are as accurate as known at the time of
publication, but are subject to change without notice.
Illustrations may include optional equipment and
accessories, and may not include all standard equipment.
CopyRight© 2000 By Echo, Incorporated
All Rights Reserved.

G RASS T RIMMER /B RUSH C UTTER
O PERATOR ' S M ANUAL
3
This symbol accompanied by the words WARNING and
DANGER calls attention to an act or condition that can lead to
serious personal injury to operator and bystanders.
The circle with the slash symbol means whatever is shown
within the circle is prohibited.
MANUAL SAFETY SYMBOLS AND IMPORTANT INFORMATION
IMPORTANT The enclosed message
provides information necessary for the
protection of the unit.
NOTE Thisenclosedmessageprovidestipsfor
use, care and maintenance of the unit.
Throughout this manual and on the product itself, you will find safety
alerts and helpful, information messages preceded by symbols or key
words. The following is an explanation of those symbols and key
words and what they mean to you.
SAFETY
DECALS
Locate these safety decals on your unit. The complete unit illustration, found in the "DESCRIPTION" section, will help
you locate them. Make sure the decals are legible and that you understand and follow the instructions on them. If a decal
cannot be read, a new one can be ordered from your ECHO dealer. See PARTS ORDERING instructions for specific
information.
WARNING DANGER
Thisunitcan bedangerousand cause
serious injury if improperly used. to
reduce injury risk to operator, helpers
and bystanders, read and understand
the Operator's and Safety Manuals,
which are provided in Spanish.
ADVERTENCIA PELIGRO
Esta unidad puede ser peligrosa y producir lesiones
personales graves si no se usa en forma adecuada.
Para reducir el riesgo de lesionarse, los operadores,
los ayudantes y los espectadores deben leer y
comprender el Manual Del Operador y los Manuales
De Seguridad que se entregan escritos en español.
89017740630
Shaft Decal
Spanish Decal English Translation

4
Shaft Decal
WARNING DANGER
•This unit can be dangerous and cause serious injury if improperly
used. To reduce injury risk to operator, helpers and bystanders, read
and understand the Operator's and Safety manuals.
• Blindness can occur from objects that are thrown or ricocheted even
with shield in place. Operators, helpers and bystanders must wear
ANSI Z87.1 approved eye protection.
• Always wear hearing protection when operating unit.
• Prevent accidental contact with unit and any cutting attachment.
Maintaina15m(50ft.)radius,DANGERZONEsurroundingthe
operator. ONLY the operator, dressed in proper protective clothing
shouldbeintheDANGERZONE.
• BewareofKICKOUT(bladethrust)whenusingblades. Special
precautions are necessary for blade operation, see your Operator's
and Safety Manuals. ONLY install ECHO approved blades on Brush
Cutters (SRM) models equipped with proper blade shield, U-handles,
harness, blade collar, nut and cotter pin.
• Blade/Cutting attachment does not stop immediately after releasing
throttle. Keep hands and feet clear of blade/cutting attachment unless
engine is shut off and cutting attachment is not moving.
• INSPECTBLADESBEFOREUSE.
• DONOTUSEDAMAGED,CRACKED,BENT,DULLORIMPROP-
ERLYSHARPENEDBLADES.
• Do not remove shields, modify the unit or install attachments or parts
not approved by ECHO. Approved attachment information and
replacement Operator's and Safety Manuals are available from your
ECHOdealerorbywriting:ECHO,INCORPORATED,400OAK-
WOODRD.,LAKEZURICH,IL 60047.
P/N 89016844830
INTERNATIONAL SYMBOLS
Symbol
description/application Symbol form/shape Symbol
description/application
Symbol form/shape
Hot
Surface
Carburetor adjustment
- Idle speed
Carburetor adjustment
- High speed mixture
Symbol
description/application Symbol form/shape Symbol
description/application
Symbol form/shape
"WARNING, SEE
OPERATOR'S
MANUAL
Wear eyes, ears and
head protection
Emergency stop Fuel and oil mixture
Finger Severing
Carburetor adjustment
- Low speed mixture
Primer Bulb
Ignition
ON/OFF
Wear hand and
foot protection
Safety/Alert
Keep bystanders and helpers
away 15 m (50 ft.).
DO NOT smoke
near fuel.
DO NOT allow
flames or sparks
near fuel.
Engine choke
control.

G RASS T RIMMER /B RUSH C UTTER
O PERATOR ' S M ANUAL
5
EQUIPMENT
WARNING DANGER
• Use only ECHO approved attachments. Serious injury may result
from the use of a non approved attachment combination. Read
and comply with all safety instructions listed in this manual and
safety manual.
• ECHO, INC. will not be responsible for the failure of cutting
devices, attachments or accessories which have not been tested
and approved by ECHO.
Before operation a complete check of the unit must be performed;
• Check unit for loose/missing nuts, bolts and screws. Tighten and/or
replace as needed.
• Inspect fuel lines, tank and area around carburetor for fuel leaks. DO
NOT operate unit if leaks are found.
• Inspect shield for damage and ensure that the cut-off knife is
securely in place. Replace if either is damaged or missing.
• Check that the cutting attachment is firmly attached and in safe
operating condition.
• Check that front (loop) handle and optional shoulder/waist harness
are adjusted for safe, comfortable operation. See Assembly for
proper adjustment.
• Have repairs done only by an authorized ECHO Service Dealer.
• Do not use any attachment, accessory or replacement part unless it
is recommended in the Operator's Manual.
Spark Arrestor - Catalytic Muffler / Muffler
• The muffler or catalytic muffler controls the exhaust noise and
emissions. The spark arrestor screen prevents hot, glowing particles
of carbon from leaving the muffler. Make sure the spark arrestor
screen is in good repair and properly seated in the muffler. Keep
exhaust area clear of flammable debris. Avoid contact during and
immediately after operation.

6
FUEL
WARNING DANGER
FuelisVERYflammable.Useextremecarewhenmixing,storingor
handling, otherwise serious personal injury may result.
• Use an approved fuel container.
• DO NOT smoke near fuel.
• DO NOT allow flames or sparks near fuel.
• Fuel tanks/cans may be under pressure. Always loosen fuel caps
slowly allowing pressure to equalize.
• NEVER refuel a unit when the engine is HOT!
• NEVER refuel a unit with the engine running.
• DONOTfillfueltanksindoors.ALWAYSfillfueltanksoutdoors
over bare ground.
• Securely tighten fuel cap after refueling.
• Inspect for fuel leakage. If fuel leakage is found, do not start or
operate unit until leakage is repaired.
IMPORTANT
Spilled fuel is a leading cause of hydrocarbon emissions. Some
states may require the use of automatic fuel shut-off containers to
reduce fuel spillage. Contact your ECHO dealer for ordering
information.
After Refueling;
• Wipe any spilled fuel from the unit.
• Move at least 3 m (10 ft.) from refueling location before starting.
After Use;
• DO NOT store a unit with fuel in its tank. Leaks can occur. Return
unused fuel to an approved fuel storage container. 3 m (10 ft.)
PERSONAL CONDITION AND SAFETY EQUIPMENT
WARNING DANGER
Trimmer/Brush Cutter users risk injury to themselves and others if the trimmer/brush cutter is used improperly and or
safety precautions are not followed. Proper clothing and safety gear must be worn when operating a trimmer.

G RASS T RIMMER /B RUSH C UTTER
O PERATOR ' S M ANUAL
7
Physical Condition --
Your judgment and physical dexterity may not be good:
• if you are tired or sick,
• if you are taking medication,
• if you have taken alcohol or drugs.
Operate unit only if you are physically and mentally well.
Eye Protection --
Wear eye protection that meets ANSI Z87.1 or CE requirements
whenever you operate the trimmer.
Hand Protection --
Wear no-slip, heavy duty work gloves to improve your grip on the
Trimmer/Brush Cutter handles. Gloves also reduce the transmission of
machine vibration to your hands.
Hearing Protection --
ECHO recommends wearing hearing protection whenever unit is used.
Proper Clothing --
Wear snug fitting, durable clothing;
• Pants should have long legs, shirts with long sleeves.
• DONOTWEARSHORTS,
• DONOTWEARTIES,SCARVES,JEWELRY.
Wear sturdy work shoes with non-skid soles;
• DONOTWEAROPENTOEDSHOES,
• DONOTOPERATEUNITBAREFOOTED.
Hot Humid Weather --
Heavy protective clothing can increase operator fatigue which may lead
to heat stroke. Schedule heavy work for early morning or late afternoon
hours when temperatures are cooler.

8
SAFE OPERATION
Determine Operation Area
• Provide all operators of this equipment with the Operator's Manual
and instructions for safe operation.
• Review the area to be trimmed. Look for hazards that could contribute
to unsafe conditions.
• Spectators and fellow workers must be warned, and children and
animalspreventedfrom comingnearerthan15m(50ft.) whilethe
trimmerisinuse.
Operation
Use Proper Clothing & Equipment
• Before starting the unit, equip yourself and any other person working
within the 15 m (50 ft.) Safety Zone with the required Protective
Equipment and clothing.
WARNING DANGER
Do not operate this product indoors or in inadequately ventilated
areas. Engine exhaust contains poisonous emissions and can cause
serious injury or death.
AvoidHotSurfaces
• During operation, the bearing housing, and the muffler or catalytic
muffler cover area may become very hot. Avoid contact during and
immediatelyafteroperation.Alwayskeepexhaustareaclearof
flammabledebris.Allow theengineandmuffler tocompletelycool
before performing any maintenance activity.
Keep A Firm Grip
• Hold the front and rear handles with both hands with thumbs and
fingers encircling the handles
Keep A Solid Stance
• Maintain footing and balance at all times. Do not stand on slippery,
uneven or unstable surfaces. Do not work in odd positions or on
ladders. Do not over reach.
15 m
(50ft.)

G RASS T RIMMER /B RUSH C UTTER
O PERATOR ' S M ANUAL
9
EXTENDED OPERATION/EXTREME CONDITIONS
Vibration and Cold
It is believed that a condition called Raynaud’s Phenomenon, which
affects the fingers of certain individuals may be brought about by
exposure to vibration and cold. Exposure to vibration and cold may
cause tingling and burning sensations followed by loss of color and
numbness in the fingers. The following precautions are strongly
recommended because the minimum exposure which might trigger the
ailment is unknown.
• Keep your body warm, especially the head, neck, feet, ankles, hands
and wrists.
• Maintain good blood circulation by performing vigorous arm exer-
cises during frequent work breaks and also by not smoking.
• Limit the hours of operation. Try to fill each day with jobs where
operating the trimmer or other hand-held power equipment is not
required.
• If you experience discomfort, redness and swelling of the fingers
followed by whitening and loss of feeling, consult your physician
before further exposing yourself to cold and vibration.
Repetitive Stress Injuries
It is believed that overusing the muscles and tendons of the fingers,
hands, arms and shoulders may cause soreness, swelling, numbness,
weakness and extreme pain in those areas. Certain repetitive hand
activities may put you at a high risk for developing a Repetitive Stress
Injury (RSI). An extreme RSI condition is Carpal Tunnel Syndrome
(CTS), which could occur when your wrist swells and squeezes a vital
nerve that runs through the area. Some believe that prolonged exposure
to vibration may contribute to CTS. CTS can cause severe pain for
months or even years.
To reduce the risk of RSI/CTS, do the following:
• Avoid using your wrist in a bent, extended or twisted position.
Instead try to maintain a straight wrist position. Also, when grasping,
use your whole hand, not just the thumb and index finger.
• Take periodic breaks to minimize repetition and rest your hands.
• Reduce the speed and force with which you do the repetitive move-
ment.
• Do exercises to strengthen the hand and arm muscles.
• Immediately stop using all power equipment and consult a doctor if
you feel tingling, numbness or pain in the fingers, hands, wrists or
arms. The sooner RSI/CTS is diagnosed, the more likely permanent
nerve and muscle damage can be prevented.

10
BLADE TERMS AND DEFINITIONS
BladeConvertible
Models (SRM-260, 260S) can be converted to utilize blades. Plastic/nylon blades require a, "Blade Conversion Kit"
P/N 99944200415, which includes a shoulder harness, and steel shield with necessary attaching hardware. Steel/metal
bladesrequireCombination"U-Handle/BladeConversionKit"P/N99944200521whichincludesBladeConversionKit
Parts, U-Handle, Throttle Cable and Stop Switch.
DESCRIPTION
The ECHO product you purchased has been factory pre-assembled for your convenience. Due to packaging restrictions,
shield installation and other assembly may be necessary.
After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing parts.
Use the contents list to check for missing parts.

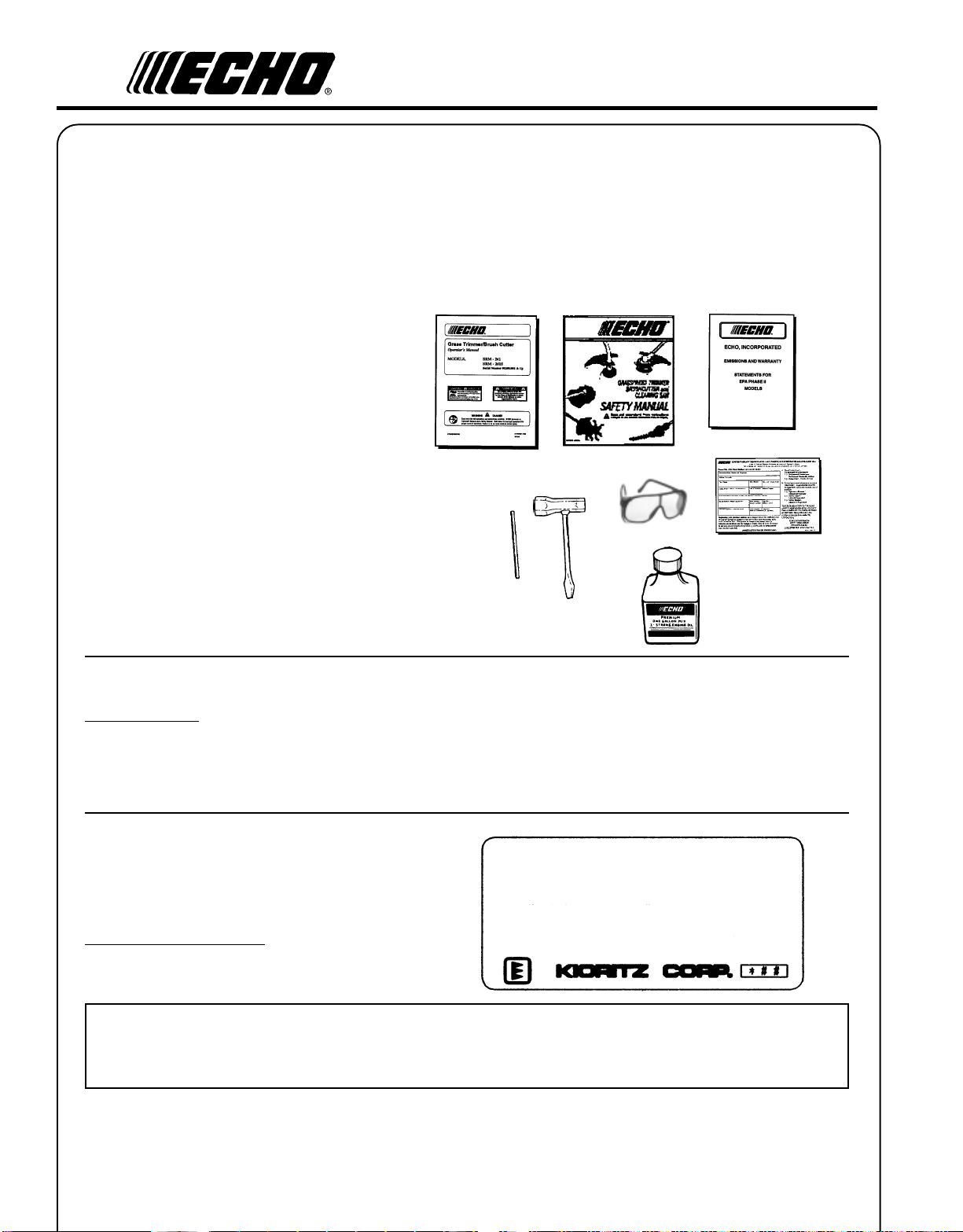

CONTENTS
1 - Power Head / Drive Shaft Assembly
1 - PlasticBag(co-pack)
- 1, Operator's Manual
- 1, Safety Manual
- 1, Warranty Registration Card
-1,LimitedWarrantyStatement
- 1, Plastic shield
-1,ToolBag
--1,T-wrench
--1,Lockingtool
-1,NylonTrimmerHead
- 1, Safety Glasses
-1,2-StrokeOilSample
-1,PlasticBag
--1,shieldplate
--3,5mmx15mmscrews(shieldmtg.)
EMISSION CONTROL
EPA Phase II
The emission control system for these engines are
EM(EngineModification).
AnEmissionControlLabelislocatedon theengine.
(ThisisanEXAMPLEONLY,informationonlabel
variesbyengineFAMILY).
IMPORTANTENGINEINFORMATION
ENGINEFAMILY: YEHXS.0254CA
DISPLACEMENT: 25.4 CC
THIS ENGINE MEETS U.S. EPA PAHSE II EMISSION
REGULATIONS FOR S.O.R.E. REFER TO OWNER'S
MANUAL FOR MAINTENANCE SPECIFICATIONS AND
ADJUSTMENTS. EMISSION COMPLIANCE PERIOD : 300 HRS.
PRODUCTEMISSIONDURABILITY
The 300 hour emission durability period is the time span selected by the manufacturer certifying the engine emis-
sions output meets applicable California emissions regulations, provided that approved maintenance procedures are
followed as listed in the Maintenance Section of this manual.
IMPORTANTThissparkignitionsystemcomplieswithCanadianICES-002.

G RASS T RIMMER /B RUSH C UTTER
O PERATOR ' S M ANUAL
11
3
4
5
6
7
8
9
10
11
12
12
14
15
16
17
18
19
20
13
21

12
1. OPERATOR'SMANUAL-Includedinplasticbag (co-pack). Readbeforeoperationandkeepina safe placefor
future reference, i.e., operation, maintenance, storage and specifications.
2. SAFETYMANUAL-Includedin plastic bag (co-pack).Readbeforeoperationandkeep in a safeplaceforfuture
reference to learn proper, safe operating techniques.
3. POWERHEAD-IncludestheEngine,Clutch,FuelSystem,IgnitionSystemandRecoilStarter.
4. GRIP-Rear(righthand)handle.
5. STOPSWITCH - "SLIDE SWITCH" mounted on top of the Throttle Trigger Housing. Move switch FORWARD to
RUN,BACKtoSTOP.
6. FRONT HANDLE - The Front (loop) handle is loosely assembled to the Drive Shaft assembly and must be posi-
tioned for proper cutting attitude and operator comfort.
7. DRIVESHAFTASSEMBLY-IncludestheRear(righthand)Handleassembly,GearHousingassembly,Front(loop,
left hand) Handle assembly, steel drive shaft and Safety Decal.
8. NYLONCUTTERHEAD-Containsreplaceablenylontrimminglinethatadvanceswhenthetrimmerheadistapped
against the ground while the head is turning at normal operating speed.
9. CUT-OFFKNIFE-Automaticallytrimslinetothecorrectlength:5"afterheadistappedontheground.Iftrimmeris
operated without a cut-off knife the line will become too long, the engine will overheat and engine damage may occur.
10. PLASTICDEBRISSHIELDASSEMBLY-Includedinplasticbag(co-pack). MUSTbeinstalledonunitbeforeuse,
see Assembly Instructions. Shield assembly includes the Cut-Off Knife. Mounts on the Gear Housing Assembly just
above the cutting attachment. Helps protect the operator by deflecting debris produced during the trimming opera-
tion. This shield must be replaced with the steel shield for blade use.
11. THROTTLETRIGGER-Springloadedtoreturntoidlewhenreleased. Duringacceleration,presstriggergradually
for best operating technique.
12. SPARKPLUG-Providessparktoignitefuelmixture.
13. ARM REST - Provides arm rest during operation and protects arm from the hot engine.
14. SPARKARRESTOR-CATALYTICMUFFLER/MUFFLER-Themufflerorcatalyticmufflercontrolsexhaustnoise
and emission. The spark arrestor screen prevents hot, glowing particles of carbon from leaving the muffler. Keep
exhaustareaclearofflammabledebris.
15. FUELTANK-Containsfuelandfuelfilter.
16. RECOILSTARTERHANDLE-Pullhandleslowlyuntilstarterengages,thenquicklyandfirmly. Whenengine
starts, return handle slowly. DO NOT let handle snap back or damage to unit will occur.
17. FUELTANKCAP-Coversandsealsfueltankopening.
18. PRIMERBULB-Pumpingprimerbulbbeforestartingengine drawsfreshfuelfromthefueltankprimingthecarbure-
tor for starting. Pump primer bulb until fuel is visible and flows freely in the clear fuel tank return line. Pump bulb an
additional4or 5times.
19. AIRCLEANER-Containsreplaceablefilterelement.
20. CHOKE - The choke control is located on the top of the air filter case. Move choke lever to "Cold Start" to close
choke for cold start. Move choke lever to "Run" position to open choke.
21. SAFETYVIDEO-(Notincludedwithunit)P/N99922202540Englishversiononlyisavailableatacostof$5.00from
ECHO, INC. or any authorized ECHO dealer. The video overviews safety precautions and proper operating tech-
niques and is supplemental to the Safety Manual. Read and understand the Safety Manual for complete information
on safe operation.

GRASS TRIMMER/BRUSH CUTTER
OPERATOR'SMANUAL 13
SPECIFICATIONS
* Install and use U-Handle when operating any model with blade.
LEDOM062-MRSS062-MRS
daehrettuco/whtgneL ).ni7.07(mm5971
htdiW ).ni48.9(mm052
thgieH ).ni48.9(mm052
daeHrettuC/w)yrd(thgieW ).bl9.11(gk93.5).bl5.11(gk2.5
epyTenignE enigneenilosagrednilycelgnis,ekorts-owt,deloocriA
eroB ).ni43.1(mm0.43
ekortS ).ni01.1(mm0.82
tnemecalpsiD ).ni.uc55.1(cc4.52
tsuahxE relffuMrotserrAkrapS
roterubraC pmupegrup/wJYWledommgarhpaidorblaW
metsySnoitingI egrahcsidroticapac,otengamleehwylF
gulPkrapS ).ni620.0(mm56.0paGA7-RMPBKGN
leuF )liOekorts-owTdnaenilosaG(dexiM
oitaRliO/leuF lioenignedeloocriaekorts-owt,ecnamrofrePhgiHOHCE1:05
enilosaG nahterom,lohoclalyhtemgniniatnocleufesuTONOD.dedaelnuenatcO98
.EBTM%51rolohoclalyhte%01
liO lioenignedeloocriaekorts-owt,ecnamrofrePhgiHOHCE1:05
yticapaCknaTleuF ).zo.lfSU6.91(.til85.0
metsySretratS retratSdniweRcitamotuA
hctulC epyTlagufirtneC
metsySdetalosInoitarbiV eldnahtnorfnopirgrebbuR.)ytudyvaeh(tnuomenignenonoihsucrebbuR
doRgnitarepO ebuTmunimulamm0.52
tfahSevirD tfahselbixelf).ni4/1(mm53.6 tfahsleetsenilpsmm0.7
oitaResaCraeG noitcudeR4.1:1
noitceriDgnitatoR potmorfdeweiv;esiwkcolCretnuoC
daeHrettuC :lanoitpO).tf04(m31yticapaceniL™erifssorC590.htiw)enil-2(daehenilnolyN
).ni8(wasralucriC;).ni8(edalbhtoot-22;).ni8(edalbrettuc8,tiKeldnaH-U
naelKknirpS,daeHredaoLdipaR,SDAEHLASREVINU,TUC-IRT,TUC-IXAM
*eldnaH spirgrebbur/weldnaHraeRthgiRdnapooL-tnorF
ssenraHredluohS lanoitpO
deepSeldI MPR0023-0082
htiw).T.O.W(deepSelttorhTnepOediW
daeHeniLnolyN
MPR0069-0088
htiw).T.O.W(deepSelttorhTnepOediW
edalB
MPR00021-0059

14
ASSEMBLY
PLASTIC SHIELD INSTALLATION
(for Nylon Line Operation)
Tools Required: Screwdriver.
Parts Required: PlasticShield,ShieldPlate,three(3)5mmx15mm
screws.
NOTE
The plastic shield is for use with the Nylon Line Head only.
Install Metal Shield when using plastic or metal blades.
1. Remove plastic threaded shaft sleeve and adapter plate (C) from
PTO shaft (A).
2. Place the shield on the bottom of the bearing housing flange.
3. Place shield plate (B) on shield, align holes. Install three (3) screws
from bottom through plate and shield into gear case.
4. Assemble adapter plate (C) onto PTO shaft.
NYLON LINE HEAD INSTALLATION
Tools Required: HeadLockingTool,
Parts Required: Nylon Line Head.
1. Be sure adapter plate (C) remains on PTO shaft.
2. Align locking hole in upper plate with notch in edge of gear
housing and insert head locking tool (D).
3. Thread line head onto shaft by turning it counter clockwise until
head is tight against adapter plate (C).
FRONT HANDLE INSTALLATION
Tools Required: Screwdriver.
Parts Required: Front Handle Assembly
1. Position front handle for comfortable operation and secure screws.
ABC
D

G RASS T RIMMER /B RUSH C UTTER
O PERATOR ' S M ANUAL
15
ACCESSORYINSTALLATION
BladeConversionKitP/N99944200415,U-Handle/BladeConversionKitP/N99944200521.
NOTE
Refer to Operation with Blades page 19 for correct Accessory / Blade equipment requirements.
WARNING DANGER
You must install a U-Handle/Blade Conversion Kit before operating this unit using metal blades, otherwise serious
injurymayresult.
HARNESS CLAMPINSTALLATION
NOTE
SRM-260,260S requiresinstallationofHarnessClampincludedin
the Blade Conversion Kit or U-Handle / Blade Conversion Kit. If
your unit does not have a clamp, follow these directions.
Tools Required: Screwdriver,8mmx10mmOpenEndWrench.
1. Remove shield and gear housing as an assembly.
a. Loosen two (2) screws (A) that clamp the gear housing to the
drive shaft housing.
b. Remove locating screw (B) found at the top of the gear
housing. Pull shield and gear housing assembly from the drive
shaft assembly.
IMPORTANT
Prevent drive shaft from sliding from drive shaft housing. If shaft
does slide free, clean dirt from shaft and re-assemble.
2. Removefronthandle.
a. Remove four (4) screws and nuts and handle support from
handle.
b. Removehandle.
3. Installclamp.
4. Install front handle, gear housing and shield.
5. Balanceunit.
a. Put on harness and attach unit to harness.
b. Slide harness clamp (C) up or down until unit balances with
cutting attachment approximately 2 - 3 in. from the ground.
c. Tighten harness clamp screw.
C
A
B
A

16
METAL SHIELDINSTALLATION
ToolsRequired: 8mmx10mmOpenEndWrench,Screwdriver.
PartsRequired: MetalShield,Bracket,3-5mmx15mmscrews
w/captivated flat and lockwasher (metal shield to gear housing),
2 - 5mm x 8mm screws, 4 - 5mm nuts, 4 - 5mm lockwashers (bracket to
shield and bracket to gear housing).
1. If necessary, remove nylon line head and plastic shield.
2. Loosely attach bracket (A) to shield (B) and attach to bottom of
gear housing (C) with screws and nuts provided. Tighten all
attaching hardware.
Install Blade
Tools Required: LockingTool,T-wrench.
PartsRequired: 1-20mmUpperFixingPlate,GrassBlade
(69600120330),BrushBlade(69500120330)orTri-CutBladew/GlideCup
(99944200030),1-LowerFixingPlate,1-10mmL.H.Nut, 1-2x22mm
SplitPin.
3. Install upper plate (D) on splined shaft. Blade installation requires
useofUpperPlate(D)with20mmpilot.Upperplatewith37mmpilot
of the SRM-260/260S should be retained for use with nylon line
head.
4. PlaceBlade(E)over upper platepilot,installthe Lower Plate(F)
and10mmLHnut(G). Tri-CutBlade(H)isinstalledwithGlide
Cup (J).
5. Insert Locking Tool (K) through hole in upper plate and notch in
gear housing to prevent splined shaft from turning. Tighten nut
andsecurewithSplit Pin (L).
U-HANDLE INSTALLATION
Tools Required: 8mm x 10mm Open End Wrench, Screwdriver, 3mm
and 4mm Hex Wrench, Pliers
Parts Required: U-Handle/BladeConversionKitP/N99944200451.
1. Closechokeandremoveairfiltercover.
2. Disconnect ignition stop leads (A) and (B).
3. Remove inner throttle linkage from carburetor swivel (C).
4. Loosen nut (D) and remove throttle linkage from bracket.
SRM-260/260S
D
A
B
C
D

G RASS T RIMMER /B RUSH C UTTER
O PERATOR ' S M ANUAL
17
5. Loosen bolt (E) and pull drive shaft assembly from clutch case.
6. Loosen two (2) rear handle screws (F) and pull rear handle (G) from
the drive shaft assembly.
7. Loosen four (4) screws (H) and remove front handle.
8. PositionlowerU-Handlebracket(J)400mm(15-3/4in.)from
engineendofdriveshaft. Securewiththree(3)5mmx30mm
bolts.
9. Position harness hook 220mm (8-5/8 in.) from engine end of drive
shaft assembly. DO NOT tighten at this time.
10. Install upper U-Handle and bracket on lower bracket and secure
withone(1)8mmx55mmbolt(K)andlargecircularwasher.
11. Install power head and align gear box, power head and U-Handles.
Tighten all screws.
12. Route throttle linkage and ignition lead assembly around front of
U-Handle bracket and clip to drive shaft as shown.
K
400 mm (15-3/4 in.)
220 mm
(8-21/32 in.)
ENGINE
END
J
E
F
H
G

18
M
13. Place throttle linkage in slot in bracket. One nut on each side of
bracket. Finger tighten both nuts (D).
14. Attach inner cable to swivel (C). Check throttle for freedom of
movement and that wide open throttle / low idle extremes are
adjusted properly. If adjustment cannot be achieved with adjusting
nuts, consult with your Echo Dealer for correct adjustment
procedure.
15. Connect ignition leads (A) and (B).
16. Bundle and secure ignition leads against engine housing with clip
(L).
17. Install air filter and cover.
18. Balanceunit.
a. Put on harness and attach unit to harness.
b. Slide harness clamp (M) up or down until unit balances with
cutting attachment approximately 2 - 3" from ground.
c. Tighten harness clamp screw.
A
B
C
D
L

G RASS T RIMMER /B RUSH C UTTER
O PERATOR ' S M ANUAL
19
PRE - OPERATION
OPERATION WITH BLADES
Preparing the Trimmer/Brush Cutter for Blade Use
WARNING DANGER
Blade use DEMANDS specific Brush Cutter configuration. Operation without specified shield and harness can result
in serious personal injury.
PlasticandNylonBladesRequire"BladeConversionKit,"P/N99944200415
(TRI-CUT[A] and shoulder harness [B])
B
A
Choosing the Correct Blade
WARNING DANGER
The type of Blade used MUST be matched to the type and size of material cut. An improper or dull blade can cause
serious personal injury. Blades MUST be sharp. Dull blades increase the chance of kick out and injury to yourself
and bystanders.
orU-Handle/BladeConversionKitP/N99944200521
(metal blade [C] and shoulder harness [B]).

20
Plastic/Nylon Blades may be used where ever the nylon line head
is used. DO NOT use this blade for heavy weeds or brush! Blade
ConversionKitP/N99944200415isrequiredforusewithNylonBlades.
8ToothWeed/GrassBlade(P/N69600120331)isdesignedforgrass,
garden debris and thick weeds. DO NOT use this blade for brush or
heavywoodygrowth,19mm (3/4in.)diameterorlarger.
U-Handle/BladeConversionKitP/N99944200521isrequiredforuse
with this blade.
Brush/ClearingBlade(P/N69500120330)isdesignedforcuttingbrush
andwoodygrowthupto76mm(3in.) diameter. U-Handle / Blade
ConversionKitP/N99944200521isrequiredforusewiththisblade.
UseShoulder/WaistHarness(P/N30100052131)Useofthe Shoulder/
Waist Harness is recommended for ALLTrimmer/Brush Cutter use, not
just blade operation. The Shoulder/Waist Harness when used in a
trimming operation with nylon line head suspends the trimmer from the
operator's shoulder and reduces operator fatigue.
During blade operation, the same fatigue reduction is achieved. Safety
to the operator is also enhanced by reducing the possibility of blade
contact with the operators hands and feet by restricting trimmer
movement.
