EchoMaster Pro FCTP-FT1602 User manual
Installation Guide
FCTP-FT1602
Integrated Safety System
Ford Transit equipped with Non-Tow Mirrors
4.2” Radio Display Only
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
2
Illustrations are typical and may not match exact vehicle details
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
Cover all surfaces with tape or plastic protection lm to protect against
scratching and damage. EchoMaster is in no way responsible for any damage
that may incur during installation.
This product has been validated in the vehicles listed on the application guide only.
Care must be taken when installing this accessory to ensure damage does not occur
to the vehicle. The installation of this accessory should follow approved guidelines to
ensure proper installation. Read entire instructions thoroughly before starting.
This document covers such items as:
- Vehicle Protection (use of covers and blankets, cleaning chemicals, etc).
- Vehicle Disassembly / Reassembly (panel removal, part storage, etc).
- Electrical Component Disassembly / Reassembly (battery disconnection,
connector removal, etc).
NOTES:
Removed Parts: Inspect the vehicle and parts for any damage.
Place all removed parts on a protected surface in an area where they will not get
damaged.
Connectors: When disconnecting connectors, do not pull on the wires; pull by
holding the connectors.
Retains the factory reverse camera if equipped.
Prior to Installation
FCTP-FT1602
Integrated Safety System
Ford Transit - Non-Tow Mirrors
3
Illustrations are typical and may not match exact vehicle details
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
CAUTION
Consult your vehicle owner’s manual to disconnect the battery. Do not disconnect
ANY airbag connectors or indicators. Doing so may result in activating a diagnostic
code. These codes will require the dealer to perform the reset procedure which may
incur a reset fee. If you are unsure of any vehicle trim removal process consult the
OEM service manual.
Removing vehicle trim panels in extreme hot and/or cold climate could result in
damage. Use care when removing all vehicle trims.
Using painter’s blue tape on the vehicle trim panels can help limit any scratches
and/or marring. Use a nylon trim panel removal tool whenever possible.
Vehicle Preparation & Protection
Recommended Tools
FCTP-FT1602
Integrated Safety System
Ford Transit - Non-Tow Mirrors
Torx - T10 & T20
Nylon Trim Removal Tools10mm Driver7mm Driver Painters tape
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
4
Illustrations are typical and may not match exact vehicle details
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
Removing the Radio

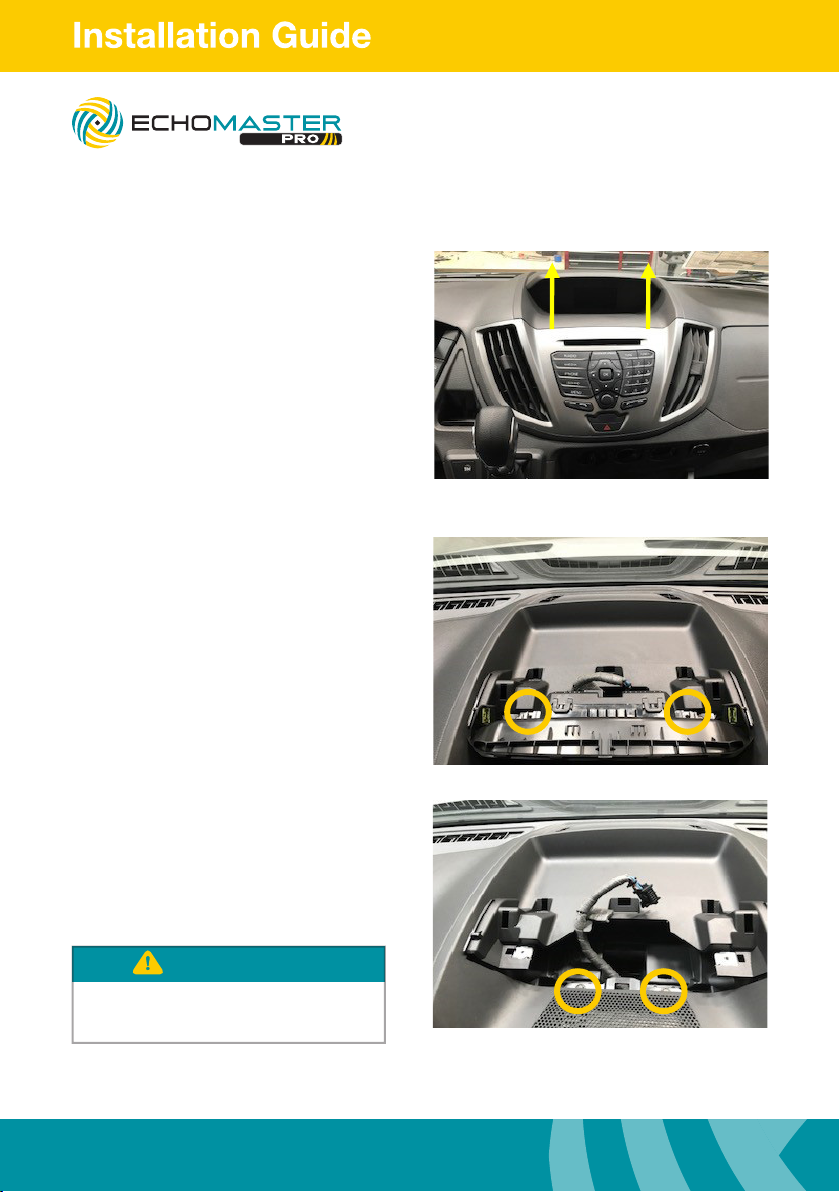

Using a nylon trim removal tool, remove
the cover from behind the radio display.
There are several tabs holding the cover
in place.
Press the plastic trim removal tool in
between the rear cover and the front trim
of the display. Pry the two pieces apart
releasing the locking tabs.
Remove the 2 x 7mm bolts holding the
radio display in the dash. Disconnect the
connector from the display and pull the
display straight up to remove it from the
dash.
Remove 2 x 7mm bolts from below the
radio display.
FCTP-FT1602
Integrated Safety System
Ford Transit - Non-Tow Mirrors
4.2” Radio Display Only
PLEASE NOTE
Be sure to place all removed parts
in a safe place.
Step 1
Step 2
Step 3
5
Illustrations are typical and may not match exact vehicle details
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
Remove the front cover using a nylon trim
removal tool. Pry the cover from the dash
and remove.
Remove the 2 x 7mm screws from the
radio control panel.
Remove the radio control panel using a
nylon trim removal tool.
FCTP-FT1602
Integrated Safety System
Ford Transit - Non-Tow Mirrors
Step 4
Step 5
Removing the Radio - (cont’d)
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
6
Illustrations are typical and may not match exact vehicle details
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
Removing the Dash Panel(s)

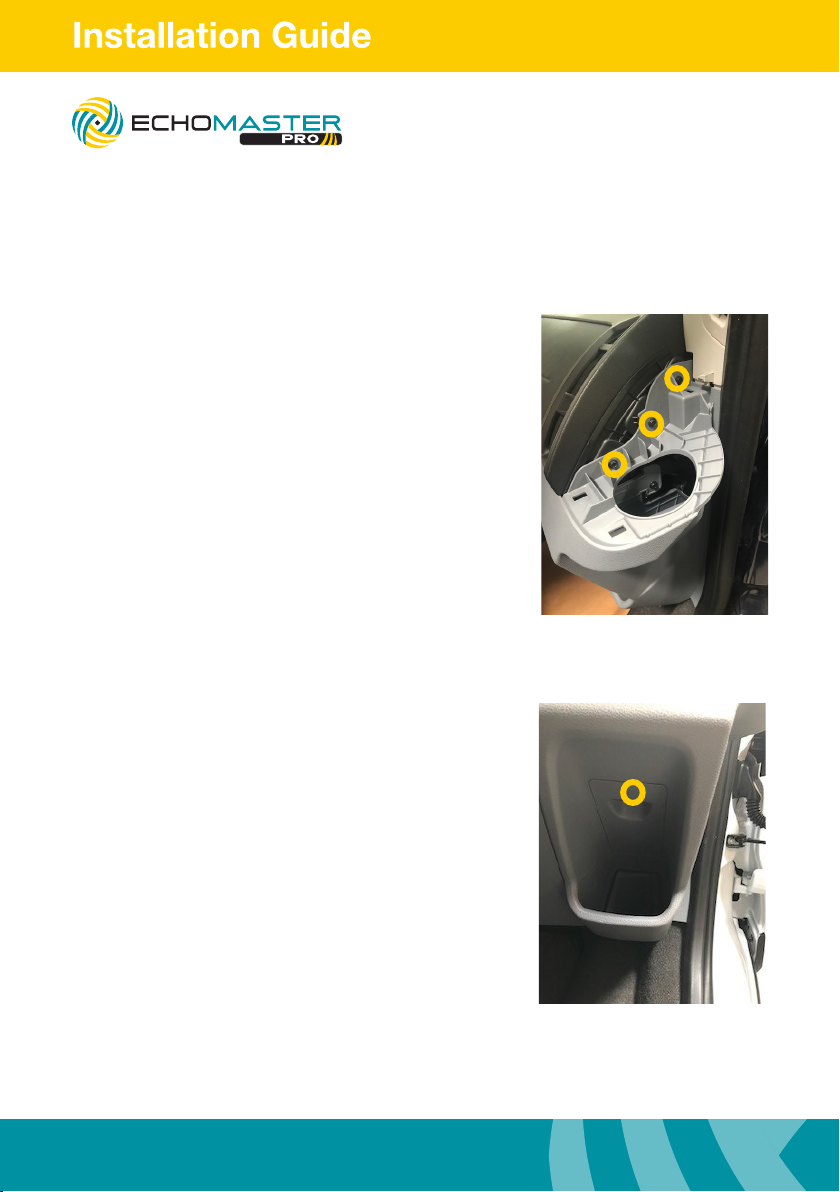

Remove the cup holder by using a nylon
pry tool to pry it straight up.
Remove the 3 x 7mm bolts holding the side
dash panel in place.
FCTP-FT1602
Integrated Safety System
Ford Transit - Non-Tow Mirrors
Remove the small cover located inside the
front cup holder.
Remove the 1 x 7mm bolt holding the side
dash panel in place.
Passenger side
Step 1
Step 2
7
Illustrations are typical and may not match exact vehicle details
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
Remove the side cover and cup holder.

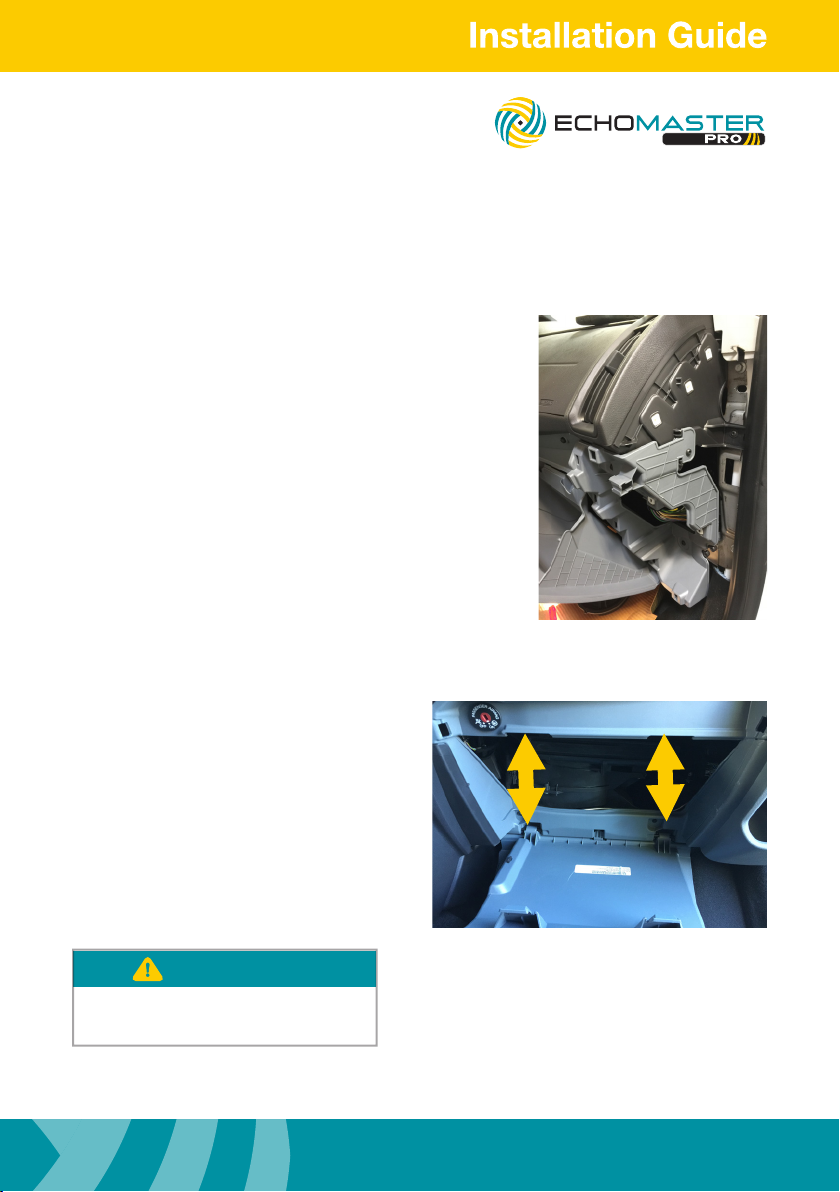

Remove the glove box.
Two tabs need to be released inside the
top of the glove box.
Then fold forward and lift out of the
hinges located along the bottom of the
glove box.
FCTP-FT1602
Integrated Safety System
Ford Transit - Non-Tow Mirrors
Be sure to place all removed parts
in a safe place.
PLEASE NOTE
Removing the Dash Panel(s) - (cont’d)
Passenger side
Step 3
Step 4
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
8
Illustrations are typical and may not match exact vehicle details
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
FCTP-FT1602
Integrated Safety System
Ford Transit - Non-Tow Mirrors
Remove the cup holder by using a nylon
pry tool to pry it straight up.
Remove the 3 x 7mm bolts hold the side
dash panel in place
Remove the small cover located inside the
front cup holder.
Remove the 1 x 7mm bolt holding the lower
side dash panel in place
Removing the Dash Panel(s)
Driver’s Side
Step 1
Step 2
9
Illustrations are typical and may not match exact vehicle details
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
Removing the Dash Panel(s) - (cont’d)

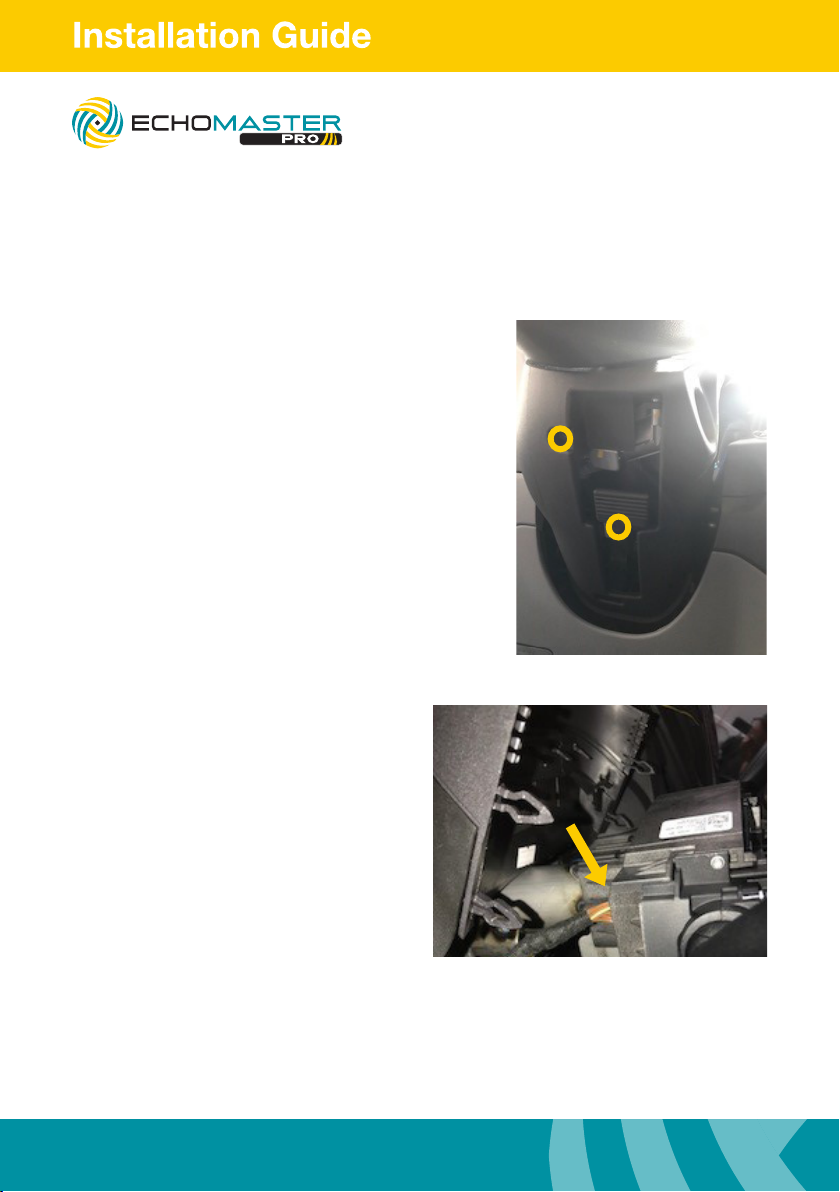

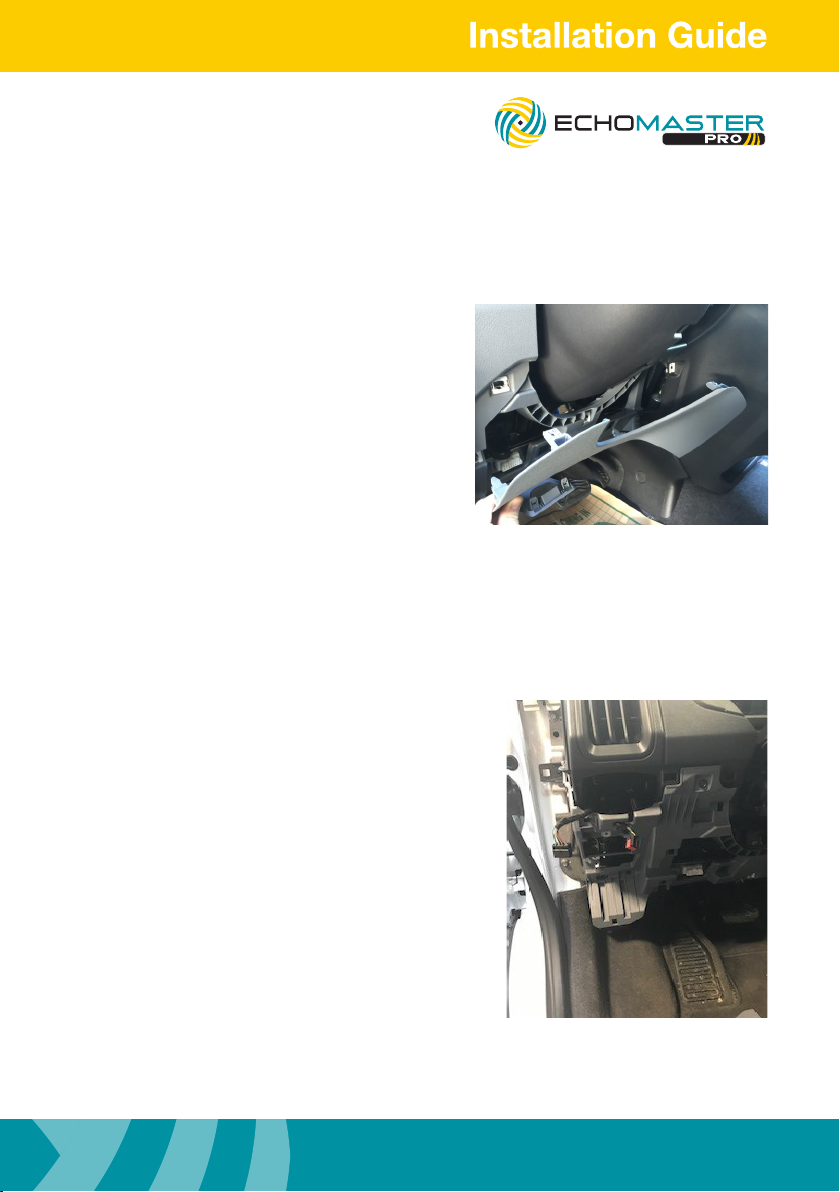

Remove the lower panel below the steering
column. Pull straight back and release the 8
locking tabs holding it in place.
FCTP-FT1602
Integrated Safety System
Ford Transit - Non-Tow Mirrors
Remove the lower side dash panel below
the steering column.
Driver’s Side
Step 3
Step 4
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
10
Illustrations are typical and may not match exact vehicle details
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
Remove 2 screws holding the steering
column shroud cover.
Using a nylon pry tool separate the top and
bottom steering column shroud cover.

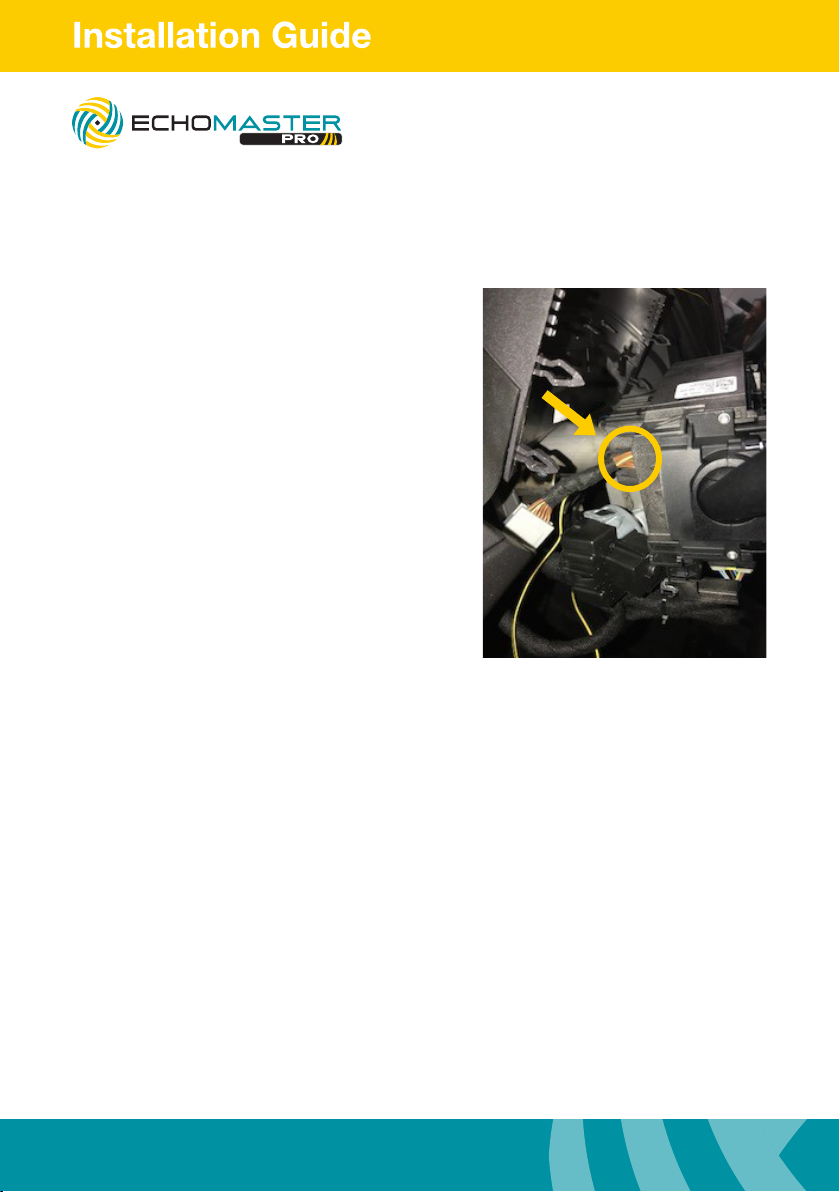

Remove the steering column shroud lower
cover, to gain acess to the turn signal
switch connector.
FCTP-FT1602
Integrated Safety System
Ford Transit - Non-Tow Mirrors
Removing the Dash Panel(s) - (cont’d)
Driver’s Side
Step 5Step 5
Step 6
11
Illustrations are typical and may not match exact vehicle details
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
Removing the Door Panels
Removing the Sail Panels
FCTP-FT1602
Integrated Safety System
Ford Transit - Non-Tow Mirrors
There are 8 bolts and several snap
connectors holding the door panels in
place.
For easier acess when routing the camera
cable, remove the sail panel in front of the
mirror by pulling it straight towards you.
There are 3 locking tabs holding these in
place.
The following sections represent both sides of the vehicle. Each step will need to be
done on both driver’s and passenger sides.
PLEASE NOTE
It is only necessary to remove the door panel
if the mirrors are powered or have turn signal
indicators.
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
12
Illustrations are typical and may not match exact vehicle details
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
Removing the Mirrors
FCTP-FT1602
IIntegrated Safety System
Ford Transit - Non-Tow Mirrors
CAUTION
Step 1
Step 2

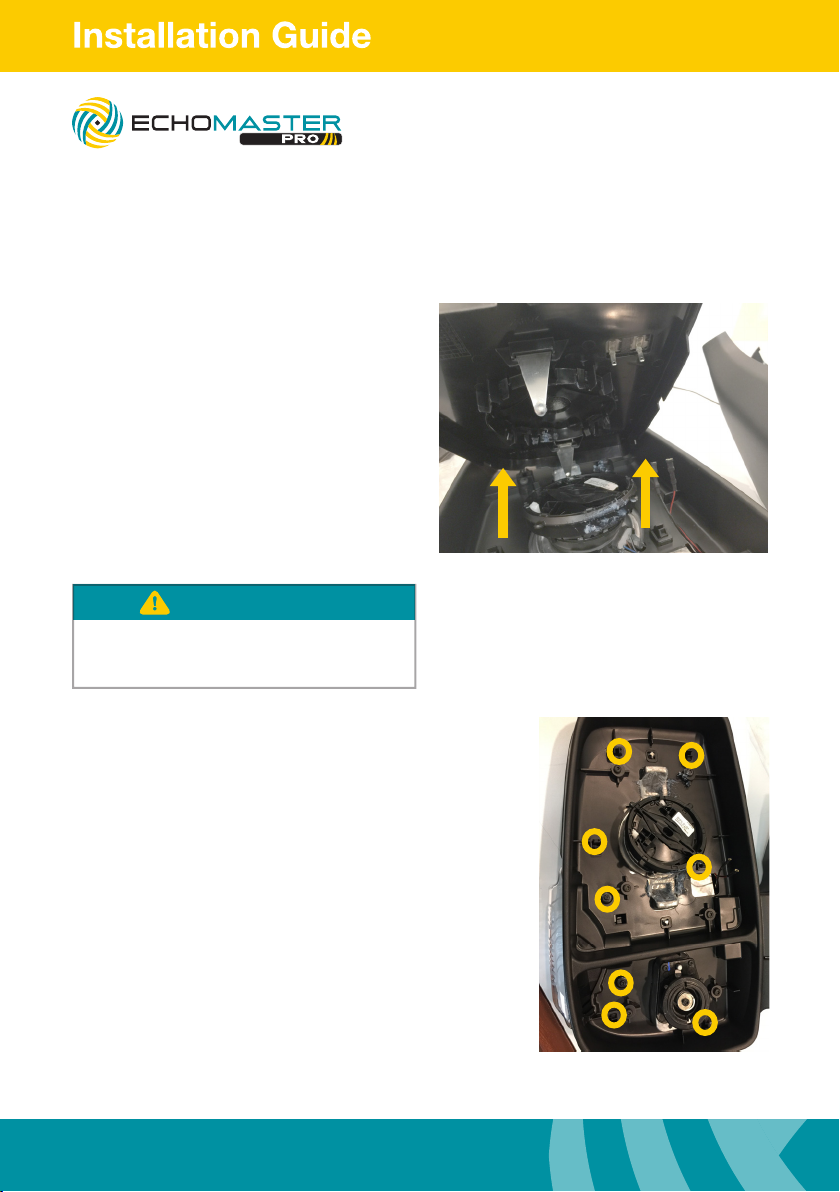

Remove the mirror glass from the housing.
Start with the bottom smaller mirror.
Tilt the top of the mirror inward. Place
ngers underneath. Pull straight forward
to release. The mirror is held in place with
small snap clips around the center mount.
Repeat the same steps with the larger
upper mirror.
There are 6 preasure snaps and 2 x T10
torx screws holding the mirror cap in place.
Remove the 2 x T10 torx screws holding
the turn signal or the blank in place.
Use needle nose pliers to gently squeeze
the tabs to release the mirror cap.
Use even pressure to remove the mirror
glass. The glass can shatter if not removed
correctly.
13
Illustrations are typical and may not match exact vehicle details
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
FCTP-FT1602
Integrated Safety System
Ford Transit - Non-Tow Mirrors

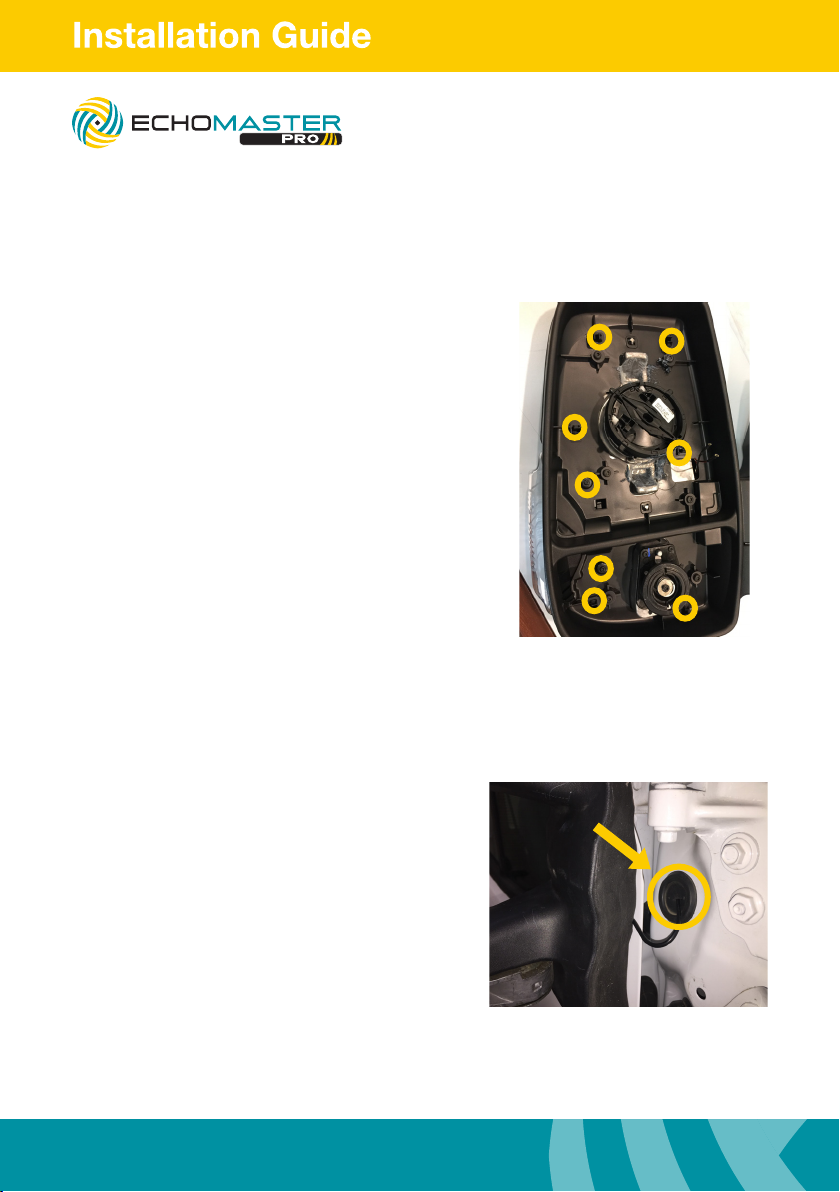

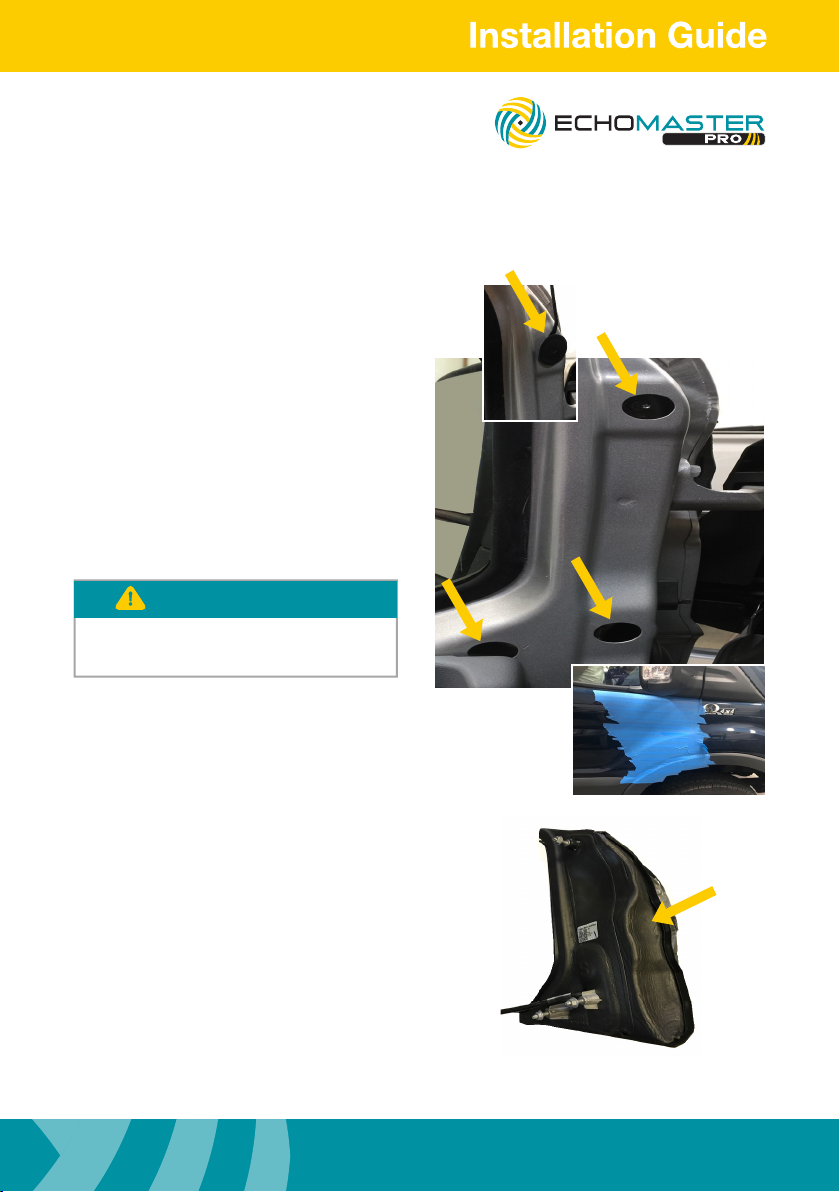

Remove the 3 rubber grommets from the
interior door frame to access the 3 x 10mm
nuts holding the mirror.
PLEASE NOTE
Be sure to protect the side of the vehicle
when removing the mirrors.
Remove the foam gasket from the mirror.
Removing the Mirrors - (cont’d)
Step 3
Step 4
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
14
Illustrations are typical and may not match exact vehicle details
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
Routing Camera Harnesses
FCTP-FT1602
Integrated Safety System
Ford Transit - Non-Tow Mirrors

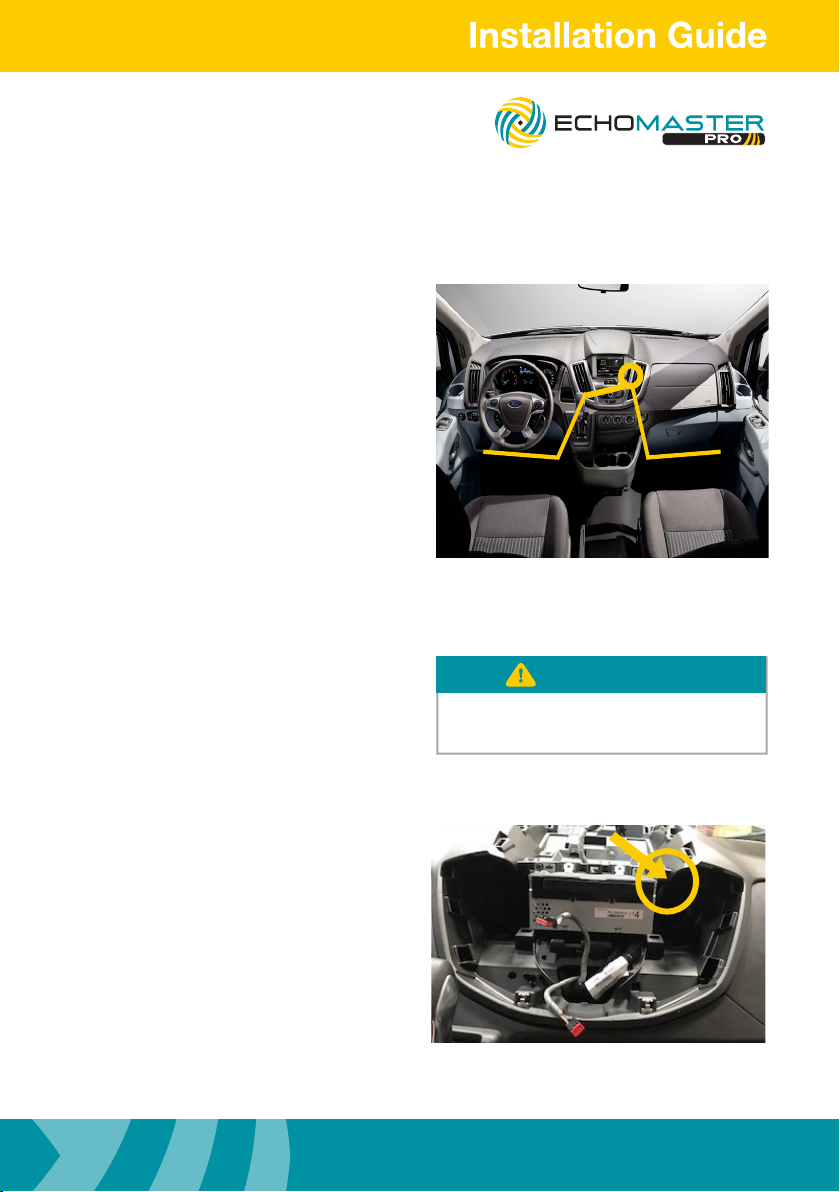

Route the camera cable along the turn signal
wire. (If equipped)
Route the camera cable down through the
large hinge. There is a large opening the cable
will come through.
PLEASE NOTE
Leave extra cable inside the mirror
to allow the mirror to move.
To assemble camera into the mirror caps,
align the at edge on bottom of the camera
to mate with the at edge on the mirror cap.
Push until camera snaps into place.
Step 1
Mounting the Camera to the Mirror Caps
Step 1
Step 2
PLEASE NOTE
The camera will t very snugly when being
inserted.
15
Illustrations are typical and may not match exact vehicle details
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
Route the cable through the large hole in
the lower corner.
Reinstall the foam gasket removed earlier.
FCTP-FT1602
Integrated Safety System
Ford Transit - Non-Tow Mirrors
Step 1
Mounting the Camera Mirror Caps
Once the cable is routed through the mirror,
install the plastic housing.
Fold the mirror inward to install the mirror
cap with the camera.
With the mirror folded inward, slide the
curved portion that goes by the hinge into
place while lining up the edges.
Routing Camera Harnesses - (cont’d)
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
16
Illustrations are typical and may not match exact vehicle details
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
FCTP-FT1602
Integrated Safety System
Ford Transit - Non-Tow Mirrors
Ensure all 6 pressure snaps are locked in place.
Reinstall the 2 x T10 torx screws to secure the turn
signal or blank in place.
Reinstall the mirror glass by snapping them back on
the mounts.
Use even, at pressure to lock the mirror glass into
place.
Mount the mirror on the vehicle leaving the camera
cable hanging out from behind the foam.
Routing the Camera Cables
Remove the grommet located between the
mirror and the sail piece. Cut an X in the
grommet to route the camera cable through.
Replace the sail once the grommet is
reinstalled with the camera cable inserted.
X
Mounting the Camera Mirror Caps - (cont’d)
Step 2
Step 1
17
Illustrations are typical and may not match exact vehicle details
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
Route camera extension harnesses along
the inside lower portion of the dash and up
to the radio cavity.
Connect the T-harness to the radio
vehicle harness and the other side to the
radio.
Connect the RCAs from the
MCI-FD22-HAR to the RCAs of
the MB11-VS41-HAR.
Connect the camera extension cables to
the left and right camera input on the
MB11-VS41-HAR. Use proper orientation
on the connections as to not damage the
cameras.
The toggle switch is for front camera use.
Refer to the P-MCI-FD22 guide.
FCTP-FT1602
Integrated Safety System
Ford Transit - Non-Tow Mirrors
Routing the Camera Extension Cables
If adding a front camera refer to the
P-MCI-FD22 guide
PLEASE NOTE
Step 1
There is a small opening between the AC
vent and the radio where the module will t
without interfering with the front dash panel
and the AC vents.
Step 2
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
18
Illustrations are typical and may not match exact vehicle details
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
FCTP-FT1602
Integrated Safety System
Ford Transit - Non-Tow Mirrors
Route the steering wheel connector
harness (14 pin T-harness) to the steering
column. Disconnect the 14 pin
connector from the turn signal indicator
connector. Connect the T-harness to the
turn signal indicator and the other end
to the vehicle harness. Avoid all moving
parts secure the harness using cable
ties. Reinstall the steering wheel column
shroud.
Step 3
Routing Camera Extension Cables - (cont’d)
19
Illustrations are typical and may not match exact vehicle details
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
FCTP-FT1602
Integrated Safety System
Ford Transit - Non-Tow Mirrors
Part Number Description Qty
1 P-MCI-FD22 Main Interface Module 1
2 P-VS41.2 Switcher module 1
3 MCI-FD22-HAR Interface Harness 1
4 MB11-VS41-HAR Switcher Harness 1
5 BSM1-SCEH 1524mm Side Camera Extension Harness 2
6 SVC-02 Side view camera 2
7 Transitstd-Plastics Mirror Plastics 1 (set)
Wiring Diagram
Cameras
Transitstd-Plastics
AGREEMENT: End user agrees to use this product in compliance with the instructions and terms
of use above and with all State and Federal laws. EchoMaster provides instructions and safety
warnings with respect to this product and disclaims all liability for any use not in conformity with
those instructions or other misuse of its product. If you do not agree, please discontinue use
immediately and contact EchoMaster. This product is intended for off-road use and passenger
use only.
IG-FCTP-FT1602
REV. 111617
15500 Lightwave Drive, Suite 202, Clearwater, Florida 33760
Unit 25B, Woolmer Way, Bordon, Hampshire, United Kingdom, GU35 9QE
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
tel - +44(0)1420 487110 (sales) - +44(0)1420 470618 (technical)
EchoMaster is a Power Brand of AAMP Global.
EchoMaster.com
Table of contents
Other EchoMaster Pro Automobile Accessories manuals
EchoMaster Pro
EchoMaster Pro PMON-50-FM User manual
EchoMaster Pro
EchoMaster Pro FCTP-DP1504 User manual
EchoMaster Pro
EchoMaster Pro FCTP-MB1903 User manual
EchoMaster Pro
EchoMaster Pro FCTP-GM2003 User manual
EchoMaster Pro
EchoMaster Pro PCAM-CHMSL2-FD99 User manual
EchoMaster Pro
EchoMaster Pro IntelliHaul User manual
EchoMaster Pro
EchoMaster Pro IntelliHaul FC-GMOESWR-TC User manual
EchoMaster Pro
EchoMaster Pro RV-MM7 User manual
EchoMaster Pro
EchoMaster Pro PBS-MW01 User manual
EchoMaster Pro
EchoMaster Pro FCTP-DR1304 User manual
Popular Automobile Accessories manuals by other brands
Whelen Engineering Company
Whelen Engineering Company SAK22 installation guide
Thule
Thule 30 manual
STO N SHO
STO N SHO SNS 152 Installation procedures
Honeywell
Honeywell Thor CV31 instructions
AUDIOLINE
AUDIOLINE BT 201 operating instructions
Metra Electronics
Metra Electronics 95-5026 installation instructions
