EchoMaster Pro IntelliHaul User manual

Installation Guide
19355216
FC-CHMSL-SIL
Integrated Towing Assistance Package
IntelliHaul
4” and 8” screens only
Not compatible with IOB

3
email - [e-mail] (US) - tel - 866-766-2267
Installation Guide
2
email - [e-mail] (US) - tel - 866-766-2267
Illustrations are typical and may not match exact vehicle details.
Cover all surfaces with tape or plastic protection lm to protect against
scratching and damage. EchoMaster is in no way responsible for any damage
that may incur during installation.
This product has been validated in the vehicles listed on the application guide only.
Care must be taken when installing this accessory to ensure damage does not occur
to the vehicle. The installation of this accessory should follow approved guidelines to
ensure proper installation. Read entire instructions thoroughly before starting.
This document covers such items as:
- Vehicle Protection (use of covers and blankets, cleaning chemicals, etc).
- Vehicle Disassembly / Reassembly (panel removal, part storage, etc).
- Electrical Component Disassembly / Reassembly (battery disconnection,
connector removal, etc).
NOTES:
Removed Parts: Inspect the vehicle and parts for any damage.
Place all removed parts on a protected surface in an area where they will not get
damaged.
Connectors: When disconnecting connectors, do not pull on the wires; pull by
holding the connectors.
Retains the factory reverse camera if equipped.
Prior to Installation
FC-CHMSL-SIL
Integrated Towing Assistance Package

Installation Guide
3
email - [e-mail] (US) - tel - 866-766-2267
Illustrations are typical and may not match exact vehicle details.
2
email - [e-mail] (US) - tel - 866-766-2267
Illustrations are typical and may not match exact vehicle details.
CAUTION
Consult your vehicle owner’s manual to disconnect the battery. Do not disconnect
ANY airbag connectors or indicators. Doing so may result in activating a diagnostic
code. These codes will require the dealer to perform the reset procedure which may
incur a reset fee. If you are unsure of any vehicle trim removal process consult the
OEM service manual.
Removing vehicle trim panels in extreme hot and/or cold climate could result in
damage. Use care when removing all vehicle trims.
Using painter’s blue tape on the vehicle trim panels can help limit any scratches
and/or marring. Use a nylon trim panel removal tool whenever possible.
Vehicle Preparation & Protection
Recommended Tools
FC-CHMSL-SIL
Integrated Towing Assistance Package
Painters tape

5
email - [e-mail] (US) - tel - 866-766-2267
Installation Guide
4
email - [e-mail] (US) - tel - 866-766-2267
Illustrations are typical and may not match exact vehicle details.

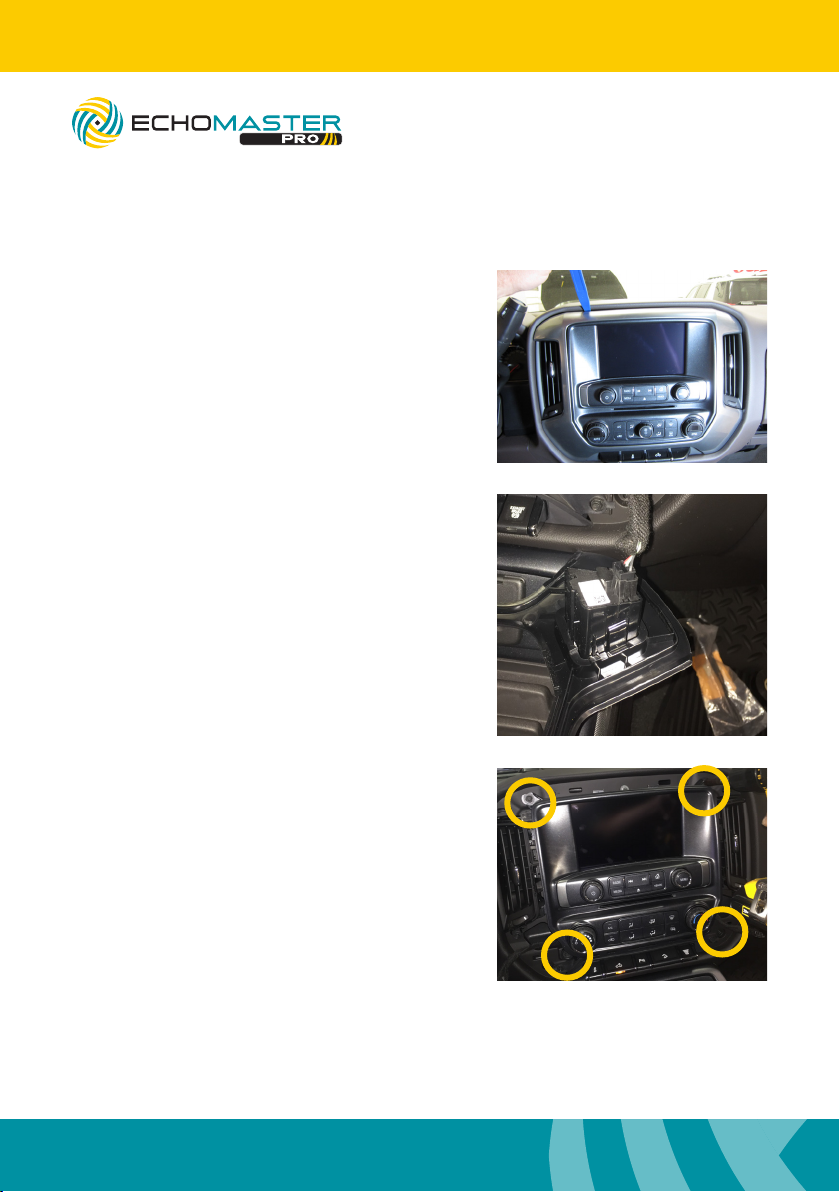

Removing the Dash
Step 1
Using a plastic dash removal tool, remove
the LCD display trim panel.
Step 2
If installed, disconnect the heated seat
connector plugs from the back of the
display trim panel.
Step 3
Remove the 4 x 7mm bolts from around the
LCD display.
Once the bolts have been removed,
pull the unit from the dash, disconnect the
connectors and set aside.
FC-CHMSL-SIL
Integrated Towing Assistance Package
4” and 8” screens only

Installation Guide
5
email - [e-mail] (US) - tel - 866-766-2267
Illustrations are typical and may not match exact vehicle details.
4
email - [e-mail] (US) - tel - 866-766-2267
Illustrations are typical and may not match exact vehicle details.
Step 4
Disconnect the 3 connectors from the back
of the LCD display assembly and set aside.
Steps 5 & 6
Remove the 2 x 7mm bolts from the
CD mechanism.
Disconnect the CD mechanism and
set aside.
Step 7
Remove the 4 x T-15 torx screws from the
glove compartment (2 from top and 2 from
bottom).
Remove the glove compartment and set
aside.
FC-CHMSL-SIL
Integrated Towing Assistance Package

7
email - [e-mail] (US) - tel - 866-766-2267
Installation Guide
6
email - [e-mail] (US) - tel - 866-766-2267
Illustrations are typical and may not match exact vehicle details.

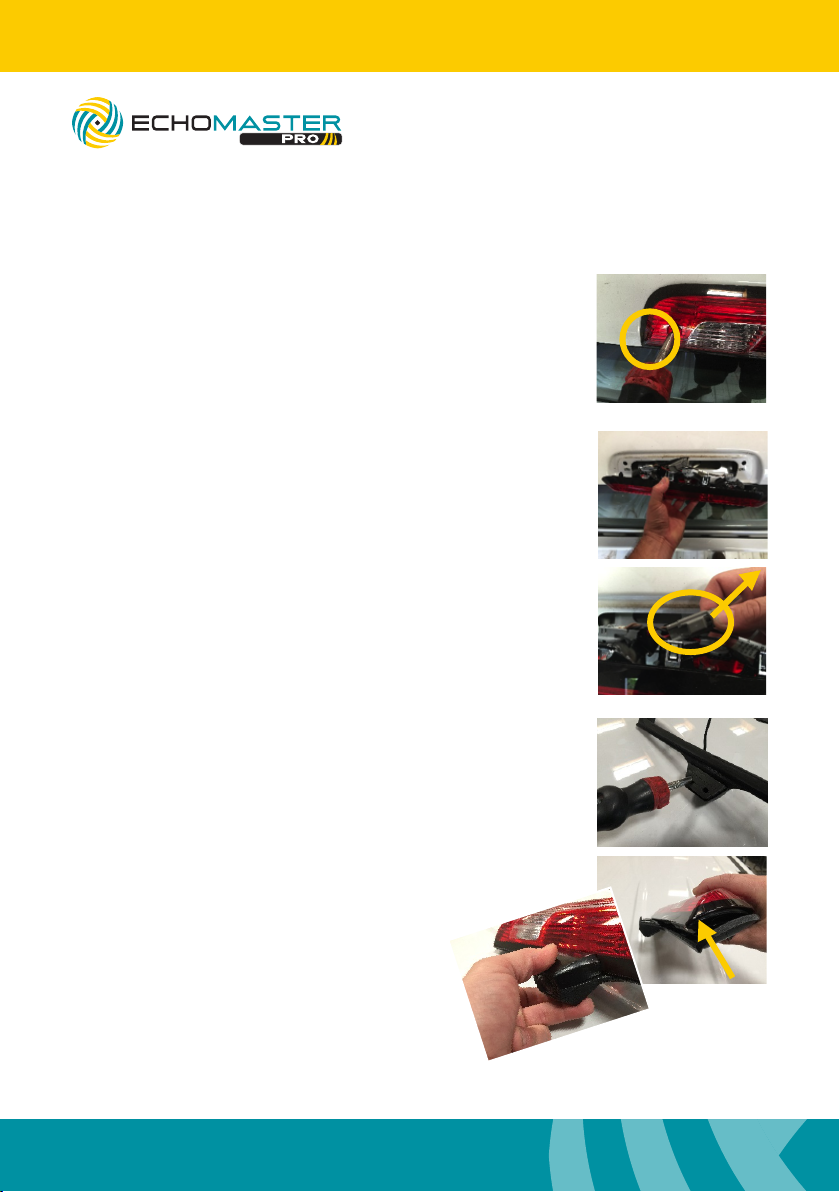

Installing CHMSL Camera
Step 1
Remove the 2 x T15 torx screws
that secure third brake light.
Step 2
Grab the light at the bottom and pull
up and out, then disconnect the gray
connector on the back.
Step 3
Attach the CHMSL camera housing by
rst removing 2 x Phillip’s screw and
removing the top cap. Then snap in
place onto back of the brake light.
Once it is snapped in place
reinstall the top cap on to the camera.
FC-CHMSL-SIL
Integrated Towing Assistance Package

Installation Guide
7
email - [e-mail] (US) - tel - 866-766-2267
Illustrations are typical and may not match exact vehicle details.
6
email - [e-mail] (US) - tel - 866-766-2267
Illustrations are typical and may not match exact vehicle details.

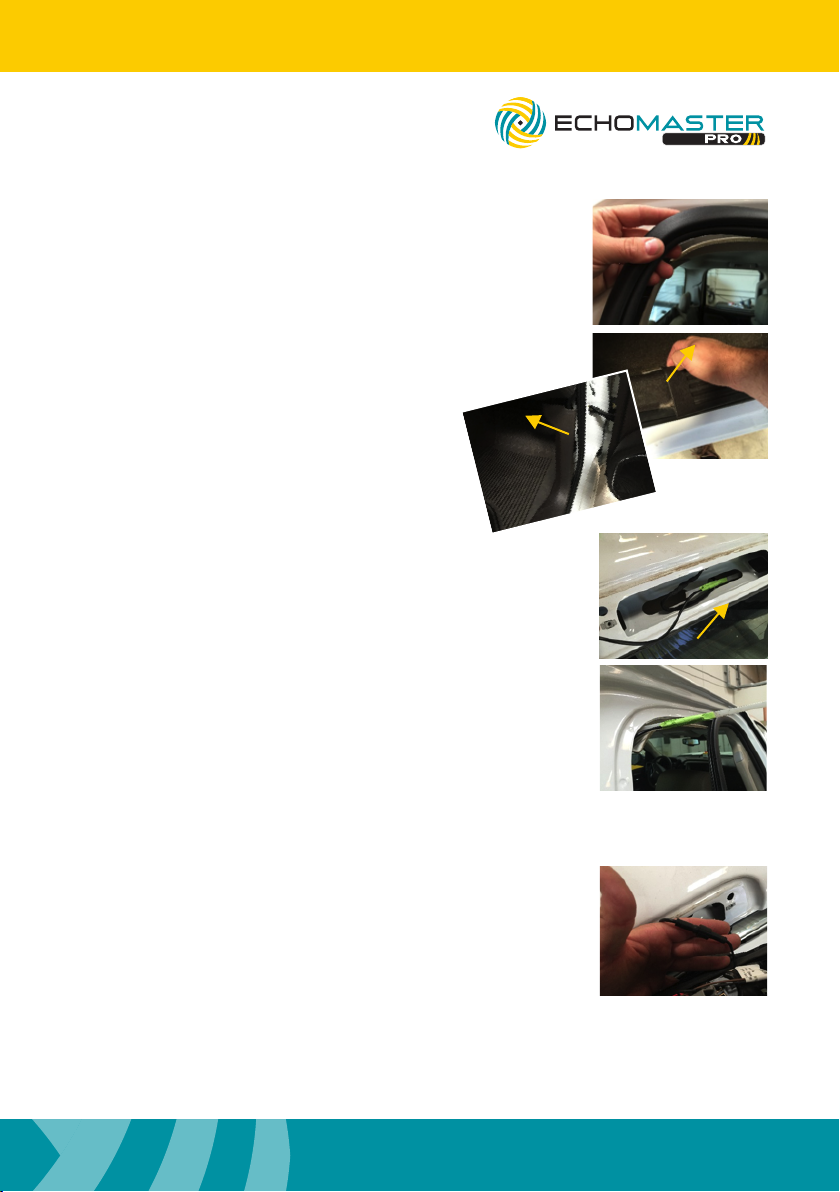

Step 4
Pull away the passenger side top
rear portion of the door seal.
Remove the front and rear passenger
door sill as well as the passenger
side kick panel cover.
Step 5
Tape short camera extension cable to a
long zip tie or exible wire shing tool.
Fish from the brake light to rear top corner
of passenger’s C pillar cavity between
headliner.
Step 6
Thread extension onto the camera cable and
then remount brake light with camera
attached using the 2 x T15 Torx screws.
FC-CHMSL-SIL
Integrated Towing Assistance Package

9
email - [e-mail] (US) - tel - 866-766-2267
Installation Guide
8
email - [e-mail] (US) - tel - 866-766-2267
Illustrations are typical and may not match exact vehicle details.
Installing CHSML Camera
Step 7
Connect the camera power extension
harness then connect the longer
camera extension cable.
Be sure the connections are fully seated.
Step 8
Route the cable behind, down and past
the rear seat belt. Proceed to route forward
along the door sill to the passengers kick
panel. Use a long zip tie or exible wire
shing tool to help route the cable.
Step 9
Connect the camera extension harness into the camera
connector that has been labeled CAMERA 3.
Using the CAMERA 3 connection allows the user to manually
turn the camera ON/OFF
Mounting the Module to the Bracket
Mount module to the bracket using the
4 x M3 screws provided.
FC-CHMSL-SIL
Integrated Towing Assistance Package

Installation Guide
9
email - [e-mail] (US) - tel - 866-766-2267
Illustrations are typical and may not match exact vehicle details.
8
email - [e-mail] (US) - tel - 866-766-2267
Illustrations are typical and may not match exact vehicle details.
Module Connections
Connect the 8-pin power harness and the
16-pin main camera extension cable to module.
Fasten harnesses to the bracket using zip ties
through the holes provided.
Mounting the Module
Please select the size of the monitor using
dip switch 1
u Up for 8”
u Down for 4”
Please select the reverse camera input option
using dip switch 2
u Up for OEM installed reverse camera
u Down for EchoMaster/aftermarket
camera.
Camera input 4 is automatically activated when
vehicle is in reverse gear if dip switch 2 is set to
ECHO.
Please select vehicle year using dip switch 3
u UP for 2015-2016 models
u Down for 2017-2018
Keep dip switch 4 set to UP position for
operation
Place CD mechanism back in to dash and
slide module/bracket assembly in just
above it using same 2 x 7mm bolts to
secure it.
Route male/female LVDS connections from center stack
to glove compartment opening. Re-connect the
CD mechanism.
FC-CHMSL-SIL
Integrated Towing Assistance Package
PLEASE NOTE
If vehicle is not equipped with CD/
DVD, mount as shown.
(screws not provided)

11
email - [e-mail] (US) - tel - 866-766-2267
Installation Guide
10
email - [e-mail] (US) - tel - 866-766-2267
Illustrations are typical and may not match exact vehicle details.

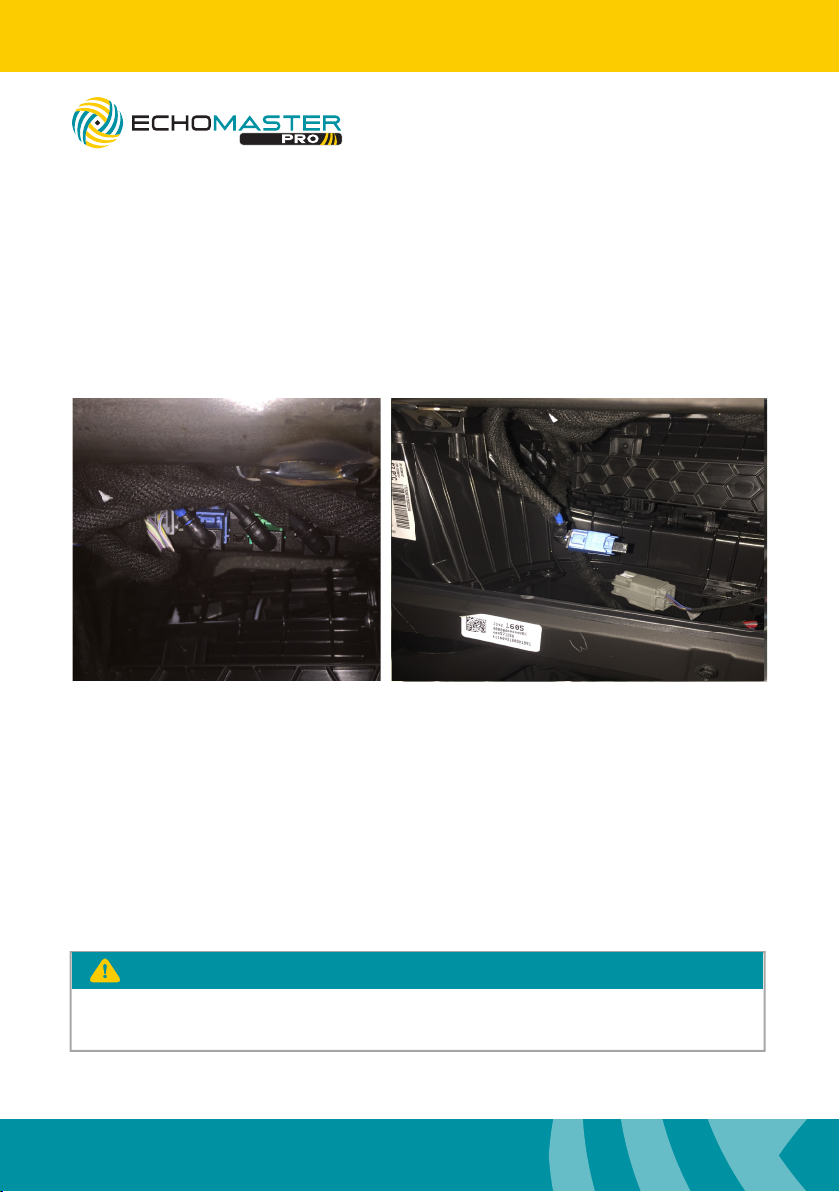

LVDS Connection
Locate HMI module high in glove compartment cavity.
Disconnect the BLUE LVDS connector.
Connect the loose male LVDS connector into female EchoMaster connector.
Connect the male EchoMaster LVDS connector into HMI module.
Secure loose wiring with zipties.
Re-install
Reinstall all removed panels and test system.
8” Radio - Press and hold the “BACK” button for three seconds to enter the
IntelliHaul camera view. Press the “BACK” button to return to the previous screen.
4” Radio - Press and hold the “HOME” button for three seconds to enter the
IntelliHaul camera view. Press the “BACK” button to return to the factory screen.
The camera is accessible after 7 seconds while in reverse. Press and hold the
“BACK” button on the 8” and the “HOME” button on the 4” to access.
PLEASE NOTE
FC-CHMSL-SIL
Integrated Towing Assistance Package

Installation Guide
11
email - [e-mail] (US) - tel - 866-766-2267
Illustrations are typical and may not match exact vehicle details.
10
email - [e-mail] (US) - tel - 866-766-2267
Illustrations are typical and may not match exact vehicle details.
Wiring Diagram
FC-CHMSL-SIL
Integrated Towing Assistance Package
Part No Description Qty
1 FC-GMS-TC Main Interface module 1 2 GMSWRBRKT-1 Main Interface bracket 1 3 BSM1-PTH Power T-harness 1 4 BSM1-CEH Camera extension harness 1 5 BSM-WCEH-D 3657mm/114” Camera extension harness 1

Clearwater Florida 33760
EchoMaster is a Power Brand of AAMP Global.
www.echomaster.com
email - [e-mail] - tel - 866-766-2267 (US)
AGREEMENT: End user agrees to use this product in compliance with the instructions and terms
of use above and with all State and Federal laws. EchoMaster provides instructions and safety
warnings with respect to this product and disclaims all liability for any use not in conformity with
those instructions or other misuse of its product. If you do not agree, please discontinue use
immediately and contact EchoMaster. This product is intended for off-road use and passenger
use only.
IG-FC-CHMSL-SIL
REV. 092217
