EchoMaster Pro FCTP-MB1903 User manual

Installation Guide
FCTP-MB1903
Compatible with 7” and 10” LCD Touchscreen Radios
Mercedes-Benz Sprinter (2019-Present)
Integrated Blind Spot Kit

2
Installation Guide
2tel - 1-800-477-2267
email - [email protected]
Illustrations are typical and may not match exact vehicle detail
FCTP-MB1903
Sprinter Tow Package
Please read and follow the instructions carefully. To emphasize special information, the symbol
and the words Warning, Caution and Note have special meanings. Pay special attention to
messages highlighted by these signal words.
Note: Indicates special information to make installation easier or instructions clearer.
These instructions are designed as a guide to help make the installation of this product successful.
Always use caution and ask for assistance if you are not sure how to proceed.
AAMP Global & EchoMaster are not responsible for any damage that may occur during installation
or any changes to the vehicle interior.
Important
WARNING
Indicates a potential hazard
that could result in a death
or serious injury
CAUTION
Indicates a potential hazard
that could result in vehicle
damage
NOTE
Indicates a potential hazard
that could result in vehicle or
equipment damage

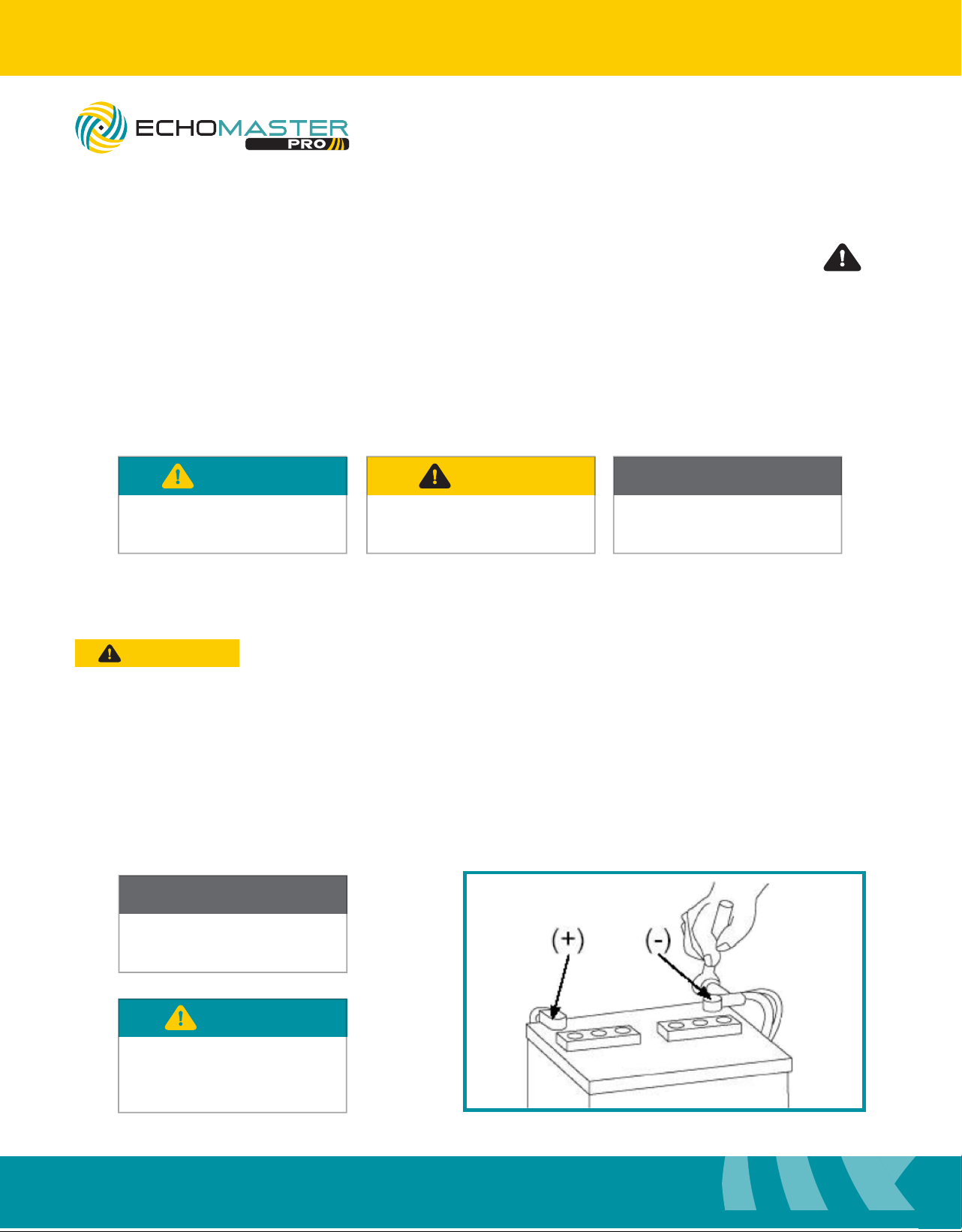

NOTE
Consult Vehicle owners guide
before disconnecting negative
battery cable
WARNING
DO NOT TOUCH the positive
terminal with any tool when
removing the negative battery
cable
Vehicle Preparation & Protection
Consult your vehicle owner’s manual to disconnect the battery. Do not disconnect ANY airbag connectors or
indicators. Doing so may result in activating a diagnostic code. These codes will require the dealer to perform
the reset procedure which may incur a reset fee. If you are unsure of any vehicle trim removal process consult
the OEM service manual.
Removing vehicle trim panels in extreme hot and/or cold climate could result in damage. Use care when
removing all vehicle trims. Using painter’s blue tape on the vehicle trim panels can help limit any scratches
and / or marring. Use a nylon trim panel removal tool whenever possible.
CAUTION

3
Installation Guide
3
tel - 1-800-477-2267
email - [email protected]
Illustrations are typical and may not match exact vehicle detail
FCTP-MB1903
Sprinter Tow Package

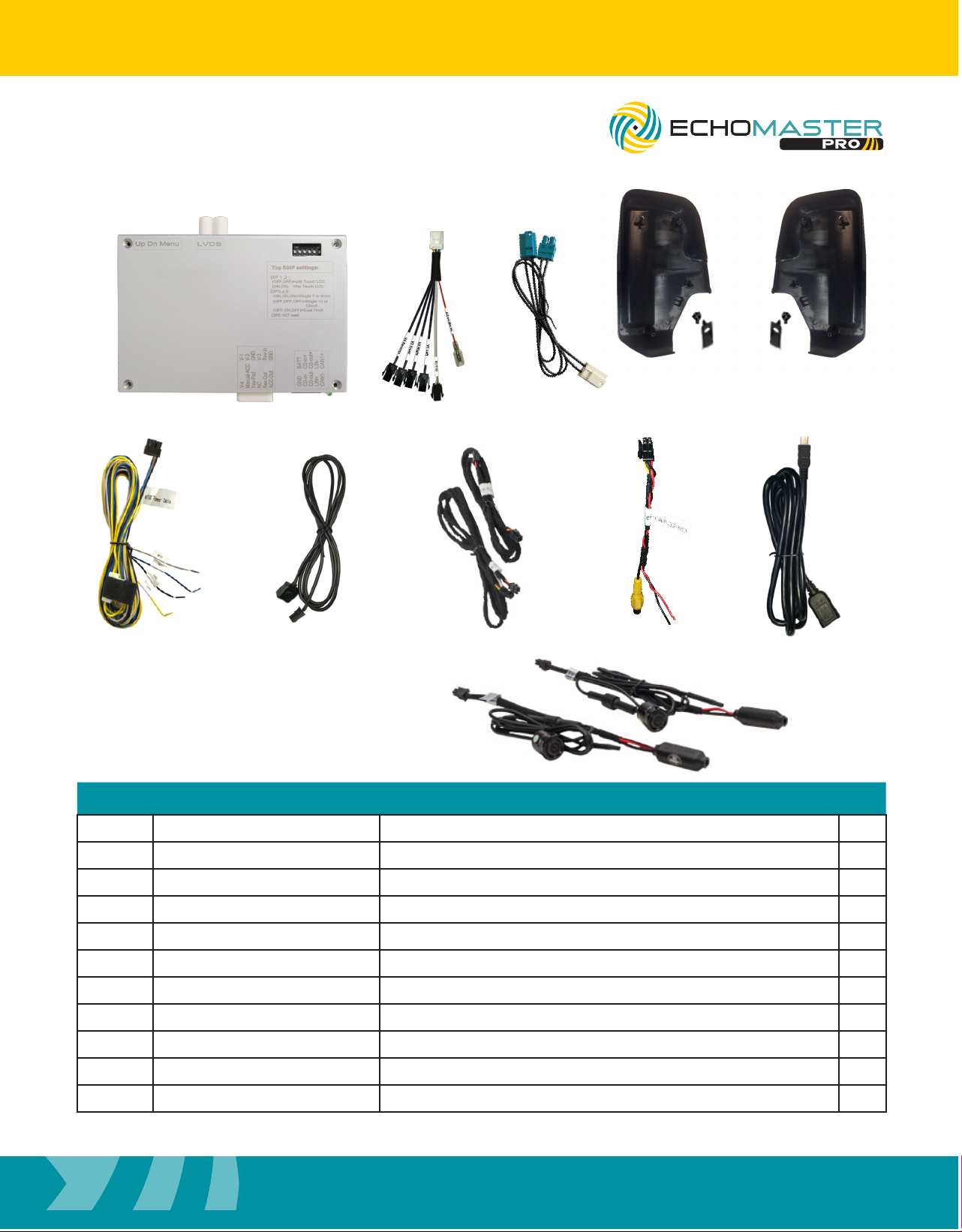

What’s in the box
Parts Description
FCTP-MB1903
Image Part Number Description Qty
1FC-MBS Interface Module For 2019+ Mercedes Sprinter 1
2FC-MBS-CAM-HAR Camera Harness for FC-MBS 1
3FC-MBS-LVDS-HAR LVDS Harness for FC-MBS 1
4BSCM-MB1101 Side Mirror Cap Camera Mounts (L&R) 1
5FC-MBS-PWR-HAR Power / CAN Harness for FC-MBS 1
6FC-MBS-KEYPAD Keypad Tester for FC-MBS 1
7CAM-EXT105-HAR 105” 4 Pin Camera Extension Harness 2
8CAM-EXT4PRCA-HAR Front / Rear Camera RCA Adapter Harness 2
9FC-MBS-USB-CBL USB Update Cable for FC-MBS Interface 1
10 SVC-01 Side Camera w/ Power Supply 2
1 2 34
5 6 7 8 9
10

4
Installation Guide
4tel - 1-800-477-2267
email - [email protected]
Illustrations are typical and may not match exact vehicle detail
FCTP-MB1903
Sprinter Tow Package

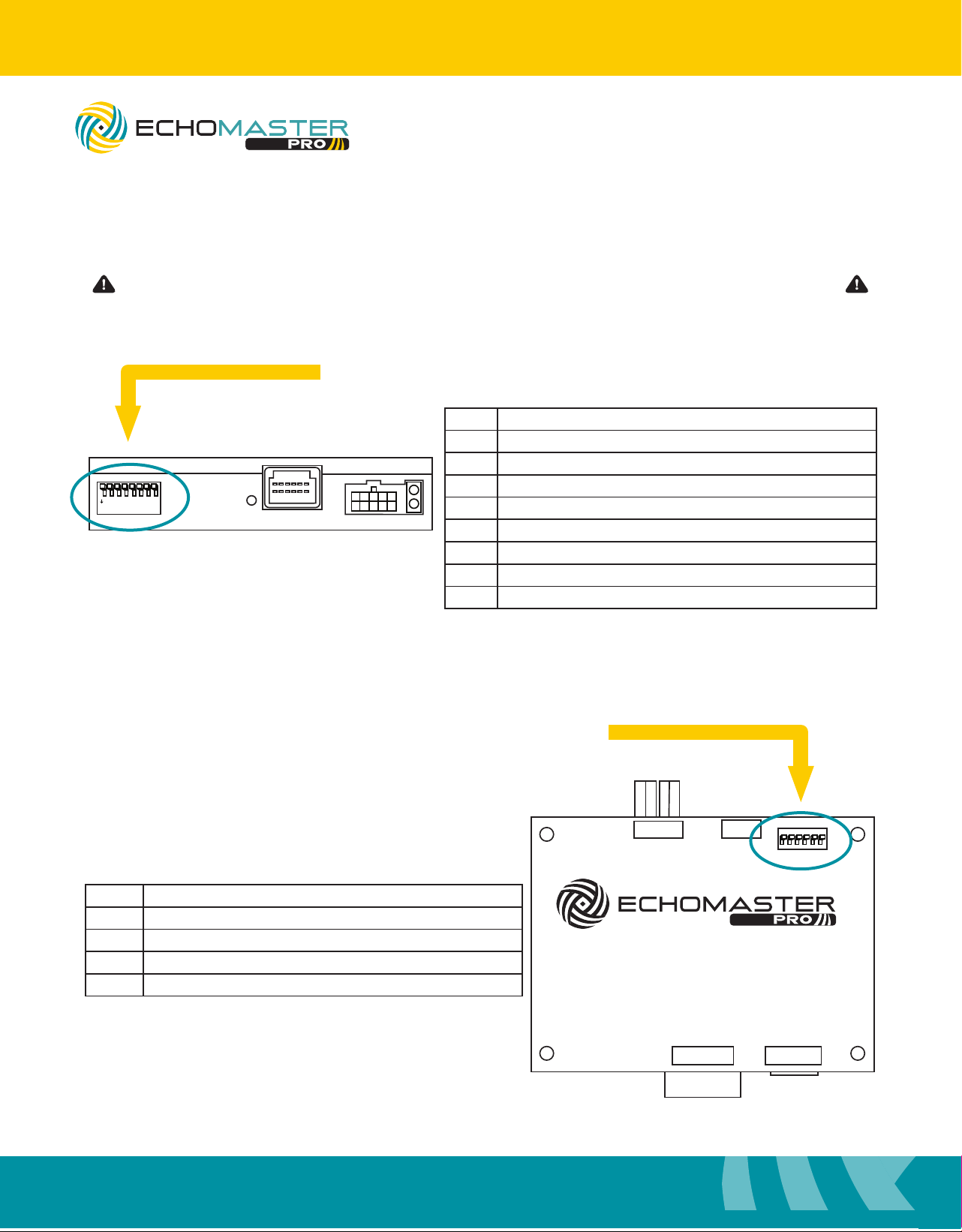

Setting the DipSwitches
1
ON
234 5678
FC-MBS
BLINDSPOT CAMERA INTERFACE
LVDS
CAMERA POWER
USB
1
ON
2 3 4 5 6
1
ON
2 3 4
1
ON
234 5678
FC-MBS
BLINDSPOT CAMERA INTERFACE
LVDS
CAMERA POWER
USB
1
ON
2 3 4 5 6
1
ON
2 3 4
No. Function
1 Left Camera On / Off
2 Right Camera On / Off
3 Front Camera On / Off
4 No Function
5 Rear Camera - Aftermarket (on) / OEM (off) Camera
6 No Function
7 No Function
8 With Black Edges on Screen (on) / Full Screen (off)*
* 10 inch Screens only
Side DipSwitch Settings
Top DipSwitch Settings
No. Function
1 MUST BE OFF
2 OEM Touch On / Off
3, 4, 5 Screen Size - 7” Screen (on) / 10” Screen (off)
6 No Function
Please be sure to set all DipSwitches before plugging the interface module into the vehicle.

5
Installation Guide
5
tel - 1-800-477-2267
email - [email protected]
Illustrations are typical and may not match exact vehicle detail

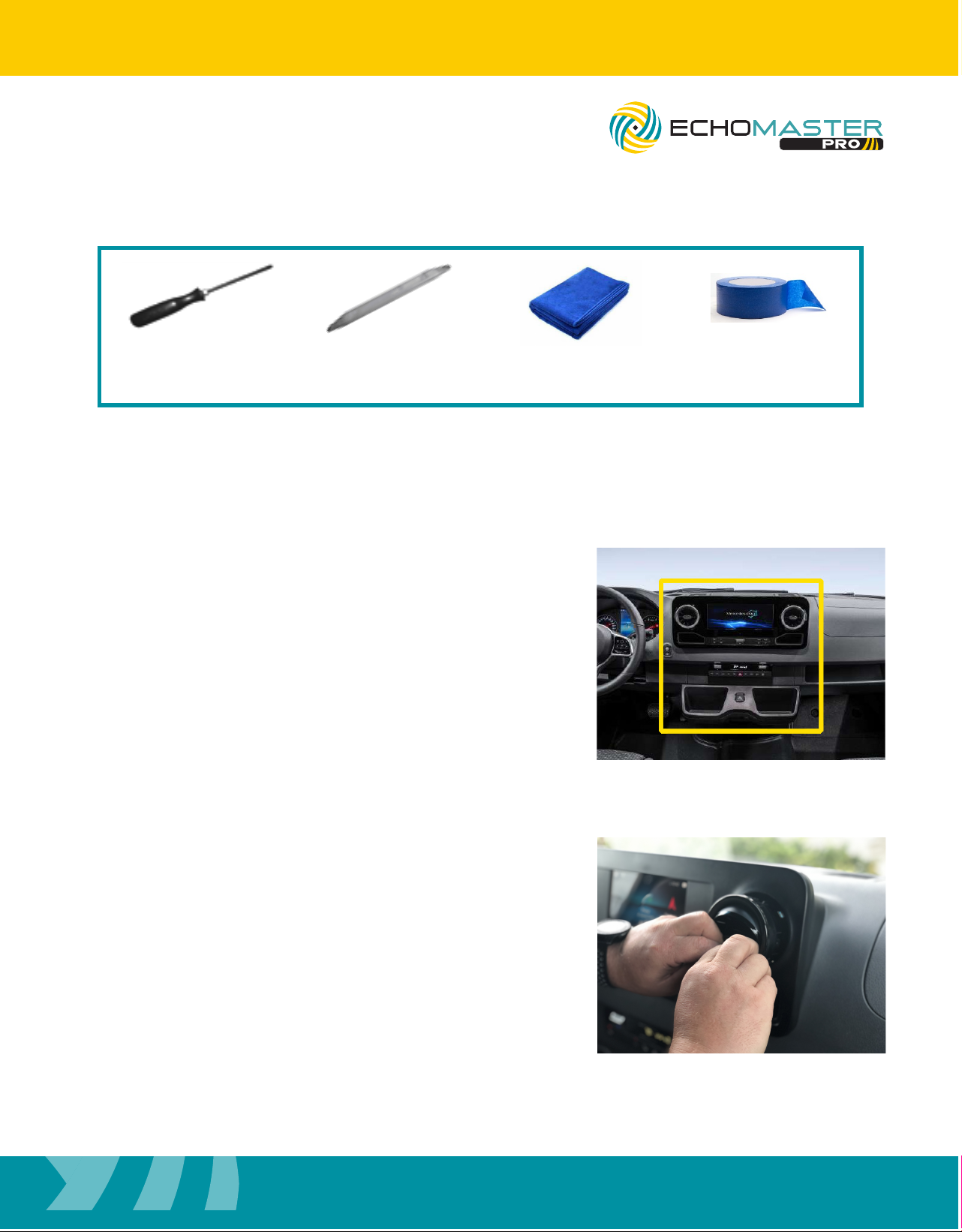

Step 1
Carefully tape off the dash trim piece around the radio
display including the cup holders below the radio.
Dash Disassembly
Step 2
Carefully remove the HVAC vents from the dash by aiming
the vents all the way down and pulling on the HVAC vent
surrounds.
FCTP-MB1903
Sprinter Tow Package
Tools Required
T-20, T-30
Torx Drivers
Trim
Removal Tool
Towel Painters
Tape

6
Installation Guide
6tel - 1-800-477-2267
email - [email protected]
Illustrations are typical and may not match exact vehicle detail
Step 3
Remove the two T20 Torx bolts, one behind each vent, that
were exposed by removing the vents.
Dash Disassembly (continued)
FCTP-MB1903
Sprinter Tow Package
Step 5
Remove the radio display by disconnecting the 3 connectors
and set it in a safe area to avoid damage.
Once the radio display is removed, place in safe area
to avoid damage.
NOTE
Step 4
Using both hands, pull at the upper corner of the dash
panel that houses the LCD screen from the dash.

7
Installation Guide
7
tel - 1-800-477-2267
email - [email protected]
Illustrations are typical and may not match exact vehicle detail
FCTP-MB1903
Sprinter Tow Package

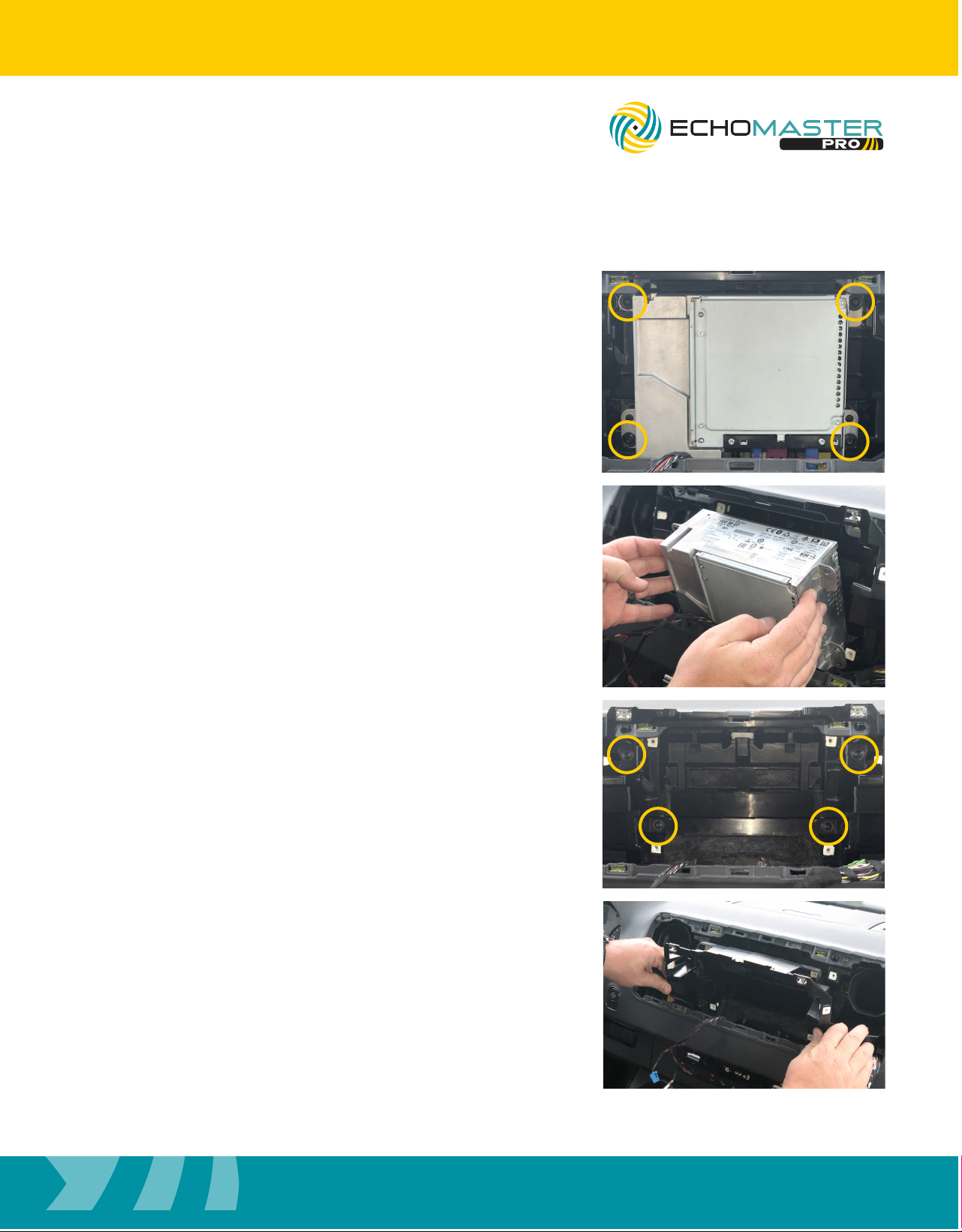

Step 6
Release the radio brain by removing the four T20 Torx bolts,
one at each corner, that were exposed by removing the dash
panel. Rest the radio brain on the lower dash.
Step 8
Remove the sub dash panel by tilting the top toward the rear
of the vehicle and lifting out of the dash.
Step 7
Remove the sub dash panel by removing the four T20 Torx
bolts, one at each corner, that were exposed by removing
the radio brain.

8
Installation Guide
8tel - 1-800-477-2267
email - [email protected]
Illustrations are typical and may not match exact vehicle detail
Step 1
Remove a small portion of the electrical tape banding the main
harness together to expose the power, ground and CANBus
connections.
Interface Connections
Step 3
Disconnect the LVDS cable from the radio brain, labeled
“CID/PIP”, and connect the EchoMaster LVDS cable inline
with the factory cable and then back into the radio.
Step 2
Connect the wiring as follows:
Interface Wire Color Vehicle Wire Color Function
Yellow Red/Brown Constant +12v
Black Brown Ground
Blue Purple/White CAN +
Gray Purple CAN -
EchoMaster recommends soldering all connections.
FCTP-MB1903
Sprinter Tow Package

9
Installation Guide
9
tel - 1-800-477-2267
email - [email protected]
Illustrations are typical and may not match exact vehicle detail
Step 4
Route the LVDS cable behind the plastic sub dash on the
right side. Route the Power and Camera harnesses behind
the plastic sub dash on the left side.
Step 6
Insert the supplied zip tie behind the sub dash center
support. Be sure to leave the ends of the zip tie in front of the
supports to the left and right.
Step 5
Connect the Power, Camera and LVDS harnesses to the
FC-MBS control module.
FCTP-MB1903
Sprinter Tow Package

10
Installation Guide
10 tel - 1-800-477-2267
email - [email protected]
Illustrations are typical and may not match exact vehicle detail
Step 7
Using the zip tie secure the module to the sub dash center
support.
Interface Connections (continued)
Step 8
Remove the access panels just below the dash by pulling
the door seal back and pulling the panels towards the
rear of the vehicle.
Step 9
Using a large cable tie or dash snake, route the
camera harnesses from behind the radio to where
you removed the access panel in step 8. Once the
camera extension cables are routed, connect the
radio side of the cable to the corresponding left /
right input on the modules camera harness.
Be sure when routing the cables, any and all moving
parts or sharp edges are avoided.
FCTP-MB1903
Sprinter Tow Package

11
Installation Guide
11
tel - 1-800-477-2267
email - [email protected]
Illustrations are typical and may not match exact vehicle detail
Mirror Disassembly
Step 1
Push the bottom of the top mirror glass in to gain
access to the lower mirror glass.
Using even pressure, pull the bottom mirror glass
off towards you. The mirror will pop off.
Step 2
Disconnect the defroster connector.
Not all models will have the defroster.
Once the mirror glass is removed, place in safe
place to avoid damage
NOTE
FCTP-MB1903
Sprinter Tow Package

12
Installation Guide
12 tel - 1-800-477-2267
email - [email protected]
Illustrations are typical and may not match exact vehicle detail
Step 3
Tilt the top mirror glass so you can place both hands up un-
der the glass to get to the center of the back of the glass.
Applying even pressure, pop the glass off.
Step 4
Disconnect the defroster connector.
Not all models will have the defroster.
Step 5
Remove the four Torx T20 screws around the mirror housing.
Mirror Disassembly (continued)
NOTE
Once the mirror glass is removed, place in safe
area to avoid damage
FCTP-MB1903
Sprinter Tow Package

13
Installation Guide
13
tel - 1-800-477-2267
email - [email protected]
Illustrations are typical and may not match exact vehicle detail
Step 6
Remove the outer trim ring.
Support the back cover while removing the outer trim ring.
Place in a safe area to avoid damage.
Step 7
Remove the back cover of the mirror housing.
Step 8
The turn signal indicator snaps off the back cover.
Place the back cover in a safe area to avoid damage.
FCTP-MB1903
Sprinter Tow Package

14
Installation Guide
14 tel - 1-800-477-2267
email - [email protected]
Illustrations are typical and may not match exact vehicle detail

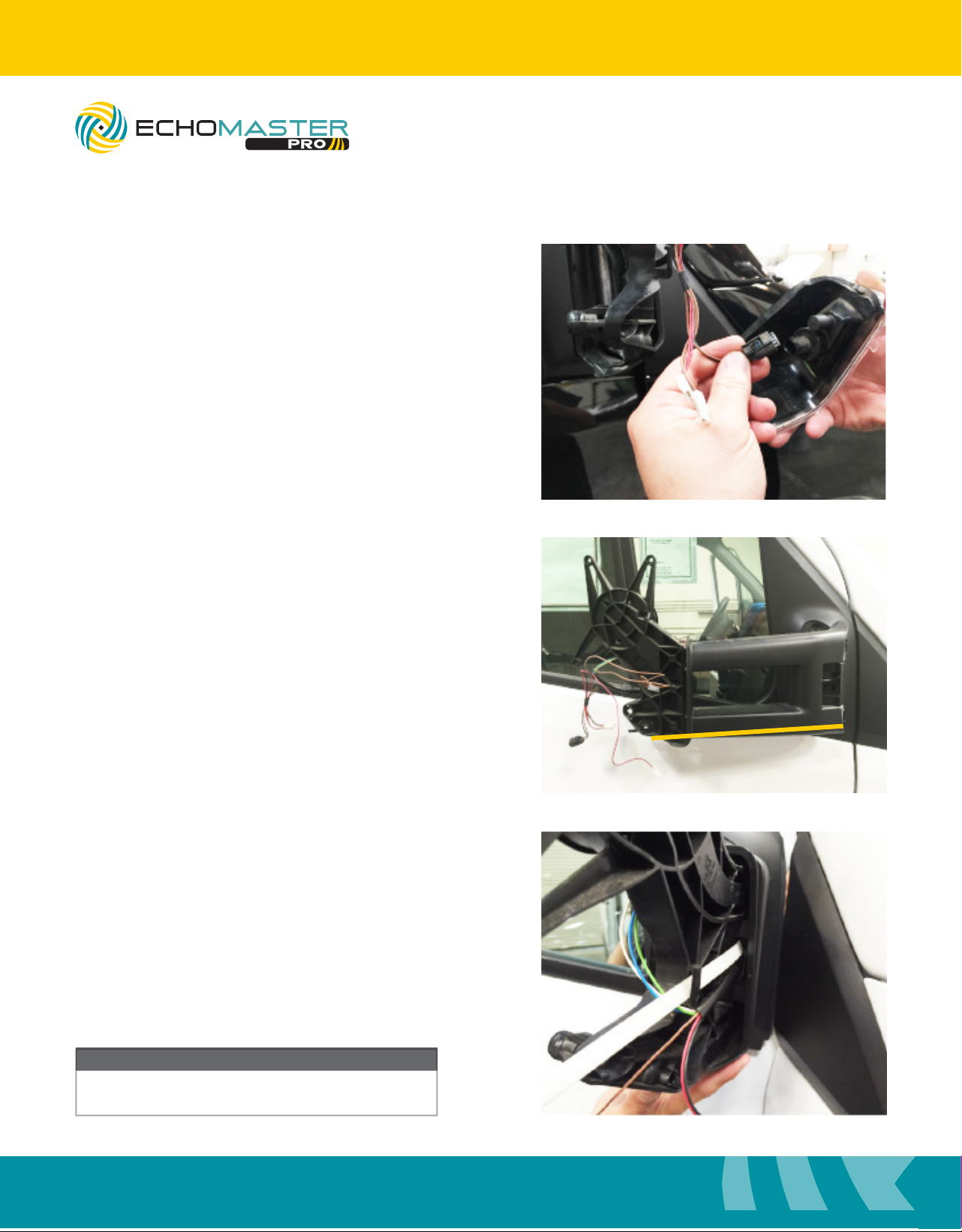

Step 9
Disconnect the turn signal indicator.
Place the turn signal indicator in a safe area
to avoid damage.
Cable Routing
Mirror Disassembly (continued)
NOTE
Removing the mirror assembly is not absolutely
necessary but makes the installation easier.
FCTP-MB1903
Sprinter Tow Package
Step 1
For the tow mirror, fold the arm in towards the door to
gain access to the inner hinge area. Feed a long wire tie
or similar sh tool through the lower outside portion of
the tow mirror arm. Tape the camera cable to the end of
the wire tie you are using to feed the wire through. It may
be necessary to split the plastic pieces at the bottom of
the arm to allow the connector to pass through.
Step 2
Feed a long wire tie or similar sh tool through the mirror
where the factory wires come through. Tape the camera
cable to the end of the wire tie you are using to feed the
wire through.
Non-Tow Mirror
Tow Mirror

15
Installation Guide
15
tel - 1-800-477-2267
email - [email protected]
Illustrations are typical and may not match exact vehicle detail
Step 3
Remove the three Torx T30 screws holding the
mirror to the door of the truck.
One of the Torx T30 screws has a small cap
covering it. Use something slim to pry the cover
off to access the screw.
The mirror arm will still be held on with a clip on
the outside.
Step 4
Using a nylon pry tool, insert it (approximately as
shown - above the hook) then pull it out and push
the mirror assembly up to disengage.
Step 5
Feed a long wire tie or similar sh tool through the door
to where the factory wires come through the boot.
FCTP-MB1903
Sprinter Tow Package

16
Installation Guide
16 tel - 1-800-477-2267
email - [email protected]
Illustrations are typical and may not match exact vehicle detail
Step 6
Unsnap the door boot on the door side, and feed the
wire tie through with the camera cable taped to the
end. It is not necessary to remove the boot from the
black snap ring.
Only the door side of the boot needs to be removed.
Step 7
Feed a long wire tie or dash snake tool through the boot
then into the vehicle as shown. Reach in behind the access
panel to guide the wire tie if needed.
The boot does not need to be removed from the vehicle
side.
Once inside the vehicle connect the camera cable to the
power supply and then to the camera extension cable
that was ran during step 8 on page 10. Secure the power
supply and any excess wire using a wire tie.
Cable Routing (continued)
NOTE
Once the cable is routed into the door jamb
reinstall the three Torx T30 screws that hold the
mirror frame on to the vehicle to avoid damage.
FCTP-MB1903
Sprinter Tow Package
Mirror Assembly
Step 1
With the cables routed, you can assemble the mirror caps
with the cameras.

17
Installation Guide
17
tel - 1-800-477-2267
email - [email protected]
Illustrations are typical and may not match exact vehicle detail
FCTP-MB1903
Sprinter Tow Package

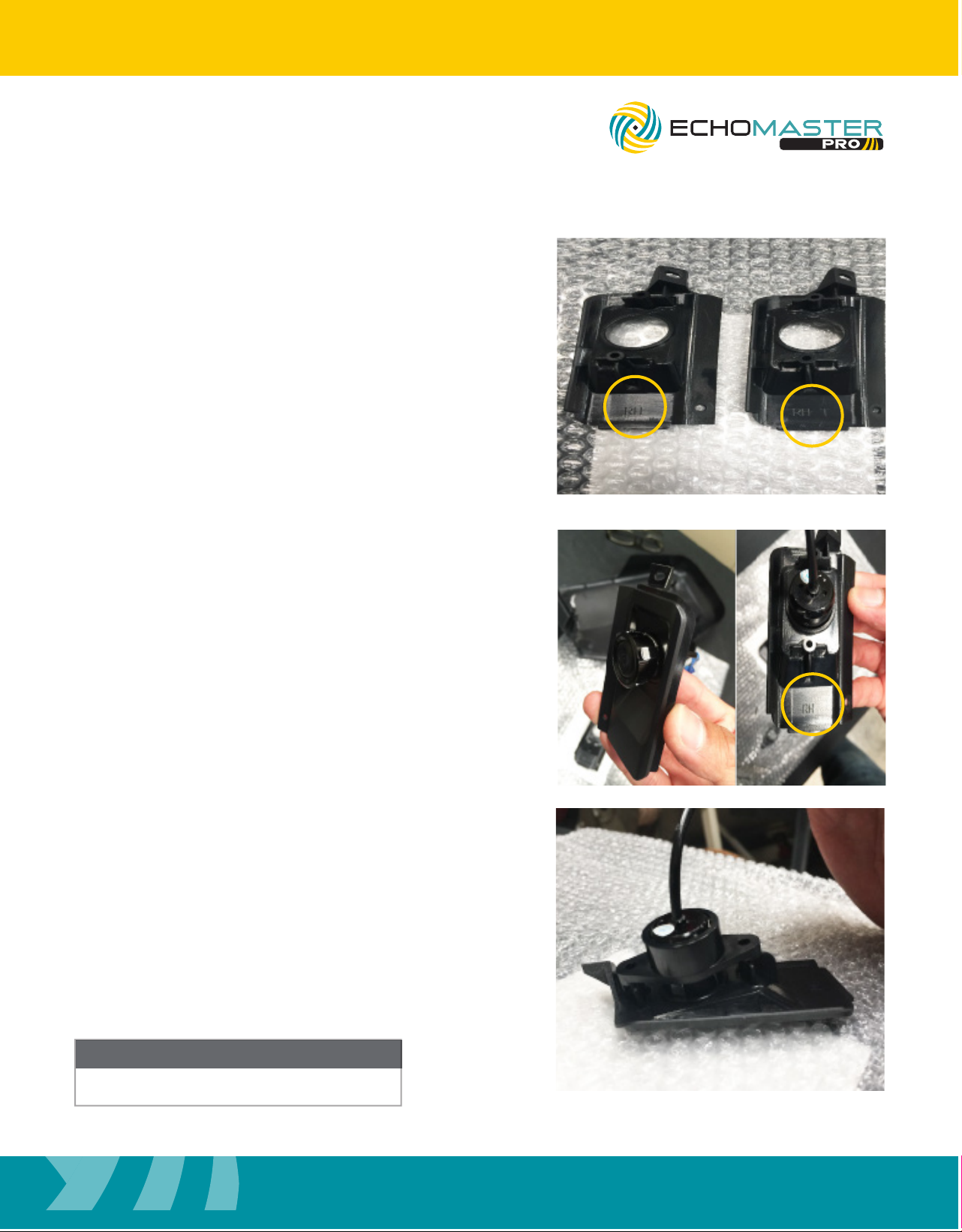

Step 2
There are two sets of camera inserts per side.
RH Right hand side
RH-T Right hand side towing
LH Left hand side
LH-T Left hand side towing
The towing inserts are for the mirrors that extend out
farther from the vehicle.
Step 3
Select the inserts you are going to be installing.
There is a small notch on the camera; this notch needs to
be on the same side as the lettering on the insert.
Step 4
Once the camera is snapped into place, slide the locking
mount over the camera. There is a locking rib which needs
to be lined up with the notch on the camera. You can adjust
the camera using the locking mount by twisting the camera
so the screw holes line up. Once the holes line up, using a
No. 1 Phillips screwdriver install the supplied screws.
NOTE
DO NOT OVER TIGHTEN
Mirror Assembly (continued)

18
Installation Guide
18 tel - 1-800-477-2267
email - [email protected]
Illustrations are typical and may not match exact vehicle detail
FCTP-MB1903
Sprinter Tow Package
Step 5
When installing the camera insert on to the mirror
caps, the locating tab will line up with a small hole
on the front of the camera insert.
Step 6
Once the camera insert is installed in place,
use a number 1 Phillips screwdriver to mount
the camera insert.
Step 7
Once the camera insert is installed, snap the turn
signal in place. Reinstall the mirror caps, in the
reverse order they were removed.
Make sure all connections in the mirror are fully
seated and secure when reinstalling everything.
NOTE
DO NOT OVER TIGHTEN
Mirror Assembly (continued)

19
Installation Guide
19
tel - 1-800-477-2267
email - [email protected]
Illustrations are typical and may not match exact vehicle detail
FCTP-MB1903
Sprinter Tow Package
Wiring Diagram Overview
FRONT
LEFT
RIGHT
To Radio
FC-MBS
BLINDSPOT CAMERA INTERFACE
LVDS
CAMERA POWER
REAR
1
ON
23456
Factory Harness
Remove Tape and
make connections
Factory LVDS

20
Installation Guide
20 tel - 1-800-477-2267
email - [email protected]
Illustrations are typical and may not match exact vehicle detail
FCTP-MB1903
Sprinter Tow Package
Testing
Reconnect the three connectors to the dash panel that were removed on page 6, step 5.
Reconnect the negative battery cable.
Turn the ignition switch to ON, when the display of the unit comes on and is done with the boot up sequence,
test the system for functionality.
Activate the right turn signal. Verify the right camera is displaying on the radio’s screen.
Activate the left turn signal. Verify the left camera is displaying on the radio’s screen.
Place your foot on the brake and place the vehicle in reverse. The rear camera will display on the screen.
Place the vehicle back in park to go to back to the main display.
It is also possible to cycle through the inputs / cameras using the Keypad Tester included in the box. When
using the keypad tester, the camera label (left, right, front, rear) will be overlayed in the top left corner of the
screen to help identify which camera is being displayed. To use, press and release the button, the rst camera
in the rotation will be displayed. Press and release the button again to change to the next camera. Once the
camera rotation has nished, pressing the button again will exit camera mode and return back to the main
display
Once proper operation has been conrmed, ensure all factory components are in working order (radios touch
screen, radio controls, etc.) Once proper operation has been conrmed it is now time to reassemble the
vehicle.
Firmware Updates
Please visit www.EchoMaster.com and type “FCTP-MB1903” into the search bar. Once on the product page,
click on the downloads tab and download the application and rmware le needed to perform the update.
The FC-MBS module will need to be disconnected from the vehicle and placed into rmware update mode.
To do this nd the bank of 4 DipSwitches on the side of the module. Flip DipSwitch #4 to the ON position.
Once the application has been installed onto the computer. Connect the included USB port to the computer
and then to the module.
1
ON
2345678
FC-MBS
BLINDSPOT CAMERA INTERFACE
LVDS
CAMERA POWER
USB
1
ON
2 3 4 5 6
1
ON
2 3 4
USB DipSwitches
