EchoStar DSB-1000 2Ci User manual

User Manual
DIGITAL SATELLITE RECEIVER
WITH COMMON INTERFACE
DIGITAL FREE TO AIR-DUAL COMMON INTERFACE

CONTENTS
2.
3. Remote Control Unit (RCU) ---------------------------------------------------- 5
4. Getting started --------------------------------------------------------------------- 6
5. Operation and menu program ------------------------------------------------- 9
6. Specifications ---------------------------------------------------------------------- 19
Front & rear view ---------------------------------------------------------------- 4
1. Features ----------------------------------------------------------------------------- 2
1
AC power ON/OFF switch is on the rear panel of the IRD
Trade Mark of the DVB Digital Video Broadcasting Project (1700)

1. Features
1. MPEG-2 Video(MP@ML)
2. MPEG-1 Audio layer 1, layer 2
3. MPEG-2 Digital & fully DVB compliant
4. Capable of interfacing the CAMsof DVB Common Interface standard
5. Capable of scanning the frequency for SMATV system
6. Plug & Play installing program setup
7. Supported to PAL, SECAM, NTSC of TV standard
8. On-Screen display with 16-color full-resolution
9. LD quality video, CD quality audio
10. Variety of LNB polarity control, 13/18V, 0/22kHz tone, 0/12V,
Mechanical and magnetic polarizer and DiSEqC
11. RS232C port for additional information service and updating IRD control software
12. 4-digit 7-segment LED on front panel display channel information
13. Displays local time on the front panel, when it is on stand-by mode
14. Displays signal level to setup the satellite antenna with ease
15. Power recovery function
16. Loop through for VCR and AUX SCART
17. Volume control
18. Powerful editing facilities
(PIDs, TV or radio channel, channel name, satellite name/transponders)
19. Teletext function (your TV needs Teletext for this)
20. Favorite channel function (Up to 96 channels)
21. SCPC/MCPC receivable from C/Ku-band satellites
22. User friendly OSG menu with full function
23. IR remote control unit (RCU)
24. Last channel memory function
25. Variable aspect ratio (4:3, 16:9) with pan vector
26. EPG for on screen channel information
27. Parental lock / Installation lock / Receiver lock
28. Multi-Lingual function according to the satellite and program provider
29. Total 2,900 channels programmable (TV: 2,000 CH. & Radio : 900 CH.)
30. DiSEqC 1.0
31. Mechanical and magnetic polarizer (Skew) control for each satellite
32. Channel storing for multi-satellite
33. Satellites : up to 50 satellites, 999 transponders
34. Multi-lingual menu
2

FRONT PANEL
2. Front & Rear View
REAR PANEL
3
MENUOK
Selection /
confirmatio
n
Channel up/down
Volume up/down
AC Power
cord
RF output conn
ect to TV
TV Antenna i
nput LNB input
AC Power
switch
Loop through
Note) All cables used for connecting the receiver should be well-shielded.
2 slots for CA modu
le and smart card
Standby switch
ANTIN
TV OUT
VIDEO
AUDIO
L
R
AUX TV
VCR
0/12V(500mA Max.)
LNB IN
IF OUT
GND GND GND
+5V GND SKEW ON / OFF
AC90~240V
50Hz/60Hz
40W
SERIALPORT
CAUTION
DO NOT OPEN
RISK OF ELECTRIC SHOCK
!
DO NOT EXPOSE TO RAIN OR MOISTURE
!
MADE IN KOREA
for an audio/video
equipment like an
analog receiver

About the Smart Card and CA Module
4
To be able to receive pay-TV channels you will need a CA module and a smart card from the service provider of
your choice. (The service provider is the distributor of the programs). CA modules and smart cards are licensed
to service providers.
To watch pay-TV programs from a service provider you must use a CA module with a smart card.
If you are subscribing to services from more than one service provider, you might have to change between
different smart cards, or even between different CA modules.
If no CA module is inserted, you can only watch ”Free to Air”TV programs.
Note : 1)The main plug must not be plugged in before inserting the CA module.
2) Insert the CA module fully into the slot behind the lid in the front panel of the receiver
towards the arrow on the module faces upwards and inwards.
3) Insert your card fully into the slot on the CA module towards the arrow on the card faces
upwards and inwards.
4) The CA module and smart card may give special menus not described in this manual.
5) A smart card is connected to a single service provider due to a specific range of channels.

3. Remote Control Unit (RCU)
5
0 9
MENU
EXIT
OK
CH
UHF
SAT
Switches the receiver ON/OFF
Switches the sound ON/OFF.
Direct choice of TV / radio channel and other commands by
numeric keys.
When you want to see the main menu or
return to the previous menu.
Return to the current video viewing at any time
Selection of program, highlighted line or parameter value.
Also, you can see TV/radio channel list while watching TV or
listening to radio.
Channel up
Channel down
Volume up (page up )
Volume down (page down)
Switches between TV/radio mode.
Select TV or DBS program
Select the audio language or the sound track you want
among data to be transmitted from the satellite.
To return to current channel, press or EXIT.
Select another satellite that you want to watch .
FAV
GUIDE
Shows your favorite channels edited.
(Before the operation, FAV edition should be done
in “Edit TV channel”menu.)
Shows channels from selected network and info if available.
INFO Information about the current channel and program
(only available when provided by the broadcaster)
CH Ú
VOL Ø
VOL ×
CH Ù

4. Getting Started
Please do NOT PLUG the receiver into mains until you finish making all connections to the unit.
6
Receiver to mono TV with RF
Connect the the TV OUT of the DSB1000-2Ci to the RF IN of the TV set.
Receiver to TV with mono audio and video
Connect the TV OUT of the DSB1000-2Ci to the RF IN of TV set.
Connect the AUDIO and VIDEO RCA’s of the DSB1000-2Ci to the AUDIO and VIDEO RCA’s of the TV set.
AC90~240V
50Hz / 60Hz
40W
ANT IN
TV OUT
VIDEO
AUDIO
L
R
TV
VCR
0/12 V(500mA Max.)
LNB IN
IF OUT
GND GND GND
+5 V GND SKEW
SERIAL PORT
DO NOT OPEN
RISK OF ELECTRIC SHOCK !
!
ON / OFF
AC90~240V
50Hz / 60Hz
40W
ANT IN
TV OUT
VIDEO
AUDIO
L
R
TV
VCR
0/12 V(500mA Max.)
LNB IN
IF OUT
GND GND GND
+5 V GND SKEW
SERIAL PORT
DO NOT OPEN
RISK OF ELECTRIC SHOCK !
!
ON / OFF
AUX
AUX
1. Connect the coaxial cable from the satellite dish to the LNB IN socket of the DSB1000-2Ci.
(Connector should be adapted finger-tight.)
2. Connect the terrestrial (TV) antenna to the ANT IN socket of the DSB1000-2Ci .

7
Receiver to TV with stereo audio and video
Connect the TV OUT of the DSB1000-2Ci to the RF IN of the TV set.
Connect the LEFT / RIGHT AUDIO and VIDEO RCA’s of the DSB1000-2Ci to the LEFT / RIGHT AUDIO
and VIDEO RCA’s of the TV set.
Receiver to VCR, TV with RF
Connect the TV OUT of the DSB1000-2Ci to the RF IN of the VCR.
Connect the RF OUT of the VCR to the RF IN of the TV set.
AC90~240V
50Hz / 60Hz
40W
ANT IN
TV OUT
VIDEO
AUDIO
L
R
TV
VCR
0/12 V(500mA Max.)
LNB IN
IF OUT
GND GND GND
+5 V GND SKEW
SERIAL PORT
DO NOT OPEN
RISK OF ELECTRIC SHOCK !
!
ON / OFF
AC90~240V
50Hz / 60Hz
40W
ANT IN
TV OUT
VIDEO
AUDIO
L
R
TV
VCR
0/12 V(500mA Max.)
LNB IN
IF OUT
GND GND GND
+5 V GND SKEW
SERIAL PORT
DO NOT OPEN
RISK OF ELECTRIC SHOCK !
!
ON / OFF
AUX
AUX

8

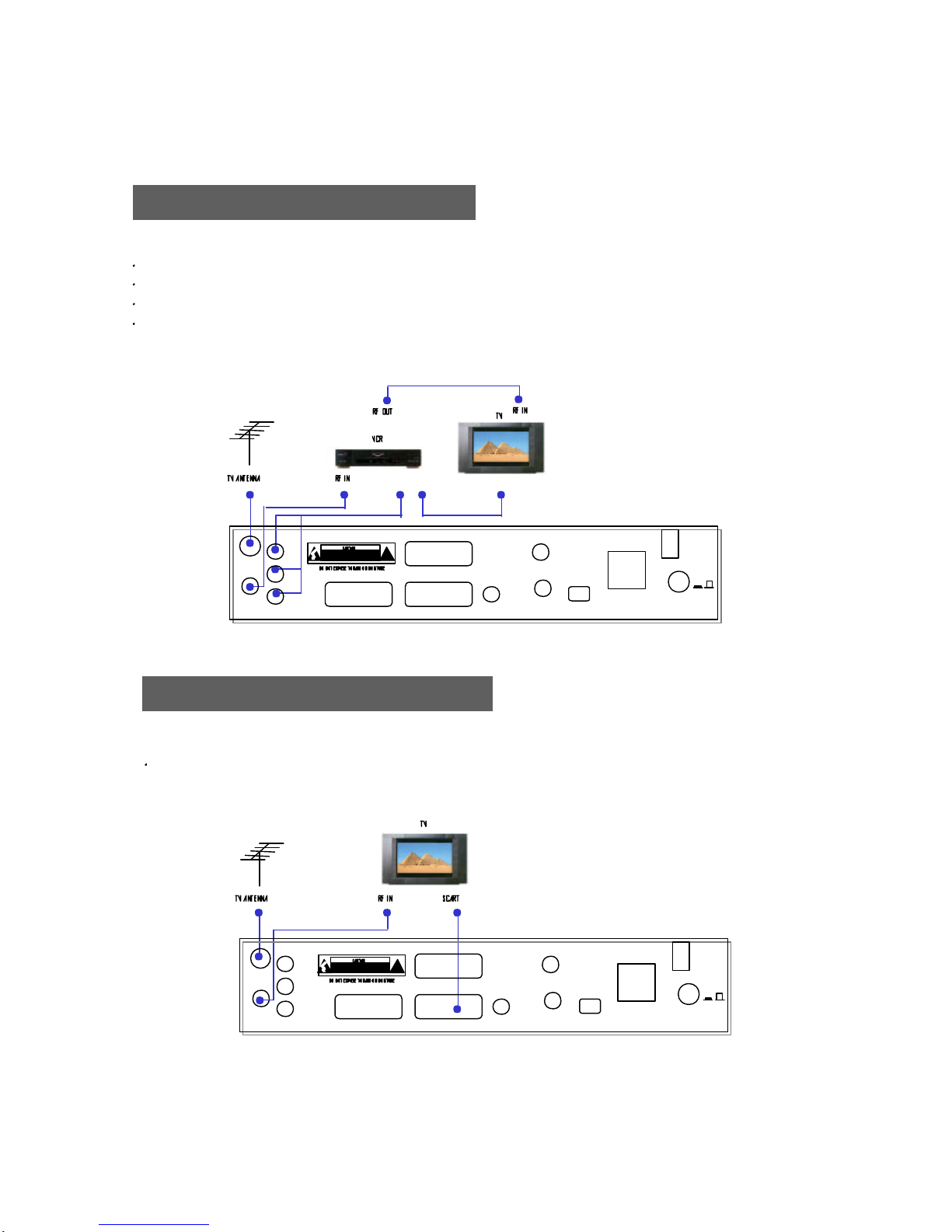

Receiver to TV, VCR with stereo
Connect the TV OUT of the DSB1000-2Ci to the RF IN of VCR.
Connect the RF OUT of the VCR to the RF IN connector of the TV set.
Connect the VIDEO RCA of the DSB1000-2Ci to the VIDEO RCA of the VCR.
Connect the LEFT / RIGHT AUDIO RCA’s of the DSB1000-2Ci to the LEFT / RIGHT AUDIO RCA’s
of the TV set.
AC90~240V
50Hz / 60Hz
40W
ANT IN
TV OUT
VIDEO
AUDIO
L
R
TV
VCR
0/12 V(500mA Max.)
LNB IN
IF OUT
GND GND GND
+5 V GND SKEW
SERIAL PORT
DO NOT OPEN
RISK OF ELECTRIC SHOCK !
!
ON / OFF
Receiver to TV with SCART input
Connect the “TV”SCART socket on the DSB1000-2Ci with the SCART socket of the TV set.
AC90~240V
50Hz / 60Hz
40W
ANT IN
TV OUT
VIDEO
AUDIO
L
R
TV
VCR
0/12 V(500mA Max.)
LNB IN
IF OUT
GND GND GND
+5 V GND SKEW
SERIAL PORT
DO NOT OPEN
RISK OF ELECTRIC SHOCK !
!
ON / OFF
AUX
AUX

5. Operation and Menu Program
[0000]
Main Menu
Installation
1) LNB Setting
9
Main Menu
7. Common Interface
6. Select Satellite
5. Installation
1. TV Channels
2. Radio Channels
3. Parental Control
4. Edit & Erase
Main Menu
7. Common Interface
6. Select Satellite
5. Installation
1. TV Channels
2. Radio Channels
3. Parental Control
4. Edit & Erase
Installation Lock
Enter PIN code
[ ? ? ? ? ]
Installation
7. User’s Setting
6. A/V Output Setting
5. Local Time Setting
1. LNB Setting
2. Ant Setting/Auto Search
3. SMATV Configuration
4. Language Setting
LNB SETTING
LNB Freq. Low
LNB Freq. High Universal
Switch Type Disable
Switch Port Disable
Polarity Control Skew
LNB Freq. Band Control 13/18V
Ku/C Control 0/22kHz
0/22kHz Control Off
0/12V Control Off
To return to the previous Menu, press MENU
Universal
LNB Power On
Satellite ?ASTRA 1 ?
Press MENU to display the Main Menu on the screen.
Select a sub-menu using the ÙÚ keys or the numeric keys. Pl
ease note that OK is always a confirmation of your selection. T
o go back to the previous menu, press MENU.
The initial code is set as [0000]but you can change it (see change code on page 15).
The installation, enter your code Menu is displayed only when the Installation Lock is set as [ON].
Select the appropriate Satellite using the ×Ø
keysand press STORE.
As shown at the right,ASTRA1 is selected.
By default a Universal LNB has been chosen but
you can change this manually (by using the cursor
keys) to select from a range of 7 other DRO
Frequencies.
Other parameter values are changed
automatically according to your satellite
selection. Press OK to confirm your selection.
Select in the Installation Menu “LNB Settings”,
using the ÙÚ keys.
If you select “Global”in the “LNB Installation“parameter, values of the parameters in this menu are saved
for all other satellites as well.
If you have a mechanical polarizer on your LNB, you have to set the “Polarity Control”parameter in this
menu to [Skew].

2) Ant Setting / Auto Search
10
Ant Setting/Auto Search
Satellite ASTRA 1
Transponder Freq.
LNB Polarization Horizontal
Symbol Rate 22000
Skew Not set
Start Auto Search
No or Bad Signal
?12722 ?
Signal Quality
Poor Medium Good
This menu is to align your dish to the selected satellite.
If you set the “Polarity Control”parameter in the “LNB
Setting”menu as [Skew], you canadjust the “Skew”pa
rameter in this menu while you are watching the signal l
evel at the same time.
Refer to the blue “Signal Quality bar at the bottom of t
he screen. It is recommended that the signal is at the
medium level or higher.
If it is not , please adjust your satellite dish.
To return to the previous Menu, press MENU
Note) Do not press POWER ( ) on the remote
or receiver while doing Auto
Channel Search. All other keys of the
remote will not work during searching.
Searches the satellite selected for TV channels and
Radio channels, which are then stored and shown on
the screen.
TV channels are shown on the left.
Radio channels are shown on the right.
Auto Channel Search Auto Search
TV Channels Radio Channels
Channel Searching Status
0% 50% 100%
154. CARSAT
155. Beta BC
156. BD1
157. TAQUILLA 6
158. TAQUILLA 7
159. TAQUILLA 8
160. ESTILO
153. ARTE 41. MUSICALS
42. REQQAE
43. COUNTRY
44. NEW CNTRY
45. LATIN
46. KL. SYMPHON
47. KLASSIK
48. OPER
ASTRA 1

3) SMATV Configuration
4) Language Setting
11
Language Setting
English
?English ?
Main Audio Language
2nd Audio Language English
Menu Language
To return to the previous Menu, press MENU
<Concepts>
A Satellite Master Antenna Television (SMATV) system
which is intended for the distribution of television and
sound signals to household in one or
6more adjacent buildings.
A SMATV System represents a means for sharing
the same resources among several users for satellite and
terrestrial reception, and it is designed to perform
the adaptation of the satellite TV signals to the SMATV
channel characteristics.
This receiver has a SMAT-IF facility to operate this SMATV.
This configuration allows the direct distribution of the QPSK signal received from the satellite
to the SMATV-IF distribution network in the extended IF band (above 950MHz).
Before you start, you have to check your condition whether it is possible to use this facility or not in your ho
useholds. (You can ask your household supervisor.)
<Operation>
If this receiver is connected to a SMATV network, select "SMATV Configuration".
The most common alternatives for "Symbol rate" and "FEC" are already preprogrammed.
(When you need to change the "Symbol rate" for the exceptional frequency, select as you know.)
Move to ”Start Auto Search" and just press OK.
Then, the “Auto Search”procedure will start.
To cancel the processing while the “Auto Search”is proceeding, press MENU key.
SMATV Configuration
Symbol rate alternative 1
?? ?
Symbol rate alternative 2
Symbol rate alternative 3
FEC
Start Auto Search
27500
?
Auto
To return to the previous Menu, press MENU
You can select the desired language for the OSG (on-sc
reen graphic) menu display using volume up/down keys
(×, Ø) in “Menu Language”parameter.
Also, you can select a different audio channel in the Au
dio Language parameters.
This is a benefit if different languages are transmitted a
nd you prefer to listen to one of these other languages.

6) A/V Output Setting
12
5) Local Time Setting
Local Time Setting
[ +00 ]
Time offset
[ Off ]
GMT usage ?[ Yes ]?
Selected time zone
[ London ]
Summer time
Local Time = 01 : 27
Local Time Setting
Minute [ 27 ]
Hour [ 01 ]
GMT usage ?[ No ]?
Selected time zone
[ London ]
Time adjustment
Local Time = 01 : 27
* If GMT is provided by the broadcaster, you may get the time using the GMT provided by broadcaster (or)
you may get your own time. (Please be aware that the GMT information provided by the broadcaster may
not be correct sometimes.)
A) If GMT is provided, select “Yes”for GMT usage, the area of the selected place(time zone) and
summer time On/Off. You can adjust the time from +59 to -59 minutes by using the Time offset.
B) If GMT is not provided or you want to set the time by yourself, select “No”for GMT usage, the area
of the selected place(time zone) and set your local time using volume up/down keys (×, Ø).
A/V Output Setting
Channel [ 38 ]
PAL [ B/G ]
<<< UHF Tuning >>>
Aspect ?[ 4:3 ]?
TV Mode [ PAL ]
Banner [ 3sec ]
Teletext [ On ]
Frequency = 607.25MHz
Please select your TV format.
4:3 for normal screen TV
16:9 for wide screen TV
Aspect
Teletext
You can select OSG viewing time of the information abo
ut the current channel & program among 2/3/4/5/8/10sec
s by using volume up/down keys. (×, Ø)
Banner
Select proper TV mode according to TV standard o
f your TV set.
TV Mode
You can select the type of video standard by using volume up/down keys.
* Video standard : PAL B/G, I, D/K, SECAM L
Select the vacant channel considering your local channels and preset channels below.
* Pre-set : CH 38 for PAL B/G, I, SECAM L CH 40 for PAL D/K
Frequency is set automatically according to the channel selection.
UHF Tuning
Select ‘On’for Teletext display on TV. (You must have Teletext on your TV to see Teletext)

13
7) User’s Setting
You can edit a pre-programmed satellite name and add
a new one in this menu.
Also you can edit and add Transponder Frequency para
meter by using numeric keys.
Edit/Add SAT or TP
1. Edit/Add SAT or TP
2. Edit LNB Local Freq.
3. Edit CH Name & PID
4. Reset(Factory Default)
User’s Setting
To add a new satellite name, press OK after moving to
[ ???????? ] mode for satellite.
After entering new satellite name, you can set each
parameters by giving the data for Transponder Freq.,
LNB Polarization, Symbol Rate and FEC.
To edit an additional transponder on a pre-programmed s
atellite, you should input all the required data after movin
g to the satellite you want to edit.
Note 2) You can add or edit a total50 satellites. This includes the pre-programmed satellites.
The receiver has the capability to store up to 999 transponders and 2,900 channels.
CAUTION) By doing an Auto Search you will lose all the data (ex. FAV, Lock…)
which you have edited.
Note 1) You should execute “Auto Search”after editing the Satellite or the transponder.
If Auto Search is executed after adding the new transponder, all channels of the added
transponder will be searched and stored automatically.
Edit/Add Satellite or Transponder
Satellite
7Index
Transponder Freq.
LNB polarization
0
Horizontal
Symbol Rate 0
FEC AUTO
?ASTRA 1 ?
* Change = ?, ?
* Move = ?, ?
* Name Editing = OK key
Edit/Add Satellite or Transponder
Satellite
7Index
Transponder Freq.
LNB polarization 0
Horizontal
Symbol Rate 0
FEC AUTO
??????? ?
Name Editing ? ? ? ? ? ? ? ?
* Cancel = MENU
* Move backward = ?
* Change Character =?, ?
* Save = OK key
* Move forward = ?

Edit LNB Local Frequency
You can edit up to 8 local frequencies by using
numeric keys.
To save newly edited frequency, press OK.
14
Edit LNB Local Frequency
?10678 ?LNB Local Freq 0~9
* Change = ?, ?
* LNB Local Freq. Editing = Numeric key
* Save = OK key
To return to the previous Menu, press MENU
Edit CH Name & PID
You can edit the channel name and PID (Packet Information Data) parameter manually.
Reset (Factory Default)
If you want to reset all the data edited, press OK twice.
Edit Channel Name & PID
12722
Transponder Freq.
Video PID
Channel Name ?? ? ? ? ? ? ?
32
Audio PID 33
PCR PID AUTO
ASTRA 1
Index Freq. SR FEC Polarity
To return to the previous Menu, press MENU
25 12722 22000 5/6 Horizontal
Satellite
Reset (Factory Default)
*CAUTION : All the information of satellite
and transponder to be edited
by the user will be initialized by
this process.
To return to the previous Menu, press MENU
* If you want Factory Reset, press OK.
Edit Channel Name & PID
12722
Transponder Freq.
Channel Name ABCD
Audio PID 33
PCR PID AUTO
ASTRA 1
Index Freq. SR FEC Polarity
To return to the previous Menu, press MENU
Satellite
Video PID ?32 ?
25 12722 22000 5/6 Horizontal

15
TV Channels
You can select the channel you want either by pressing the
numeric keys for the channel number or by moving the
highlighted bar to the channel using the ÙÚ keys .
Then press OK.
* To change pages use the ×Økeys:
Radio Channels
You can select the channel you want either by pressing the
numeric keys for the channel number or by moving the
highlighted bar to the channel using the ÙÚ keys.
Then press OK.
* To change pages use the ×Økeys:
TV CH : ASTRA 1
33. PARIS PREMIERE
34. VOYAGE
35. CONTACT TV
36. LC I
37. Canal J
38. DF1 Info-Kanal
39. Star Kino
Radio CH : ASTRA 1
1. HIT LISTE
2. BLUES
3. CLASSIC ROCK
4. SOFT ROCK
5. GENERATION ROC ?
6. LOVE SONGS
7. DANCE
Parental Control
With Parental Control it can be prevented that a TV channel can be watched, a Radio Channel can
be heard, the receiver settings can be changed or an unauthorized change in the installation is
performed.
[ 0000 ]
Change PIN Code
[ ? ? ? ? ]
Verify PIN code
Current PIN code
[ ? ? ? ? ]
New PIN code
[ ? ? ? ? ]
Parental Control
Enter PIN code
[ ? ? ? ? ]
[ On ]
5. Installation Lock
[ Off ]
1. Change PIN Code
2. TV Channel Lock
3. Radio Channel Lock
4. Receiver Lock
Parental Control
Preprogrammed PIN (Personal Identification Number) code is set as [0000].
If you want to change it, please follow the procedure shown above.
If Receiver Lock is [On], you have to input first the correct code to operate th
e receiver.
You can not enter directly into the installation menu when Installation Lo
ck
is [On].
Change PIN Code
Receiver Lock
Installation Lock

TV Channel Lock
Press OK to lock / unlock the selected channel.
Locked channels will be skipped when scrolling thro
ugh channels.
Note) The color of the highlighted bar turns to
Grey when it is on a locked channel.
Edit & Erase
16
TV Channel Lock
TV Channels
To return to the previous Menu, press MENU
* Page Up,Down : ?, ?
ASIASAT2
* Move : ?, ?, 0~9
* Lock/Unlock : OK
Channel Unlock
33. PARIS PREMIERE
34. VOYAGE
36. LC I
37. Canal J
38. DF1 Info-Kanal
39. Star Kino
39. Star Kino
35. CONTACT TV
1. Edit TV Channel
2. Edit Radio Channel
3. Erase Transponder
4. Erase Satellite
Edit & Erase
Edit TV Channel
Edit TV Channel ASTRA 1
TV Channels
To return to the previous Menu, press MENU
* Page Up,Down : ?, ?
* Move : ?, ?, 0~9
* Select CH : OK
[ Status ]
33. PARIS PREMIERE
34. VOYAGE
36. LC I
37. Canal J
38. DF1 Info-Kanal
39. Star Kino
35. CONTACT TV
It allows you to make FAV channel selection, MOVE or ERASE channels in this menu.
You can move to the channel that you want to edit by using channel up/down keys.
Also you can move to the highlighted bar directly by inputting the channel number.
Press OK to select the channel you want to edit, and then you can move the channel to the position you want
or delete it.
You can make a list of FAV (Favorite) channels in the ‘Edit TV channel’and the ‘Edit Radio channel’menu.
(You can save the in the list up to 96 channels.)
Select a channel, press OK. Press the FAVkey and press OK again.
The channel appears in the FAV list and can directly be chosen in the viewing mode by pressingFAV.
Press OK after selection.
FAV Channels

17
Erase Satellite
To erase a satellite, press OK when the highlighted
bar is located at the satellite name.
It can be erased using volume up key (Ø) followed by
the OK key
Erase Transponder
To erase a transponder, press OK when the
highlighted bar is located at the transponder you
want to erase.
It can be erased using volume up key (Ø) followed
by the OK key.
Erase Transponder
Transponder List
To return to the previous Menu, press MENU
ASIASAT2
Channel List
17. TP(3830)
To be deleted Transponder
19. TP(3840)
20. TP(3847)
21. TP(3854)
23. TP(4000)
23. TP(4006)
18. TP(3834) EMYV
Test Tone
Radio Chann
Radio Chann
EMTV & radio
22. TP(3040)
Use the same procedure for the Radio Channels as used for editing the TV Channels.
Edit Radio Channel
To erase several channels from the TV channel list simultaneously, please mark a üin front of the channel
name using the Økey after highlighting the channel you want to erase.
If you press OK after pressing the Økey again, all channels you selected will be erased.
Edit TV Channel ASTRA 1
TV Channels
To return to the previous Menu, press MENU
* Cancel : ?
* Move : ?, ?, 0~9
* Select FAVCH : FAV
[ Channel Selected ]
33. PARIS PREMIERE
34. VOYAGE
36. LC I
37. Canal J
38. DF1 Info-Kanal
39. Star Kino
35. CONTACT TV
* Erase Mark : ?
CONTACT TV
Edit TV Channel ASTRA 1
TV Channels
* Are you sure? Erase = OK, Cancel = any other key
* Select FAVCH : FAV
[ Channel Selected ]
33. PARIS PREMIERE
34. VOYAGE
36. LC I
37. Canal J
38. DF1 Info-Kanal
39. Star Kino
35. CONTACT TV
* Erase : ?
CONTACT TV
* Cancel Mark : ?
ü
To return to the previous Menu, press MENU
Erase Satellite
Satellite Name
To return to the previous Menu, press MENU
1. ASTRA 1 * Page Up,Down : ?, ?
* Move : ?, ?, 0~9
* Select Satellite : OK
2. HOTBIRD
3. EUTELSAT

Guide
Press the GUIDE key and select a channel in the TV Guide or Radio Guide to activate this screen.
You can view the program guide for information about actual and future programs on this channel.
Only available if provided by the broadcaster.
Select Satellite
To move to another satellite you want to watch, press the S
ATkey on the remote control and choose the proper satellit
e with the channel up/down keys (Ù,Ú).
Press OK to confirm.
1. ASTRA 1
2. HOTBIRD
3. EUTELSAT
Select Satellite
TV Guide
MENU = Back
Current Time = 07 : 41
CH153 ARTE
Program Info
No Information
TV Guide
* Info = Info or OK key
* TV / Radio Guide = TV / Radio Key
* Now / Next Info = ?, ?
Current Time = 07 : 41
153.
154.
155.
156.
157.
158.
159.
160.
CH Name Now
No Information
Time
ARTE
CARSAT
Beta BC
BD 1
TAQUILLA 6
TAQUILLA 7
TAQUILLA 8
ESTILO
No Time
Common Interface Common Interface
To return to the previous Menu, press MENU
Slot 1 : Module not installed
Slot 2 : Module not installed
18
From here you will get access to information
and menus connected to the CA module.
This information may vary a lot depending o
n the service provider.
Please see the documentation delivered toget
her with your CA module.
This receiver can accept two different kinds
of CA modules.

6. Specifications
19
1.Tuner & channel
Input connector 1 x F type with Loop through
Output connector 1 x F type 75 Ohm IF signal out
Frequency range 950MHz to 2150MHz
Input impedance 75 Ohm
Signal level -25 to -65dBm
IF frequency 480MHz
IF bandwidth 8/55MHz
LNB power & polarization Vertical +13.5V¡- +14.5V
Horizontal +17.5V¡-+18.5V
22kHz tone Frequency 22kHz ¡¾ 2kHz
Amplitude 0.6Vp-p ¡¾0.2Vp-p
Demodulation QPSK
Input symbol rate 2¡-45Msps
FEC decoder Convolutional Code Rate
1/2, 2/3, 3/4, 5/6, and 7/8 with Constraint
Length K=7
2. MPEG transport stream A/V decoding
Transport stream MPEG-2 ISO/IEC 13818
transport stream specification
Profile & level MPEG-2 MP @ ML
Input data rate 15Mbit/smax.
Aspect ratio 4:3, 16:9 with Pan Vector
Video resolution 720 x 576(PAL,SECAM), 720 x 480(NTSC)
Audio decoding MPEG-1 audio layer 1,2, musicam
Audio mode Stereo, dual channel, joint stereo, mono
Sampling rate 32, 44.1, and 48kHz
3. Memory
Flash memory 1 Mbytes(up to 2Mbytes)
Program DRAM 2 Mbytes
EEPROM 16 kbit
4. A/V & data in/out
SCART TV x 1, VCR x 1, AUX x 1
RGB video out TV x 1 (SCART socket)
0/12V out RCA x 1
CVBS video out RCA x 1,3 x SCART socket(TV, VCR,AUX)
