EchoStar DSB-700 FTA User manual

User Manual
DIGITAL FREE-TO-AIR
SATELLITE RECEIVER

CONTENTS
4. Remote Control Unit (RCU) ------------------------------------------------------- 5
5. Getting started ------------------------------------------------------------------------ 6
6. Operation and menu program ------------------------------------------------------ 7
7. Specifications ------------------------------------------------------------------------- 18
3. Front & Rear view ------------------------------------------------------------------- 4
2. Features ------------------------------------------------------------------------------- 3
1
Trade Mark of the DVB Digital Video Broadcasting Project (2115)
A. Receiver and TV set-up ------------ --------------------------------------------- 8
B. Main menu & Installation ------------------------------------------------------ 10
C. Advanced Installation ----------------------------------------------------------- 16
1. Safety instructions ------------------------------------------------------------------- 2

WARNING!
Always follow these instructions to avoid the risk of injury to yourself or damage to your equipment.
Unplug the receiver from the AC power outlet before cleaning. Use only a damp cloth for cleaning the exterior
of the receiver.
Do not use accessories or attachments not recommended by the receiver manufacturer, as they may cause
hazards and will void the warranty.
Do not operate the receiver in high-humidity areas, neither expose it to water or moisture.
Do not place the receiver on an unstable cart, stand, tripod, bracket or table. The receiver may fall, causing
serious personal injury and damage to the receiver.
Do not block or cover slots and openings in the receiver. These are provided for ventilation and protection
from overheating. Never place the receiver near or over a radiator or heat register. Do not place the receiver
in an enclosure such as a cabinet without proper ventilation.
Do not stack the receiver on top of or below other electronic devices.
Operate the receiver using only the type of power source indicated on the marking label. Unplug the receiver
power cord by gripping the power plug, not the cord.
Route power supply cords so that they are not likely to be walked on or pinched by items placed upon or
against them. Pay particular attention to cords at plugs, convenience receptacles, and the point where they exit
from the unit.
Use an outlet that contains surge suppression or ground fault protection. For added protection during a
lightning storm, or when the receiver is left unattended and unused for long periods of time, unplug it from the
wall outlet and disconnect the lines between the receiver and the antenna. This will provide some protection
against damage caused by lightning or power line surges.
Do not attempt to service the receiver yourself, as opening or removing covers may expose you to dangerous
voltage, and will void the warranty. Refer all servicing to authorized service personnel.
Unplug the receiver from the wall outlet and refer servicing to authorized service personnel whenever the
following occurs:
The power supply cord or plug is damaged;
Liquid has been spilled, or objects have fallen into the receiver;
The receiver has been exposed to rain or water;
The receiver has been dropped or the chassis has been damaged;
The receiver exhibits a distinct change in performance.
2
1. Safety Instructions

2. Features
3
1. MPEG-2 Video (MP@ML)
2. MPEG-1 Audio Layer 1 and Layer 2
3. MPEG-2 Digital & fully DVB compliant
4. Capable of auto scanning (between 950MHz and 2150MHz) the frequency for SMATV-IF system
5. Plug & Play self-installing program set-up
6. Superb On-screen graphics with 256 colorful resolution
7. LD quality video, CD quality audio
8. RS-232C port for additional information service and update IRD control software
9. Displays signal level to set up the satellite antenna with ease
10. Power recovery function
11. 64-step volume control
12. Teletext supported (Your TV should support teletext function for this)
13. Subtitle supported (with optional background)
14. Favorite channel function
15. SCPC/MCPC receivable from C/Ku-Band satellites
16. Capable of receiving unencrypted free digital programs
17. User-friendly OSG (On-Screen Graphics) menu with full function
18. IR remote control unit (RCU)
19. Last channel memory function
20. Variable aspect ratio (4:3, 16:9) with Pan Vector
21. EPG for on-screen channel information
22. Parental lock
23. Multi-lingual function when provided by the satellite and program provider
24. Total 4,500 Channels programmable (TV: 3,000 Ch. & Radio: 1,500 Ch.)
25. DiSEqC 1.2compatible
26. Receiver-to-Receiver function for program and data transmission
27. Software updates via Internet or Satellite

Front Panel
Front Panel
3. Front & Rear View
Rear Panel
Rear Panel
4
Note: All the cables used for Input/Output connection for the receiver should be well shielded.
Note: All the cables used for Input/Output connection for the receiver should be well shielded.
ON/Standby
Channel up / down
AC power cord LNB input
Antenna input
RF output connector
to TV

The POWER key turns the receiver on and off.
The MUTE key switches the sound on and off.
The EXIT key exits to the video viewing mode at any time.
The MENU key is used to display the main menu or to return to
the A/V output.
The Volume and Channel keys control the two most frequent
ly used functions of the receiver. The cursor keys are
for channel and and volume and . The OK key
is used to select a program, a highlighted line or parameter va
lue.
Number / Input keys enable direct channel selection command
using numeric keys.
5
The SAT key shows a list of selectable satellites.
Shows a thumbnail representation of the current channel in the “Edit TV Channel”,
“Parental Lock”and “TV Guide”.
The TV/RAD(Radio) key switches between TV and radio mode.
Selects the Audio Language or Soundtrack from among the data
transmitted for the current channel.
(This key also works as Green key.)
The Subtitle key enables subtitling (only when provided by the
broadcaster).
(This key also works as Red key.)
(Blue key)
(Yellow key)
(Red key)
The Informationkey provides function specific information.
The FAV key shows a list of your selected favorite channels.
(This key also works as Blue key.)
The EPG key shows program information of the selected channel.
(EPG; Electronic Program Guide)
(This key also works as Yellow key.)
(Green key)

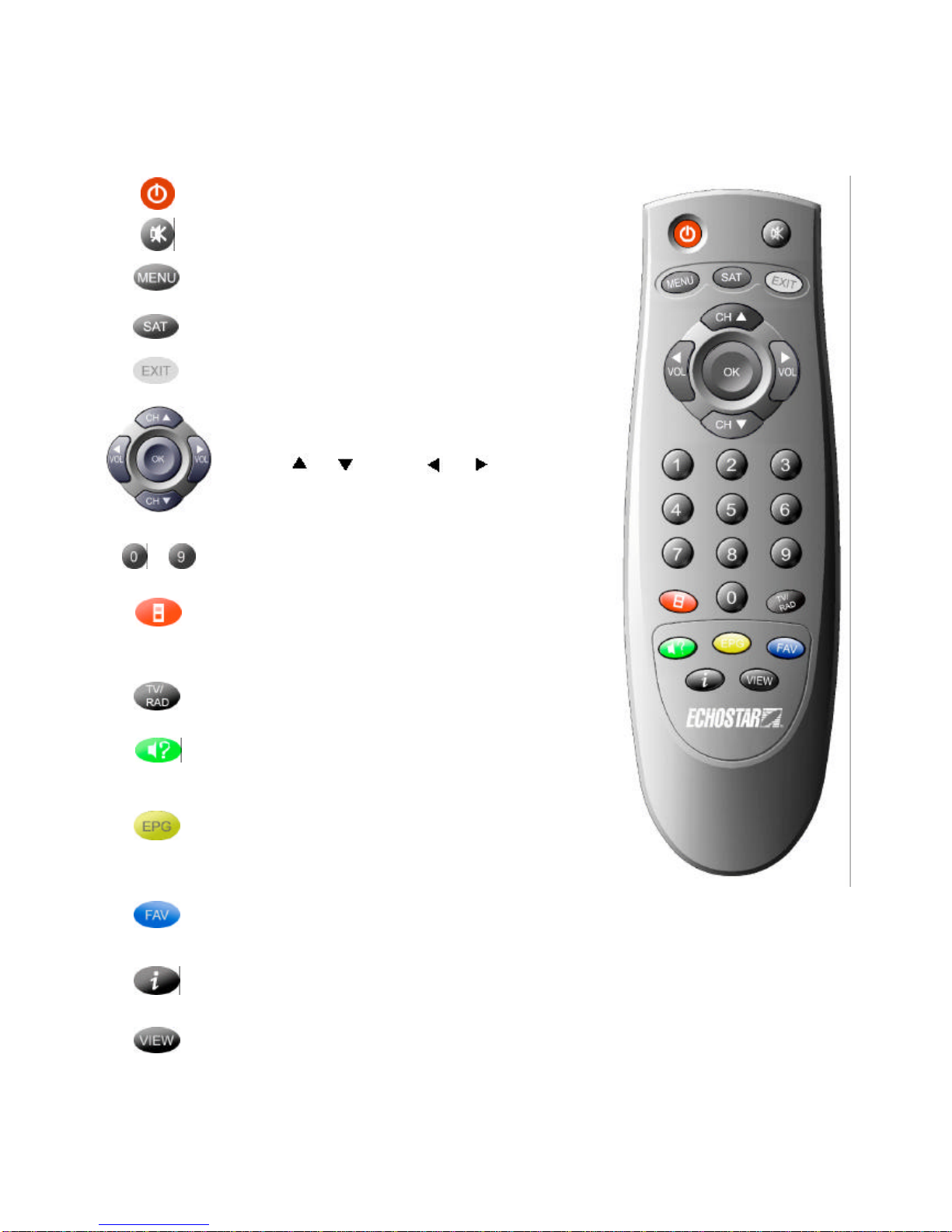

4. Remote Control Unit (RCU)
-

DO NOT PLUG the receiver into Main Power Outlet, until you complete all the connections to the receiver.
DO NOT PLUG the receiver into Main Power Outlet, until you complete all the connections to the receiver.
5. Getting Started
6

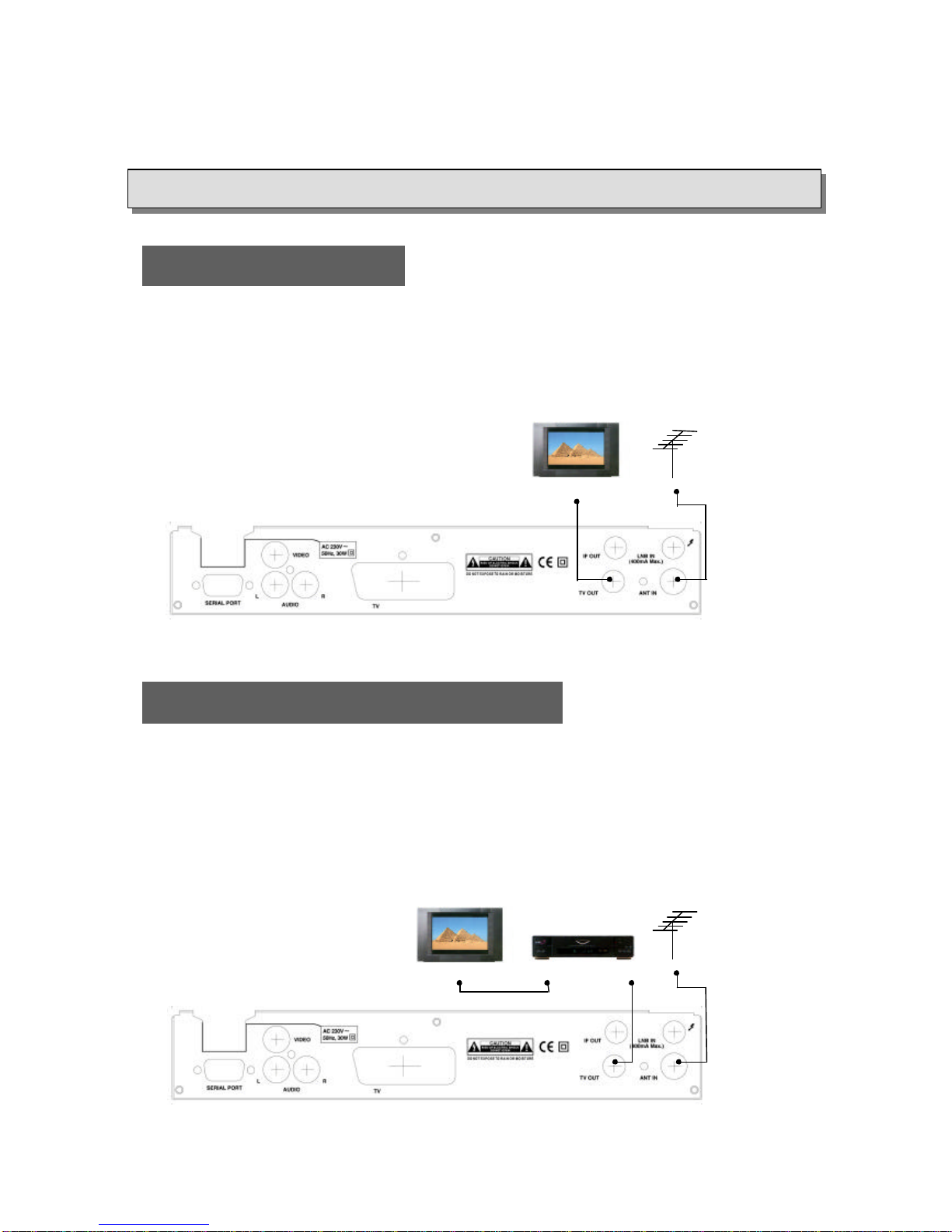

Receiver to TV with RF
Receiver to VCR and then to TV with RF
1. Connect the Off-air TV antenna or cable if available to the ANT IN socket of the EchoStar DSB-700 FTA.
2. Connect the TV OUT socket of the EchoStar DSB-700 FTA to the RF IN of the TV set.
3. Search on the TV set for UHF channel #38. This is the default channel where the EchoStar DSB-700 FTA
is set to.
1. Connect the Off-air TV antenna or cable if available to the ANT IN socket of the EchoStar DSB-700 FTA.
2. Connect the TV OUT socket of the EchoStar DSB-700 FTA with the RF IN of the VCR.
3. Connect the RF OUT of the VCR to the RF IN of the TV set.
4. Search on the TV set and the VCR for UHF channel #38. This is the default channel where the EchoStar
DSB-700 FTA is programmed to.
Note : Use different UHF channels for VCR and the EchoStar DSB-700 FTA.
TVANTENNA
TV
RF IN
TVANTENNA
TV
RF IN RF OUT RF IN
VCR

7
Receiver to TV with Audio and VideoRCAs
1. Connect the Off-air TV antenna or cable if available to the ANT IN socket of the EchoStar DSB-700 FTA.
2. Connect the TV Out socket of the EchoStar DSB-700 FTA with the RF IN of the TV set.
3. Connect the Video and AudioRCAs of the EchoStar DSB-700 FTA to the Video and Audio RCAs
of the TV set.
Receiver to TV with SCART Cables
1. Connect the Off-air TV antenna or cable if available to the ANT IN socket of the EchoStar DSB-700 FTA.
2. Connect the SCART cable from the TV SCART of the EchoStar DSB-700 FTAto the SCART of the TV set.
3. Search on the VCR for UHF channel # 38. This is the default channel where the EchoStar DSB-700 FTA
is programmed to.
4. When the EchoStar DSB-700 FTAis switched on the TV set still will automatically switch to the SCART
input of the TV.
TVANTENNA
TV
RF INVIDEO AUDIO
IN IN
TVANTENNA
TV
TVSCART RF IN

8
7
Program Satellite
Satellite 028.2°E
LNB Type Type1
TP/Polar 11478/H
Symbol Rate 30000
Position
Step Move E W
Search type Auto Search
Start Search(Press OK)
2
3
4
Set
Signal Level
Signal Quality
6
52%
63%
?ASTRA2 ?
5
i
1
8
LNB Setting
LNB Freq.Low 5150
LNB Frq. High 5150
DiSEqC DiSEqC 1..4
DiSEqC Port 1
Polarity Control 13/18V
LNB Freq. Band Control 0/22kHz
LNB Type Index (1..8)
0/22kHz Control Off
LNB Power On
1
2
43
5
6
7
8
9
?Type 1 ?
i

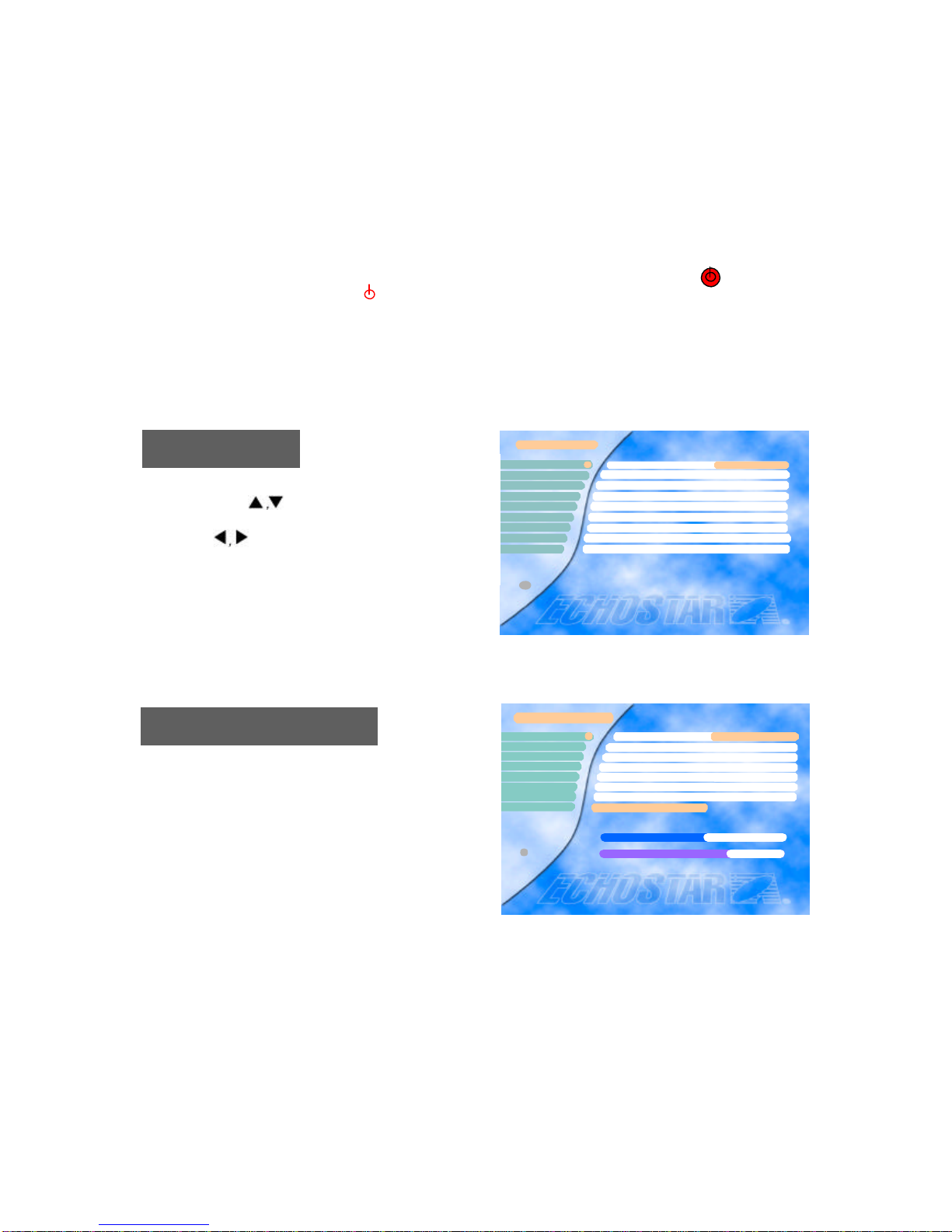

A. Receiver and TV set-up
Check the Installation
To get the most out of the EchoStar DSB-700 FTAit should be correctly installed, the dish should be
optimally aligned and the mechanical limit switches on the dish should be set properly. Press on the
remote control unit (RCU) or press /I on the front panel of the EchoStar DSB-700 FTA.
6. Operation and Menu Program
8
The receiver is supplied with factory setting and will start up with the “Language Setting”menu. For more
information on the “Language Setting”menu, please see page 9. Please follow the steps outlined below to
properly install the EchoStar DSB-700 FTA.
LNB Setting
Select the “LNB Setting”menu in the “Installation”
menu using the keys.
Select the LNB type which conforms to your LNB usi
ng the keys.
Other parameter values should be changed
manually according to your LNB type.
Press the OKkey to confirm your selection.
Program Satellites
If you are unable to get any signal quality, please check the LNB Setting to ensure you have selected the corr
ect LNB and switch settings.
Refer to the Signal Quality bar and the Signal Lev
el bar at the bottom of the screen. It is recommend
ed that the signal is at the Medium level or higher.
If it is not , please adjust your satellite dish.
This menu is to align your dish to the selected sate
llite.
After setting the parameters, press the OK key to s
tore the parameter values and Start Search(Press O
K) to search the channels of the transponder you
want.

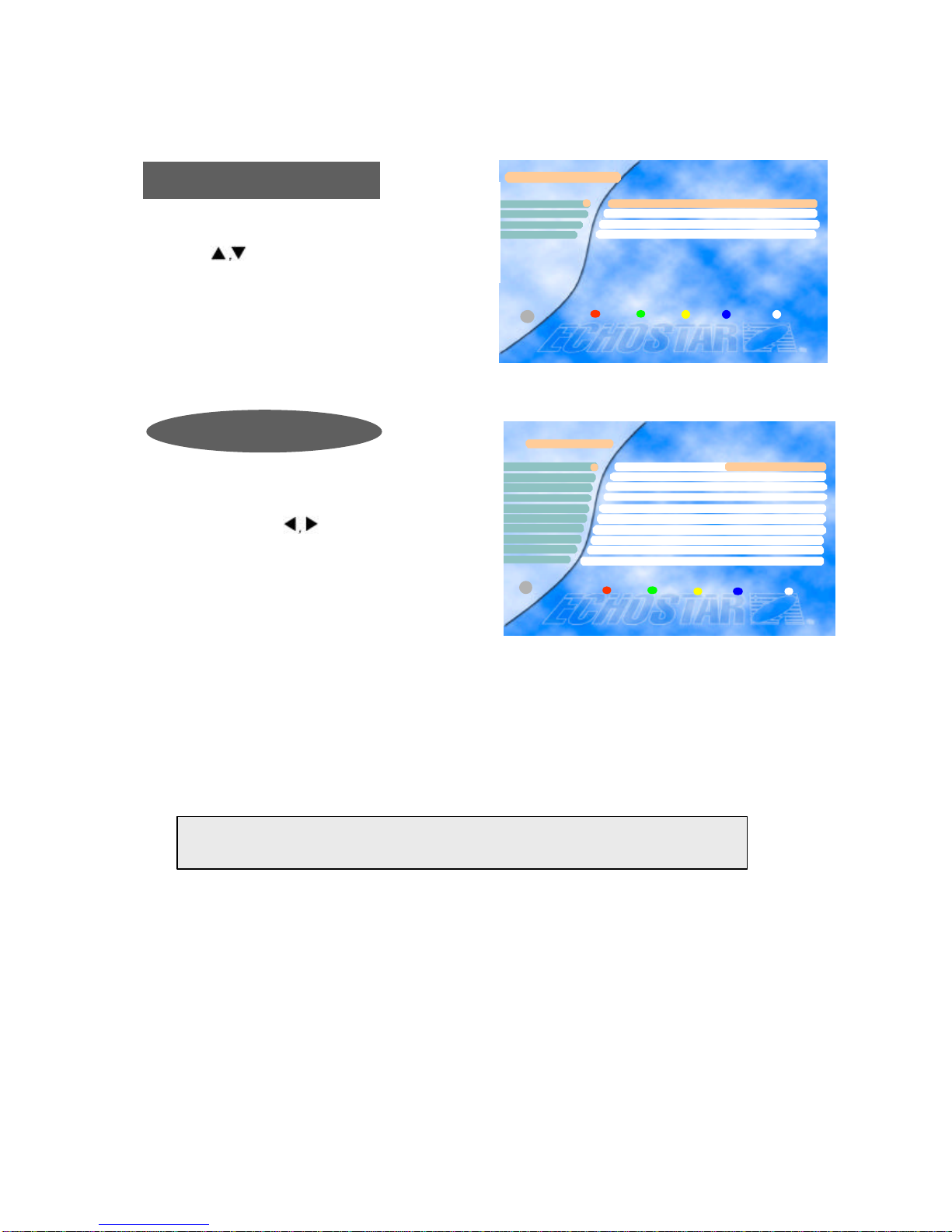

User’s Setting
9
User’s Settings are only accessible via the Installation screen.
Language Setting
Subtitle
Subtitle
None
Eng
Ita
Select the “Subtitle Language”in the “Language
Setting”menu. While viewing a channel, the subtitling
option is available only when the selected subtitling
language is provided by the broadcaster.
To check if the subtitling language is available, press
the “”key on the remote control unit, to show a list
of all available subtitling languages.
You can selecta different language for the OSG (On-Screen Graphics) display using the keys when
the “Menu Language”option is selected. Similarly you can selected a different audio channel when the
“Audio Language”option is selected. This option allows you to select a different language to listen to if
supported.
Language Setting
Menu Language
Main Audio Language English
?English ?
1
22nd Audio Language English
Subtitle Language English
3
4
Exit
i
User’sSetting
Local Time Setting
A/V Output Setting
About EchoStar
Language Setting
3
1
4
2
Exit
i

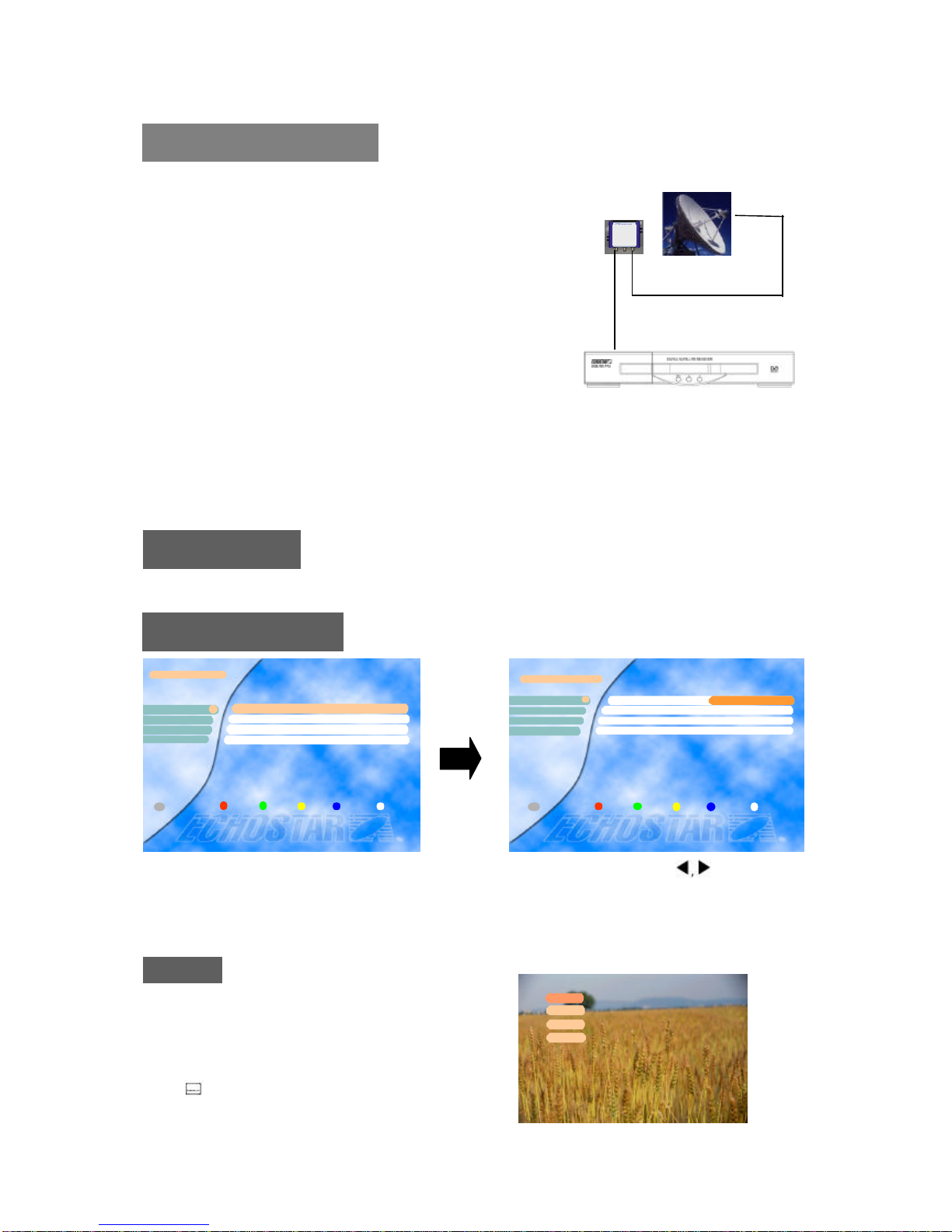

DiSEqC 1.2 Mount
In case you are using aDiSEqC positioner, you should set the
most eastern satellite and the most western satellite you want on
the “Position”bar.
- Most Eastern satellite : change the satellite name to what you
want for the most eastern satellite on the “Satellite”bar and
move to “Position”bar and press the Volume down key(?)
until the Signal Level is at the medium level or higher.
And press the OK key to store this satellite as the most eastern
satellite.
- Most Western satellite : change the satellite name to what you
want for the most western satellite on the “Satellite”bar
and move to “Position”bar and press the Volume up key(?)
until the Signal Level is at the medium level or higher.
And press the OK key to store this satellite as the most western
satellite.
Then, start the “Auto Search”to search and store the TV channels and Radio channels of the satellite automatically.
LNB
DiSEqC 1.2
Mount
LNB IN

Local Time Setting
GMT usage
Selected time zone London
Summer time Off
Time offset +00
Local Time = --:--
1
3
2
4
iExit
?Yes ?
A/V Output Setting
Aspect
Banner 3sec
Sub. backg. On
2
3
iExit
?4:3 ?1
<<<UHF Tuning>>>
PAL B/G
Channel 38
Frequency = 607.25MHz
5
4
A/V Output Setting
10
About EchoStar
Please select your TV format.
4:3 for normal screen TV
16:9 for wide screen TV
Aspect
Here you can find the information about our co
mpany.
If you have any questions about the EchoStar
DSB-700 FTA, first contact your local dealer.
You can select the time out
time(2,3,4,5,8,10 secs) of the banner
information about the current channel
and program using the keys.
Banner
Sub.backg.Select “On”for Subtitle background on the TV (Subtitle
background).
Local Time Setting
UHF Tuning ?You can select the type of Video standard by using the keys.
?Select a vacant channel considering your local channels and preset channels below.
* Pre-set : Ch 38 for PAL B/G, I Ch 40 for PAL D/K
?UHF frequency is set automatically according to the channel selection.
B) If GMT is not provided or you want to set the time yourself, select No for GMT usage, the time zone where
you live and set your local time using the ??keys.
If GMT is provided by the broadcaster, you may set th
e time using the GMT provided by broadcaster or you
may set the time manually. (Please be aware that the
GMT information provided by the broadcaster may no
t be correct sometimes.)
A) If GMT is provided, select Yes for GMT usage, the
time zone where you live and summer time On/Off.
You can adjust the time from +59 to -59 minutes
by using the time offset. (Please be aware that
GMT information from the broadcaster may not
always be correct.)
i
Address Schuilenburglaan 5a
City 7604 BJAlmelo
Phone number [phone]
Fax number [phone]
Country Netherlands
Company info
Company EchoStarIntl. Corp.
Exit
About EchoStar
Unit DSB-700 FTA
Software version XXXXXX
Home page www.echostar-int.com
Unit info

Installation
SMATV Configuration
User’s Setting
LNB Setting
ProgramSatellites
1
43
5AdvancedInstallation
2
Exit
i
11
Installation
B. Main menu and Installation
Main Menu
Press the MENU key to display the “Main Menu”sc
reen.
Select a sub-menu using the keys or the numer
ic keys. Please note that the OK key is always a confi
rmation of your selection. To go back to the previous
menu, press the MENU key.
The Installation Lock, “Enter PIN code”menu is displayed only when the Installation&Edit Lock is set t
o [ON]. The initial code is set to [0000] but you can change it (See “Change PIN code”on page 13).
Program Satellites
If you are unable to get any signal quality, please check the LNB Setting to ensure you have selected the corr
ect LNB and switch settings.
Refer to the Signal Quality bar and the Signal Lev
el bar at the bottom of the screen. It is recommend
ed that the signal is at the Medium level or higher.
If it is not , please adjust your satellite dish.
This menu is to align your dish to the selected sate
llite.
After setting the parameters, press the OKkey to s
tore the parameter values. Then select Start Search
(Press OK) to search the channels of the transpond
er you want.
Main Menu
TVChannels
Radio Channels
Parental Control
Edit
Installation
SelectSatellite
32
4
5
6
Exit
i
1
Enter PIN Code
[ ? ? ? ?]
Installation Lock
8
7
Program Satellite
Satellite 028.2°E
LNB Type Type1
TP/Polar 11478/H
Symbol Rate 30000
Position
Step Move E W
Search type Auto Search
Start Search(Press OK)
2
3
4
Set
Signal Level
Signal Quality
6
52%
63%
?ASTRA2 ?
5
i
1
8

SMATV Configuration
Symbol rate alternative 2 27500
Symbol rate alternative 3 27500
FEC AUTO
Start Auto Search
Symbol rate alternative 11
2
43
5
?27500 ?
iExit
Using the Auto Search option, the EchoStar DSB-700
FTA searches for all available channels (Radio and T
V) on the currently selected satellite. The names of the
found TV channels are shown on the left and the total
number of found TV and Radio channels are mentione
d on the right.
Note: To stop searching press the key on the
remote control or on the front panel. This cancels the
searches and the found channels will be discarded. All
other keys of the remote are disabled during
searching.
Auto Search
A Satellite Master Antenna Television (SMATV) system
is intended for the distribution of television and
sound signals to households in one or 6 more adjacent
buildings.
A SMATV System represents a means for sharing
the same resources among several users for satellite and
terrestrial reception, and it is designed to perform
the adaptation of the satellite TV signals to the SMATV
channel characteristics.
This receiver has a SMATV-IF facility to operate with SMATV.
This configuration allows the direct distribution of the QPSK signal received from the satellite
to the SMATV-IF distribution network in the extended IF band (above 950 MHz).
Before you start, you have to check whether it is possible to use this facility or not in your
household. (You can ask your landlord.)
If this receiver is connected to a SMATV network, select “SMATV Configuration”.
The most common values for“Symbol rate”and “FEC”are already preprogrammed.
(if need be you can enter alternative “Symbol rates”manually.)
Select “Start Auto Search”and just press the OK key.
Then, the “Auto Search”procedure will start.
To cancel the processing while the “Auto Search”is proceeding, press the MENU key.
SMATV Configuration
12
Auto Search ASTRA1
Channel Searching Status
0% 50% 100%
Found TV Ch. : 240
Found Rad.Ch. : 100
Index Freq SR FEC Polarity
45 12670 22000 5/6 vertical
Arte
Beta BC
BD1
Estilo
Musicals
Reqqae

TVChannels
Voyage F
Contact TV F
LC I F
Cabal J F
Paris Premere F1
2
43
5
ASTRA1 019.2?E >
6
87JDF 1 Info-Kanal F
Star Kino F
CNBC Europe F
9
10 ZeeTV F
JSTV S
Radio Channels
Hit Liste F
Blues F
Classic rock F
Soft Rock F
2
3
Generation ROC F
Love Songs F
Dance F
Radio Evira F
4
65
7
ASTRA1 < 019.2?E >
1
9
10 BBC Radio3 F
BBC Radio1 F
8
13
Parental Control
With parental control one can prevent a TV channel from being watched, a Radio Channel from
being heard, the receiver settings from being changed or an unauthorized change in the installation
from being performed.
TV Channels
You can select the channel you would like to watch eith
er by pressing the numeric keys for the channel number
or by moving the highlighted bar to the channel of your
choice using the keys. Press the OK key to select
the channel.
* Press the keys to move one page up or down.
Radio Channels
The pre-programmed PIN (Personal Identification Number) code is set as
[0000]. If you want to change it, please follow the procedure shown as
before.
Change PIN Code
Enter PIN Code
[ ? ? ? ?]
Parental Control
Exit
i
Parental Control
TV Channel Lock
Radio Channel Lock
Receiver Lock Off
Installation&Edit Lock Off
Change PIN code1
2
4
3
5
Exit
i
You can select the channel you would like to watch eith
er by pressing the numeric keys for the channel number
or by moving the highlighted bar to the channel of your
choice using the keys. Press the OK key to select
the channel.
* Press the keys to move one page up or down.

Edit TV Channel
Voyage
ContactTV
LC I
Canal J
Paris Premere
5
2
43
6
87DF 1 Info-Kanal
Star Kino
CNN
ASTRA1
Delete Cancel Move Favorite Exit
i
1
TV Channel Lock
Voyage
ContactTV
LC I
Canal J
Paris Premere
1
2
4
3
5
6
8
7 DF 1 Info-Kanal Star Kino
CNN
Lock Unlock Exit
i
FAV Channels
14
If the Installation & Edit Lock option is set to [ON], you have to enter the correct
code to enter directly into the “Installation”and “Edit”menu.
Press the Red button to lock/unlock the selected cha
nnel.
The letter color of the locked channels will be Grey
color on the “TV Channels”menu.
Press the VIEW key to see a thumbnail of the
currently selected channel in this menu.
Note) The color of the highlighted bar turns to red
when it is on a locked channel.
Installation&edit
Lock
TV Channel Lock
If Receiver Lock is [ON], you have to enter the correct code to operate
the receiver.
Receiver Lock
You can create a group of up to 200 channels in the
“Edit TV Channel”or “Edit Radio Channel”
menu. To include a channel in the FAV list, select a
channel and press the Blue key on the remote control.
To select a favorite channel from the FAV list, press
the FAV key.
To view a thumb nail representation of the currently
selected channel, press the VIEW key on the remote
control.
You can move to the channel that you want to edit using the keys.
Also you can move to the highlighted bar directly by entering the channel number.
Edit TV Channel
Edit
Edit TV Channel
Edit Radio Channel
EditTransponder
EditSatellite
2
3
4
Exit
i
1
52
51
Edit TV Channel
Paris Premere
Voyage
ContactTV
LC I
50
ASTRA1
Delete Cancel Move Favorite Exit
i
56
55
53
54 Canal J
DF 1 Info-Kanal
Star Kino
CNN
49
The “Enter PIN code”menu is displayed only when the Installation&Edit Lock option is set to [ON]. T
he initial code is set as[0000] but you can change it (See “Change PIN code”on page 13).
TVChannels
TP/Pol/SR
4000/H/28125
TP/Pol/SR
4000/H/28125

EditTransponder
Network(3713H)
Network(3720H)
2
3
4
1Network(3706H)
ASIASAT2
Network(3727H)
Network(3734H)
Network(3764H)
Network(3766V)
5
6
8
Channel List
CHANNEL ONE
Ch.8 - OS Down
Ch.9 - OS Down
Ch.370.Audio
Ch 371. Audio
Ch.372.Audio
Ch.373.Audio
Ch.374.Audio
Ch.375.Audio
Network(3661H)
Exit
Delete Cancel Add/ TP
i
7
15
Edit Radio Channel
Use the same procedure for the Radio Channels as
described for editing the TV Channels above.
Edit Radio Channel
Hit Liste
Blues
Classic Rock
Soft Rock
2
3
4
ASIASAT2
Generation ROC
Love Songs
Dance
REE
5
7
6
8
Delete Cancel Move Favorite Exit
i
1
Edit Satellite
To delete a transponder, press the Red key after selectin
g the transponder you
want to delete.
To delete a transponder, press the Blue key
Then the “Edit/Add SAT or TP”menu will be displaye
d, and you can add a transponder in that menu.
Edit Transponder
Select Satellite
To move to another satellite you want to watch, press
the SAT key on the remote control or select the menu
and choose the proper satellite with the keys.
Press the OKkey to confirm.
EditSatellite
ASTRA11
ExitDelete Cancel Add SAT
Satellite Name
i
SelectSatellite
APSTAR2R
ASTRA11
2
Exit
i
To delete a satellite, press the Red key after selecting th
e satellite you want to delete.
To add a satellite, press the Blue key.
Then the “Edit/Add SAT or TP”menu will be displaye
d, and you can add a satellite in that menu.
TP/Pol/SR
3640/H/27850

16
ALT Audio
If more than one audio channel is provided by
the broadcaster on a specific channel, you can
activate the audio mode display by pressing the
key.
L Audio R
1
LR
L Audio R
Guide
While watching or listening to any channel if you
want to know more information regarding the
program shown, press the EPG key on the remote
control to display the “TV Guide”or the “Radio
Guide”. This information may be provided by the
broadcaster. You can move to another channel by
pressing the keys or the keys.
Please refer to the function of the keys belows.
1) Red(TV/Radio)key : Switches to the “TV
Guide”and the “Radio Guide”by pressing
this key.
2) Green(Now/Next)key : Switches to the
program guides of “Now”and “Next”
3) Yellow(Info) key : Shows detailed information
of the selected channel.
4) Blue(Weekly) key : Shows program information
for the next 7 days of the selected channel.
5) White(Exit) key : Exits the TV/Radio Guide
TVGuide
RAI1 Linea verde- In ?11:10~11:55
RAI2 No Information No Time
RAI3 Rai Sport Cavale ?11:27~12:02
RAIwidescree Wide Screen 11:00~14:00
2
3
4
Radio Next Info Weekly Exit
i
1
5
11:52
Now
RAISPORT sate Rai Sport Sat 11:00~14:00
TEST2RAI No Information No Time
TEST3RAI No Information No Time
CNN No Information No Time
7
8
6

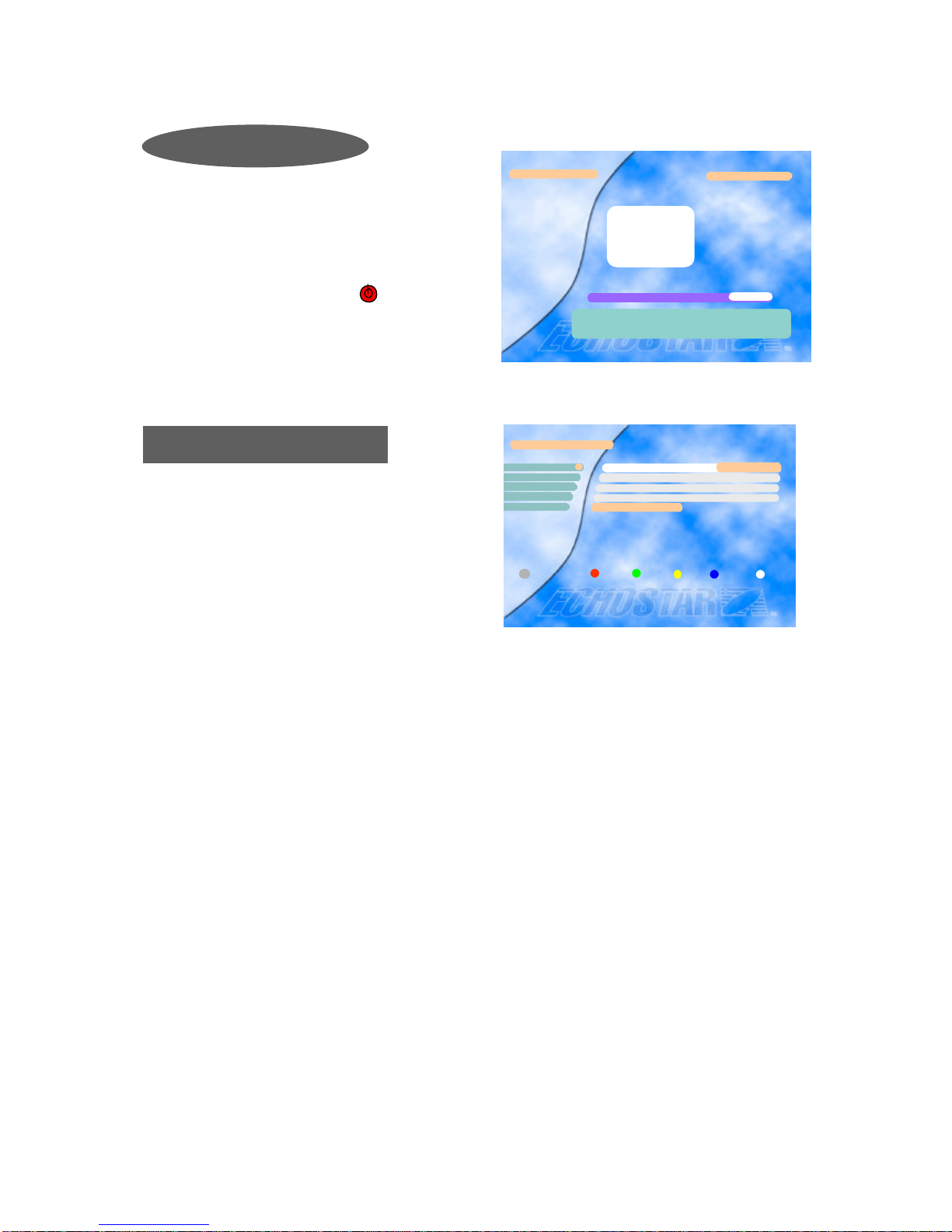

Pressing the Yellow(Info) key shows the detailed information of the program and the thumbnail window
displays the current channel.
If there is more program information than can be displayed in the info box, a scrollbar is displayed to the
right of the information box.
You can select the next and the previous page using the page up/ down keys ( ).
08 : 43CH.69 DWtv
08 : 30 Germany Today
09 : 00 JOURNAL Nachrichten –Wirtschaft –W….
ASIASAT 2
I-II
08 : 30 Germany Today
In the Studio : Stephan VuckovicOlympicTriathlon
Medalist
To display the EPG information for the current channel,
press the Red key when the Info banner is being
displayed.(Refer to the picture on the right.)
If you want to see the now program information, press
the Red key. In case of the “Next”program
information, press the Green key.
TVGuide
Now Next EPG Exit
i
In the Studio : Stephan VuckovicOlympicTriathlon
Medalist
08:30~09:00
Germany Today

Satellite
Longitude 019.2 °E
TP/Signal Quality 0
LNB polarization Vertical
Symbol Rate 0
Channel Name ????????
FEC AUTO
Digital TV channels
3
2
5
6
7
8
4
1
9
10
Video PID 0
PCR PID AUTO
Audio PID 0
?ASTRA1 ?
i
ExitTV/Rad Scan
17

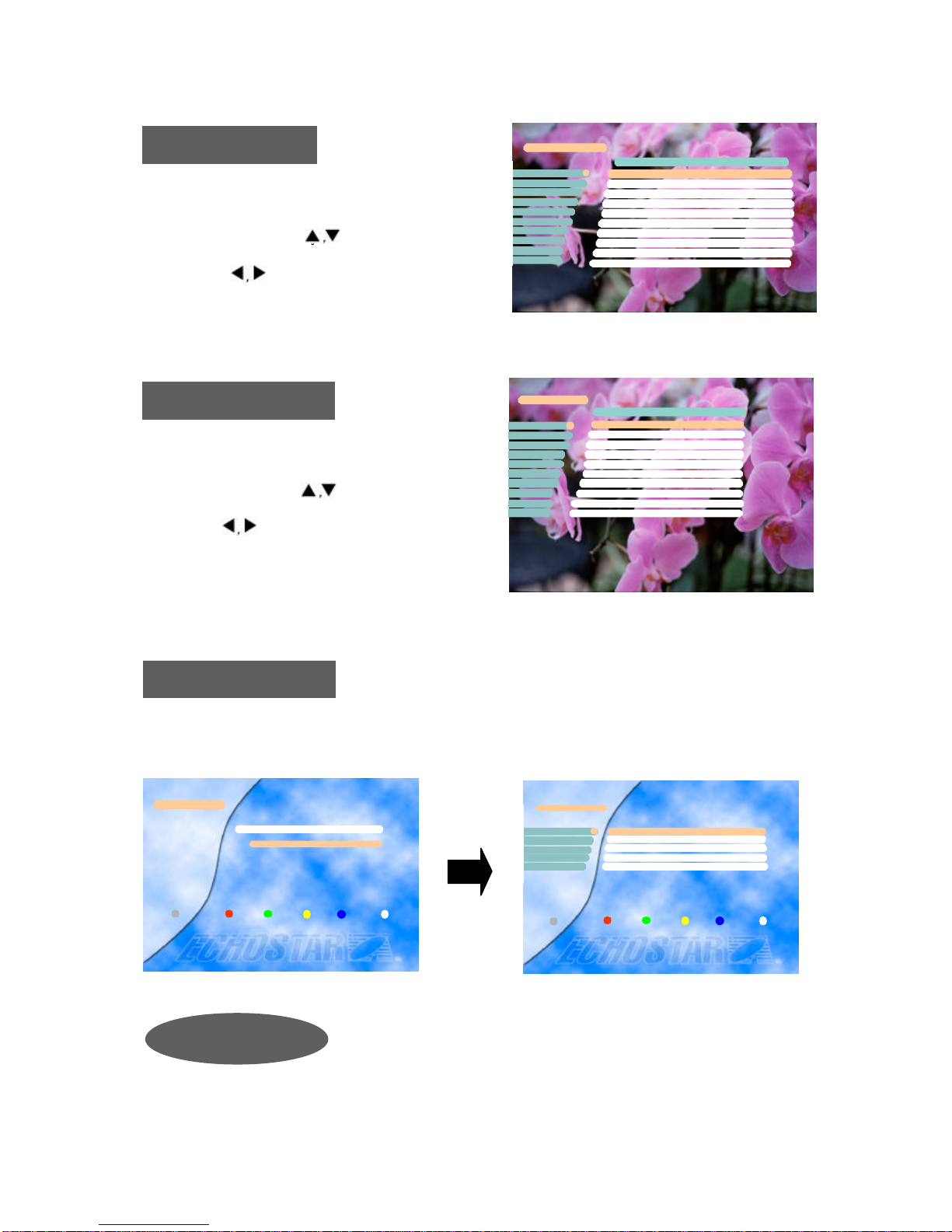

Advanced Installation
Edit/Add SAT or TP
C. Advanced Installation
You can select the “Advanced Installation”menu
from the “Installation”menu of the Main menu u
sing the keys.
You can edit a pre-programmed satellite name and a
dd a new one in this menu.
Also you can edit and add Transponder Frequency p
arameters using the keys.
To add a new satellite name, select satellite [
????????] and press OK, then the graphic keyboard
will be shown. After entering a new satellite name,
press OK after selecting “Save”on the keyboard.
Then you can set each parameter byentering the Tr
ansponder Freq., LNB Polarization, Symbol Rate.
CAUTION) Performing an Auto Search will erase all data (ex. FAV, Lock…)
which you have edited.
To edit an added transponder on a pre-programmed satellite, you should enter all the required data after movin
g to the satellite you want to edit.
Note 1) You should execute “Auto Search”after editing the satellite or the transponder.
If the Auto Search is executed after adding the new transponder, all channels of the added
Transponder will be searched and stored automatically.
Note 2) You can add or edit a total of 50 satellites. This includes the pre-programmed satellites. The receiver
has the capability to store up to999 transponders and 4500 channels.
Edit/Add SAT or TP
AdvancedInstallation
Edit LNB Local Freq.
21
Exit
i
STB Upgrade3Reset (Factory Default)4

TP/Signal Quality 12539
Satellite
STB Upgrade
Longitude 13.0Eº2
3
1
Exit
i
LNB polarization Horizontal
4Symbol Rate 275005FEC AUTO6
?HOTBIRD ?
Upgrade Default

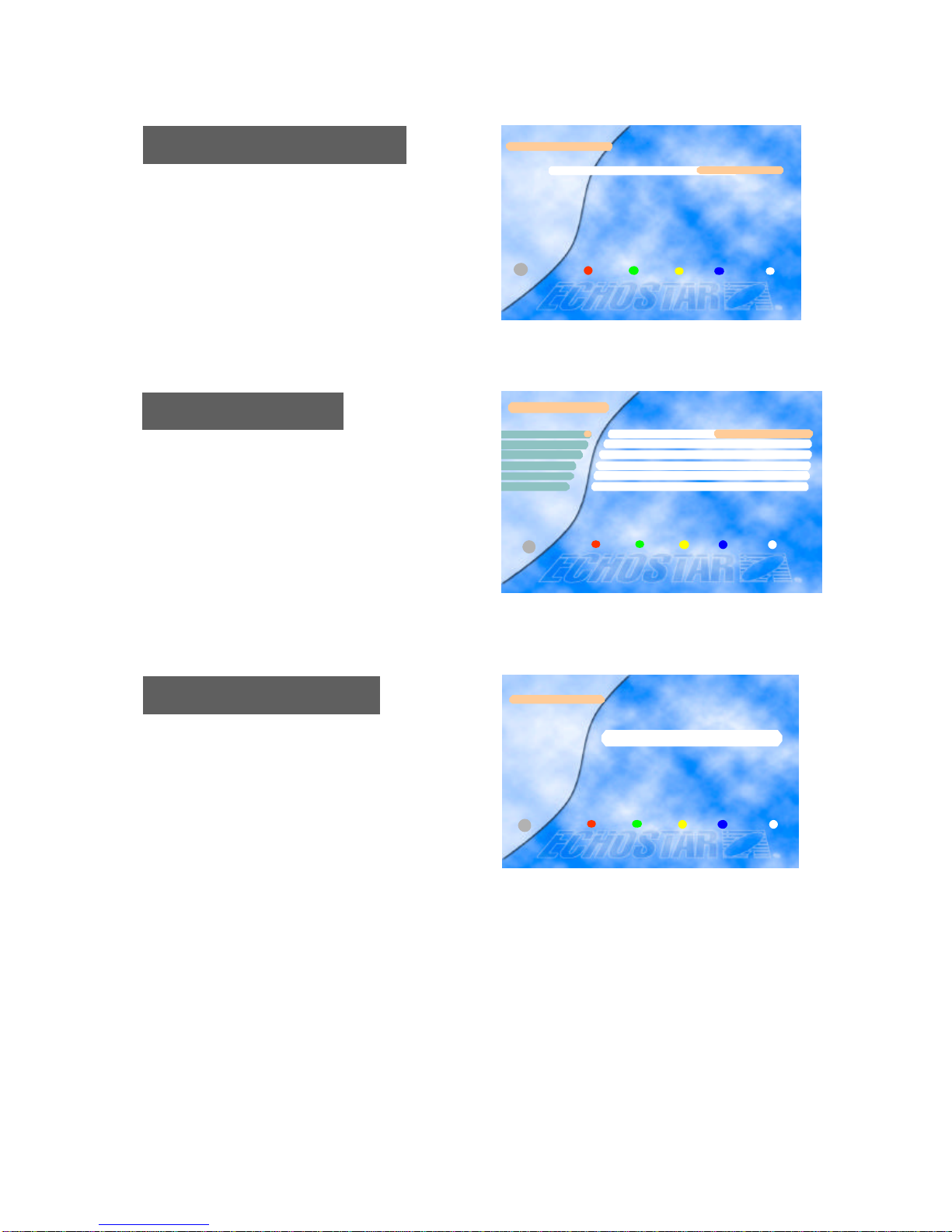

You can edit up to 8 local oscillator frequencies using t
he numeric keys.
Press the OKkey to save the newly edited frequency.
18
If you want to reset all the data edited, press the Red bu
tton twice.
Edit LNB Local Frequency
Reset (Factory Default)
Edit/ LNB Local Frequency
LNB Local Freq. 0..9 ?11300 ?
Exit
i
Reset (Factory Default)
* If you want Factory Reset, press Red button
Reset Cancel Exit
i
In this menu, you can upgrade the receiver with new s
oftware being provided through the satellite.
To download new software, you should set the correct
data provided by EchoStar.
After setting the data, you can upgrade the receiver by
pressing the Red key.
If you press the Yellow key, the settings will be chang
ed back to the default values.
STB Upgrade
CAUTION : By performing an STB upgrade you will loose all your stored data.

19
6. Specifications
1. Tuner & Channel
Input Connector 1 x F type with Loop through
Output Connector 1 x F type 75 Ohm IF signal out
Frequency Range 950MHz to 2150MHz
Input Impedance 75 Ohm
Signal Level -25dBm to -65dBm
IF Frequency 480MHz
IF Bandwidth 36MHz
LNB Power & Polarization Vertical +13.5V~+14.5V
Horizontal +17.5V~+18.5V
22KHz Tone Frequency 22KHz ±2KHz
Amplitude 0.6Vp-p ±0.2Vp-p
Demodulation QPSK
Input Symbol Rate 2~32Msps
FEC Decoder Convolutional Code Rate
1/2, 2/3, 3/4, 5/6 and 7/8 with Constraint
Length K=7
2. MPEG Transport Stream A/V Decoding
Transport Stream MPEG-2 ISO/IEC 13818
Transport Stream Specification
Profile & Level MPEG-2 MP @ ML
Input T/S Data Rate 80Mbit/S Max.
Aspect Ratio 4:3, 16:9 with Pan Vector
Video Resolution 720 x 576 (PAL), 720 x 480 (NTSC)
Audio Decoding MPEG-1 Audio Layer 1,2, Musicam
Audio Mode Stereo, Dual Channel, Joint Stereo, Mono
Sampling Rate 32, 44.1 and 48KHz
3. Memory
Flash Memory 2M bytes
Program DRAM 8M bytes
EEPROM 2K bytes
