Eclipse ESOL2.5W-WH/BL User manual

This product is a rechargeable LED solar wall light with integrated radar sensor. Movement is recognized
by the sensor in the detection area. The integrated rechargeable batteries are charged by the solar
panel. Sunlight/daylight provides energy for rechargeable batteries during the day and the product lights
up automatically at dusk.
This pack contains:
1 * Solar wall light
2 * Screws
3 * Anchors
4 * User manual
Specication:
Product Code: ESOL2.5W-WH/BL ESOL3.5W-WH/BL ESOL7.5W-WH/BL
Wattage 2.5W 3.5W 7.5W
Material ABS
Solar Panel Poly-Silicon 6V 330mA Poly-Silicon 6V 670mA Mono-Silicon 6V 1A
Battery 18650 Li-ion, 3.7V
1500mAh
18650 Li-ion, 3.7V
1800mAh
18650 Li-ion, 3.7V
4800mAh
IP Grade IP44 Waterproof
Colour Temperature 4000k
Luminous Flux Min 207Lm
Max 230Lm
Min 306Lm
Max 340Lm
Min 630Lm
Max 700Lm
LED Beam Angle 120°
Charging time 4-6 hours
Operating time 6-8 hours (without direct sunlight the lighting time can be shorter)
Housing Finish Black or White
Dimensions 130x190x105mm 178x185x105mm 229x185x105mm
Installation Instructions
LED Foldable Solar Wall Light with Radar Sensor
ESOL2.5W-WH/BL, ESOL3.5W-WH/BL, ESOL7.5W-WH/BL
Installation
1. Mark the hole for screws
Distance: 2.5w - 5cm, 3.5w -
6cm, 7.5w - 6cm
2. Mount the solar light using supplied
Screws
3. 4-6 hrs fully charge time
2pc
2pc
These are needed for installation
Pencil Drill Screwdriver

For more information contact: Unit 7/8 Ashbourne Business Centre, Ballybin Road, Ashbourne, Co. Meath, Ireland, A84 YP58,
SGD IRE PH: 00353 1 835 7447
Unit 32 Junction One Business Park, Valley Road, Birkenhead, Merseyside, UK, CH41 7ED,
SGD UK PH: 0330 551 7000
Website: www.sgd.ie
COMPLIANT
IP44
• The surface must be stable. The supplied mounting material is only for concrete and stone walls. (For mounting on other
surfaces, other dowels must be used.)
• Plants, street lighting, reecting surfaces and arbitrarily moving objects may not be located in the detection area.
• Recommended mounting location: as sunny as possible, 2-4m mounting height.
Step 1: Mark the holes for mounting of the solar light.
Step 2: Drill the necessary number of mounting holes with a Ø 6mm drill.
Step 3: Insert 2pcs anchors and mounting screws into the holes. Leave the mounting screws approximately 4mm standing
out of the wall.
Step 4: Hang the product from the top onto the mounting screws. Gently tighten the mounting screws.
RADAR SENSOR MODE
When the battery is less than 30% charged, such as at night, the lamp will automatically turn from Mode A to Mode B
to extend the working time.
Mode A (Power>30%)
The Eclipse solar wall light illuminates at full power after a movement in the detection area and will change to approximately
20% power after 10 seconds without movement until there is new movement detection.
The Eclipse solar wall light will automatically switch on at 20% of the maximum power for about 5 hours at dusk or at an
ambient brightness of ≤30 lux.
Mode B (Power<30%)
The Eclipse solar wall light illuminates when fully triggered by a movement in the detection area. After approximately 10
seconds without movement, the lamp switches off until the movement detection is repeated.
Instructions for handling batteries
• When handled incorrectly, batteries may leak, ignite or even explode
• Keep out of reach of children
• Seek medical assistance immediately if ingested or swallowed
• Never attempt to recharge a battery that is labelled non-rechargeable
• Do not combine old and new batteries or batteries of different types
• Never swap battery polarity
• Never expose batteries to excessively warm conditions such as direct sunlight, re etc.
• Do not inict mechanical damage on batteries (do not dismantle, deform or pierce batteries)
• If any battery acid comes in contact with eyes or skin, wash affected area with water and seek medical assistance
immediately.
• Used at batteries cannot be placed in household waste. They must be taken to an approved collection point for old
batteries

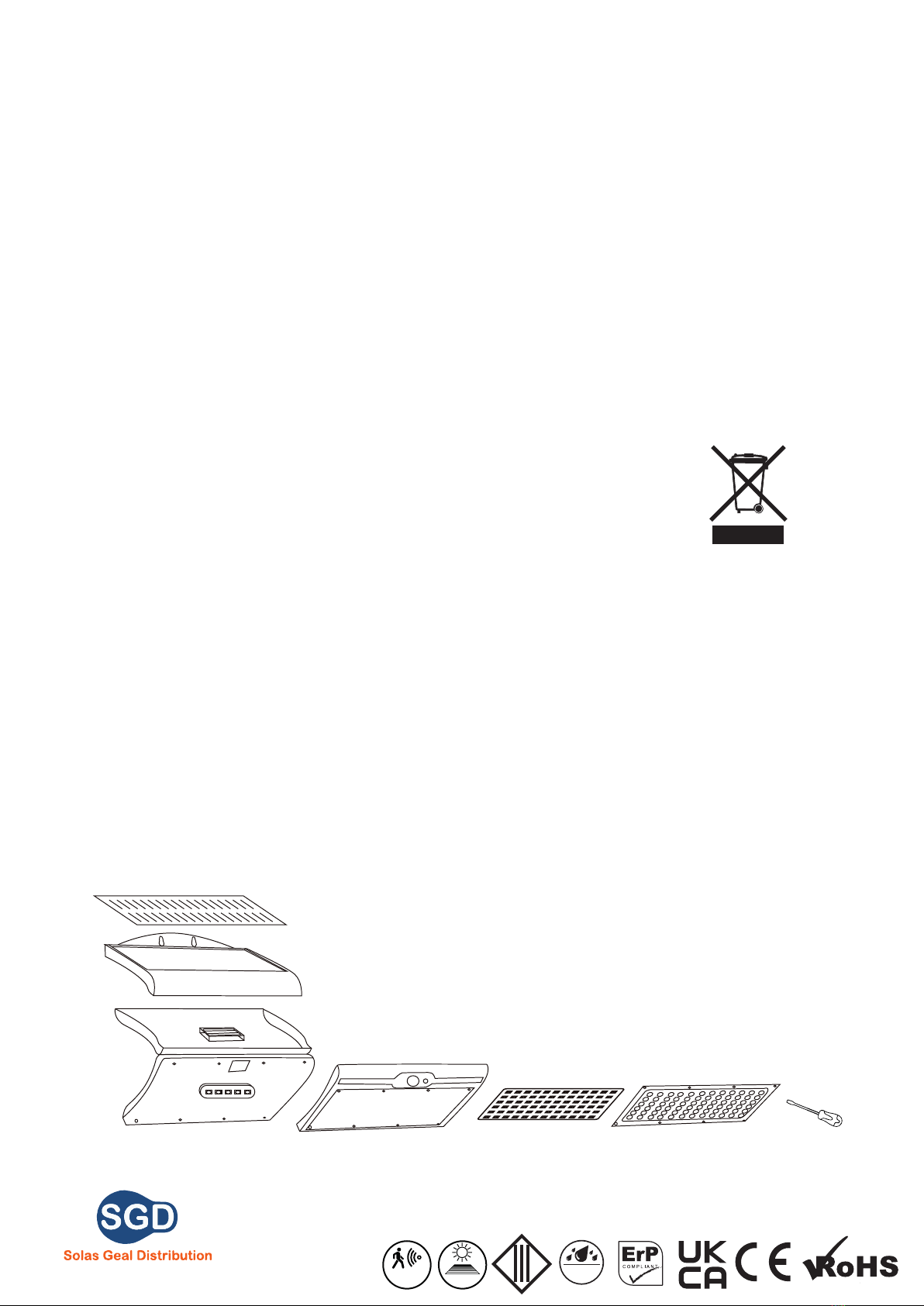

Disassembly Diagram
Product end of life instruction.
This Lighting product is in the scope of EU 2019/2020 directive on Waste Electrical and Electronic Equipment (WEEE). This product must
be disposed according to the legislation. This document is intended for use by end of life recyclers or treatment facilities. It provides the
basic information to assure an appropriate end of life treatment for the components and materials of the product. Please follow pictured
diagram on the back of this manual showing how to dismantle the product into different components which should be disposed correctly.
These components would consist of plastic, metal and electronic materials. It is the responsibility of the end user to dispose of this product
correctly. www.weeeireland.ie or contact your local council for further information.
Solar
Powered
Radar
Sensor

Declaration Number:
00100 – ESOL2.5W-WH/BL, ESOL3.5W-WH/BL, ESOL7.5W-WH/BL
This declaration of conformity is issued under the sole responsibility of the manufacturer.
Products:
LED SOLAR WALL LIGHT
Model Number:
ESOL2.5W-WH/BL, ESOL3.5W-WH/BL, ESOL7.5W-WH/BL
The product/model of the declaration described above is in conformity with the relevant
community harmonisation legislation:
Directive 2014/35/EU – Low Voltage Directive
The product/model of the declaration described above is in conformity with the standards
and technical specifications listed below:
EN IEC 5501 5:2019+A11:2020, EN 61547:2009, EN IEC 61000-3-2:2019,
EN 61000-3-3:2013+A1:2019
14/12/23
