Eco Airflow 2300 User manual

This unit is designed to operate from a SUPPLY OF 24 VOLTS AC AT 2VA
IMPORTANT!
DO NOT CONNECT TO 110 VAC POWER!
Operation, Installation & Maintenance Instruction Guide
Please read carefully BEFORE INSTALLING the Model 2300 Electronic Air Cleaner.
DEALER INSTALLATION INSTRUCTIONS
NOTE: IF ONE TERMINAL OF POWER
SOURCE IS GROUNDED, HOOK THE
WHITE STRIPED WIRE TO THIS TERMINAL
SOLID BLACK WIRE
WHITE STRIPED WIRE
24 V AC
POWER
(NOT
SUPPLIED)
Connecting the Model 2300 to a higher voltage than specified may cause damage and/or failure of
equipment. 110 TO 24 VOLT adapters or transformers are available through your local wholesaler.
Contractor Name & Phone No.
________________________________________
MODEL:
___________________________________
FILTER SIZE:
_________________________________________
INSTALLATION DATE:
INSTALLED BY:
Model 2300
MODEL
2300
2” Electronic Air Cleaner
Please complete the information below and leave this brochure with your customer after installation is complete.
IMPORTANT WARRANTY AND MAINTENANCE INFORMATION ON THE REVERSE SIDE.
PRODUCT INFORMATION:
Most forced air heating or cooling systems, or
heat pumps, have an internal 24 V AC power
source to which the ELECTRONIC AIR
CLEANER can be safely connected without
overloading other circuits.
CHECK if the system is protected by a low
voltage fuse and make sure connections are
made on the FUSED SIDE. If no fuse is
present, a low-voltage in line fuse should be
installed.
BEFORE connecting the AIR CLEANER to
this power source, POSITIVELY identify that
this is a 24 V (max 30 V) AC source, and not
some other voltage. This is usually best

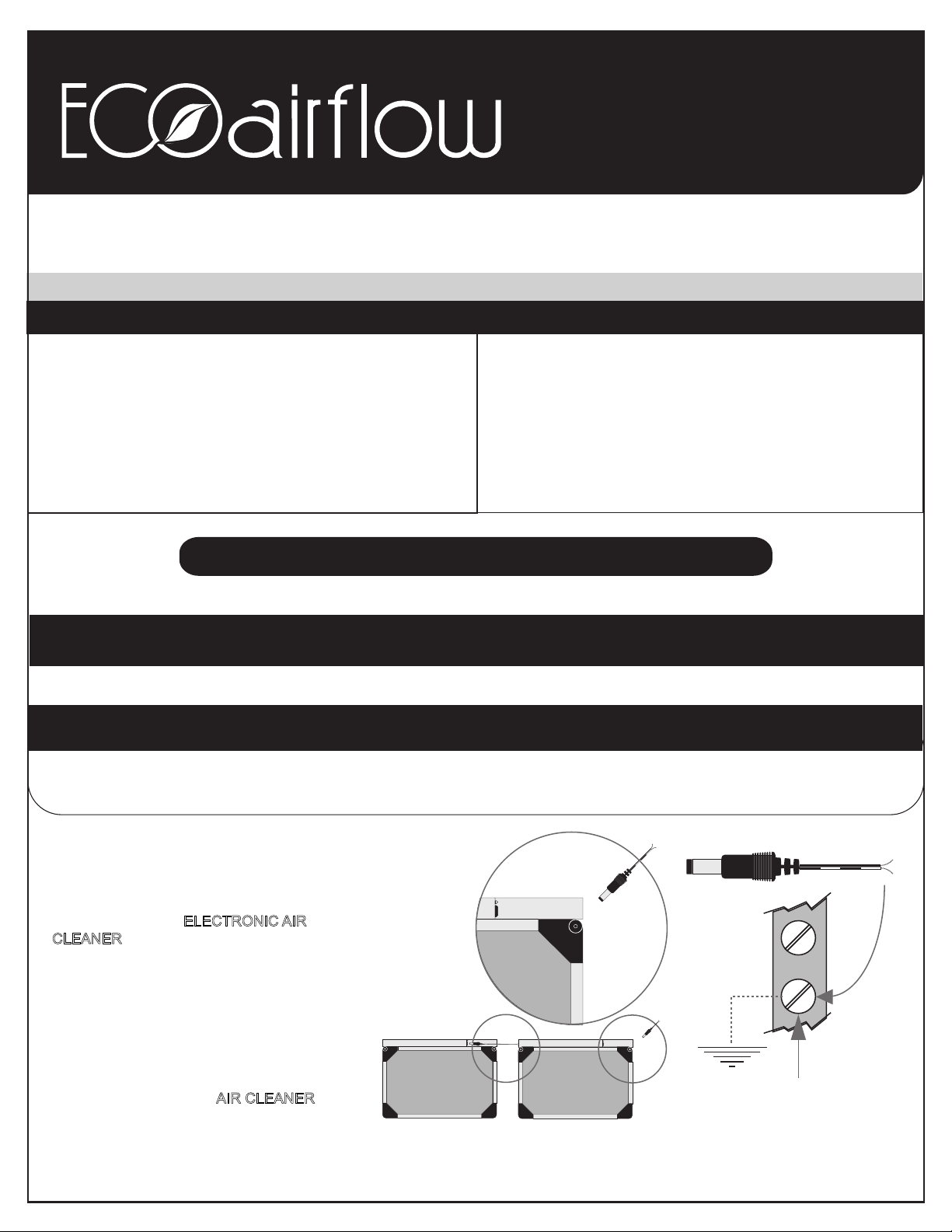

ELECTRICAL HOOKUP
DEALER INSTALLATION GUIDE
TANDEM CONNECTION
( if required)
INDIVIDUAL CONNECTION

Maintenance and Warranty Instructions
NOTE: IF ONE TERMINAL OF POWER
SOURCE IS GROUNDED, HOOK THE
WHITE STRIPED WIRE TO THIS TERMINAL
SOLID BLACK WIRE
WHITE STRIPED WIRE
24 V AC
POWER
(NOT
SUPPLIED)
MODEL
2300
2” Electronic Air Cleaner
FILTER SIZE (DIMENSIONS) ________________________________
NAME: __________________________________________________
ADDRESS:_______________________________________________
________________________________________________________
TELEPHONE: ____________________________________________
EMAIL:__________________________________________________
INSTALLED BY:___________________________________________
(contractor name & telephone)
DATE INSTALLED: MONTH______ DAY______ YEAR _______
LIMITED FIVE-YEAR WARRANTY
If you experience a problem with your product, do not attempt to
repair the product yourself. Doing so may void the warranty and could
cause damage or personal injury.
ECOairflow warrants this product to be free from defects in the
workmanship or materials, under normal use and service, for a period
of five years from date of purchase by the consumer. If, at any time
during the warranty period, the product is defective or malfunctions,
ECOairflow shall repair or replace it (at Ecoairflow’s option) within a
reasonable period of time.
This warranty does not cover removal or reinstallation labor costs or
other expenses; it also does not cover any shipping costs.
This warranty shall not apply if the defect/malfunction was caused by:
(1) damage resulting from abusive or unreasonable use;
(2) neglect or failure to clean the unit;
(3) use not in conformity with the printed directions;
(4) supplemental changes; or
(5) flood, fire or acts of God.
Damages that are the result of normal wear and tear will not be
considered manufacturing defects under this warranty. This warranty
applies only to the original purchaser of this product.
ECOairflow's sole responsibility shall be to repair or replace the
product within the terms stated above. ECOAIRFLOW SHALL NOT
BE LIABLE FOR ANY LOSS OR DAMAGE OF ANY KIND,
INCLUDING ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES
RESULTING, DIRECTLY OR INDIRECTLY, FROM ANY BREACH OF
ANY WARRANTY, EXPRESS OR IMPLIED, OR ANY OTHER
FAILURE OF THIS PRODUCT. Some jurisdictions do not allow the
exclusion or limitation of incidental or consequential damages, so this
limitation may not apply to you.
THE WARRANTIES SET FORTH HEREIN ARE EXCLUSIVE, AND
ECOAIRFLOW EXPRESSLY DISCLAIMS ALL OTHER
WARRANTIES, WHETHER WRITTEN, ORAL, IMPLIED OR
STATUTORY, INCLUDING BUT NOT LIMITED TO ANY WARRANTIES OF
MERCHANTABILITY, WORKMANSHIP, OR FITNESS FOR A
PARTICULAR PURPOSE.
This warranty gives you specific legal rights, and you may have
other rights that vary from jurisdiction to jurisdiction.
If the product is defective or you have any questions regarding
this warranty, please contact the ECOairflow customer service
department.
Product Warranty Registration
WARRANTY REGISTRATION
Register your warranty on-line www.ecoairflow.com under WARRANTY
or complete mail or fax the following form to: ECOairflow
Model 2300
CUSTOMER SERVICE
If you require assistance with your
product or wish to order replacement
pads for your filter, you can call the
contractor that installed your filter or
contact ECOairflow directly.
PRODUCT WARRANTY
Your ECOairflow filter is covered by a
five-year limited warranty. Please read
the warranty conditions outlined on the
reverse side of this warranty card.
WARRANTY CLAIMS
If you have a warranty claim, please
contact ECOairflow’s Customer Service
to obtain an RMA (Return Merchandise
Authorization) number. Please read the
Warranty Conditions on the reverse side
of this page.
When you call, we will need the model,
size and manufacture date of your filter.
This information is contained on a label
located on the top of the filter.
CONTACTING ECOAIRFLOW
ECOairflow
1885 Clements Road,
Unit 210
Pickering, ON L1W 3V4
Tel: [phone]
Fax: [phone]
Email: [e-mail]
Web Site: www.ecoairflow.com
OPERATION
While the electronic air cleaner is
operating, the power supply light will be
ON.
If the light does not come on when the
power is supplied to the air cleaner, refer
to the troubleshooting section below.
The electronic air cleaner uses little
power (less than 2 watts) and is on
continuously. The system fan can be
operated continuously for increased air
circulation through the air cleaner.
TROUBLESHOOTING
If the air cleaner does not seem to be
functioning, check the following:
1. Check that the power supply light is
“ON”. If the light is “OFF”, check the
power supply and wiring connections.
2. If the power is not being supplied to
the power head, it may need to be
replaced. Contact your dealer /
contractor or call customer service at
Ecoairflow.
MAINTENANCE
We recommend that the filter be checked
and cleaned once per month.
Before servicing the filter, first disconnect
the power supply, then remove the filter
from the designated slot.
Remove any build up on the outside
screen with either a soft cloth or the soft
brush attachment of a vacuum.
Once the screen has been cleaned, hold
the filter up to a light. If the black strings
can be seen, the filter pads DO NOT
need to be replaced. If the black strings
cannot be seen, replace the pads.
For optimum effectiveness, we recom-
mend that you replace your filter pads at
a minimum every three months.
To order replacement filter pads, call
your local contractor or contact
ECOairflow at:
Tel: [phone]
Fax: [phone]
Email: [e-mail]
Web Site: www.ecoairflow.com
When ordering, please let us know the filter model number and filter size.
