Ecoflam MAX GAS 170 LN PAB TC GN SGT 220-60 TW User manual

Technical data
Dati tecnici
Données techniques
Datos técnicos
Технические характеристики
Operating instructions
Istruzioni per l’uso
Notice d’emploi
Manual de uso
Руководство по эксплуатации
Electric diagrams
Schemi elettrico
Schémas électrique
Esquemas eléctrico
Электрические схемы
Spare parts list
Parti ricambi
Pièces de rechange
Piezas de recambio
Запчасти
GAS BURNERS
EN
IT
FR
ES
RU
MAX GAS 170 PAB
MAX GAS 250 PAB
MAX GAS 170 LN PAB TC GN SGT 220-60 TW 3143418
MAX GAS 170 LN PAB TL GN SGT 220-60 TW 3143419
MAX GAS 250 LN PAB TC GN SGT 220-60 TW
MAX GAS 250 LN PAB TL GN SGT 220-60 TW
www.ecoflamburners.com

www.ecoflam-burners.com 420010562400
EN
IT
FR
ES
RU
2
Overview - Index of contents / Panoramica - Indice dei contenuti / Vue d'ensemble - Table des matières
Descripción - Sumario / Обзор - Содержание
Technical data
Dati tecnici
Données techniques
Datos técnicos
Технические характеристики
EN
IT
FR
ES
RU
3
Working fields
Campi di lavoro
Domaine de fonctionnement
Ámbito de funcionamiento
Рабочий диапазон
EN
IT
FR
ES
RU
4
Dimensions
Dimensioni
Dimensions
Dimensiones
Размеры
EN
IT
FR
ES
RU
5
Operating instructions for authorised specialists EN 6 - 24
Istruzione per l’uso per il personale qualificato IT 25 - 43
Notice d’emploi pour l’installateur spécialiste FR 44 - 62
Instrucciones de montaje para el instalador especialista ES
Инструкция по эксплутации для
квалифицированных специалистов RU
Gas pressure diagrams
Diagrammi di pressione gas
Diagrammes de pression de gaz
Diagramas de presión de gas
Диаграммы давления газа
EN
IT
FR
ES
RU
63 - 64
Electric diagrams
Schemi elettrico
Schémas électrique
Esquemas eléctrico
Электрические схемы
EN
IT
FR
ES
RU
65 - 66
Spare parts list
Parti di ricambio
Pièces de rechange
Piezas de recambio
Запчасти
EN
IT
FR
ES
RU
67- 68
Conformity declaration
Dichiarazione di conformità
Déclaration de conformite
Declaración de conformidad
Сертификат соответствия
EN
IT
FR
ES
RU
69

3
www.ecoflam-burners.com
420010562400
EN
IT
FR
ES
RU
Technical data - Dati tecnici - Données techniques - Datos técnicos - Технические характеристики MAX GAS 170 PAB MAX GAS 250 PAB
Burner output max/min kW - kcal/h
Potenza bruciatore max/min kW - kcal/h
Puissance du brûleur max/min kW - kcal/h
Potencia del quemador máx/mín kW - kcal/h
Мощность горелки макс./мин., кВт - ккал/ч
175 55 240 55
150.860 47.410 206.900 47.410
Operation 2 stage
Funzionamento 2 stadio
Fonctionnement 2 allure
Funcionamiento 2 etapa
Moдифиkaция 2 ступень 22
Regulating ratio Rapporto di regolazione Rapport de régulation Relación de regulación Коэффициент
регулирования 1:2
Fuel Combustibile Fuel Combustible Топливо
Natural Gas (L.C.V. 8.570 kcal/Nm3), LPG (L.C.V. 22.260 kcal/Nm3)
(G20) Hu = 10,35 kWh/m3- (G25) Hu = 8,83 kWh/m3
(G31) Hu = 25,89 kWh/m3
Emission class Classe di emissione Classe d’émission Tipo de emisión Класс выделения
загрязняющих веществ Standard Class 3 - GAS EN676 (<80mg/kWh)
Control box Apparecchiatura di
controllo Coffret de sécurité Cajetín de seguridad Блок управления и
безопасности THERMOWATT TCG 2xx
Gas train Rampa gas Rampe gaz Rampa de gas Газовая рампа GAS TRAIN TABLE - DIFFERENT MODELS / CONFIGUATIONS
Gas connection Allacciamento gas Raccordement gaz Conexión de gas Подсоединение газа Rp 20 3/4” - Rp 40 1”1/2 Rp 20 3/4” - Rp 40 1”1/2
Gas input pressure Pressione di ingresso gas Pression d’entrée du gaz Presión de entrada
del gas Давление газа на входе 12-360 mbar (SEE GAS TRAIN MATCHING TABLE)
LPG input pressure Pressione di ingresso
LPG
Pression d’entrée du gaz propane
Presión de entrada LPG Давление LPG на входе 16-360 mbar (SEE GAS TRAIN MATCHING TABLE)
Air regulation Air flap
Regolazione aria Serranda dell'aria
Réglage de l’air Volet d’air
Ajuste del aire Válvula de aire
Настройка подачи воздуха Воздушная заслонка
Schneider STE 4,5 B0.37/6-R Schneider STE 4,5 B0.37/6-R
Flame monitor Rivelatore di fiamma Surveillance de flamme Vigilancia de llama Контроль пламени ionisation ionisation
Ignition transformer Trasformatore
d'accensione Allumeur Encendedor Устройство розжига 1-Pole Electronic 1-Pole Electronic
Electric motor rpm - watt
Motore elettrico giri motore - watt
Moteur rpm - watt
Motor rpm - watt
Электродвигатель об/мин - watt
3400 rpm 3400 rpm
250 W 250 W
Voltage Tensione Tension Tensión Напряжение 230 V / 60 Hz
Power consumption (operation)
Potenza elettrica assorbita (Esercizio)
Puissance électrique absorbée (en service)
Potencia eléctrica absorbida (en funcionamiento)
Потребляемая электрическая мощность: (при работе)
430 W 450 W
Weight Peso Poids Peso Приблизительный вес 11,5 kg 11,5 kg
Protection level Classe di protezione Indice de protection Índice de protección Класс электрозащиты IP40
Sound pressure level dB(A)
Livello pressione sonora dB(A)
Niveau presion acoustique dB(A)
Nivel de presion acústico dB(A) Уровень шума, dB(A) 70 70
Ambient temp. for storage
Temperatura ambiente di stoccaggio
Température ambiante de stockage
Temperatura ambiente de almacenamiento Температура хранения -20°…+70° C
Temperature for use Temperatura
d’utilizzazione Température d’utilisation Temperatura ambiente
de utilización Рабочая температура -10°…+60° C
Overview / Panoramica / Vue d'ensemble / Descripción / Обзор

4www.ecoflam-burners.com 420010562400
EN
IT
FR
ES
RU
Working field The working field shows burner output as a function of combustion chamber pressure. It corresponds to the maximum values specified by EN 267 measured at the test fire tube. The efficiency rating of the boiler should be taken into account when selecting a burner. Calculation of burner output: QF = QN
ηK
QF = Burner output (kW) QN = Rated boiler output (kW) ηK= Boiler efficiency (%)
Curva Il campo di attività indica la potenza del bruciatore in funzione della pressione della camera di combustione. Corrisponde ai valori massimi previsti dalla norma EN 267 misurati sul tubo della fiamma di controllo. In occasione della scelta del bruciatore si deve tenere conto del rendimento energetico della caldaia. Calcolo della potenza della caldaia: QF = QN
ηK
QF= potenza della caldaia (kW) QN= potenza nominale della caldaia (kW) ηK= rendimento energetico
della caldaia (%)
Domaine de fonctionnement Le domaine de fonctionnement correspond aux valeurs mesurées lors de l’homologation. Elle correspond aux valeurs max mesurées sur tunnel d’essai d’après l’EN 267. Pour le choix du brûleur, tenir compte du rendement de la chaudière. Calcul de la puissance calorifique: QF = QN
ηK
QF= Puissance calorifique (kW) QN= Puissance nominale chaudière (kW) ηK= Rendement chaudière (%)
Ámbito de funcionamiento El ámbito de funcionamiento corresponde a los valores registrados en el momento de la homologación. Corresponde a los valores máx medidos en el túnel de ensayo según la EN 267. Para la elección del quemador, se ha de tener en cuenta el rendimiento de la caldera. Cálculo de la potencia calorífica: QF = QN
ηK
QF = Potencia calorífica (kW) QN = Potencia nominal de la caldera (kW) ηK = Rendimiento de la
caldera (%)
Рабочий диапазон Рабочий диапазон показывает производительность горелки в зависимости от давления в топочной камере. Он соответствует максимальным значениям согласно EN 267, измеренным в контрольной топочной камере. При выборе горелки необходимо учитывать КПД котла. Расчет тепловой мощности: QF = QN
ηK
QF = Тепловая мощность, кВт QN= Номинальная мощность котла, кВт ηK= КПД котла, %
Overview - Working fields / Panoramica - Curve / Vue d'ensemble - Domaine de fonctionnement / Descripción - Ámbito de funcionamiento / Обзор - Рабочий диапазон
50 75 100 125 150 175 200 225 kcal/h
x 1000
kW
60 80 100 120 140 160 180 200 220 240 260 28040
25
1
2
3 4 5 6
mbar
0
MAX GAS 250 PAB
MAX GAS 170 PAB

5
www.ecoflam-burners.com
420010562400
EN
IT
FR
ES
RU

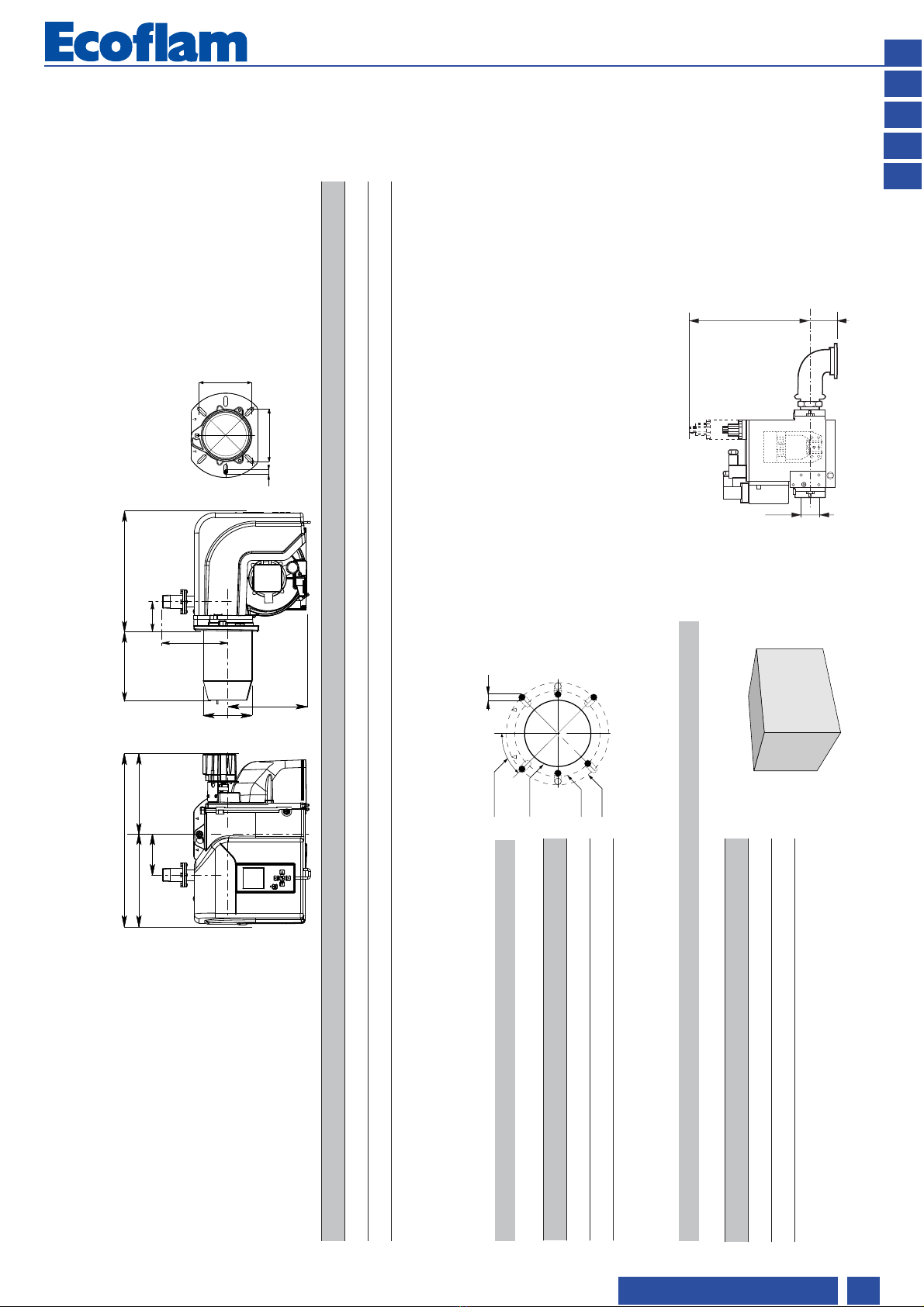

Overview - Dimensions / Panoramica - Dimensioni / Vue d'ensemble - Dimensions / Descripción - Dimensiones / Обзор - Размеры
X
Y
Z
Packaging
MAX GAS 170-250 PAB
GAS TRAIN DIMENSIONS: refer to GT manual
Ø r
RrSr
MAX GAS 170-250 PAB
Model AB C D D1 E F G I L M N O P
MAX GAS 170 PAB 435 231 204 180 280 301 125 201 106/130 106/130 M8 73 110 104 MAX GAS 250 PAB 435 231 204 180 280 301 125 201 106/130 106/130 M8 73 110 104
Model Ø a Ø b Ø c d°..
MAX GAS 170 PAB 135 153 190 45° MAX GAS 250 PAB 135 153 190 45°
MI
L
CB
A
P
GF
E
D-D1
N
O
d..°
Ø a Ø b
Ø c
M
Boiler plate drilling
Model XYZ kg
MAX GAS 170 PAB 380 500 680 14,5 MAX GAS 250 PAB 380 500 680 14,5

6www.ecoflam-burners.com
EN
420010562400
Contents - Index - General warnings
Important notes
MAX GAS 170-250 PAB burners are
designed for the low-pollutant combustion
of natural gas and Liquefied Petroleum
Gas. The design and function of the
burners comply with standard EN676.
Assembly and commissioning must be
carried out only by authorised specialists
and all applicable guidelines and directives
must be observed.
Burner description
MAX GAS 170-250 PAB are two-stage,
fully automatic, monoblock type burners.
The special design of the burner head
provides low-polluting combustion with
high efficiency. In line with testing as
defined by EN676, the values comply
with emissions class 3 (NOx<80mg/kWh)
Emissions values may differ, depending on
combustion chamber dimensions,
combustion chamber load and the firing
system (three-pass boilers, boilers with
reverse firing).
They are suitable for use with all heat
generators complying with EN 303 or for
use with hot air generators complying with
DIN 4794, and DIN 30697 within their
respective performance range.
Use for any other application requires the
approval of Ecoflam.
The following standards should be
observed in order to ensure safe,
environmentally sound and
energy-efficient operation:
EN 676
Forced-draught gas burners
EN 226
Connection of fuel oil and forced-draught
gas burners to a heat generator.
EN 60335-1, -2-102
Specification for safety of household and
similar electrical appliances, particular
requirements for gas burning appliances.
Installation location
The burner must not be operated in rooms
containing aggressive vapours (e.g. spray,
perchloroethylene, hydrocarbon
tetrachloride, solvent, etc.) or tending to
heavy dust formation or high air humidity.
Adequate ventilation must be provided at
the place of installation of the furnace
system to ensure a reliable supply with
combustion air.
Variations may arise as a result of local
regulations.
We can accept no warranty liability
whatsoever for loss, damage or injury
caused by any of the following:
- Inappropriate use.
- Incorrect assembly or repair by the
customer or any third party, including the
fitting of non-original parts.
Provision of the system and the
operating instructions
The firing system manufacturer must
supply the operator of the system with
operating and maintenance instructions on
or before final delivery. These instructions
should be displayed in a prominent
location at the point of installation of the
heat generator, and should include the
address and telephone number of the
nearest customer service centre.
Notes for the operator
The system should be inspected by a
specialist at least once a year. It is
advisable to take out a maintenance
contract to guarantee regular servicing.
Ecoflam burners have been designed and built in compliance with all current regulations
and directives.
All burners comply to the safety and energy saving operation regulations within the standard
of their respective performance range. The quality is guaranteed by a quality and management
system certified in accordance with ISO 9001:2008.
Overview Technical data 3
Working fields 4
Dimensions 5
Contents Index 6
General warnings 6
Burner description 7
Function General safety functions 8

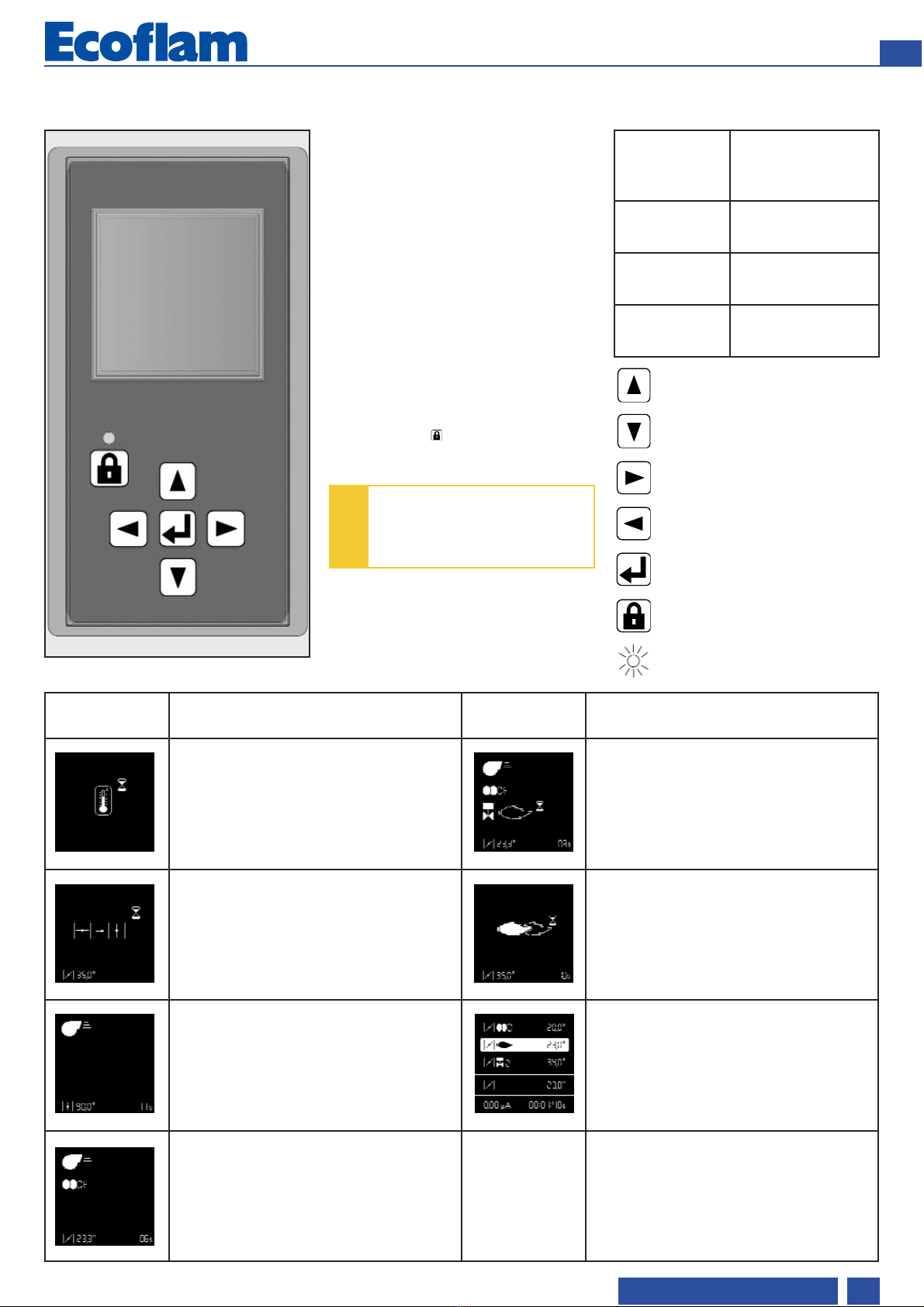

TCG2xx control box 9,10,11

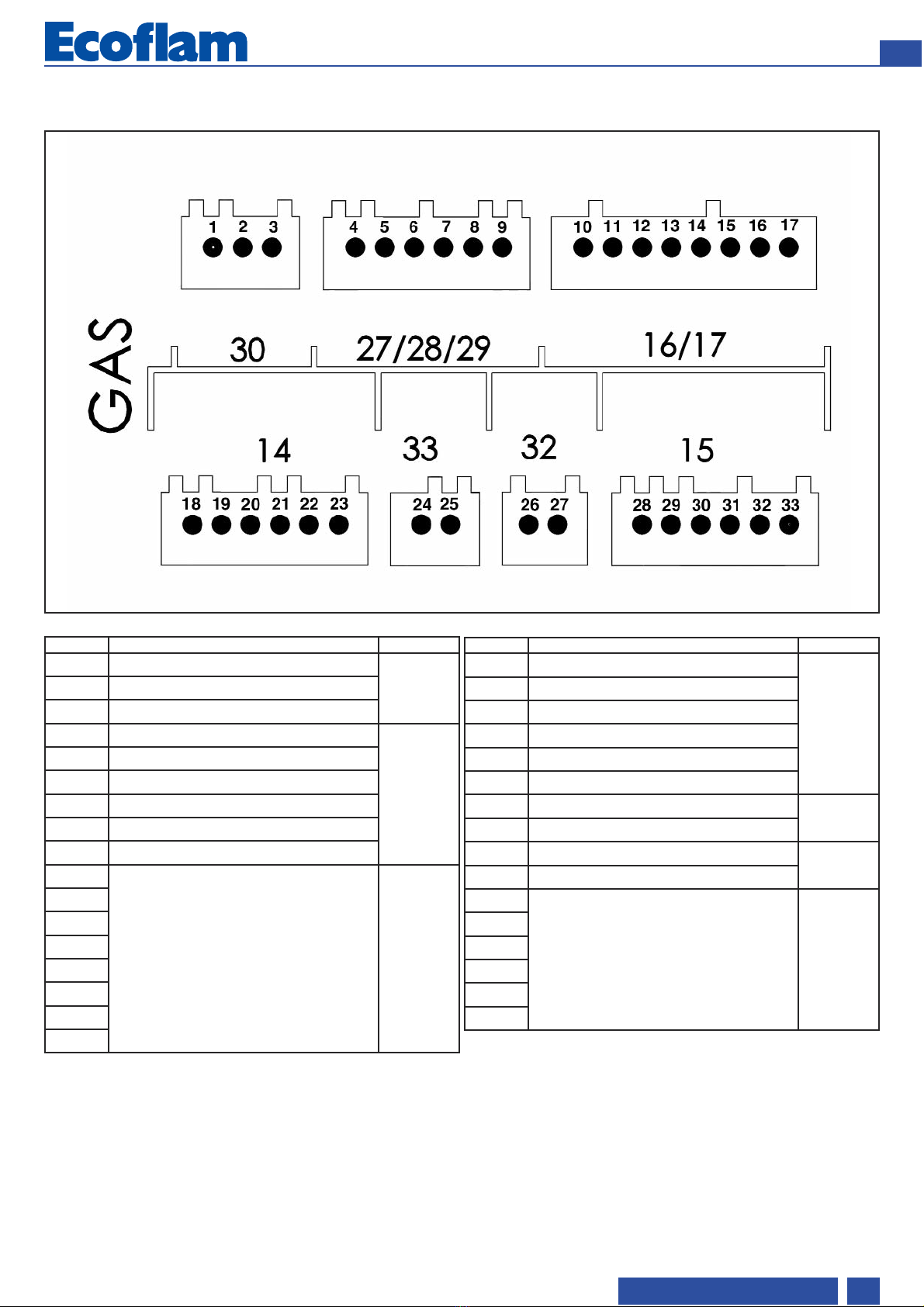

Terminal allocation chart 230 Volt connection 12
Terminal allocation chart low voltage connections 13

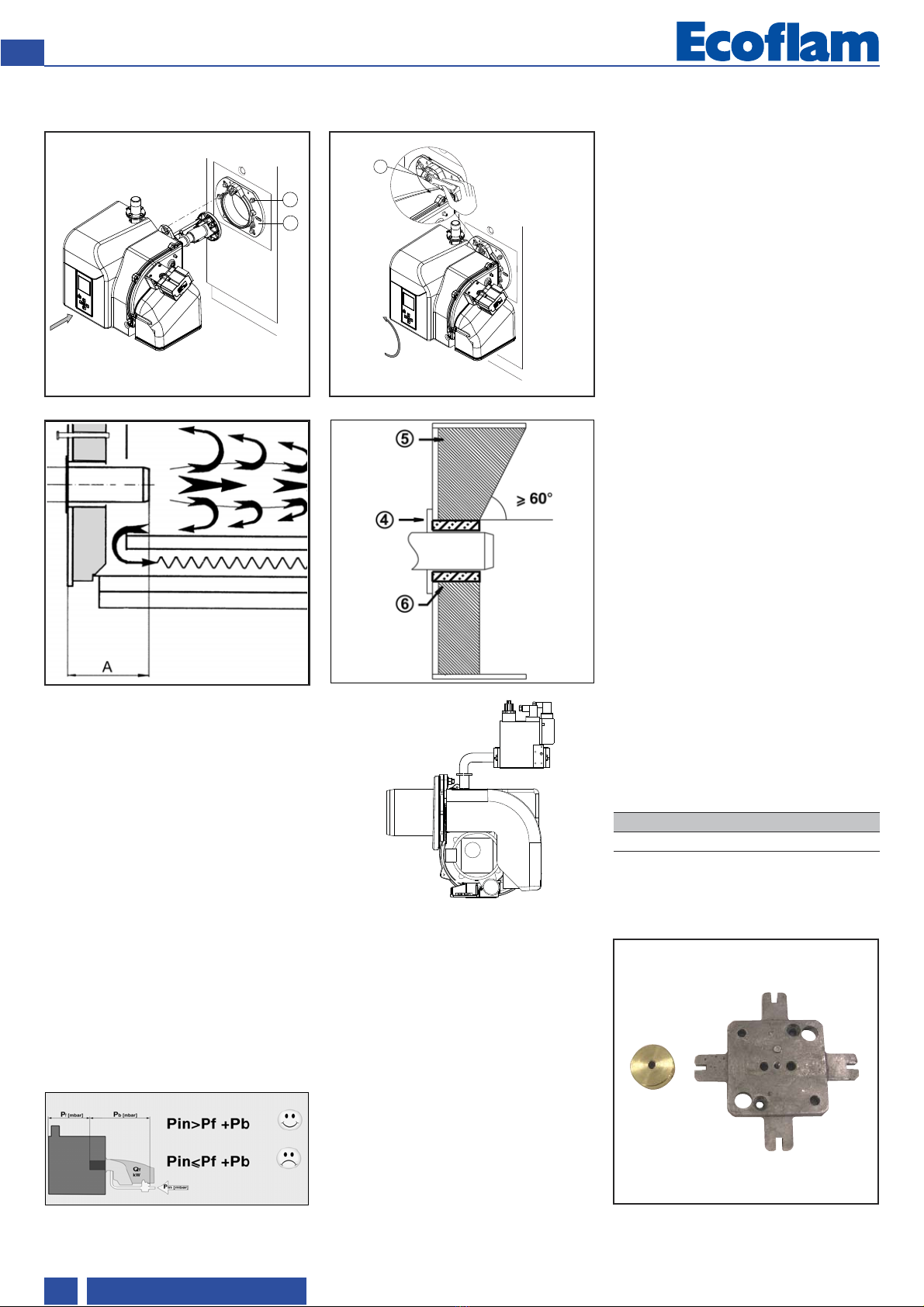

Installation Burner assembly 14
Electrical connection - Checks before commissioning 15
Start up Pre-setting without flame 16
Adjusting burner output 17
Setting the flame 18,19
Operating mode 19
Air pressure switch adjustment - setting gas pressostat - Saving the adjustment values in the display 20
Service Maintenance 21
Troubleshooting 22
Troubleshooting - Fault diagnosis menu 23
Operating statistics menu 24
Overview Gas pressure diagrams 63-64
Electrical diagrams 65-66
Spare parts list 67-68
Contents Conformity declaration 69

7
www.ecoflam-burners.com
EN
420010562400
A1 TCG 2xx Gas control unit
A4 Display
F6 Air pressure switch
M1 Electric motor
T1 Ignition transformer
Y Graduated rod for head adjustment
Y10 Air damper motor
3 Air regulation in the burner head
5 Housing
8 Blast tube
14 Burner hood
15 Burner flange
16 Reset key
113 Air intake
Scope of delivery
The burner is delivered in a modular system of
packagings i.e. separate set/box:
BBCH: Burner Body with Combustion Head
with flange.
- 1 bag including :- multilanguage technical manual.
- wieland plug.
- spanner.
- screws, nuts and washer.
GT: separate Gas Train
KIT & ACS are managed and delivered separately
Contents - Burner description
3
Y
M1
F6
16
KIT & ACS delivered separately
113 Y10
5
8
A1
A4
15 14
MAX GAS 170 LN PAB TC SGT 230-60 TW
MAX GAS Gas
RANGE NAME BY FUEL TYPE
MAX GAS 170175 kW
MODEL SIZE (Gas: kW; Oil: kg/h)
LN Low NOx Class 3 GAS EN676 (<80 mg/kWh)
- Standard Class 2-GAS EN676 (<120 mg/kWh)
EMISSION COMBUSTION TYPE
P1 stage
PAB 2 stages
OPERATION TYPE
TC Short head
TL Long head
HEAD TYPE
Natural gas
LPG LPG
FUEL
230-60 230 Volt, 60 Hz
ELECTRICAL SUPPLY TO THE SYSTEM
SGT Separate gas train
EQUIPMENT
TW Thermowatt
CONTROL BOX

8www.ecoflam-burners.com
EN
420010562400
Function - General safety functions
Description of functions
When the system is switched on for the
first time, after a power failure or safety
shutdown, after a lack of gas or after the
system has been out of operation for 24
hours, the pre-ventilation period of 24
seconds begins.
During pre-purge period:
- blower pressure is monitored
- the combustion chamber is monitored for
flame signals.
At the end of the pre-purge period:
- ignition is switched on.
- main and safety valve are opened.
- burner starts.
Monitoring
The flame is monitored by an ionisation
probe. The probe is insulated and
fitted to the gas head and is routed
through the flame disc into the flame
zone. The probe must not have any
electrical contact with earthed parts. The
burner switches to lock-out if a short
circuit occurs between the probe and
the burner earth.
During burner operation, an ionised
zone is produced in the gas flame
through which a rectified current flows
from the probe to the burner head. The
ionisation current must be at least 7 μA.
Safety functions
- If no flame is produced when the burner
is started (gas release), the burner will be
switched off at the end of the safety
period, lasting no more than 3 seconds,
and the gas valve will close.
- If the flame goes out during operation,
the gas supply is interrupted within one
second. A restart takes place. Once the
burner starts, operation is continued.
Otherwise, a safety lock-out occours.
- If there is a lack of air during reventilation
or operation, a safety lock-out occours.
- If there is a lack of gas, the burner does
not begin operation or switches off.
A waiting time of 2 minutes follows. This is
followed by a further start attempt. If there
is still no gas pressure, a further waiting
time of 2 minutes follows. The waiting time
can only be reset by interrupting the
power supply to the burner.
Waiting times: 3 x 2 min, then 1 hour.
In the event of controller shutdown
- Controller thermostat interrupts heat
request.
- Gas solenoid valves close.
- Flame goes out.
- Burner motor switches off.
- Burner is ready for operation.
1108106
119
Y12104 F4119.1119 pBr Y13
119.2
F6
F4 Minimum gas pressure switch
F6 Air pressure switch
Y13 Main solenoid valve
Y12 Safety solenoid valve
1 Thermally-triggered safety shut-off valve (installation by installer)
104 Gas pressure regulator
106 Filter
108 Gas ball valve (installation by installer)
119pBr Measuring point for gas outlet pressure
119.1 Measuring point for gas pressure in valve space
119.2 Air pressure measuring point

9
www.ecoflam-burners.com
EN
420010562400
Function - TCG 2xx control box
Pressing the
unlocking
button on the
unit for
.... causes ....
... 1 second ... the control unit to
unlock.
... 2 seconds ... he control unit to
unlock.
... 9 seconds ... the statistics to be
deleted
The TCG 2xx control and safety unit
controls and monitors the forced draught
burner. The microprocessor-controlled
program sequence ensures maximum
stability of time periods, regardless of
fluctuations in the power supply voltage or
the ambient temperature. The automatic
combustion control unit is designed to
cope with brownouts. Whenever the
supply voltage drops below its rated
minimum level (< 170V), the control unit
shuts down - even in the absence of a
malfunction signal. The control unit
switches itself back on again once the
voltage has returned to normal levels (>
178V).
Locking and unlocking
The control unit can be locked (switched to
malfunction mode) by pressing the
unlocking button and unlocked (fault
deleted), provided the unit is connected to
the mains power supply.
!
Always switch off the power supply
before installing or removing the
control unit. Do not attempt to open
or carry out repairs on the control
unit.

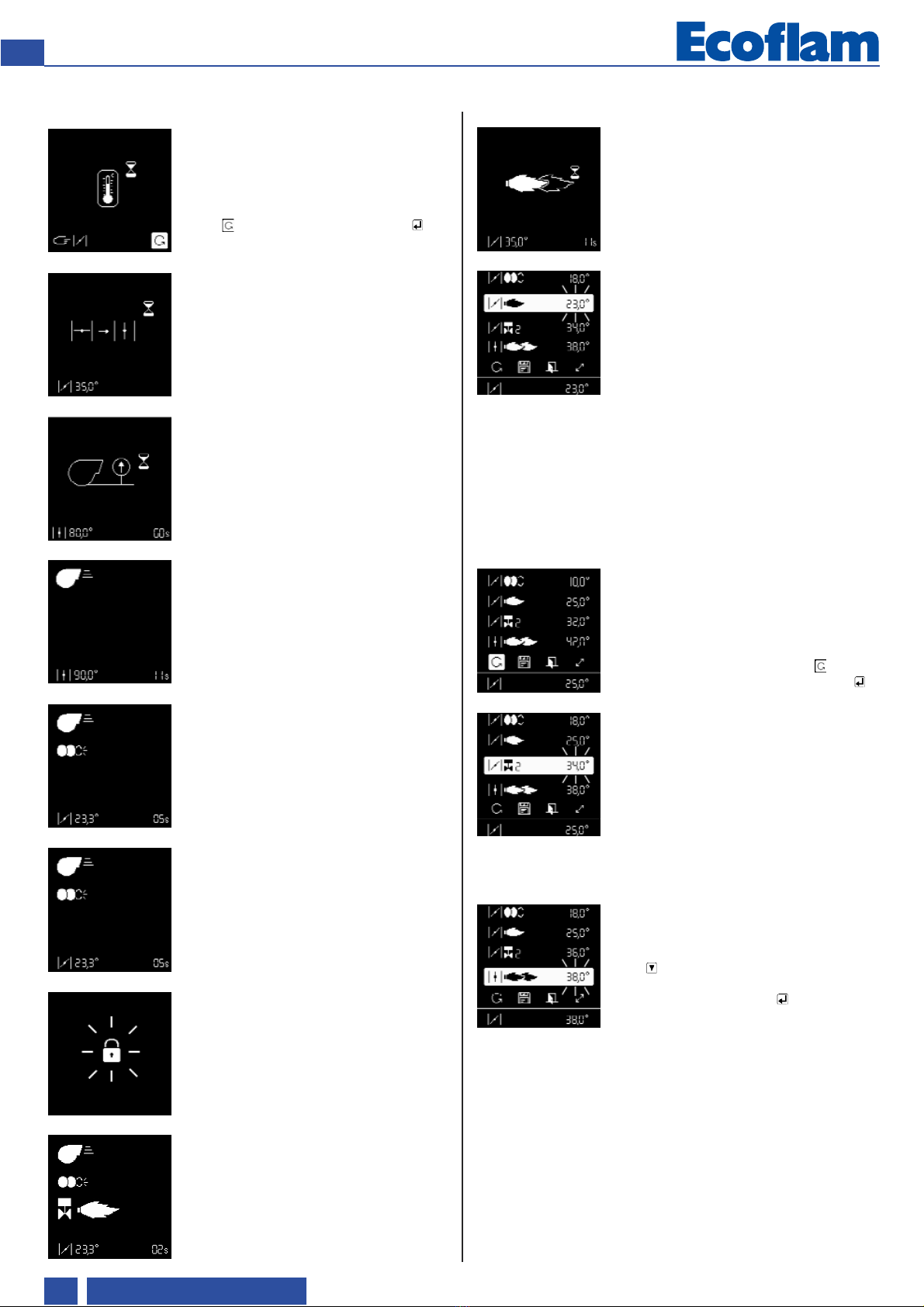

Screen Description Screen Description
Awaiting the heat request from the boiler Opening the gas valve and safety time
Air flap is forced open for pre-ventilation. Flame is present, awaiting authorisation of
regulation
Pre-ventilation
Burner in operation. The lower cell shows the
strength of the signal and the operating time of
the burner.
Closing the air flap to the ignition position,
pre-ignition
Moves the cursor upwards.
Moves the cursor downwards.
Increases the marked value.
Reduces the marked value.
Modifies/Confirms the value shown.
Unlocks the control unit.
Red LED (flashes if a fault is
present).

10 www.ecoflam-burners.com
EN
420010562400
Function - TCG 2xx control box
In parallel with its control and safety
functions, the TCG2xx control unit allows
the following to be set: (see illustration)
- the position of the air flap during ignition.
- the position of the air flap during the 1st
stage.
- the opening position of the stage 2 valve
(for switching from 1st to 2nd stage).
- the position of the air flap during the 2nd
stage.
- the closing position of the stage 2 air flap
(for switching from 2nd to 1st stage).

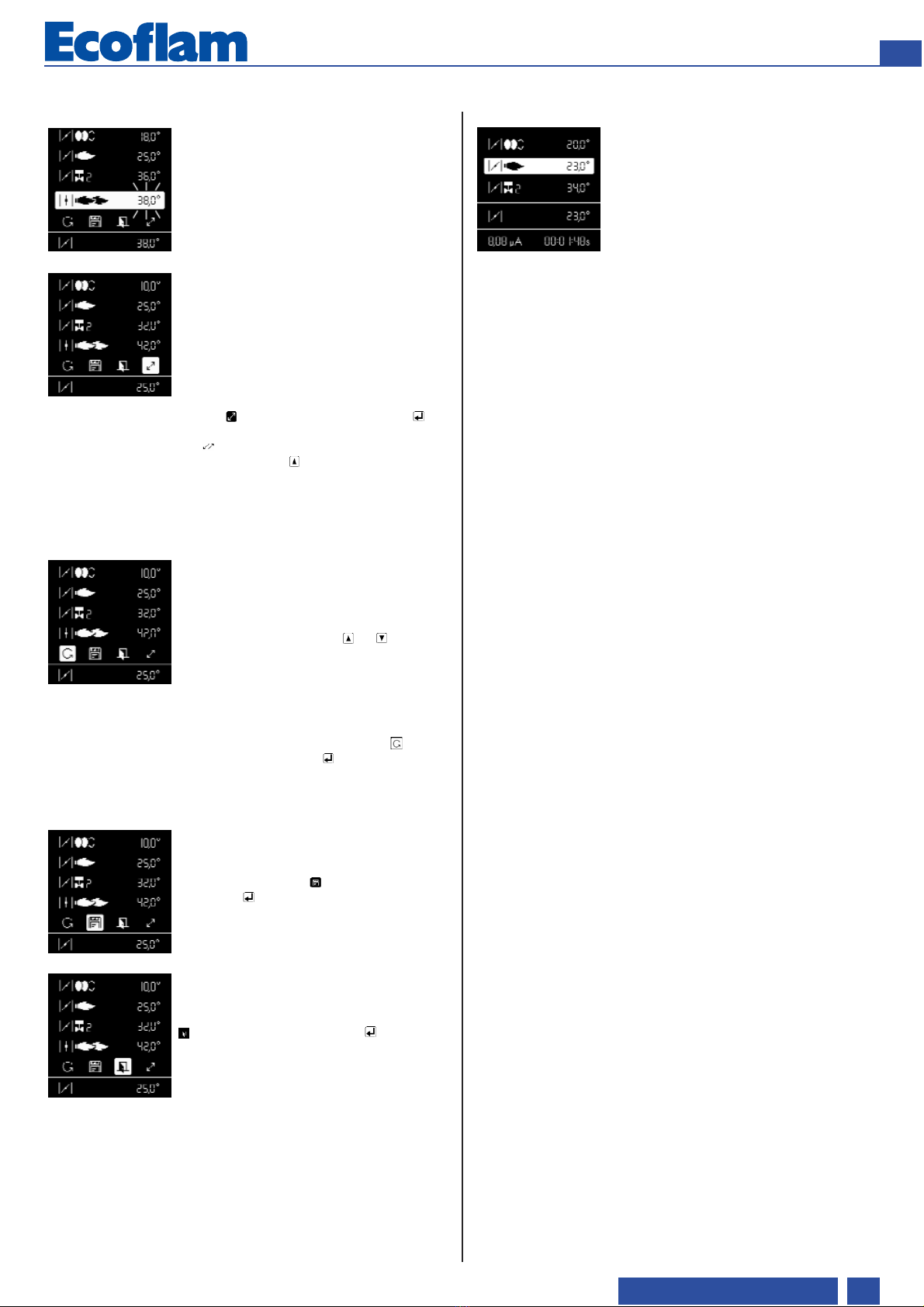

The parameters for the control unit are set
using the display and 5 keys. Operating
values are shown in real time on the
display.
Pressing the keys gives access to 7
menus:
• menu for setting the
servomotor.
• menu for storing the
servomotor setpoints in
the display.
• menu for consulting
faults.
• menu for statistical
data.
• menu for setting /
adjusting the standard
configurations.
• menu for setting
industrial applications.
• menu for manual
control.
In these menus, it is
possible to adjust the
control unit's standard
configurations. These
are pre-set in the factory.
No modifications may be
carried out on-site
without prior consultation
with ECOFLAM.
The access code and the
setting setpoints for this
menu are available on
request.

11
www.ecoflam-burners.com
EN
420010562400
Function - TCG 2xx control box

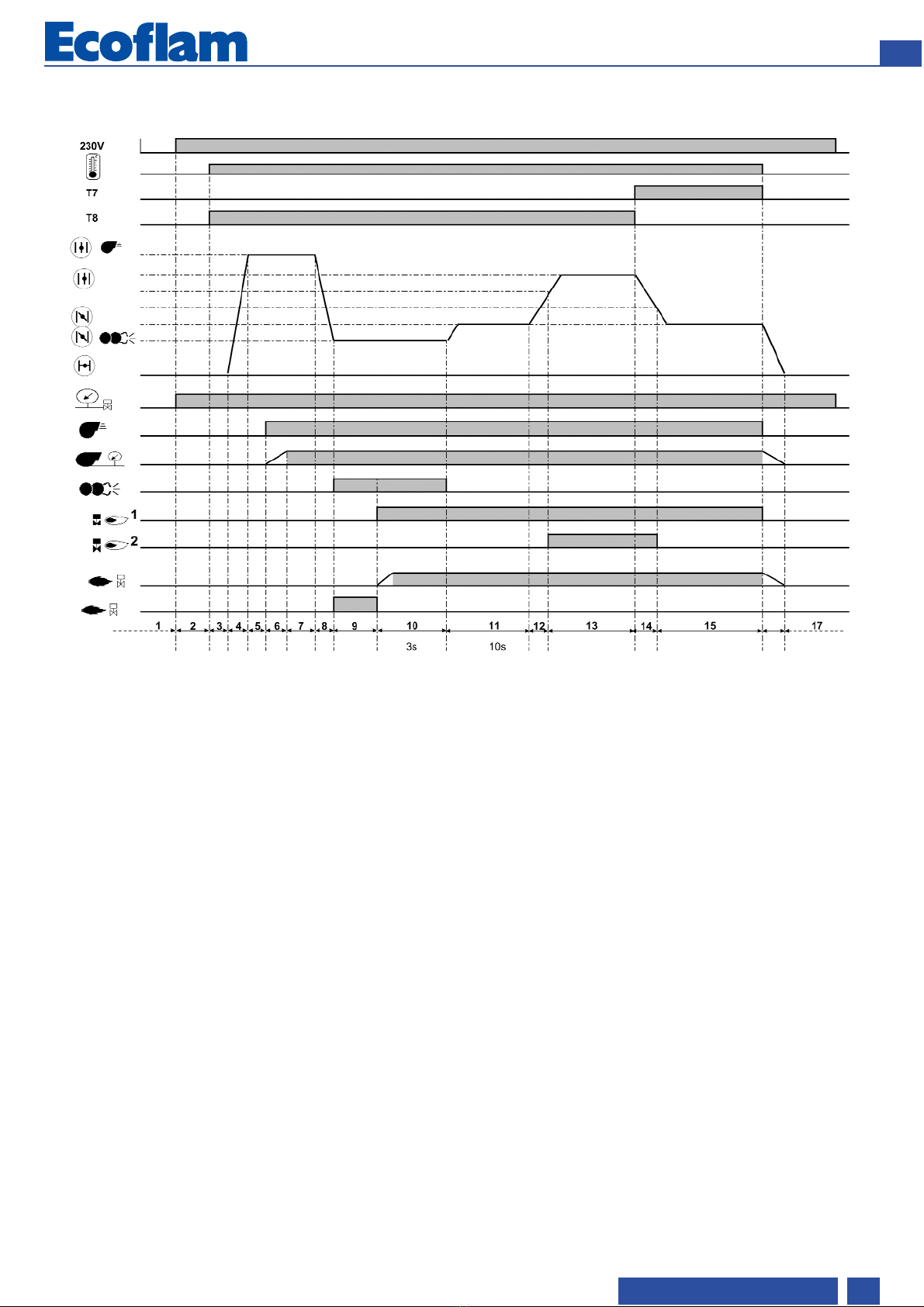

Operating cycle phases:
1: No voltage
2: Powering up, no heat request
3: Checking the air flap is closed
4: Opening an air flap, arrival in pre-
ventilation position.
5: Checking the rest status of the air
pressure switch.
6: Pre-ventilation: energizing of the
motor, checking the air pressure.
7: End of pre-ventilation.
8: Air flap closes to the ignition position
9: Switching on the igniter, unauthorised
flame monitoring.
10:Starting the burner: Opening of the
solenoid valve, flame formation,
safety time: max. 3 s.
11:Awaiting regulator release
12:Opening the air flap, until the opening
position of the 2nd stage valve is
reached.
13:Operation in 2nd stage
14:Closing the air flap, until the 2nd
stage valve reaches the closed
position.
15:Operation in 1st stage
16:Regulator shutdown, closure of the
air flap to 0°.
17:Awaiting a new heating request

12 www.ecoflam-burners.com
EN
420010562400
Function - Terminal allocation chart 230 Volt connection
Terminal Description Connector
1 Burner motor phase
4
2 Earth
3 Neutral
4 1st stage solenoid valve live
2
5 Neutral
6 Earth
7 Live
8 2nd stage solenoid valve live
9 Live L1
6
10 Earth
11 Neutral
12 Earth
13 Earth
14 Igniter live
5
15 Earth
16 Neutral
17 Live for the 2nd stage thermostat
T6/7/8
18 Signal T7
19 Signal T8
Terminal Description Connector
20 1st stage thermostat live (T1) 19
21 Heating request signal (option T2)
22 Flame monitoring signal
11
23 Earth
24 Live
25 Air pressure switch signal 10
26 Live
27 Live 20
28 Remote unlocking signal
29 Neutral 21
30 Signal fault live
31 Live 8
32 Live
33 Not used 34
34 Not used

13
www.ecoflam-burners.com
EN
420010562400
Terminal Description Connector
1 not used
30
2 not used
3 not used
4 not used
27
28
29
5 not used
6 not used
7 not used
8 not used
9 not used
10
Display or PC interface
16
/
17
11
12
13
14
15
16
17
Terminal Description Connector
18 not used
14
19 not used
20 not used
21 not used
22 not used
23 not used
24 not used 33
25 not used
26 not used 32
27 not used
28
Air servomotor 15
29
30
31
32
33
Function - Terminal allocation chart low voltage connections

14 www.ecoflam-burners.com
EN
420010562400
Installation - Burner assembly
Burner blast tube insertion depth and
brickwork
Unless otherwise specified by the boiler
manufacturer, heat generators without a
cooled front wall require brickwork or
insulation 5 as shown in the illustration.
The brickwork must not protrude beyond
the leading edge of the blast tube, and
should have a minimum conical angle of
60°. Gap 6 must be filled with an elastic,
non-combustible insulation material. For
boilers with reverse firing, the minimum
burner tube insertion depth A as specified
in the boiler manufacturer’s instructions
must be observed.
Exhaust system
To avoid unfavourable noise emissions,
right-angled connectors should not be
used on the flue gas side of the boiler.
Burner assembly
The burner is fixed by mean of connecting
flange and therefore to the boiler.
Installation:
• fix the flange 3to the boiler with
the screws 4
• turn the burner slightly, guide it into
the flange and secure using screw 5
Removal:
• loosen screw 5
• turn the burner out and pull it out of
the flange
General regulations applying to the
gas connection
• The gas train must only be connected
to the gas mains by a recognised
specialist.
• The cross-section of the gas line should
be of a size designed to guarantee that the
gas flow pressure does not drop below the
specified level.
• A manual shut-off valve (not supplied)
must be fitted upstream of the gas train.
Gas lines
When installing the gas lines and gas train,
the general EN676 directives and
guidelines must be observed.
EN676 compulsory kit and accessories in
order to comply to the safety regulations.
Additional accessories and kits shall be
installed by the installer in accordance to
the local safety regulations and codes of
practise.
LEGENDA
Pf: Back pressure of furnace
Pb: Pressure of burner (combustion head
+ complete gas train)
Pin: Minimum inlet pressure
For operation with Liquefied Petroleum
Gas, it is necessary to order the kit and
follow the instructions given in the
specific manual.
LPG TRANSFORMATION
KITLPG-MAXGAS...
3
4
–
+
5
LPG

15
www.ecoflam-burners.com
EN
420010562400
Installation - Electrical connection - Checks before commissioning
Electrical connection
The electrical installation and connection
work must only be carried out by an
authorised electrical specialist.
All applicable rules and regulations must
be observed.
The electrical installation should include a
type A circuit breaker.
The applicable guidelines and
directives must be observed, as well as
the electrical circuit diagram supplied
with the burner!
• Check to ensure that the power supply
voltage is as specified in the electric
diagram and in data plate.
• Burner fuse: 5 A.
Checks before commissioning
The following must be checked before
initial commissioning:
• That the burner is assembled in
accordance with the instructions given
here.
• That the burner is pre-set in accordance
with the values in the adjustment table.
• Setting the combustion components.
• The heat generator must be ready for
operation, and the operating regulations
for the heat generator must be observed.
• All electrical connections must be correct.
• The heat generator and heating system
must be filled with water and the
circulating pumps must be in operation.
• The thermostats, pressure regulator, low
water detectors and any other safety or
limiting devices that might be fitted must
be connected and operational.
• The exhaust gas duct must be
unobstructed and the secondary air
system, if available, must be operational.
• An adequate supply of fresh air must be
guaranteed.
• The heat request must be available.
• Sufficient gas pressure must be
available.
• The fuel supply lines must be assembled
correctly, checked for leaks and bled.
• A standard-compliant measuring point
must be available, the exhaust gas duct up
to the measuring point must be free of
leaks to prevent anomalies in the
measurement results.
1

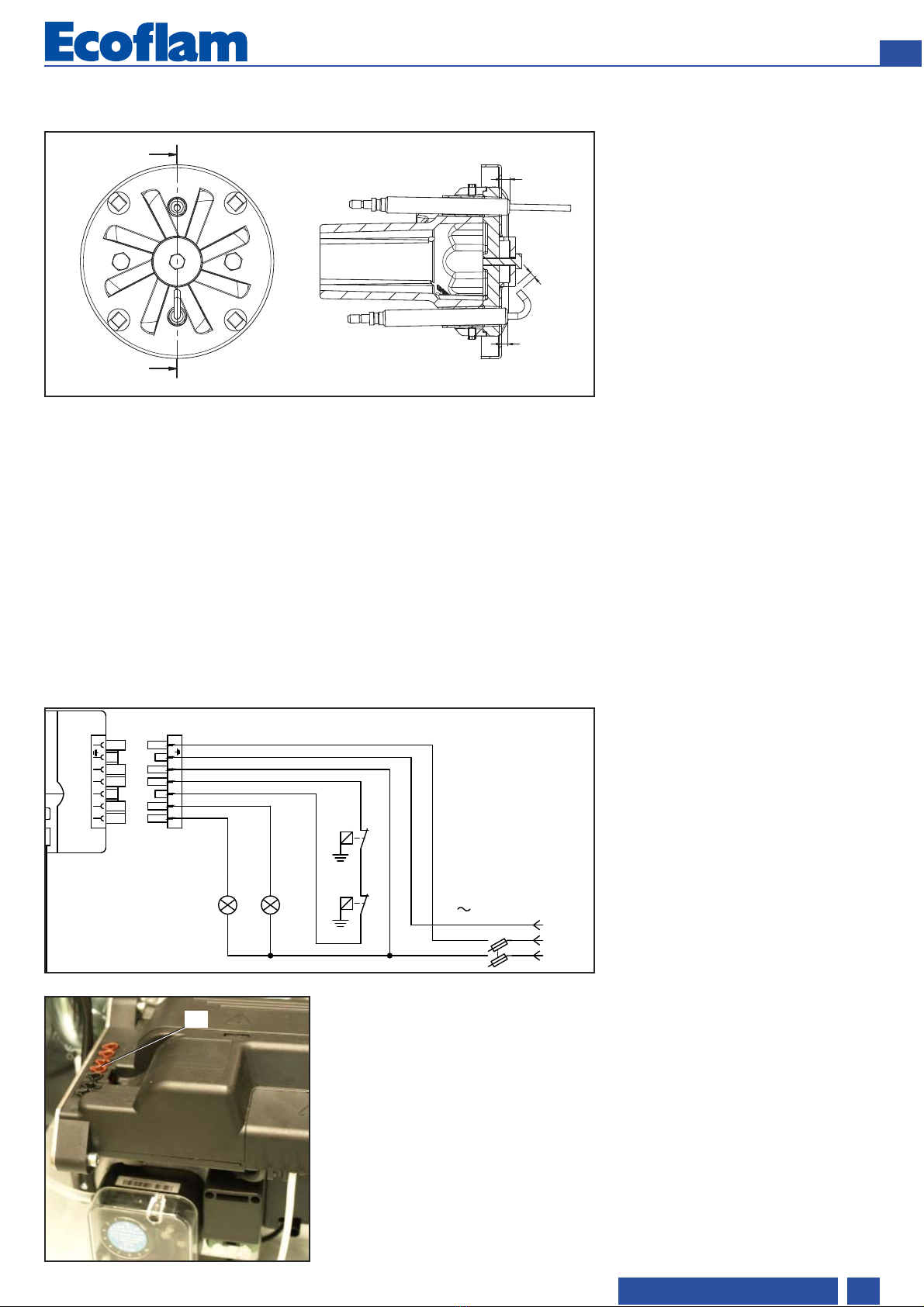

Position of electrodes
Setting the ionisation probe and
ignition electrode: see diagram
Always check the position of the
electrodes after service or substitution
or assembly of LPG kit as wrong position
might cause ignition problem.
A
ASez. A-A
3
4
3
Electrical connection (plug-in)
It must be possible to disconnect the
burner from the mains using an
omnipolar shutdown device complying
with the standards in force. The burner
and heat generator (boiler) are connected
by a 7-pin connector (fig.1).
Connecting the gas train
Connect the gas train to the plugs on the
burner.
60 Hz 220V
B4T1 T2 S3L1 N
L1T1T2B4 S3 N
TP
STC
PE
N
L
Q
HLF HLB
TP
STS

16 www.ecoflam-burners.com
EN
420010562400
Start up - Pre-setting without flame
Setting is carried out in 2 phases:
- pre-adjustment without flame.
- setting the flame, to fine tune the settings
based on the combustion results.
When the burner is switched on, the
control unit displays the screen below.
Important
At this point, no setting position for the
servomotor has been defined, therefore
the burner cannot be started under these
conditions.
!
N.B.:It is possible to set different positions within a large
range of values. However, for safety reasons, the control
unit enforces a minimum interval of 2° between the
different positions (except between the ignition position
and the 1st stage).
• For the next step, press any button.
• The overall view of the menus is
displayed, and the air flap positions settings
menu is selected.
• Open the settings menu by pressing the
button .
You must now enter the access code (see
the label on the back of the display)
• Increase or decrease the value in
increments by repeatedly pressing or .
• When the first figure has been set, move
the cursor to the right by pressing .
• Repeat the operation until you reach the
last figure.
• Confirm the access code by pressing .
The control unit then openshe settings
mode.
The screen displays the factory pre- settings
for the different positions of the air flap.
The following positions for the air flap are
presented:
• ignition position (when the menu is
opened, the curser goes to this position).
• position of the air flap during the 1st stage.
• position of the air flap when the 2nd stage
fuel oil valve is opened.
• position of the air flap during the 2nd
stage.
Modifying a settings value for the servomotor position:
- To modify the value of a position, move the cursor to the
corresponding location with the button or .
- Select the value to be modified using the button , the selected
value will flash.
- Increase or decrease the value in increments of 0.1° by
repeatedly pressing or . For large modifications, press and
hold the button or , the value will scroll quickly up or down.
- Confirm the new value using the button flashing.
When all the positions of the servomotor
have been determined according to the
required settings, it is then possible to move
on to the next section for commissioning -
"Setting the flame".
To do this, place the cursor in the lower part
of the screen on the symbol and confirm
by pressing the button .
if it is necessary to quit the menu without
saving the pre-settings, position the cursor
on the symbol and confirm with the
button .
End of settings menu without flame

17
www.ecoflam-burners.com
EN
420010562400
Start up - Adjusting burner output
Gas pressure diagrams in appendix
Minimum gas pressure required are
indicated in the diagrams in the appendix.
These values have been determined in
our test labs and are useful for the first
switch-on as final setting must be done
using a combustion analyzer.
How to read and adjust the values:
- determine the output required
- determine the combustion chamber back-
pressure
- read the minimum gas pressure required
in the diagrams in appendix.
Optimising combustion values
The factory setting shall be modified
according to the output requeired.
The diagrams of air/head setting
that are available in the appendix
of this manual are a guide for ensuring
that the burner functions as well as
possible.
!Risk of air blast!
Continuously check CO, CO2and soot emissions when adjusting the output of the burner. Optimise combustion values in the
event of CO formation. CO must not exceed 50 ppm.
N.B. observe the minimum required
flue gas temperature specified by the
boiler manufacturer and the requirements
demanded of ue gas ducts for avoiding
condensation.
Adjustment of gas solenoid valve
Refer to the gas train manual for the gas
setting of the gas train selected.
Firing head setting (B).
To act on the screw in figure:
• turn Allen key till you reach the
requested value (index 0-4,5).
pressure in the combustion chamber (mbar)
output (kW)
+
-
B
-1,5
-1,0
-0,5
0,0
0,5
1,0
1,5
2,0
2,5
3,0
3,5
4,0
4,5
5,0
5,5
6,0
40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220
9,5 9
8,5
8
0 1 2 3
90° 90° 90° 90°
MAX GAS 170 PAB NATURAL GAS
head gas pressure (on elbow) (mbar)
head position
air damper position

Setting the 2nd stage.
To set the position of the air flap in the 2nd
stage, position the cursor on the
corresponding line on the display using the
button .
- To make the burner actually switch to the
2nd stage, press the button again. The
servomotor will then move the air flap to the
set position. At the same time, the 2nd
stage gas valve will open, as soon as the
opening position set for the servomotor is
passed.
- Adjust the gas pressure for the 2nd stage
depending on the required output, using the
regulator on the gas valve. Monitor the
combustion values continuously as you do
so (CO, CO2, soot test). If necessary, adjust
the airflow. To do this, modify the position of
the servomotor in the 2nd stage. Proceed
as described, in the paragraph "Modifying
the value of a servomotor position
setting"
- Precautions: when modifying the setting
18 www.ecoflam-burners.com
EN
420010562400
Start up - Setting the flame
• If the boiler heating request is not
present, the boiler remains on standby.
In this case, it is still possible to return to the
previous setting menu "Pre-setting without
flame". To do this, position the cursor on the
symbol and confirm with the button .
• If a boiler heating request is present
(T1- T2 contact closed), the burner starts.
The air flap is opened to move to the pre-
ventilation position.
Air pressure switch test
Pre-ventilation
The air flap switches to the ignition/pre-
ignition position.
The control unit awaits the regulation
authorisation.
The fuel valve opens.
Awaiting flame signal.
If no flame is detected at the end of the
safety time, the control unit switches to
malfunction mode.
Setting the 1st stage.
If the flame has been detected, the control
unit sets the burner to the 1st stage as soon
as it receives the regulation authorisation.
- Adjust the gas pressure for the 1st stage
depending on the required output, using the
regulator on the gas valve. Monitor the
combustion values continuously as you do
so (CO, CO2, soot test). If necessary, adjust
the airflow.
- To do this, modify the position of the
servomotor in 1st stage. Proceed as
described, in the paragraph "Modifying the
value of a servomotor position setting"
- Precautions: when modifying the setting
value, the servomotor will move in real time.
As a consequence, the combustion values
must be constantly checked.
Specific function: ignition checking.
If the ignition position has been modified, it
is possible to carry out a new burner start-
up to check the new ignition position,
without having to quit the settings menu. To
do this, after modifying the ignition position,
position the cursor on the symbol , and
initiate the new start-up using the button .
Setting the opening position of the 2nd
stage gas valve. After the 1st stage is set,
it is possible to set the opening value for the
2nd stage gas valve. Proceed as described
in the paragraph "Modifying the value of a
servomotor position setting".
- Precautions: in this case the servomotor
does not move immediately, but first
remains in the 1st stage position (the actual
position of the servomotor is always
displayed in the lower part of the display).
The 2nd stage valve also remains closed.
Flame detected.
Flame stabilisation.

Specific function: position the opening
and closing of the 2nd stage gas valve
differently.
The control unit has the possibility of setting
the opening of the 2nd stage valve, when
the 1st stage changes to the 2nd stage, at a
different position to that for closing when the
2nd stage drops to the 1st stage.
- To do this, position the cursor on the
symbol and confirm with the button .
The selected symbol will change like this
one .
- Using the button , position the cursor on
the setting value of the 2nd stage gas valve.
It is possible to adjust to different values
resp. during 1st stage operation the opening
position, and during 2nd stage operation the
closing position.
19
www.ecoflam-burners.com
EN
420010562400
Start up - Setting the flame - Operating mode
value, the servomotor will move in real time.
As a consequence, the combustion values
must be constantly checked.
Closing the "Setting the flame" menu.
The burner setting is now complete. If
necessary, it is possible to again correct
each of the settings values. To do this,
position the cursor on the value to be
modified, using the button or .
Otherwise, at all times, the following
possible ways of closing the "Setting the
flame" menu are available:
- Either restart the burner setting procedure,
passing through the presetting phase
(without entering a password). To do this,
position the cursor on the symbol and
confirm with the button . All the settings
values already saved therefore remain
available. This is essential for testing a new
ignition position.
- Saving the fixed values and ending the
setting procedure. To do this, position the
cursor on the symbol and confirm with
the button . The burner is then ready to
operate and can now be controlled by the
boiler regulation.
- Quitting the settings menu without
reaching the end of the setting procedure.
To do this, position the cursor on the symbol
and confirm with the button . All the
servomotor positions saved up to this point
are recovered by calling up the settings
menu again.
Operating mode - Display of the
operating status, the flame signal and
the operating time.
After setting of the burner has been
completed, it switches to operating mode.
The current operation of the burner
(Operation in 1st or 2nd stage) is indicated
by the cursor.
The lower cell shows the intensity of the
signal. The display range is from 0 μA to 7
μA. For the 2nd stage, a good quality signal
is one above 7μA. The following limit values
are valid:
• When checking an unwanted flame: the
signal must be < 0.7μA.
• During the safety time: the signal must be
> 1.0μA.
• During operation: the signal must be >
8μA.
The cell at the bottom right displays the
current operating time of the burner.

20 www.ecoflam-burners.com
EN
420010562400
Start up - Air pressure switch adjustment - Setting gas pressostat - Saving the
adjustment values in the display
Operating check
Flame monitoring must be checked for
safety as part of initial commissioning and
also after servicing or if the system has
been out of operation for any significant
period of time.
- Start attempt with gas ball valve closed:
the automatic combustion control unit must
switch to gas shortage or malfunction after
the end of the safety period.
Air pressure switch calibration
The air pressure switch is provided for
monitoring the pressure of the
combustion air fan.
Unscrew screws A and B and remove
cover C.
After the air and gas setting you have to
calibrate the air switch with the burner
working on the low flame by slowly turning
the relative knob clockwise until the burner
locks out. Read the value and then
decrease it by 15%.
WARNING: the air pressure switch shall
prevent the air pressure to go below 85%
from the adjustment value in order to
prevent the CO in the fumes to exceed 1%
(10000 ppm).
Min gas pressure switch
The gas pressure switch has the function
to check that the gas pressure before the
gas valve does have the minimum
pressure to make the burner running
correctly.
Unscrew off and remove cover M.
- Set knob N to a value equal to 60% of
gas nominal feed pressure (i.e. for natural
0,4
0,6
0,9
3,0
1,5
2,1
1,8
2,4
2,7
1,2
A
B
CD
2,5
5
10
15
50
25
35
30
40
45
20
I
L
MN
gas nom. pressure = 20 mbar, set knob to
a value of 12 mbar; for LPG nom. pressure
of G30/G31- 30/37 mbar, set knob to a
value of 18 mbar). Screw up cover M.
Saving the adjustment values in the display.
If the burner setting procedure has been successfully completed, the servomotor
positions for all the operating states will be fixed in the control unit. It is possible to store
a backup copy of the values in the display.
To do this, press the button , the screen opposite is displayed. Using the button
select the menu "Save adjustment values" and confirm with the button .
The screen opposite appears. Place the cursor on the symbol , press the button
to begin loading the adjustment values from the control unit to the display.
A this point, it is possible to:
- store the values in the display; to do this place the cursor on the symbol and confirm
with button .
- quit the menu without storing the data, with the symbol .
