Ecoflam MAX GAS 350 PAB TC User manual

Technical data
Dati tecnici
Données techniques
Datos técnicos
Технические характеристики
Operating instructions
Istruzioni per l’uso
Notice d’emploi
Manual de uso
Руководство по эксплуатации
Electric diagrams
Schemi elettrico
Schémas électrique
Esquemas eléctrico
Электрические схемы
Spare parts list
Parti ricambi
Pièces de rechange
Piezas de recambio
Запчасти
GAS BURNERS
EN
IT
FR
ES
RU
MAX GAS 350 PAB
MAX GAS 500 PAB
MAX GAS 700 PAB
MAX GAS 350 PAB TC 3142285
MAX GAS 350 PAB TL 3142286
MAX GAS 500 PAB TC 3142291
MAX GAS 500 PAB TL 3142292
MAX GAS 700 PAB TC 3145988
MAX GAS 700 PAB TL 3145989
www.ecoflamburners.com
15-01-2020

Overview  Index of contents / Panoramica  Indice dei contenuti / Vue d'ensemble  Table des matières
Descripción  Sumario / Обзор  Содержание
Technical data
Dati tecnici
Données techniques
Datos técnicos
Технические характеристики
EN
IT
FR
ES
RU
3
Working diagrams
Campi di lavoro
Domaine de fonctionnement
Ámbito de funcionamiento
Рабочий диапазон
EN
IT
FR
ES
RU
4
Dimensions
Dimensioni
Dimensions
Dimensiones
Размеры
EN
IT
FR
ES
RU
5
Operating instructions for authorised specialists EN 6 - 17
Istruzione per l’uso per il personale qualificato IT 18 - 29
Notice d’emploi pour l’installateur spécialiste FR 30 - 41
Instrucciones de montaje para el instalador especialista ES 42 - 53
Инструкция по эксплутации для
квалифицированных специалистов RU 54 - 65
Gas pressure diagrams
Diagrammi di pressione gas
Diagrammes de pression de gaz
Diagramas de presión de gas
Диаграммы давления газа
EN
IT
FR
ES
RU
66 - 67
Electric diagrams
Schemi elettrico
Schémas électrique
Esquemas eléctrico
Электрические схемы
EN
IT
FR
ES
RU
68 - 71
Spare parts list
Parti di ricambio
Pièces de rechange
Piezas de recambio
Запчасти
EN
IT
FR
ES
RU
72 - 75
RU
ES
FR
IT
EN
420010318206
www.ecoflamburners.com
2

Overview / Panoramica / Vue d'ensemble / Descripción / Обзор
RU
ES
FR
IT
EN
420010318206 www.ecoflamburners.com 3
Technical data  Dati tecnici  Données techniques  Datos técnicos  Технические характеристики MAX GAS 350 PAB MAX GAS 500 PAB MAX GAS 700 PAB
Burner output max/min kW - kcal/h
Potenza bruciatore max/min kW - kcal/h
Puissance du brûleur max/min kW - kcal/h
Potencia del quemador máx/mín kW - kcal/h
Мощность горелки макс./мин., кВт - ккал/ч
350 100 500 120 700 200
301.000 86.000 430.000 103.200 602.000 172.000
Operation 2 stage
Funzionamento 2 stadio
Fonctionnement 2 allure
Funcionamiento 2 etapa
Moдифиkaция 2 ступень 2
Regulating ratio Rapporto di regolazione Rapport de régulation Relación de regulación Коэффициент
регулирования 1:2
Fuel Combustibile Fuel Combustible Топливо
Natural Gas (L.C.V. 8.570 kcal/Nm3), LPG (L.C.V. 22.260 kcal/Nm3)
(G20) Hu = 10,35 kWh/m3- (G25) Hu = 8,83 kWh/m3
(G31) Hu = 25,89 kWh/m3
Emission class Classe di emissione Classe d’émission Tipo de emisión Класс выделения
загрязняющих веществ Standard Class 3 - GAS EN676 (<80mg/kWh)
Control box Apparecchiatura di
controllo Coffret de sécurité Cajetín de seguridad Блок управления и
безопасности SIEMENS LME 22
Gas train Rampa gas Rampe gaz Rampa de gas Газовая рампа GAS TRAIN TABLE - DIFFERENT MODELS / CONFIGUATIONS
Gas connection Allacciamento gas Raccordement gaz Conexión de gas Подсоединение газа Rp 25 1” - Rp 40 1”1/2 Gas input pressure Pressione di ingresso gas Pression d’entrée du gaz Presión de entrada
del gas Давление газа на входе (SEE GAS TRAIN MATCHING TABLE)
LPG input pressure Pressione di ingresso LPG Pression d’entrée du gaz
propane
Presión de entrada LPG Давление LPG на входе (SEE GAS TRAIN MATCHING TABLE)
Air regulation Air flap
Regolazione aria Serranda dell'aria
Réglage de l’air Volet d’air
Ajuste del aire Válvula de aire
Настройка подачи воздуха Воздушная заслонка
Siemens SQN 75
Flame monitor Rivelatore di fiamma Surveillance de flamme Vigilancia de llama Контроль пламени ionization ionization ionization Ignition transformer Trasformatore
d'accensione Allumeur Encendedor Устройство розжига 1-Pole Electronic 1-Pole Electronic 2-Pole Electronic
Electric motor rpm - watt
Motore elettrico giri motore - watt
Moteur rpm - watt
Motor rpm - watt
Электродвигатель об/мин - watt
2800 rpm
300 W 550 W 750 W
Voltage Tensione Tension Tensión Напряжение 230 V (230/400 V Max Gas 500-700) / 50 Hz
Power consumption (operation)
Potenza elettrica assorbita (Esercizio)
Puissance électrique absorbée (en service)
Potencia eléctrica absorbida (en funcionamiento)
Потребляемая электрическая мощность: (при работе)
600 W 940 W 870 W
Weight Peso Poids Peso Приблизительный вес 19,6 kg 23,5 kg 29 kg
Protection level Classe di protezione Indice de protection Índice de protección Класс электрозащиты IP40 Sound pressure level dB(A)
Livello pressione sonora dB(A)
Niveau presion acoustique dB(A)
Nivel de presion acústico dB(A) Уровень шума, dB(A) 73 73 76,8
Ambient temp. for storage
Temperatura ambiente di stoccaggio
Température ambiante de stockage
Temperatura ambiente de almacenamiento Температура хранения -20°…+70° C
Temperature for use Temperatura
d’utilizzazione Température d’utilisation Temperatura ambiente
de utilización Рабочая температура -10°…+60° C

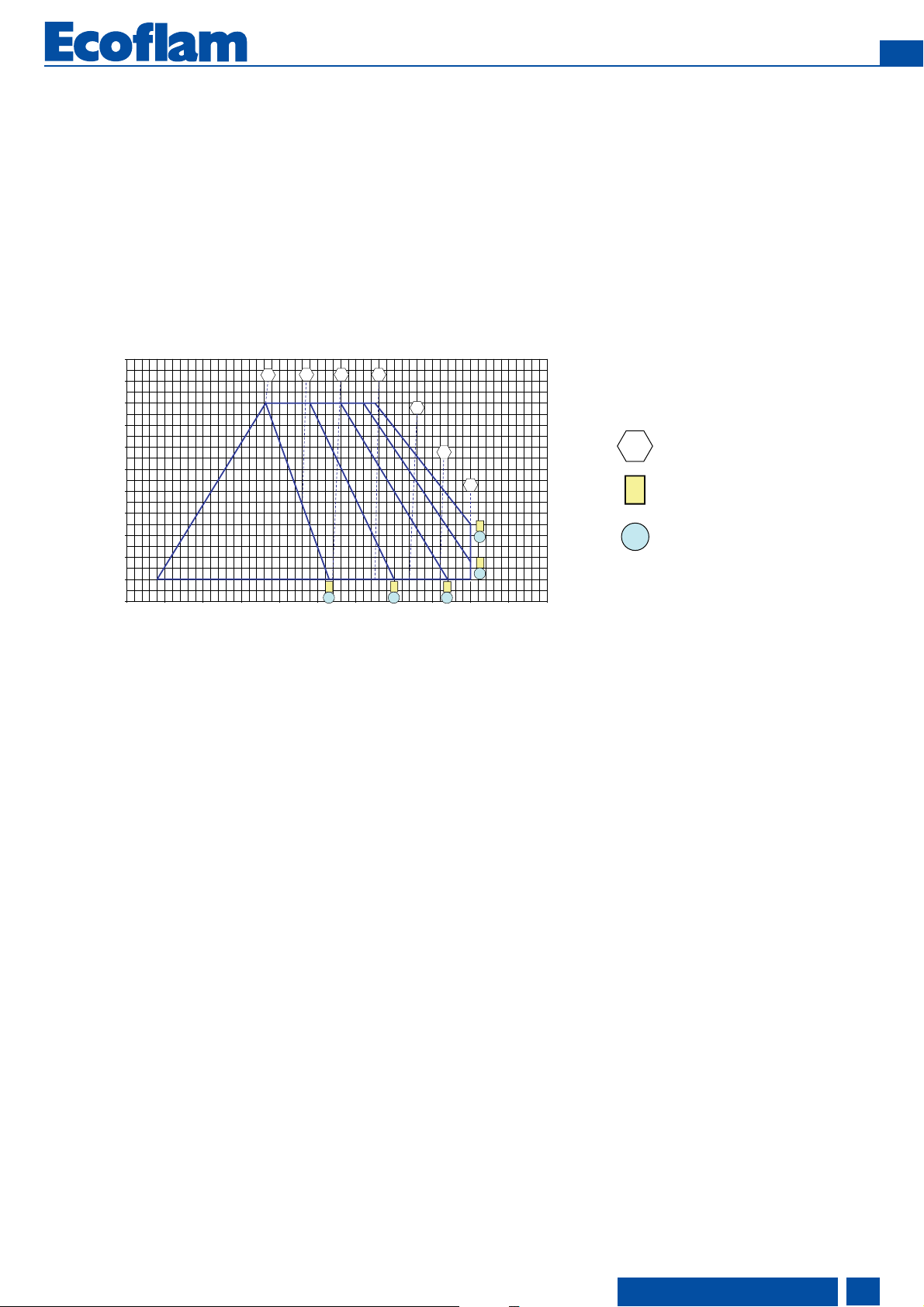

Working diagram The working diagram shows burner output as a function of combustion chamber pressure. It corresponds to the maximum values specified by EN 676 measured at the test fire tube. The efficiency rating of the boiler should be taken into account when selecting a burner. Calculation of burner output: QF = QN
ηK
QF = Burner output (kW) QN = Rated boiler output (kW) ηK= Boiler efficiency (%)
Curva Il campo di attività indica la potenza del bruciatore in funzione della pressione della camera di combustione. Corrisponde ai valori massimi previsti dalla norma EN 676 misurati sul tubo della fiamma di controllo. In occasione della scelta del bruciatore si deve tenere conto del rendimento energetico della caldaia. Calcolo della potenza della caldaia: QF = QN
ηK
QF= potenza della caldaia (kW) QN= potenza nominale della caldaia (kW) ηK= rendimento energetico
della caldaia (%)
Domaine de fonctionnement Le domaine de fonctionnement correspond aux valeurs mesurées lors de l’homologation. Elle correspond aux valeurs max mesurées sur tunnel d’essai d’après l’EN 676. Pour le choix du brûleur, tenir compte du rendement de la chaudière. Calcul de la puissance calorifique: QF = QN
ηK
QF= Puissance calorifique (kW) QN= Puissance nominale chaudière (kW) ηK= Rendement chaudière (%)
Ámbito de funcionamiento El ámbito de funcionamiento corresponde a los valores registrados en el momento de la homologación. Corresponde a los valores máx medidos en el túnel de ensayo según la EN 676. Para la elección del quemador, se ha de tener en cuenta el rendimiento de la caldera. Cálculo de la potencia calorífica: QF = QN
ηK
QF = Potencia calorífica (kW) QN = Potencia nominal de la caldera (kW) ηK = Rendimiento de la
caldera (%)
Рабочий диапазон Рабочий диапазон показывает производительность горелки в зависимости от давления в топочной камере. Он соответствует максимальным значениям согласно EN 676, измеренным в контрольной топочной камере. При выборе горелки необходимо учитывать КПД котла. Расчет тепловой мощности: QF = QN
ηK
QF = Тепловая мощность, кВт QN= Номинальная мощность котла, кВт ηK= КПД котла, %
Overview  Working diagrams / Panoramica  Curve / Vue d'ensemble  Domaine de fonctionnement / Descripción  Ámbito de funcionamiento / Обзор  Рабочий диапазон
RU
ES
FR
IT
EN
420010318206
www.ecoflamburners.com
4
100 200
200100 300 400
300 400 500 600
0 1 2 3 4 5 6 7 8 9
mbar
kW
kcal/h x 1000
MAX GAS 350 PAB
MAX GAS 500 PAB
500
100 200
200100 300 400
300 400 500 600
0 1 2 3 4 5 6 7 8 9
mbar
kW
kcal/h x 1000
700
MAX GAS 700 PAB
500 600

X
Y
Z
Packaging
GAS TRAIN DIMENSIONS: refer to GT manual
Pr
Ø r
Sr

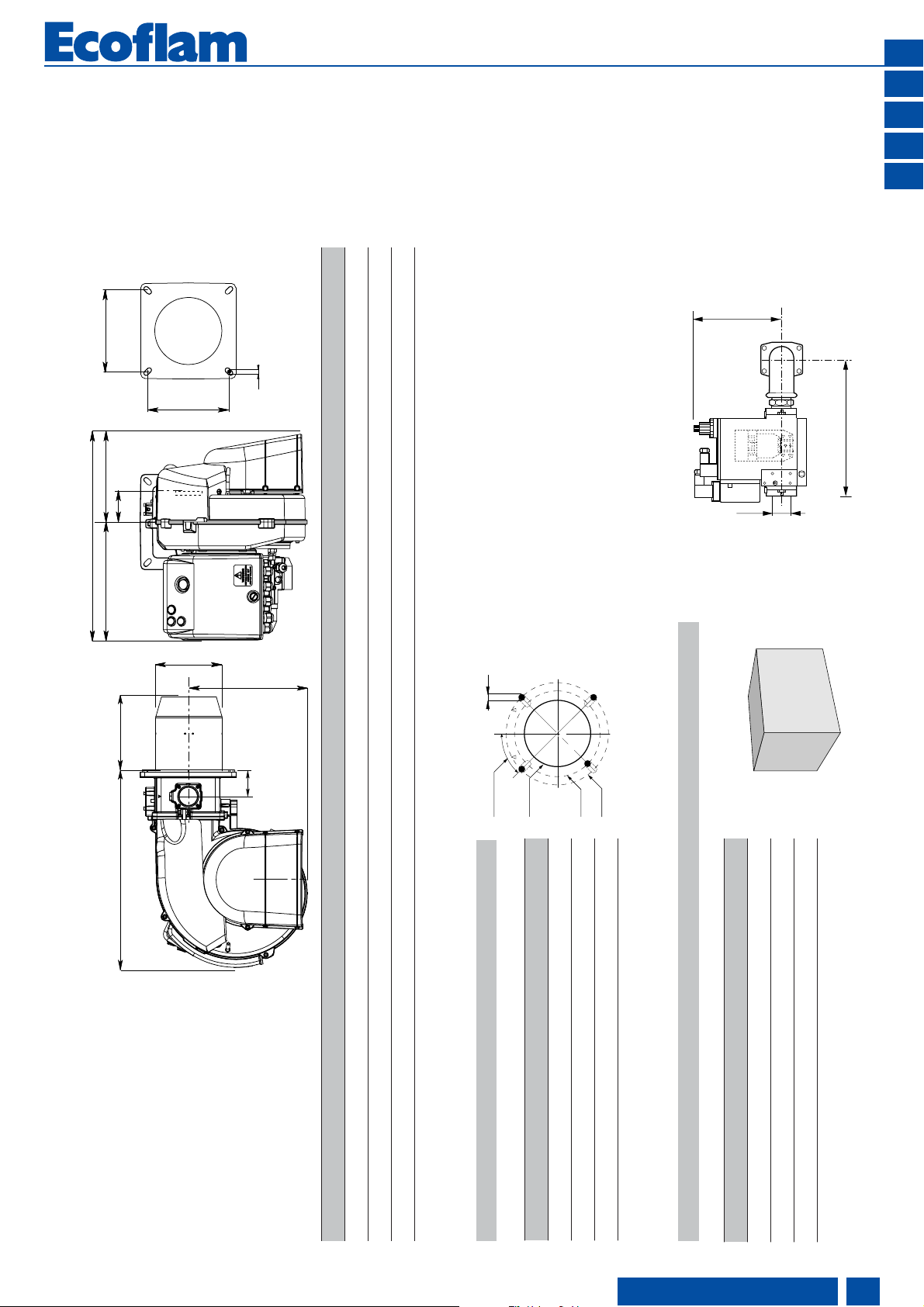

Model A B C D D1 EF G I L M N O
MAX GAS 350 PAB 485 277 208 175 335 466 157 280 185/200 185/200 M8 62 101 MAX GAS 500 PAB 485 277 208 175 335 466 157 280 185/200 185/200 M8 62 101 MAX GAS 700 PAB 485 277 208 250 390 466 190 280 185/200 185/200 M8 62 101
Model Ø a Ø b Ø c d°..
MAX GAS 350 PAB 167 262 283 45° MAX GAS 500 PAB 167 262 283 45° MAX GAS 700 PAB 200 262 283 45°
d..°
Ø a Ø b
Ø c
M
Boiler plate drilling
Model XYZ kg
MAX GAS 350 PAB 500 830 600 23,5 MAX GAS 500 PAB 500 830 600 29 MAX GAS 700 PAB 500 1100 600 31
D = short head D1 = long head Dimensions (mm)
RU
ES
FR
IT
EN
420010318206 www.ecoflamburners.com 5
Overview  Dimensions / Panoramica  Dimensioni / Vue d'ensemble  Dimensions / Descripción  Dimensiones / Обзор  Размеры
I
L
M
N
ED-D1
G
F
CB
A
O

6www.ecoflamburners.com
EN
420010318206
Contents  Index  General warnings
Overview Technical data 3
Working diagrams 4
Dimensions 5
Contents Index 6
General warnings 6
Burner description 7
Function General safety functions 8
Control and safety unit SIEMENS 9
Control panel 9
Installation Burner assembly 10
Electrical connection - Checks before commissioning 11
Start up Adjusting burner output 12-13
Air pressure switch adjustment - setting gas pressostat 14
Service Maintenance 15-16
Troubleshooting 17
Overview Gas pressure diagrams 66-67
Electrical diagrams 68-71
Spare parts list 72-75
Important notes
Ecoflam burners have been designed and
built in compliance with all current
regulations and directives.
All burners comply to the safety
and energy saving operation
regulations within the standard
of their respective performance
range.
The burner must not operate out
side the working range.
The quality is guaranteed by a quality and
management system certified in
accordance with ISO 9001:2008.
MAX GAS burners are designed
for the low-pollutant combustion of natural
gas and Liquefied Petroleum Gas.
I bruciatori sono conformi alla norma EN
676. Assembly and commissioning
must be carried out only by
authorised specialists and all
applicable guidelines and
directives must be observed.
Packaging and handling
Move the burner still in its packaging using
a trolley or forklift, taking care not to drop it
and elevating it no more than 20cm from
ground level. After having removed the
packaging, check that the contents are in
good condition and correspond with what
was ordered. If in doubt, contact the
manufacturer.
The burner must be installed by a
qualified individual.
If the weight and dimensions do not allow
for manual lifting, ask another operator for
help or use a forklift, harness the burner
using belts if no eyebolts are available.
Use the accessories provided
(flange, gasket, pins and nuts) to
install the burner onto the boiler,
taking care not to damage the isolating
gasket.
Installation location
Install the burner, after carefully clean
around the intended area.
correctly dispose of all residual
packaging,separating the various
types of material
The burner must not be operated in
rooms containing aggressive
vapours (e.g. spray,
perchloroethylene, hydrocarbon
tetrachloride, solvent, etc.) or tending to
heavy dust formation or high air humidity.
Adequate ventilation must be provided at
the place of installation of the furnace
system to ensure a reliable supply with
combustion air.
We can accept no warranty
liability whatsoever for loss,
damage or injury caused by any
of the following:
- Inappropriate use.
- Incorrect assembly or repair by the
customer or any third party, including the
fitting of non-original parts.
Provision of the system and the
operating instructions
The firing system manufacturer must
supply the operator of the system with
operating and maintenance instructions on
or before final delivery. These instructions
should be displayed in a prominent
location at the point of installation of the
heat generator, and should include the
address and telephone number of the
nearest customer service centre.
WARNING
WARNING
DANGER
Introduction
The instruction manual supplied with the
burner:
- offers important indications and
instructions relating to the installation
safety, start-up, use and maintenance of
the burner.
- is designed for use by qualified
personnel.
Symbols used in the manual
Maximum danger.
This symbol indicates operations
which cause serious injury, death or
long-term health risks, if not carried
out correctly.
Warning. This symbol indicates
operations which may cause
serious injury, death or long-term
health risks, if not carried out correctly.
Caution. This symbol indicates
operations which may cause
damage to the machine and/or
injury to people, if not carried out
correctly.
Danger: live components
Danger: flammable material
Danger: burning
Danger: crushing of limbs
Obligation to assemble the cover and
all the safety and protection devices.
DANGER
WARNING
CAUTION
Environmental protection
This symbol gives indications for
the use of the machine with respect
for the environment.
Important information
This symbol indicates important
information that you must bear in
mind.
WARNING
WARNING
CAUTION
WARNING

7
www.ecoflamburners.com
EN
420010318206
Contents  Burner description
15
113
5
8
A1
3
16
MAX GAS 350 PAB TC
MAX GAS Gas
NAME
MAX GAS 350350 kW
MODEL
Low NOx
EMISSION
P1 stage
PAB 2 stages
OPERATION TYPE
TC Short head
TL Long head
HEAD TYPE
Natural gas
LPG LPG
FUEL
Scope of delivery
The burner is delivered in a modular system
of packagings i.e. separate set/box:
BBCH: Burner Body with Combustion Head
with flange.
- 1 bag including :
- multilanguage technical manual.
- wieland plug.
- screws, nuts and washer.
GT: separate Gas Train
KIT & ACS are managed and delivered separately
KIT & ACS delivered separately
For any other use, the authorization of Ecoflam is required.
WARNING

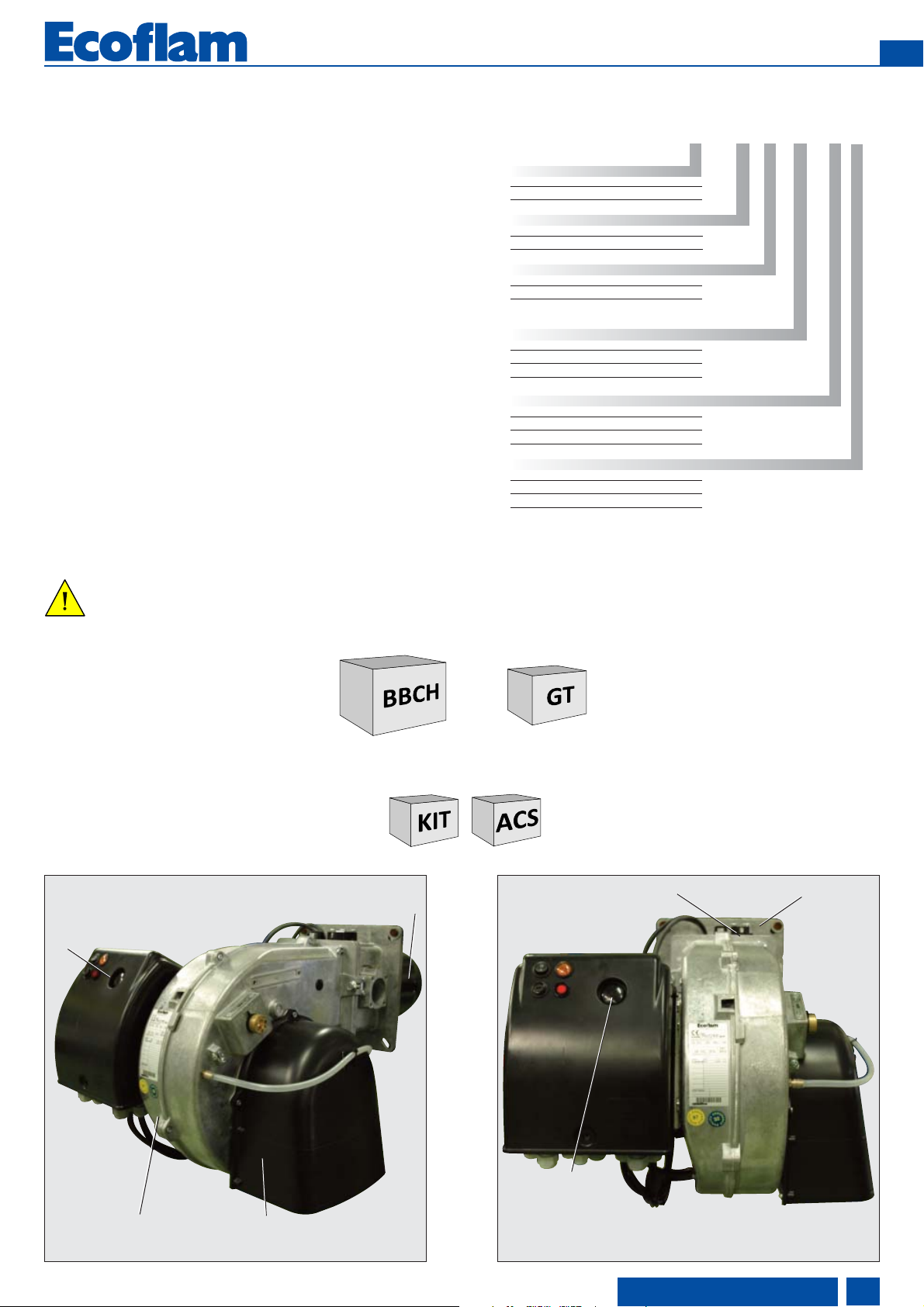

A1 LME22 Gas control unit
3 Air regulation in the burner head
5 Housing
8 Blast tube
15 Burner flange
16 Reset key
113 Air intake
Burner description
MAX GAS PAB are two-stage, fully
automatic, monoblock type burners.
Burner head is designed to get the lowest
emissions in terms of NOx and unburnt
particles in order to maximize the heat
generator efficiency. Emissions can be
different respect to the ones recorded in
the lab because they depends a lot on the
generator on which the burner is fit.
The installer must comply with compulsory
rules. Avoid for instance dangerous
atmosphere or not ventilated rooms.
Technical label
Tampering, removal or absence of plate
burner or anything that not allow the
secure identification of the burner make
difficult for any installation and
maintenance activity.
Notes for the operator
The system should be inspected by a
specialist at least once a year. It is
advisable to take out a maintenance
contract to guarantee regular servicing.

Function  General safety functions
1108106
119
Y12104 F4119.1119 pBr Y13
119.2
F6

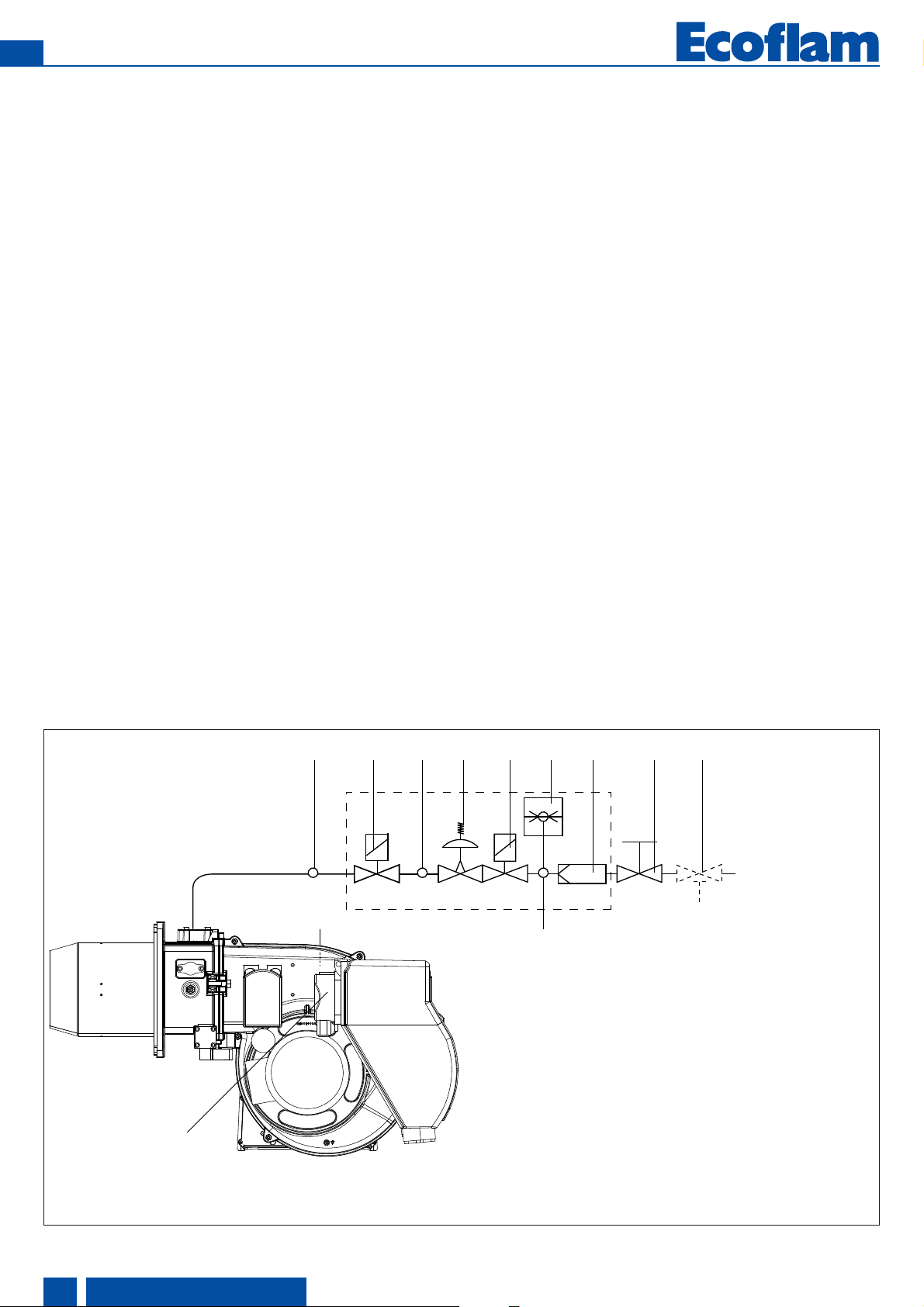

F4 Minimum gas pressure switch
F6 Air pressure switch
Y13 Main solenoid valve
Y12 Safety solenoid valve
1 Thermally-triggered safety shut-off valve
(installation by installer)
104 Gas pressure regulator
106 Filter
108 Gas ball valve (installation by installer)
119pBr Measuring point for gas outlet pressure
119.1 Measuring point for gas pressure in valve space
119.2 Air pressure measuring point
Description of functions
When the system is switched on for the
first time, after a power failure or safety
shutdown, after a lack of gas or after the
system has been out of operation for 24
hours, the pre-ventilation period of 30
seconds begins.
During prepurge period:
- blower pressure is monitored
- the combustion chamber is monitored for
flame signals.
At the end of the prepurge period:
- ignition is switched on.
- main and safety valve are opened.
- burner starts.
Monitoring
The flame is monitored by an ionization
probe. The probe is insulated and fitted to
the gas head and is routed through the
flame disc into the flame zone. The probe
must not have any electrical contact with
earthed parts.The burner switches to lock-
out if a short circuit occurs between the
probe and the burner earth. During burner
operation, an ionised zone is produced in
the gas flame through which a rectified
current flows from the probe to the burner
head.
Safety functions
- If no flame is produced when the burner
is started (gas release), the burner will be
switched off at the end of the safety period,
and the gas valve will close.
- If the flame goes out during operation,
the gas supply is interrupted and the
control unit goes to block.
- If there is a lack of air during reventilation
or operation, the control unit goes to block.
- If there is a lack of gas, the burner does
not begin operation or switches off.
In the event of controller shutdown
- Controller thermostat interrupts heat
request.
- Gas solenoid valves close.
- Flame goes out.
- Burner motor switches off.
- Burner is ready for operation.
420010318206
EN
www.ecoflamburners.com
8

420010318206
EN
www.ecoflamburners.com 9
Function  Control panel
Function  SIEMENS LME22... control and safety unit
DANGER
AGK25... PTC resistor
AL Error message (alarm)
V... Fuel valve
CPI Closed Position Indicator
DBR... Wire link
EK Lockout reset button (internal)
EK2 Remote lockout reset button
ION Ionization probe
FS Flame signal
FSV Flame signal amplifier
GP Pressure switch
H Main switch
HS Auxiliary contactor, relay
K1...4 Internal relays
KL Low-fire
LK Air damper
LKP Air damper position
LP Air pressure switch
LR Load controller
M Fan motor
R Control thermostat /
pressurestat
STB Safety limit thermostat
Si External pre-fuse
t Time
W Limit thermostat / pressure
switch
Z Ignition transformer
ZV Pilot gas valve
A Start command (switching on
by «R»)
B-B´ Interval for establishment of
flame
C Operating position of burner
reached
C-D Burner operation (generation
of heat)
D Controlled shutdown by «R»
t1 Prepurge time
t3 Preignition time
t3n Postignition time
t4 Interval between ignition
«Off» and release of «V2»
t10 Specified time for air pressure
signal
TSA Ignition safety time
tw Waiting time
Color code table for multicolor signal lamp (LED)
Status Color code Color
Waiting time «tw», other waiting states ❍................................................................................... Off
Ignition phase, ignition controlled ● ❍ ● ❍ ● ❍ ● ❍ ● ❍ ● ❍ ● ❍ ● ❍ ● ❍ ● ❍ ● ❍ Flashing yellow
Operation, flame o.k. ❑................................................................................... Green
Operation, flame not o.k. ❑ ❍ ❑ ❍ ❑ ❍ ❑ ❍ ❑ ❍ ❑ ❍ ❑ ❍ ❑ ❍ ❑ ❍ ❑ ❍ ❑ ❍ Flashing green
Extraneous light on burner startup ❑ ▲ ❑ ▲ ❑ ▲ ❑ ▲ ❑ ▲ ❑ ▲ ❑ ▲ ❑ ▲ ❑ ▲ ❑ ▲ ❑ ▲ Green-red
Undervoltage ● ▲ ● ▲ ● ▲ ● ▲ ● ▲ ● ▲ ● ▲ ● ▲ ● ▲ ● ▲ ● ▲ Yellow-red
Fault, alarm ▲................................................................................... Red
Error code output (refer to «Error code
table») ▲ ❍ ▲ ❍ ▲ ❍ ▲ ❍ ▲ ❍ ▲ ❍ ▲ ❍ ▲ ❍ Flashing red
Interface diagnostics ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲ Red flicker light
Legend: ....... Steady on ▲ Red ❑ Green ❍ Off ● Yellow
Always disconnect the power supply before installing or removing the control unit. Do not attempt to open or carry
out repairs on the control unit.
Connection diagram and control sequence LME22… / LME23…
NT μC control
RESET
EK
FSV
ION
1
23
M
4
BV1
5
BV2
7
Z
10
AL
T
12
R / W
GP
STB
9
7101 02 /0606
pa
6
LP
8
EK
11
K1
K2/1 K3 K4
K2/2
H
Si
SA
L
N
QRC
br bl sw
12
12
Nur LME23...
SB / R
W / GP
AL
LP
SA
BV1
(LR) BV2
Z
FS
tw t1 t3n
TSA
t4 7101d02/0606
t11
t12
EK2
12
10
3
7
4
5
6
1
8
ABB´ CD
9
t3
t10
LK
M
I
11
3
2
1-reset key
2-working lamp
3-main switch I / O
4-high-low flame switch (PAB)
0
I
I
II
4
1

10 www.ecoflamburners.com
EN
420010318206
OK
12
34
OK
OK
1
2
–
+
Installation  Burner assembly
Burner assembly
The burner is fixed by mean of connecting
flange and therefore to the boiler.
Installation:
• fix the flange to the boiler with
the screws.
Removal:
• loosen screw.
• pull the burner out of the boiler.
Install the burner on the
boiler according to the
installation position shown in.
Installation 3 is forbidden for
safety reason.
For operation with Liquefied Petroleum
Gas, it is necessary to order the kit and
follow the instructions given in the
specific manual.
LPG TRANSFORMATION
KITLPG-MAXGAS...
Burner blast tube insertion depth and
brickwork
Unless otherwise specified by the boiler
manufacturer, heat generators without a
cooled front wall require brickwork or
insulation 5 as shown in the illustration.
The brickwork must not protrude beyond
the leading edge of the blast tube, and
should have a minimum conical angle of
60°. Gap 6 must be filled with an elastic,
non-combustible insulation material. For
boilers with reverse firing, the minimum
burner tube insertion depth A as specified
in the boiler manufacturer’s instructions
must be observed.
On boilers the blast tube insertion depth
should be observed as per the boiler
manufacturer's instructions.
Reverse flame boiler :
A = 50-100 mm.
Three pass boilers :
A1 = 50-100 mm.
Exhaust system
To avoid unfavourable noise emissions,
right-angled connectors should not be
used on the flue gas side of the boiler.
A
A1
General regulations applying to the
gas connection
• The gas train must only be connected
to the gas mains by a recognised
specialist.
• The cross-section of the gas line should
be of a size designed to guarantee that the
gas flow pressure does not drop below the
Gas lines
When installing the gas lines and gas train,
the general EN676 directives and
guidelines must be observed.
EN676 compulsory kit and accessories in
order to comply to the safety regulations.
Additional accessories and kits shall be
installed by the installer in accordance to
the local safety regulations and codes of
practise.
Upon the installer responsibility
it is mandatory to install
additional support(s) in order to
not overload the burner body
with the dead load of full gas train,
accessories, piping and so on.
The burner body can stand just the gas
valve and the piping between the gas
valve and the body.
LEGENDA
Pf: Back pressure of furnace
Pb: Pressure of burner (combustion head
+ complete gas train)
Pin: Minimum inlet pressure
Installing the gas train
The gas train is supplied
separately, for fitting refer to the
instructions in the gas train
manual.
CAUTION
specified level.
• A manual shut-off valve (not supplied)
must be fitted upstream of the gas train.
DANGER

11
www.ecoflamburners.com
EN
420010318206
Ignition electrode Ionization probe
C
C
Sez. C-C
Installation  Electrical connection  Checks before commissioning
Electrical connection
The electrical installation and connection
work must only be carried out by an
authorised electrical specialist.
All applicable rules and regulations must
be observed.
The electrical installation should include a
type A circuit breaker.
The applicable guidelines and
directives must be observed, as
well as the electrical circuit
diagram supplied with the burner!
• Check to ensure that the power supply
voltage is as specified in the electric
diagram and in data plate.
• Burner fuse: 5 A.
Electrical connection (plugin)
It must be possible to disconnect the
burner from the mains using an
omnipolar shutdown device complying
with the standards in force. The burner
and heat generator (boiler) are connected
to the terminal block of the cabinet (fig.1).
Checks before commissioning
The following must be checked before
initial commissioning:
• That the burner is assembled in
accordance with the instructions given
here.
• That the burner is pre-set in accordance
with the values in the adjustment table.
• Setting the combustion components.
• The heat generator must be ready for
operation, and the operating regulations
for the heat generator must be observed.
• All electrical connections must be correct.
• The heat generator and heating system
must be filled with water and the
circulating pumps must be in operation.
• The thermostats, pressure regulator, low
water detectors and any other safety or
limiting devices that might be fitted must
be connected and operational.
• The exhaust gas duct must be
unobstructed and the secondary air
system, if available, must be operational.
• An adequate supply of fresh air must be
guaranteed.
• The heat request must be available.
• Sufficient gas pressure must be
available.
• The fuel supply lines must be assembled
correctly, checked for leaks and bled.
• A standard-compliant measuring point
must be available, the exhaust gas duct up
to the measuring point must be free of
leaks to prevent anomalies in the
measurement results.
Position of electrodes
Setting the ionisation probe and
ignition electrode: see diagram
Always check the position of the
electrodes after service or substitution
or assembly of LPG kit as wrong position
might cause ignition problem.
Connecting the gas train
Connect the gas train to the plugs on the
burner.
The burners are produced with
connections suitable for power supply
380400 V threephase.
The burners with electric motors of an
output lower or equal to 3 kW can be
adapted to 220-230 V (please follow the
instructions on the backside); motors with
higher output can only work 380-400 V
three-phase. In case of request of burners
different from the above mentioned
standard, it is recommended to make
specific mention in the order.
Instructions: how to adapt electric
motors of an output lower or equal to 3
kW to 220230 V power supply
It is possible to change the voltage of the
burner by operating as follows:
1. change the connection inside the
electric box of the motor, from star to delta
(see fig. 2);
A
A
2,5
3
Ionization
probe
Ignition
electrode
Ionization current measurement
With the burner switched off, connect a DC
microammeter. When the burner is run-
ning, and is properly adjusted, the value
read must be steady and never be smaller
than 3 µA.
Siemens
LME11/LME21-22
min. 3μA 1
MAX GAS 700
2. change the setting of the thermal relay,
referring to the absorption values indicated
in the motor nameplate. If necessary,
replace the thermal relay with another one
of suitable scale.
This operation is not possible on motors
above 3 kW.
For more information, please contact the
Ecoflam staff.
TP
STAB
HLB HLF
12119 10765 8N
50 Hz 230V
TP
STS
TP
STC
F
N
F
PE
Q
1
230V
400V
2
DANGER

12 www.ecoflamburners.com
EN
420010318206
Start up  Adjusting burner output
Firing head setting (1).
To act on the screw in figure:
• turn Allen key till you reach the
requested value (index 1-5).
Adjustment of gas solenoid valve
Refer to the gas train manual for
the gas setting of the gas train
selected.
Risk of air blast!
Continuously check CO, CO2and
soot emissions when adjusting the
output of the burner. Optimise combustion
values in the event of CO formation. CO
must not exceed 50 ppm.
DANGER
Optimising combustion values
The factory setting shall be modified
according to the output requeired.
N.B. observe the minimum required
flue gas temperature specified by
the boiler manufacturer and the
requirements demanded of ue gas ducts
for avoiding condensation.
Warning: Recording of initial
commissioning data is recom
mended.
WARNING
Servomotor SQN75
Remove cover to enter the adjusting
cams. Adjust cams through the suitable
key (on issue) and a screwdriver.
I - Adjusting cam (BLUE) for air damper
position on burner’s shutdown
(total close 0°).
II - Adjusting cam (ORANGE) for
opening position in ignition and Low
Flame (by the screwdriver).
III - Adjusting cam (RED) for opening
position in High Flame (max. output).
IV - Adjusting cam (BLACK) to allow the
opening of High flame solenoid
valve.
(5): MANUAL RELEASE SWITCH 5
3
3LIATE
D
+
-
A
+
-
1
1LIATED
B
”PAB” version gas burners gas train in
stallation and setting instructions (A)
Fix the gas train to burner body by means
of the 4 screws of the flange, pay attention
to set correctly the gasket ( O-ring ). Con-
nect electrically the gas train with the 2
connectors of the valve (black) and gas
pressure switch(gray).
Switch on the burner (it has already been
tested in the factory, so it is pre set on ave-
rage values) and verify the tightness of
gas train connections made during installa-
tion. Act as follows to adapt the burner out-
put to the boiler.
Regulating the combustion of the two
stage burner (PAB version)
Follow the sequence of operations:
Maximum power regulation:
1) position the air valve in the fully open
setting (90°, through the dispaly. For parti-
cularly low power only, if the reduction of
air is not sufficient with the head in position
1, reduce the opening of the air valve).
2) dose the air by moving the combustion
head (figure) to suit the power required (as
shown in figure).
3) dose the gas by regulating the gas ramp
(see figure in the ramp manual).
Low flame setting:
1) after regulating the maximum power
and determining the working pressure of
the gas in the head, position the valve on
the low flame setting, 25° through the di-
spaly, and dose the gas using the regula-
tion screw on the butterfly valve of the gas.
(figure).
2) if the minimum charge obtained in this
way is too low for the heat generator, in-
crease the opening of the air valve, adju-
sting the flow of gas using the butterfly
valve of the gas to obtain the minimum ap-
propriate power.

13
www.ecoflamburners.com
EN
420010318206
Start up  Adjusting burner output
Gas pressure diagrams in appendix
Minimum gas pressure required are
indicated in the diagrams in the appendix.
These values have been determined in
our test labs and are useful for the first
switch-on as final setting must be done
using a combustion analyzer.
How to read and adjust the values:
- determine the output required
- determine the combustion chamber back-
pressure
- read the minimum gas pressure required
in the diagrams in appendix.
Warning: the pre-calibration values have
been determined on EN676 test combu-
stion chambers in ideal conditions, and are
useful for the first switch-on but must be
checked and corrected with calibration for
the individual system.
Example in figure:
Power required by the generator: 380 kW.
Pressure envisaged in combustion cham-
ber: 3.5 mbar. Combustion head chamber:
2.5 (between 2 and 3). Gas pressure in
head: 13 mbar.
head gas pressure (on elbow) (mbar)
head position
air damper position
pressure in the combustion chamber (mbar)
output (kW)
-1,0
0,0
1,0
2,0
3,0
4,0
5,0
6,0
7,0
8,0
9,0
10,0
50 100 150 200 250 300 350 400 450 500 550 600
16 15 14 13
12,5
12
11,5
1
90°
2
90°
3
90°
4
90°
5
90°
EXAMPLE OF PRE-CALIBRATION MAX GAS 500 PAB

420010318206
EN
www.ecoflamburners.com
14
Start up  Air pressure switch adjustment  Setting gas pressostat
Operating check
Flame monitoring must be checked
for safety as part of initial
commissioning and also after servicing or
if the system has been out of operation for
any significant period of time.
- Start attempt with gas ball valve closed:
the automatic combustion control unit must
switch to gas shortage or malfunction after
the end of the safety period.
Air pressure switch calibration
The air pressure switch is provided for
monitoring the pressure of the
combustion air fan.
Unscrew screws A and B and remove
cover C. After the air and gas setting you
have to calibrate the air switch with the
burner working on the low flame by slowly
turning the relative knob clockwise until the
burner locks out. Read the value and then
decrease it by 15%.
WARNING: the air pressure switch
shall prevent the air pressure to go
below 85% from the adjustment
value in order to prevent the CO in the
fumes to exceed 1% (10000 ppm).
Min gas pressure switch
The gas pressure switch has the function
to check that the gas pressure before the
gas valve does have the minimum
pressure to make the burner running
correctly. Unscrew off and remove cover
M. - Set knob N to a value equal to 60% of
gas nominal feed pressure (i.e. for natural
gas nom. pressure = 20 mbar, set knob to
a value of 12 mbar; for LPG nom. pressure
of G30/G31- 30/37 mbar, set knob to a
value of 18 mbar). Screw up cover M.
0,4
0,6
0,9
3,0
1,5
2,1
1,8
2,4
2,7
1,2
A
B
CD
2,5
5
10
15
50
25
35
30
40
45
20
I
L
MN
WARNING
CAUTION
Recording commissioning data
Test n°1 n°2 n°3 n°4
Date
Model
Type gas
Gas calorific value
Gas inlet pressure mbar
Adjustment gas pressure
Volumetric gas flow rate Nm3/h
Burner output min kW
Burner output max kW
Flue gas temperature C°
Air temperature C°
CO2 %
CO ppm
NOx ppm
Performance %
Corrective action
Operator name
Company
WARNING

420010318206
EN
www.ecoflamburners.com 15
123
456
77 7
89
Service  Maintenance
Burner and boiler servicing must only
be carried out by qualified personell.
The system operator is advised to take
out a service contract to guarantee
regular servicing.
The operator is obliged to use the
equipment necessary during mainte
nance.
Attention
• Disconnect the electrical supply
before carrying out any
maintenance or cleaning work.
• The blast tube and firing head
may be hot.
Checking the exhaust gas temperature
• Check the flue gas temperature at
regular intervals.
• Clean the boiler if the flue gas
temperature is more than 30°C above
the value measured at the time of
commissioning.
• To simplify the check, use a flue gas
temperature indicator.
Once the maintenance, cleaning
or checking operations have been
completed, reassemble the cover
and all the safety and protection devi
ces of the burner.

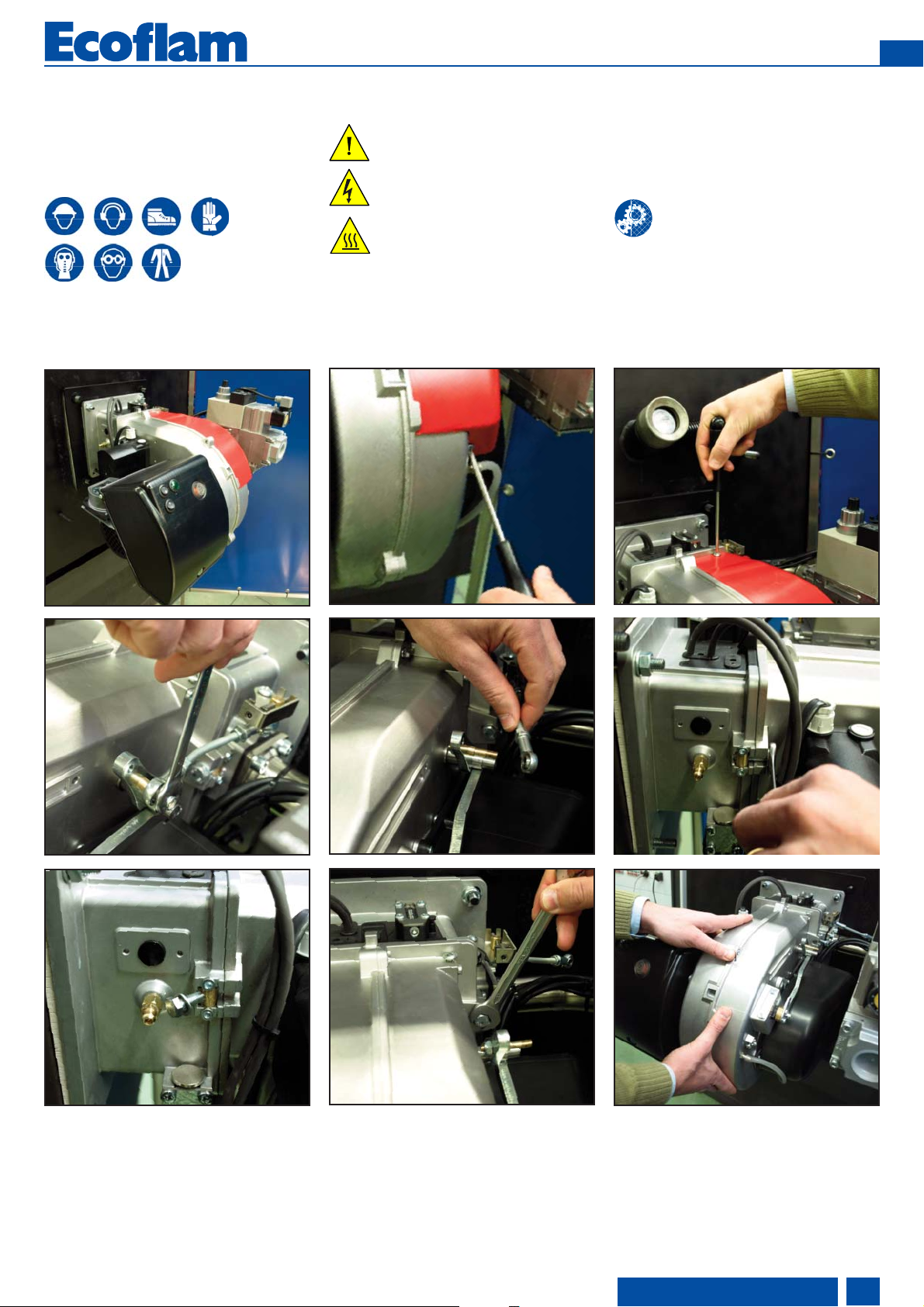

Removing firing head
• See pictures in the order.
WARNING
DANGER

420010318206
EN
www.ecoflamburners.com
16
Service  Maintenance
10 11 12

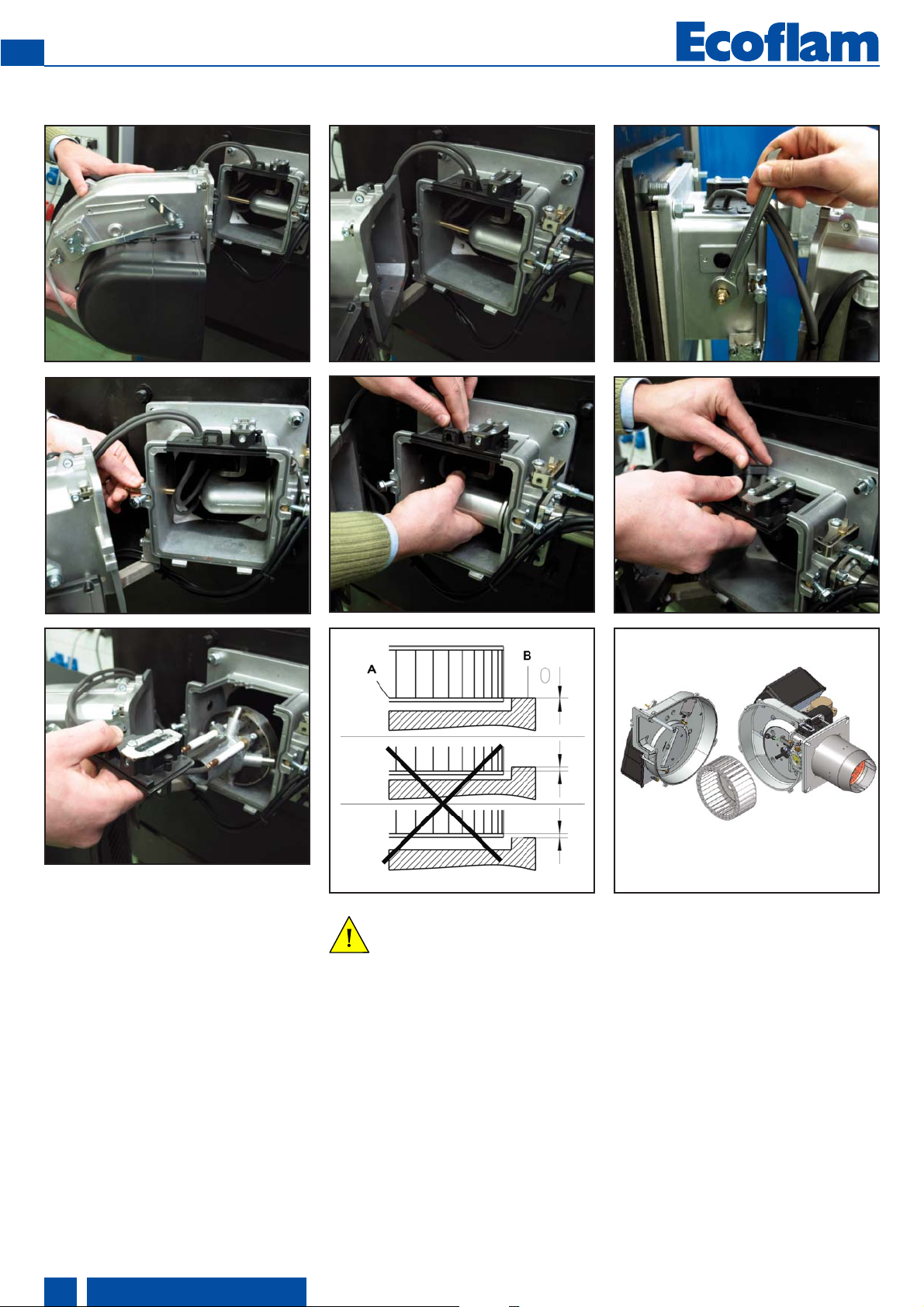

Fan assembly
Observe the positioning diagram above
when replacing the motor and blower
wheel. The inside flange Aof the blower
wheel must be fitted at the same level as
the equipment plate B. Insert a straight
edge between the wing of the blower wheel
and set Aand Bto the same height, tighten
the set screw on the blower wheel
(maintenance position 1).
Maintenance on the burner
• Check gas supply components (tubes,
lines) and their connections for leaks
or signs of wear, replace if necessary.
• Check electrical connections and
connection cables for damage,
replace if necessary.
• Check gas filter, clean or replace as
necessary.
• Clean fan wheel and housing and
check for damage.
• Check and clean the mixing unit.
• Check ignition electrodes block,
readjust or replace as necessary.
• Start burner, check flue gas data,
correct burner settings if necessary.
• Check the setting for air pressure
switch and gas pressostat.
• Check the gas train settings.
13 14 15
16
WARNING
• Carry out an operating check.

420010318206
EN
www.ecoflamburners.com 17
Service  Troubleshooting
Maintenance
Annual check
The burner (combustion head, electrodes,
etc.) must be checked regularly by an au-
thorized technician, once or twice a year,
depending on how much it is used. Before
proceeding withe the maintenance check-
up on the burner, it is advisable to check
the general condition of the burner and
take the following steps:
Disconnect the burner (remove the plug).
- Close the gas shut-off cock.
- Remove the cover from the burner,
clean the fan and air intake.
- Clean the combustion head and check
the position of the electrodes.
- Re-install the parts.
- Check the seal on the gas connetors.
- Check the state of the flue.
- Start the burner.
- Check the combustion parameters
Before taking any action check:
- That there is power in the circit and
the burner is connected;
- That the gas pressure is right and
the gas shut-off cock is open;
- That the control systems are pro- perly
connected. If all these conditions have
been satisfied, start the burner by pres-
sing the reset button.
- Check the burner cycle.
If the burner fails to start:
check the switch, the thermostats, the
motor and the gas pressure.
If the burner proceeds with preventila
tion but cuts out at the end of the cycle:
- Check the air pressure and the fan.
- Check the air pressure switch.
If the burner proceeds with preventila
tion but does not light:
- Check the installation and position of the
electrodes.
- Check the ignition cable.
- Check the ignition transformer.
- Check the safety device.
If the burner lights but cuts out after the
safety interval:
- Check that the phase and neutral wires
are connected correctly.
- Check the gas solenoid valve.
- Check the position and connection of the
detector electrode.
- Check the detector electrode. Check the
safety device.
If the burner lights but cuts out after
operating for a few minutes:
- Check the pressure regulator and gas fil-
ter.
- Check the gas pressure with a pressure
gauge.
- Check the detector value (at least 3 µA).
Error code table
Red blink code of «AL» at Possible cause
signal lamp (LED)) term. 10
2 blinks on No establishment of flame at the end of «TSA»
- Faulty or soiled fuel valves - Faulty or soiled flame detector
- Poor adjustment of burner, no fuel - Faulty ignition equipment
3 blinks on «LP» faulty
- Loss of air pressure signal after «t10», - «LP» welded in normal position
4 blinks on Extraneous light when burner is started up
5 blinks on Time out «LP»
- «LP» welded in working position
6 blinks on Free
7 blinks on Too many losses of flame during operation
(limitation of the number of repetitions)- Faulty or soiled fuel valves.
- Faulty or soiled flame detector - Poor adjustment of burner.
8 blinks on Free
9 blinks on Free
10 blinks off Wiring error or internal error, output contacts, other faults.
14 blinks on CPI contact not closed
Fault diagnosis and repair
In the event of a malfunction, first check
that the prerequisites for correct
operation are fullfilled:
1. Is the system connected to the
power supply?
2. Is there any gas pressure?
3. Is the gas shut-off valve open?
4. Are all control and safety devices,
such as the boiler thermostat, low water
level detector, limit switch, etc. adjusted
correctly?
If the malfunction persists, use the
following table. It is not permitted to repair
any components relevant to safety.
These components must be
replaced by parts with the same
order number.
Only use original spare parts.
In the event the burner stops, in
order to preventany damage to
the installation, do not unblock
the burner more than twice in a row. If
the burner locks for a third time, con
tact the customer service.
NB: after each operation:
• under normal operating conditions
(doors closed, hood fitted, etc.), check
combustion and check the individual
lines for leaks.
• Record the results in the relevant
documents.
WARNING
DANGER
WARNING

420010318206
IT
www.ecoflamburners.com
18
Contenuti generali  Indice  Avvertenze generali
Panoramica Dati tecnici 3
Curve di lavoro 4
Dimensioni d’ingombro 5
Contenuti generali Indice 18
Avvertenze generali - Dichiarazione di conformità 18
Descrizione del bruciatore 19
Funzione Funzioni generali di sicurezza 20
Programmatore di comando e sicurezza SIEMENS 21
Pannello do controllo 21
Installazione Montaggio del bruciatore 22
Connessione elettrica 23
Controlli da eseguire prima della messa in funzione 23
Messa in funzione Regolazione del bruciatore 24-25
Regolazione dei pressostati aria e gas 26
Assistenza Manutenzione 27-28
Possibili inconvenienti 29
Panoramica Diagrammi di pressione gas 66-67
Schemi elettrici 68-71
Parti di ricambio 72-75
Avvertenze importanti
I bruciatori Ecoflam sono stati progettati e
costruiti nel rispetto delle normative e
direttive correnti.
Tutti i bruciatori rispondono
alle normative sulla sicurezza
e sul risparmio energetico nel
limite del campo di lavoro
dichiarato.
Il bruciatore non deve
funzionare fuori del campo di
lavoro.
La qualità del prodotto è garantita dal
sistema di certificazione in base alla
norma ISO 9001:2008.
I bruciatori MAX GAS sono progettati per
la combustione di gas naturale e di gas
propano, con basse emissioni inquinanti.
I bruciatori sono conformi alla norma EN
676. Montaggio, messa in funzione e
manutenzione devono essere
eseguiti esclusivamente da
personale tecnico autorizzato,
nel rispetto delle direttive e delle
prescrizioni in vigore.
Imballo e movimentazione
Movimentare il bruciatore ancora imballato
con un carrello o un elevatore facendo
attenzione a non farlo cadere tenendosi a
non più di 20 cm da terra. Dopo aver tolto
l’imballo, controllare che il contenuto sia
integro e corrisponda al prodotto ordinato.
In caso di dubbi, contattare il produttore.
L’installazione del bruciatore
deve essere effettuata
da personale abilitato.
Se le dimensioni e il peso non consentono
un sollevamento manuale, farsi aiutare da
un altro operatore, od utilizzare un
sollevatore imbracando il bruciatore con
delle fasce se non disponibili i golfari.
Usare gli accessori in dotazione
(flangia ,guarnizione, perni e dadi)
per installare il bruciatore alla
caldaia facendo attenzione a non
danneggiare la guarnizione isolante.
Luogo di installazione
Installare il bruciatore dopo avere
effettuato la pulizia intorno all’area
destinata.
Smaltire correttamente tutti i
residui dell’imballo differenziando le
vari tipologie di materiali.
Il bruciatore non dev'essere messo
in funzione in locali in cui siano
presenti vapori aggressivi (ad es.
lacca per capelli, percloroetilene,
tetracloruro di carbonio), notevole
accumulo di polvere o forte umidità
dell'aria (ad es. lavanderie). Una adeguata
ventilazione deve essere fornita nel locale
dell’installazione in modo da garantire le
condizioni per una buona combustione.
Si esclude qualsivoglia
responsabilità per eventuali
danni derivanti dalle seguenti
cause:
- utilizzo non conforme.
- montaggio difettoso e/o riparazione a
cura dell'acquirente o terzi, ivi inclusa
l'applicazione di elementi di origine
estranea.
Consegna e istruzioni per l'uso
Il costruttore dell'impianto di combustione
è tenuto a consegnare al gestore del-
l'impianto, al più tardi all'atto della con-
segna dello stesso, le istruzioni per l'uso e
la manutenzione. Queste istruzioni devono
essere appese nel locale di installazione
del generatore termico in modo ben visi-
bile. Devono essere indicati l'indirizzo ed il
numero telefonico del punto di assistenza
più vicino.
WARNING
WARNING
DANGER
Introduzione
Il manuale di istruzione è fornito con il
bruciatore:
- fornisce importanti indicazioni ed
avvertenze sulla sicurezza
nell’installazione, la messa in funzione,
l’uso e la manutenzione del bruciatore.
- è progettato per essere utilizzato da
personale qualificato.
Simbologia utilizzata nel manuale
Pericolo massimo, indica
operazioni che possono causare
lesioni gravi, morte o rischi per la
salute a lungo termine, se non
eseguite correttamente.
Attenzione, indica operazioni che
possono causare lesioni gravi,
morte o rischi per la salute a lungo
termine, se non eseguite
correttamente.
Cautela, indica operazioni che
possono causare danni alla
macchina e/o lesioni alle persone,
se non eseguite correttamente.
Pericolo: componenti in
tensione.
Pericolo : materiale infiammabile.
Pericolo: ustioni.
Pericolo: schiacciamento degli
arti.
Obbligo di montare le coperture, e tutti i
dispositivi di sicurezza e protezione.
DANGER
WARNING
CAUTION
Protezione ambientale
Questo simbolo fornisce indicazioni
per l'uso della macchina nel rispetto
dell'ambiente.
Informazioni importanti
Questo simbolo indica
informazioni importanti che è
necessario tenere a mente.
WARNING
WARNING
CAUTION
WARNING

Contenuti generali  Descrizione del bruciatore
420010318206
IT
www.ecoflamburners.com 19
15
113
5
8
A1
3
16
Imballaggio
Il bruciatore è consegnato con un sistema
modulare di imballo (scatole separate):
BBCH: Brucitore completo con testa di
combustione e flangia.
- 1 sacchetto : - manuale tecnico in
multilingue.
- viti, dadi e rosette.
GT: Rampa Gas separata
KIT & ACS ordinabili e consegnati separatamente
KIT & ACS ordinabili e
consegnati separatamente
A1 Siemens LME22 programmatore di
comando e sicurezza gas
3 Regolazione dell'aria nella testa di
combustione
5 Fusione
8 Boccaglio
15 Flangia bruciatore
16 Pulsante Reset
113 Cuffia aria
Per ogni altro utilizzo e necessaria l'autorizzazione della Ecoflam.
WARNING
Descrizione del bruciatore
I bruciatori MAX GAS PAB sono bruciatori
bistadio completamente automatici La
geometria della testa di combustione
permette di ottenere bassi livelli di NOx e
di incombusti, massimizzando quindi il
rendimento del generatore. Le emissioni
possono essere diverse da quelle
riscontrate nel laboratorio di prova in
quanto dipendono molto dal generatore sul
quale il bruciatore è installato.
L’installatore deve rispettare le normative
vigenti. Per esempio sono da evitare locali
con atmosfere pericolose o non ventilate.
Targa dati
La manomissione, l’asportazione, la
mancanza della targhetta del bruciatore o
quant’altro, non permettono la sicura
identificazione del bruciatore e rendono
difficoltosa qualsiasi operazione di
installazione e manutenzione.
Avvertenza per il gestore
L'impianto dev'essere controllato almeno
una volta l'anno da un tecnico specia-
lizzato. Al fine di garantire un'esecuzione
regolare, si suggerisce di stipulare un
contratto per la manutenzione
dell'impianto.
MAX GAS 350 PAB TC
MAX GAS Gas
NOME
MAX GAS 350350 kW
MODELLO
Low NOx
EMISSIONI
P1 stadio
PAB 2 stadi
TIPO DI FUNZIONAMENTO
TC Testa corta
TL Testa lunga
TIPO TESTA
Gas Naturale
LPG Gas Propano
COMBUSTIBILE

Funzione  Funzioni generali di sicurezza
Descrizione del funzionamento
Alla prima messa sotto tensione, dopo
un'interruzione di corrente e una fase di
messa in sicurezza, dopo un'interruzione
di gas o dopo un arresto di 24 ore,
comincia un tempo di preventilazione di
30 sec.
Durante il tempo di preventilazione:
- la pressione dell'aria viene monitorata.
- controllo della presenza di eventuali
segnali di fiamma anomali.
Al termine del tempo di preventilazione
- l'accensione è inserita.
- l'elettrovalvola principale e di sicurezza è
aperta.
- il bruciatore si avvia.
Sorveglianza
La fiamma viene monitorata da una sonda
di ionizzazione. La sonda è montata in
modo isolato sulla testa del gas ed è
diretta attraverso il disco fiamma nella
zona della fiamma. La sonda non deve
avere alcun contatto elettrico con
componenti messi a terra. Se compare un
cortocircuito tra la sonda e la massa del
bruciatore, il bruciatore entra in stato di
anomalia. Durante il funzionamento, nella
fiamma del gas si crea una zona
ionizzata, attraverso la quale circola una
corrente raddrizzata dalla sonda verso il
boccaglio.
Funzioni di sicurezza
- Se all'avvio del bruciatore (rilascio del
gas) non si forma la fiamma, il bruciatore
viene arrestato al termine del tempo di
sicurezza, la valvola del gas si chiude.
- In caso di assenza della fiamma
durante il funzionamento, l'alimentazione
del gas si interrompe e l’apparecchio di
comando e controllo va in blocco.
- In caso di mancanza d'aria durante la
preventilazione o il funzionamento,
l’apparecchio di comando e controllo va in
blocco.
- In caso di mancanza di gas,
l’apparecchio di comando e controllo va in
blocco.
Arresto di regolazione
- Il termostato di regolazione interrompe la
richiesta di riscaldamento.
- Le valvole gas si chiudono.
- La fiamma si spegne.
- Il motore del ventilatore si ferma
- Il bruciatore è pronto per il
successivo funzionamento.
1108106
119
Y12104 F4119.1119pBr Y13
119.2
F6
F4 Pressostato gas minima
F6 Pressostato aria
Y13 Elettrovalvola gas
Y12 Elettrovalvola gas di sicurezza
1Valvola di sicurezza ad azionamento termico
(deve essere montata dall'installatore)
104 Regolatore di pressione gas
106 Filtro
108 Valvola di arresto del gas
(deve essere montata dall'installatore)
119pBr Punto di misurazione della pressione del gas
all'uscita della valvola
119.1 Punto di misurazione della pressione del gas tra le
valvole
119.2 Punto di misurazione della pressione dell'aria
420010318206
IT
www.ecoflamburners.com
20
