Ecoflam MAX GAS 350 P AB User manual

Technical data
Dati tecnici
Données techniques
Datos técnicos
Технические характеристики
Operating instructions
Istruzioni per l’uso
Notice d’emploi
Manual de uso
Руководство по эксплуатации
Electric diagrams
Schemi elettrico
Schémas électrique
Esquemas eléctrico
Электрические схемы
Spare parts list
Parti ricambi
Pièces de rechange
Piezas de recambio
Запчасти
GAS BURNERS
EN
IT
FR
MAX GAS 350 P
MAX GAS 500 P
MAX GAS 350 LN P TC SGT 230-50 TW 3143283
MAX GAS 350 LN P TL SGT 230-50 TW 3143284
MAX GAS 500 LN P TC SGT 230-400-50 TW 3143285
MAX GAS 500 LN P TL SGT 230-400-50 TW 3143286
www.ecoflam-burners.com

www.ecoflam-burners.com 420010492300
EN
IT
FR
2
Overview - Index of contents / Panoramica - Indice dei contenuti / Vue d'ensemble - Table des matières
Descripción - Sumario / Обзор - Содержание
Technical data
Dati tecnici
Données techniques
Datos técnicos
Технические характеристики
EN
IT
FR
ES
RU
3
Working fields
Campi di lavoro
Domaine de fonctionnement
Ámbito de funcionamiento
Рабочий диапазон
EN
IT
FR
ES
RU
4
Dimensions
Dimensioni
Dimensions
Dimensiones
Размеры
EN
IT
FR
ES
RU
5
Operating instructions for authorised specialists EN 6 - 17
Istruzione per l’uso per il personale qualificato IT 18 - 29
Notice d’emploi pour l’installateur spécialiste FR 30 - 41
Instrucciones de montaje para el instalador especialista ES
Инструкция по эксплутации для
квалифицированных специалистов RU
Gas pressure diagrams
Diagrammi di pressione gas
Diagrammes de pression de gaz
Diagramas de presión de gas
Диаграммы давления газа
EN
IT
FR
ES
RU
42 - 43
Electric diagrams
Schemi elettrico
Schémas électrique
Esquemas eléctrico
Электрические схемы
EN
IT
FR
ES
RU
44 - 45
Spare parts list
Parti di ricambio
Pièces de rechange
Piezas de recambio
Запчасти
EN
IT
FR
ES
RU
46 - 47
Conformity declaration
Dichiarazione di conformità
Déclaration de conformite
Declaración de conformidad
Сертификат соответствия
EN
IT
FR
ES
RU
48

3
www.ecoflam-burners.com
420010492300
EN
IT
FR
Technical data - Dati tecnici - Données techniques - Datos técnicos - Технические характеристики MAX GAS 350 P MAX GAS 500 P
Burner output max/min kW - kcal/h
Potenza bruciatore max/min kW - kcal/h
Puissance du brûleur max/min kW - kcal/h
Potencia del quemador máx/mín kW - kcal/h
Мощность горелки макс./мин., кВт - ккал/ч
350 100 500 120
301.000 86.000 430.000 103.200
Operation 1 stage
Funzionamento 1 stadio
Fonctionnement 1 allure
Funcionamiento 1 etapa
Moдифиkaция 1 ступень 11
Regulating ratio Rapporto di regolazione Rapport de régulation Relación de regulación Коэффициент
регулирования 1:1
Fuel Combustibile Fuel Combustible Топливо
Natural Gas (L.C.V. 8.570 kcal/Nm3), LPG (L.C.V. 22.260 kcal/Nm3)
(G20) Hu = 10,35 kWh/m3- (G25) Hu = 8,83 kWh/m3
(G31) Hu = 25,89 kWh/m3
Emission class Classe di emissione Classe d’émission Tipo de emisión Класс выделения
загрязняющих веществ Standard Class 3 - GAS EN676 (<80mg/kWh)
Control box Apparecchiatura di
controllo Coffret de sécurité Cajetín de seguridad Блок управления и
безопасности THERMOWATT E-BCU GAS
Gas train Rampa gas Rampe gaz Rampa de gas Газовая рампа GAS TRAIN TABLE - DIFFERENT MODELS / CONFIGUATIONS
Gas connection Allacciamento gas Raccordement gaz Conexión de gas Подсоединение газа Rp 20 3/4” - Rp 40 1”1/2 Rp 20 3/4” - Rp 40 1”1/2
Gas input pressure Pressione di ingresso gas Pression d’entrée du gaz Presión de entrada
del gas Давление газа на входе 17 (20 Max Gas 500) - 500 mbar
(SEE GAS TRAIN MATCHING TABLE)
LPG input pressure Pressione di ingresso
LPG
Pression d’entrée du gaz propane
Presión de entrada LPG Давление LPG на входе 29 (37 Max Gas 500) - 500 mbar
(SEE GAS TRAIN MATCHING TABLE)
Air regulation Air flap
Regolazione aria Serranda dell'aria
Réglage de l’air Volet d’air
Ajuste del aire Válvula de aire
Настройка подачи воздуха Воздушная заслонка
- -
Flame monitor Rivelatore di fiamma Surveillance de flamme Vigilancia de llama Контроль пламени ionization ionization
Ignition transformer Trasformatore
d'accensione Allumeur Encendedor Устройство розжига danfoss / cofi danfoss / cofi
Electric motor rpm - watt
Motore elettrico giri motore - watt
Moteur rpm - watt
Motor rpm - watt
Электродвигатель об/мин - watt
2800 rpm 2800 rpm
300 W 550 W
Voltage Tensione Tension Tensión Напряжение 230 V (230/400 V Max Gas 500) / 50 Hz
Power consumption (operation)
Potenza elettrica assorbita (Esercizio)
Puissance électrique absorbée (en service)
Potencia eléctrica absorbida (en funcionamiento)
Потребляемая электрическая мощность: (при работе)
600 W 900 W
Weight Peso Poids Peso Приблизительный вес 19,6 kg 23,5 kg
Protection level Classe di protezione Indice de protection Índice de protección Класс электрозащиты IP40
Sound pressure level dB(A)
Livello pressione sonora dB(A)
Niveau presion acoustique dB(A)
Nivel de presion acústico dB(A) Уровень шума, dB(A) 73 73
Ambient temp. for storage
Temperatura ambiente di stoccaggio
Température ambiante de stockage
Temperatura ambiente de almacenamiento Температура хранения -20°…+70° C
Temperature for use Temperatura
d’utilizzazione Température d’utilisation Temperatura ambiente
de utilización Рабочая температура -10°…+60° C
Overview / Panoramica / Vue d'ensemble / Descripción / Обзор

4www.ecoflam-burners.com 420010492300
EN
IT
FR
Working field The working field shows burner output as a function of combustion chamber pressure. It corresponds to the maximum values specified by EN 267 measured at the test fire tube. The efficiency rating of the boiler should be taken into account when selecting a burner. Calculation of burner output: QF = QN
ηK
QF = Burner output (kW) QN = Rated boiler output (kW) ηK= Boiler efficiency (%)
Curva Il campo di attività indica la potenza del bruciatore in funzione della pressione della camera di combustione. Corrisponde ai valori massimi previsti dalla norma EN 267 misurati sul tubo della fiamma di controllo. In occasione della scelta del bruciatore si deve tenere conto del rendimento energetico della caldaia. Calcolo della potenza della caldaia: QF = QN
ηK
QF= potenza della caldaia (kW) QN= potenza nominale della caldaia (kW) ηK= rendimento energetico
della caldaia (%)
Domaine de fonctionnement Le domaine de fonctionnement correspond aux valeurs mesurées lors de l’homologation. Elle correspond aux valeurs max mesurées sur tunnel d’essai d’après l’EN 267. Pour le choix du brûleur, tenir compte du rendement de la chaudière. Calcul de la puissance calorifique: QF = QN
ηK
QF= Puissance calorifique (kW) QN= Puissance nominale chaudière (kW) ηK= Rendement chaudière (%)
Ámbito de funcionamiento El ámbito de funcionamiento corresponde a los valores registrados en el momento de la homologación. Corresponde a los valores máx medidos en el túnel de ensayo según la EN 267. Para la elección del quemador, se ha de tener en cuenta el rendimiento de la caldera. Cálculo de la potencia calorífica: QF = QN
ηK
QF = Potencia calorífica (kW) QN = Potencia nominal de la caldera (kW) ηK = Rendimiento de la
caldera (%)
Рабочий диапазон Рабочий диапазон показывает производительность горелки в зависимости от давления в топочной камере. Он соответствует максимальным значениям согласно EN 267, измеренным в контрольной топочной камере. При выборе горелки необходимо учитывать КПД котла. Расчет тепловой мощности: QF = QN
ηK
QF = Тепловая мощность, кВт QN= Номинальная мощность котла, кВт ηK= КПД котла, %
Overview - Working fields / Panoramica - Curve / Vue d'ensemble - Domaine de fonctionnement / Descripción - Ámbito de funcionamiento / Обзор - Рабочий диапазон
100 200
200100 300 400
300 400 500 600
0 1 2 3 4 5 6 7 8 9
mbar
kW
kcal/h x 1000
MAX GAS 350 P
MAX GAS 500 P
500

5
www.ecoflam-burners.com
420010492300
EN
IT
FR
Overview - Dimensions / Panoramica - Dimensioni / Vue d'ensemble - Dimensions / Descripción - Dimensiones / Обзор - Размеры
X
Y
Z
Packaging
MAX GAS 350-500 P
GAS TRAIN DIMENSIONS: refer to GT manual
Pr
Ø r
Sr
MAX GAS 350-500 PAB
Model AB C D D1 E F G I L M N O
MAX GAS 350 P 485 277 208 175 335 466 157 280 185/200 185/200 M8 62 101 MAX GAS 500 P 485 277 208 175 335 466 157 280 185/200 185/200 M8 62 101
Model Ø a Ø b Ø c d°..
MAX GAS 350 P 167 262 283 45° MAX GAS 500 P 167 262 283 45°
d..°
Ø a Ø b
Ø c
M
Boiler plate drilling
Model XYZ kg
MAX GAS 350 P 500 830 600 23,5 MAX GAS 500 P 500 830 600 29
571664
? 157
280 114
CI
B
A
L
581
002
185 200
N
ED-D1 O
G
F
M

6www.ecoflam-burners.com
EN
420010492300
Contents - Index - General warnings
Important notes
MAX GAS 350-500 P burners are
designed for the low-pollutant combustion
of natural gas and Liquefied Petroleum
Gas. The design and function of the
burners comply with standard EN676.
Assembly and commissioning must be
carried out only by authorised specialists
and all applicable guidelines and directives
must be observed.
Burner description
MAX GAS 350-500 P are single-stage,
fully automatic, monoblock type burners.
The special design of the burner head
provides low-polluting combustion with
high efficiency. In line with testing as
defined by EN676, the values comply
with emissions class 3 (NOx<80mg/kWh)
Emissions values may differ, depending on
combustion chamber dimensions,
combustion chamber load and the firing
system (three-pass boilers, boilers with
reverse firing).
They are suitable for use with all heat
generators complying with EN 303 or for
use with hot air generators complying with
DIN 4794, and DIN 30697 within their
respective performance range.
Use for any other application requires the
approval of Ecoflam.
The following standards should be
observed in order to ensure safe,
environmentally sound and
energy-efficient operation:
EN 676
Forced-draught gas burners
EN 226
Connection of fuel oil and forced-draught
gas burners to a heat generator.
EN 60335-1, -2-102
Specification for safety of household and
similar electrical appliances, particular
requirements for gas burning appliances.
Installation location
The burner must not be operated in rooms
containing aggressive vapours (e.g. spray,
perchloroethylene, hydrocarbon
tetrachloride, solvent, etc.) or tending to
heavy dust formation or high air humidity.
Adequate ventilation must be provided at
the place of installation of the furnace
system to ensure a reliable supply with
combustion air.
Variations may arise as a result of local
regulations.
We can accept no warranty liability
whatsoever for loss, damage or injury
caused by any of the following:
- Inappropriate use.
- Incorrect assembly or repair by the
customer or any third party, including the
fitting of non-original parts.
Provision of the system and the
operating instructions
The firing system manufacturer must
supply the operator of the system with
operating and maintenance instructions on
or before final delivery. These instructions
should be displayed in a prominent
location at the point of installation of the
heat generator, and should include the
address and telephone number of the
nearest customer service centre.
Notes for the operator
The system should be inspected by a
specialist at least once a year. It is
advisable to take out a maintenance
contract to guarantee regular servicing.
Ecoflam burners have been designed and built in compliance with all current regulations
and directives.
All burners comply to the safety and energy saving operation regulations within the standard
of their respective performance range. The quality is guaranteed by a quality and management
system certified in accordance with ISO 9001:2008.
Overview Technical data 3
Working fields 4
Dimensions 5
Contents Index 6
General warnings 6
Burner description 7
Function General safety functions 8
E-BCU control box 9
Installation Burner assembly 10
Electrical connection - Checks before commissioning 11
Start up Adjusting burner output 12-13
Air pressure switch adjustment - setting gas pressostat 14
Service Maintenance 15-16
Troubleshooting 17
Overview Gas pressure diagrams 42-43
Electrical diagrams 44-45
Spare parts list 46-47
Contents Conformity declaration 48

7
www.ecoflam-burners.com
EN
420010492300

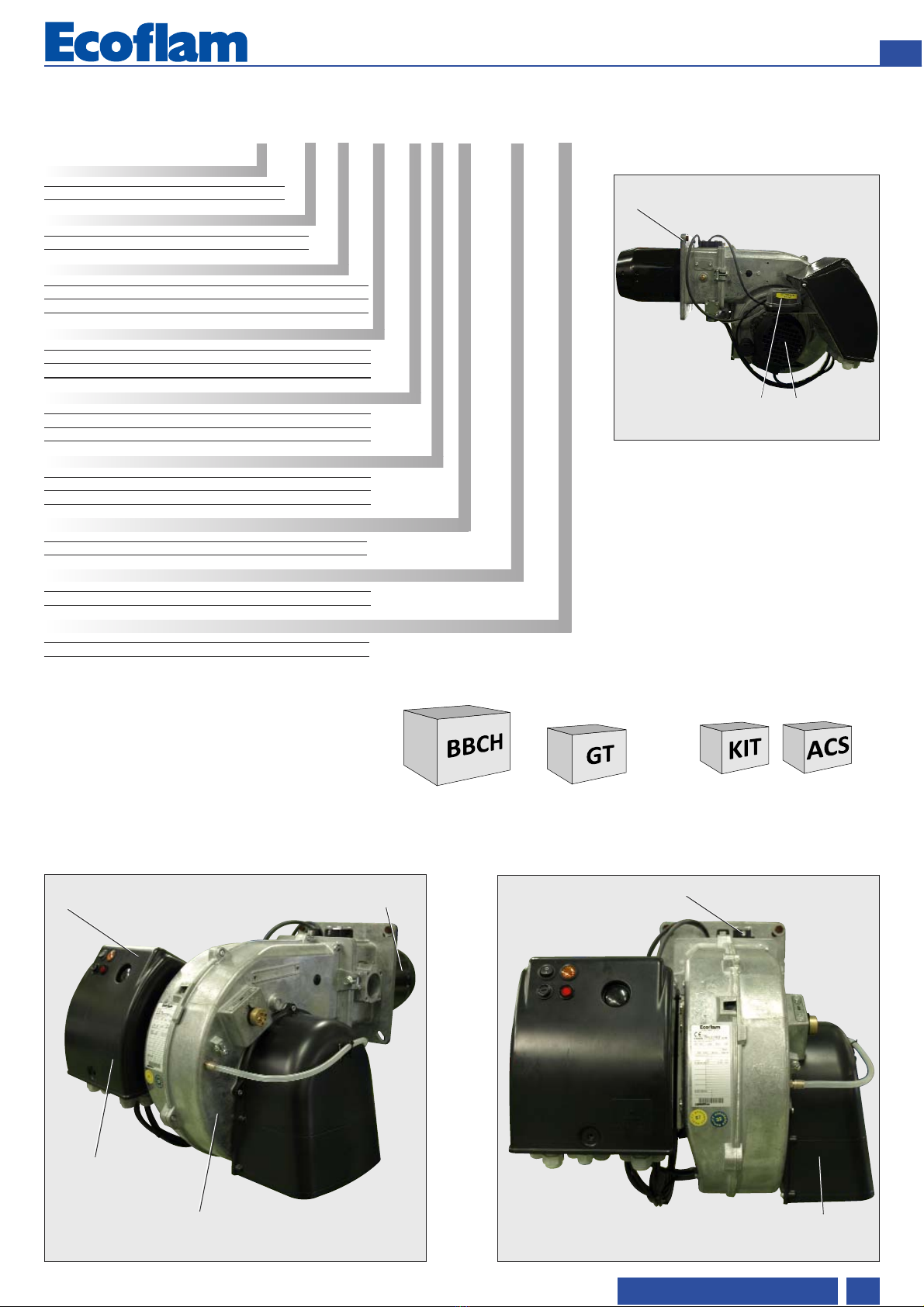

A1 E-BCU Gas control unit
F6 Air pressure switch
M1 Electric motor
T1 Ignition transformer
3 Air regulation in the burner head
5 Housing
8 Blast tube
14 Burner hood
15 Burner flange
113 Air intake
Scope of delivery
The burner is delivered in a modular system of
packagings i.e. separate set/box:
BBCH: Burner Body with Combustion Head
with flange.
- 1 bag including :- multilanguage technical manual.
- wieland plug.
- spanner.
- screws, nuts and washer.
GT: separate Gas Train
KIT & ACS are managed and delivered separately
Contents - Burner description
3
KIT & ACS delivered separately
113
5
8
A1
15
MAX GAS 350 LN P TC SGT 230-50 TW
MAX GAS Gas
RANGE NAME BY FUEL TYPE
MAX GAS 350350 kW
MODEL SIZE (Gas: kW; Oil: kg/h)
LN Low NOx Class 3 GAS EN676 (<80 mg/kWh)
- Standard Class 2-GAS EN676 (<120 mg/kWh)
EMISSION COMBUSTION TYPE
P1 stage
PAB 2 stages
OPERATION TYPE
TC Short head
TL Long head
HEAD TYPE
Natural gas
LPG LPG
FUEL
230-50 230 Volt, 50 Hz
ELECTRICAL SUPPLY TO THE SYSTEM
SGT Separate gas train
EQUIPMENT
TW Thermowatt
CONTROL BOX
F6 M1
14

8www.ecoflam-burners.com
EN
420010492300
Function - General safety functions
Description of functions
When the system is switched on for the
first time, after a power failure or safety
shutdown, after a lack of gas or after the
system has been out of operation for 24
hours, the pre-ventilation period of 24
seconds begins.
During pre-purge period:
- blower pressure is monitored
- the combustion chamber is monitored for
flame signals.
At the end of the pre-purge period:
- ignition is switched on.
- main and safety valve are opened.
- burner starts.
Monitoring
The flame is monitored by an ionisation
probe. The probe is insulated and
fitted to the gas head and is routed
through the flame disc into the flame
zone. The probe must not have any
electrical contact with earthed parts. The
burner switches to lock-out if a short
circuit occurs between the probe and
the burner earth.
During burner operation, an ionised
zone is produced in the gas flame
through which a rectified current flows
from the probe to the burner head. The
ionisation current must be at least 1,5 µA.
Safety functions
- If no flame is produced when the burner
is started (gas release), the burner will be
switched off at the end of the safety
period, lasting no more than 3 seconds,
and the gas valve will close.
- If the flame goes out during operation,
the gas supply is interrupted within one
second. A restart takes place. Once the
burner starts, operation is continued.
Otherwise, a safety lock-out occours.
- If there is a lack of air during reventilation
or operation, a safety lock-out occours.
- If there is a lack of gas, the burner does
not begin operation or switches off.
A waiting time of 2 minutes follows. This is
followed by a further start attempt. If there
is still no gas pressure, a further waiting
time of 2 minutes follows. The waiting time
can only be reset by interrupting the
power supply to the burner.
Waiting times: 3 x 2 min, then 1 hour.
In the event of controller shutdown
- Controller thermostat interrupts heat
request.
- Gas solenoid valves close.
- Flame goes out.
- Burner motor switches off.
- Burner is ready for operation.
1108106
119
Y12104 F4119.1119 pBrY13
119.2
F6
F4 Minimum gas pressure switch
F6 Air pressure switch
Y13 Main solenoid valve
Y12 Safety solenoid valve
1 Thermally-triggered safety shut-off valve
(installation by installer)
104 Gas pressure regulator
106 Filter
108 Gas ball valve (installation by installer)
119pBr Measuring point for gas outlet pressure
119.1 Measuring point for gas pressure in valve space
119.2 Air pressure measuring point

9
www.ecoflam-burners.com
EN
420010492300
The E-BCU GAS fuel gas/LPG control and
safety unit controls and monitors the
forced draught burner. The
microprocessor-controlled program
sequence ensures maximum stability of
time periods, regardless of fluctuations in
the power supply or ambient temperature.
The design of the automatic combustion
control unit protects it from the effects of
brownouts. Whenever the supply voltage
drops below its rated minimum level (170
V), the control unit shuts down - even in
the absence of a malfunction signal. The
control unit switches itself back on again
once the voltage has exceeded the 178 V.
R
RJ45
R-Reset button + lock-out led.
RJ45 - Connector for PC interface
(diagnostic, separate item).
!Always disconnect the power supply before installing or removing the control unit
Do not attempt to open or carry out repairs on the control unit

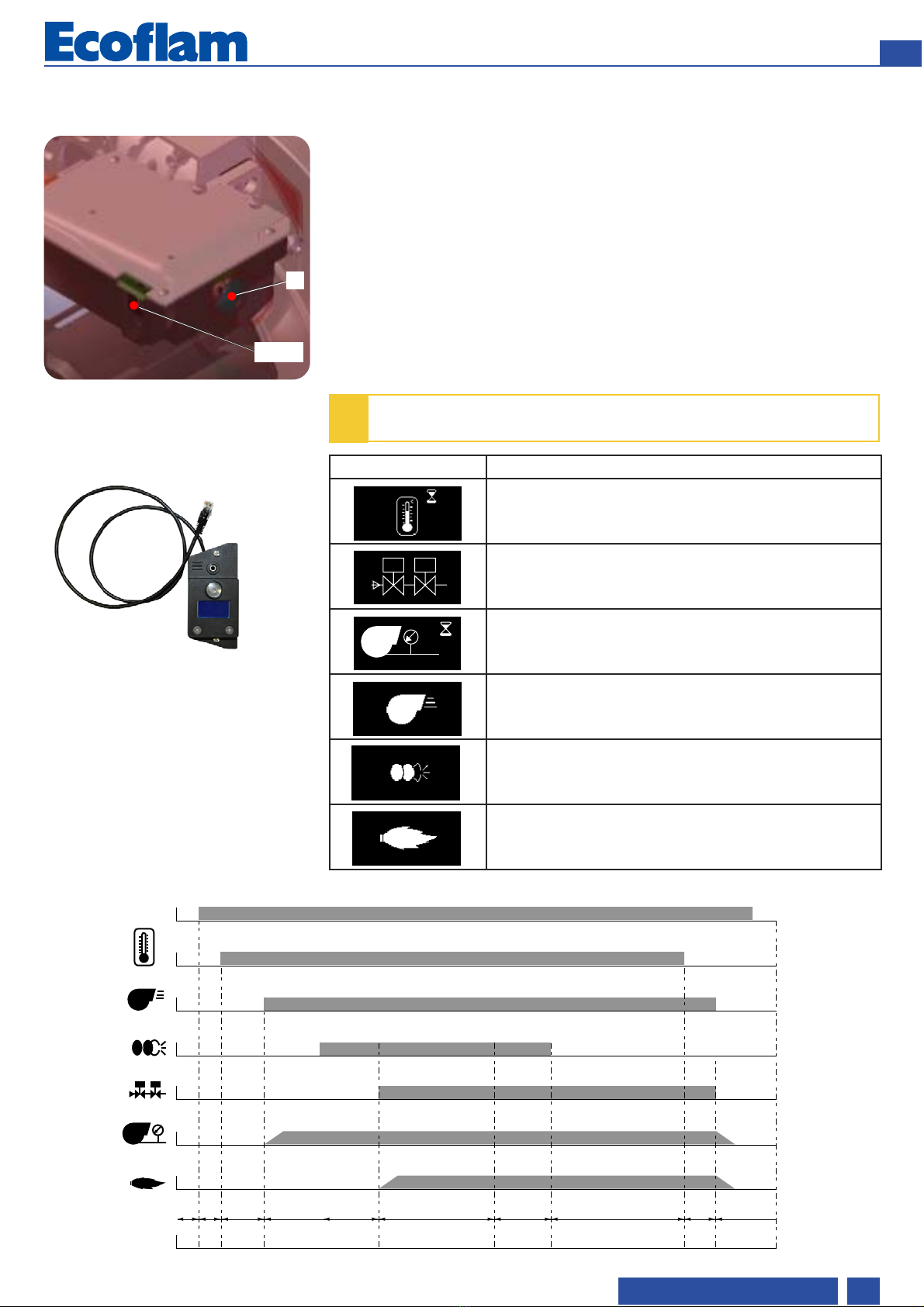

Function - E-BCU GAS control and safety unit
KIT E-BCU
DIAGNOSTIC TOOL
(not supplied)
LINE
1
Max 5s 33s 3s
25s
5s --- -< 1s
23 4 4’ 5 6 7 8 9
C
Locking and unlocking the system
The control unit can be locked (switched
to malfunction) and unlocked (malfunction
cleared) by pressing the R reset button,
provided the system is connected to the
mains power supply.
Symbol Designation
Waiting for heat request
Fuel valve
Waiting for air pressure switch during burner start
Burner motor on
Ignition transformer on
Flame present
24s

10 www.ecoflam-burners.com
EN
420010492300
Installation - Burner assembly
Burner blast tube insertion depth and
brickwork
Unless otherwise specified by the boiler
manufacturer, heat generators without a
cooled front wall require brickwork or
insulation 5 as shown in the illustration.
The brickwork must not protrude beyond
the leading edge of the blast tube, and
should have a minimum conical angle of
60°. Gap 6 must be filled with an elastic,
non-combustible insulation material. For
boilers with reverse firing, the minimum
burner tube insertion depth Aas specified
in the boiler manufacturer’s instructions
must be observed.
Exhaust system
To avoid unfavourable noise emissions,
right-angled connectors should not be
used on the flue gas side of the boiler.
Burner assembly

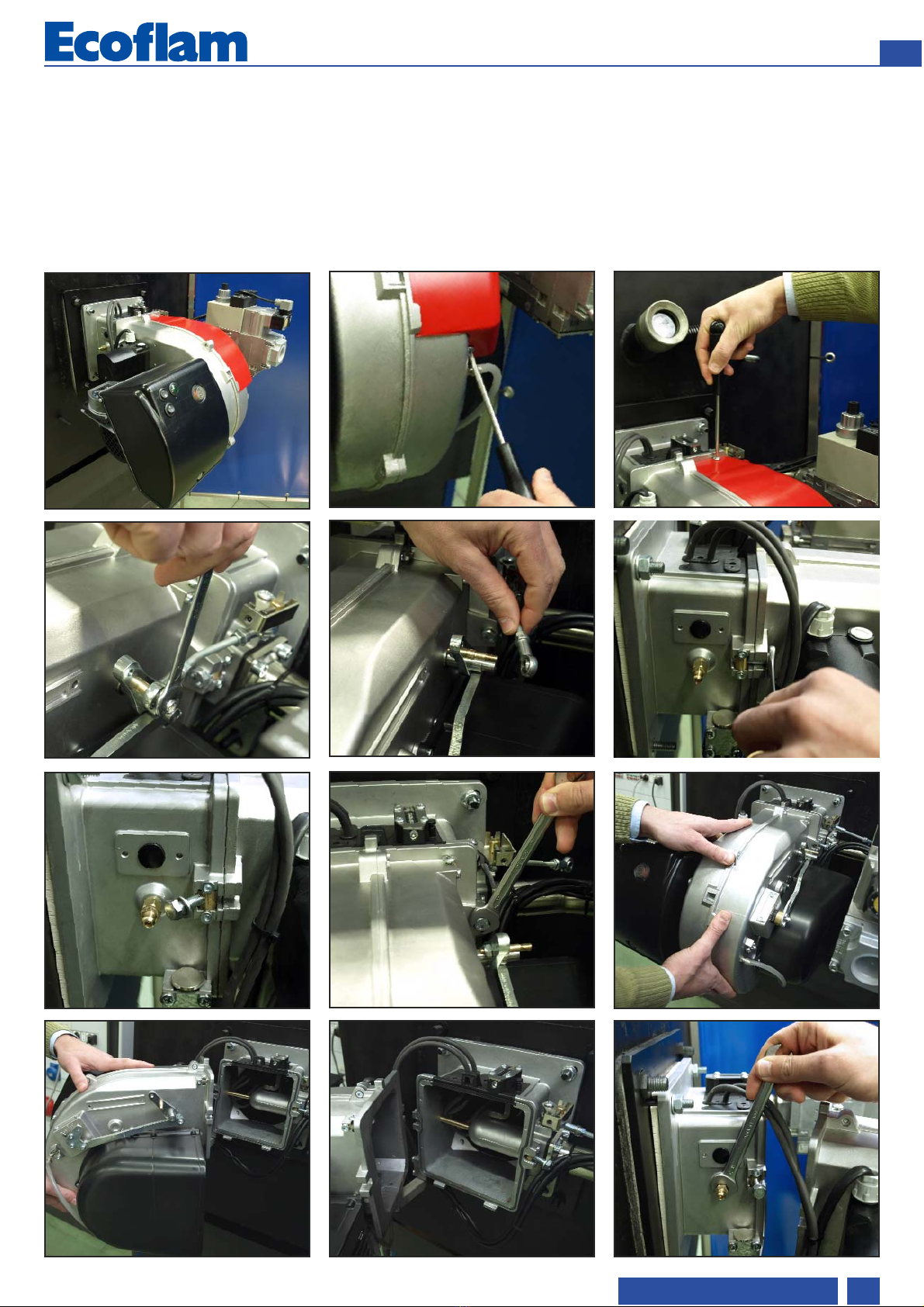

The burner is fixed by mean of connecting
flange and therefore to the boiler.
Installation:
• fix the flange to the boiler with
the screws.
Removal:
• loosen screw.
• pull the burner out of the boiler.
General regulations applying to the
gas connection
• The gas train must only be connected
to the gas mains by a recognised
specialist.
• The cross-section of the gas line should
be of a size designed to guarantee that the
gas flow pressure does not drop below the
specified level.
• A manual shut-off valve (not supplied)
must be fitted upstream of the gas train.
Gas lines
When installing the gas lines and gas train,
the general EN676 directives and
guidelines must be observed.
EN676 compulsory kit and accessories in
order to comply to the safety regulations.
Additional accessories and kits shall be
installed by the installer in accordance to
the local safety regulations and codes of
practise.
LEGENDA
Pf: Back pressure of furnace
Pb: Pressure of burner (combustion head
+ complete gas train)
Pin: Minimum inlet pressure
For operation with Liquefied Petroleum
Gas, it is necessary to order the kit and
follow the instructions given in the
specific manual.
LPG TRANSFORMATION
KITLPG-MAXGAS...
1
2
–
+

11
www.ecoflam-burners.com
EN
420010492300
Installation - Electrical connection - Checks before commissioning
Electrical connection
The electrical installation and connection
work must only be carried out by an
authorised electrical specialist.
All applicable rules and regulations must
be observed.
The electrical installation should include a
type A circuit breaker.
The applicable guidelines and
directives must be observed, as well as
the electrical circuit diagram supplied
with the burner!
• Check to ensure that the power supply
voltage is as specified in the electric
diagram and in data plate.
• Burner fuse: 5 A.
Checks before commissioning
The following must be checked before
initial commissioning:
• That the burner is assembled in
accordance with the instructions given
here.
• That the burner is pre-set in accordance
with the values in the adjustment table.
• Setting the combustion components.
• The heat generator must be ready for
operation, and the operating regulations
for the heat generator must be observed.
• All electrical connections must be correct.
• The heat generator and heating system
must be filled with water and the
circulating pumps must be in operation.
• The thermostats, pressure regulator, low
water detectors and any other safety or
limiting devices that might be fitted must
be connected and operational.
• The exhaust gas duct must be
unobstructed and the secondary air
system, if available, must be operational.
• An adequate supply of fresh air must be
guaranteed.
• The heat request must be available.
• Sufficient gas pressure must be
available.
• The fuel supply lines must be assembled
correctly, checked for leaks and bled.
• A standard-compliant measuring point
must be available, the exhaust gas duct up
to the measuring point must be free of
leaks to prevent anomalies in the
measurement results.
1

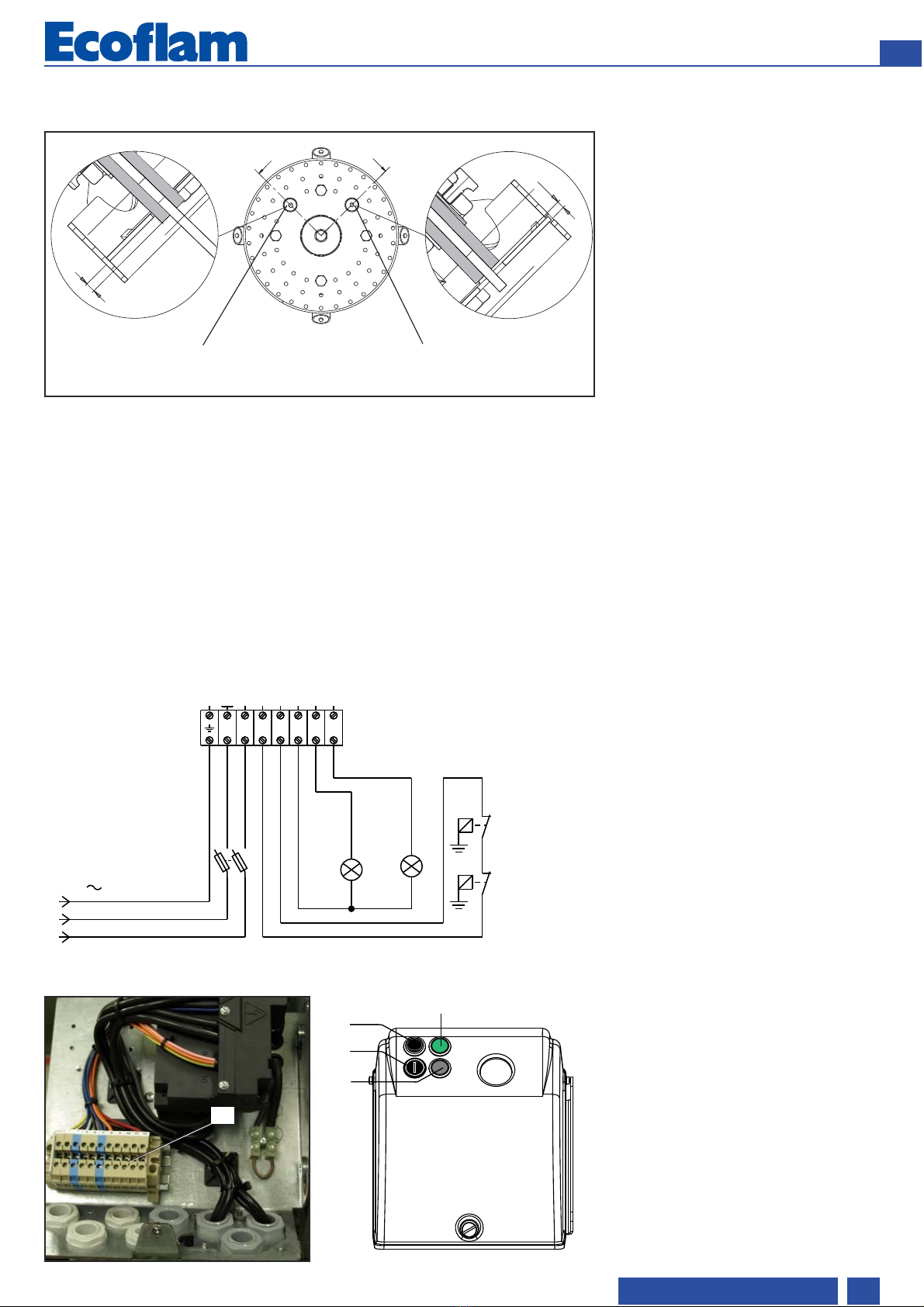

Position of electrodes
Setting the ionisation probe and
ignition electrode: see diagram
Always check the position of the
electrodes after service or substitution
or assembly of LPG kit as wrong position
might cause ignition problem.
Electrical connection (plug-in)
It must be possible to disconnect the
burner from the mains using an
omnipolar shutdown device complying
with the standards in force. The burner
and heat generator (boiler) are connected
to the terminal block of the cabinet (fig.1).
Connecting the gas train
Connect the gas train to the plugs on the
burner.
A
A
2,5
3
IONIZATION
PROBE
IGNITION
ELECTRODE
7NL 5 6
TP
STS
TP
STC
8
50 Hz 230V
L
PE
N
12
QHLB HLF
1- reset key
2- working lamp
3- main switch I / O
4- fuse
3
2
0
I
4
1

12 www.ecoflam-burners.com
EN
420010492300
Start up - Adjusting burner output
!Risk of air blast!
Continuously check CO, CO2and soot emissions when adjusting the output of
the burner. Optimise combustion values in the event of CO formation. CO must
not exceed 50 ppm.
Firing head setting (1).
To act on the screw in figure:
• turn Allen key till you reach the
requested value (index 1-5).
+
-
1
1LIAT
E
D
2LIATED
2
VERSION P
+
-
A
B
Regulating the combustion of the one-
stage burner
• position the air valve in the fully open set-
ting (pos. 4).
(for particularly low power only, if the re-
duction of air is not sufficient with the head
in position 1, reduce the opening of the air
valve).
• dose the air by moving the combustion
head (figure) to suit the power required (as
shown in figure).
• dose the gas by regulating the gas ramp
(see figure in the ramp manual).

13
www.ecoflam-burners.com
EN
420010492300
Start up - Adjusting burner output
Gas pressure diagrams in appendix
Minimum gas pressure required are
indicated in the diagrams in the appendix.
These values have been determined in
our test labs and are useful for the first
switch-on as final setting must be done
using a combustion analyzer.
How to read and adjust the values:
- determine the output required
- determine the combustion chamber back-
pressure
- read the minimum gas pressure required
in the diagrams in appendix.
Optimising combustion values
The factory setting shall be modified
according to the output requeired.
The diagrams of air/head setting
that are available in the appendix
of this manual are a guide for ensuring
that the burner functions as well as
possible.
N.B. observe the minimum required
flue gas temperature specified by the
boiler manufacturer and the requirements
demanded of ue gas ducts for avoiding
condensation.
Adjustment of gas solenoid valve
Refer to the gas train manual for the gas
setting of the gas train selected.
head gas pressure (on elbow) (mbar)
head position
air damper position
Warning: the pre-calibration values have
been determined on EN676 test combu-
stion chambers in ideal conditions, and
are useful for the first switch-on but must
be checked and corrected with calibration
for the individual system.
Example in figure:
Power required by the generator: 380 kW.
Pressure envisaged in combustion cham-
ber: 3.5 mbar. Combustion head chamber:
2.5 (between 2 and 3). Gas pressure in
head: 13 mbar.
pressure in the combustion chamber (mbar)
output (kW)
-1,0
0,0
1,0
2,0
3,0
4,0
5,0
6,0
7,0
8,0
9,0
10,0
50 100 150 200 250 300 350 400 450 500 550 600
16 15 14 13
12,5
12
11,5
1
5
2
5
3
5
4
5
5
5
EXAMPLE OF PRE-CALIBRATION MAX GAS 500 P

14 www.ecoflam-burners.com
EN
420010492300
Start up - Air pressure switch adjustment - Setting gas pressostat
Air pressure switch calibration
The air pressure switch is provided for
monitoring the pressure of the
combustion air fan.
Unscrew screws A and B and remove
cover C.
After the air and gas setting you have to
calibrate the air switch with the burner
working on the low flame by slowly turning
the relative knob clockwise until the burner
locks out. Read the value and then
decrease it by 15%.
WARNING: the air pressure switch shall
prevent the air pressure to go below 85%
from the adjustment value in order to
prevent the CO in the fumes to exceed 1%
(10000 ppm).
Min gas pressure switch
The gas pressure switch has the function
to check that the gas pressure before the
gas valve does have the minimum
pressure to make the burner running
correctly.
Unscrew off and remove cover M.
- Set knob N to a value equal to 60% of
gas nominal feed pressure (i.e. for natural
0,4
0,6
0,9
3,0
1,5
2,1
1,8
2,4
2,7
1,2
A
B
CD
2,5
5
10
15
50
25
35
30
40
45
20
I
L
MN
gas nom. pressure = 20 mbar, set knob to
a value of 12 mbar; for LPG nom. pressure
of G30/G31- 30/37 mbar, set knob to a
value of 18 mbar). Screw up cover M.
Operating check
Flame monitoring must be checked for
safety as part of initial commissioning and
also after servicing or if the system has
been out of operation for any significant
period of time.
- Start attempt with gas ball valve closed:
the automatic combustion control unit must
switch to gas shortage or malfunction after
the end of the safety period.

15
www.ecoflam-burners.com
EN
420010492300
Service - Maintenance
Burner and boiler servicing must only
be carried out by qualified personell.
The system operator is advised to take
out a service contract to guarantee
regular servicing.
Attention
• Disconnect the electrical supply before
carrying out any maintenance or
cleaning work.
• The blast tube and firing head may be
hot.
Checking the exhaust gas temperature
• Check the flue gas temperature at
regular intervals.
• Clean the boiler if the flue gas
temperature is more than 30°C above
the value measured at the time of
commissioning.
• To simplify the check, use a flue gas
temperature indicator.
Removing firing head
• See pictures in the order.
123
456
77 7
89
10 11 12

16 www.ecoflam-burners.com
EN
420010492300
Fan assembly
Observe the positioning diagram above
when replacing the motor and blower
wheel. The inside flange Aof the blower
wheel must be fitted at the same level as
the equipment plate B. Insert a straight
edge between the wing of the blower wheel
and set Aand Bto the same height, tighten
the set screw on the blower wheel
(maintenance position 1).
Maintenance on the burner
• Check gas supply components (tubes,
lines) and their connections for leaks
or signs of wear, replace if necessary.
• Check electrical connections and
connection cables for damage,
replace if necessary.
• Check gas filter, clean or replace as
necessary.
• Clean fan wheel and housing and
check for damage.
• Check and clean the mixing unit.
• Check ignition electrodes block,
readjust or replace as necessary.
• Start burner, check flue gas data,
correct burner settings if necessary.
• Check the setting for air pressure
switch and gas pressostat.
• Check the gas train settings.
• Carry out an operating check.
A
A
2,5
3
Service - Maintenance
13 14 15
16

17
www.ecoflam-burners.com
EN
420010492300

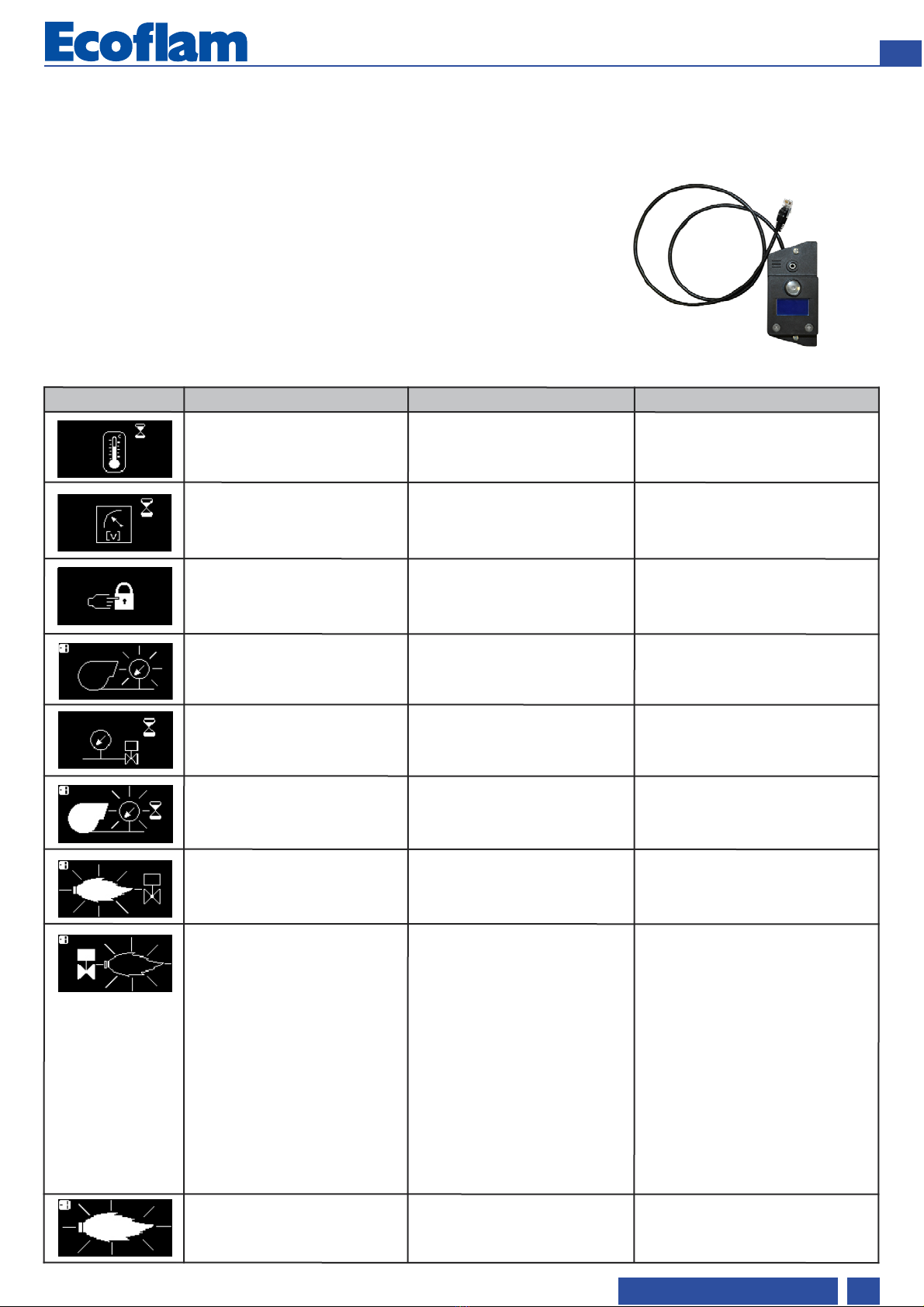

Fault diagnosis and repair
In the event of a malfunction, first check
that the prerequisites for correct
operation are fullfilled:
1. Is the system connected to the
power supply?
2. Is there any gas pressure?
3. Is the gas shut-off valve open?
4. Are all control and safety devices,
such as the boiler thermostat, low
water level detector, limit switch,
etc. adjusted correctly?
If the malfunction persists, use the
following table.
It is not permitted to repair any
components relevant to safety. These
components must be replaced by parts
with the same order number.
Only use original spare parts.
NB: after each operation:
• under normal operating conditions
(doors closed, hood fitted, etc.), check
combustion and check the individual
lines for leaks.
• Record the results in the relevant
documents.
E-BCU diagnostic tool must be used to
read the faults by service personell.
Service - Troubleshooting
Symbol fault Fault Cause Remedy
No heat request Thermostats defective or
incorrectly adjusted
Adjust the thermostats, replace if
necessary.
Burner does not start after
thermostat shutdown
No malfunction indicated on the
automatic combustion control unit
Drop in supply voltage or
power failure.
Control unit malfunction
Check the cause of the fall in voltage or the
power failure
Replace the control unit.
Burner starts briefly when switched on,
switches off and the red LED lights up
Control unit was
deliberately shut down Unlock the unit
Burner does not start
Air pressure switch: not in rest position
Incorrect adjustment
Contact is welded
Readjust the pressure switch
Replace the pressure switch
Burner does not start
Low gas pressure
Insufficient gas pressure
Gas pressostat wrongly set or defective
Check gas lines
Clean the filter
Check the gas pressostat or replace the
compact gas unit
Burner blower starts up
Burner does not start
Air pressure switch: the contact does
not close
Check the pressure transmitter (foreign
bodies) and wiring
Burner blower starts up
Burner does not start
Flaring during pre-ventilation or pre-
ignition
Check the valve
Check flame monitoring
The burner starts, the ignition
switches on, then failure
No flame at the end of the safety period
Gas throughput set incorrectly
Faulty flame monitoring circuit
No ignition arc
Electrode(s) short-circuited
Ignition cable damaged or defective
Ignition transformer defective
Automatic combustion control unit
Solenoid valves do not open
Valves jamming
Adjust the gas throughput
Check the condition and position of the
ionisation sensor in relation to earth
Check the condition and connections of the
ionisation ci rcuit (cable(s) and
measurement bridges)
Adjust, clean or replace electrode(s)
Connect or replace the cable(s)
Replace the transformer
Replace the control unit
Check the cabling between the control
unit and external components
Replace the compact gas unit
Replace the valves
Flame extinguishing
during operation
Air pressure switch: contact opens
during startup or during operation
Flame failure during operation
Adjust or replace the pressure switch
Check the ionisation sensor circuit
Check or replace the automatic
combustion control unit

18 www.ecoflam-burners.com
IT
420010492300
Contenuti generali - Indice - Avvertenze generali
Avvertenze importanti
I bruciatori MAX GAS 350-500 P sono
progettati per la combustione di gas
naturale e di gas propano, con basse
emissioni inquinanti. I bruciatori sono
conformi alla norma EN 676, dal punto di
vista della progettazione e del
funzionamento. Montaggio, messa in
funzione e manutenzione devono essere
eseguiti esclusivamente da personale
tecnico autorizzato, nel rispetto delle
direttive e delle prescrizioni in vigore.
Descrizione del bruciatore
I bruciatori MAX GAS 350-500 P sono
monostadio, a funzionamento
completamente automatico in esecuzione
monoblocco.
La costruzione speciale della testa di
combustione permette di ottenere una
combustione con un debole tasso di ossidi
di azoto e un coefficiente di rendimento
elevato. I valori delle emissioni
corrispondono alla classe 3, come definita
da EN676 (NOx<80mg/kWh).
A seconda della geometria del focolare,
della carica e del sistema di combustione
(caldaia a tre percorsi, caldaia a
combustione inversa), si possono
riscontrare valori di emissione diversi.
Sono adatti per l'allestimento di tutti i
generatori di calore conformi alla norma
EN 303 o degli aerotermi secondo DIN
4794 o DIN 30697 nell'ambito del rispettivo
range di potenza. Per ogni altro utilizzo e
necessaria l'autorizzazione della Ecoflam.
Al fine di garantire un funzionamento
sicuro, non inquinante ed a basso
consumo energetico, è necessario
rispettare le seguenti norme:
EN 676
Bruciatore di gas ad aria soffiata
EN 226
Allacciamento di bruciatori di gasolio a
nebulizzazione e bruciatori di gas ad
aria soffiata su generatori di calore
EN 60335-1, -2-102
Sicurezza degli apparecchi elettrici per uso
domestico, norme particolari per gli
apparecchi con combustione a gas.
Luogo di installazione
Il bruciatore non dev'essere messo in
funzione in locali in cui siano presenti
vapori aggressivi (ad es. lacca per capelli,
percloroetilene, tetracloruro di carbonio),
notevole accumulo di polvere o forte
umidità dell'aria (ad es. lavanderie).
Una adeguata ventilazione deve essere
fornita nel locale dell’installazione in modo
da garantire le condizioni per una buona
combustione.
Si possono riscontrare scostamenti
dovuti ad eventuali normative locali.
Si esclude qualsivoglia responsabilità
per eventuali danni derivanti dalle
seguenti cause:
- utilizzo non conforme.
- montaggio difettoso e/o riparazione a
cura dell'acquirente o terzi, ivi inclusa
l'applicazione di elementi di origine
estranea.
Consegna e istruzioni per l'uso
Il costruttore dell'impianto di combustione
è tenuto a consegnare al gestore
dell'impianto, al più tardi all'atto della
consegna dello stesso, le istruzioni per
l'uso e la manutenzione. Queste istruzioni
devono essere appese nel locale di
installazione del generatore termico in
modo ben visibile. Devono essere indicati
l'indirizzo ed il numero telefonico del punto
di assistenza più vicino.
Avvertenza per il gestore
L'impianto dev'essere controllato almeno
una volta l'anno da un tecnico specia-
lizzato. Al fine di garantire un'esecuzione
regolare, si suggerisce di stipulare un
contratto per la manutenzione
dell'impianto.
I bruciatori Ecoflam sono stati progettati e costruiti nel rispetto delle normative e direttive correnti.
Tutti i bruciatori rispondono alle normative sulla sicurezza e sul risparmio energetico nel limite del
campo di lavoro dichiarato.
La qualità del prodotto è garantita dal sistema di certificazione in base alla norma ISO 9001:2008.
Panoramica Dati tecnici 3
Curve di lavoro 4
Dimensioni d’ingombro 5
Contenuti generali Indice 18
Avvertenze generali 18
Descrizione del bruciatore 19
Funzione Funzioni generali di sicurezza 20
Programmatore di comando e sicurezza E-BCU GAS 21
Installazione Montaggio del bruciatore 22
Connessione elettrica - Controlli da eseguire prima della messa in funzione 23
Messa in funzione Regolazione del bruciatore 24-25
Regolazione dei pressostati aria e gas 26
Assistenza Manutenzione 27-28
Possibili inconvenienti 29
Panoramica Diagrammi di pressione gas 42-43
Schemi elettrici 44-45
Parti di ricambio 46-47
Contenuti generali Dichiarazione di conformità 48

19
www.ecoflam-burners.com
IT
420010492300
A1 E-BCU Gas programmatore di comando
e sicurezza gas.
F6 Pressostato aria
M1 Motore elettrico
T1 Trasformatore d'accensione
3 Regolazione dell'aria nella testa di
combustione.
5 Fusione
8 Boccaglio
15 Flangia bruciatore
113 Cuffia aria
Imballaggio
Il bruciatore è consegnato con un sistema modulare di
imballo (scatole separate):
BBCH: Brucitore completo con testa di combustione e
flangia.
- 1 sacchetto : - manuale tecnico in multilingue.
- spina wieland.
- chiave esagonale.
- viti, dadi e rosette.
GT: Rampa Gas separata
KIT & ACS ordinabili e consegnati separatamente
KIT & ACS ordinabili e
consegnati separatamente
Contenuti generali - Descrizione del bruciatore
MAX GAS 350 LN P TC SGT 230-50 TW
MAX GAS Gas
NOME
MAX GAS 350350 kW
MODELLO (Gas: kW; Gasolio: kg/h)
LN Low NOx Classe 3 GAS EN676 (<80 mg/kWh)
- Standard Classe 2-GAS EN676 (<120 mg/kWh)
EMISSIONI
P1 stadio
PAB 2 stadio
TIPO DI FUNZIONAMENTO
TC Testa corta
TL Testa lunga
TIPO TESTA
Gas Naturale
LPG Gas Propano
COMBUSTIBILE
230-50 230 Volt, 50 Hz
TENSIONE DI ALIMENTAZIONE
SGT Rampa gas separata
EQUIPAGGIAMENTO
TW Thermowatt
APPARECCHIATURA DI CONTROLLO
3
113
5
8
A1
15
F6 M1
14

20 www.ecoflam-burners.com
IT
420010492300
Funzione - Funzioni generali di sicurezza
Descrizione del funzionamento
Alla prima messa sotto tensione, dopo
un'interruzione di corrente e una fase di
messa in sicurezza, dopo un'interruzione
di gas o dopo un arresto di 24 ore,
comincia un tempo di preventilazione di
24 sec.
Durante il tempo di preventilazione:
- la pressione dell'aria viene monitorata.
- controllo della presenza di eventuali
segnali di fiamma anomali.
Al termine del tempo di preventilazione
- l'accensione e inserita.
- l'elettrovalvola principale e di sicurezza e
aperta.
- il bruciatore si avvia.
Sorveglianza
La fiamma viene monitorata da una sonda
di ionizzazione. La sonda e montata in
modo isolato sulla testa del gas ed e
diretta attraverso il disco fiamma nella
zona della fiamma. La sonda non deve
avere alcun contatto elettrico con
componenti messi a terra. Se compare un
cortocircuito tra la sonda e la massa del
bruciatore, il bruciatore entra in stato di
anomalia. Durante il funzionamento, nella
fiamma del gas si crea una zona
ionizzata, attraverso la quale circola una
corrente raddrizzata dalla sonda verso il
boccaglio. La corrente di ionizzazione
deve essere superiore a 1,5 µA.
Funzioni di sicurezza
- Se all'avvio del bruciatore (rilascio del
gas) non si forma la fiamma, il bruciatore
viene arrestato al termine di un intervallo
di sicurezza di max. 3 secondi, la valvola
del gas si
chiude.
- In caso di anomalia della fiamma
durante il funzionamento, l'alimentazione
del gas si interrompe nella frazione di un
secondo. Viene avviata una nuova messa
in funzione. Se il bruciatore si avvia, il
ciclo di funzionamento prosegue. In caso
contrario si instaura una fase di messa in
sicurezza.
- In caso di mancanza d'aria durante la
preventilazione o il funzionamento, si
instaura una fase di messa in sicurezza.
- In caso di mancanza di gas, il bruciatore
non si mette in funzione e/o si arresta.
Segue un tempo di attesa di 2 minuti al
termine del quale avviene un nuovo
tentativo di avvio. Se la mancanza di
pressione del gas perdura, si avvia un
nuovo tempo di attesa di 2 minuti.In
questo caso, il tempo di attesa puo essere
interrotto esclusivamente dallo
spegnimento del bruciatore. Tempo di
attesa: 3 x 2 min., poi 1 ora.
Arresto di regolazione
- Il termostato di regolazione interrompe la
richiesta di riscaldamento.
- Le valvole gas si chiudono.
- La fiamma si spegne.
- Il motore del ventilatore si ferma
- Il bruciatore e pronto per il
sucessivo funzionamento.
1108106
119
Y12104F4119.1119pBrY13
119.2
F6
F4 Pressostato gas minima
F6 Pressostato aria
Y13 Elettrovalvola gas
Y12 Elettrovalvola gas di sicurezza
1Valvola di sicurezza ad azionamento termico
(deve essere montata dall'installatore)
104 Regolatore di pressione gas
106 Filtro
108 Valvola di arresto del gas
(deve essere montata dall'installatore)
119pBr Punto di misurazione della pressione del gas
all'uscita della valvola
119.1 Punto di misurazione della pressione del gas tra le
valvole
119.2 Punto di misurazione della pressione dell'aria
