Ecoflam Max Gas 70 P AB User manual

MAX GAS 70 P AB
MAX GAS 105 P AB
MAX GAS 120 P AB
Low Nox
220V 50/60 Hz
420010386102
29.11.2011
BLOWN AIR GAS BURNERS

420010386101 Max Gas 70-105-120 P AB420010386102 Max Gas 70-105-120 P AB
pag.2
MODELS A B C D D1 E F G I L M N O P
MAX GAS 70 P AB 386 155 231 85 185 282 89 160 100/120 100/120 M8 52 71 82
MAX GAS 105 P AB 400 169 231 140 220 282 89 160 100/120 100/120 M8 52 71 82
MAX GAS 120 P AB 400 169 231 160 240 282 98 160 100/120 100/120 M8 52 71 82
D = SHORT HEAD D1= LONG HEAD
WORKING FIELDS
Max Gas 70 P AB Max Gas 105 P AB Max Gas 120 P AB
Termal power max. kW 70 108 120
kcal/h 60.340 96.100 103.450
Termal power max kW 25 40 40
kcal/h 21.600 34.480 34.480
TECHNICAL DATA
OPERATING FEATURES
Models : Max Gas 70-105-120 PAB Gas family
G20 G25 G31 G30
Max. gas pressure* mbar 360 360 360 360
Min. gas pressure* mbar 12 12 30 30
Fuel L.C.V. kcal/Nm38.570 7.370 22.260 29.320
Models : Max Gas 70 PAB
Gas flow rate max. 7,04 Nm3/h 8,19 Nm3/h 2,71 Nm3/h 2,06 Nm3/h
min. 2,52 Nm3/h 2,93 Nm3/h 0,97 Nm3/h 0,74 Nm3/h
Models : Max Gas 105 PAB
Gas flow rate max. 11,21 Nm3/h 13,04 Nm3/h 4,32 Nm3/h 3,28 Nm3/h
min. 4,67 Nm3/h 4,68 Nm3/h 1,55 Nm3/h 1,17 Nm3/h
Models : Max Gas 120 PAB
Gas flow rate max. 12,07 Nm3/h 14,04 Nm3/h 4,65 Nm3/h 3,53 Nm3/h
min. 4,67 Nm3/h 4,68 Nm3/h 1,55 Nm3/h 1,17 Nm3/h
Output
Backpressure in comb. chamber
CB
A
E
D-D1
F
G
M
126
151
I
L
NP
O
178,5
52,5
OVERALL DIMENSIONS
* : Minimum/maximum gas inlet pressures depend by the gas train matched to the burner. The values are written on the gas trains manual.
10 20 30 40 50 60 70
0
0,5
1
1,5
2
2,5
3
3,5
4
10 20 30 40 50 60 70 80
kcal/h
x 1000
kW
80 90 100
90 100 110 120
MAX GAS 105 PAB
mbar
MAX GAS 120 PAB
MAX GAS 70 PAB
MAX GAS 70 PAB
Gas family : AT I2H, I3B/P BE I2E(R)B, I3P DE I2E, I3B/P DK I2H, I3B/P SE I2H, I3B/P
ES I2H, I3P FI I2H, I3B/P FR I2Er, I3B/P GB I2H, I3B/P NL I2L, I3B/P
GR I2H, I3B/P IE I2H, I3B/P IT I2H, I3B/P PT I2H, I3B/P

420010386101 Max Gas 70-105-120 P AB420010386102 Max Gas 70-105-120 P AB
pag.3
To calculate the burner’s working output, in kW, proceed as follows:
- Check at the meter the quantity of supplied litres and the duration, in seconds, of the
reading, then calculate the burner’s output through the following formula:
CALCULATION OF WORKING OUTPUT OF THE BURNER
e x f = kW
s
e = Litres of gas
s = Time in seconds
G20 = 34,02
G25 = 29,25
G30 = 116
G31 = 88
f
STARTING-UP THE BURNER
PRELIMINARY CHECKS
Before starting up the boiler check the following: - gas type and feed pressure; - gas valves closed; - the seals in the pipe
fittings; - gas pipe breather and input pressure; - that the cable complies with the diagram and the phase and neutral
wires correspond; - that the burner shuts down when the boiler thermostat opens; - the seal of the boiler furnace which
prevents air from entering; - the seal on the flue-boiler pipe fitting; - the condition of the flue (sealed, free from blocka-
ge, etc ). If all these conditions are present, start the burner. The control device starts the motor to carry out prewashing
of the combustion chamber. During this prewash period (about 30 seconds) the device checks that air pressure is correct
via the air pressure switch. At the end, it supplies power to the transformer and opens the gas valves. The flame must be
lit and stabilize within 3 seconds, which is the device's safety time limit. Check to ensure the flame is lit before placing
any control instrument in the flue. Adjust and check the gas flow necessary for the boiler at the meter. Adjust the air
flow according to the gas flow to obtain correct combustion.
IMPORTANT ADVICE
All adjustable parts must be fixed by the installer after making adjustments. Check flue combustion after each adjusti-
ment. The CO2values must be approx. 9.7 (G20) 9.6 (G25 11.7 (G30) 11.7 (G31) and the CO must be less than 75
ppm.

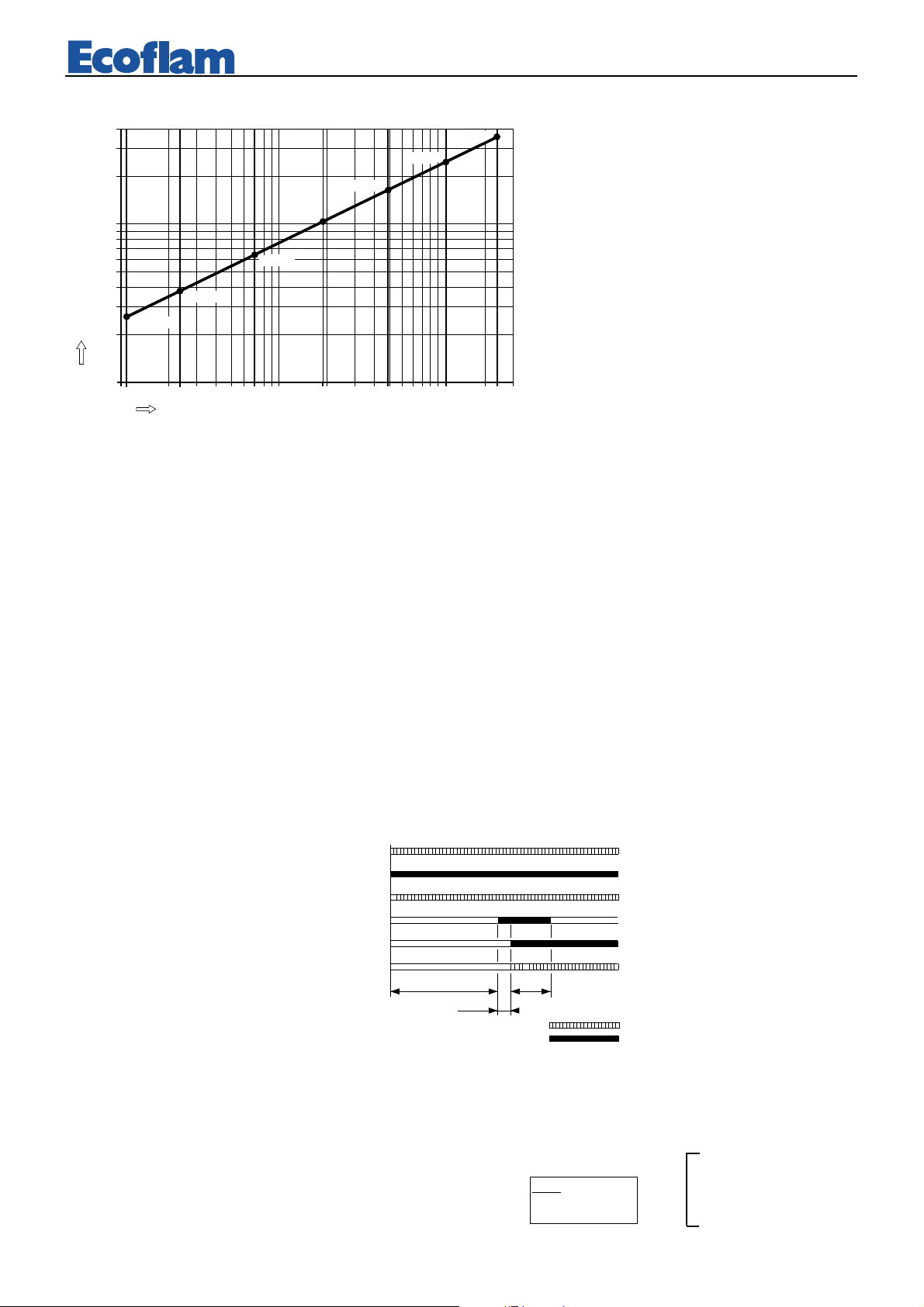

Longueur chambre de combustion
d= diamètre chambre de combustion
12 24 40 70 100 190 480 1200 2450
0,1
0,2
0,3
0,4
0,5
0,6
1,0
2,0
3,0
4,0
d=0,5
(b)
(a) kW
d=0,8
d=0,7
d=0,6
d=0,4
d=0,3
d=0,225
Installation must be carried out in compliance with the local provisions
The burners have been certified in combustion
chambers according to EN 676 standards.
Consult the burner manufacturer if the com-
bustion chamber of the boiler in which the
burner is to be installed has smaller dimen-
sions.
(LANDIS & STAEFA LGB 21/LGB 22 UP CYCLE
Thermostat
motor
Transformer
Gas valve
Flame
≥ 30 s
0,5 s
3 s
Air pressure switch
Necessary input signal
output signal of the device

420010386101 Max Gas 70-105-120 P AB420010386102 Max Gas 70-105-120 P AB
pag.4
ADJUSTING THE AIR PRESSURE SWITCH
The air pressure switch must be adjusted so that an insufficient air flow does not allow
the CO value to exceed 1% in volume. After having adjusted the gas flow and obtained
optimum combustion (CO2= 9.5 to 9.8% and a CO value of less than 75 ppm), the air
pressure switch must be adjusted. Remove the cover with the burner operating, cover
the air intake progressively with a piece of cardboard to obtain a value of CO2= 10.8
(G20-G25)> 13 (G30-G31) and a CO value of less than 5,000 ppm. Adjust the air
pressure switch until the burner shuts down. Remove the cardboard from the air intake
and start up the burner again. Replace the cover.
ADJUSTING THE GAS PRESSURE SWITCH
Adjust the pressure switch to 50% of the rated pressure of the gas used.
RARED PRESSURE: G 20 = 20 mbar
G 25 = 25 mbar
G 30 = 29 mbar
G 31 = 37 mbar
0,4
0,6
0,9
3,0
1,5
2,1
1,8
2,4
2,7
1,2
A
B
2,5
5
10
15
50
25
35
30
40
45
20
C
D
+
-
0
1
2
SETTING THE FIRING HEAD

    
   
FLAME DETECTION SYSTEM CHECK
With the burner switched off, connect a DC microammeter with a 0÷50 or 0÷100 µA dial. When the burner is run-
ning, and is properly adjusted, the value read must be steady and never be smaller than 3 µA(Landis).

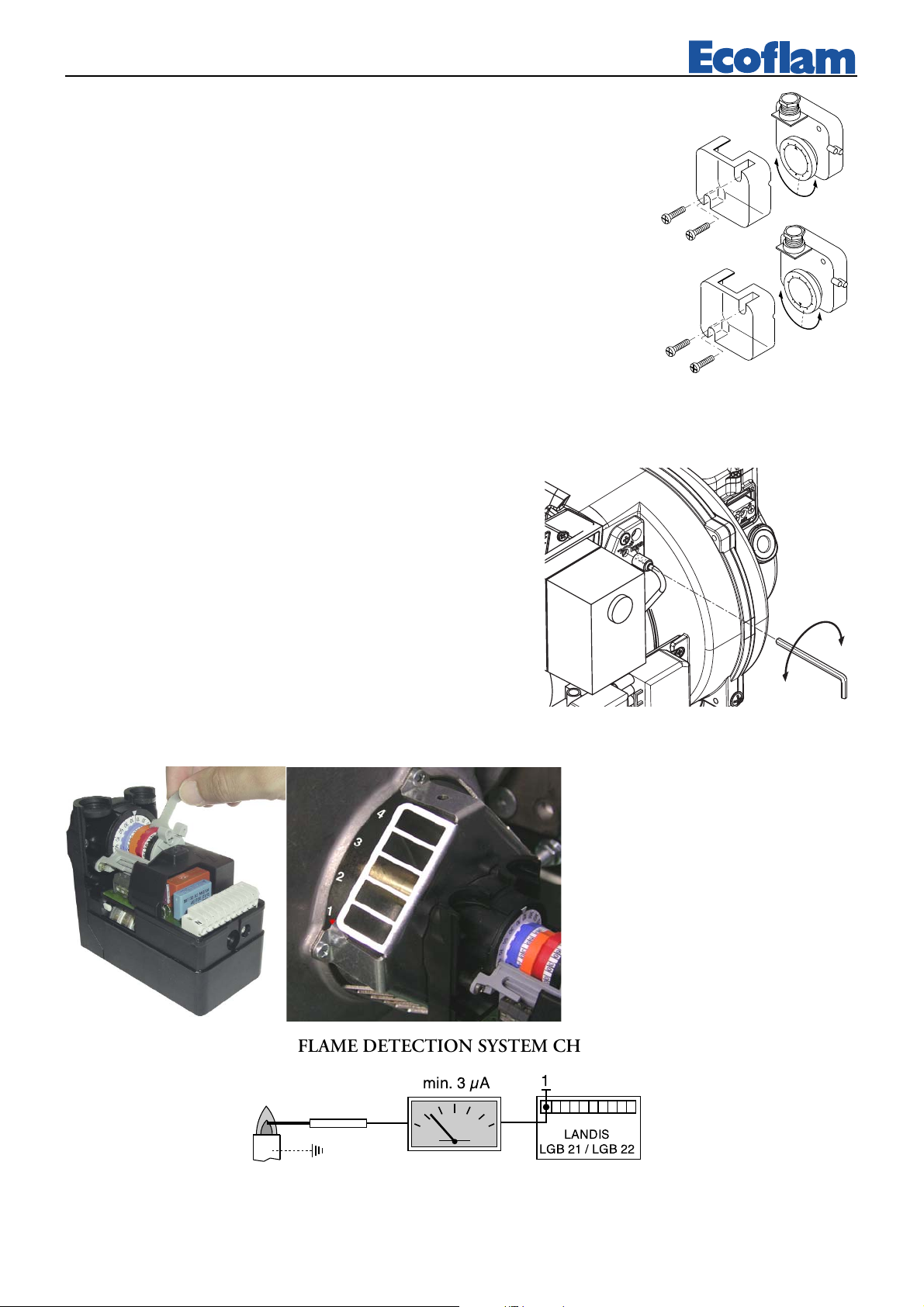

ADJUSTMENT AIR SERVOMOTOR ( SIEMENS SQN 75 )
Remove cover to enter the adjusting cams. Adjust cams through the suitable
key (on issue) and a screwdriver.
FOR THE ADJUSTEMENT OPERATE ON SERVOMOTOR CAMS
AND MAKE REFERENCE TO THE INDEX ON AIR DAMPER (SEE
Pic. A)
Description:
I – Adjusting cam (BLUE) for air damper position on burner’s shutdown
(totally close 0°).
II – Adusting cam (ORANGE) for ignition position and Low Flame
(adjust by the screwdriver).
III – Adjusting cam (RED) for High Flame position (max.output air damper
setting = 9).
IV – Adjusting cam (BLACK) to allow the opening of High flame solenoid
valve (cam position has to be between II and III).
Pic.A

420010386101 Max Gas 70-105-120 P AB420010386102 Max Gas 70-105-120 P AB
pag.5

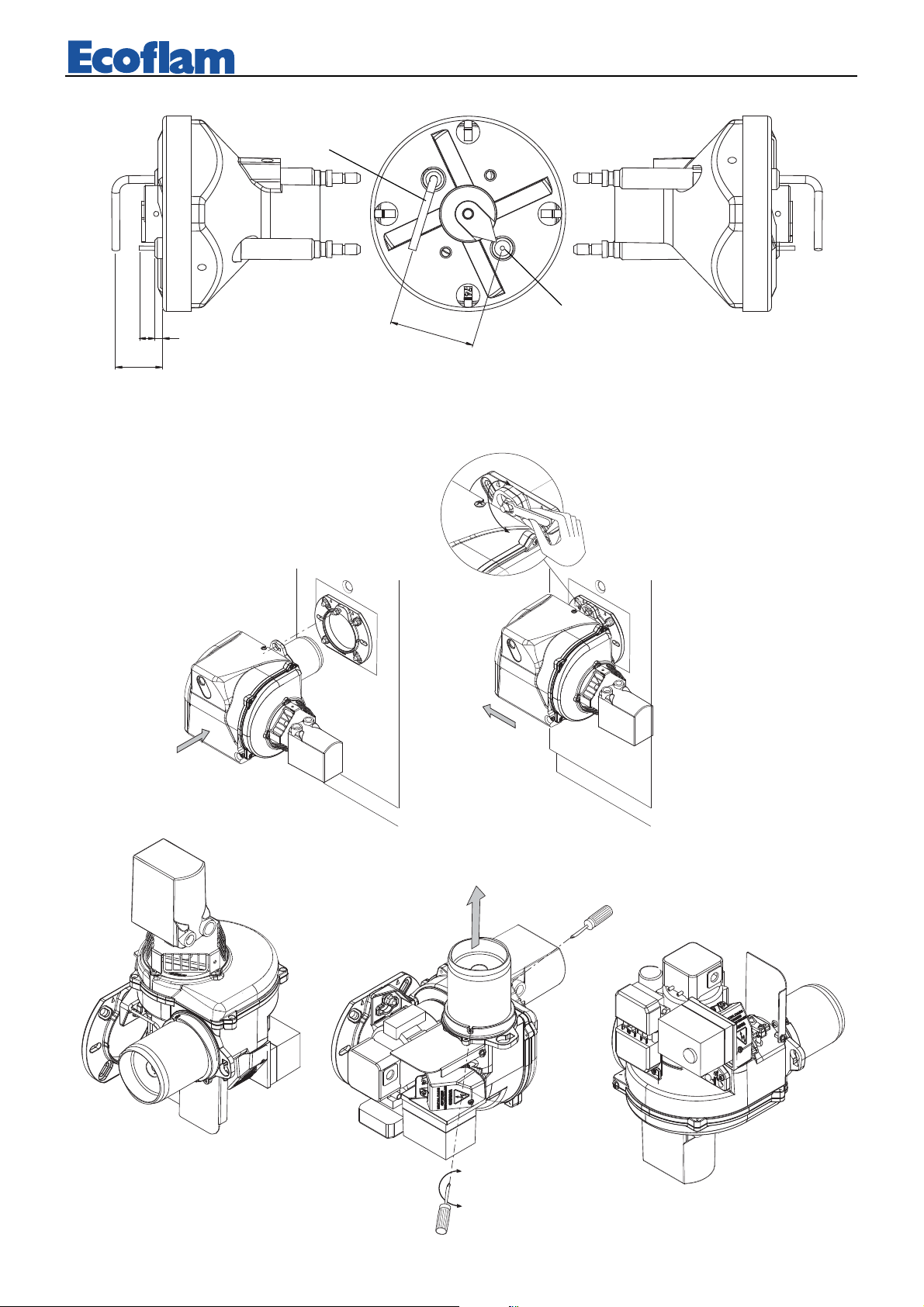

MOUNTING TO THE BOILER
+
–
TUBE DISASSEMBLY
–
+
2
3
1
NOTE: For the conversion from Natural Gas into LPG see LBKIT1 manual
POSITION OF ELECTRODES
18
36
30
IGNITION
ELECTRODE
IONIZATION
PROBE

420010386101 Max Gas 70-105-120 P AB420010386102 Max Gas 70-105-120 P AB
pag.6
MAINTENANCE
YEARLY INSPECTION
Periodic inspection of the burner (combustion head, electrodes, etc.) must be carried out by authorised per-
sonnel once or twice a year, depending of use. Before carrying out maintenance inspection on the burner, it
is advisable to check its general condition and carry out the following operations:
- Disconnect the burner from the power supply (remove the plug).
- Close the gas cock.
- Remove the burner cover, clean the fan and air intake.
- Clean the combustion head and check the position of the electrodes.
- Re-assemble the parts.
- Check the seal on the gas pipe fittings.
- Check the flue.
- Restart the burner.
- Check the combustion parameters (CO2= 9.5 to 9.8),(CO = less than 75 ppm)
BEFORE EACH INTERVENTION CHECK;
- That the system is supplied with power and the burner connected.
- That the gas pressure is correct and the gas cock open.
- That the control systems are correctly connected.
If all these conditions are present, start the burner by pressing the release button. Check the burner cycle.
THE BURNER WILL NOT START;
- Check the switch, thermostats, motor, gas pressure.
THE BURNER PREVENTILATES AND LOCKS AT THE END OF THE CYCLE:
- Check the air pressure and fan.
- Check the air pressure switch.
THE BURNER PREVENTILATES AND WILL NOT IGNITE:
- Check the assembly and position of electrodes.
- Check the ignition cable.
- Check the ignition transformer.
- Check the safety devices.
THE BURNER STARTS UP AND LOCKS AFTER THE SAFETY TIME LIMIT:
- Check that the phase and neutral wires are correctly connected.
- Check the gas electrovalves.
- Check the position of the detection electrode and its connection.
- Check the detection electrode.
- Check the safety devices.
THE BURNER STARTS UP AND LOCKS AFTER RUNNING FOR A FEW MINUTES.
- Check the pressure regulator and the gas filter.
- Check the gas pressure with an ammeter.
- Check the detection value (min 3 µA Landis).

420010386101 Max Gas 70-105-120 P AB420010386102 Max Gas 70-105-120 P AB
pag.7
3231121089 11645213
LANDIS LGB 22.330A27
7
ELECTROVALVULA GAS DE 2^ LLAMA ELECTROVANNE GAZ GRANDE ALLURE SECOND STAGE GAS SOLENOID VALVE
YVG2 ELETTROVALVOLA GAS DI SECONDA FIAMMA
ELECTRODO DE IONIZACION ELECTRODE D'IONISATION IONISATION PROBE MOTOR VENTILADOR MUTEUR VENTILATEUR MOTOR FAN TRANSFORMADOR TRANSFORMATEUR D'ALLUMAGE IGNITION TRANSFORMER ESPIA DE 2^ LLAMA LAMPE DE 2^ ALLURE 2.ST FLAME LAMP ESPIA DE BLOQUEO LAMPE DE SECURITE LUCK-OUT LAMP PRESOSTATO AIRE PRESSOSTAT AIR AIR PRESSURE SWITCH ESPIA DE 1^ LLAMA LAMPE DE 1^ ALLURE 1.ST FLAME LAMP INTERRUPTOR GENERAL CON FUSIBLE INTERRUPTEUR GENERAL AVEC FUSIBLE MAIN SWITCH WITH FUSE TERMOSTATO CALDERA THERMOSTAT CHAUDIERE BOILER THERMOSTAT TERMOSTATO DE SEGURIDAD THERMOSTAT DE SECURITE SAFETY THERMOSTAT TERMOSTATO DE ALTA-BAJA LLAMA THERMOSTAT GRANDE-PETIRE ALLURE HIGH-LOW FLAME THERMOSTAT ELECTROVALVULA GAS DE SEGURIDAD ELECTROVANNE GAZ DE SECURITE EXTRA SAFETY GAS SOLENOID VALVE PRESOSTATO GAS DE MINIMA POT. PRESSOSTAT GAZ PRESSION MIN GAS PRESSURE SWITCH MIN ELECTROVALVULA GAS DE 1^ LLAMA ELECTROVANNE GAZ PETITE ALLURE FIRST STAGE GAS SOLENOID VALVE PRESSOSTATO GAS DI MINIMASPGmin ELETTROVALVOLA GAS DI SICUREZZAYVGS ELETTROVALVOLA GAS DI PRIMA FIAMMAYVG1 TERMOSTATO DI ALTA-BASSA FIAMMASTAB TERMOSTATO DI SICUREZZASTS TERMOSTATO CALDAIASTC PRESSOSTATO ARIASPA LAMPADA DI BLOCCOHLB LAMPADA DI SECONDA FIAMMAHL2 LAMPADA DI PRIMA FIAMMAHL1 TRASFORMATORETV MOTORE VENTILATOREMV ELETTRODO DI RIVELAZIONEER INTERRUTTORE GENERALE CON FUSIBILEQ
M
1
P
T
ATTENTION
AL LADO. NON ECOFLAM VER AL ESQUEMA PARA INSTALACION EN CALDERAS ECOFLAM, SUNRE LE SCHEMA A COTE. CHAUDIERES NON FABRIQUER PAR POUR INSTALLATION SUR
CUIDADO !
PER ACCOPIAMENTO CON CALDAIE FOLLOW THE DIAGRAM SHOWN. NOT MANUFACTURES BY ECOFLAM FOR INSTALLATION ON BOILES NON ECOFLAM, L'INSTALLATORE DEVE EFFETTUARE I COLLEGAMENTI RIPORTATI A LATO.
WARNING ! ATTENZIONE !
2 13
YVGSYVG2 YVG
TP
SOST.DA
IND.MOD.
SOST.IL
PROPRIETA' RISERVATA DELLA DITTA ECOFLAM S.p.A.
DESCRIZIONE MODIFICA
DISEGNATO CONTROLLATO
DATA-FIRMA
DATA
FIRMA
DATA
FIRMA
COMUNICARE A TERZI IL CONTENUTO DEL PRESENTE.A TERMINE DI LEGGE E' VIETATO RIPRODURRE O
CONTROLLO DI TENUTAAPPARECCHIATURA
UFF.TECNICO-SETTORE ELETTRICO
DENOMINAZIONE
SIST. RIVELAZ. CODICE IND.MODIFICA
MOTORIDUTTORE
S.p.A.
00 01 02 03 04 05 06 07 08 09
A
00 01 02 03 04 05 06 07 08 09
B C D E
A B C D E
ER
PE
N
L
50 Hz 220 V
Q
L1N L1N
S3 T2B4
T2S3B4
T1 T1
P
T
STC
P
T
STSHL1HL2 HLB
T6T7T8
T6T8 T7
TP
STAB
B5 B5
7864521N
LANDIS SQN75.224A20
3
MV
TV
SPA
BEM01095

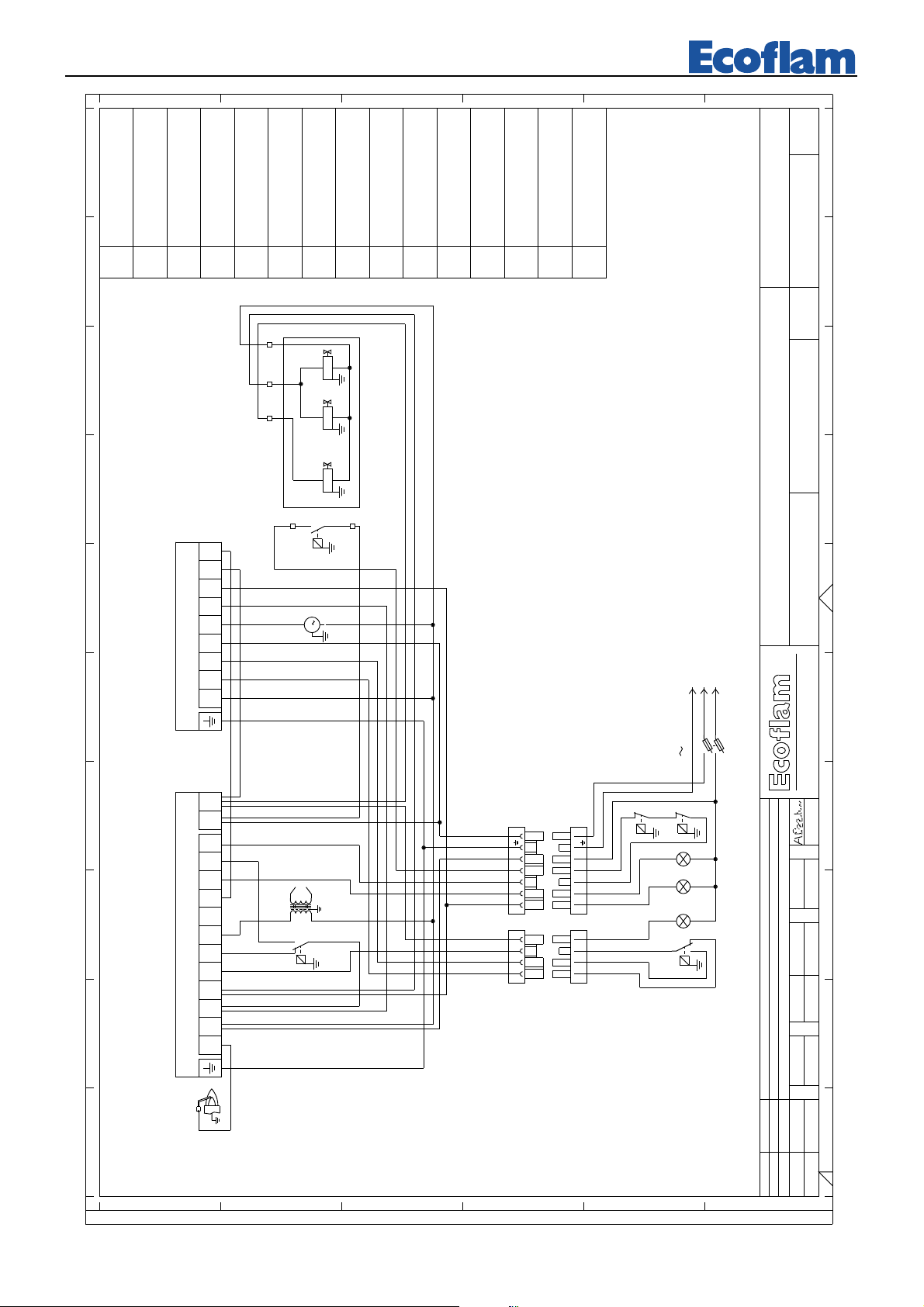

MAX GAS 70-120-170-250 PAB / MAX GAS 120-170-250 PAB ECOMAX N LANDIS SQN 75.224A20
LANDIS LGB 22.330A27 ER
28-07-2005
SPGmin
2 3

420010386101 Max Gas 70-105-120 P AB420010386102 Max Gas 70-105-120 P AB
pag.8
3231121089 11645213
LANDIS LGB 22.330A27
7
ELECTROVALVULA GAS DE 2^ LLAMA ELECTROVANNE GAZ GRANDE ALLURE SECOND STAGE GAS SOLENOID VALVE
YVG2 ELETTROVALVOLA GAS DI SECONDA FIAMMA
ELECTRODO DE IONIZACION ELECTRODE D'IONISATION IONISATION PROBE MOTOR VENTILADOR MUTEUR VENTILATEUR MOTOR FAN TRANSFORMADOR TRANSFORMATEUR D'ALLUMAGE IGNITION TRANSFORMER ESPIA DE 2^ LLAMA LAMPE DE 2^ ALLURE 2.ST FLAME LAMP ESPIA DE BLOQUEO LAMPE DE SECURITE LUCK-OUT LAMP PRESOSTATO AIRE PRESSOSTAT AIR AIR PRESSURE SWITCH ESPIA DE 1^ LLAMA LAMPE DE 1^ ALLURE 1.ST FLAME LAMP INTERRUPTOR GENERAL CON FUSIBLE INTERRUPTEUR GENERAL AVEC FUSIBLE MAIN SWITCH WITH FUSE TERMOSTATO CALDERA THERMOSTAT CHAUDIERE BOILER THERMOSTAT TERMOSTATO DE SEGURIDAD THERMOSTAT DE SECURITE SAFETY THERMOSTAT TERMOSTATO DE ALTA-BAJA LLAMA THERMOSTAT GRANDE-PETIRE ALLURE HIGH-LOW FLAME THERMOSTAT ELECTROVALVULA GAS DE SEGURIDAD ELECTROVANNE GAZ DE SECURITE EXTRA SAFETY GAS SOLENOID VALVE PRESOSTATO GAS DE MINIMA POT. PRESSOSTAT GAZ PRESSION MIN GAS PRESSURE SWITCH MIN ELECTROVALVULA GAS DE 1^ LLAMA ELECTROVANNE GAZ PETITE ALLURE FIRST STAGE GAS SOLENOID VALVE PRESSOSTATO GAS DI MINIMASPGmin ELETTROVALVOLA GAS DI SICUREZZAYVGS ELETTROVALVOLA GAS DI PRIMA FIAMMAYVG1 TERMOSTATO DI ALTA-BASSA FIAMMASTAB TERMOSTATO DI SICUREZZASTS TERMOSTATO CALDAIASTC PRESSOSTATO ARIASPA LAMPADA DI BLOCCOHLB LAMPADA DI SECONDA FIAMMAHL2 LAMPADA DI PRIMA FIAMMAHL1 TRASFORMATORETV MOTORE VENTILATOREMV ELETTRODO DI RIVELAZIONEER INTERRUTTORE GENERALE CON FUSIBILEQ
M
1
P
T
213
YVGSYVG2 YVG
TP
SOST.DA
IND.MOD.
SOST.IL
PROPRIETA' RISERVATA DELLA DITTA ECOFLAM S.p.A.
DESCRIZIONE MODIFICA
DISEGNATO CONTROLLATO
DATA-FIRMA
DATA
FIRMA
DATA
FIRMA
COMUNICARE A TERZI IL CONTENUTO DEL PRESENTE.A TERMINE DI LEGGE E' VIETATO RIPRODURRE O
CONTROLLO DI TENUTAAPPARECCHIATURA
UFF.TECNICO-SETTORE ELETTRICO
DENOMINAZIONE
SIST. RIVELAZ. CODICE IND.MODIFICA
MOTORIDUTTORE
S.p.A.
00 01 02 03 04 05 06 07 08 09
A
00 01 02 03 04 05 06 07 08 09
B C D E
A B C D E
ER
PE
N
L
Q
L1N L1N
S3 T2B4
T2S3B4
T1 T1
P
T
STC
P
T
STSHL1HL2 HLB
T6T7T8
T6T8 T7
TP
STAB
B5 B5
7864521N
LANDIS SQN75.224A20
3
MV
TV
SPA
BEM01108
MAX GAS 170-250 PAB LANDIS SQN 75.224A20
LANDIS LGB 22.330A27 ER
19-04-2007
SPGmin
2 3
60 Hz 220 V

420010386101 Max Gas 70-105-120 P AB420010386102 Max Gas 70-105-120 P AB
pag.9
15
Z
16
MAX GAS 70 P AB
MAX GAS 105 P AB MAX GAS 120 P AB
1
11
12
3
4
5
17
7
9
13
18
19
22
23
6
30
32
33
MAX GAS 105 PAB -120 PAB
33
32
34
8
10
24
20
27
26
25
21
28
29
35

420010386101 Max Gas 70-105-120 P AB420010386102 Max Gas 70-105-120 P AB
pag.10
TC = SHORT HEAD TL = LONG HEAD
MAX GAS 70 PAB
N° DESCRIPTION code
1AIR PRESSURE SWITCH LGW10A2P 65323047
2AIR INTAKE SET -
3BURNER COVER 65320602
4 MOTOR 75 W 65325327
5CAPACITOR 3 µF AEG 65321857
5 µF SIMEL 65325038
6GASKET 65321109
7FAN 120 x 50 65321770
8AIR DAMPER 65325146
9FAN SCOOP 65320621
10 AIR INTAKE 65325147
11 CONTROL BOX BASE LANDIS 65320092
12 CONTROL BOX LANDIS LGB 22 65320034
13 IGNITION TRANSFORMER 65323258
14 WIRING TERMINAL BOX -
15 COVER 65320663
16 ANTIJAMMING FILTER -
17 ORING 65321061
18 IONIZATION CABLE TC 65322006
TL 65322006
19 IGNITION CABLE TC 65320934
TL 65320936
20 IONIZATION PROBE 65320905
21 IGNITION ELECTRODE 65325241
22 ROD TC 65320162
TL 65320163
23 SUPPORT PIPE TC 65321528
TL 65321529
24 FIRING HEAD 65321568
25 HEAD CAP 65321569
26 DIFFUSER 65320761
27 TOOTH G20-25 65325238
G30-31 65325239
28 BLAST TUBE TC 65320311
TL 65320312
29 INNER ASSEMBLY G20-25 65322572
G30-31 65324794
30 FLANGE 65320972
31 CARTER -
32 PLUG WIELAND 7 pin 65322069
4 pin 65322065
33 SOCKET WIELAND 7 pin 65322070
4 pin 65322068
34 AIR DAMPER MOTOR Landis SQN75.224A21 65106029
35 NEEDLE 65325240

420010386101 Max Gas 70-105-120 P AB420010386102 Max Gas 70-105-120 P AB
pag.11
TC = SHORT HEAD TL = LONG HEAD
MAX GAS 105 PAB MAX GAS 120 PAB
N° DESCRIPTION code code
1GAS PRESSURE SWITCH LGW10A2P 65323047 65323047
2AIR INTAKE SET - -
3BURNER COVER 65320602 65320602
4 MOTOR 75 W 65325327 65325327
5CAPACITOR 3 µF AEG 65321857 65321857
5 µF SIMEL 65325038 65325038
6GASKET 65321109 65321109
7FAN 120 x 50 65321770 65321770
8AIR DAMPER 65325146 65325146
9FAN SCOOP 65320621 65320621
10 AIR DAMPER MOTOR SUPPORT 65325147 65325147
11 CONTROL BOX BASE LANDIS 65320092 65320092
12 CONTROL BOX LANDIS LGB 22 65320034 65320034
13 IGNITION TRANSFORMER 65323258 65323258
14 WIRING TERMINAL BOX - -
15 COVER 65320663 65320663
16 ANTIJAMMING FILTER - -
17 ORING 65321061 65321061
18 IONIZATION CABLE TC 65322006 65322006
TL 65322006 65322006
19 IGNITION CABLE TC 65320934 65320934
TL 65320936 65320936
20 IONIZATION PROBE 65320905 65320905
21 IGNITION ELECTRODE 65325241 65325241
22 ROD TC 65320164 65320164
TL 65320165 65320165
23 SUPPORT PIPE TC 65321530 65321530
TL 65321531 65321531
24 FIRING HEAD 65321568 65321568
25 HEAD CAP 65321569 65321569
26 DIFFUSER 65320761 65320761
27 TOOTH G20-25 65325238 65325238
G30-31 65325239 65325239
28 BLAST TUBE TC 65320313 65320317
TL 65320314 65320318
29 INNER ASSEMBLY G20-25 65322572 65322572
G30-31 65324794 65324794
30 FLANGE 65320972 65320972
31 CARTER - -
32 PLUG WIELAND 7 pin 65322069 65322069
4 pin 65322065 65322065
33 SOCKET WIELAND 7 pin 65322070 65322070
4 pin 65322068 65322068
34 AIR DAMPER MOTOR Landis SQN75.224A21 65106029 65106029
35 NEEDLE 65325240 65325240

ECOFLAM BRUCIATORI S.p.A. reserves the right to make any adjustments, without prior notice, which it considers
necessary or useful to its products, without affecting their main features.
Ecoflam Bruciatori S.p.A.
via Roma, 64 - 31023 RESANA (TV) - Italy - tel. [phone] - fax [phone]
http://www.ecoflam-burners.com - e-mail: [email protected]
"società soggetta alla direzione e al coordinamento della Ariston Thermo S.p.A., via A. Merloni, 45 - 60044 Fabriano (An) CF 01026940427"
