VSETT MUKUTA 10PLUS User manual

NINGBO MUKUTA INTELLIGENT TECHNOLOGY CO.,LTD
USER MANUAL
PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE RIDING
DUAL MOTOR
OFF - ROAD
TEMPERATURE CONTROL
HYDRAULIC BRAKE
NFC
Sport

GENERAL INFORMATION
MUKUTA RANGE-CONTROL LAYOUT,FUNCTIONS AND SPECIFICATIONS
INTELLIGENT TEMPERATURE CONTROL MANAGEMENT SYSTEM
MUKUTA DISPLAY OPERATION AND PROGRAMMING
FOLDING HANDLE BARS
BATTERY AND CHARGING
PRE RIDE CHECKS
WARNING
LIMITED WARRANTY
ERROR CODES
INCLUDED IN THE BOX
AFTER-SALES SERVICE
1
2~3
4~5
6~15
16~17
18~19
20
21
22~23
24~25
26
27~28
· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·
· · · · · · · · · · · · · ·
· · · · · · · · · · · · · · · · · ·
· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·
· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·
· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·
· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·
· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·
· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·
· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·
· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·
· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·
CONTENT

IMPORTANT INFORMATION
WARNING!
WHY IS IT NECESSARY TO READ THIS MANUAL BEFORE OPERATING?
This manual was written to help you undertsand the proper use and maintenance of the MUKUTA line of Electric Scooter.
It is important to understand the functions and features of the new MUKUTA before operating it as it will allow you to enjoy the mostof it from the
first and every ride.
It is also important for you to note that the first trial of the MUKUTA should be in a remote area where obstacle are minimal to none.
The MUKUTA unit will require some adjustments and break-in period for all moving parts to adjust themselves into the correct position.
BEFORE RIDING: Please ensure that the folding mechanism is firmly locked in place and that the safety lock is engaged.
The product and its brand MUKUTA is not liable for any accidental damages related to the usage of this product.
The responsibility for MUKUTA maintenance is yours! Proper and frequent maintenance will reduce risks of injuries.
- ALWAYS WEAR A HELMET WHEN RIDING
- ALWAYS FOLLOW LOCAL LAWS AND REGULATIONS
- NEVER RIDE SCOOTER IN POOR VISIBILITY
- DO NOT DO STUNTS, WHEELIES or JUMPS IF YOU DO NOT HAVE THE PROPER SAFETY GEARS.
DISCLAIMER & WARNING
READ THIS MANUAL BEFORE USING
1Warning & General

DOUBLE SPRING DAMPING
PNEUMATIC TYRE 10*3INCH
1400W REAR MOTOR
HYDRAULIC DISC
BRAKES HYDRAULIC DISC BRAKE
1400W FRONT MOTOR
DOUBLE SPRING DAMPING
BATTERY
TURN SIGNAL
60V 20.8A/60V 25.6A(LG)
DUAL DRIVE 50-60KM
SPORT MODE 100-120KM
MAX RANGE
HYDRAULIC BRAKE LEVERS
NFC KEY LOCK
SINGLE AND DOUBLE DRIVE SWITCH
ELECTRONIC HORN
60 V (32A)
CONTROLLER
ELECTRONIC BRAKE +
HYDRAULIC BRAKE SYSTEM
75KMHMAX SPEED
2
FOLDING SWITCH

Model
Battery
Tire
Brakes
Max Range(Single Motor)
Max Range(Dual Motors)
Max Speed
Weight
Suspension
Motor Power
Controller
Max Load
MUKUTA 10PLUS
60V 20.8AH/60V 25.6AH
10*3 INCH
ELECTRIC BRAKE+FRONT AND REAR HYDRAULIC BRAKES
100KM/120KM
50KM/60KM
Dual Mode: 75KMH
36KG
DOUBLE SPRING DAMPING
60V 1400W* 2 BRUSHLESS MOTORS
60V (32A)
150KG
3TECHNICAL FEATURES MUKUTA
Maximum load and speed may vary depending on the rider's weight, riding style and terrain.

INTELLIGENT TEMPERATURE CONTROL MANAGEMENT SYSTEM
20S
Intelligent overheat protection
The motor controller/s fitted to your MUKUTA electric
scooter feature overload protection. Should the controller
temperature exceed the safety threshold, the management
system will enter a 20s protection cycle. Should you
experience a loss of power due to overload,please stop
riding and allow the controller time to cool.
4 Intelligent temperature control management system
Intelligent temperature control management system

5Intelligent temperature control management system
Intelligent temperature control management system
MUKUTA series electric scooter intelligent temperature control system
（A 165LB load was tested according to the summer climate）
Model
Protection temperature
（According to the local topography±5℃）
Protection time
（According to local climatic conditions±5s）
MUKUTA 10PLUS
90℃
20s

Basic operation:
6 MUKUTA display operation and porgramming
MUKUTA display operation and porgramming
1、Function
1. Displayed content
Speedometer / Voltage level /Odometer / Trip meter / Battery level / Cruise-control active light / Gear ondocator / Fault warning light
2. All content on display(power on within 1 second)
NFC card area
Battery Indicator
Speed (MPH)Speed Level

7MUKUTA display operation and porgramming
3.1 Speed display area
Unit：MPH, KM/H
The speed signal is taken from the Hall signal inside the motor.Sent to controller by controller(Time of single Hall period,unit:1MS).The display
calculate the true speed based on wheel diameter and signal data calculate the true speed(The motor Holzer also needs to set the number of magnetic
steel)
3.2 Vehicle power gear adjustment,0-3 digital display
3.3 vehicle status display area
Brake power off reminder;
Constant speed cruise hint;
The headlight turns on the prompt;
Communication fault prompt;
MUKUTA display operation and porgramming

8 MUKUTA display operation and porgramming
P01:Backlight brightness:The 1 level is the darkest，Level 3 brightest；Default: 3
P02:Mileage: unit,0：KM；1：MILE；Default: KM
P03: Voltage level: 24V, 36V, 48V, 52V, 60V, 72V, Default:60V
P04: Dormancy time:0 means no dormancy;Other numbers are dormant time.The range is 1-60 minute.Default:5
P05: Reserve
P06: Wheel diameter: The unit is inch. The accuracy is 0.1; Default:10.0
P07: Speed measuring magnetic steel number.The range is 0-255. Default:28
P08: Rate-limiting: The range is 0-100km/h.Default: 28
P09: Zero start、no zero start setting；0 means zero start.1 means no Zero start.Default: 0
P10: Reserve
P11: EABS switch choose.The range is 1-5.0 means closing.1 means weakest.2 means strongest.
P12: Soft and hard start strength.The range is 1-5. The softest is 1.The hardest is 5.Default: 5
P13: Reserve
P14: Reserve
P15: Controller under-voltage
P16: ODO Zero setting: keep pressing + for 5 seconds,ODO will zero clearing.
P17: When it shows 0,it can not use cruise.When it shows 1,it can use cruise.Default:0
P18: Bind and unbind NFC CARDS.Long press "+" to build the binding, long press "-" to build the unbinding
P19: Reserve
P20: Communication protocol is defaults 4.It can not change.
MUKUTA display operation and programming
To accsee this menu,long-press and .Use button to scroll through P-codes, and to change parameterd
Display P-Codes(programming codes)

9MUKUTA display operation and porgramming
2、Introduction of buttons and interfaces
1. When it is shutdown, long-press hold button continuously for 2s to turn on the power. When it is power on ,It can change interface
between the ODO、TRIP、VOL, by pressing for short time.
2. When it is power on, long-press hold button continuously for 2s to turn off,press to change gear.
3. Long-press and to enter P-code menu - refer to functions on page 8.
Enter the menu setting interface, press or to increase or decrease the value , after the modification is finished;Press to
switch to the next parameter and save the value of the previous parameter;After parameter modification, long press + again to
exit the setting interface, or wait for 8 seconds for automatic exit and save parameters.
MUKUTA display operation and porgramming

10 MUKUTA display operation and porgramming
3、Card binding instructions
1.The instrument is not bound to NFC card:
2.How to bind NFC card:
After starting up, the LCD displays the normal contents, At this time, the meter can directly enter the working state.
The diagram below:
CARDS are bound by factory default
Late setting: When using mobile phone or NFC functional card binding, refer to the following methods
Long press for 5 seconds to display B 0. At this time, the NFC card is close to the card swiping area and B 1 is displayed, indicating that
the card is tied successfully and the default is unlimited.
Press for 5 seconds to display C 0. At this time, all NFC card that have been unbound are displayed.
MUKUTA display operation and porgramming

11MUKUTA display operation and porgramming
3. The instrument has been bound with NFC card: after starting up, the LCD displays card, the power voltage is not displayed in the card swiping
area, and the swiping indicator flashes, indicating that the card needs to be swiped to start up. At this time, the accelerator does not work.
The diagram below:
Note:Due to the upgrade of the company's products, some of the displayed contents of the products you get may be different from the instruc-
tions, but it will not affect your normal use.
If the NFC cards are lost accidentally, you can try to contact the local agents. (each E-Scooter is equipped with 3 keys).
MUKUTA display operation and porgramming

12 MUKUTA display operation and porgramming
1. Horn
2. Single motor dual motor switching
3. NFC
4. Downshift button
5. Upshift button / Turn on the light
6. Power switch
7. Displayer
8. Handle folding mechanism
9. Brake
10. Turn signal
MUKUTA display operation and porgramming
1
2
3
4
5
6
7
8
9
10
10

13MUKUTA display operation and porgramming

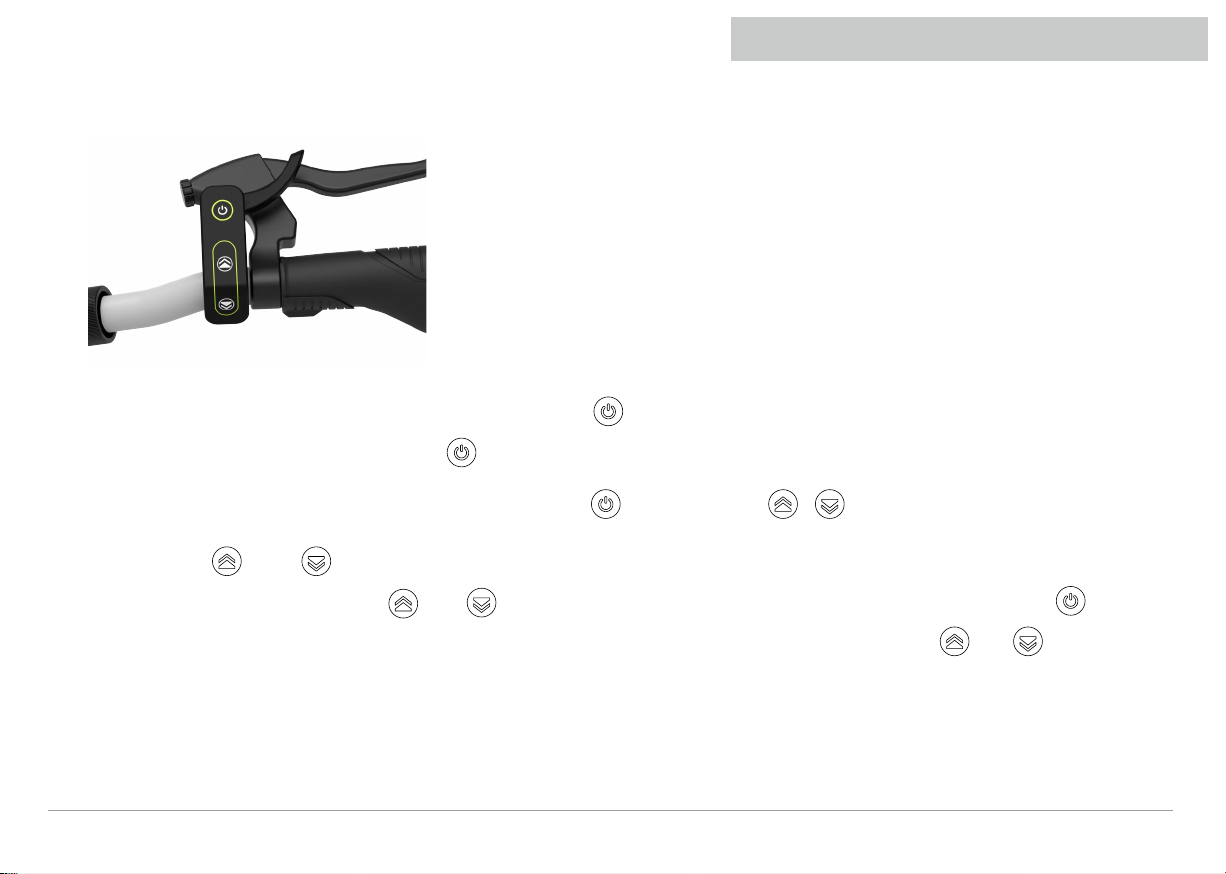

While power is on, Long-press(press and hold for 2s) and hold [5] button to turn on or off headlight.
Power On/Off
Speed Control
Headlight
Mileage & Other data
Long-press the power button [6] for 2 seconds to turn on/off the scooter,then use NFC card to active it.The scooter
turns off automatically if not used for 90 seconds
Press the [4] or [5] button to cycle through the three different speed levels 1 to 3.Use the throttle to control the speed
within each speed level.
While stationary, and with the power on, Long-press(press and hold for 2s) and release th [6] button to cycle through
the following data: ODO (lifetime mileage),TRIP mileage, VOLTAGE level and ERROR CODE.
MUKUTA display operation and porgramming

TURNING IT ON
Press the for 3 seconds and wait to be prompted for the Token (Card).
Tap the Token (Card) to the IR reader NFC
P-SETTING
Press and hold both and simultaneously for 3 seconds to access the P Setting interface.
CHANGING OF SPEED
Press the once or the to toggle between increasing between 1 to 3.
Function is to limit max limit, 3 being themax speed able to achieve.
14 MUKUTA display operation and porgramming
MUKUTA display operation and porgramming

Press the once to activate the Dual Drive Motor function.
Pressing it again will allow Single Drive Motor Function
Press the once to activate the horn. Button are able to be hold
on or to press once.
Press the button and the light flashes.Automatic shutdown after
12 seconds. Turn signals can only be on one side at a time.One
side opens and the other side automatically closes
BUTTON FOR TURN
SIGNAL LIGHTS (BLINKERS)
DDM: DUAL / SINGLE
DRIVE
HORN
15MUKUTA display operation and porgramming
MUKUTA display operation and porgramming

Loosen the folding buckle
Turn the handle screw anti - clockwise
to loose the mechanism
1
Simultaneously fold the handle bar down
34
Once loosen, pull the screw catch away
from each other
2
16 Folding handle bar
Folding handle bar

Take out the hook
5
Fold down the main pole
6
Snap the handlebar's safety hook into the rear shim
7
17Folding handle bar
Folding handle bar

BATTERY
DISABLE CHARGING IN THE FOLLOWING CIRCUMSTANCES:
- Is broken
- Emits an usual odour or colorless liquid.
- The bottom of the deck or it as a whole gets into excessive heating
- Leakage is present.
- Do not operate the scooter while charging
- Do not store the scooter over a long period of time with an almost empty battery.
- From time to time, discharge the battery by riding. Have the battery recharge
again and make sure to not leave battery fully empty.
Avoid contacting with substance or medling with a bloated battery. Keep the battery away
from children, pets or direct heat.Exposure to the battery voltage may cause death or serious
injury.
The use, storage or charging of the MUKUTA battery outside specified limits may result in
the annulment of the warranty, battery damage and an effective battery charging,
18 Battery and charging
Battery and charging
