easy cruiser Z1000 User manual
User Manual
Z1000
◆
Thanks for your purchase of the Z1000 series vehicle!
◆
Z1000 is a electrical drift car capable of keeping balance by itself.
◆
Please read the Users' manual carefully, to make known the safety
warning and precautions before use.
◆
The Users' manual can help you know about Z1000 and its use and
maintenance quickly.
◆
This manual suits to the Z1000 series balance car.
WARNING!
◆
Before you drive the Z1000 car to get on road, please learn how to drive
it safety, to avoid collision, falling down or losing control of it, and other
risks.
◆
You may learn the safe driving skills by referring to the "Users' manua I" .
◆
This Users' manual informs thecustomers all the operational instruction
and precautions, so users of Z1000 productsmust read it carefully and
operate according to the manual' s requirements. If the user did not do
operations according to the prompts or violates the alarming contents,
our company will not be responsible for any resultpheieof.
◆
If you want to get relevant service and support of the product, please
contact local agents.
Statement
Contents
1. Document outline ........................................................................ 1
1.1 About the manua ........................................................................ 1
1.2 Riskof driving ........................................................................ 1
1.3 Preparatory work before driving ................................................ 1
1.4 Relevant instructions for the document ................................ 1
2. Production introduction ................................................................ 2
2.1 Z1000 vehicle model description .............................................. 2
2.2 Z1000 components description ................................................3
2.3 Z1000 working principle ...................................................... 4
3. Control and information displaying devices .................................. 5
3.1 Pedal
sensors ........................................................................ 5
3.2 Display panel ........................................................................ 5
4. Safe use of Z1000............................................................................. 6
4.1 Loading weightlimit of
driver
................................................ 6
4.2 Loading weightlimit of
driver
. ................................................ 6
4.3
The max. driving distance ........................................................ 7
4.4 Speedlimit ................................................................................ 7
5.
Learning
to drive Z1000.................................................................... 8
5.1 Z1000 operationa I
procedures. ........................................ 8-9
5.2 Z1000 protection
functions ................................................ 10
5.3 Practice of driving ........................................................ 11
6. instructions for safety driving ................................................ 12-14
7. Battery use rnstruction ................................................................15
7.1 Battery level ................................................................................15
7.2 Battery chargingpiacedures ................................................16
7.3 Temperatures too high or too low ........................................17
7.4 Detailed battery s jiecifications ................................................17
7.5 Precautions for battery transport ........................................17
8. Routine maintenance ........................................................................18
8.1 Cleaning ................................................................................18
8.2 Storage ........................................................................................18
9. Z1000 parameters .......................................................................19
16. Packing list ................................................................................20
11.Troubleshooting................................................................................21
Wish youhappy in use ........................................................................21
1. Document outline
- 1 -
1.1 About this manual
For your safe driving, please read this manual carefully before using the
balance car. You shall be ensured to drive the balance car in accordance
with correct instructions.
◆
You shall be made known all the safety alarming and precautions listed
in this manual, which is helpful for you to better drive the balance car.
◆
This manual suits toZ1000 series products.
◆
If you have any doubt or can not get information you want from this
manual, please contact us in time.
1.2 Risks of driving
The balance car is an intelligent mobility scooter and assisting tool of
recreation of living with self-balanced system. Its technology and production
process have experienced strict examinations, however, if you did not use
it according to the safety precautions specified in this manual, it can possibly
bring injuries toyou.
WARNING!
Whenever or wherever it falls, is out of control, is collided or runs in other
accident, including not driving the balance car according to the manual' s
requirements, it is all possible to injure you or even kill you. To avoid risks
bringing injury toyou, please be sure to read this manual carefully.
1.3 Preparatory work before driving
Before using it, you shall check the Z1000 battery to make use it is properly
charged, for details see section 5 of this manual. If you did not use
it according to the precautions specified in the manual, it is possible to bring
injury toyou.
1.4 Relevant instructions for the document
The following instruction prevailsfor the whole content of "Users' manual",
please pay special attentions to relevant "WARNINGand "NOTE" .
2. Product introduction
- 2 -

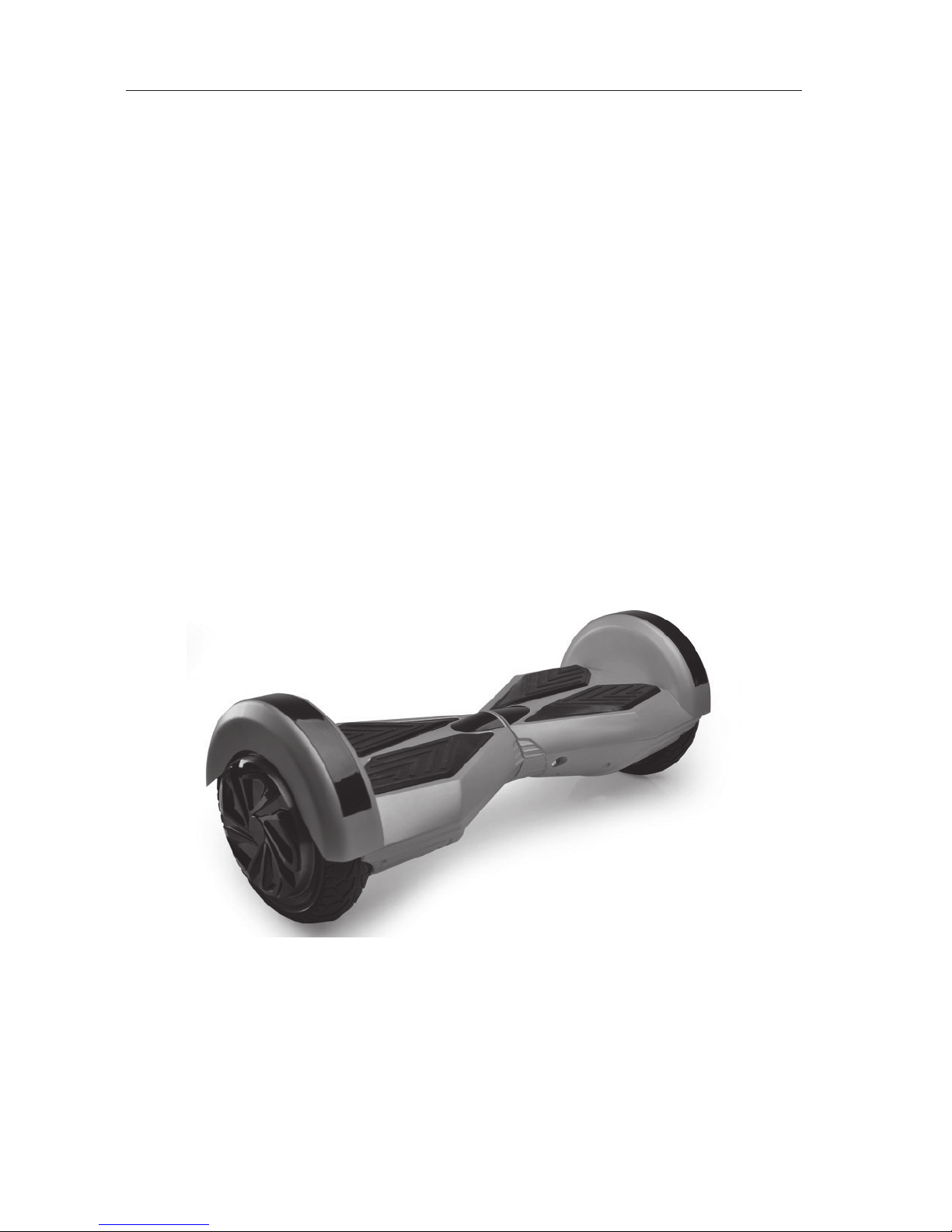

2.1 Z1000 series vehicle model description
Z1000 is a high-tech mini electric car with double wheel and self balance
which uses the dynamic balance principle to control moving forward,
backward, turning and stopping. Z1000 has obvious advantages like
lightweight and fashionable appearances, flexible control and low carbon,
environmental-friendly feature, so it is the best accompanying object for
recreation, scenery touring, s hort distanc e scooting and v arious
applications in life.
- 3 -
2.1 Z1000 Component description
Coloured lights Pedal
Power display
Status light
Switch Electric machinery
2.3 Z1000 working principle
◆
Z1000 balance car uses the dynamic balance principle, through the
built-ingyroscope and acceleration sensors. It relies on the body gravity
cente changes to measure the changes of vehicle body posture, and uses
the servo control systemto drive the motor precisely to do the correspond-
ing adjustment. When a human body stands on the Z1000 balance car,
and bends forward, the system can sense it automatically and drive
wheels precisely to move forward for keeping balance. When the gravity
center bends backward, the wheel will move backward, and in case of
turning, it can slow down and control left, right foot to bend to front or back
to make the gravity center deflect to left for turning left, and to right for
turning right according to the self turning requirements.
◆
Z1000 built-in inertia dynamic stabilizing system can keep horizontal in
forward and backward directions, but it can not ensure the stability in left
and right direction.
So, drivers of Z1000 must slow down for turning, to avoid body injuries
due to too large centrifugal forces.
- 4 -

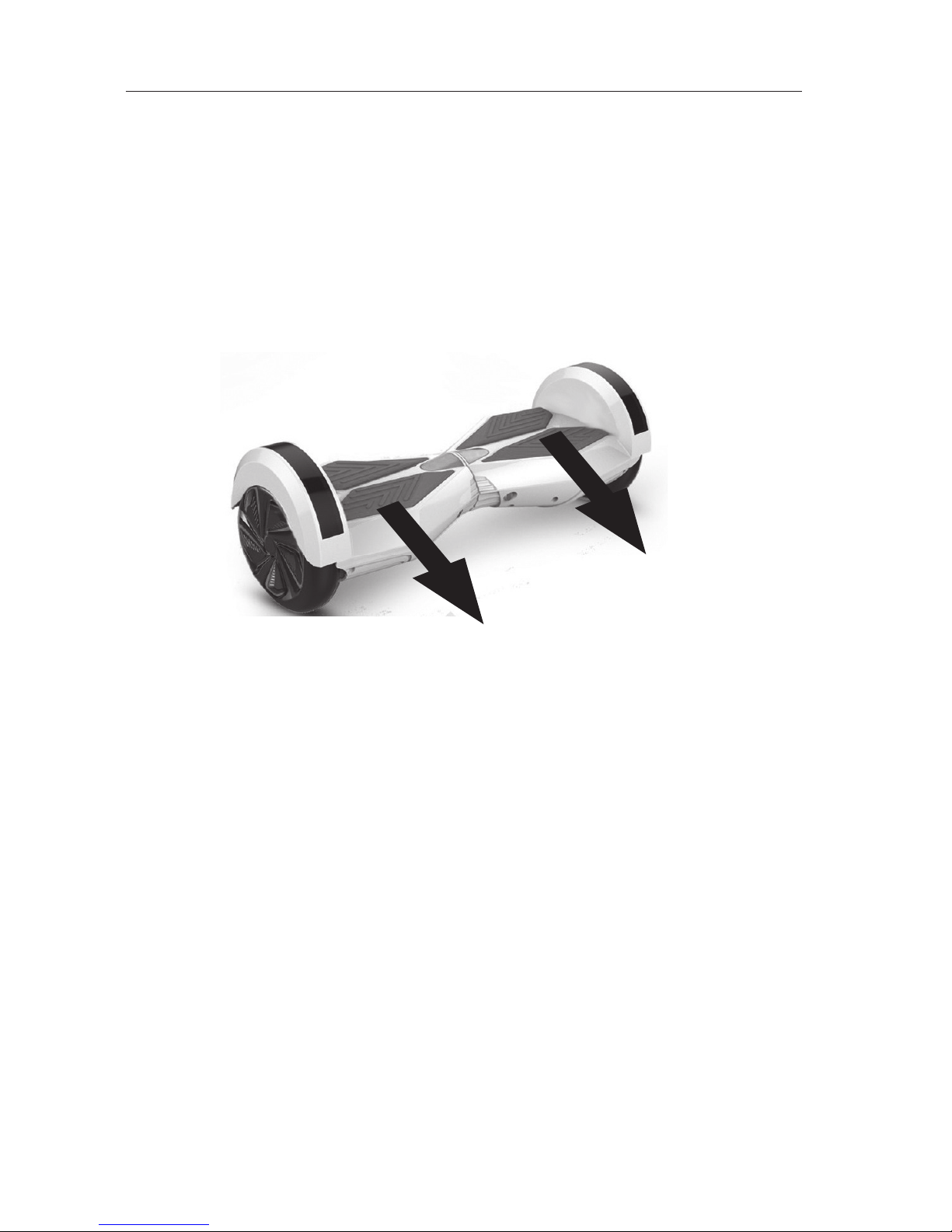

3.1Pedal sensor
Z1000 has four sensors
belowthe
pedals. When
users step
on the Z1000
pedals, Z1000 can
adjust automatically tothe
balance
mode.
◆
When
driving Z1000, you
must ensure the
pedals are
in
stamping
on
condition. No stamping
on
parts other than the
pedals.
◆
Please
do
not put stuffs you
bring
on the
pedal, or
else
you can
not switch
off the Z1000, which
will
increase chances
of collision
of Z1000, for
avoiding the
body injury or
damage to the Z1000 itself.
3.2 Display panel
The
display panel
is located
in
middle
of Z1000, used to
display the
operational
data
of Z1000.
◆
A
is battery
level
display zone:
if the
green
light is on, it means Z1000
battery level
is
good. If it turns to yellow
one,
it means the
battery level
availaIe
is
40%. If the y ellowIight turns to
red
one, the
available
battery
level
is
10%, which
means the
user
needs tocharge
it in time.
◆
B is operational
indicator
light: when
users press the
pedal
switch, the
operational
indicator
light
will
be
lit, showingthe system
is
entering the
operational condition.
If there
is something
wrong
with the
operation
of
system, the
operational
indicator
will turn to
red
light.
- 5 -
3. Z1000 control and information
display devices
4.1 About the safe use
We hope all drivers can drive Z1000 safely and enjoy pleasures brought
by Z1000.The experiences in your learning to ride a bike, drive a car,skiing
or other similar transport tools in the past, can be used in our products,
letting you better drive the balance car.
◆
If you observe the relevant contents of "Users' manual", you will be
able to drive Z1000 safely. So, we strongly suggest you read the "Users'
manual" carefully before the first time of your driving of Z1000. E ach
time before driving, please check if tires of Z1000 have damages, and its
parts are loose or not. If any strange condition happens, please contact
the agents for repair in time.
◆
Please read the "Users' manual" carefully, you will get lots of important
safety information, including speed limit, indicator light warning, safe
switching off and so on.
◆
Please do not use Z1000 to do anything endangering human bodies and
property safety.
◆
Please do not modify any part of Z1000 at will, or else it will affect
performance of Z1000 or even damage it, and c aus e severe damage
accordingly meanwhile.
4.2 Loading weight limit of driver
◆
Loading weight limit is due to the following two points: 1. To ensure saf ety
of the driver. 2. To reduce Z1000 loss due to overloading.
◆
The max. loading weight of drivers is 100kg.
◆
The min. loading weight of drivers is 35kg.
WARNING:It may bring you risk of falling down to exceed the loading
weight limit.
- 6 -
4. Safe use of Z1000
4.3 The max. driving distance
The max. driving distance of Z1000 is related to many factors, for example,
◆
Road condition: on smooth and even ground, it will drive for a longer
distance, or it will drive for a shorter distance.
◆
Body weight: the driver' s body weight will affect the driving distance.
◆
Environmental temperature: to store and drive Z1000 at the recommended
temperature, will increase the driving distance, or at the extreme
temperature it will decrease the driving distance.
◆
Maintenance: proper battery charge and maintenance will increase its
driving distance, or it will be decreased.
◆
Speed and driving style: to keep driving at medium speed will increase
the driving distance, or if it is frequently started, stopped, accelerated,
decelerated, the driving distance will be decreased.
4.4 Speed limit
◆
The max. driving speed of Z1000 is 10km/h.
◆
If the driving speed is over the max. allowable speed,the Z1000 buzzer
will sound alarming.
◆
At the regulated speed, Z1000 can maintain a good balance for the driver.
If the driving speed is over the specific speed, the Z1000 will tilt up
to make it able to limit the speed within the safety speed.
- 7 -
5. Learning to drive Z1000
When using Z1000, you should pay attentions tothe relevant safety prec-
autions. Therefore, you must get a full understanding of all the precautions
mentioned in the "Users' manual" before driving it, which is extremely
important for you.
5.1 Operational procedures of Z1000
◆
Step 1: tostart Z1000, you press down the power-on button (or the power
on button on the remote).
◆
Step 2: to prepare for driving, you stamp on the pedal with one footto turn
on the pedal switch to let the operational indicator light lit, and the system
enter the self-balance condition. After keeping the balance of the car
body, you stamp on another foot tostart operation.
◆
Step 3: after successfully operating the Z1000 and standingup, if you keep
the gravity center balanced, the Z1000 will also keep still. You then can
control the Z1000 moving forward or backward by bending your body
forward or backward in a small degree, but you must remember not to
bend your body too much.
NOTE: If the Z1000 platform is not in horizontal condition when turning
on the pedal switch, the buzzer will alarm and the alarming light wilt
be lit, the system can not enter the self-balance condition, at this
occasion, any operation isprohibited.
- 8 -
E E
E
◆
Step 4: to operate Z1000 in the left and right direction.
◆
Step 5: to get down the car. Before getting down, you need to let the Z1000
stop moving. By keeping in a balance condition, you let one of your feet
step down first, and another foot leave the pedal quickly.
WARNING:Sharp turning is forbidden when driving at high speed, to
avoid danger.
No transverse driving or turning can be done on slope, as thiswill cause
shifting of Z1000 balancing angle, affecting safe driving.
- 9-
Left the right foot forward for the left
Left foot forward for right
Sketch map for driving Z1000 (generally for Z1000 balance car).
5.2 Protection function ofZ1000
During driving, if the system error or illegal operation happens, the Z1000
will remind the driver in different ways.
For forbidding riding, the alarming light will be lit always, and the buzzer
will give alarming at intervals, the system can not enter the self-balance mode.
◆
When getting on the car, the platform tilts forward or backward at angles
over 10 degrees.
◆
The battery voltage is too low.
◆
It is in charging process.
◆
During driving, the platform tilts up, no operation is allowed.
◆
Over-speeding of the vehicle body.
◆
Shortage of battery level
◆
The vehicle body rocks back and forth exceeding 30S.
◆
The system enters the protection mode, with the alarming light lit constantly,
the buzzer gives alarming at high frequency during driving.
◆
The platform tilts forward or backward at angles over 35 degree, causing it
entering the stop condition.
◆
The tire is blocked and stops running, it enters the stop condition after 2S.
◆
The battery voltage is lower than the protection level, it enters the stop
condition after 15S.
◆
Due to the constant large current discharge (for example, to climb a long
and steep slope for a long time), it enters the stop condition after 15S.
- 10 -
WARNING: When Z1000 enters the stop condition, the system will
lock the machine automatically. To unlock it, you need to press the
lock button. When the battery is depleted or the system produces
safe stop information, please do not continue to drive Z1000, or else,
the car can not reach the balance condition due to the low battery
level, which can possibly cause damages to the driver. If the battery
level reaches the min. limit, continuous driving of Z1000 will affect
the battery life.
5.3 Practice of Z1000 driving
Before you drive Z1000 outdoors, you shall ensure that you can drive Z1000
skillfully for consideration of your safety.
◆
Please wear comfortable leisure and sports clothes as possibly, and wear
flat shoes, letting your body keep to be flexible.
◆
Please practice driving of Z1000 in spacious site, until you can manage getting
on it, driving it forward and backward, turning, stopping and getting off skillfully.
◆
You should mind if the ground is flat or not.
◆
You may learn to drive it in different landforms, and you must remember to slow
down when encountering unfamiliar landform. Anytime you shall not let the
Z1000 leave the ground surface.
◆
The Z1000 is designed as a recreational tool for flat pavement. If users drive it
on uneven pavement, he or she shall slow it down.
◆
If you can not drive Z1000 skillfully, please avoid driving it at dangerous places
with walking persons or obstacles. When passing through doorways, you shall
mind your head and ensure you can pass it safely.
- 11 -
6. Instructions for safe driving
This sectionfocuses on some safety knowledge and warning declaration,
letting you have some understanding of the safety precautions before you
use Z1000. In order to ensure you can drive Z1000 safely, you must read the
"Users' manual" fully and observe the relevant safety instructions. Please
mind all the safety warnings and precautions for use as mentioned in the
"Users' manual" . To make known these safety precautions can improve the
safety and pleasure of your driving of Z1000.
WARNING!
◆
Whatever condition it is, it is possible to cause injuries due to losing control,
collision and falling down when you use Z1000. To avoid the injuries, you
have to read and refer the instructions of the "Users' manual" carefully for
driving Z1000. Please ensure the product is in good condition for use, and
use the product only after carefully reading and getting familiar with all the
product materials provided by the company.
◆
When you learn to drive Z1000, please ensure to implement safety measures,
like wearing helmet, knee pad, elbow pad and others.
◆
The Z1000 is only suitable to personal recreation, forbidden for use as public
transport.
◆
It is strictly forbidden to use this product in motor lanes.
◆
No driving is allowed for kids, aged persons and pregnant women.
◆
No driving after drinking wine or taking drugs.
◆
No driving for transporting goods.
◆
When driving Z1000, please observe local traffic laws and give way to
pedestrians.
◆
Please be aware of the front and remote object, keep good view sights to
help you drive Z1000 safely.
- 12 -
◆
During driving, your both legs keep relaxed, with knees bent slightly, so
that you can keep balanced when riding on uneven ground.
◆
During driving, your feet shall be kept on the pedal all the time.
◆
Please wear clothes suitable for sports when you use Z1000, which benefits
for you to better handle emergency conditions.
◆
Z1000 can be used by only one person, it is not allowed to carry two persons
or more.
◆
The total weight of the user and the object carried, shall not exceed the max.
load specified in the users manual of Z1000. or it is easier tomake the users
fall down or injured during driving, even damage the function of Z1000..
Besides, the drivers' weight shall not be less than the min. weight specified
in the users manual, or it is possible that the driver can not operate Z1000
properly, and especially for down slopes the driver can not slow down or
stop it safely.
◆
You shall be sure to let the vehicle speed be within the limit not threatening
safety of others and yourself, and prepare to stop Z1000 at anytime.
◆
When you run into a traffic accident with Z1000, please stay where you are
to wait for relevant persons tocome to handle it properly and legally.
◆
When you drive Z1000 and there is another person driving Z1000 to go with
you, please keep a certain space from each other to avoid collision.
◆
Please remember all the time, when you drive Z1000, your body height is
increased by about 10cm, so mind your head safety when passing gates.
◆
Whenturning, please mind your body gravity center' s balance, to avoid
falling down due to gravity center shift or too high speed.
◆
When driving Z1000, do not divert your attention, such as answering phone,
listening to music or doing other things.
- 13 -
◆
It is not allowed to drive Z1000 on wet and sliding road in rainy days, back-
ward for long distance or at high speed, or to turn during fast backward
driving, or at too high speeds.
◆
This personal transport tool is not designed to be a medical care equipment,
neither is it tested or proofed so. Therefore, the user must use Z1000 without
help of others.
◆
No using of Z1000 in dark or improperly lit places.
◆
It shall be avoided driving on ground with obstacles or slippery, such as,
snow, icy or wet and slippery ground.
◆
Please avoid driving on pavements with scattered things like twigs, trashes
or little stone.
◆
Avoid driving in places narrow or with obstacles.
◆
Please use Z1000 in environments conforming to its using condition. If there
are environments demanding permission of use from others, please get the
permission first.
◆
No starting to go or stopping suddenly.
◆
Avoid driving on steep slopes.
◆
No driving Z1000 in unsafe environments, which refers to places prone to
fire disasters or explosion or other dangerous incidents due to inflammable
gas, vapor, liquid, dust or fiber and so on.
- 14 -
7. Battery use instructions
It includes description of Z1000 charging method, how to maintain the
battery, and safety precautions, together with the battery specifications. In
order to protect your and others' safety and maximize the battery life and
promote its performance, please operate the battery acc o rding to the
followings.
7.1 Low battery level
When you see the battery level indicator light is red and blinks, which means
the battery level is low, we suggest you to stop driving. When the battery level
is low, Z1000 has no enough energy to keep you driving normally, and the
system will tilt up the base platform automatically, prohibiting users continu-
ing to use. If you insist on driving Z1000, it is very easy to result in your falling
down and injury, and it will also affect the battery service life meanwhile.
◆
Please do not use the battery, if the following condition happens.
◆
1. Some strange smell is released or the temperature is too high.
◆
2. Any substance is leaked out.
◆
Only professional person can remove, and repair the battery.
◆
Do not touch any substance leaked from the battery.
◆
Kids and animals are not allowed to touch the battery. Before installing
the battery or driving, the charger must be plugged out. It is dangerous to do
anything related to Z1000 when it is being charged.
◆
The battery contains dangerous matters, no opening of the battery by your-
self, and do not insert anything into the battery.
◆
Only the charging device provided by us can be used for charging Z1000.
◆
No charging to Li-ion battery that has been over-discharged. As the overdis-
charged battery has safety risks, it has to be disposed of as wastes.
◆
Z1000 battery can only be used with the permission of the local laws.
- 15 -
7.2 Charging procedures
◆
To ensure the charging port is dry.
◆
To open the charging cover at rear of Z1000.
◆
To connect one end of the charging device to the mains supply(100-240V~
~50 /60 Hz) first,
make
sure
the
green
light
on
the
charger
is
lit
normally,
then
plug
the
other
end
to Z1000.
◆
When the red indicator light on the charger is lit, it means the charging is
normal. Or please check if the circuit is connected properly.
◆
When the indicator light on the charger turns from red to green, showing the
battery is fully charged, you should stop charging, as long term charging may
affect the battery life.
◆
Please use all the local standard power extensions.
◆
Please charge and store the battery as per the regulations, or the batter will
be damaged and its life shortened.
◆
The charging time of Z1000 is about 2 to 3 hours, extra long charging will
affect the battery life.
◆
The charging environment shall be kept clean and dry.
◆
If the charging port is wet, no charging is allowed.
- 16 -
森晟
~
Table of contents
