Specifications
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Control Pad Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Mounting the Base. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Adjusting the Wire Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Wire Stand Positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Power Adapters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
12VDC Adapter Fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Portability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Dissassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Yearly Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
• 12VDC or 110 - 240 VAC 50/60Hz
• Operating Temperature: 45˚F - 100˚F (7˚C - 38˚C)
• Maximum 10 watts
• Fixed 6 KV DC needle ion generator
• 3 speed fan
• Fuse (12VDC adapter only): 1.6 amp short Buss type
• Size: 4” x 6” x 1.25” (10cm x 15cm x 3cm) w/o base
• Weight: < 8 ounces (.23kg)
• See Warranty Card for warranty information
CAUTION! - Use Purifier Function in accordance with
directions found in this manual only.
CAUTION! - Disconnect power cord before servicing.
WARNING! - UV Lamp operation. Do not operate this unit
unless the case is completely and correctly assembled.
Failure to comply may result in serious eye damage.
LOW MED HIGHHIGH
PURIFIER LEDS
PURIFIER UP
PURIFIER DOWN
FAN LEDS
FAN DOWN
FAN UP
MED LOW

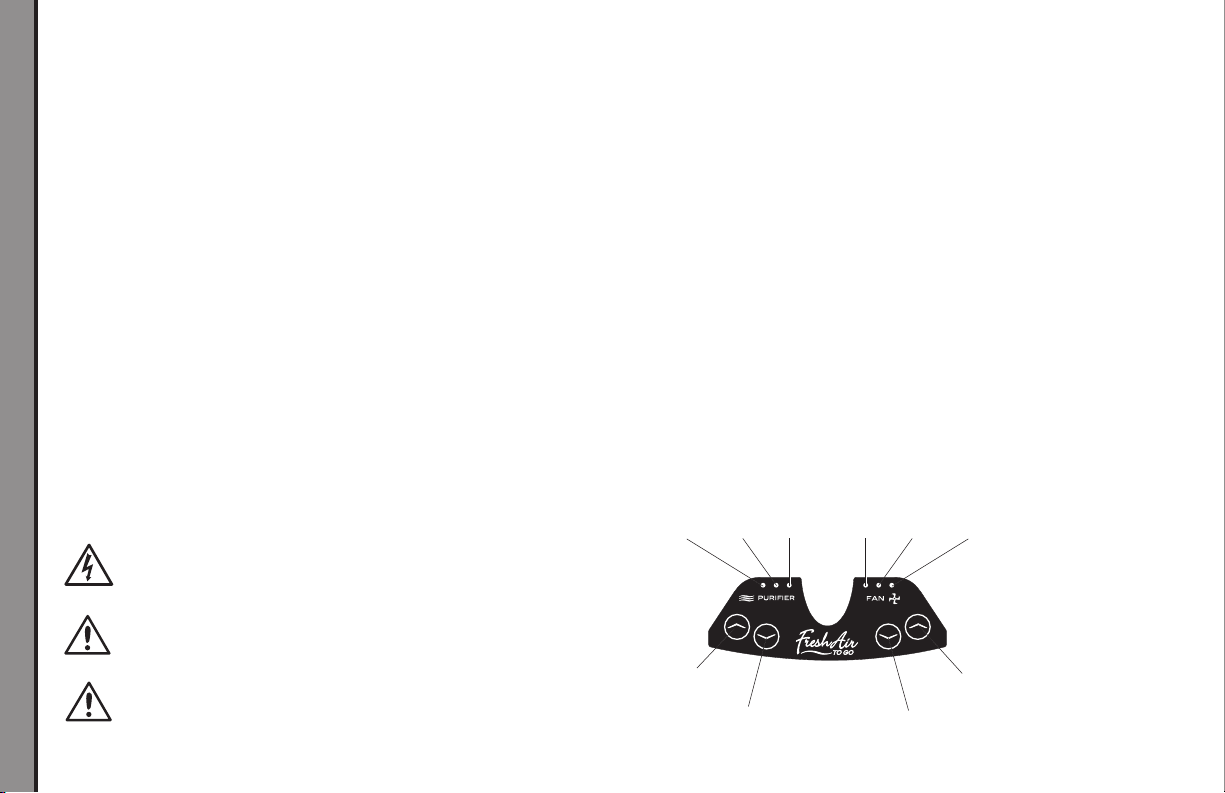

Control Pad Layout
Contents

Operation
3
1. If desired, mount the Base in an appropropriate location (see page 4).
2. Adjust the wire stand (see page 4).
3. Plug in either the 12VDC car adapter or the AC adapter (see page 5).
4. Snap the unit and wire stand into the base.
5. The Fresh Air To Go unit will come on when either of the FAN buttons
on the control pad are pressed.
6. Adjust the fan speed by pressing the FAN UP and FAN DOWN
buttons. The unit may also be turned off by pressing either the FAN
UP when the fan is set on HIGH, or FAN DOWN when the fan is set
on LOW. When the unit is off, all the LED lights will also be off
7. Set the purifi er by pressing the PURIFIER UP and PURIFIER
DOWN buttons. See the Purifi er Settings chart (page 4) for proper
adjustments. When the purifi er is set to off, the PURIFER LEDs will
also be off, the FAN LED(s) will remain on.
Purifi er Settings & Coverage
Low: compact car, pick up, small offi ce
Med: mid to full size car, SUV, RV, etc.
High:
min. 500 ft2 (46m2) - large RV or unoccupied car or pickup
OFF: Purifi er off, ionization & fan continue operating
Mounting the Base
The base for the Fresh Air To Go can be mounted using the
included suction cups, velcro, or screws, depending on preference.
When using suction cups or velcro, be sure the surface is smooth
and clean. Dirt, grease, protectants, and other substances will
affect performance and holding ability.
• Apply clear urethane feet
before mounting base, then...
• peel and stick one part of the
velcro to the base, then
• attach the other to a clean,
dry surface, or...
• attach suction cups by pressing
and twisting into the base, or...
• screws may be used for extra
security and where the other
methods are not appropriate.

Adjusting the Wire Stand
4
Wire Stand Positions
The wire stand on the Fresh Air To Go allows for quick release from the
base, provides a stand or hanger for the unit independent of the base,
and allows the unit to either stand or hang from the base depending
on how the base is mounted.
To adjust the wire stand, loosen the two knobs on the sides of the
unit approximately 1/2 turn. The unit may then be tilted up or down
to adjust the angle or moved on the wire stand to change the height.
You can also remove and change the position of the wire stand to
accomodate several different mounting methods. To reinstall, simply
align the two clamp collars and insert the wire stand. Once the unit is
adjusted, tighten both knobs to hold it in place.
OR
• Sitting on a flat surface with or without the base
• Hanging over an edge pointing down (laundry
hamper, garbage can, etc)
• Sitting on a flat surface without the base
• On a vertical surface with the base (wall mount,
window, etc.)
• Hanging over an edge pointing up (seat pocket
in car)
• Hanging from an inclined surface (windshield,
under dash, etc)
• Hanging on an edge pointing in (closet shelf)
• Hanging on an edge pointing out (shelf edge)

Power Adapters
5
Fresh Air To Go comes with both a 12 volt DC car adapter and a
100 - 240 volt 50/60 Hz AC adapter with interchangeable plugs.
• Insert the car adapter into an
appropriate 12 volt automotive
type power outlet.
• Insert the small adapter plug into
the opening located underneath at
the rear of the unit.
OR
• Select and install the proper international plug
into the AC adapter. Insert correctly assembled
adapter into a standard electrical outlet.
THEN
NOTE: when installing one of the interchangeable
plugs, be sure to snap and lock it into place.
When removing a plug, press the raised tab to
release, then slide the plug out the top.
PRESS HERE
To change the car adapter fuse, unscrew
and remove the front of the adapter.
Replace with the same type and rating only
12VDC Adapter Fuse
Portability
Depending on how it is mounted, your Fresh Air To Go can be
ready to take with you in just a few seconds.
• To remove the unit from an attached
base, press down on the front latch
and slide the unit back, then up
NOTE: If you prefer to remove the base and
unit together, mount the base with velcro or
suction cups to a clean, dry surface.
• Once the unit is assembled and the base mounted,
simply snap the wire stand into the base. The latch
at the front of the base should snap into place,
locking in the stand and unit.
PRESS
SLIDE THEN LIFT
For added convenience, mount extra bases (item
#70142) where you use your Fresh Air To Go most.
See your EcoQuest Dealer for more information.

Disassembly
6
1. Turn unit over and remove screw
at the front of the unit.
2. Tilt the front of the lower half of
the case up about 1/2 inch.
3. With the front tilted up, slide the lower
half of the case back until it is free.
4. Press the ends of the RCI target to
release it as you pull up.
5. Remove the RCI Target from
the unit.
6 Remove the UV bulb by gently
pulling straight up.
7. Remove the Ecotech Purification
Plate by gently pulling straight up.
All user maintainable parts
of the Fresh Air To Go are
accessed by removing the
lower half of the case. The
unit must be disconnected
from its power source before
servicing, and should not
have the power reconnected
unless the case is correctly
and completely reassembled.
Yearly Maintenance
A service kit is available
for your Fresh Air To Go.
The kit contains a new
RCI Target, UV bulb, and
EcoTech Purification Plate.
For optimum performance,
EcoQuest recommends
replacing these components
annually. See your EcoQuest
Dealer for more Information.
8. Reinstallation is the reverse of the above steps:
• EcoTech Purification Plate - align the four pins with the four sockets and press gently.
• UV lamp - align the two bulb wires with the two sockets at the ends of the plate and insert.
• RCI Target - install the “legs” of the target into the four holes in the green PC board.
• Carefully replace the bottom case being sure the pins inside the back of the bottom case fit
into the two standoffs at back of the top case. Slide the bottom case forward then down.
• Check for proper case alignment before installing and tightening the screw. Failure to
correctly assemble may cause damage to the case.

Cleaning Troubleshooting
7
Depending on conditions, your Fresh Air To Go will require periodic
cleaning of certain internal components every one to three months.
To perform proper cleaning, remove the RCI Target, UV bulb, and
Ecotech Purification Plate as shown (see Dissasembly, page 6).
RCI Target
Clean the target with a soft brush and hot water. Allow to dry
thoroughly before reinstalling.
UV Bulb
The UV bulb should be gently wiped with a soft, dry cloth. Avoid
handling the UV bulb more than necessary.
Ecotech Purification Plate
The top area of the Ecotech Purification Plate can be cleaned with
ammonia or alcohol and a cotton swab. Do not use water.
Case
Clean the exterior case of your Fresh Air To Go with a soft cloth
dampened (not wet) with water. Do not use harsh chemicals or
solvents.
Fan / Interior of unit
The interior and fan may be cleared of dust using canned air
suitable for electronics.
WARNING: Under no circumstances should your Fresh Air To Go unit be operated
while any part of the case is damaged, missing, or disassembled. If the case is
damaged, return your unit to EcoQuest for repair or replacement. Direct exposure to
the internal UV light may cause eye damage.
Unit does not operate / the fan does not operate / all LEDs off
• Unplug and reinsert the adapter plug and adapter.
• Press the FAN UP or FAN DOWN buttons to turn the unit on.
• If using the 12VDC car adapter, remove the fuse by unscrewing the end of the adapter
and check to see if it is blown. Replace it with the same type and rating fuse only (see
Specifications). If the fuse is not blown, check the outlet for proper voltage.
Purifier Plate / UV bulb may not be working
• Press the PURIFIER UP or PURIFIER DOWN buttons to turn the Purifier function ON.
• Remove the UV bulb and Ecotech Purification Plate, clean, and reinstall (see
Disassembly and Cleaning).
• If cleaning and reinstalling the plate does not correct the problem, replace the plate.
• When looking through the rear inlet vents in low light you should see a slight bluish
glow. If there is no glow and reinstalling doesn’t correct the problem, replace the bulb.
Lack of air flow
• Make sure the intake vents are not blocked and the front of the unit is clear.
• Check to see if the fan is operating (if not, see above).
If your unit fails to operate properly after performing troubleshooting, contact your
EcoQuest Dealer for further assistance, contact EcoQuest at the address in this manual,
or visit www.EcoQuest.com for additional support.

8
This equipment has been tested and found to comply with the limits for Industrial,
Scientifi c and Medical Equipment (ISM), pursuant to Part 18 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio
or television, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected
• Consult the dealer or an experienced radio/TV technician for help
FCC DECLARATION OF CONFORMITY
Name: EcoQuest Model: Fresh Air To Go
Manufacturer:
EcoQuest Manufacturing
This device complies with Part 18 of the FCC Rules.
RESPONSIBLE PARTY
EcoQuest International, 310 T. Elmer Cox Dr., Greeneville, TN 37743
Signature: __________________________________
Printed Name: R. Paul Beam
Title: Engineering Manager Date: 7/12/04
310 T. Elmer Cox Drive
Greeneville, TN 37743
Copyright © 2004 EcoQuest International. All rights reserved
Warranty Information
Please record the name and phone of your EcoQuest Dealer:
Name __________________________________________________
Phone __________________________________________________
Please record the serial number of your Fresh Air To Go:
Serial # _________________________________________________
This product is of solid state construction and is warrantied by
EcoQuest International
310 T. Elmer Cox Drive
Greeneville, TN 37743
to the original purchaser, depending on model, to be free from
defect in materials and workmanship for a limited time.
Length of warranty will vary depending on model.
See warranty card for specific details.
If you have any questions concerning your Fresh Air To Go, please
see your local EcoQuest Dealer.
Did you forget to register
your Fresh Air To Go?
By registering, you’ll activate
your warranty, and your
privacy is guaranteed. Just
fill out your warranty card
and drop it in the mail.
Signature: __________________________________
Ph: [phone]
[phone]
www.EcoQuest.company
