I:_MI:_RSON
THRU THE-WALL
ELECTRONIC AIR CLEANER
INSTALLATION
OPERATION
SERVICE
Model Nos. 10C1 3T-41 002
14C1 3T-41 002
20C1 3T-41 002
MANUAL NO. 846-0262

INTRODUCTION
Thru-the-Wall electronic air cleanersare designed to provide
maximum air cleaning in applications where a single central
return air duct is employed, or where the central heating or
air conditioning is in a limited access area. The
Thru-the-Wall units may be installed in the wall such as in
closet installations or in the ceiling with attic type
installations.
This manual contains essential information for locating,
installing, operating and servicing your electronic air
cleaner. Before installing and using your air cleaner, be sure
to read these instructions carefully and observe _them in
order to derive the maximum benefits from the superior
performance built into the unit and help to avoid needless
service costs that result from causes the manufacturer
cannot control and cannot be covered in the warranty.
The units are available in three models:
Model TTW-10 designed for an air volume of up to 1,000CFM
Model TTW-14 designed for an air volume of up to 1,400 CFM
Model TTW-20 designed for an air volume of up to 2,000 CFM
TABLE OF CONTENTS
Introduction ........................................... 2
How your Air Cleaner works ............................. 3
Unpacking and Inspection ............................... 3
'"Pre'installati°on ° ....: ..................................... 4
Installation ............................................ 6
Operation ............................................. 9
Maintenance ............................................ 9
Troubleshooting ....................................... 11
Repair Parts ........................................... 12

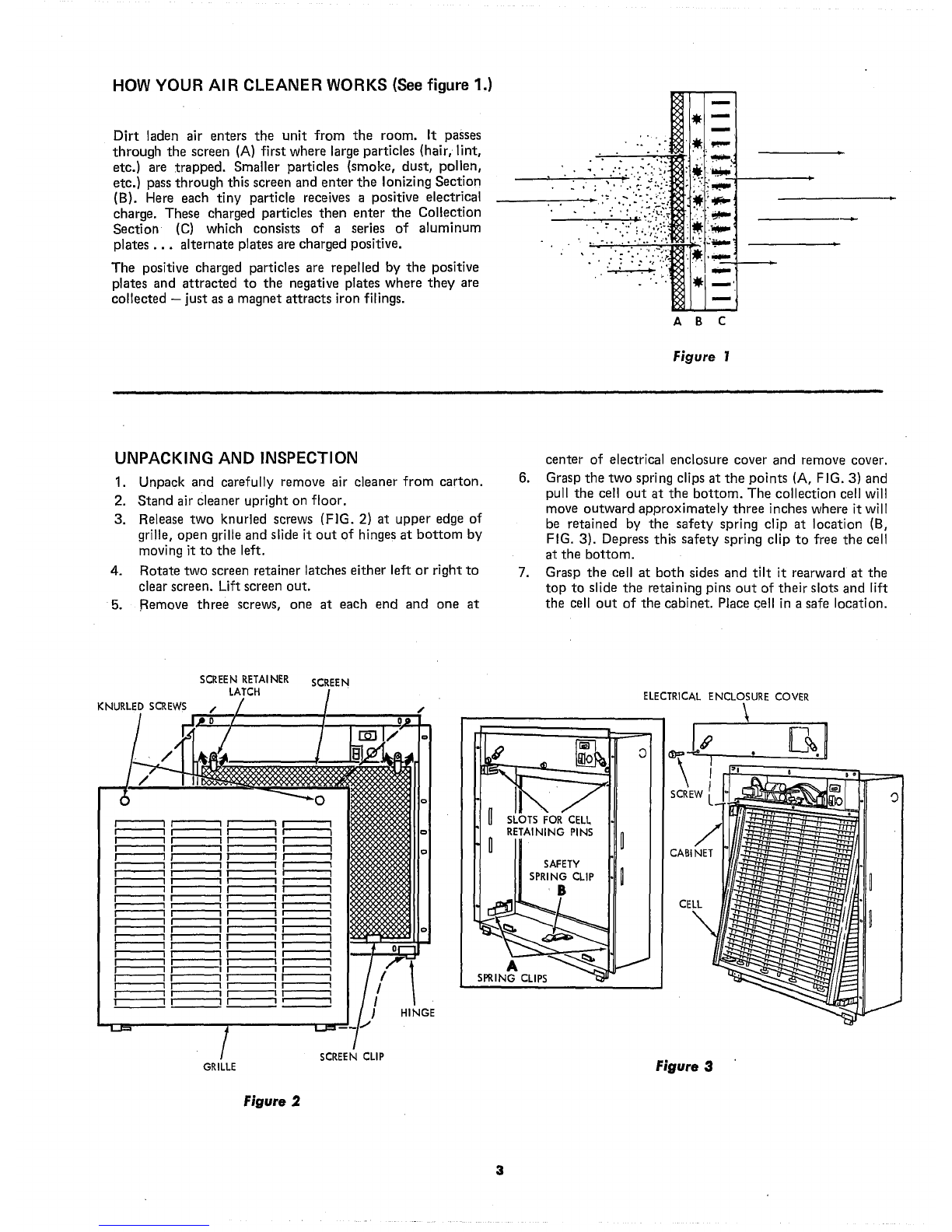

HOW YOUR AIR CLEANER WORKS (See figure 1.)
Dirt laden air enters the unit from the room. It passes
through the screen (A) first where large particles (hair, lint,
etc.) are trapped. Smaller particles (smoke, dust, pollen,
etc.) passthrough this screen and enter the Ionizing Section
(B). Here each tiny particle receives a positive electrical
charge. These charged particles then enter the Collection
Section (C) which consists of a series of aluminum
plates.., alternate plates are charged positive.
The positive charged particles are repelled by the positive
plates and attracted to the negative plates where they are
collected - just as amagnet attracts iron filings.
b
ABC
Figure I
Jill i i i i i i i i J tJ it
UNPACKING AND INSPECTION
1. Unpack and carefully remove air cleaner from carton.
2. Stand air cleaner upright on floor.
3. Release two knurled screws (F]G. 2) at upper edge of
grille, open grille and slide it out of hinges at bottom by
moving it to the left.
4. Rotate two screen retainer latches either left or right to
clear screen. Lift screen out.
5. Remove three screws, one at each end and one at
center of electrical enclosure cover and remove cover.
6. Grasp the two spring clips at the points (A, FIG. 3) and
pull the cell out at the bottom. The collection cell will
move outward approximately three inches where it will
be retained by the safety spring clip at location (B,
FIG. 3). Depress this safety spring clip to free the cell
at the bottom.
7. Grasp the cell at both sides and tilt it rearward at the
top to slide the retaining pins out of their slots and lift
the cell out of the cabinet. Place cell in a safe location•
SCREEN RETAINER SCREEN
LATCH
KNURLED SCREWS /
lr .it
lr it
11 lr
"If 11
_1 r "1 I"
1
1
1
--1 1
1
1
I1
1/
GRILLE SCREEN CLIP
HINGE
Figure 2
A
SPRING CLIPS
ELECTRICAL ENCLOSURE COVER
\
IIIU
CE
Figure 3
3

WALL SURFACE-*-
6IN.--
AIR CLEANER .'_
-- "1
L,.-
I
I
I
_ J
STUD
,,.,-d
_,. RETU RN-AIR
DUCT
TYPICAL WA LL LOCATI ON
PREINSTALLATION
1 STUD
WALL SURFACE
RETURN-AIR
DUCT
\
AIR
CLEANE I
6 .
SUPPLY-AIR
t PLENUM
SUPPLY-AIR
DUCT
FURNACE
//
TYPICAL INSTALLATION USING DUCT EXTENSION
Figure 4 Figure 5
LOCATING THE AIR CLEANER
Your thru-the-wall Electronic Air Cleaner ismounted at the
return-air duct inlet. (See figures 4 through 7.) It works
equally well in either high or low wall installationsl or in
the ceiling. It can be used with any type of forced-air
heating or cooling system.
In most cases, return-air ducts are located just inside the
wall (or ceiling) grille. When the air cleaner is flush
mounted it will extend through the wall cutout and into
the return-air duct. If the return-air duct is located at a
distance from the wall (or ceiling), extend a connecting
duct to the rear of air cleaner frame with sheet metal
screws.
NOTE: Always tape all ductwork joints with duct tape to
prevent dirt-laden air from entering ducts.
After deciding upon the exact,location, make.sure of the
following before cutting out wall or ceiling area:
1. Exact location of return-air duct behind the wall (or
ceiling).
2. Location is free of obstructions, such as steel support
beams, piping or electric wiring.
3. Access to inner areafor wiring connections.
4. Return-air duct is deep enough to accommodate air
, cleaner (6 inches, seefigures 4 through 8.)
5. Enough room is llft at a corner or wall offset to permit
installation of the grille. (See figure 8.)
TAPEJOINT
! CONNECTING I
WALL _ , DUCT I
(ORCEILING) _ _ JlJ
SURFACE m
6IN._
7
AIR CLEANER _J
SCREWHOLES
STUD- (TOP, BOTTOMAND
SIDESOF CABINET)
RETURN-AIr
DUCT
/
TYPICAL INSTALLATION USING DUCT EXTENSION
Figure 6
RETURN-AIR DUCT
J14
AIN. MINIMUM
A,RC'EANER
tIf
CEILING SURFACE 6 IN.
TYPICAL CEILING LOCATION
Figure 7

3//4 ,,
GRILLE "
DIM. 1000 CFM 1400 CFM 2000 CFM
A
B
C
D
16-15/16
9-7/16
18-7/16
19
23-7/8
16-7/16
25-3/8
26
28-7/8
21-7/16
30-3/8
31
Refer to page 2 for model numbers
and CFM cross references.
Figure 8
FRAME
ASSEMBLY
A
REAR VIEW OF GRILLE AND CABINET
MECHAN ICAL INSTALLATION
Remember that allowance must be made for the grille to
swing down so that the cell can be removed by. pulling it
straight out of the cabinet. (Figure 9).
DUCT WORK CONNECTION
If the duct work to be used is larger or smaller than the
recommended framing sizes, atransition should be installed
between the duct work and the air cleaner to insure
maximum filtering efficiency. The expansion or contraction
rate of the transition should not exceed the ratio of 1 to 3.
(Seefigure 10)
Once the duct connection to the framing is completed, the
air cleaner frame (cabinet) may be inserted into the framing
cavity.
Before inserting the cabinet, one of the three knockouts
(figure 15) should be removed for insertion of the 120 VAC
input wiring.
After properly positioning the cabinet, it may be fastened
to the framing either by using the mounting holes in the
inside walls of the cabinet or the mounting holes in the
front flanges of the unit.
WALL
(OR CEILING)
ALLOW ROOM FOR
GRILLE TO
SWING OUT
CELL
, !
GRILLE
Figure 9
CABINET
_2
TRANSITIO N _,.'"_2 0_ l_ J
151
iA,',',,ox.I
.11I
oust ,/I I
UNIT OPENING
TRANSITIONING TO CABINET
Figure 10

INSTALLATION
CAUTION: READ INSTRUCTIONS COMPLETELY
BEFORE STARTING THE INSTALLATION.
1. Mark the cutout area. (See figures 8 and 12 through 14
for dimensions.)
2. Drill holes at the corners of area to be cut out to
permit insertion of saw blade. (See figure 11.)
•_ Carefully saw out wall or ceiling area exactly as
marked. Remember the frame flange is only 3/4-inch
wide. It will not cover an oversize or irregular cutout.
4. Figures 12,13 and 14 show several possible situations
that will be apparent when the cutout is finished. With
standard stud spacing you will run into either one or
two studs. They must be cut and the section removed
at air cleaner location.
5. Install headers all around air cleaner opening (four
sides). This will provide good support of air cleaner and
restore the original wall strength. Use basic concepts
shown in figures 12 through 14 if your wall differs
from the diagrams shown.
NOTE: Thesame method for framing the air cleaner cutout
:_, be applied to ceiling joists, when a ceiling installation is
required.
6. Cut out required opening in return-air duct. The duct
cutout should fit air cleaner cabinet as closely as
possible. If duct is more than six inches from wall
surfac'e, install a connecting duct between air cleaner
cabinet and existing duct. (See figures 5 and 6.)
7. Slide the frame assembly into the finished cutout.
Make sure it fits properly, then remove it.
*Dimension "'A'" in figures 12 through 14 are asfollows:
1000 CFM =17'"
1400 CFM =24""
2000 CFM =29"
HOLES
CUT-OUT MARK
Figure 11
i i
T
A
J l
II
ADD STRINGERS AND HEADERS AT SHADED LOCATIONS
Figure 12
EXISTING STUDS
I__
TOE NAIL
ADD STRINGERS AND HEADER AT SHADED LOCATIONS
A
I EXISTING STUDS '
I/ t !=EXISTING STUDS
IIs/
•TOE NAIL TOE NAIL
II
ADD STRINGERS AND HEADERS AT SHADED LOCATIONS
I
I
Figure 13 Figure 14

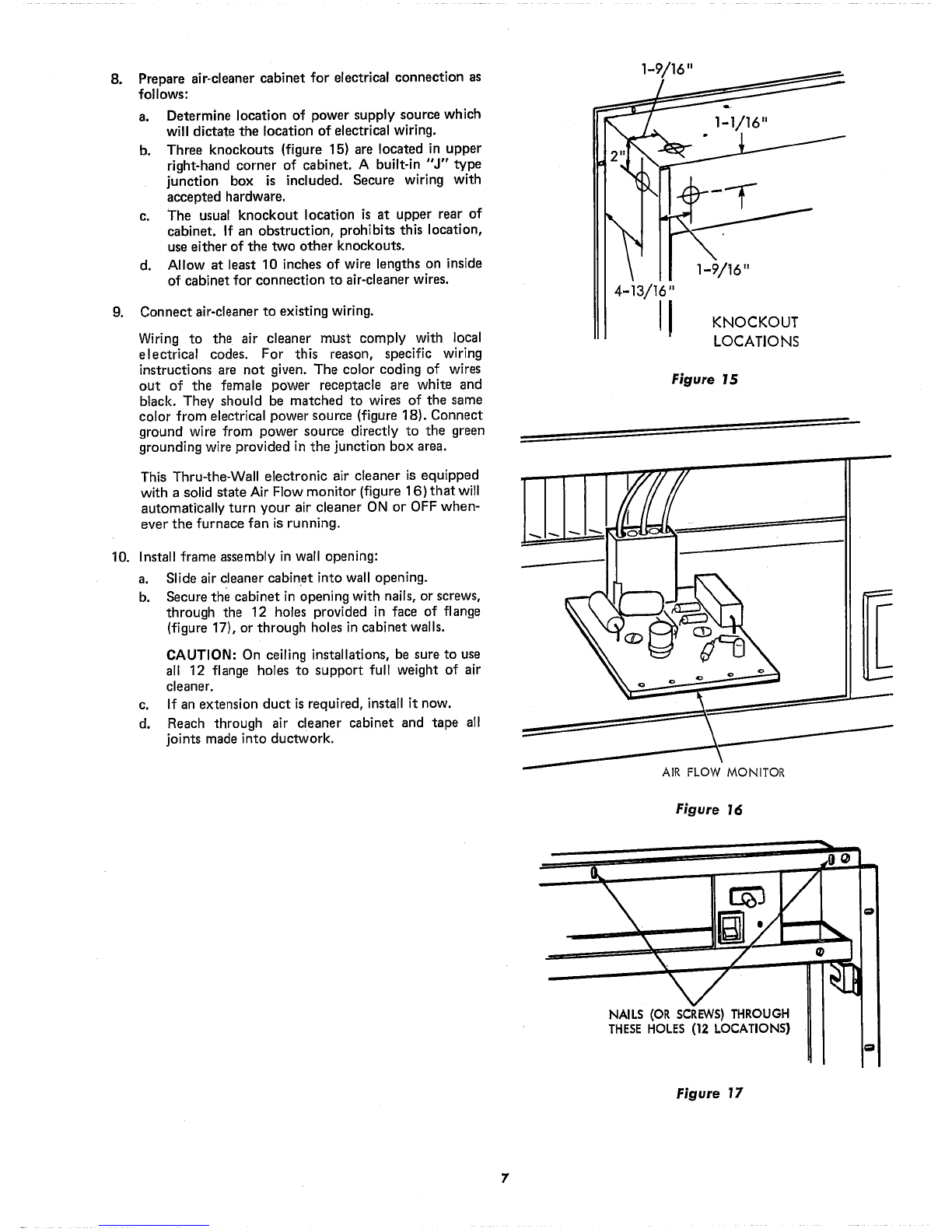

,Prepare air-cleaner cabinet for electrical connection as
follows:
a. Determine location of power supply source which
will dictate the location of electrical wiring.
b. Three knockouts (figure 15) are located in upper
right-hand corner of cabinet. Abuilt-in "J" type
junction box is included. Secure wiring with
accepted hardware.
c. The usual knockout location is at upper rear of
cabinet. If an obstruction, prohibits this location,
useeither of the two other knockouts.
d. Allow at least 10 inches of wire lengths on inside
of cabinet for connection to air-cleaner wires.
9. Connect air-cleaner to existing wiring.
Wiring to the air cleaner must comply with local
electrical codes. For this reason, specific wiring
instructions are not given. The color coding of wires
out of the female power receptacle are white and
black. They should be matched to wires of the same
color from electrical power source (figure 18). Connect
ground wire from power source directly to the green
grounding wire provided in the junction box area.
This Thru-the-Wall electronic air cleaner is equipped
with a solid state Air Flow monitor (figure 16) that will
automatically turn your air cleaner ON or OFF when-
ever the furnace fan is running.
10. Install frame assembly in wall opening:
a. Slide air cleaner cabinet into wall opening.
b. Secure the cabinet in opening with nails, or screws,
through the 12 holes provided in face of flange
(figure 17), or through holes in cabinet walls.
C,
d.
CAUTION: On ceiling installations, be sure to use
all 12 flange holes to support full weight of air
cleaner.
If an extension duct is required, install it now.
Reach through air cleaner cabinet and tape all
joints made into ductwork.
4-13/16"
lJ KNOCKOUT
LOCATIONS
Figure 15
AIR FLOW MONITOR
Figure 16
NAILS (OR SCREWS) THROUGH
THESE HOLES (12 LOCATIONS}
Figure 17
==1
7

11. Connect Power Wires.
a. Connect black and white wires from power supply
to corresponding black and white wires in the air
cleaner junction box. (See figure 18.)
b. Connect ground wire (green or bare wire) from
power source to green grounding wire in junction
box.
c. Install electrical enclosure cover with three screws.
(See figure 2.)
12. Install the cell.
a. Grasp the cell firmly, holding it at a slight angle
with the cabinet (out at bottom). The arrow on top
of cell should point inward.
b. Insert cell at the top and engage retaining pins
(FIG. 19)into their respective cell-retaining slots,
then slide cell outward until retaining pins are at
bottoms of slots.
c. Allow cell to swing inward at the bottom, pushing
slightly until it "clicks" over the safety spring clip
at bottom center of cabinet.
d. Continue to push cell inward at bottom until it
latches into the spring clips {one at each side of
cabinet). Make sure both clips are latched. (See
FIG. 19).
13. Install screen and grille.
a. Drop screen behind two screen clips at bottom of
cabinet and fasten at upper edge with two spring
retainer latches. (See FIG. 2)
b. Engage pins at lower edge of grille into their mating
hinges. Slide grille toward the right until hinge pins
are fully seated.
c. Leave grille open until after operational tests have
been performed.
CAUTION: When installing the cell on ceiling
installations, make sure it is latched securely in cell
frame before releasing it. (See figure 20.)
00
r-- o lh
I _.._ i'_ //Z/4IWHITE(SUPPLY)
II _
\\ _LACK CSUPPLY)
h/(GREENORBARE).
// \"
GREEN GROUND WIRE r-]
II
Figure 18
CELL RETAINING SLOTS
ARROW MUST
POINT INWARD
RETAININ G
PIN,
/
GRILLE
_SCREE'N CLIP
/
/
/
/<-..
/SCREEN
/
/
J
HINGE PIN
Figure 19
Figure 20
CHECK
SAFETY LATCH

OPERATION
1. Turn on furnace or air conditioner to get air flow
through the duct.
2. Press the lower section of "ON-OFF" rocker switch
(Figure 21 ).
3. Close the grille by rotating into position on
the cabinet (fig. 19). Lock in position with
two knurled screws.
NOTE: Your air cleaner is equipped with an air sensing
device. It may provide a short delay before the operating
light comes on.
IMPORTANT - Occasionally, you will hear a sharp
snappingsound (called arcing) coming from the air cleaner.
Arcing is a normal phenomenon. It can result from the
collection of especially large particles. It occursmore often
in e new installation. Later on, arcing may occur when the
cell has become loaded with dirt and needs washing, or
when still damp after washing. The presence (or absence)of
this sound normally does not mean that the unit is
defective.
SAFETY1NTERLOCK
O N-OFF SWITCH
SWITCH J OPERATINGLIGHT
I
'\ //0oi
OF Ir. i
° IIE I =
Figure 21
III I
MAINTENANCE
WASHING CELL AND SCREEN
NOTE: For top performance your electronic air cleaner
should be cleaned at least every two months, or more often
in areasof extreme air-borne dust.
1. Remove two knurled screws and open the grille.
2. Push "ON-OFF" rocker switch at top to turn it off.
(Figur_21). Wait 15 seconds.
3. Rotate two screen retainer latches either left or right to
clear screen. Lift screen out.
4. Release the two retaining spring clips (one at each side,
Figure 22) and pull cell outward at bottom until it is
stopped by the safety spring clip at bottom center of
cabinet.
5. Release safety spring clip and pull ceil outward at
bottom until it swings free.
6. Tilt cell outward at bottom and slide it inward at the
top to release the two retaining pins from their slots in
cabinet. Place cell in a safe location.
SCREEN RETAINER
LATCHES
Figure 22
SAFETY
SPRING CLIP
KNURLED
SCREWS
o
SCREEN

Figure 23 Figure 24
7,
8.
9o
PREPARE THE WASH WATER:
a. Place enough hot water in a suitable wash
container (figure 23) to cover the cell.
b. Dissolve four ounces of automatic dishwasher
detergent, such as Calgonite, in the water. Liquid
detergents used to wash dishes by hand are not
strong enough for good cleaning.
c. Shake the screen gently outside the house to
remove heavy dirt collections.
SOAK:
a. Lay the cell in the container and allow it to soak
for thirty minutes.
b. Then slosh the cell up and down in the solution
until it appearsclean. RemoVe cell from container.
c. Then slosh the screen up and down in the solution
until clean. Drain out the dirty water.
RINSE:
a. Hold cell upright in container.
b. With a hose, rinse with warm water. (See figure
24.)
c. The hose nozzle should be held approximately ten
inches from cell plates and at a slight angle for
better cleaning effect, Rinse both sides of cell until
water isclear.
d. Flush cell frame along edges to dislodge any
trapped dirt or lint.
e. Flush and rinsescreenon both sides.
f. Stand cell and screen up and allow them to drain
for 2 hours.
10. INSTALL CELL
CAUTION: When installing the cell in a ceiling installation,
make sure it is latched securely in place before releasing it
(Figure 20).
a. Grasp the cell firmly, holding it a slight angle with
the cabinet (out at bottom).The arrow on top of
cell should point inward.
b. Insert cell at the top a_ndengage retaining pins
(Figure 19) into their respective cell-retain-
ing slots, then slide cell outward until retaining
pins are at bottoms of slots.
c. Allow ce!lto swing inward at the bottom, pushing
slightly until' it "clicks" over the safety spring clip
at bottom center of cabinet.
d. Continue to push cell inward at bottom until it
latches into the spring clips (one at each side of
cabinet). Make sure both clips are latched. (See
Figure 19).
e. Press the lower section of the "ON-OFF" switch
to turn unit on.
f. Replace the screen. Close the grille and secure it
with the two knurled screws.
10

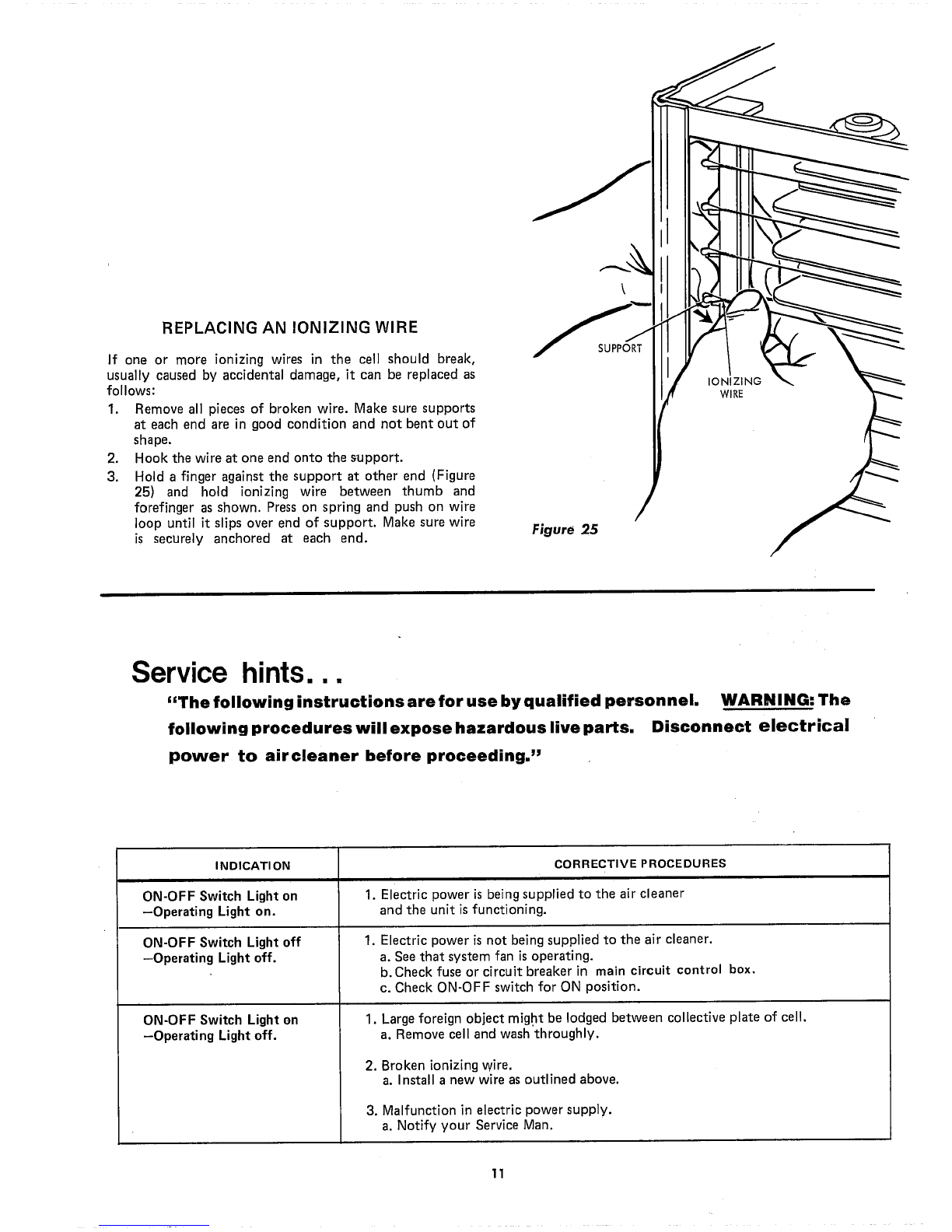

REPLACING AN IONIZING WIRE
If one or more ionizing wires in the cell should break,
usually caused by accidental damage, it can be replaced as
follows:
1. Remove all pieces of broken wire. Make sure supports
at each end are in good condition and not bent out of
shape.
2. Hook the wire at one end onto the support.
3. Hold a finger against the support at other end (Figure
25) and hold ionizing wire between thumb and
forefinger as shown. Presson spring and push on wire
loop until it slips over end of support. Make sure wire
is securely anchored at each end. Figure 25
Service hints...
"The following instructions are for use by qualified personnel, WARNING: The
following procedures will expose hazardous live parts. Disconnect electrical
power to aircleaner before proceeding."
INDICATION
ON-OFF Switch Light on 1.
-Operating Light on.
ON-OFF Switch Light off 1.
-Operating Light off.
1.
ON-OFF Switch Light on
-Operating Light off.
2.
3.
CORRECTIVE PROCEDURES
Electric power is being supplied to the air cleaner
and the unit is functioning.
Electric power is not being supplied to the air cleaner.
a. See that system fan is operating.
b. Check fuse or circuit breaker in main circuit control box.
c. Check ON-OFF switch for ON position.
Large foreign object mig.ht be lodged between collective plate of cell.
a. Remove cell and wash throughly.
Broken ionizing wire.
a. Install a new wire asoutlined above.
Malfunction in electric power supply.
a. Notify your Service Man.
11

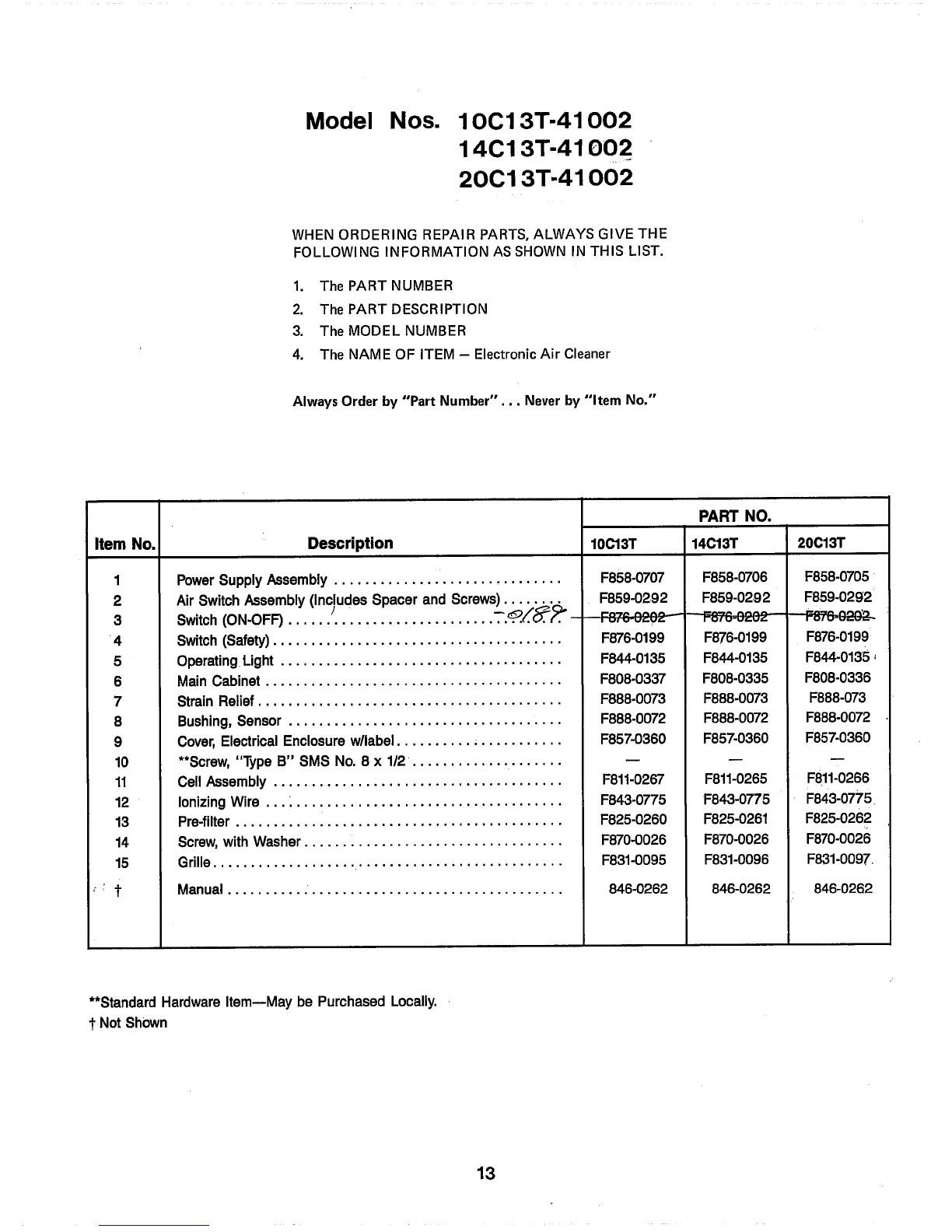

REPAIR PARTS
11
"14
'15
12

Model Nos. 1OC1 3T-41 002
14C1 3T-41 002
2OC1 3T-41 002
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE
FOLLOWING INFORMATION AS SHOWN IN THIS LIST.
1. The PART NUMBER
2. The PART DESCRIPTION
3. The MODEL NUMBER
4. The NAME OF ITEM - Electronic Air Cleaner
Always Order by "Part Number"... Never by "'Item No."
Item No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Description
PowerSupplyAssembly..............................
Air SwitchAssembly (Inc!udesSpacer and Screws)..... _._
Switch(ON-OFF)...... J.. ................... -_.._>./'._._.
Switch(Safety)......................................
OperatingLight .....................................
MainCabinet .......................................
StrainRelief........................................
Bushing,Sensor ....................................
Cover,ElectricalEnclosurew/label.......... ;...........
**Screw,"Type B" SMS No. 8 x 1/2. ............ .......
CellAssembly ......................................
IonizingWire... _...................................
Pre-filter...........................................
Screw,with Washer..................................
Grille..............................................
Manual........... .................................
10C13T
F858-0707
F859-0292
F_°,_0202-'-
F876-0199
F844-0135
F808-0337
F888-0073
F888-0072
F857-0360
F811-0267
F843-0775
F825-0260
F870-0026
F831-0095
846-0262
PART NO.
14C13T
F858-0706
F859-0292
---F876_
F876-0199
F844-0135
F808-0335
F888-0073
F888-0072
F85_0360
F811-0265
F843-0775
F825-0261
F870-0026
F831-0096
846-0262
20C13T
F858-0705
F859-0292
--Ps-Te.e2em
F876-0199
F844-0135,
F808-0336
1=888-073
F888-0072
F85_0360
F811-0266
F843-0775
F825-0262
F870-0026
F831-0097
846-0262
**StandardHardware Item--May be PurchasedLocally.
1"NotShown
13

WHITE-RODGERS
White-Rodgers Division, Emerson ElectricCo. Em
9797 Reavis Road, St. Louis, MO 63123 I--
[phone]
\.
J
