Ecor-Pro dryfan 8 User manual

Design
Great British
Powered by
INTERNATIONAL PATENT PENDING
DEHUMIDIFIER
USER MANUAL
DryFan
®
8 (white)
DryFan
®
12 (white)
DEHUMIDIFIER USING DRYFAN®TECHNOLOGY
WWW.ECORPRODUCTS.COM
WHITE / WEIßE FARBE
COULEUR BLANCHE / WIT
LUFT ENTFEUCHTER
DESHUMIDIFICATEUR
LUCHTONTVOCHTIGER
DESHUMIDIFICADOR
DryFan 8
WWW.ECORPRODUCTS.COM
LUFT ENTFEUCHTER
DESHUMIDIFICATEUR
LUCHTONTVOCHTIGER
DESHUMIDIFICADOR
DryFan 8
Pro
STAINLESS STEEL
INOX
WWW.ECORPRODUCTS.COM
DryFan 8
WHITE
UK
WWW.ECORPRODUCTS.COM
UK
STAINLESS STEEL
DryFan 8
Pro
135 MM
120 MM
WWW.ECORPRODUCTS.COM
WHITE / WEIßE FARBE
COULEUR BLANCHE / WIT
LUFT ENTFEUCHTER
DESHUMIDIFICATEUR
LUCHTONTVOCHTIGER
DESHUMIDIFICADOR
DryFan 8
WWW.ECORPRODUCTS.COM
LUFT ENTFEUCHTER
DESHUMIDIFICATEUR
LUCHTONTVOCHTIGER
DESHUMIDIFICADOR
DryFan 8
Pro
STAINLESS STEEL
INOX
WWW.ECORPRODUCTS.COM
DryFan 8
WHITE
UK
WWW.ECORPRODUCTS.COM
UK
STAINLESS STEEL
DryFan 8
Pro
135 MM
120 MM
DryFan
®
8 PRO (stainless steel)
DryFan
®
12 PRO (stainless steel)

2
For safety reasons, read this information carefully before operating.
Persons who are not familiar with this type of product must not use it.
SAFETY
The dehumidier is safe, however, as with other electrical appliance, use it with care.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning the use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
The installation must be in accordance with the regulations
of the country where the unit is used.
The unit is designated for indoor operation.
This appliance must be earthed and should only be connected
to an earthed 220 – 240 V / 50 Hz mains supply.
Your dehumidier ghts againt rust, wood rot, bacteria, fungi en prevents damage from moisture.
+

3
• Do not clean the dehumidier by spraying it or immersing it in water.
• Do not insert any object into the opening of the dehumidier.
• Disconnect from the mains before cleaning the unit or any of its components.
• Never connect to an electrical outlet using an extension cord. If an outlet is not available, one should be
installed by a licensed electrician.
• Place the dehumidier in location appropriate to the appliance IP rating (see technical data).
• Any service other than regular cleaning setting fan mode or lter replacement should be performed by an
authorized service representative. Failure to do so could result in a loss of warranty. Your dehumidier is
supplied with an electrical cable (4200 mm) and an earthed plug. Should it be necessary to replace this plug
at any time, you must use an earthed electrical plug.
Warning! Never operate this appliance if it has a damaged cord or plug.
If the supply cord is damaged an approved service representative or a similar qualied person
must replace it in order to avoid any hazards.
There should be direct access to the electrical plug after connecting the power!

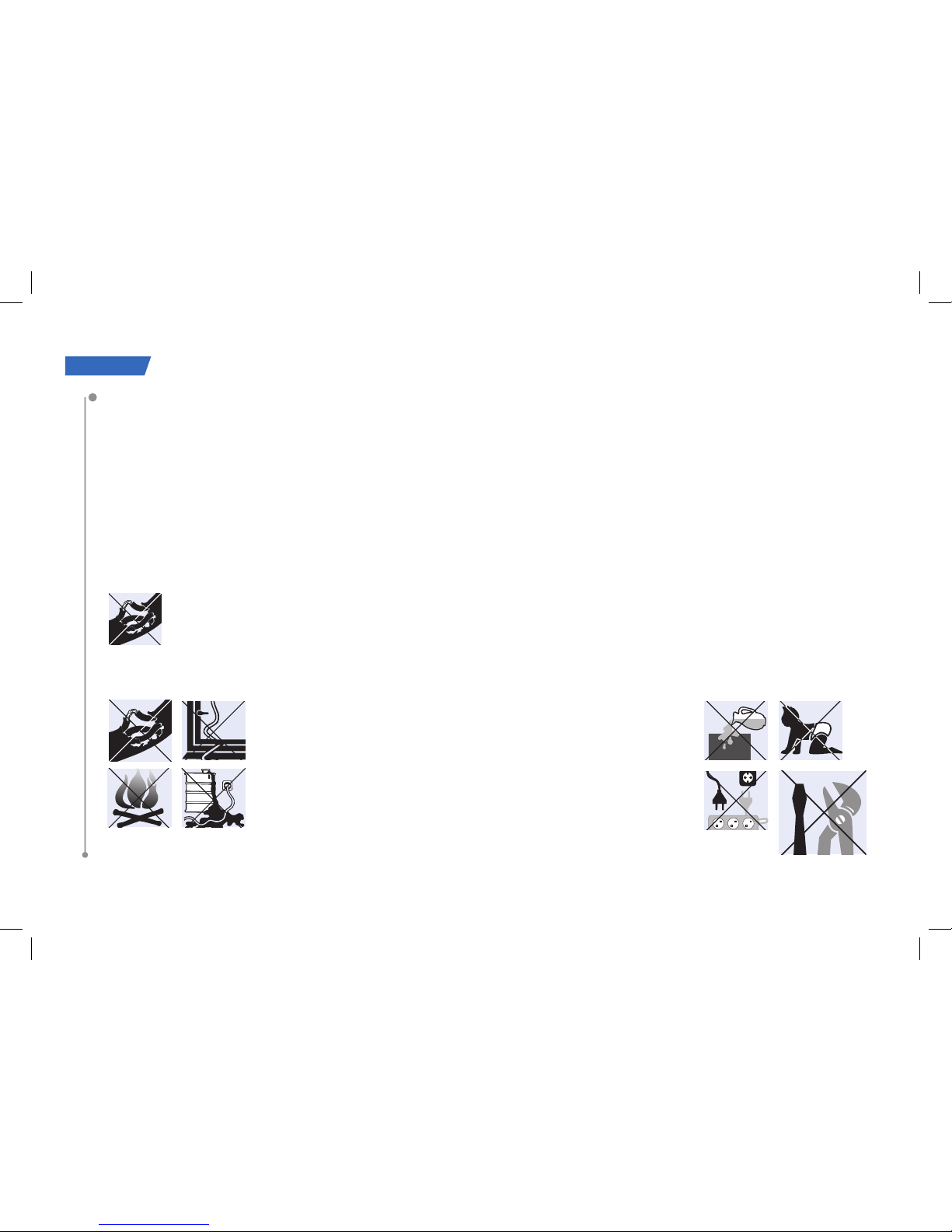

Do not use your dehumidier under the following conditions:
• if the power cable is damaged
• where the power cable may be easily damaged
• close to heat source
• where small children may be left unattended
• where there is a risk of liquids falling on tp the unit
• where it may be damaged by chemicals
This product is not made for DIY repair.
SAFETY (2)

4
Thank you for choosing this exciting innovation in drying using DryFan®technology.
A unique product and a revolution to the way we keep living spaces, lofts, basements, boats, holiday homes,
garages and storage areas dry all day and every day.
This dehumidier is a tough and can even be used for industrial processes and applications.
Designed to be used almost anywhere, in any orientation and will even work upside down.
These units will perform similar to compressor dehumidiers rated at double the capacity at normal room
conditions.
Using DryFan® technology these dehumidiers will out-perform compressor dehumidiers by 3–4 times
below 10 ºC. Where compressor dehumidiers stop working at 5 ºC these units using DryFan®technology will
continue to dry spaces even continuing to work to -20 ºC making them ideal for unheated rooms and
out-buildings.
You can take out your unit easily if
you open the box from the top side.
THANKYOU!
It is important that you read these
instructions carefully before installing and
using your new dehumidier.
Please keep them in a safe place for future
reference.

5

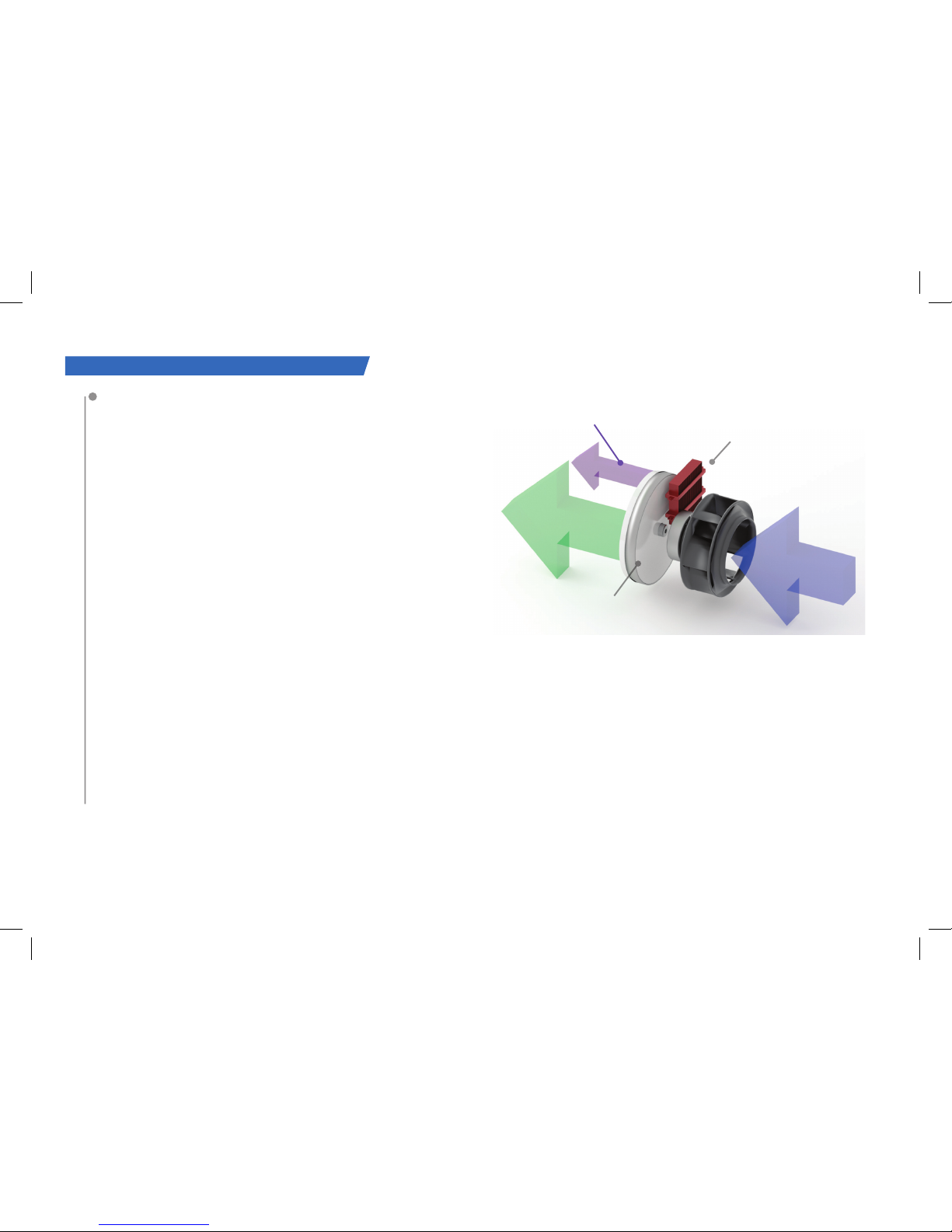

Your dehumidier uses DryFan®technology and
uses a continuously rotating moisture absorbing
patented wheel termed a “Rotor”.
A highly ecient yet low noise fan draws air into the
unit (Process Air) and forces it through a section of
the rotor. As the air passes through the rotor, the
honeycomb, of hygroscopic membranes absorbs
almost all of the moisture creating an extremely dry
airstream.
Most of this airstream (approx 85%) is discharged
directly through the ‘Dry Air Outlet’.
However, a portion, (approx 15%) of this air (Regen
Air) is separated and directed through a special
heater bank (Regen Heater) where the air’s
temperature is raised.
This heated air is then channelled back through a section of the Rotor.
As this hot air passes through the membranes, its higher temperature drives-out the previously
absorbed moisture and discharges it as warm wet air through the ‘Wet Air Out’ duct.
As the wheel rotates, this process of collecting and discharging moisture is continuous.
The wet air outlet is 41 mm in diameter making it easy to vent the moisture away using standard push t waste
water connectors.
Water is not drained away as a liquid it is vented away similar to a tumble dryer.
HOW OUR UNIQUE TECHNOLOGY WORKS
• damp air in
• patented
regen heater
• dry filtered
air out
•wet air exhaust
• patented dessicant rotor
+

6
PATENTED DESICCANT ROTOR
The Desiccant Rotor is the heart of the DryFan® system. It is an array of
especially absorbent membranes – patent protected– arranged as a series
of corrugations (as shown in the cut-away image) to give a vast surface area
that was developed over many years, making it an extremely ecient mois-
ture collector.
PATENTED REGEN HEATER
A patented ceramic PTC Regen Heater. (PTC Positive Temperature
Coecient) is self regulating so never to overheat. However, as triple safety
we include a separate overheat smart sensor in the dehumidier.
The patented technology is both safe and energy ecient and can never
overheat to hazardous temperatures, even if vents become accidentally
blocked.
• wet air
exhaust
• dry filtered air out
• damp air in
HOW OUR UNIQUE TECHNOLOGY WORKS (2)
• wet air exhaust
• dry filtered air out
• damp air in
+

7
FAN SYSTEM
All models use specialised fan technology to give quiet performance but type of fan will dier by model capacity.
Note: External ductwork will reduce restrict airow and therefore the amount of water the dehumidiers will
extract. To maximise airow and water extraction always keep any ducting to minimum.
Maximum lengths of any ducts are outlined in the table.
Model Maximum process air
in duct length (m)
Maximum wet air out
duct length (m)
Maximum process air
out duct length (m)
DryFan®8 &
DryFan®8 PRO
1.0 0.6 No duct flange /
not applicable
DryFan® 12 &
DryFan® 12 PRO
3.0 1.0 3.0
• push fit wasted water pipe
DryFan®8 / 8 PRO
DryFan®12 / 12 PRO
• max. 1000 mm
• max. 600 mm
• max. 3000 mm • max.
1000 mm
• max. 3000 mm
HOW OUR UNIQUE TECHNOLOGY WORKS (3)
• supply cord
4200 mm
• solid or flexible pipe
• supply cord
4200 mm
+

8
CONTINUOUS FAN OR
FAN ON WHEN DRYING ONLY MODES
The DryFan®system can be used in two modes:
Mode 1 – The fan is always blowing and circulating air
continuously dehumidifying at the set humidity point by
the humidistat. This has the benet of a faster reaction
time to uctuating humidity levels.
Mode 2 – The fan is working only when needing to dry the
air. The reaction time to humidity level change may be up
to 1 hour in this mode, but it is more energy ecient and of
course quieter working only when needed.
SELECTING FAN MODE
Modes for the fan can changed by disconnecting the
dehumidier from the power supply by unplugging.
Remove the four screws holding the top cover in place
with a screwdriver. On the inside just under the lid is a
switch. Pressing the switch will mean mode change from
one mode to the other.
Replace the cover the right way round (there is only one
way for all screws to align). Put screws back into position
taking care not to overtighten. • switch for selecting
the fan mode
• 2 srews on front
and back
• 2 screws on
each side
HOW OUR UNIQUE TECHNOLOGY WORKS (4)

9
POSITIONING
The models have been designed for indoor use however, they can be placed inside or outside the room to be dried.
Internal Positioning:
When positioning the unit inside the room, place it centrally, ensuring inlet and outlet ducts are clear of
obstruction. If required, ducts can be connected to the outlet and/or inlet (where tted) to direct the drying to
specic areas. The ‘Wet Air Out’ MUST be ducted outside the room.
POSITIONING DRYFAN®8 / 8 PRO
• in the basement • in the gym
200 mm
Ø 41 mm200 mmØ 125 mm
200 mm
200 mm
+

10
External Positioning (Models where Outlet Duct Fitted Only):
When positioning the unit outside the room, connect ducting to the outlet to direct the dry airstream into the
room to be dried. Optionally, the inlet may also be ducted to the room to give a re-circulation eect. In this
case however, because the unit uses a portion for the inlet air for regeneration. Provision must be made in the
inlet duct to draw air also from outside the room.
POSITIONING DRYFAN®12 / 12 PRO
• for more
than one room
Ø 125 mmØ 41 mmØ 125 mm
200 mm
300 mm
200 mm
200 mm
+

11
NOTE: As the Wet-Air-Out discharge is warm and very humid ensure it is directed where it will have no
adverse eect on the immediate environment.
NOTE: Wet-air-out should be declined from the dehumidier where possible if there is a risk of any
condensation build up in the exhaust duct running back into the dehumidier.
This can be avoided either with short wet-air-out duct lengths or adequately insulating the wet-air-duct
to prevent condensation. Should water be seen dripping from the dehumidier switch o the appliance
immediately at the wall socket. Allow water in the unit to dry completely.
Correct the defect in the wet-air-out ducting and reconnect to the power to start operating again.
Do not operate If there is a concern the unit is not thoroughly dry inside.
NOTE: The wet-air-out ange outlet is 41 mm. This is the standard size of push t wasted water pipe
connectors and pipes ideal for exhaust ducting. Decreasing the exhaust pipe diameter will decrease
performance. Flexible ducting may be used on all inlets and outlets.
All ducting lengths should be kept to a minimum. Longer lengths will reduce performance. For the longest
lengths see FAN SYSTEM TABLE (page 7). Ducting may be also supplied by your dehumidier supplier.
POSITIONING (3)

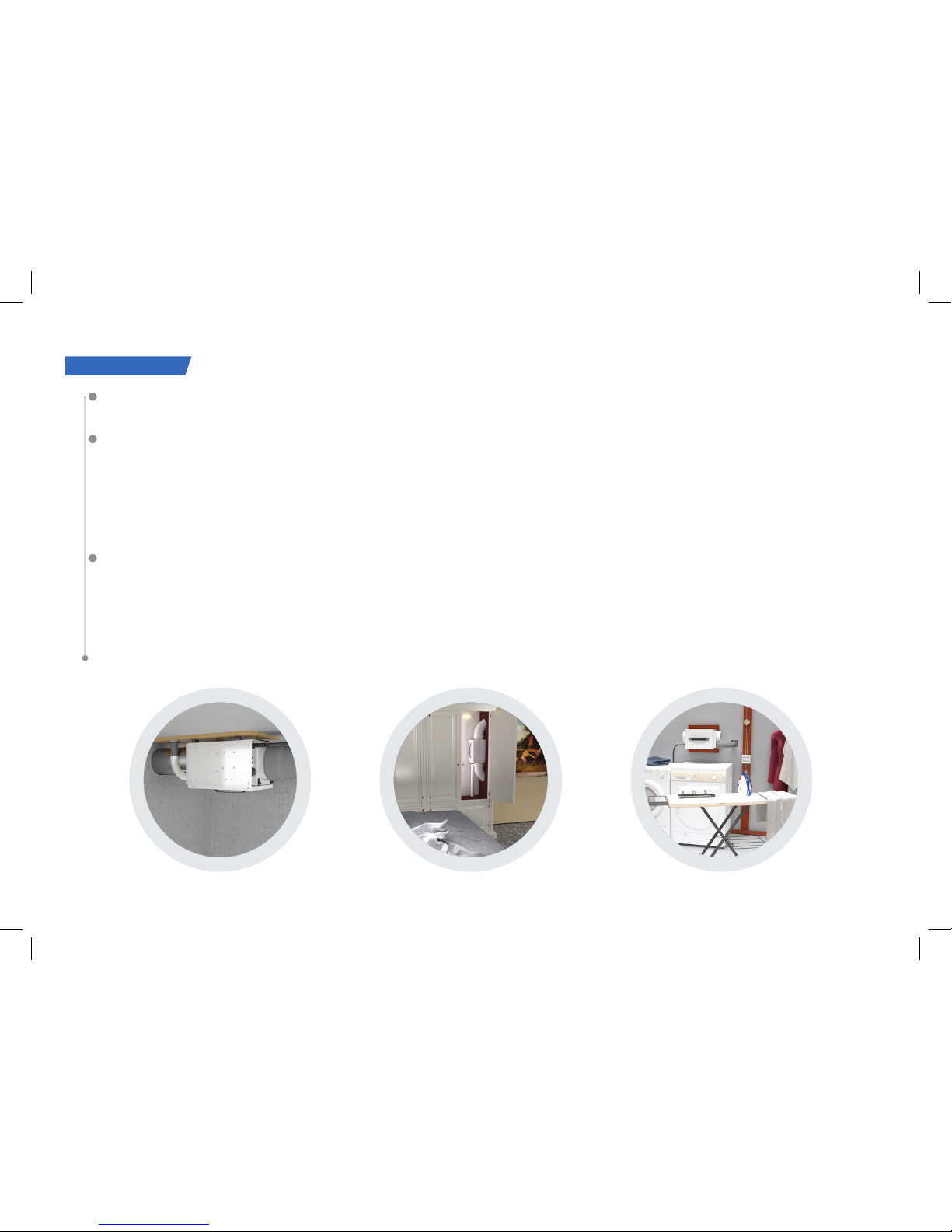

• to the ceiling • in a closet • in a laundry
room

12

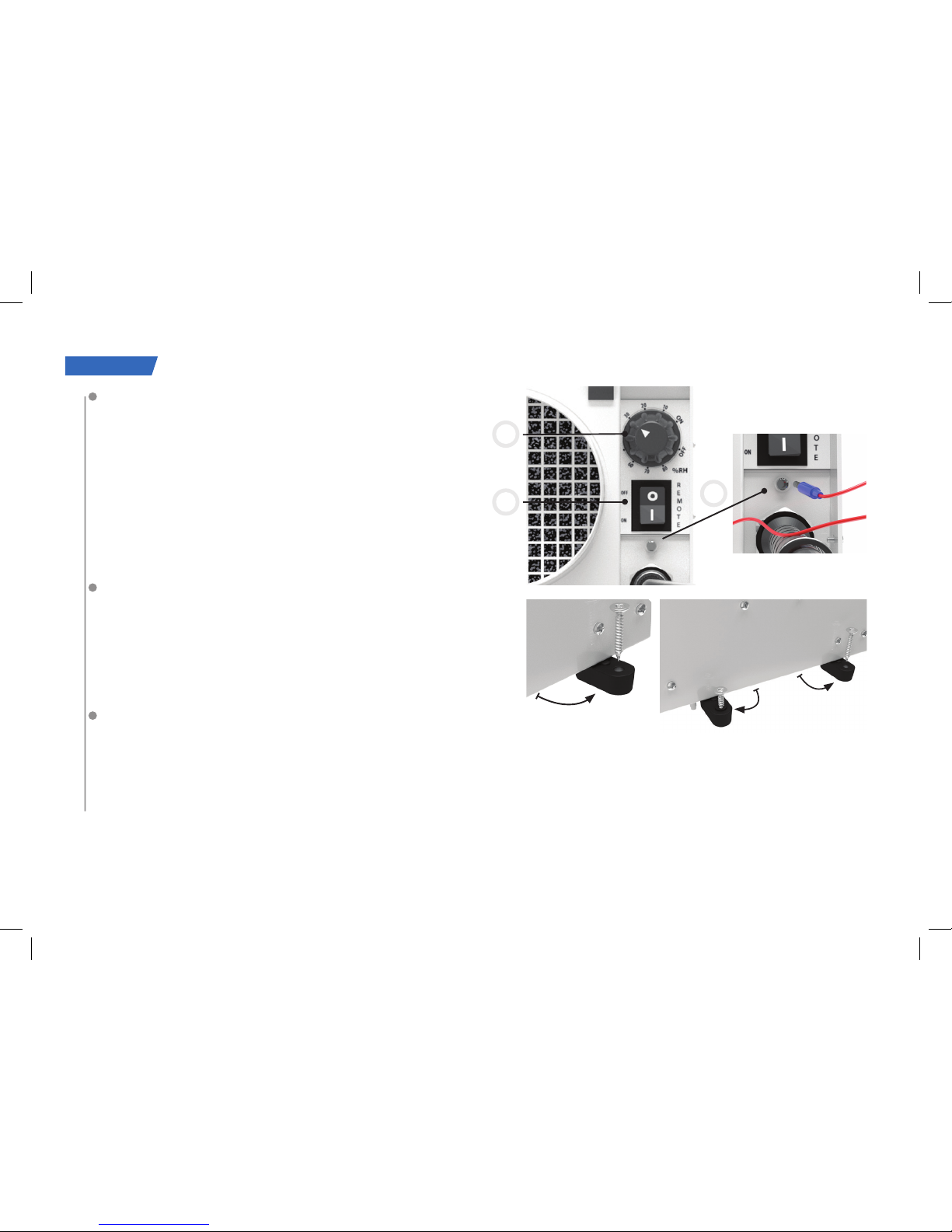

CONTROLS
The controls are positioned on the front of the unit
next to the air outlet duct, they are:
1. Humidistat
2. Remote Humidistat Switch
3. Remote Humidistat Jack Plug Socket
Auto reset. If there is a power out the dehumidier will
automatically restart when the mains power is recon-
nected.
MOUNTING
The dehumidier can be mounted in any direction
even up-side-down.
Turn the feet out to see the anchoring points. Secure
all four feet with suitable xings (not provived) to oor,
wall or ceiling.
STAND-ALONE OPERATION
Connect the unit to suitable mains supply and connect ducting,
Ensure the ‘Remote Humidistat’ switch is set to the ‘OFF’ position (O). Turn humidistat to lowest humidity level
continuation or set the switch to the ‘ON’ position (I). The fan will start. Set the humidity level right for the room
to be dried.
Follow the steps in SETTING FAN MODE to alter the fan mode as needed (see page 8).
OPERATION
1
23
+

13
NOTE: A low setting of say 10% means the room is regulated to a very dry level while a setting of say 90%
the room will be maintained at a relatively humid level. The right level for the room may vary with weather,
temperature and occupation conditions over time.
REMOTE OPERATION
For remote operation it is necessary to connect an 24V external humidistat (not
provided) via the jack plug connector. The external humidistat may be obtained from
your appliance supplier. Ensure the “Remote Humidistat” switch is set to ‘ON’ (O). The
dehumidier will now be controlled by the remote humidistat that is using low power
and only 24V.
CLEANING
Disconnect from the mains before cleaning or servicing the unit or any of its components.
Wipe regularly clean with a moist cloth (a soft, damp cloth) and a mild household de-
tergent, Never use chemicals, petrol, agressive detergents or other cleansing solutions.
AIR FILTER
The dehumidier has an inlet air lter. This should be
checked periodically and if necessary cleaned.
It can be cleaned with a vacuum cleaner or hand
washed in mild detergent only.
Replacement lters are available from your supplier.
ATTENTION: Do not run the unit without a lter tted
as dust will impair the performance of the Rotor.
OPERATION (2)
1
1
2
3

14
Disposal
This marking indicates that this product should not be disposed with other household wastes throughout the EU.
To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly
to promote the sustainable reuse of material resources. To return your used device, please use the return and collection
systems or contact the retailer where the product was purchased.
They can take this product for environmental safe recycling.
Specifications DryFan®8 / 8 PRO DryFan® 12 / 12 PRO
Typical extraction @ 35
oC 90%rh 8 l /day 12 l/day
Typical extraction @ 27
oC 60%rh 6 l/day 10 l/day
Air flow (Process) 90 m3/h 130 m3/h
Air flow (Regen) 14 m3/h 20 m3/h
Mains 230V ~ 1 phase • 50 Hz 230V ~ 1 phase • 50 Hz
Current @ 27
oC 60%rh 2,0 A 2.5 A
Power @ 27
oC 60%rh 0.45 kW 0,55 kW
UK plug fuse rating 13 A 13 A
Operating temperature range -20
oC — + 40 oC -20 oC — + 40 oC
Noise level 40 dB 44 dB
IP rating IP22 IP22
Dimensions l x d x h mm 200 x 200 x 200 200 x 300 x 200
Weight net / gross 4.5 kg / 4.8 kg 5.7 kg / 6.6 kg
TECHNICAL DATA
Powered by
Design
Great British
Subject to modications.

15
GUARANTEE CONDITIONS
Your dehumidier is supplied with a 24-month guarantee, commencing on the date of purchase.
All material and manufacturing defects will be repaired or replaced free of charge within this period.
The following rules apply:
We expressly refute all further damage claims, including claims for collateral damage.
Repairs to or replacement of components within the guarantee period will not result in an extension of the
guarantee.
The guarantee is invalidated if any modications have been made,
non genuine parts are tted or repairs are carried out by third parties.
Components subject to normal wear, such as the lter, are not covered by the guarantee.
The guarantee is valid only when you present the original,
dated purchase invoice and if no modications have been made.
WWW.ECORPRODUCTS.COM
WHITE / WEIßE FARBE
COULEUR BLANCHE / WIT
LUFT ENTFEUCHTER
DESHUMIDIFICATEUR
LUCHTONTVOCHTIGER
DESHUMIDIFICADOR
DryFan 8
WWW.ECORPRODUCTS.COM
LUFT ENTFEUCHTER
DESHUMIDIFICATEUR
LUCHTONTVOCHTIGER
DESHUMIDIFICADOR
DryFan 8
Pro
STAINLESS STEEL
INOX
WWW.ECORPRODUCTS.COM
DryFan 8
WHITE
UK
WWW.ECORPRODUCTS.COM
UK
STAINLESS STEEL
DryFan 8
Pro
135 MM
120 MM

Optional parts available from your supplier
- Wet air exhaust flexible ducting – 1 meter length
- Process air In or process air out flexible ducting – 3 meter length
- Remote humidistat – 5 meter cord length and jack plug
- Replaceable filters – pack of 3
- Blank replacement top plate without handle – pack of one
Subject to modications.
ECOR PRO
Anton Philipsweg 9-11
1422 AL UITHOORN
The Netherlands
[e-mail]
www.ecorproducts.com
Chamber of Commerce: 34334850
Tel.: [phone]
Fax: [phone]
