Ecor-Pro dryfan 8 User manual

Our Address
Puravent, Adremit Limited, Unit 5a, Commercial Yard,
Settle, North Yorkshire, BD24 9RH
Get In Touch
Call: 0845 6880112
Email: [email protected]
Design
Great British
Powered by
INTERNATIONAL PATENT PENDING

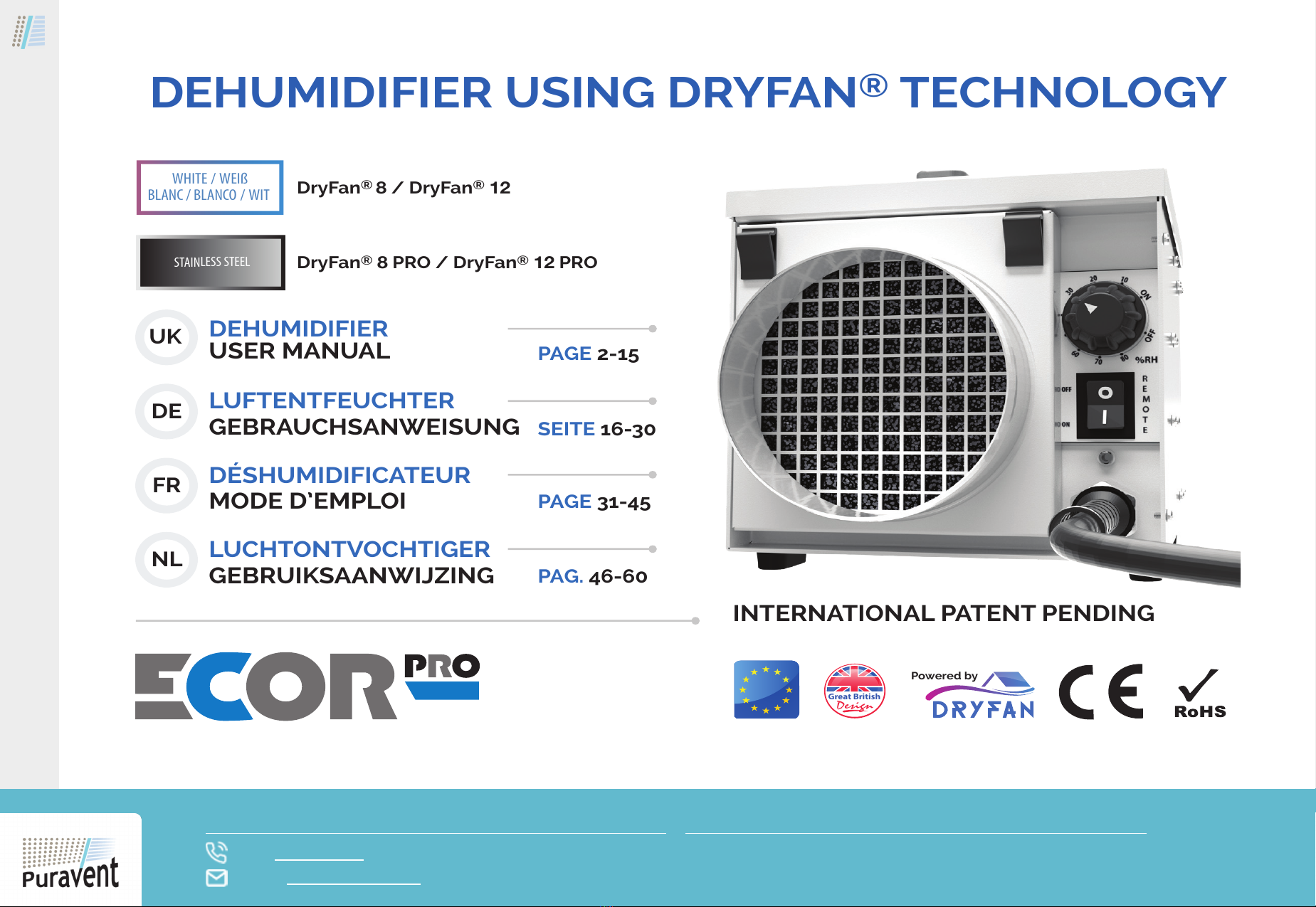

DEHUMIDIFIER USING DRYFAN®TECHNOLOGY
DryFan®8PRO / DryFan®12 PRO
STAINLESS STEEL
DryFan® 8/ DryFan®12
WHITE / WEIß
BLANC / BLANCO / WIT
DEHUMIDIFIER
USER MANUAL
UK PAGE 2-15
DE LUFTENTFEUCHTER
GEBRAUCHSANWEISUNG SEITE 16-30
FR DÉSHUMIDIFICATEUR
MODE D’EMPLOI PAGE 31-45
NL LUCHTONTVOCHTIGER
GEBRUIKSAANWIJZING PAG. 46-60

Our Address
Puravent, Adremit Limited, Unit 5a, Commercial Yard,
Settle, North Yorkshire, BD24 9RH
Get In Touch
Call: 0845 6880112
Email: [email protected]
2

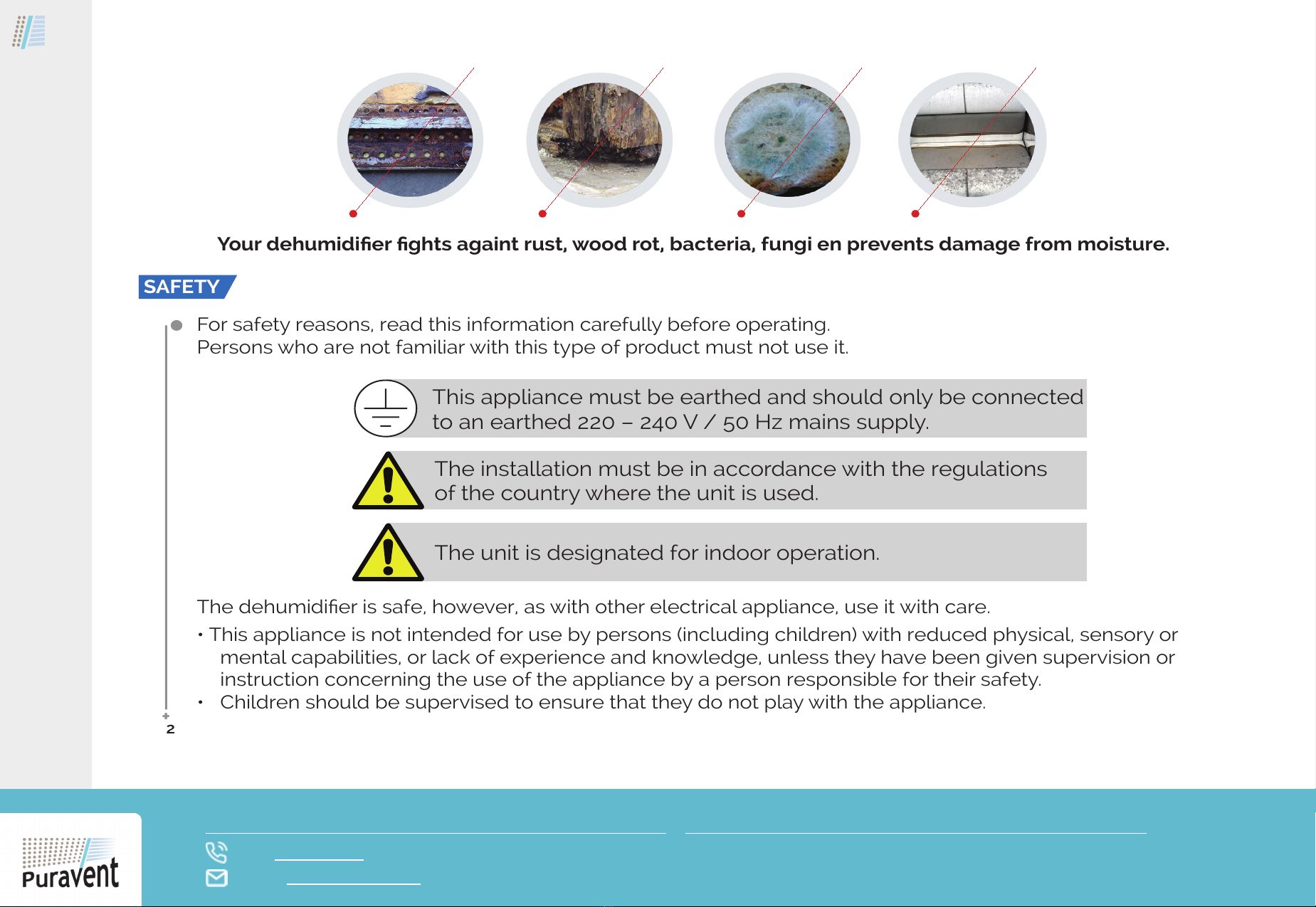

For safety reasons, read this information carefully before operating.
Persons who are not familiar with this type of product must not use it.
SAFETY|
The dehumidier is safe, however, as with other electrical appliance, use it with care.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning the use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
The installation must be in accordance with the regulations
of the country where the unit is used.
The unit is designated for indoor operation.
This appliance must be earthed and should only be connected
to an earthed 220 – 240 V / 50 Hz mains supply.
Your dehumidier ghts againt rust, wood rot, bacteria, fungi en prevents damage from moisture.
+

Our Address
Puravent, Adremit Limited, Unit 5a, Commercial Yard,
Settle, North Yorkshire, BD24 9RH
Get In Touch
Call: 0845 6880112
Email: [email protected]
3
UK
• Do not clean the dehumidier by spraying it or immersing it in water.
• Do not insert any object into the opening of the dehumidier.
• Disconnect from the mains before cleaning the unit or any of its components.
• Never connect to an electrical outlet using an extension cord. If an outlet is not available, one should be
installed by a licensed electrician.
• Place the dehumidier in location appropriate to the appliance IP rating (see technical data).
• Any service other than regular cleaning setting fan mode or lter replacement should be performed by an
authorized service representative. Failure to do so could result in a loss of warranty. Your dehumidier is
supplied with an electrical cable (4200 mm) and an earthed plug. Should it be necessary to replace this plug
at any time, you must use an earthed electrical plug.
Warning! Never operate this appliance if it has a damaged cord or plug.
If the supply cord is damaged an approved service representative or a similar qualied person
must replace it in order to avoid any hazards.
There should be direct access to the electrical plug after connecting the power!
Do not use your dehumidier under the following conditions:
• if the power cable is damaged
• where the power cable may be easily damaged
• close to heat source
• where small children may be left unattended
• where there is a risk of liquids falling on the unit
• where it may be damaged by chemicals
This product is not made for DIY repair.
SAFETY (2)|

Our Address
Puravent, Adremit Limited, Unit 5a, Commercial Yard,
Settle, North Yorkshire, BD24 9RH
Get In Touch
Call: 0845 6880112
Email: [email protected]
4

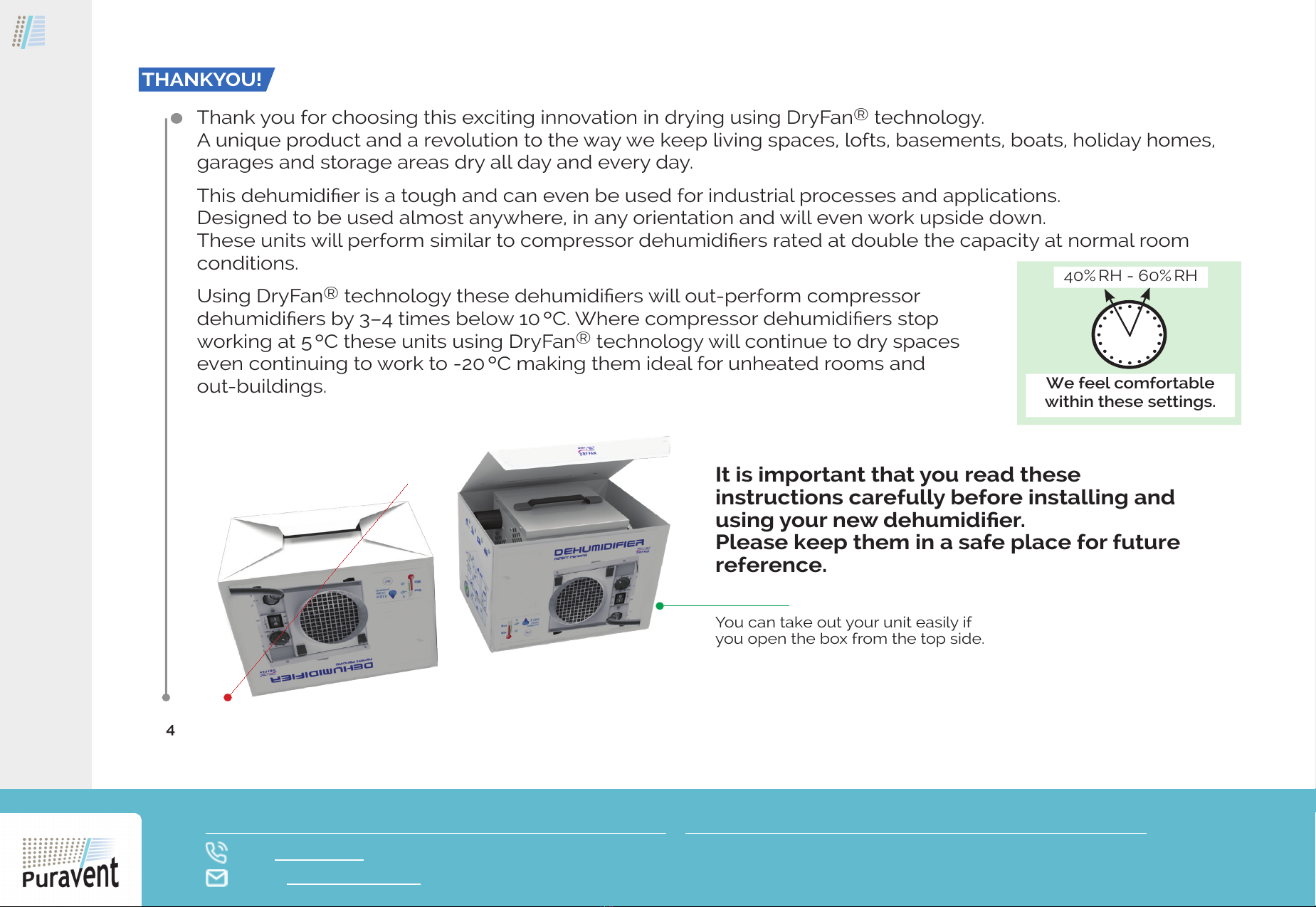

Thank you for choosing this exciting innovation in drying using DryFan®technology.
A unique product and a revolution to the way we keep living spaces, lofts, basements, boats, holiday homes,
garages and storage areas dry all day and every day.
This dehumidier is a tough and can even be used for industrial processes and applications.
Designed to be used almost anywhere, in any orientation and will even work upside down.
These units will perform similar to compressor dehumidiers rated at double the capacity at normal room
conditions.
Using DryFan® technology these dehumidiers will out-perform compressor
dehumidiers by 3–4 times below 10 ºC. Where compressor dehumidiers stop
working at 5 ºC these units using DryFan®technology will continue to dry spaces
even continuing to work to -20 ºC making them ideal for unheated rooms and
out-buildings.
You can take out your unit easily if
you open the box from the top side.
THANKYOU!|
It is important that you read these
instructions carefully before installing and
using your new dehumidier.
Please keep them in a safe place for future
reference.
40% RH - 60% RH
We feel comfortable
within these settings.

Our Address
Puravent, Adremit Limited, Unit 5a, Commercial Yard,
Settle, North Yorkshire, BD24 9RH
Get In Touch
Call: 0845 6880112
Email: [email protected]
5
UK
Your dehumidier uses DryFan®technology and
uses a continuously rotating moisture absorbing
patented wheel termed a “Rotor”.
A highly ecient yet low noise fan draws air into the
unit (Process Air) and forces it through a section of
the rotor. As the air passes through the rotor, the
honeycomb, of hygroscopic membranes absorbs
almost all of the moisture creating an extremely
dry airstream.
Most of this airstream (approx 85%) is discharged
directly through the ‘Dry Air Outlet’.
However, a portion, (approx 15%) of this air (Regen
Air) is separated and directed through a special
heater bank (Regen Heater) where the air’s
temperature is raised.
This heated air is then channelled back through a section of the Rotor.
As this hot air passes through the membranes, its higher temperature drives-out the previously
absorbed moisture and discharges it as warm wet air through the ‘Wet Air Out’ duct.
As the wheel rotates, this process of collecting and discharging moisture is continuous.
The wet air outlet is 40 mm in diameter making it easy to vent the moisture away using standard push t waste
water connectors.
Water is not drained away as a liquid it is vented away similar to a tumble dryer.
HOW OUR UNIQUE TECHNOLOGY WORKS |
• damp air in
• patented
regen heater
• dry filtered
air out
•wet air exhaust
• patented dessicant rotor
+

Our Address
Puravent, Adremit Limited, Unit 5a, Commercial Yard,
Settle, North Yorkshire, BD24 9RH
Get In Touch
Call: 0845 6880112
Email: [email protected]
6
PATENTED DESICCANT ROTOR
The Desiccant Rotor is the heart of the DryFan® system. It is an array of
especially absorbent membranes –patent protected– arranged as a series
of corrugations (as shown in the cut-away image) to give a vast surface area
that was developed over many years, making it an extremely ecient mois-
ture collector.
PATENTED REGEN HEATER
A patented ceramic PTC Regen Heater. (PTC Positive Temperature
Coecient) is self regulating so never to overheat. However, as triple safety
we include a separate overheat smart sensor in the dehumidier.
The patented technology is both safe and energy ecient and can never
overheat to hazardous temperatures, even if vents become accidentally
blocked.
• wet air
exhaust
• dry filtered air out
• damp air in
HOW OUR UNIQUE TECHNOLOGY WORKS (2)|
• wet air exhaust
• dry filtered air out
• damp air in
+

Our Address
Puravent, Adremit Limited, Unit 5a, Commercial Yard,
Settle, North Yorkshire, BD24 9RH
Get In Touch
Call: 0845 6880112
Email: [email protected]
7
UK
FAN SYSTEM
All models use specialised fan technology to give quiet performance but type of fan will dier by model capacity.
Note: External ductwork will reduce restrict airow and therefore the amount of water the dehumidiers will
extract. To maximise airow and water extraction always keep any ducting to minimum.
Maximum lengths of any ducts are outlined in the table.
Model Maximum wet air out
duct length (m)
Maximum process air
in duct length (m)
Maximum process air
out duct length (m)
DryFan®8&
DryFan®8PRO 0.6 1.0 Duct flange optional
(see page 15)
DryFan®12 &
DryFan®12 PRO 1.0 3.0 3.0
• push fit wasted water pipe
DryFan®8 / 8 PRO
DryFan®12 / 12 PRO
• max. 1000 mm
• max. 600 mm
• max. 3000 mm • max.
1000 mm
• max. 3000 mm
HOW OUR UNIQUE TECHNOLOGY WORKS (3)|
• supply cord
4200 mm
• solid or flexible pipe
• supply cord
4200 mm

Our Address
Puravent, Adremit Limited, Unit 5a, Commercial Yard,
Settle, North Yorkshire, BD24 9RH
Get In Touch
Call: 0845 6880112
Email: [email protected]
8
POSITIONING
The models have been designed for indoor use however, they can be placed inside or outside the room to be dried.
Internal Positioning:
When positioning the unit inside the room, place it centrally, ensuring inlet and outlet ducts are clear of
obstruction. If required, ducts can be connected to the outlet and/or inlet (where tted) to direct the drying to
specic areas. The ‘Wet Air Out’ MUST be ducted outside the room.
POSITIONING DRYFAN®8 / 8 PRO|
• in the basement • in the gym
200 mm
Ø 40 mm200 mmØ 125 mm
200 mm
200 mm
+

Our Address
Puravent, Adremit Limited, Unit 5a, Commercial Yard,
Settle, North Yorkshire, BD24 9RH
Get In Touch
Call: 0845 6880112
Email: [email protected]
9
UK
External Positioning (Models where Outlet Duct Fitted Only):
When positioning the unit outside the room, connect ducting to the outlet to direct the dry airstream into the
room to be dried. Optionally, the inlet may also be ducted to the room to give a re-circulation eect. In this
case however, because the unit uses a portion for the inlet air for regeneration. Provision must be made in the
inlet duct to draw air also from outside the room.
POSITIONING DRYFAN®12 / 12 PRO|
• for more
than one room
Ø 125 mmØ 40 mmØ 125 mm
200 mm
300 mm
200 mm
200 mm
+

Our Address
Puravent, Adremit Limited, Unit 5a, Commercial Yard,
Settle, North Yorkshire, BD24 9RH
Get In Touch
Call: 0845 6880112
Email: [email protected]
10
NOTE: As the Wet-Air-Out discharge is warm and very humid ensure it is directed where it will have no
adverse eect on the immediate environment.
NOTE: Wet-air-out should be declined from the dehumidier where possible if there is a risk of any
condensation build up in the exhaust duct running back into the dehumidier.
This can be avoided either with short wet-air-out duct lengths or adequately insulating the wet-air-duct
to prevent condensation. Should water be seen dripping from the dehumidier switch o the appliance
immediately at the wall socket. Allow water in the unit to dry completely.
Correct the defect in the wet-air-out ducting and reconnect to the power to start operating again.
Do not operate If there is a concern the unit is not thoroughly dry inside.
NOTE: The wet-air-out ange outlet is 40 mm. This is the standard size of push t wasted water pipe
connectors and pipes ideal for exhaust ducting. Decreasing the exhaust pipe diameter will decrease
performance. Flexible ducting may be used on all inlets and outlets.
All ducting lengths should be kept to a minimum. Longer lengths will reduce performance. For the longest
lengths see FAN SYSTEM TABLE (page 8). Ducting may be also supplied by your dehumidier supplier.
POSITIONING (3)|
• to the ceiling • in a closet • in a laundry
room

Our Address
Puravent, Adremit Limited, Unit 5a, Commercial Yard,
Settle, North Yorkshire, BD24 9RH
Get In Touch
Call: 0845 6880112
Email: [email protected]
11
UK
CONTROLS
The controls are positioned on the front of the unit
next to the damp air inlet duct, they are:
1. Humidistat
2. Remote Humidistat Switch
3. Remote Humidistat Jack Plug Socket
Auto reset. If there is a power out the dehumidier will
automatically restart when the mains power is recon-
nected.
MOUNTING
The dehumidier can be mounted in any direction
even up-side-down.
Turn the feet out to see the anchoring points. Secure
all four feet with suitable xings (not provived) to oor,
wall or ceiling.
STAND-ALONE OPERATION
Connect the unit to suitable mains supply and connect ducting,
Ensure the ‘Remote Humidistat’ switch is set to the ‘OFF’ position (O). Turn humidistat to lowest humidity level
continuation or set the switch to the ‘ON’ position (I). The fan will start. Set the humidity level right for the room
to be dried.
OPERATION|
1
23
+

Our Address
Puravent, Adremit Limited, Unit 5a, Commercial Yard,
Settle, North Yorkshire, BD24 9RH
Get In Touch
Call: 0845 6880112
Email: [email protected]
12
OPERATION (2)|
NOTE: A low setting of say 10% means the room is regulated to a very dry level while a setting of say 90%
the room will be maintained at a relatively humid level. The right level for the room may vary with weather,
temperature and occupation conditions over time.
REMOTE OPERATION
For remote operation it is necessary to connect an 24V external humidistat (not
provided) via the jack plug connector. The external humidistat may be obtained from
your appliance supplier. Ensure the “Remote Humidistat” switch is set to ‘ON’ (O). The
dehumidier will now be controlled by the remote humidistat that is using low power
and only 24V.
CLEANING
Disconnect from the mains before cleaning or servicing the unit or any of its components.
Wipe regularly clean with a moist cloth (a soft, damp cloth) and a mild household
detergent, Never use chemicals, petrol, agressive detergents or other cleansing solutions .
AIR FILTER
The dehumidier has an inlet air lter. This should be
checked periodically and if necessary cleaned.
It can be cleaned with a vacuum cleaner or hand
washed in mild detergent only.
Replacement lters are available from your supplier.
ATTENTION: Do not run the unit without a lter tted
as dust will impair the performance of the Rotor.
1
1
2
3

Our Address
Puravent, Adremit Limited, Unit 5a, Commercial Yard,
Settle, North Yorkshire, BD24 9RH
Get In Touch
Call: 0845 6880112
Email: [email protected]
13
UK
Disposal
This marking indicates that this product should not be disposed with other household wastes throughout the EU.
To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of material resources. To return your used device, please use the
return and collection systems or contact the retailer where the product was purchased.
They can take this product for environmental safe recycling.

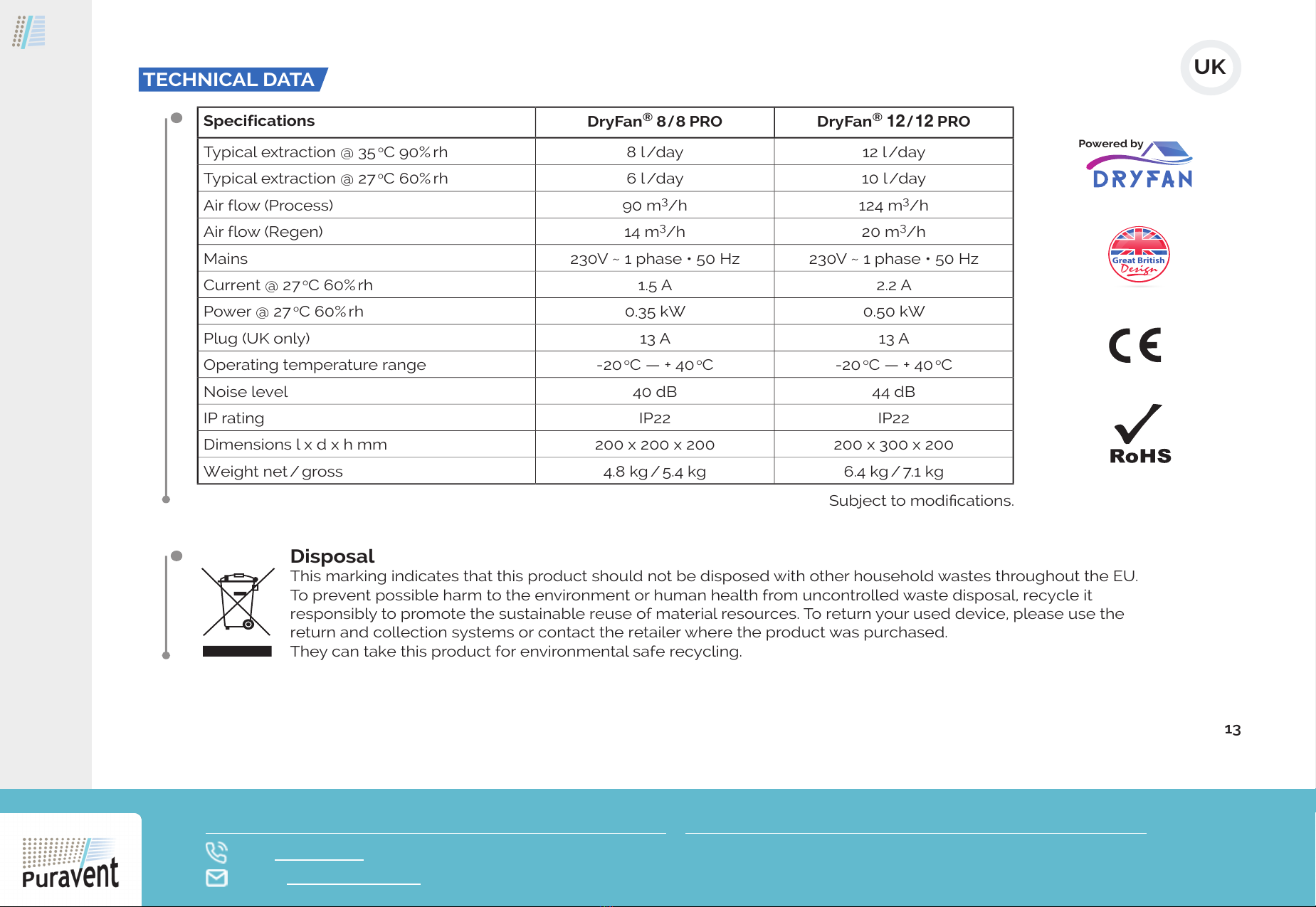

Specifications DryFan®8 / 8 PRO DryFan®
12 / 12 PRO
Typical extraction @ 35 oC 90% rh 8 l/day 12 l /day
Typical extraction @ 27oC 60% rh 6 l /day 10 l /day
Air flow (Process) 90 m3/h 124 m3/h
Air flow (Regen) 14 m3/h 20 m3/h
Mains 230V ~ 1 phase • 50 Hz 230V ~ 1 phase • 50 Hz
Current @ 27oC 60% rh 1.5 A 2.2 A
Power @ 27 oC 60% rh 0.35 kW 0.50 kW
Plug (UK only) 13 A 13 A
Operating temperature range -20 oC — + 40oC-20 oC — + 40oC
Noise level 40 dB 44 dB
IP rating IP22 IP22
Dimensions l x d x h mm 200 x 200 x 200 200 x 300 x 200
Weight net / gross 4.8 kg/5.4 kg 6.4 kg / 7.1 kg
TECHNICAL DATA|
Powered by
Design
Great British
Subject to modications.

Our Address
Puravent, Adremit Limited, Unit 5a, Commercial Yard,
Settle, North Yorkshire, BD24 9RH
Get In Touch
Call: 0845 6880112
Email: [email protected]
14

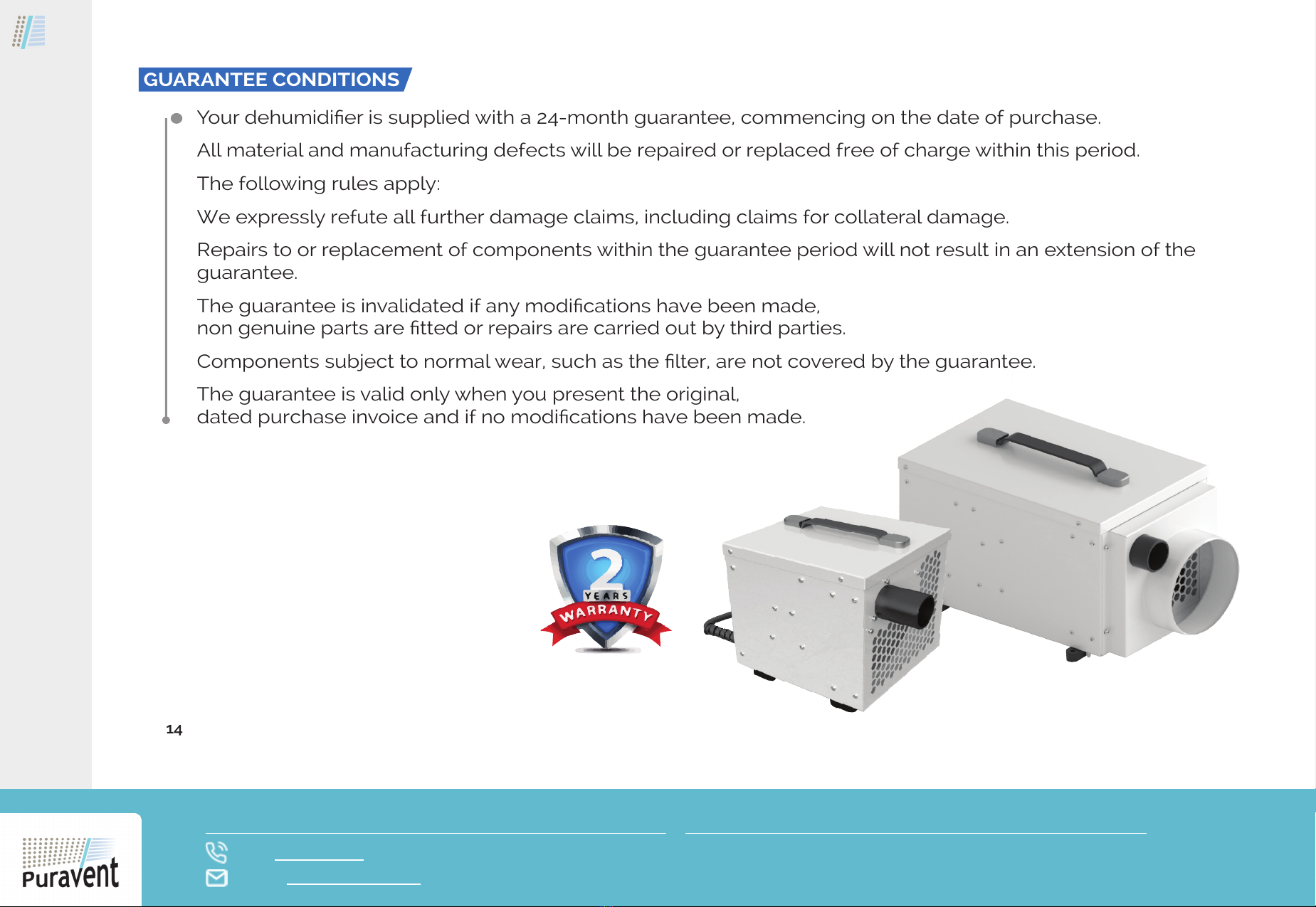

GUARANTEE CONDITIONS|
Your dehumidier is supplied with a 24-month guarantee, commencing on the date of purchase.
All material and manufacturing defects will be repaired or replaced free of charge within this period.
The following rules apply:
We expressly refute all further damage claims, including claims for collateral damage.
Repairs to or replacement of components within the guarantee period will not result in an extension of the
guarantee.
The guarantee is invalidated if any modications have been made,
non genuine parts are tted or repairs are carried out by third parties.
Components subject to normal wear, such as the lter, are not covered by the guarantee.
The guarantee is valid only when you present the original,
dated purchase invoice and if no modications have been made.
WWW.ECORPRODUCTS.COM
WHITE / WEIßE FARBE
COULEUR BLANCHE / WIT
LUFT ENTFEUCHTER
DESHUMIDIFICATEUR
LUCHTONTVOCHTIGER
DESHUMIDIFICADOR
DryFan 8
WWW.ECORPRODUCTS.COM
LUFT ENTFEUCHTER
DESHUMIDIFICATEUR
LUCHTONTVOCHTIGER
DESHUMIDIFICADOR
DryFan 8
Pro
STAINLESS STEEL
INOX
WWW.ECORPRODUCTS.COM
DryFan 8
WHITE
UK
WWW.ECORPRODUCTS.COM
UK
STAINLESS STEEL
DryFan 8
Pro
135 MM
120 MM

Our Address
Puravent, Adremit Limited, Unit 5a, Commercial Yard,
Settle, North Yorkshire, BD24 9RH
Get In Touch
Call: 0845 6880112
Email: [email protected]
15
UK

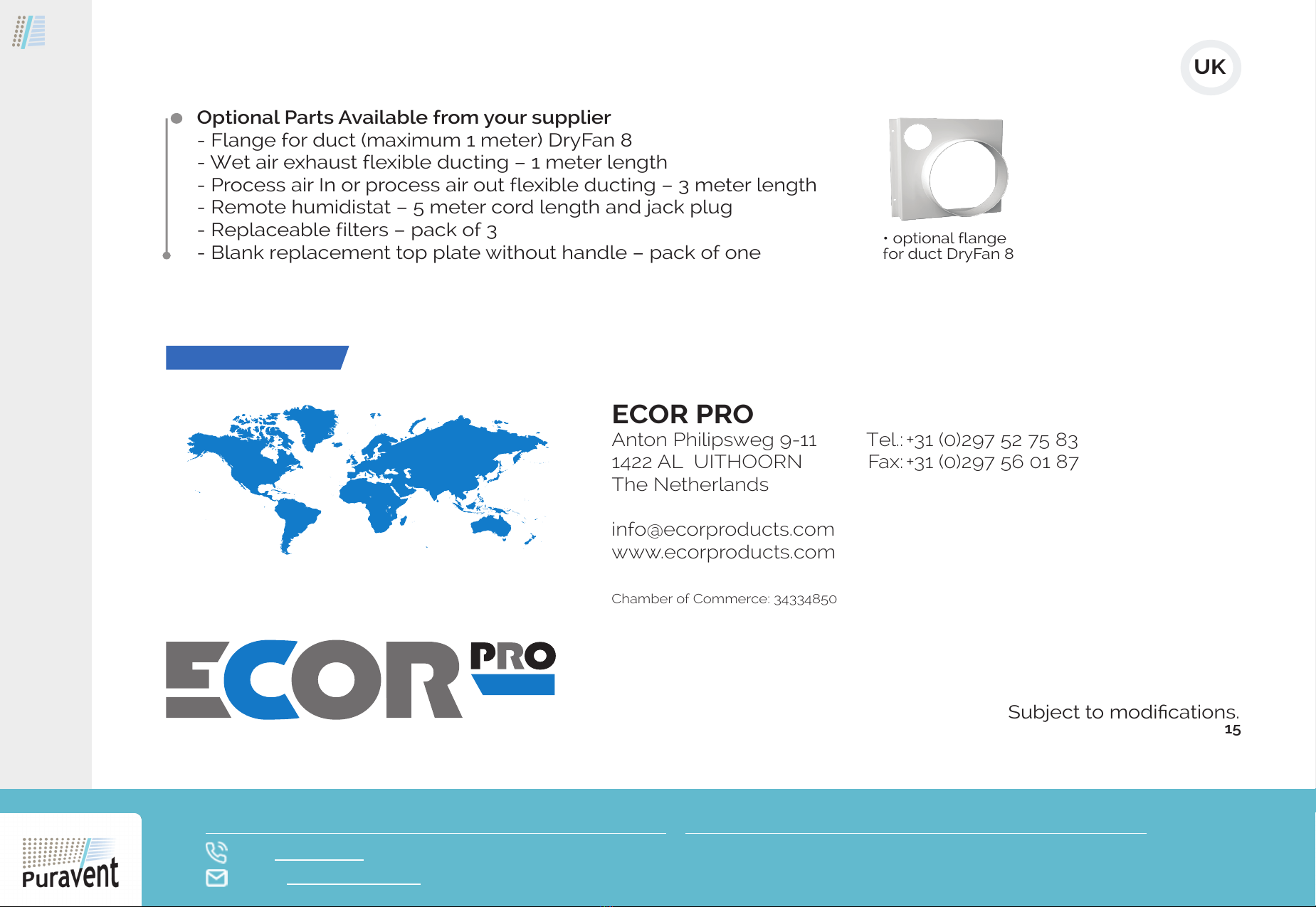

Optional Parts Available from your supplier
- Flange for duct (maximum 1 meter) DryFan 8
- Wet air exhaust flexible ducting – 1 meter length
- Process air In or process air out flexible ducting – 3 meter length
- Remote humidistat – 5 meter cord length and jack plug
- Replaceable filters – pack of 3
- Blank replacement top plate without handle – pack of one
Subject to modications.
ECOR PRO
Anton Philipsweg 9-11 Tel.:[phone]
1422 AL UITHOORN Fax: [phone]
The Netherlands
[e-mail]
www.ecorproducts.com
Chamber of Commerce: 34334850
• optional flange
for duct DryFan 8

Our Address
Puravent, Adremit Limited, Unit 5a, Commercial Yard,
Settle, North Yorkshire, BD24 9RH
Get In Touch
Call: 0845 6880112
Email: [email protected]
16
INTERNATIONAL PATENT PENDING
DRYFAN®
GEBRAUCHS-
ANWEISUNG
LUFTENTFEUCHTER MIT DRYFAN®TECHNIK
DryFan®8(weiß)
DryFan®12 (weiß)
DryFan®8PRO (INOX)
DryFan®12 PRO (INOX)
WHITE / WEIß
BLANC / BLANCO / WIT
STAINLESS STEEL
Design
Great British
Powered by

Our Address
Puravent, Adremit Limited, Unit 5a, Commercial Yard,
Settle, North Yorkshire, BD24 9RH
Get In Touch
Call: 0845 6880112
Email: [email protected]
17
DE
DE
Lesen Sie diese Gebrauchsanweisung aus Sicherheitsgründen sorgfältig durch, bevor Sie das Gerät in Betrieb
nehmen. Personen, die nicht mit dem Gerät vertraut sind, dürfen es nicht benutzen.
SICHERHEIT|
Der Luftentfeuchter ist sicher. Gehen Sie wie bei anderen Elektrogeräten sorgfältig damit um.
• Das Gerät darf nicht von Personen (einschließlich Kinder) verwendet werden, die körperlich, geistig oder in
ihren Sinneswahrnehmungen eingeschränkt sind oder denen es an Erfahrung und Wissen fehlt.
• Das Gerät von Kindern fernhalten, so dass diese nicht damit spielen können.
Die Anlage muss den Gesetzen und Bestimmungen des Landes
und des Ortes entsprechen, in bzw. an dem es angeschlossen wird.
Das Gerät ist nur fsür den Einsatz im Innenbereich geeignet.
Das Gerät darf nur an eine geerdete Steckdose mit 220-240 Volt
Stromspannung / 50 Hz Stromfrequenz angeschlossen werden.
Ihr Luftentfeuchter bekämpft Rostbildung, Holzfäule, Bakterien und Schimmelpilze
und beugt Feuchtigkeitsschäden vor.
+

Our Address
Puravent, Adremit Limited, Unit 5a, Commercial Yard,
Settle, North Yorkshire, BD24 9RH
Get In Touch
Call: 0845 6880112
Email: [email protected]
18
• Den Stecker grundsätzlich aus der Steckdose ziehen, bevor Sie das Gerät reinigen oder den Filter wechseln.
• Auf keinen Fall ein Verlängerungskabel verwenden. Wenn keine geerdete Steckdose zur Verfügung steht,
muss diese von einem anerkannten Elektriker installiert werden.
• Das Gerät nur in einem Raum aufstellen, der der Feuchtigkeitsklasse (IP-Schutzklasse) (siehe Technische
Daten) entspricht.
• Das Gerät auf keinen Fall mit Wasser abspülen oder in Wasser eintauchen.
• KeineGegenständeindieÖnungendesGerätesstecken.
• Wartungsarbeiten, die über das regelmäßigen Reinigen, das Umschalten der Ventilatorstellung und den
Luftlterwechselhinausgehen,sindvoneinemanerkanntenFachmannvorzunehmen.Andernfallserlischtdie
Garantie.
• Das Gerät wird mit einem langen Kabel (4200 mm) und einem geerdeten Stecker geliefert.
Der Stecker darf nur gegen einen geerdeten Stecker ausgetauscht werden.
Warnung! Das Gerät auf keinen Fall benutzen, wenn das Kabel oder der Stecker beschädigt ist.
Lassen Sie das Kabel, wenn es beschädigt ist, von einem anerkannten Fachmann austauschen, um
Gefahr und Unfälle zu vermeiden.
Dafür sorgen, dass der Stecker immer gut zugänglich ist, wenn das Gerät angeschlossen ist, so dass Sie ihn
gegebenenfalls leicht aus der Steckdose ziehen können.
Benutzen Sie das Gerät auf keinen Fall:
• wenn das Kabel beschädigt ist
• an Orten/Stellen, wo das Kabel beschädigt werden kann
• in der Nähe einer Wärmequelle
• in Reichweite von Kindern
• wenn Flüssigkeiten in oder auf das Gerät gelangen können
• wo Chemikalien Schäden verursachen können
Lassen Sie Reparaturen nur von einem anerkannten Fachmann
ausführen.
SICHERHEIT (2)|

Our Address
Puravent, Adremit Limited, Unit 5a, Commercial Yard,
Settle, North Yorkshire, BD24 9RH
Get In Touch
Call: 0845 6880112
Email: [email protected]
19
DE
DE
Vielen Dank, dass Sie sich für unser Produkt entschieden haben.
Ihr Entfeuchter arbeitet mit der innovativen DryFan®-Technik. Das einzigartige Gerät, das eine revolutionäre
Entfeuchtungstechnik nutzt, entfeuchtet die Luft 24 Stunden täglich an allen 365 Tagen des Jahres.
Es ist ideal für Wohnräume, Keller, Boote, Lofts, Ferienhäuser, Garagen und Lagerräume.
Dieser Luftentfeuchter ist so stark, dass er sogar für Industriezwecke eingesetzt werden kann.
Er ist so gestaltet, dass er nahezu überall und in jeder Stellung, sogar kopfüber, angeordnet werden kann.
Dieser Entfeuchter kommt ohne Kompressor aus. Im Vergleich zu Kompressor-Entfeuchtern ist unter
normalen Temperaturbedingungen mit der doppelten Kapazität zu rechnen. Dank DryFan®-Technik ist die
Kapazität bei Temperaturen unter 10ºC sogar 3- bis 4-mal höher als bei Kompressor-Entfeuchtern.
Während Kompressor-Entfeuchter bei 5ºC am Ende sind, entfeuchten Geräte mit
DryFan®-Technik bei bis zu -20ºC. Dadurch ist dieser Entfeuchtertyp auch
hervorragend für unbeheizte Räume geeignet.
Die ideale Luftfeuchtigkeit ist auf 40-60% relative Luftfeuchte auf Jahresbasis
eingestellt.StattrelativeLuftfeuchte(RLF)wirdhäugderenglischeBegriRelative
Humidity (RH) verwendet.
Den Karton an der Oberseite öffnen.
So kann das Gerät leicht herausgenommen werden.
VIELEN DANK!|
Es ist wichtig, dass Sie diese Gebrauchsanweisung sorgfältig
lesen, bevor Sie das Gerät anschließen und in Betrieb nehmen.
Bewahren Sie dieses Heft an einer Stelle auf, an der Sie später
leicht darauf zurückgreifen können.
40% RLF - 60% RLF
Bei dieser Einstellung fühlt
man sich am wohlsten

Our Address
Puravent, Adremit Limited, Unit 5a, Commercial Yard,
Settle, North Yorkshire, BD24 9RH
Get In Touch
Call: 0845 6880112
Email: [email protected]
20
SO FUNKTIONIERT DIE EINZIGARTIGE TECHNIK |
Ihr Entfeuchter arbeitet mit der DryFan®-Technik.
Eine sich ständig drehende, Feuchtigkeit
absorbierende Scheibe (der Rotor) nimmt
Feuchtigkeit aus der Luft auf.
Eingeräuscharmer,hochezienterVentilator
saugt feuchte Luft in das Gerät.
Diese Luft wird durch einen Teil des sich drehenden
Rotors geblasen. Der Rotor besteht aus verschiedenen
hygroskopischen Geweben in Form winziger
Wabenprole,diezusammeneineenorme
absorbierendeOberächebilden.Diehygroskopischen
Gewebe nehmen Feuchtigkeit aus der Luft auf und
sorgen für einen extrem trockenen Luftstrom.
Der größte Teil dieses trockenen Luftstroms (ca. 85%) wird direkt aus dem Gerät geblasen (Austritt trockene,
gelterteLuft).
Die restliche Luft (ca. 15%) wird wiederverwendet (“regen air”), indem sie nach dem Rotor durch ein
Keramikelement geführt und erwärmt wird. Die erwärmte Luft wird anschließend durch einen Teil des Rotors
geblasen. Wenn diese Luft durch das Gewebe strömt, hat sie eine höhere Temperatur und kann deshalb mehr
Wasserdampf enthalten. Sie nimmt die zuvor aufgenommene Luft aus dem Rotor auf und bläst sie durch
dasKondensat-AbussröhrchenausdemGerät.WeilsichderRotordreht,wiederholtsichderVorgangdes
Aufnehmens und Abgebens von Feuchtigkeit ständig.
DasRöhrchen,durchdasdasKondensatausgeblasenwird,hateinenDurchmesservon40mm.Daraufpasst
einStandard-Klemmtting.KondensatmussnichtalsFlüssigkeitabgeführtwerden.Eswirdzusammenmit
Luft ausgeblasen, wie dies auch bei vielen Kondensattrocknern der Fall ist.
+
• Ansaugung
feuchte Luft
• patentiertes
Keramikelement
• Austritt trockene,
gefilterte
Luft
• Austritt Kondensat
• patentierter Rotor mit
hochwertigem Absorptionsgewebe
