MICROWELL DRY 300 SILVER Guide

WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER
USER S & INSTALLATION MANUAL´
MODEL: DRY 300 & 500 SILVER/METAL

HYGROSTAT
•
•
•
•
•
•
•
•
•
•
•
•
•
Do not manipulate with the device with wet hands.
Do not spray any flammable substances into the equipment; this might lead to fire.
Do not clean the device with water.
The cover of the device is made of rustless steel. For cleaning and polishing the cover without making any
undesired matt blobs on its surface, use grooming and protective articles suitable for rustless metal surfaces.
Apply some drops on a dry and non-fluffy clout and then smoothly wipe it into the surface. After 2 minutes
of drying, wipe it again and polish it using a dry and clean clout (grooming article together with a clout is
in the package).
Do not clean the equipment with aggressive cleaning agents, this might lead to damage or deformations.
Never throw or insert any objects into any tube or opening.
Do not use
components, which are not recommended.
Never block the air opening of the product. Protect the air openings from clogging by particles, hair etc.
When the device is not running correctly (smoke, smell, etc.), switch off the device by a circuit breaker
in the switchboard.
Before cleaning the device, switch off the circuit breaker in the switchboard.
When you do not intend to use the device for a longer time, switch off the circuit breaker.
Use this device only for the intended purpose, as described in the attached instructions for use.
Repairs and relocations must be performed only by a service technician.
Do not place any objects on the surface of the device.
2
WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - OWNER´S & INSTALLATION MANUAL
1. SAFETY MEASURES
2. USAGE SPECIFICATION
The units are designed especially for use in indoor swimming pools, spas and saunas. They can also be very useful in laundries,
drying rooms and elsewhere.
Microwell DRY 300 SILVER/METAL is designed for rooms with a swimming pool, which surface is up to 30 m .
Microwell DRY 500 SILVER/METAL is designed for rooms with a swimming pool, which surface is up to 60 m .
The condition of using the equipment is keeping a room temperature within a range between min. 22 ° C and max. 35 C ° .
Optimal situation occurs when the room temperature is about 2-3 C ° higher than a swimming pool water-temparature.
²²
EXHAUST GRID
INTAKE GRID
UNIT COVER
Thank you for your decision to purchase our device.
Please read this user manual carefully before starting to use the device.
Please keep the instructions of this practical quide in order to get a quick know-how.
We do not take any responsibility or provide warranty in case of damage, loss or damnification caused by
incorrect usage or usage for other purposes, not specified in this manual.
Contents: 1. Safety measures
2.
3. Instructions for use
4. Instructions for maintenance
5. Servicing the unit
6. Installation guide
7. Technical data
Usage specification

3.
3.1.
INSTRUCTIONS FOR USE
Humidity regulation with an inbuilt digital humidistat located in the cover of the equipment
3
WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - OWNER´S & INSTALLATION MANUAL
The inbuilt humidistat is located in the cover of the device. It reads the humidiy of the incoming air, and depending on the set value,
switches on the compressor. In indoor swimming pool halls, the optimal air humidity level should range between 55% and 65 %.
Decreasing the level of humidity under the above mentioned range is not desirable, considerating the physiological aspects as well
as the aspects of providing building protection. Moreover, it increases the consumption of electrical energy. The humidistat can be
controlled by the user.
Humidistat display (front view)
Luminous point
signals, that the
humidity is shown on
display.
Luminous point signals,
that the temperature is
shown on display.
Current humidity or current
temperature d
By pressing the “set” button,
the requested value blinks.
By pressing the or
button, the requested
value changes.
By repressing the “set” button
after the requested value has
been changed, “OK” symbol
appears and the requested value
is saved.
isplay.
The current humidity or
temperature is shown on
display.
By pressing the button
when the current humidity is
being displayed, the current
temperature will be shown.
By pressing the button
when the current temperature
is being displayed, the current
humidity will be shown.
Although the current
temperature is shown on
a display, all the functions
work on the basis of the
humidity value.
Humidity setting Changing the display of humidity and temperature
Luminous point with “HUMI”
symbol on a display frame
signalizes the humidity display.
Luminous point with
“TEMP” symbol on a
display frame signalizes
the temperature
display.
Failure reporting
Memory failure. Switch off and then switch on again the electrical connection.
If the failure reporting continues, please ask us to change the component.
Sensor failure. The electrical connection of the sensor is broken off.
Please control the cable.
Sensor failure. The sensor is short-circuited. Please control the cable.
Er1
0-E
S-E

4
WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - OWNER´S & INSTALLATION MANUAL
Current humidity or current temperature
display.
Keep the “set” button pressed for longer
than 5 secs.
Function s .
=Humidity
=Dehumidity
Delayed time on the output. Used mainly
for device protection and in case of very
frequent switching on and switching off.
Setting of the deviation type.
Pn=+/- deviation
Setting of the humidity hysteresis (zone
of insensitiveness) - difference between
closure and opening points.
In case the control circuit reacts too
slowly, reduce the hysteresis. In case the
control circuit is unstable (switches on and
off alternately), increase the hysteresis.
The correction function is used in case of
difference between the currently shown
value and the real exact value (detected
by etalon, e.g.)
HEt /heating/ Switching on of the heating
element on the humidity sensor FOX-2SH
is used for its prevention from misting, in
case the humidity is higher than 95% RH.
Switching on the “Lock function” - function
of set values´protection.
Lon= switching on the “Lock function”
LoF= cancellation of
Programming point “1”
Setting of the main output´values
etting
P=+deviation
the “Lock function”
Program setting
By keeping the “set” button pressed for longer than 5 secs, the setting gets finished and you return to a mode of current
humidity display.
In case of inactiveness for longer than 30 secs, this is done automatically.
Setting of the additional output
which is not connected.
Don´t perform any settings here
and return to the point

5
WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - OWNER´S & INSTALLATION MANUAL
Under the inside cover of the unit, there is a two-positional fan mode switch. In the first position, the fan runs even if the compressor
of the appliance has stopped continuous operation of the fan. In the second position, the fan only runs simultaneously with the
compressor periodical duty of the fan. The continuous operation mode of the fan is preferable, since the humidity reader built in the
device continuously reads humidity, and therefore a greater accuracy is reached. At the same time, continuous operation of the fan
results in better air circulation in the room. The installation work supplier selects the mode of the fan according to the request of the
user.
:
:
3.3. Fan regulation
3.2. Humidity regulation with a back-up mechanical humidistat located in the electronic box
In the electronic box there is a back-up mechanical humidistat, which is set on the value of 70 % RH. This humidistat has a back-up
function in case of digital humidistat failure. User should not perform any regulation of this humidistat.
Switch of fan operation
Continuous duty of the fan
Periodical duty of the fan
The compressor´s operation starting is for securing its protection, delayed by min. 3 minutes. Depending on the humidity of
environment, it may last even longer. The user must not manipulate with the setting element of a time relay.
3.4. Compressor regulation
It is necessary to make sure that the intake- and exhaust outlet are not covered. It is forbidden to place towels or clothes on the
exhaust outlet, to dry them. Cleaning the device´s cover can be done only using grooming articles suitable for rustless steel
surfaces. In case there is a water dripping from the equipment, check whether a condensate pipe is not obstructed.
At least once a year, it is necessary to have the unit checked and cleaned by a service specialist. This is necessary in order to secure a
long operational life of the device. Cleaning the interior parts of the device by a user is not recommended, as this may lead to a
damage on the unit. The device contains mobile elements as well as elements under electrical pressure, therefore the interior parts
can be cleaned only by a certified electrician with an appropriate knowlegde of refrigerating technology.
The unit must be installed in compliance with the local installation and electrical installation regulations !
6.1. Unit location
The unit is to be installed on the wall or on the mobile stand. To ensure the right operations of the dehumidifier and its maximum
efficiency in terms of humidity control, it is necessary ensure proper air circulation into and from the dehumidifier. This requires
the actual unit placement appropriately into the swimming pool hall respecting basic prerequisites of air circulation and air flow. It is
strictly forbidden to install the unit just below the ceiling. At least 200mm of a free space must be kept above the unit and at least
150mm below the unit. Each swimming pool hall is individual thus a special care needs to be taken to choose a proper dehumidifier
placement. It is forbidden to install the unit on the ground. It is also strictly forbidden to block the air inlet and outlet with any objects
(canoe, buckets, ceiling beams, etc.). For maintenance purposes please keep free space of 200mm on both sides
of the dehumidifier.
to
4. MAINTENANCE INSTRUCTIONS
5. SERVICING THE UNIT
6. INSTALLATION GUIDE

6

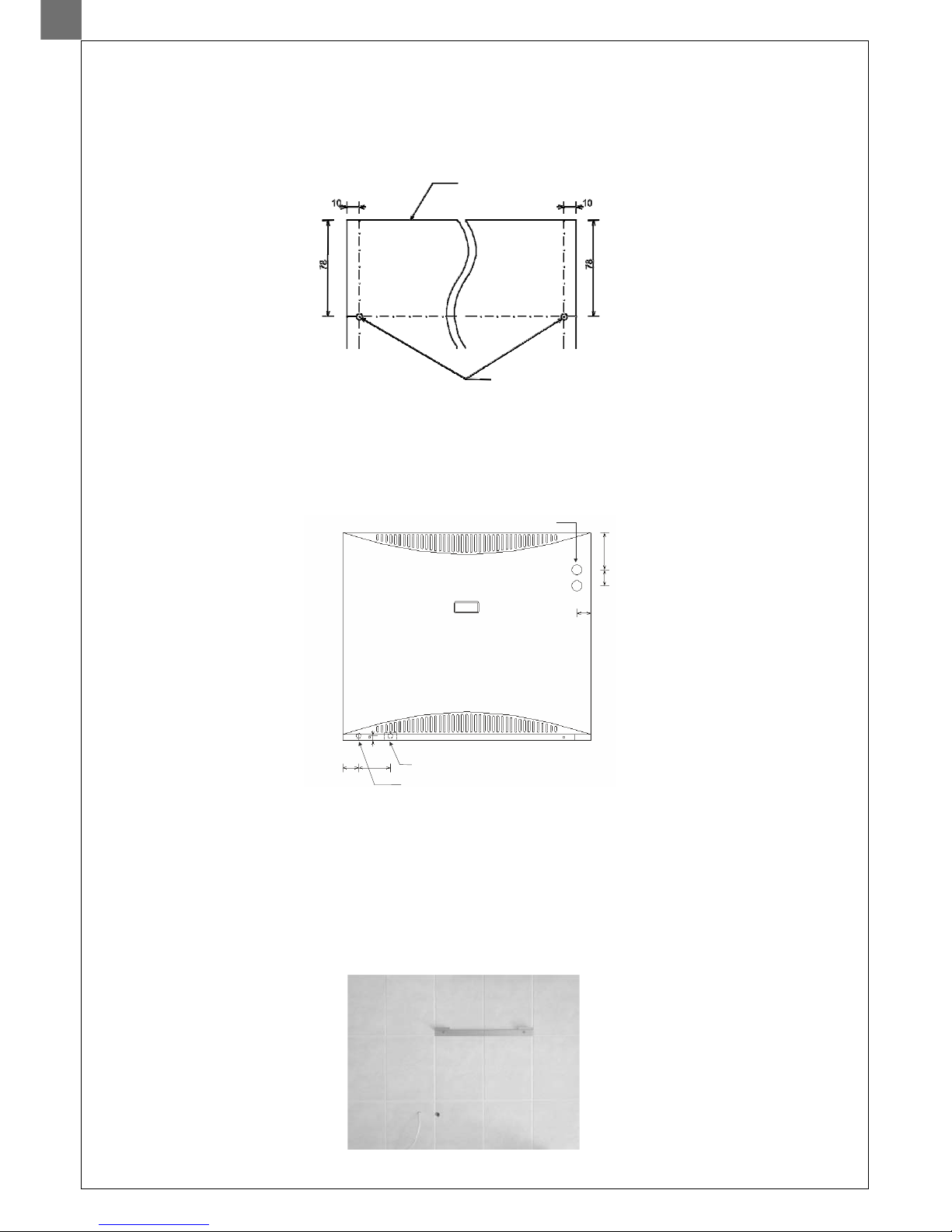

The equipment has a self-supporting construction and is very easy to install.
There is an installation bracket included in the equipment accessories, which must be fixed on the wall. The axis of the fixation slots
is 210 mm lower than the top edge of the device. The distance between the fixation slots is 420 mm (DRY 300 SILVER/METAL) and
360 mm (DRY 500 SILVER/METAL). When the bracket is fixed, it is possible to hang up the device without dismounting its cover.
6.2. Equipment fixation
Model DRY 300 SILVER/METAL
Model DRY 500 SILVER/METAL
TOP EDGE OF THE DEVICE
BRACKET SPIRIT LEVEL
FIXATION SLOTS
The cover can be dismounted after releasing two screws (DRY 300 S ) or three screws (DRY 500 S )
at the bottom of the device. Release the screws, pull the bottom part of the cover toward yourself and then, by lifting it shortly, rake
down the cover from the rear plate. To mount the cover, carry the procedure out in reverse order.
ILVER/METAL ILVER/METAL
6.3. Dismounting and mounting of the cover
TOP EDGE OF THE DEVICE
BRACKET SPIRIT LEVEL
FIXATION SLOTS
WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - OWNER´S & INSTALLATION MANUAL

The design of the device enables its safe mounting and proper fixation even if lifted accidentally. There are slots for safety screws
accessible after dismounting a front fibreglass cover, located in the top corners of the rear plate. There is an arrow that indicates
safety screw slots in the rear plate. The safety screw is fixed through a slot in the rear plate into a wall fastener. It prevents the
device from being pulled out and from falling out from a mounting bracket. At the same time, it secures a vertical position of the
device together with a device alignment with a wall.
6.4. Position assuring of the device
7
Condensed water is drained from the device by the force of gravity. It is necessary to locate the device in a way that enables
sufficient condensed water gradient. The condensate must be delivered through a siphon into the sewer or into the outside
environmemt. It is strictly forbidden to deliver the condensate back into the swimming pool, as it may be bacterially contaminated.
There is a tube for condensed water delivery located at the bottom of the device, on the left side. This tube must be pluged into
a sewerage pipe with an internal diameter of minimum 18 mm.
6.5. Condensate drain
DRY 300 SILVER/METAL and DRY 500 SILVER/METAL with connections (front view)
Connecting the device onto the mains and protection securing must satisfy the requirements of relevant norms. Connection
requirements are the following: 220-240 V/50Hz, protection 10A (DRY 300 SILVER/METAL) and 16A (DRY 500 SILVER/METAL)
with a mains-fuse that has a current-carrying differential disconnecting capacity, not exceeding 30mA. There is a terminal for
connection to the mains, located on the left hand side of the device. The master switch of the device must be located outside the
swimming pool area, it must be bipolar and with L and N conductors´ disconnecting. The device for disconnecting the appliance
from the mains must be inbuilt to a steady point. There has to be a distance of min. 3 mm between the contacts (when switched off)
for all the poles. Connection of the device to the mains must be performed by a certified electrician.
6.6 Connecting the device to the mains
Preparation of electric power supply, condensate drain and console mounting
REAR PLATE
SAFETY SCREW SLOTS
WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - OWNER´S & INSTALLATION MANUAL
50 100
44
117
50
15
LOCATION OF CONNECTION- FROM BACK SIDE
THREAD G ½ '’ MALE
POWER SUPPLY
CYSY WIRE 3C x 1.5 (3C x 2.5) mm
(FROM THE REAR)
2
CONDENSATE DRAINAGE (FROM THE REAR)
PIPING WITH MINIMUM INTERNAL DIAMETER OF 18 mm

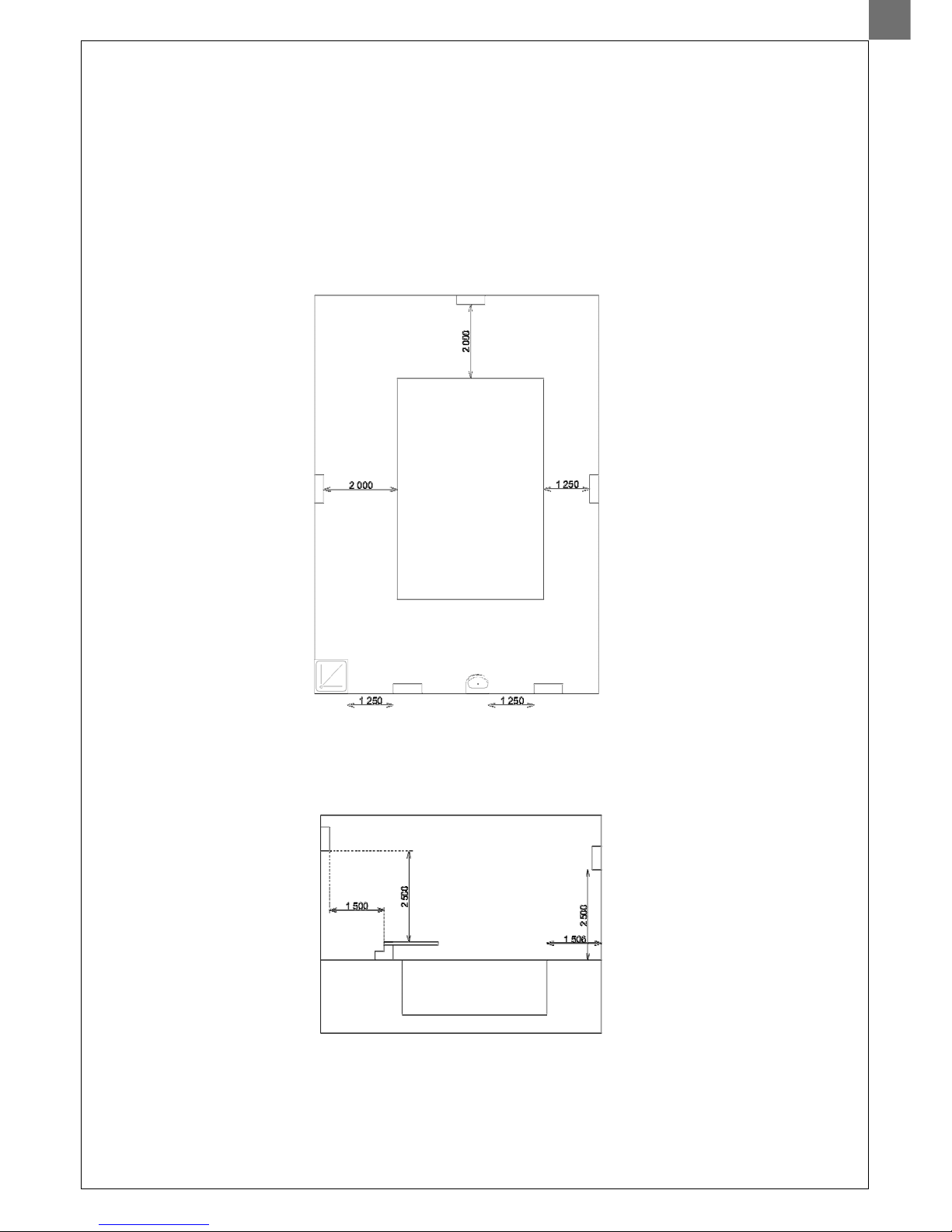

In the distance of 2000 - 3500
mm from the swimming pool
edge. In accordance with HD and
IEC standards and at least 300
mm above the floor, in order to
secure the sufficient air-
circulation. It is strictly forbidden
to install the device onto the floor.
OUTSIDE THE ZONES
In the distance of 1250 mm or less
from the swimming pool edge, the
bottom edge of the device must be
2500 mm above the swimming
pool surface.
At least 1250 mm (i.e. out of the reach of the hand)
from the side edge of the shower cabinet. It cannot
be placed above the shower cabinet.
At least 1250 mm (i.e. out of the reach of the hand) from
the side edge of the wash basin, in the minimum height of
1200 mm above ground. It cannot be placed above the
wash basin.
OUTSIDE THE ZONES
In the distance of at least 1500 mm
from the vertical plane around jumping
platforms, jumping boards and starting
blocks, 2500 mm above the highest
surface, where people are likely to stay.
OUTSIDE THE ZONES
If the unit is in the distance of less or
equal to 1250 mm horizontally from
the edge of the swimming pool, then
it must be raised up to the height of
2500 mm from the swimming pool
surface; if the pool is embedded
under the floor, then the unit must be
raised up to the height of 2500 mm
from the floor.
It is inevitable to locate the device outside the zones, where cleaning with splashing water is supposed.
or it must be protected by a current protector with a current-carrying differential disconnecting
capacity, not exceeding 30mA.
Connection of the unit to
the mains and its protection must correspond with the applicable standards. Electrical supply of the unit must be carried out by a
protective isolating transformer,
SWIMMING POOL
SWIMMING POOL
8
DEVICE LOCATION
Device location must be in accordance with HD 384.7.702 S1 and IEC 60364-7-702 standard.
It is recommended to locate the device outside zones 0,1 and 2.
In case the device is located into zones 2 or 1, HD and IEC standards´requirements must be satisfied.
ZONE 1, IPX4
Swimming pools which are not
cleaned by splashing water
In the distance of 1250 - 2000 mm from the swimming pool edge
in accordance with HD and IEC standards
and at least 300 mm above the floor
ZONE 2, IPX2
Swimming pools which
are not cleaned by
splashing water
WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - OWNER´S & INSTALLATION MANUAL

9
WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - OWNER´S & INSTALLATION MANUAL
The LPHW heater elements are supplied only to order. Connection of the hot water heater element onto the LPHW plumbing is
carried out similarly to the installation of radiators. On the feeder pipe, it is connected by a control valve and on the return pipe by a
closing screw joint. The LPHW is not supplied with a control valve and a screw joint; these are supplied by the supplier
of the heating.
6.7. LPHW heater element - to order
After installing the LPHW plumbing and leading the LPHW into the element under pressure, it is necessary to bleed the heater
element. The bleeding valve is located on the feeder pipe of the LPHW heater element. To secure that the LPHW heater element
works always at full heat output, blowing onto the unit by a fan must be provided even when no dehumidification is being
performed. Therefore, when using the LPHW heater element, the switch of fan operation must be switched into the position of
continuous operation.
Attachment of the heater element to the distribution of the heating water
50 100
44
117
50
15
LOCATION OF CONNECTION- FROM BACK SIDE
THREAD G ½ '’ MALE
POWER SUPPLY
CYSY WIRE 3C x 1.5 (3C x 2.5) mm
(FROM THE REAR)
2
CONDENSATE DRAINAGE (FROM THE REAR)
PIPING WITH MINIMUM INTERNAL DIAMETER OF 18 mm

OUTPUT DIAGRAM OF DEHUMIDIFICATION
DRY 300 SILVER/METAL
OUTPUT DIAGRAM OF DEHUMIDIFICATION
DRY 500 SILVER/METAL
Relative humidity
Air temperature
Dehumidification output
Relative humidity
Dehumidification output
Air temperature
DRY 500 SILVER/METAL
DRY 300 SILVER/METAL
TECHNICAL DATA UNITS
m
2
For swimming pools with max. surface
at 30 °C and 70 % RH
at 30 °C and 60 % RH
at 30 °C and 80 % RH
l/24 h
l/24 h
l/24 h
Operating temperature range
Operating humidity range
Air flow
°C
% Rw
m/h
3
Noisiness (in 1 m distance)
Thermal capacity
Electrical power consumption
Voltage
dB (A)
W
W
V/Hz/f
Operating current / Starting current
Protection
Conductor
A
A
mm
2
Pipe for condensate delivery (min. interior diameter)
Sizing (width x height x depth)
Package sizing ( )width x height x depth
Weight - net / in package
mm
mm
mm
kg
Dehumidifier efficiency rate DER
Max. pressures in the system HP/LP bar
Refrigerant - R 410 A kg
Mechanical Protection IP

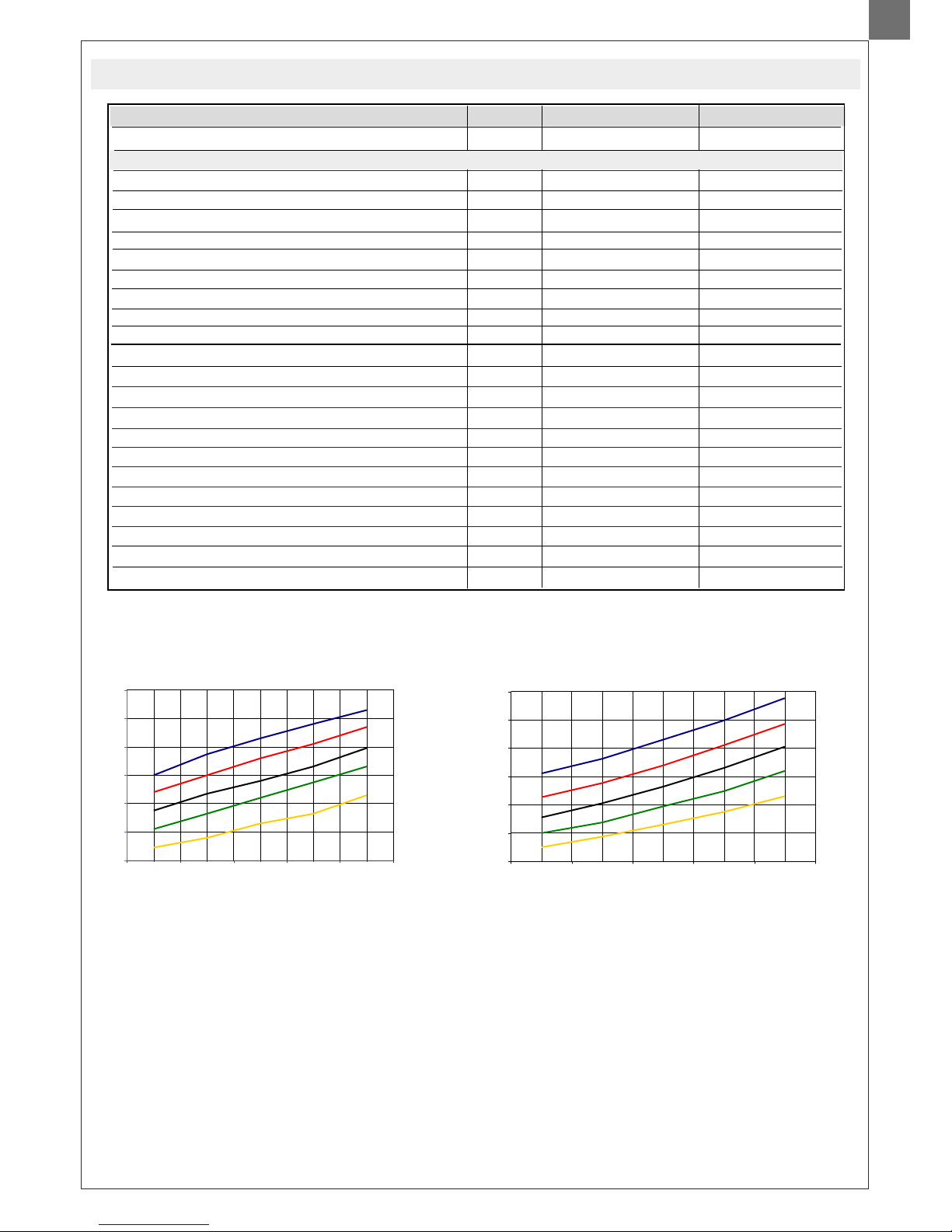

DEHUMIDIFICATION PERFORMANCE:
7. Technical data
30 60
33 66
42 83
47 101
22-35
20-100
440
22-35
20-100
740
42 44
1900
700
3500
1000
230/50/1 230/50/1
4.4 / 15.8 7.5 / 30
10 16
CYSY 3C x 1.5 CYSY 3C x 2.5
d 18 d 18
780 x 653 x 300
850 x 735 x 345
50/56
1245 x 653 x 300
1315 x 735 x 345
77/86
2.4 2.7
28.5/8.5 28.5/8.5
0.5 0.75
44 44
0
10
20
30
40
50
60
15 20 25 30 35 (°C)
(l/24h)
80%
70%
60%
50%
40%
0
20
40
60
80
100
120
15 20 25 30 35 (°C)
(l/24h)
80%
70%
60%
50%
40%
10
WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - OWNER´S & INSTALLATION MANUAL

DRY 300 SILVER/METAL swimming pool dehumidifier parameters
FRONT VIEW SIDE VIEW
DRY 500 SILVER/METAL swimming pool dehumidifier parameters
FRONT VIEW SIDE VIEW
CONSOLE
SLIPPING OUT FROM A CONSOLE PREVENTING
POSITION SECURING (FROM BEHIND)
SLIPPING OUT FROM A CONSOLE PREVENTING
POSITION SECURING (FROM BEHIND)
CONDENSATE DRAIN (FROM THE BEHIND)
PIPE WITH AN INTERNAL DIAMETER OF MINIMUM 16 mm
CONSOLE
SLIPPING OUT FROM A CONSOLE PREVENTING
POSITION SECURING (FROM BEHIND)
SLIPPING OUT FROM A CONSOLE PREVENTING
POSITION SECURING (FROM BEHIND)
CONDENSATE DRAIN (FROM THE BEHIND)
PIPE WITH AN INTERNAL DIAMETER OF MINIMUM 16 mm
POWER SUPPLY (FROM THE BEHIND)
CYSY WIRE 3C x 1.5 mm2
POWER SUPPLY (FROM THE BEHIND)
CYSY WIRE 3C x 2,5 mm2
11
WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - OWNER´S & INSTALLATION MANUAL

WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - OWNER´S & INSTALLATION MANUAL

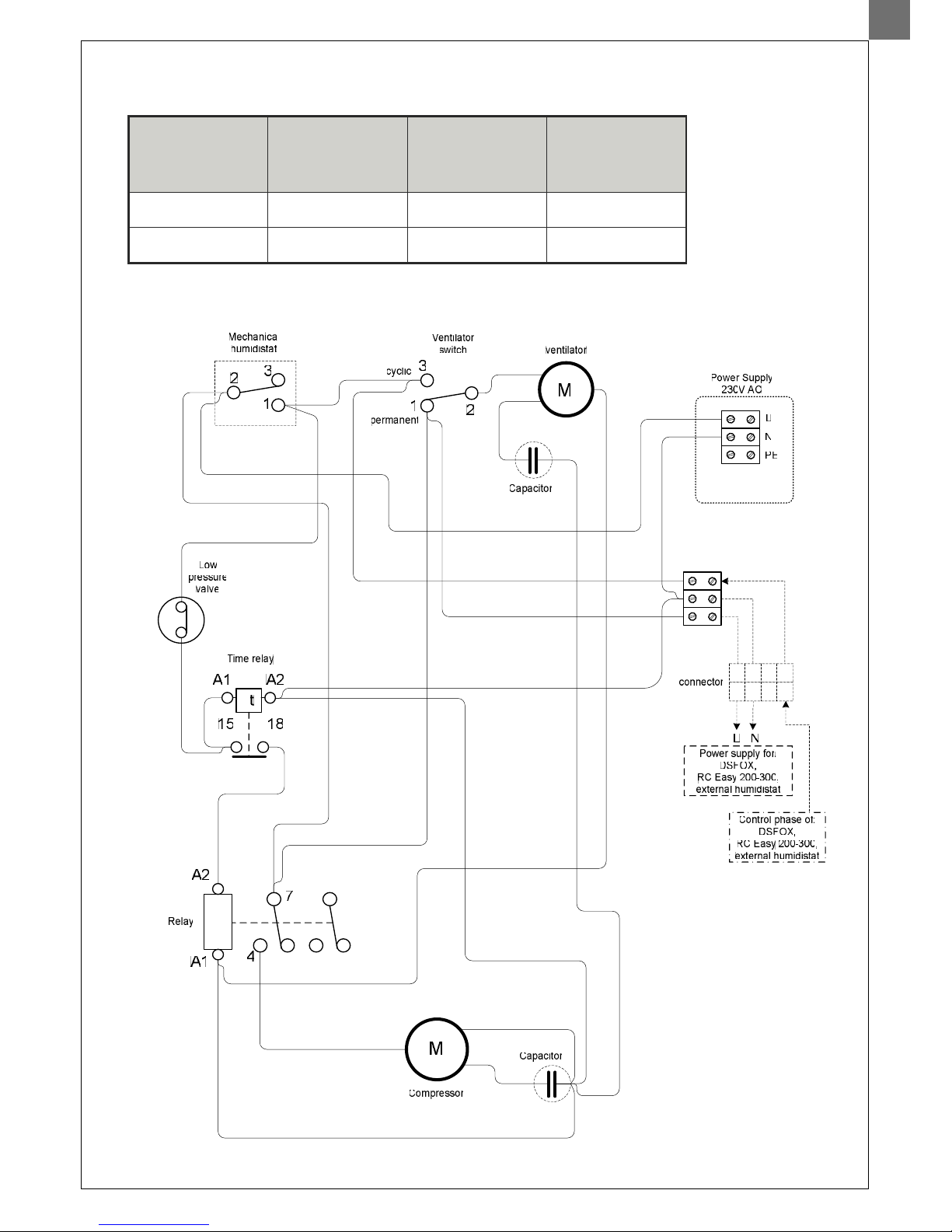

WIRING DIAGRAM OF MODEL MICROWELL DRY 300 SILVER/METAL
DRY 300 Standard
DRY 300
EASY 200 /
HYG 6001
DRY 300 LPHW /
Solenoid
METAL
DRY 300.1
DRY 300.1
DRY 300.2
SILVER
DRY 300.1
DRY 300.1
DRY 300.2
DRY 300.1
Note: Producer reserves right to make changes on wiring.
12

13
WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - OWNER´S & INSTALLATION MANUAL
Note: Producer reserves right to make changes on wiring.
DRY 300.2
Note: Producer reserves right to make changes on wiring.

WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - OWNER´S & INSTALLATION MANUAL

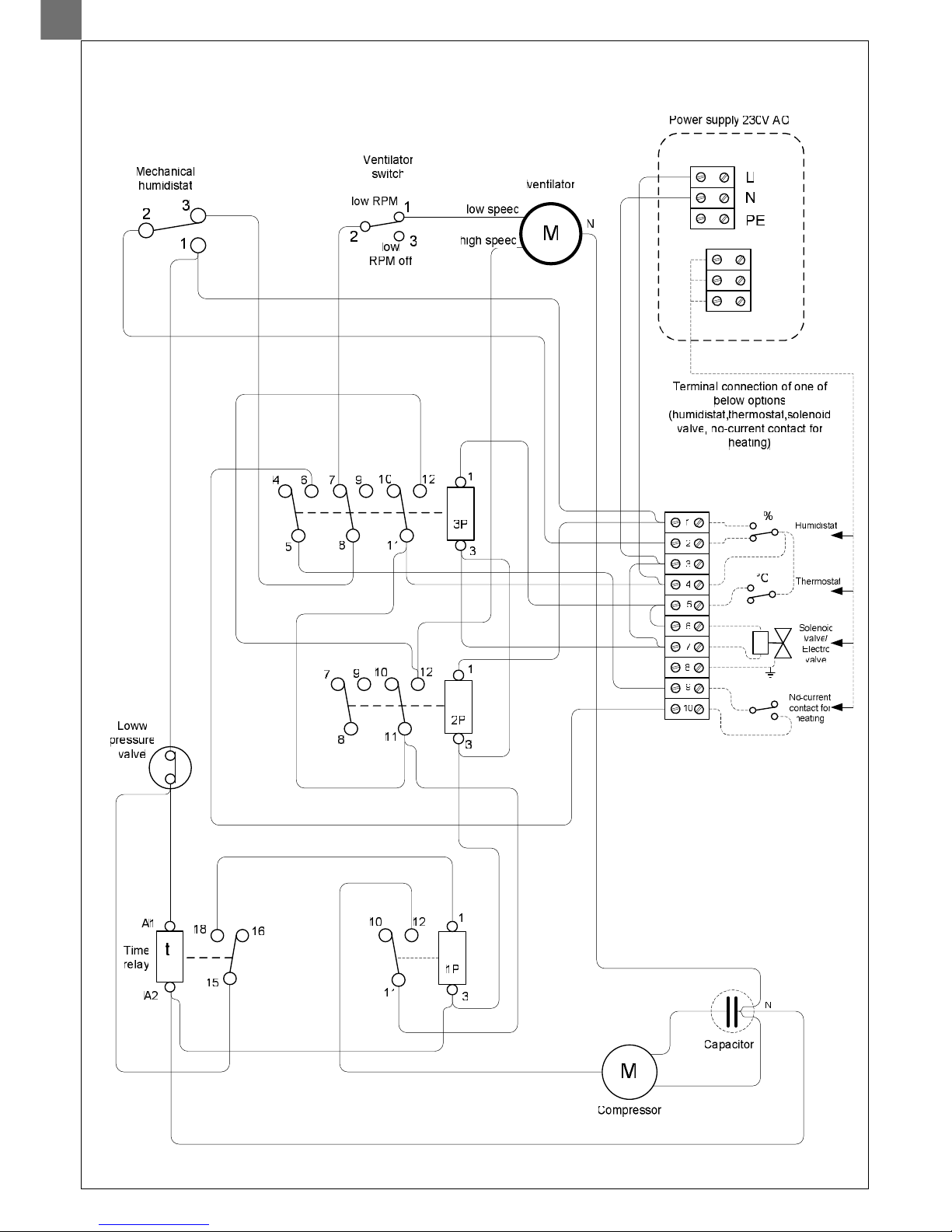

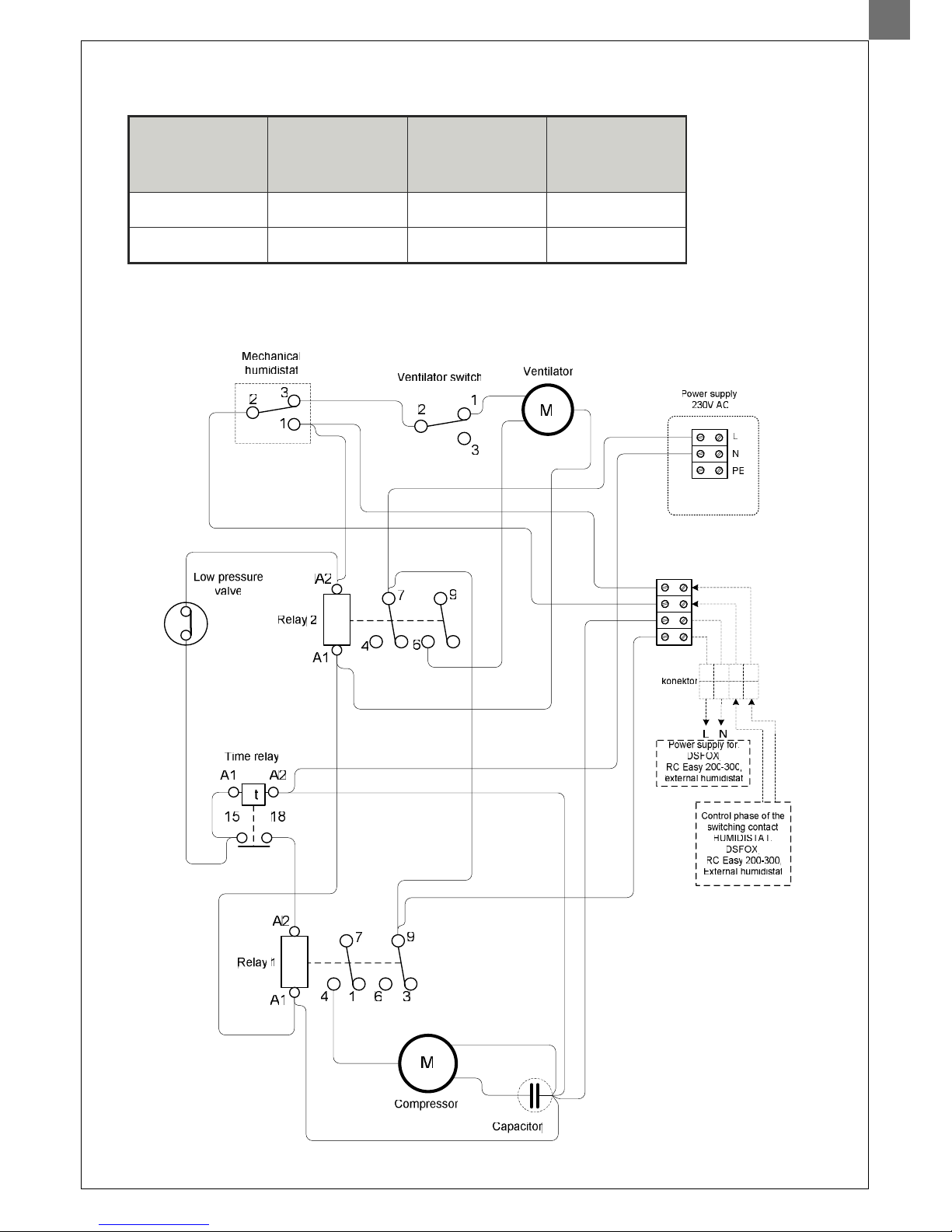

WIRING DIAGRAM OF MODEL MICROWELL DRY 500 SILVER/METAL
DRY 500 Standard
DRY 500
EASY 200 /
HYG 6001
DRY 500 LPHW /
Solenoid
METAL
DRY 500.1
DRY 500.1
DRY 500.2
SILVER
DRY 500.1
DRY 500.1
DRY 500.2
DRY 500.1
Note: Producer reserves right to make changes on wiring.
14

15
WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - OWNER´S & INSTALLATION MANUAL
Note: Producer reserves right to make changes on wiring.
DRY 500.2
Note: Producer reserves right to make changes on wiring.

WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - OWNER´S & INSTALLATION MANUAL
16
EXPANDED VIEW
Position Component Number
of pieces
1 Metal / Stainless stell cover 1
1,1 Digital humidistat FOX-2SH 1
1,2 Humidity sensor DS-SH104 1
2 Back metal sheet 1
3 Ventilator metal sheet 1
4 Metal sheet in front of the exchanger 1
5 Metal sheet above the exchanger 1
6 Metal sheet under the compressor 1
7 Electro-box metal sheet 1
8 Compressor cover 1
9 Evaporator tray 1
10 Compressor tray 1
11 Exchanger 400 - evaporator 1
12 Exchanger 650 - condenser 1
13 Ventilator EBM D4-E133-DL01-D6 1
14 Compressor DAIKING YZG-E24RAY2 1
15 Low pressure valve Ranco HR00001 A5R703 1
16 Filter 20g d4/6mm 1
17 Filling valve, pipe d6, thread SAE 1/4" 2
18 Sunction pipe d10mm 1
19 Pressure pipe d6mm 1
20 Screw ST4.8 x 38 2
21 Screw 3.5 x 13 9
24 Rubber grommet d15 DA 110/150/10 4
25 Rubber grommet d30 DA 230/300/20 4
26 Condensate pipe d18x3, 1m 1
Position Component Number of
pieces
1 Metal / Stainless steel cover 1
1,1 Digital humidistat FOX-2SH 1
1,2 Humidity sensor DS-SH104 1
2 Back metal sheet 1
3 Metal sheet in front of the exchanger 1
4 Metal sheet above the exchanger 1
5 Metal sheet under the compressor 1
6 Ventilator metal sheet 1
7 Electro-box metal sheet 1
8 Holding metal sheet for ventilator 1
9 Compressor cover 1
10 Evaporator tray 1
11 Compressor tray 1
12 Exchanger 720 - evaporator 1
13 Exchanger 1115 - condenser 1
14 Ventilator EBM K4E146-AB73-21 1
15 Compressor DAIKING YZG-E35RY2 1
16 Low pressure valve Ranco HR00001 A5R704 1
17 Filter 30g d6/6mm 1
18 Filling valve, pipe d6, thread SAE 1/4" 2
19 Sunction pipe d10mm 1
20 Pressure pipe d6mm 1
21 Screw ST3.5 x 13 9
22 Screw ST4.8 x 38 3
25 Rubber grommet d30 DA 230/300/20 7
26 Rubber grommet d15 DA 11d180/10 4
27 Condensate pipe d18x3, 1m 1

17
WALL-MOUNTED SWIMMING POOL DEHUMIDIFIER - OWNER´S & INSTALLATION MANUAL
8. WARRANTY CONDITIONS
The following exceptions stated by Microwell, Ltd. apply within the warranty.
No claims will be accepted if:
1. The dehumidifier is used in an incorrect way, not as described in this manual.
2.
3. The dehumidifier was put to operation by an unauthorized person.
4. The air flow through the dehumidifier is out of the defined borders.
5. The water flow
6.
The dehumidifier is installed in an incorrect way, not as described in this manual.
through the dehumidifier is out of the defined borders.
´s
7.
8.
The water pH level and/or chemical condition is out of the defined borders:
The dehumidifier suffered frost damage.
The electric tension source is insufficient or improper in any other way.
IN CASE OF ANY UNCERTAINTY YOU MAY HAVE, PLEASE FEEL FREE TO CONTACT US !
Acidity / pH level: pH 7,4 +/- 0,4
Total alkalinity, as CaCO3 ppm 80-120
Total hardness, as CaCo3 ppm 100-300
Total melted dry mass ppm max. 3000
Maximal saline content wt/wt 6%
Free chlorine range ppm 1,0-3,0
Superchlorination ppm max. 30 ppm/max. 24 hours
Bromine ppm 2-3
Baquacil ppm 25-50
Ozone ppm 0,8-1,0
Maximum copper content ppm max. 2
Aquamatic single purifier ppm max. 2
Tarn clean purifier ppm max. 2
Sherwood purifier ppm max. 2
TRANSPORT INSTRUCTIONS:
The dehumidifiers must be transported only in the original packaging and in a vertical position. Make sure that the
dehumidifier cannot turn over or fall down during transportation. Do never put the dehumidifier aside! It may lead to
serious No claims are accepted in case of any damage caused by transportation. When receiving
the product delivered to you, please check whether the package is not damaged. If any kind of objections occurs, please
make a proper documentation of them.
compressor damage!
NOTE:
When applying
number of your dehumidifier. The registration card will be then sent to you for
filling in. In case you
These information will help us in making proper diagnosing of your unit and the service can
be performed with a minimum time delay.
applicable warranty, the registration card that ensures applicable warranties must be returned. In case
you cannot find the registration card of your dehumidifier, please contact the Service department of Microwell, Ltd. -
indicated your name, address and serial
have any service or technique related questions, please specify the model number and serial
number of your dehumidifier.

SNP 2018/42
927 01 Šaľa, Slovakia
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
www.microwell.eu
MICROWELL, Ltd. Distributed by:
Version: 2013/07/16
