Ecor-Pro DH8500EW User manual

DH8500EW
DH9500EW
GB
DE
FR
NL
Dehumidifier
Luftentfeuchter
Déshumidificateur
Ontvochtiger
www.ecor-pro.com
ES Deshumidificador

2
THANK YOU
Thank you for choosing this innovative Ecor-Pro dehumidifier.
This instruction manual describes the many benefits and advanced features
that this unique product has to offer.
The Ecor-Pro dehumidifier is a large capacity unit designed to run highly ef-
ficiently in places such as: restaurants, bars, printing presses, indoor swim-
ming pools, jacuzzis, garages, animal enclosures, cellars, stores, boat sheds,
weekend cottages, archives, etc.
Ecor-Pro specialises in complete indoor humidity control.
Our world class products incorporate the latest technological developments
and are designed to create a quality environment.
It is important that you read these instructions carefully before installing
and using your new dehumidifier.
Please keep them in a safe place for future reference.
Before using your dehumidifier for the first time, please ensure that it has
been standing for 2 hours in it’s upright position before it is switched on.
SAFETY
For safety reasons, read this information carefully before operating. Persons
who are not familiar with this type of product must not use it.
This appliance must be earthed and should only be connected to an earthed
220 – 240 V / 50 Hz mains supply. The installation must be in accordance with
the regulations of the country where the unit is used.
The unit is designated for indoor operation.
The dehumidifier is safe, however, as with other electrical appliance, use it•
with care.
This appliance is not intended for use by persons (including children) with•
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning the use of the appliance by a person responsible for their
safety.
GB

3
Children should be supervised to ensure that they do not play with the•
appliance.
Do not clean the dehumidifier by spraying it or immersing it in water.•
Do not insert any object into the opening of the dehumidifier.•
Disconnect from the mains before cleaning the unit or any of its compo-•
nents.
Never connect to an electrical outlet using an extension cord. If an outlet•
is not available, one should be installed by a licensed electrician.
Any service other than regular cleaning or filter replacement should be•
performed by an authorized service representative. Failure to do so could
result in a loss of warranty. Your Ecor-Pro dehumidifier is supplied with an
electrical cable and an earthed plug. Should it be necessary to replace
this plug at any time, you must use an earthed electrical plug.
Warning! Never operate this appliance if it has a damaged cord or plug. If the
supply cord is damaged, it must be replaced by an approved service repre-
sentative or a similar qualified person in order to avoid any hazards.
There should be direct access to the electrical plug after connecting the
power!
Do not use your dehumidifier under the following conditions:
GB
This product is not
made for DIy repair
Close to a heat
source
If the power cable
wires are frayed
or cut
When small
children may be
left unattended
If an extension
cord is needed to
reach an outlet
Where the power
cable may be
damaged
Where it may
be damaged by
chemicals
Where there is a
risk of interference
by foreign objects
If there is a risk of
liquid falling on
the unit

4
GB
HOW IT WORKS
Your Ecor-Pro dehumidifier controls the Relative Humidity by passing the air
through the unit forcing the excess moisture to condensate over a cooled
heat exchanger. This condensate water then flows safely into a fixed drain.
The dried air then passes through a final heat exchanger where it is warmed
before it re-enters the room area at a slightly elevated temperature. The level
of dehumidifying is set with the digital humidistat control.
Moist Air
Warm Dry Air
Cooled Heat Exchanger
Warmed Heat Exchanger
Compressor
Inlet Grille
Air Filter
Fan
Drain
POSITIONING

5
POSITIONING
There must be free space of at least 30 cm between any other object and the
front and the top of the unit.
Your Ecor-Pro dehumidifier can be installed in any area with a too high relative
humidity, such as cellar, playing area, shed, archive or swimming pool.
The dehumidifier will begin to protect from the harmful effects of excess mois-
ture as soon as it is plugged in and switched on.
When positioning your Ecor-Pro dehumidifier, ensure that it is placed on a
level surface.
Best results are obtained when windows and doors are closed, thus prevent-
ing the possible influx of more humid, air.
When the unit is placed in a (swimming) pool area, connect to the mains via
a transformer or a breaking switch, conform the local regulations regarding
electrical installations.
When the dehumidifier is in operation, open outside doors and windows only
when necessary.
GB

6
GB
WALL MOUNTING
The unit can stand on the floor or hang on a wall.
A wall-mounting bracket is provided with your Ecor-Pro dehumidifier.
Fix the supporting bracket with at least 5 screws horizontally to the wall, use
the appropriate fixings for the type of wall - Note the unit is heavy approxi-
mately 25kg.
Hang the unit on the bracket, the two tongues fit into the slots on the•
unit’s rear panel.
Make sure the three rubber support pads on the lower part of the rear•
panel are properly placed.
CLEANING

7
GB
CLEANING
Disconnect from the mains before cleaning the unit or any of its components.
Cleaning the air filter
Air circulation is impeded and the efficiency of the dehumidifying and air pu-
rifying functions decreases when the filter is dirty. It is therefore good practice
to clean the filter at regular intervals. The precise intervals depend on the
room in which the appliance operates and on how frequently it is used.
Open the front grille by pulling it gently forward at the top edge•
Remove the filter by sliding it out.•
Clean the filter or wash in tap water.•
Dry the filter before inserting it back and•
closing the grille.
Housing
Wipe regularly clean with a moist cloth
and mild household detergent.
Servicing
Have your dehumidifier once a year serv-
iced by a qualified engineer.
Caution
This unit should not be operated without
the air filter fitted. Operation without the air
filter may damage the heat exchanger.
DRAINAGE
Connecting the permanent outlet
Connect the pipe to an outlet tube with the correct diameter.•
Push the other end of the tube into a drain, making sure that the tubing•
cannot be twisted or folded.
The entire length of the tube• must have a steady fall.
Ensure that the outlet of the drainage pipe is not under the water level in•
the drain.
NOTE: In very cold weather conditions precautions should be taken to pre-
vent the drainage pipe from freezing.
Air Filter
2
1

8
CONTROLS
Functions:
ON/OFF
The unit is switched on and off by pressing the ‘ON/OFF’ button. When the
unit is on, the fan runs in the set speed.
Humidity
Press the ‘HUMIDITY ADJUST’ buttons repeatedly to choose the desired level
of relative humidity in the area. The corresponding control lights will indicate
the selected percentage. The ‘CONT’ control light indicates that the unit is
running continuously, disregarding the relative humidity level in the area.
Note: When the desired level of humidity is achieved the compressor will stop
however, the fan will continue to run for approximately 15 minutes, this will
clear the heat exchanger of all collected water.
Fan speed
Press the ‘FAN SPEED SELECT’ button to select low or high speed. The cor-
responding control light will indicate this, Lo=low or Hi=high.
Humidity / Temperature display
The digital display will normally show the measured relative humidity in the
area.
Your Ecor-Pro dehumidifier features a microprocessor based digital control
system for optimal performance control.

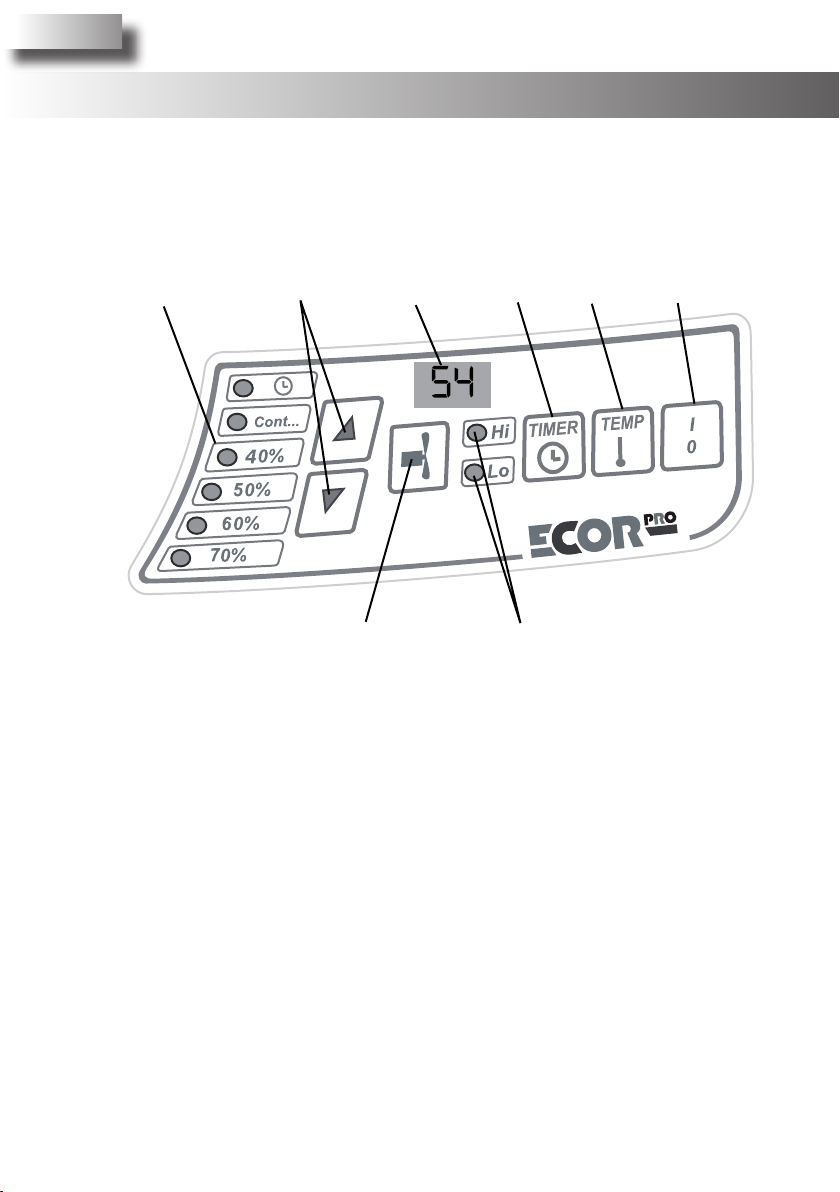

All functions are accessible via the membrane keypad shown below:
GB
Humidity
Setting
Display
Humidity
Adjust
Humidity &
Temperature
Display Timer
Set
Temperature
Display
Select
On/Off
Select
Fan Speed
Select
Fan Speed
Display

9
Timer
Press the ‘TIMER’ button to run the unit for a limited time period only. The
selected time period (in hours) is displayed temporarily on the display panel,
repeatedly pressing the button cycles through the available settings. When
this mode is selected, the unit will switch itself off after the selected time pe-
riod has elapsed. Note: During timed operation, the clock symbol indicator is
illuminated
Temp
Press the ‘TEMP’ button to temporarily display the room temperature on the
display panel.
IMPORTANT:
This dehumidifier should not be used in temperatures below 7°C or above
35°C.
Defrost Control
The dehumidifier is equipped with an automatic de-icing mode to defrost
the refrigeration coil during low temperature operation. The compressor is
switched off whilst the fan continues to run.
GB
TROUBLE SHOOTING
If the dehumidifier does not operate:
Make sure the unit is plugged in.•
Ensure the humidistat control is turned on.•
If the unit is noisy:
Make sure the dehumidifier is standing solidly and level.•
If the unit is leaking:
Check the drainage tube for correct fitting.•
Check for twists and bends in the drainage tube.•
Check the drainage tube for a sufficient and continuous downward slope.•
Check and make sure that the outlet of the drainage pipe is not under the•
water level in the drain.

10
TECHNICAL DATA
GB
Specifications DH8500EW DH9500EW
Typical Extraction @ 300C 85%rh 47 l /day 57 l /day
Typical Extraction @ 300C 80%rh 43 l /day 55 l /day
Typical Extraction @ 270C 60%rh 24 l /day 35 l /day
Air Flow (High Speed) 430 m3/hr 430 m3/hr
Voltage 230 V 230 V
Current @ 270C/60%rh 3.5 A 4.1 A
Frequency 50 Hz 50 Hz
Power @ 270C/60%rh 0.78kW 0.91kW
Phase 1ph 1ph
Dimensions (mm) 500 x 306 x 680 500 x 306 x 680
Weight (NET) 25kg 26.5kg
Weight (GROSS) 26.5kg 28kg
Operating Temperature 70C / 350C 70C / 350C
Condensate pump head (Option) 1.8m 1.8m
Refrigerant R410A
Hermetically sealed
* (EC) No 842/2006: R410A is a preparation of fluorinated greenhouse gases covered by the
Kyoto Protocol. Its global warming potential (GWP) is 1725.
Disposal
This marking indicates that this product should not be disposed with other house-
hold wastes throughout the EU.To prevent possible harm to the environment or
human health from uncontrolled waste disposal, recycle it responsibly to promote
the sustainable reuse of material resources. To return your used device, please
use the return and collection systems or contact the retailer where the product was
purchased. They can take this product for environmental safe recycling.
