For safety reasons, read this information carefully before operating.
Persons who are not familiar with this type of product must not use it.
SAFETY|
The dehumidier is safe, however, as with other electrical appliance, use it with care.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning the use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
The installation must be in accordance with the regulations
of the country where the unit is used.
The unit is designated for indoor operation.
This appliance must be earthed and should only be connected
to an earthed 120V – 60 Hz mains supply.
Your dehumidier ghts against rust, wood rot, bacteria, fungi en prevents damage from moisture.
+

3
US
• Do not clean the dehumidier by spraying it or immersing it in water.
• Do not insert any object into the opening of the dehumidier.
• Disconnect from the mains before cleaning the unit or any of its components.
• Never connect to an electrical outlet using an extension cord. If an outlet is not available, one should be
installed by a licensed electrician.
• Place the dehumidier in location appropriate to the appliance IP-rating (see technical data).
• Any service other than regular cleaning, setting fan mode or lter replacement should be performed by an
authorized service representative. Failure to do so could result in a loss of warranty. Your dehumidier is
supplied with an electrical cable (15ft) and an earthed plug. Should it be necessary to replace this plug at
any time, you must use an earthed electrical plug.
Warning! Never operate this appliance if it has a damaged cord or plug.
If the supply cord is damaged an approved service representative or a similar qualied person
must replace it in order to avoid any hazards.
There should be direct access to the electrical plug after connecting the power!
Do not use your dehumidier under the following conditions:
• If the power cable is damaged
• Where the power cable may be easily damaged
• Close to heat source
• Where small children may be left unattended
• Where there is a risk of liquids falling on the unit
• Where it may be damaged by chemicals
This product is not made for DIY repair.
SAFETY (2)|

4
You can take out your unit easily if
you open the box from the top side.
THANKYOU!|
It is important that you read these
instructions carefully before installing and
using your new dehumidier.
Please keep them in a safe place for future
reference.
Thank you for choosing this exciting innovation in drying using DryFan®technology.
A unique product and a revolution to the way we keep living spaces, lofts, basements, boats, holiday homes,
garages and storage areas dry all day and every day.
This dehumidier is a tough and can even be used for industrial processes and applications.
Designed to be used almost anywhere, in any orientation and will even work upside down.
These units will perform similar to compressor dehumidiers rated at double the capacity at normal room
conditions.
Using DryFan® technology these dehumidiers will out-perform compressor
dehumidiers by 3–4 times below 50 ºF. Where compressor dehumidiers stop
working at 41 ºF these units using DryFan®technology will continue to dry spaces
even continuing to work to -4 ºF making them ideal for unheated rooms and
out-buildings.
40% RH - 60% RH
We feel comfortable
within these settings.

5
US
Your dehumidier uses DryFan®technology and
uses a continuously rotating moisture absorbing
patented wheel termed a “Rotor”.
A highly ecient yet low noise fan draws air into the
unit (Process Air) and forces it through a section of
the rotor. As the air passes through the rotor, the
honeycomb, of hygroscopic membranes absorbs
almost all of the moisture creating an extremely
dry air-stream.
Most of this air-stream (approx 85%) is discharged
directly through the ‘Dry Air Outlet’.
However, a portion (approx 15%) of this air (Regen
Air) is separated and directed through a special
heater bank (Regen Heater) where the air’s
temperature is raised.
This heated air is then channeled back through a section of the Rotor.
As this hot air passes through the membranes, its higher temperature drives-out the previously
absorbed moisture and discharges it as warm wet air through the ‘Wet Air Out’ duct.
As the wheel rotates, this process of collecting and discharging moisture is continuous.
The wet air outlet is 1.5 inch in diameter making it easy to vent the moisture away using standard push t waste
water connectors.
Water is not drained away as a liquid, it is vented away similar to a tumble dryer.
HOW OUR UNIQUE TECHNOLOGY WORKS |
• damp air in
• patented
regen heater
• dry filtered
air out
•wet air exhaust
• patented dessicant rotor
+

6
PATENTED DESICCANT ROTOR
The Desiccant Rotor is the heart of the DryFan® system. It is an array of
especially absorbent membranes – patent protected– arranged as a series
of corrugations (as shown in the cut-away image) to give a vast surface
area that was developed over many years, making it an extremely ecient
moisture collector.
PATENTED REGEN HEATER
A patented ceramic PTC Regen Heater. (PTC Positive Temperature
Coecient) is self regulating so never to overheat. However, as triple safety
we include a separate overheat smart sensor in the dehumidier.
The patented technology is both safe and energy ecient and can never
overheat to hazardous temperatures, even if vents become accidentally
blocked.
• wet air
exhaust
• dry filtered air out
• damp air in
HOW OUR UNIQUE TECHNOLOGY WORKS (2)|
+
• dry filtered air out
• damp air in
• wet air
exhaust

7
US
FAN SYSTEM
All models use specialized fan technology to give quiet performance but type of fan will dier by model capacity.
Note: External ductwork will reduce restrict airow and therefore the amount of water the dehumidiers will
extract. To maximize airow and water extraction always keep any ducting to minimum.
Maximum lengths in feet of any ducts are outlined in the table.
Model Maximum damp air in
duct length
Maximum wet air out
duct length
Maximum dry filtered air
out duct length
EPD30 &
EPD30-PRO 3.3 2No duct flange /
not applicable
EPD50 &
EPD50-PRO 10 3.3 10
HOW OUR UNIQUE TECHNOLOGY WORKS (3)|
• push fit wasted water pipe
EPD30/EPD30-PRO EPD50/EPD50-PRO
• max. 3.3 feet
• max. 2 feet
• max. 10 feet • max. 3.3 feet
• max. 10 feet
• solid or flexible pipe
• supply cord 15ft
• supply cord 15ft

8
POSITIONING
The models have been designed for indoor use however, they can be placed inside or outside the room to be dried.
Internal Positioning:
When positioning the unit inside the room, place it centrally, ensuring inlet and outlet ducts are clear of
obstruction. If required, ducts can be connected to the outlet and/or inlet (where tted) to direct the drying
to specic areas. The ‘Wet Air Out’ MUST be ducted outside the room.
POSITIONING EPD30/EPD30-PRO|
+
damp air in
dry filtered air out
wet air exhaust drain
• in the basement • in the gym
7.87 inch
Ø 1.5"7.87 inchØ 5"
7.87 inch
7.87 inch

9
US
External Positioning (Models where Outlet Duct Fitted Only):
When positioning the unit outside the room, connect ducting to the outlet to direct the dry air-stream into the
room to be dried. Optionally, the inlet may also be ducted to the room to give a re-circulation eect. In this
case however, because the unit uses a portion for the inlet air for regeneration. Provision must be made in the
inlet duct to draw air also from outside the room.
POSITIONING EPD50/EPD50-PRO|
• for more
than one room
+
damp air in
dry filtered air out
wet air exhaust drain
Ø 5"Ø 1.5"Ø 5"
7.87 inch
11.81 inch
7.87 inch
7.87 inch

10
NOTE: As the Wet-Air-Out discharge is warm and very humid ensure it is directed where it will have no
adverse eect on the immediate environment.
NOTE: Wet-air-out should be declined from the dehumidier where possible if there is a risk of any
condensation build up in the exhaust duct running back into the dehumidier.
This can be avoided either with short wet-air-out duct lengths or adequately insulating the wet-air-duct
to prevent condensation. Should water be seen dripping from the dehumidier switch o the appliance
immediately at the wall socket. Allow water in the unit to dry completely.
Correct the defect in the wet-air-out ducting and reconnect to the power to start operating again.
Do not operate If there is a concern the unit is not thoroughly dry inside.
NOTE: The wet-air-out ange outlet is 1.5 inch. This is the standard size of push t wasted water pipe
connectors and pipes ideal for exhaust ducting. Decreasing the exhaust pipe diameter will decrease
performance. Flexible ducting may be used on all inlets and outlets.
All ducting lengths should be kept to a minimum. Longer lengths will reduce performance. For the longest
lengths see Fan System Table (page 7). Ducting may be also supplied by your dehumidier supplier.
POSITIONING (3)|
• to the ceiling • in a closet • in a laundry
room

11
US

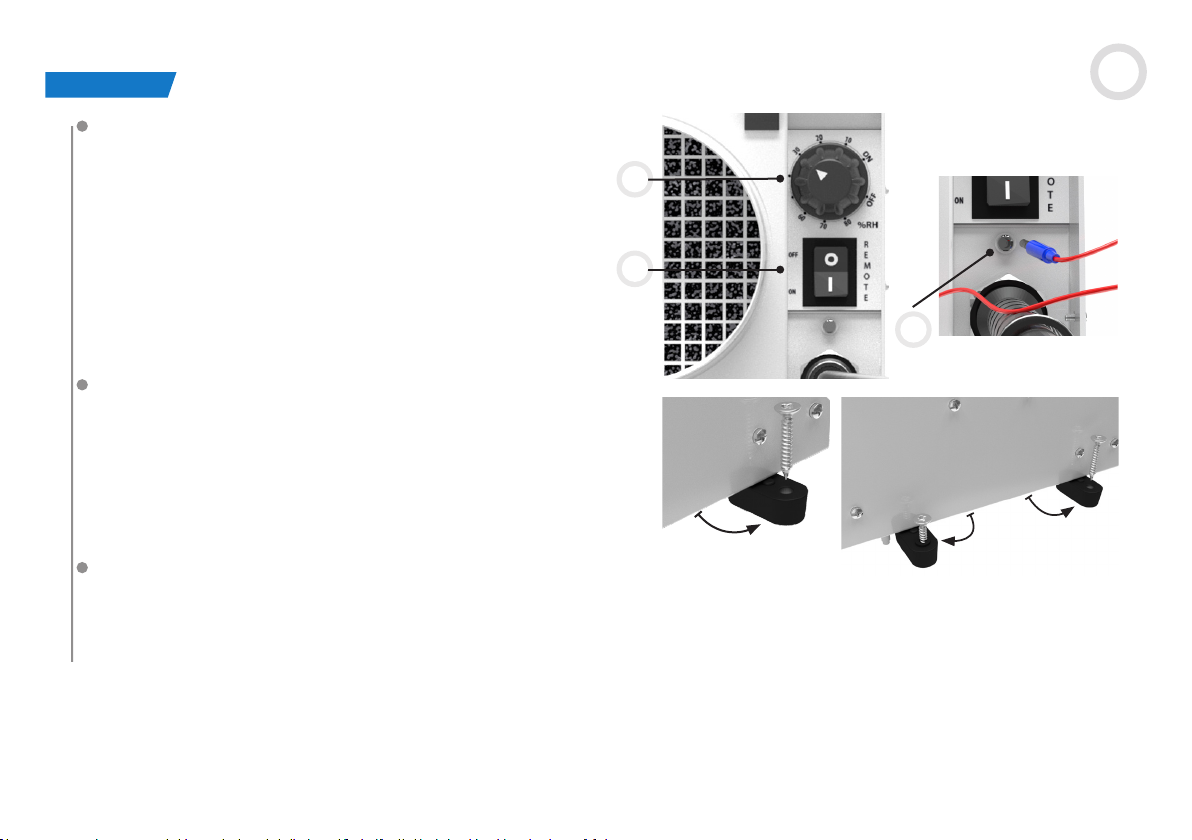

CONTROLS
The controls are positioned on the front of the unit
next to the damp air inlet duct, they are:
1. Humidistat
2. Remote Humidistat Switch
3. Remote Humidistat Jack Plug Socket
Auto reset. If there is a power out, the dehumidier
will automatically restart when the mains power is
reconnected.
MOUNTING
The dehumidier can be mounted in any direction
even up-side-down.
Turn the feet out to see the anchoring points. Secure
all four feet with suitable xings (not provided) to
oor, wall or ceiling.
STAND-ALONE OPERATION
Connect the unit to suitable mains supply and connect ducting,
Ensure the ‘Remote Humidistat’ switch is set to the ‘OFF’ position (O).
Turn humidistat to lowest humidity level continuation or set the switch to the ‘ON’ position (I). The fan will start.
Set the humidity level right for the room to be dried.
OPERATION|
+
1
2
3

12
OPERATION (2)|
NOTE: A low setting of say 10% means the room is regulated to a very dry level while a setting of say 90%
the room will be maintained at a relatively humid level. The right level for the room may vary with weather,
temperature and occupation conditions over time.
REMOTE OPERATION
For remote operation it is necessary to connect a 24V external humidistat (not provided)
via the jack plug connector. The external humidistat may be obtained from your appliance
supplier. Ensure the “Remote Humidistat” switch is set to I (ON). The dehumidier will now
be controlled by the remote humidistat that is using low power and only 24V.
CLEANING
Disconnect from the mains before cleaning or servicing the unit or any of its components.
Wipe regularly clean with a moist cloth (a soft, damp cloth) and a mild household
detergent, Never use chemicals, petrol, aggressive detergents or other cleansing solutions .
AIR FILTER
The dehumidier has an inlet air lter. This should be
checked periodically and if necessary cleaned.
It can be cleaned with a vacuum cleaner or hand
washed in mild detergent only.
Replacement lters are available from your supplier.
ATTENTION: Do not run the unit without a lter tted
as dust will impair the performance of the Rotor.
1
1
2
3

13
US
Specifications
EPD 30 /EPD 30 -PRO EPD 50 /EPD 50 -PRO
Typical extraction @ 90 oF 90% rh 17 pt/day 25 pt/day
Typical extraction @ 80 oF 60% rh 13 pt/day 21 pt/day
Air flow (Dry Air Out) 53 cfm 73 cfm
Air flow (Wet Air Out) 8 cfm 12 cfm
Mains 120Vac ~ 1 phase • 60Hz 120Vac ~ 1 phase • 60Hz
Current 3.4A 4.6A
Power 400W 550W
Operating temperature range -4 oF — + 104 oF-4 oF — + 104 oF
Noise level 49dB 52dB
IP rating IPx2 IPx2
Dimensions l x d x h inch 7.87 x 7.87 x 7.87 11.81 x 7.87 x 7.87
Weight net 10.58 lbs 14.10 lbs
TECHNICAL DATA|
OPTIONAL PARTS|
Powered by
Design
Great British
Subject to modications.rh = relative humidity
Available from your supplier
• Wet air exhaust exible ducting – 3.3 ft length
• Process air In or process air out exible ducting – 10 ft length
• Remote humidistat – 16 ft cord length and jack plug
• Replaceable lters – pack of 3
• Blank replacement top plate without handle – pack of one

38
Attention!
As an added safety feature, if this
dehumidier overheats internally,
the internal safety fuse will stop the
unit from working.
To reset this fuse, unplug the
dehumidier from the power
source and then plug it in again.
Check lters are clean and ducting
allows adequate air ow to operate.
Attention !
Par mesure de sécurité
supplémentaire, si ce
déshumidicateur surchaue à
l’intérieur, le fusible de sécurité
interne empêche l’appareil de
fonctionner.
Pour réinitialiser ce fusible,
débranchez le déshumidicateur
de la source d’alimentation, puis
rebranchez-le.
Vérier que les ltres sont propres
et que les conduits permettent un
débit d’air adéquat.
¡Atención!
Como característica de seguridad
adicional, si este deshumidicador
se sobrecalienta internamente,
el fusible de seguridad interno
detendrá el funcionamiento de la
unidad.
Para restablecer este fusible,
desenchufe el deshumidicador de
la fuente de alimentación y vuelva
a enchufarlo.
Revise que los ltros estén limpios
y que los conductos permitan que
el ujo de aire adecuado opere.
ADDITIONAL SAFETY FEATURE • MESURE DE SÉCURITÉ SUPPLEMENTAIRE • FONCIÓN DE SEGURIDAD ADDICIONALX

Subject to modications • Sous réserve de modications • Sujeto a modicaciones.
ECOR PRO USA, LLC
2292 Faraday Avenue
Suite 100
Carlsbad
CA 92008
760-248-3010
[e-mail]
www.ecorproducts.com
