Ecorider Urban 3.0 User manual

Shenzhen EcoRider Robotic Limited
- 1 -
Urban 3.0 Service Manual
1. Brake
2. Front Light
3. Dual Motor Switch
4. Display
5. Accelerator
6. Handlebar
7. T Tube
8. Horn
9. LED Light
SERVICE HANDBUCH
Bremse
Frontlicht
Doppelmotorschalter
Anzeige
Beschleuniger
Lenker
Tube
Horn
LED Licht
LED Licht
Horn
Tube
Lenker
Beschleuniger
Anzeige
Doppelmotorschalter
Frontlicht
Bremse

Shenzhen EcoRider Robotic Limited
- 2 -
10. Folding connection part
11. Front Light
12. Front Fender
13. Motor
14. Pedal
15. Front LED Light
16. Stand
17. Rear Light
18. Rear Fender

Shenzhen EcoRider Robotic Limited
- 3 -
19. Rear Disc
20. Rear Swing arm
21. Rear Light
22. Body case
23. Aluminum Alloy Wheel Hub
24. Front Swing arm
25. Motor Wire

Shenzhen EcoRider Robotic Limited
- 4 -
The lines of 1(Bule) and 3(Green) which are the power cable of the
motor
The lines of 2(Yellow) for Signal Output
Die Leitungen 1 ( Blau) und ( Grün ), Stromkabel der Motoren
Die Leitung 2 ( Gelb ) für Signalausgabe

Shenzhen EcoRider Robotic Limited
- 5 -
A. This group has 2 thick lines which are the cable of the
battery(connect with battery)
B. This cable is single and dual motor switching lines
C.Brake Hall signal light cable
D.This cable is spare line, not used in this product
E. Brake Hall signal light cable
F. Alarm for power Line
Akku
Batterie
Bremslicht
Ersatz
Bremslicht
Alarm
Anzeige
Licht
Stromleitung
Motor
Motor
Motor
A.2 dicke Kabel für die Batterie
B. Ein und Zweimotorige Schaltleitung
C. Signallicht Bremse
D. Ersatz Leitung wird nicht verwendet
E. Signallicht Bremse
F. Alarm für Stromleitung

Shenzhen EcoRider Robotic Limited
- 6 -
G.This cable control the display of this e-scooter
H.LED Light for power Line
I. J. K. Power Cable of the Motor
A.This group has 2 thick lines and yellow connector which are the
power cable of the battery(connect with battery)
B. C. D. Power Cable of the Motor
E. Single and double drive switch switching line
F. Brake Hall signal light cable
Akku
Motor
Motor
Motor
Schaltleitung
Doppelsntriebsschalter
Bremslicht
G. Steuert die Anzeige
H. Licht für Stromleitung
I. J. K. Stromkabel Motor
Anzeige
A. 2 Dicke Kabel und ein Gelber Stecker
Stromkabel der Batterie ( mit Batterie
verbinden )
B.C.D. Stromkabel des Motors
E. Schaltleitung für Einzel- und
Doppelantreibschalter
F. Signalleuchtkabel für die Bremse

Shenzhen EcoRider Robotic Limited
- 7 -
A. B. Power connector
A. B. Stromanschluss
Stromanschluss
Stromanschluss

Shenzhen EcoRider Robotic Limited
- 8 -
A. B. C. D. LED Light Power Line
LED Lichtstromleitung

Shenzhen EcoRider Robotic Limited
- 9 -
Integrate Line as following:
Vorderlicht / Hupe
Motorkabel
Kontrollanzeigekabel
LED Lichtkabel
Brems halle
Integrieren Sie die Kabel wie folgt :

Shenzhen EcoRider Robotic Limited
- 10 -
All wire connection as following:
Alle Kabelverbindungen wie folgt

Shenzhen EcoRider Robotic Limited
- 11 -

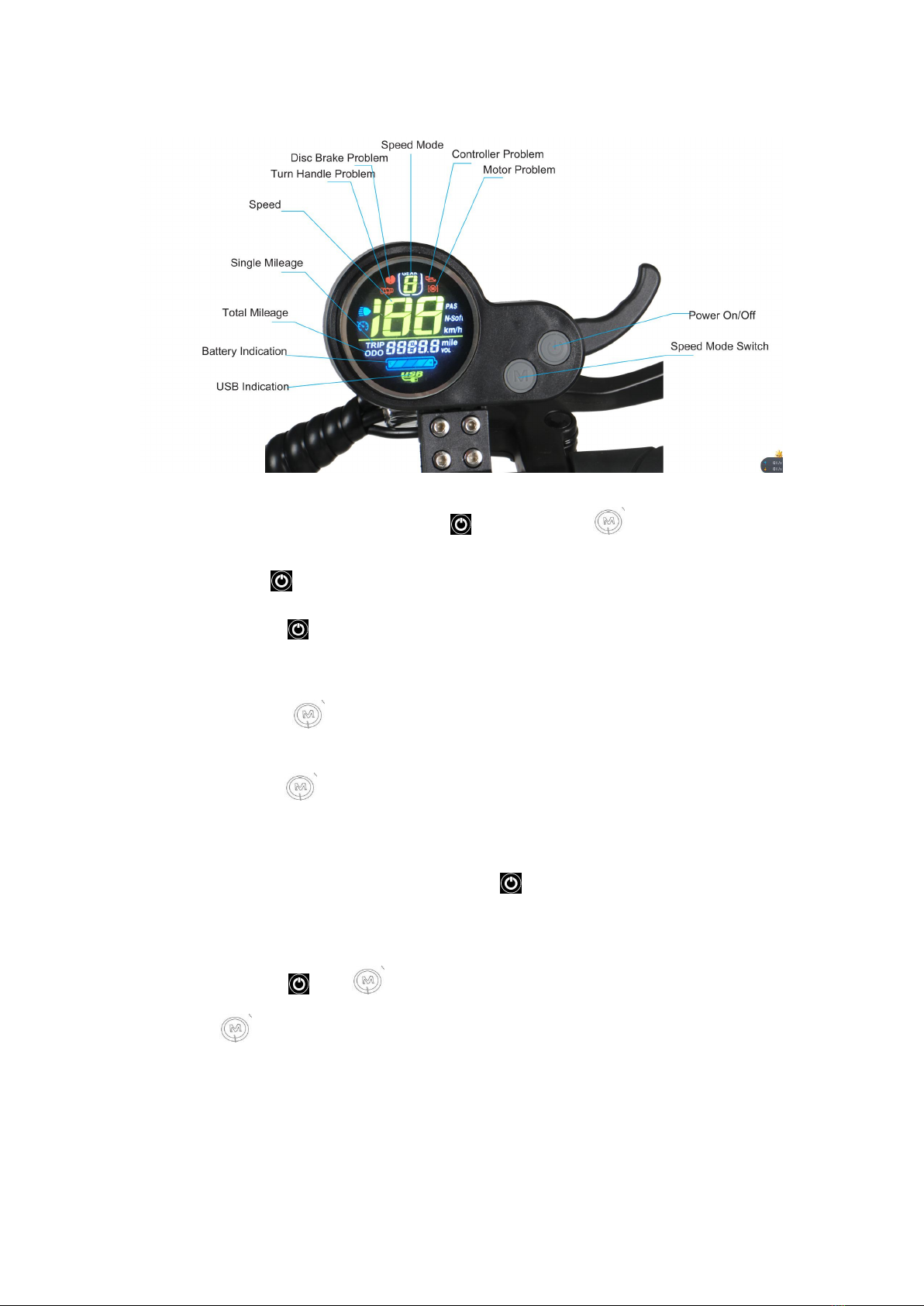

Display function
There are two buttons on the Display, which are Power button and Function button.
After Power on,the Display will show Battery,Speed and Speed model and so on.
Press Power button a few seconds to turn on or off the power.
Display will power off if the scooter remains no signal in three minutes
Press the power button shortly when the power on,display will show TRIP,ODO,VOL by
turn, 00:00 means time, TRIP means DST trip distance.ODO means accumulated distance.VOL
means battery voltage.
Press the speed button shortly,three kind speed mode (Beginner Mode and Normal
Speed Mode,High speed mode) will be switched by turn.
Press the speed button a few seconds,DST trip distance will be reset to zero.
Press the accelerate to increase the speed; loosen the accelerate to slow down.
When the scooter is turned on, long press this button again to turn off the power.
Parameter setting
Long press this button and at the same time,enter the setting interface. And then press
this button , it will show P0,P1,P2,P3,P4,P5,P6 and P7.
P0 wheel diameter setting
P1 under voltage point setting
P2 magnetic pole pair setting
P3 speed signal selection setting
P4 km and mile selection

Shenzhen EcoRider Robotic Limited
- 12 -
P5 non-zero start and zero start selection setting
P6 cruise control function setting
P7 Soft and power start setting
After the setting is completed, press this button to save the setting and then it will
automatically return to the original display interface.
When the electric scooter fails, the meter will display the faulty parts, suc
h as Disc Brake Problem, Motor problem, Turn Handle Problem, Controller
problem
