Ecotric EST-MB Series User manual

EST-MB-XXX,
EST-W-XXX,
.
(XXX represents any alphanumeric character)

- 1 -
TABLE OF CONTENTS
Carton Contents....................................................................................................................................................................... - 1 -
WARNING................................................................................................................................................................................. - 3 -
Avertissement .......................................................................................................................................................................... - 4 -
Assembling Instruction.............................................................................................................................................................- 5 -
Rear frame，basket Installation......................................................................................................................................- 5 -
Front wheel, handle bar and front basket Installation....................................................................................................- 7 -
Display, front and rear lights Installation.........................................................................................................................- 7 -
Seat Post Installation........................................................................................................................................................- 8 -
Pedals Installation.......................................................................................................................................................... - 10 -
Battery Installation & Removing & Charging .................................................................................................................- 11 -
Operating Instructions/INSTRUCTIONS D'UTILISATION.................................................................................................- 12 -
Display Instrument Setting.....................................................................................................................................................- 15 -
Presentation of Screen...................................................................................................................................................- 15 -
Troubleshooting..................................................................................................................................................................... - 16 -
The display can not light up ........................................................................................................................................... - 16 -
The throttle does not work............................................................................................................................................- 17 -
Error Codes.....................................................................................................................................................................- 18 -
Warranty Information............................................................................................................................................................ - 19 -
Situations that are not covered by warranty.................................................................................................................- 19 -
18 months Limited Warranty Components(In the period of 18 months from purchase by Official Authorized Store)- 19 -
Return Policy.......................................................................................................................................................................... - 20 -
FAQ......................................................................................................................................................................................... - 21 -
Q: How does after-sale customer service/ warranty work?......................................................................................... - 21 -
Q: I'm tech inclined and think I can fix it myself,does that void the warranty if I do?................................................. - 21 -
Q:Why is the charger hot? ............................................................................................................................................. - 21 -
Q:What is the range of this trike?..................................................................................................................................- 21 -
Q: Can I ride the trike in the rain?..................................................................................................................................- 21 -
Q: What is the most important thing for maintaining battery? ....................................................................................- 21 -
Q: Do you have spare keys for the E-trike?....................................................................................................................- 21 -
Battery And Charger Care...................................................................................................................................................... - 22 -
DISCLAIMERS..........................................................................................................................................................................- 23 -
USER MAINTENANCE INSTRUCTIONS ....................................................................................................................................- 24 -
Safety......................................................................................................................................................................................- 25 -
General Warning.................................................................................................................................................................... - 28 -
Electrical Parameters..................................................................................................................................................................29
The Universal Wiring Diagram............................................................................................................................................... - 30 -
Recording Your trike Info........................................................................................................................................................- 30 -
Carton Contents
(x1) trike (x1) Saddle
(x1) Lithium Ion Battery (x1) Display
(x1) Battery Charger (x2) Keys
(x1) Kit Box (x1) Tool Kit
(x2) Pedals (x1) Front and rear basket
(x1) Front and rear lights (x1) Owner’s user Manual

- 2 -
First of all, we would like to thank you for choosing the electric trike. We believe this technology, with the
benefits of electric propulsion, provides you with the perfect vehicle to increase your mobility.
Our brush-less electric hub motor allows you to run errands or commute to work while saving money on
gas and reducing your environmental impact on our world. It also allows you to pedal if you want to get
exercise along the way.
All this and it is just plain fun to ride!
If you have any concerns, questions, or suggestions about the electric trike, please contact us at the
website where you bought the trike firstly,we will always do our best to serve you.
PLEASE NOTE:
THIS MANUAL IS NOT INTENDED AS A DETAILED USER, SERVICE, REPAIR OR
MAINTENANCE MANUAL. PLEASE SEEK ASSISTANCE FROM A QUALIFIED
TECHNICIAN FOR SERVICE, REPAIRS OR MAINTENANCE.

- 3 -
WARNING
Electric trikes can be dangerous to use. The user or consumer assumes all risk of personal injuries, damage,
or failure of the tricycle or system and all other losses or damages to themselves and others and to any
property arising as a result of using the tricycle.
As with all mechanical components, the tricycle is subjected to wear and high stresses. Different materials
and components may react to wear or stress fatigue in different ways. If the design life of a component has
been exceeded, it may suddenly fail possibly causing injuries to the rider. Any form of crack, scratches, or
change of coloring in highly stressed areas indicates that the life of the component has been reached and it
should be replaced.
For replacement parts, technical information and warranty assistance, please feel free to contact us.
YOUR INSURANCE POLICIES MAY NOT PROVIDE
COVERAGE FOR ACCIDENTS INVOLVING THE USE OF
THIS tricycle. TO DETERMINE IF COVERAGE IS
PROVIDED YOU SHOULD CONTACT YOUR INSURANCE
COMPANY OR AGENT.

- 4 -
Avertissement
Le vélo électrique est dangereux.Hypothèses de l 'utilisateur ou du consommateur
Le risque de lésions corporelles, d'endommagement ou de panne de tricyclette ou de système, ainsi que
toutes autres pertes ou dommages causés à soi - même et à d'autres personnes ou à des biens du fait de
l'utilisation de tricyclettes.
Comme tous les composants mécaniques, la tricyclette est soumise à l 'usure et à des contraintes
élevées.Différents matériaux et ingrédients.
De différentes façons, l 'usure ou la fatigue par contrainte.Si le composant a dépassé sa durée de vie utile, il
risque d'être soudainement neutralisé et de causer des blessures au jockey.Dans les zones à forte
contrainte, toute forme de fissure, de rayure ou de changement de couleur indique que le composant a
atteint sa durée de vie utile et doit être remplacé.
VOTRE POLICE D 'ASSURANCE NE COUVRE PAS L'
ACCIDENT DE tricycleTTE.POUR DÉTERMINER S'
IL Y A UNE ASSURANCE, VOUS DEVEZ
CONTACTER VOTRE COMPAGNIE D 'ASSURANCE
OU VOTRE AGENT.
NE PAS DÉMONTER, MODIFIER
OU REMPLACER DES
COMPOSANTS ÉLECTRIQUES

- 5 -
Assembling Instruction
Instruction d'assemblage
Rear frame，basket Installation
CAUTION: Your Electric trike equips with a front disk brake. Be careful not to damage the disk, caliper, or
brake pads when reinserting the disk into the caliper. Never activate a disk brake’s control lever unless
the disk inserts correctly in the caliper.
1.Carefully take your trike out of the carton and remove all of the inside cardboard protection and
bubble wrap on the trike (Figure.1-1).
2. Cut the zip tie that is fixed on the front fork(Figure. 1-2), unscrew the nuts fixed between the frame
protector and the frame to remove the protector(Figure. 1-3).
3. Take out the tools and hardware bag” ①” required for bike frame installation(six M10*28L cup head
hexagonal screws with locknuts and washers ) from the accessory box.

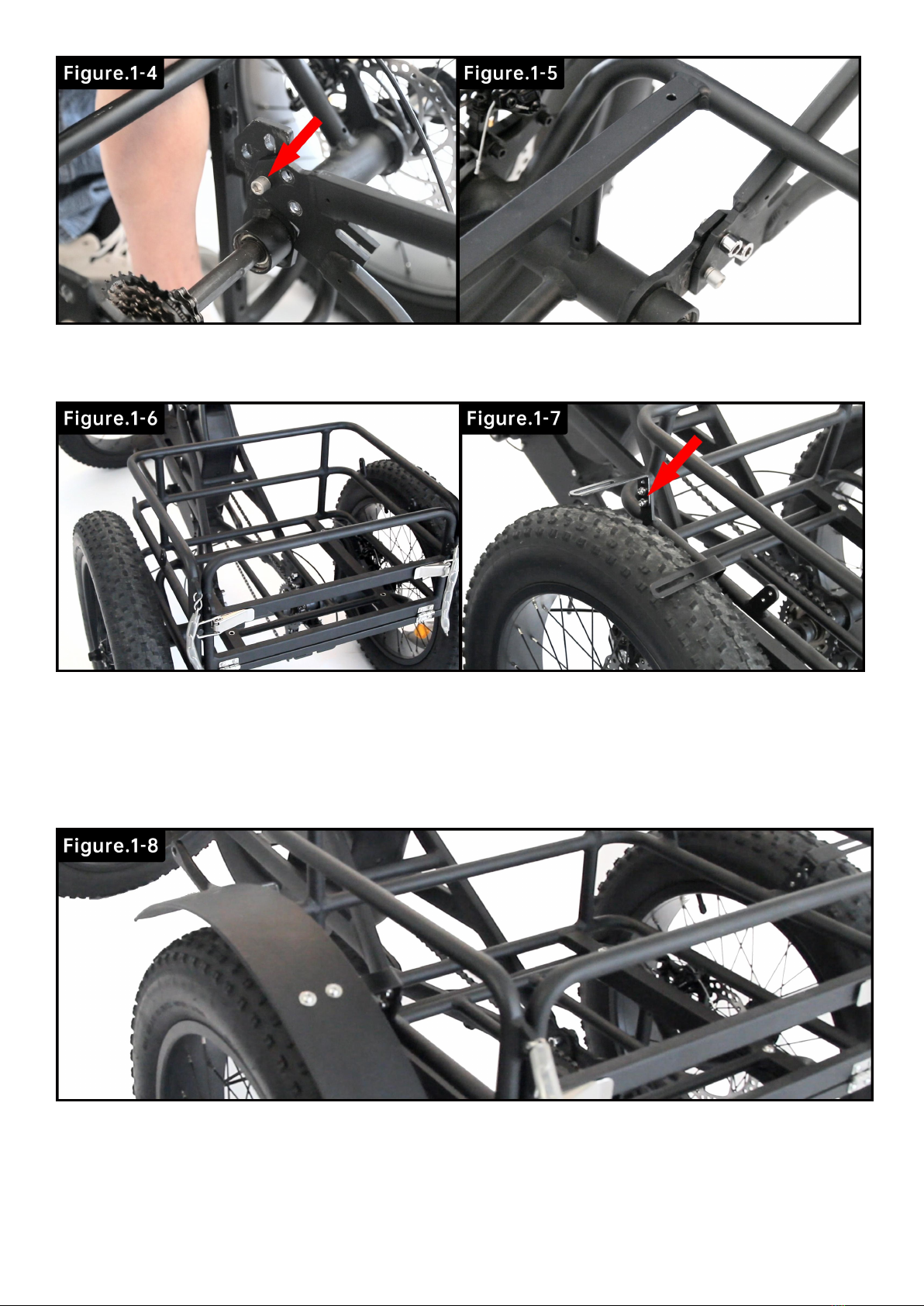

4.Cut off the zip ties on the rear frame, and then insert two of the screws from hardware bag” ①”
into the holes pointed by the arrows, on the left and right sides of the rear frame(Figure. 1-4).
5.Rotate the rear frame up so that the square base where the rear basket is mounted faces up, insert
the remaining four screws, and tighten these screws with locknuts and washers.(Figure. 1-5)

- 6 -
6. Install the rear basket to rear frame with hardware bag”②” (four M6*42L umbrella head socket
head screws, nuts and washers) (Figure. 1-6).
7. Install the 4 L-shaped brackets above the rear wheels with hardware bag”③” (eight M6*10L cup
head hexagonal screws, and washers) (Figure. 1-7).
8. Install the two fenders on the L-brackets with hardware bag”④” (eight M6*12 umbrella head
socket head screws, nuts and washers) (Figure. 1-8).

- 7 -
Front wheel, handle bar and front basket Installation

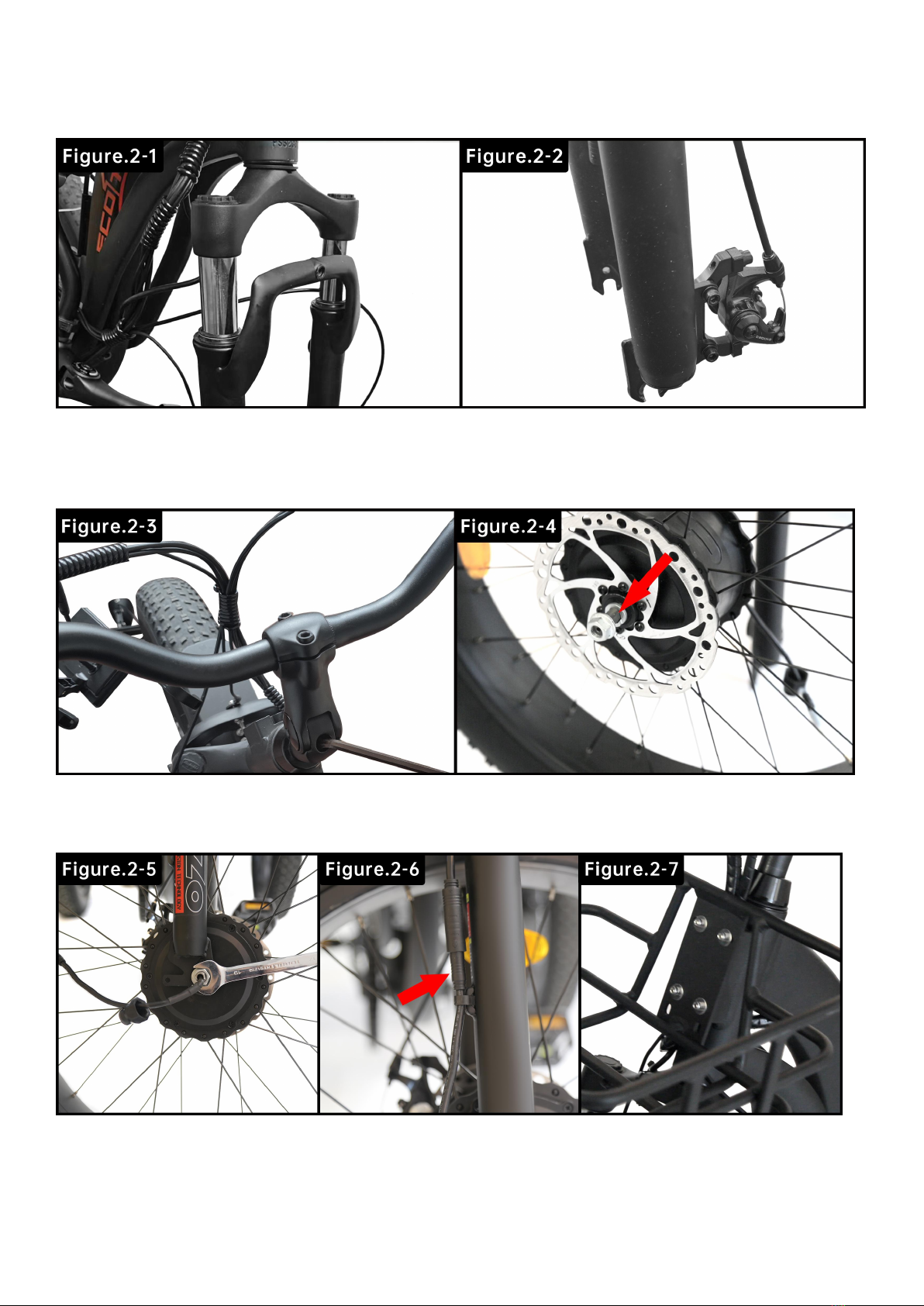

1. Turn the front fork counterclockwise so that the fork is facing forward(Figure. 2-1), and then install the
front caliper(Figure. 2-2).
2. Insert the stem of handle bar into the head tube of the frame, adjust the direction of the
handle bar and tighten the top screw. (Figure. 2-3).
3. Loosen the nuts on the front wheel and separate the normal spacer from the anti-rotation
spacer (Figure. 2-4). The prongs of the front fork need to be installed between two spacers.
4. Install the front wheel onto the fork and tighten the nuts (Figure. 2-5). Note: The protruding
part of the anti-rotation spacer needs to be stuck in the foot fork of the front fork.
5. Connect the motor plugs and fix on the front fork (Figure. 2-6).
6. Remove the screws on head tube to Install the front basket (Figure. 2-7).Note: The wire harness
from handle bar can be fixed between the front basket and the head tube.
Display, front and rear lights Installation
1. Take out the rubber washers from display and install them on the handlebar(Figure. 3-1).

- 8 -
2. Install the display on the rubber gasket on the handle bar(Figure. 3-2). Check whether the plugs of
the display and buttons are loose.
3. Install the front light to the front basket with hardware bag”⑤”(M6*16 bolt, nut and washer), and
them connect the light plug to display plug. Remove the screw on front fork bridge and install the front
fender(Figure. 3-3).
4. Turn the tricycle over to reveal the bottom and install the rear taillight, connect the light plug to the
extended plug in the controller box (Figure. 3-4). After that, attach the light cable to the frame with zip
ties.
Seat Post Installation
1. Please pay attention to the vertical lines on the seat post; it is the minimum insert line or safety line.
Please make sure install the post into the frame deeper than the minimum insertion line. It is at the bottom
of the seat post (Figure. 4-1).
Warning: It could break the seat tube during riding if the seat post does not install correctly. It is not
covered by the warranty.

- 9 -

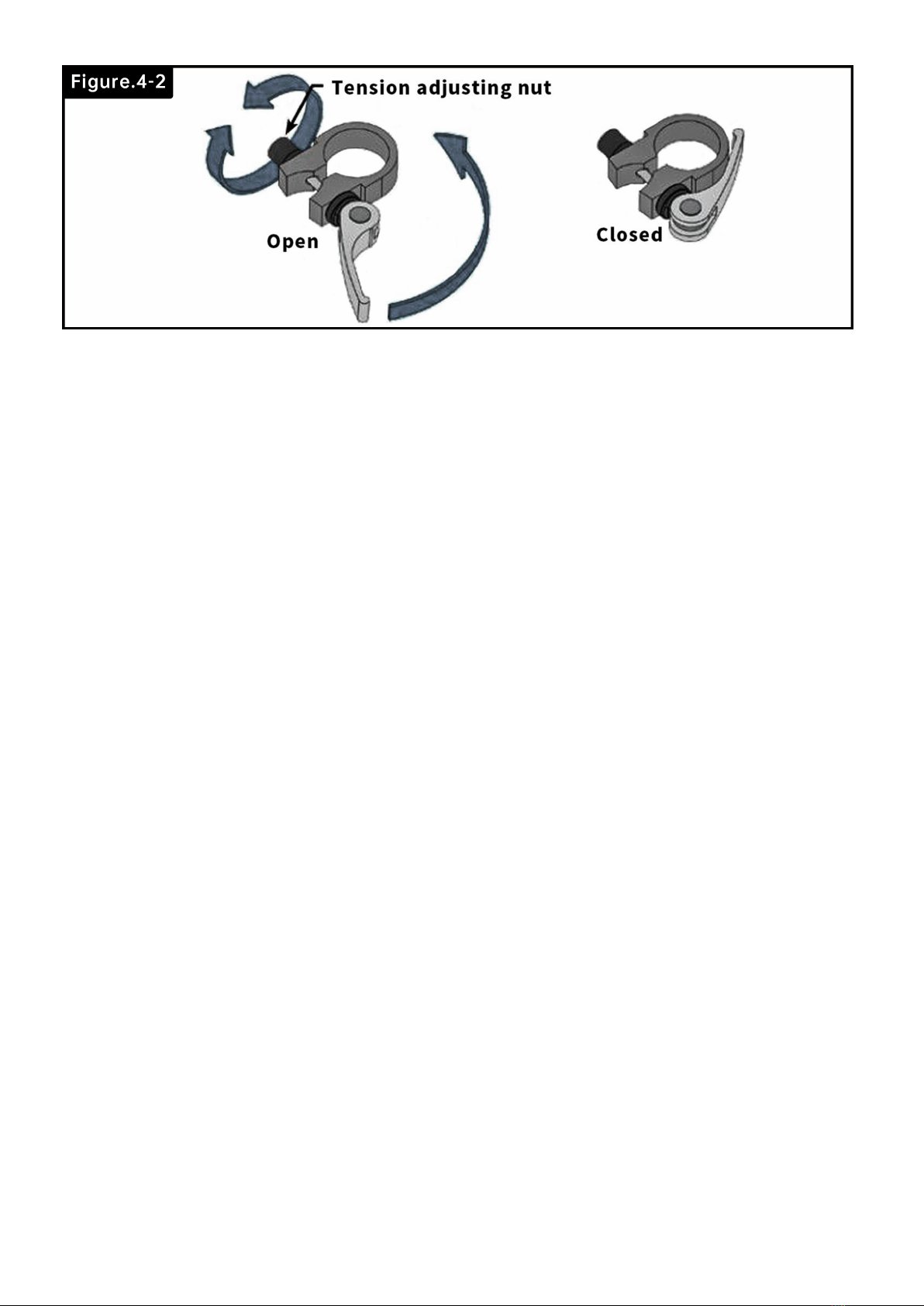

2. Open the clamp on the seat tube, insert the seat post into the seat tube, adjust the seat to a
comfortable height, tighten the tension adjusting nut, and press the clamp lever inward toward the seat
tube(Figure. 4-2).

- 10 -
Pedals Installation

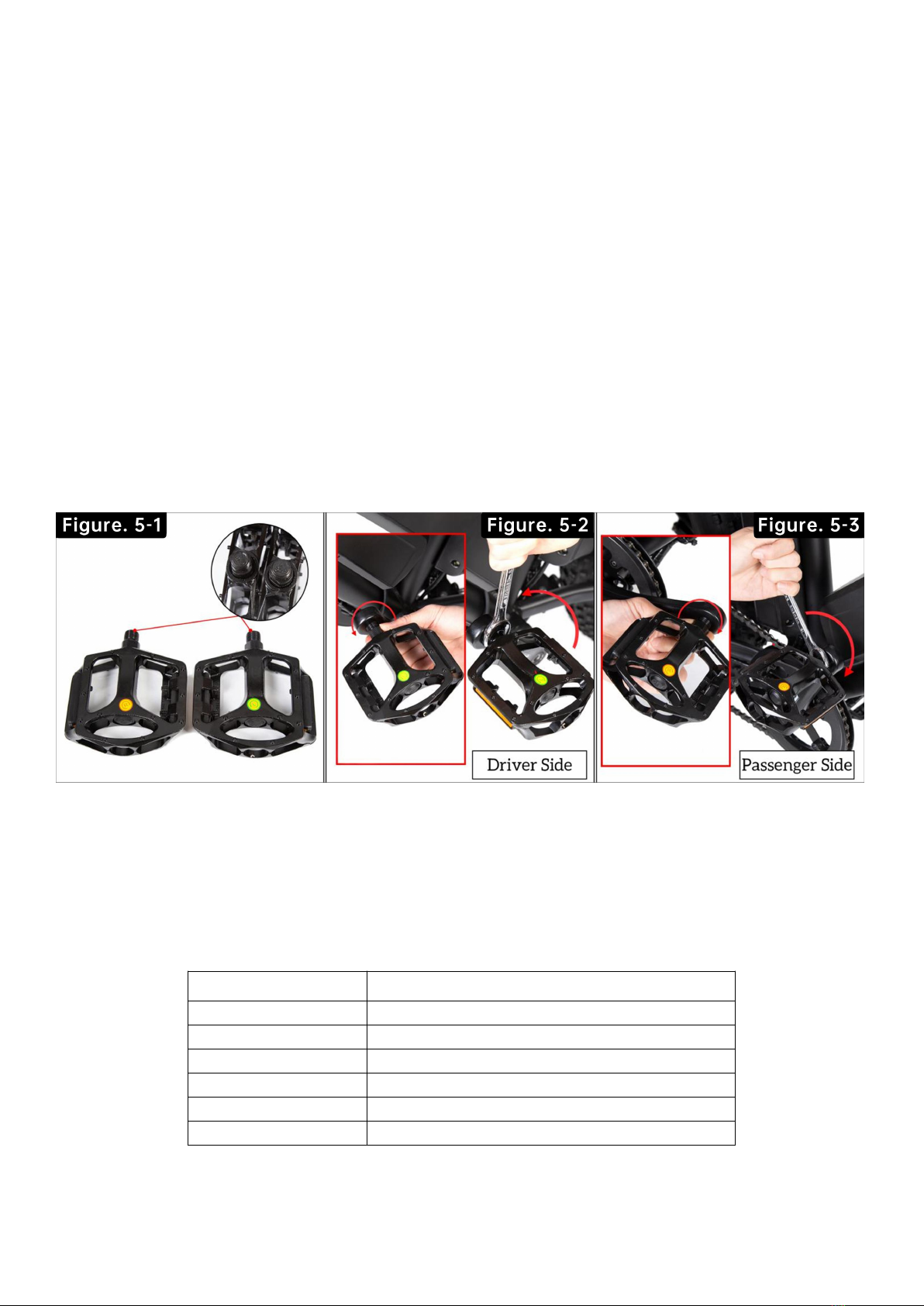

1. Identify left vs. right pedal
There is an “L” or "R” stamped into the axle (the threaded part that looks like a screw) (Figure. 5-1)
Please Note: They are not the same!! Apply a small amount of grease if possible.
2. Install the left-hand pedal firstly
You will have to screw it in counter-clockwise because the threading is the reverse of a normal screw.
Do this by slowly pedaling the cranks backward. If the pedal feels stiff, stop, and then re-try, it should
feel like a smooth motion. Please do not use the wrench until you are ready to tighten it for the final
few turns. Tighten it down until you can't anymore (Figure. 5-2).
Please Note: Hand-tight is not sufficient. Use a tool. If the threads on the crank are stripped after riding,
it means the crank needs to replace. It is NOT covered by warranty.
3. Install the right-hand pedal
This one threads in clockwise, like a normal screw. Follow the same principals, as discussed in step 2 for
the left pedal (Figure. 5-3).
4. Wipe off any excess grease from around the crank.
TORQUE SPECIFICATIONS
Item
N.m
Handlebars
18 N.m(Trail Tracker 12 N.m)
Handlebar Stem
12 N.m(Trail Tracker 8 N.m)
Seatpost
Quick Release
Seat
18 N.m
Front Wheel
30 N.m or above
Rear Wheel
30 N.m or above

- 11 -
Battery Installation & Removing & Charging
1. Battery Installation

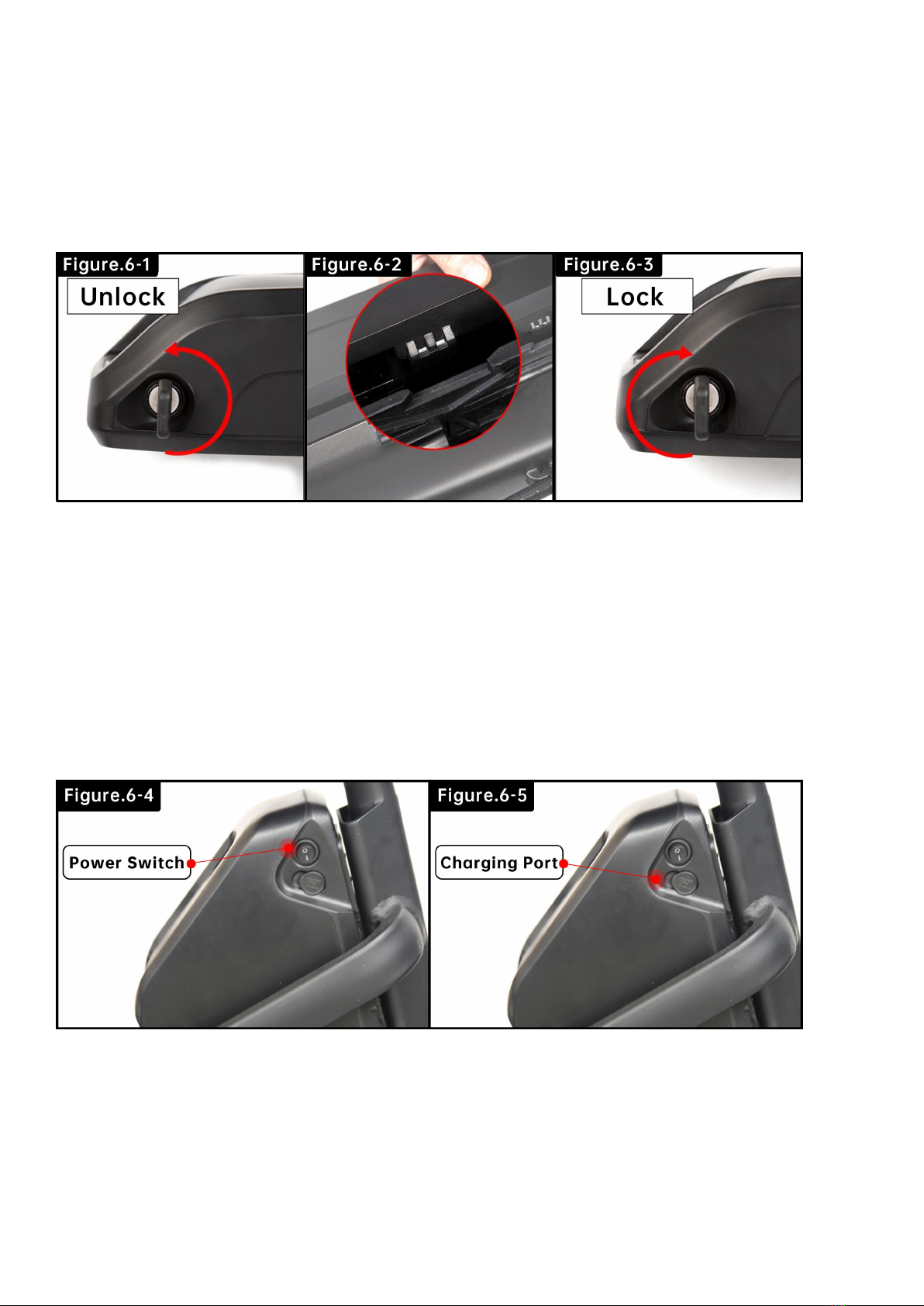

Turn the key(normally the keys are tied on the clamp of seat tube) counterclockwise to unlock position
(Figure.6- 1 ), then swipe up to remove the battery(Figure. 6-2). Insert the battery along the base, turn
the key clockwise to lock position(Figure. 6-3) and remove the key.
Please Note: Press the switch on the battery to “⚪“ to turn off the battery power, press to “-” to turn
on the battery (Figure. 6-4).
2. Introduction of the battery
There are 2 positions on the battery lock. The key cannot control the battery power, it is only used to
lock the battery.
3. Battery Charging
Finding the charging port on the battery (Figure. 6-5),connect the charger’s plug to the battery
charging port ,then connect the other side plug to the AC outlet(120v).The LED on the charger is
red color when charging, it will turn to green color when the battery is full charged. it will be 6-8
hours for full charging the battery. Remember to full charging the battery before first riding.
Please note: Please do not charge the battery indoors, recommend to charge in a cool, ventilated
and open space.
4. Battery storage outside of the etrike
If the battery is not used for an extended period, charge it to 85% fully and recharge it every two
months. Store it in a cool, dry place.

- 12 -
Operating Instructions/INSTRUCTIONS D'UTILISATION
1. Display operation
A. Turn the switch on the battery to “-” to turn on the battery, make sure the battery lock firmly on the
frame, and then press the “ ” power button on the control panel and hold 3 seconds (Figure. 7-1),
the display will light up.
B. Press “+” or “-” to change the power level.
C. Long press “+” to turn on the front and rear lights when the display is lighting up.
More information about the display operation, please refer to the display manual.
2. Throttle, Pedal Assist, And Walk Assist Mode operation.
The trike has three modes: throttle, pedal-assist, and walk-assist. Please lift the front wheel, then test them
separately.
Please Note: please make sure the number of the PAS level is bigger than “1” (Figure. 7-2), “0” means no
throttle or pedal assist.
A. Throttle: please twist the throttle. It is on the right side of the handlebar(Figure. 7-3).
B. Pedal Assist: please lift the front wheel and turn the pedal by hand. The motor will work one time
once you turn the crank 3/4-cycle .
C. Walk assist: Please hold press the “-” button on the control panel. The trike will go into a walk-assist
mode.

- 13 -
3. Brake System
Please hold the two brake levers on both sides of the handlebar, then trying to push the trike forward to
make sure the trike is assembled firmly, and brakes can stop the trike properly.
THE PARKING BRAKE: The parking brake is located on the front (right) brake lever. To engage the parking
brake, bring your trike to a complete stop. Squeeze the front brake lever, and then pull the cylindrical
button with your index finger until it clicks into place. To release the parking brake, squeeze the front brake
lever until the parking brake releases.
Brake light: The Trike is equipped with a taillight/brake light that is integrated into the electrical system.
When you turn on your trike, the taillight will illuminate to make you more visible to other vehicles. Any
time the trike is powered on, squeezing the hand brake lever will activate the brake light, causing the
taillight to illuminate additional areas.
4. Turning and maneuvering
Operation of the Trike differs from the operation of bikes with two wheels. Follow the tips in this section to
ensure a safe riding experience.
A. Do not attempt to turn the trike at high speeds. Slow the trike down below 5 mph (8 km/h) while
turning to prevent loss of balance. Do not pedal or use the throttle while turning.
B. Turn the handlebar gently, leaning slightly toward the turn to maintain stability.
C. Never put your feet down while moving.
D. Take extra caution when turning on uneven surfaces. Ensure any cargo is secured and centered.
E. Slow down when maneuvering in tight spaces or around other riders, cars, or vehicles. The trike is
significantly wider than most two-wheeled bikes. Be aware of your surroundings and your wheelbase at all
times. Practice riding near objects safely until you understand how to account for the rear wheel path.
F. Slow down when maneuvering in tight spaces or around other riders, cars, or vehicles. The trike is
significantly wider than most two-wheeled bikes. Be aware of your surroundings and your wheelbase at all
times. Practice riding near objects safely until you understand how to account for the rear wheel path.
5. Carrying cargo
Our trike provide a front basket and rear basket to make it easier to carry cargo, and its rear rack is not
compatible with the child seat. Do not allow anyone to ride, sit, or stand on the rear basket.
Weight limits:
Always use the parking brake and hold onto the trike when cargo is being loaded or in place.
Total carrying capacity of the Trike: 450 lb (204 kg)
Maximum rider weight: 325 lb (147 kg)
Rear rack maximum capacity: 220 lb (100 kg)
Front basket maximum capacity: 11 lb (5 kg)

- 14 -
6. Please note the trike’s serial number (Figure. 7-6) and battery serial number (Figure. 7-7) on the user
manual’s last page in case of stolen or missing.
7. You are ready to ride!
WARNING: Never place your feet on the ground when the trike is in motion. Doing so
can cause the rear wheels to hit your feet or legs, hurting you or potentially causing or an
accident that could lead to serious injury or death. Keep your feet on the
pedals.whenever the trike is in motion.

- 15 -
Display Instrument Setting
Presentation of Screen
Headlight display: show the on/off status of the headlight
Maintenance prompt: show the maintenance prompt sign
Navigation function: Connect the mobile app to the Bluetooth of the display,the display will show
when the mobile app starts to navigate
Bluetooth function: Bluetooth on/off status display, successfully connected to the display Bluetooth
show mark
Power prompt: Prompt real-time power
Real-time speed display: display the real-time speed value
Gear display: display the current gear
Single mileage: display the mileage of this ride
Distance: TRIP/ODO
Accumulated mileage: display the accumulated mileage
Average riding speed: Display the average riding speed of this time
To turn the unit on, press and hold the “ ” button to light up the display. A long press again “ ” will switch it off. The
display switches off automatically if there is no activity for five minutes (default).

- 16 -
Troubleshooting
We fully understand your feelings when you meet a problem with the trike. Contacting us on the
website where you bought the t6-8rike and telling us your problem in detail with some pictures and
videos will be the fastest and easiest way to help you solve the problem. Please don't forget to
leave your order number to us for reference.
The following are some assist tips for electrical problems:
The display can not light up
Please fully charge the battery ( hours). The LED on the charger should be green color when the battery
is full charged.
If it still doesn’t work, please check the wires and battery, please make sure the connections are not
loose, and the battery installs in place, then please light up the display in the correct order (light up the
power button on the battery, press the “M” button, and hold 3 seconds).
If it still doesn’t work, we need to get a voltmeter, and do some testing:
First, please light up the power button, and test the battery output voltage (Figure 8-1). If the voltage is
“0”, it means there is something wrong with the battery output plug, cell, or fuse. Please take a picture
or a video to show your testing result, and then send it to us. The customer service department will
give you a solution. If the battery voltage is not “0”, but less than 42V, please full charge the battery
(6-8 hours), then test it again; if the battery voltage is between42-54v, but the display can not be light
up, it means the battery is in good condition, we need to test the other two plugs.
Second, please open the controller box, and find the power wire (black and red color) that connecting
the battery and controller (Figure. 8-2). Please test the power wire’s voltage. If it is “0”, it means the
power wire needs to replace, please take pictures, and send the pics to us. If the voltage is the same as
the battery, there's no problem with the power wire. We need to test the output voltage of the
controller. It is the plug that connects the controller and display. It has five wires on the plug, please
test the red and black wires (Figure. 8-3). If the voltage is “0”, it means the controller needs to be
replaced, please take some pictures and send them to us; if the voltage is the same as the battery, it
means the display needs to be replaced. Please picture the testing results and send them to us. It will
help us for solving your problem asap.

- 17 -
The throttle does not work
We mean the display can be lighted up, with no error codes, but the throttle does not work. The
brakes have two functions when you press the brake lever: 1. it will stop the trike 2. it will cut the
power of the motor.
First, please check the brake lever, and make sure the brake lever can hold or release fluently. If not,
maybe the brake cut the power. Please video your problem and send it to us. We will give you a
solution.
Second, please make sure the number behind “PAS” is bigger than “0”. If the number is “0”, it means
no throttle or no pedal assist. Please test the pedal assist mode (please lift the front wheel, then turn
the crank a whole cycle), and walk assist mode(press the “down” button and hold 3 seconds). If only
the throttle does not work, it means the throttle needs to be replaced. Please video your testing and
send the video to us. If none of the three modes works, we need to test the motor wire and brake
sensor.
Third, please find the plug on the motor wire (Figure. 9-1), the connection may loose. Please re-plug it,
restart the trike, and then test all three modes, if it still doesn’t work, we need to check the brake
sensor.
Fourth, please open the controller box (Figure. 9-2), and find the two plugs that connect the brake
levers and controller. It is the only two plugs that have two wires on each plug (Figure. 9-3). Please
disconnect them, then test all three modes again. If they work, it means the brake sensor is defective.
The brake wires need to be replaced. If it still doesn’t work, it means the controller needs to be
replaced. Please video your problem, and send the video to us.
If it still doesn’t work after replacing the brake wire or controller, please video how you do the
troubleshooting, and send the video to us.

- 18 -
Error Codes
When something goes wrong with the system, an error code will flash on display. Check the details
on the attached list.
Please note: The motor will stop working in the event of an error. Only when the error is gone, the
motor will work again. Please send us a pic to show the error code. It will help us a lot in solving your
problem as soon as possible.
Error Codes:
Error code
Definition
0x05
Throttle error
0x06
Low battery level
0x07
High battery level
0x08
Motor Hall sensor error
0x09
Motor phase error
ERROR 0x05: The throttle needs to replace.
ERROR 0x06: Please fully charge the battery until the LED on the charger turns to green color
(6-8hours); if still not solved, please test the output voltage of the battery, and send us a pic to show
your result.
ERROR 0x07: Please test the output voltage of the battery, and send us a pic to show your result.
ERROR 0x08:Please find the plug that connects the controller and motor, please re-plug it, maybe the
connection is loose, if still not solved, please video your problem and send your video to us.
ERROR 0x09: Please check if the phase wire of the motor is disconnected, reconnect it, if still not
solved, please video your problem and send your video to us.

- 19 -
Warranty Information
The warranty covers items that fail when used within their normal operating parameters. Please provide
the order number when you need warranty. This warranty applies only to the original registered owner of
the tricycle and is not transferable.
If any part happen to be damaged during shipping, please contact us immediately after shipment arrival.
We will send a replacement part at our expense and will work with you to fix the issue.
Situations that are not covered by warranty
Water Damage (wading in the water, parking in the rain)
Refit (refit the motor, electrical system, battery, frame, fork, etc. without our authorization)
Overloading (Riding on steep slope/load more than 325 lbs)
Artificial damage (incorrect installation/usages)
Uncontrollable factors (Crash, falling, stolen, etc.)
Improper use (Abusive use the tricycle in off-road terrain, mud, water, gravel or jumping from ramps,
stairs or elevated ramps,or using the trike at an altitude higher than 6562 feet )
Damages caused by natural disasters (such as earthquakes, lightning, fire, flooding and other hazards).
Use of other components (such as charger, battery, display, or controller, it may result in fire or death)
Acts in violation of laws
Never registered your etrike or cannot provide the order number
18 months Limited Warranty Components(In the period of 18 months from purchase by
Official Authorized Store)
Frame – are warranted to be free from defects in material or workmanship for 18 months from
purchase by Official Authorized Store. Paint finish is considered consumable and is not part of the
warranty.
Motor, Display, Controller and Motor Assembly – are warranted to be free from defects in material or
workmanship for a period of 18 months from purchase by Official Authorized Store.
Original Battery –Provide free warranty service from defects in material or workmanship for a period
of 18 months from the date of purchase.
Exclusions:
The warranty does not cover components subject to wear: Tires, inner tubes, brake lines, brake pads, wheel
lining tape, fuses, etc. The other parts are Normal wear parts which are excluded from this warranty.
Please note that for warranty issues, the customer is responsible for the cost of
labor to install warrantied components.
