3EN
Important Safety Instructions
1. This Appliance can be used by persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given
supervision or instruction concerning use of
the appliance in a safe way and understand
the hazards involved. Children shall not play
with the Appliance.
2. Do not use the Appliance in extremely hot,
cold or humid environments (below 0˚C/32˚F,
above 40˚C/104˚F, above 65% humidity).
The Appliance can be used to clean outside
windows if it is properly tethered to the Safety
Pod, winds are calm, and it is not raining or
snowing.
3. Do not leave the Appliance unattended
during operation.
4. For household use ONLY. Do not use the
Appliance in commercial or industrial
environments.
5. Do not use the Appliance on cracked glass,
or glass with posters attached or raised dots
on it.
6. Only use the Appliance as instructed by the
instruction manual. Only use accessories
recommended or supplied by the
manufacturer. Only use the Rechargeable
Battery and Power Adapter supplied by the
manufacturer.
7. Please make sure your power supply voltage
matches the power voltage marked on the
Power Adapter.
8. Do not use the Appliance on a framed window
with a frame smaller than 5 mm (0.2 inches).
9. Do not use the Appliance on wet or greasy
windows.
10. Store the Appliance away from heat and
flammable materials.
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic
precautions should always be followed, including
the following:
READ ALL INSTRUCTIONS BEFORE
USING THIS APPLIANCE
SAVE THESE INSTRUCTIONS

4
EN
Important Safety Instructions
11. Do not use the Appliance if it does not firmly
attach to the glass or has visible signs of
damage.
12. To reduce the risk of electrical shock, do not
put the Appliance in water or any other liquid.
Do not place or store Appliance where it
could fall or be pulled into a bathtub or sink.
13. Do not touch the power plug or the Appliance
with wet hands.
14. Do not charge the Appliance in extremely
hot or cold environments, as doing so may
affect battery life span.
15. When charging the Appliance, do not place
it on top of other electrical appliances, and
keep it away from fire and liquid.
16. Take care not to damage the power cord.
Do not pull on or carry the Appliance by the
power cord, use the power cord as a handle,
or put heavy weights on the power cord.
Keep the power cord away from hot surfaces.
17. Do not use with a damaged power cord or
receptacle. Do not use the Appliance if it is
not working properly, has been dropped,
damaged, or has come into contact with
water. It must be repaired by the manufacturer
or its service agent in order to avoid a hazard.
18. If the supply cord is damaged, it must be
replaced by the manufacturer or its service
agent in order to avoid a hazard.
19. The plug must be removed from the
receptacle before cleaning or maintaining
the Appliance.
20. Do not unplug the Power Adapter by pulling
on the power cord.
21. The Battery must be replaced by the
manufacturer or its service agent in order to
avoid a hazard.
22. The Battery must be removed and discarded
according to local laws and regulations
before disposal of the Appliance.
23. The Appliance must be disconnected from
the receptacle before removing the battery
for disposal of the Appliance.

5EN
24. Please dispose of used batteries according to
local laws and regulations.
25. Do not incinerate the Appliance even if it is
severely damaged. The battery can explode
with exposed to fire.
26. The Appliance must be used in accordance
with the directions in this Instruction Manual.
The manufacturer cannot be held liable
or responsible for any damages or injuries
caused by improper use.
27. Keep the appliance out of reach of children
when it is energized or cooling down.
28. WARNING: For the purposes of recharging
the battery, only use the detachable supply
unit OH-1048A2701700U1-U provided with
this appliance.
29. Non-rechargeable batteries are not to be
recharged.
30. Rechargeable batteries are to be removed
from the appliance before being charged.
31. Different types of batteries or new and used
batteries are not to be mixed.
Important Safety Instructions
32. Batteries are to be inserted with the correct
polarity.
33. Exhausted batteries are to be removed from
the appliance and safely disposed of.
34. If the appliance is to be stored unused for a
long period, the batteries should be removed.
35. The supply terminals are not to be short-
circuited.
To satisfy RF exposure requirements, a separation
distance of 20 cm or more should be maintained
between this device and persons during device
operation.
To ensure compliance, operations at closer
than this distance is not recommended. The
antenna used for this transmitter must not be co-
located in conjunction with any other antenna or
transmitter.

6
EN
Important Safety Instructions
Correct Disposal of this Product
This marking indicates that this product should
not be disposed of with other household
waste throughout the EU. To prevent possible
harm to the environment or human health
from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of
material resources. To recycle your used device,
please use the return and collection systems
or contact the retailer where the product was
purchased. They can safely recycle this product.
For EU Countries Class II
Short-circuit-proof safety isolating
transformer
Switch mode power supply
For indoor use only
Direct current
~Alternating current
For EU Declaration of Conformity information,
visit https://www.ecovacs.com/global/compliance

7EN
1. Package Contents....................................................................................................................................................8
2. Operating WINBOT ...............................................................................................................................................11
3. Maintenance ..........................................................................................................................................................18
4. Status Indictor Light ..............................................................................................................................................22
5. Troubleshooting ....................................................................................................................................................23
6. Specifications.........................................................................................................................................................26
Contents

8
EN

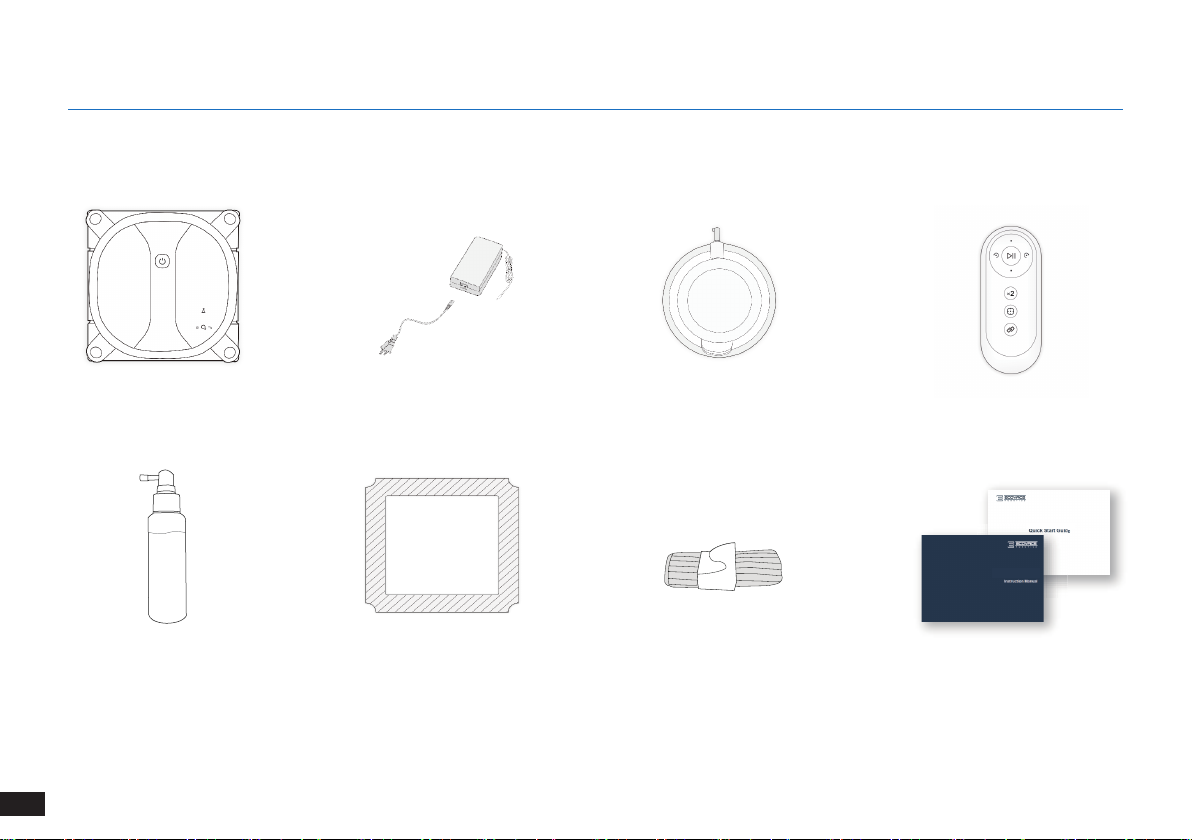

1. Package Contents/ 1.1 Package Contents
WINBOT Safety Pod with Batteries
Pre-installed
Power Adapter Remote Control with
Batteries
Instruction Manual +
Quick Start Guide
Cleaning Pads Finishing Cloth
1. Package Contents and Technical Specifications
Note: Figures and illustrations are for reference only and may differ from actual product appearance.
Product design and specifications are subject to change without notice.
WINBOT Cleaning
Solution

9EN
1. Package Contents/ 1.2 Product Diagram

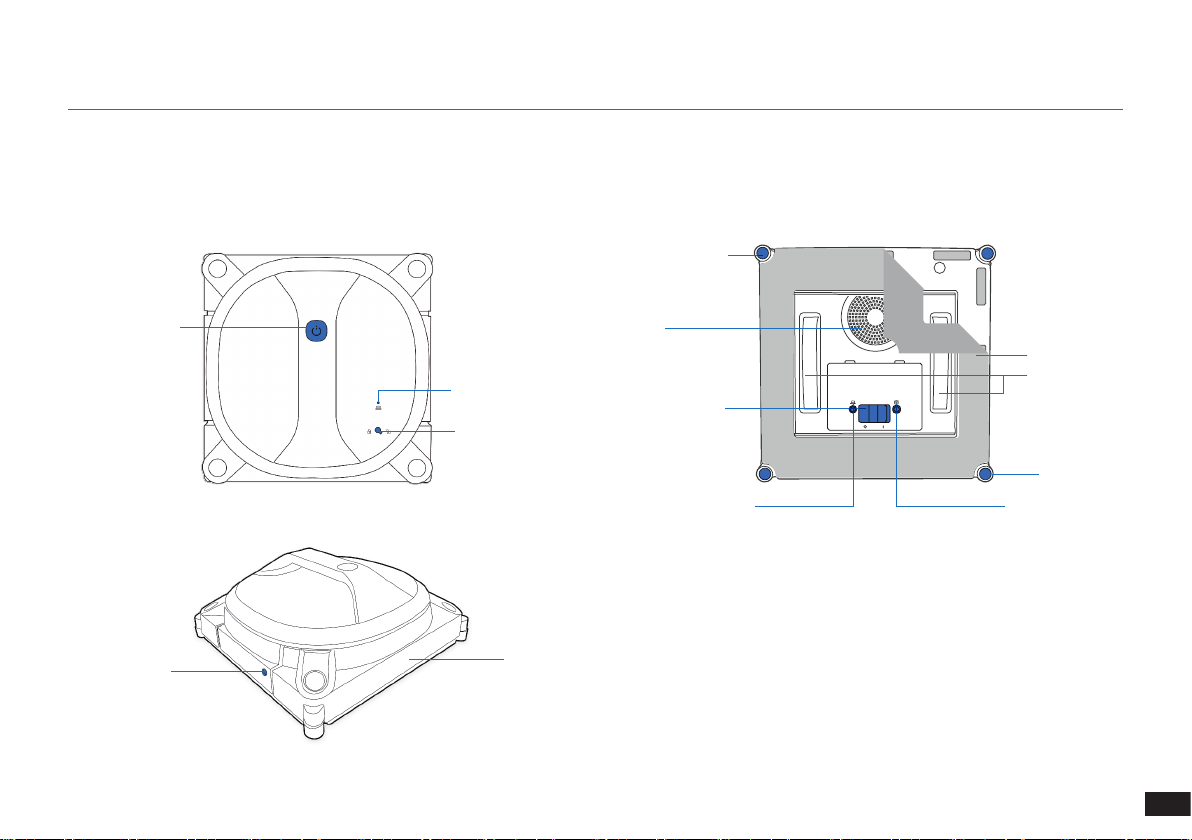

Front
1. Package Contents and Technical Specifications
Bumper
Safety Pod Status
Indicator
Safety Pod Port
WINBOT Status
Indicator/ START/
PAUSE Button
Charging Port
Back
Edge Detection
Sensors
Fan
Power Switch
Safety Pod Status
Indicator
Cleaning Pad
Driving Treads
Side Rollers
WINBOT Status
Indicator

10
EN
1. Package Contents and Technical Specifications
Safety Pod
Safety Pod Connector
Quick Release Handle
Battery Indicator
Power Switch
Battery
Compartment
Safety Pod Pairing
Button
(Within 60 seconds after powering
ON WINBOT, press and hold the
WINBOT START/PAUSE Button and
the Safety Pod Pairing Button at the
same time. Pairing is complete once
the WINBOT START/PAUSE Button
flashes GREEN and RED.)
* Safety Pod comes paired with WINBOT.
Note: To change batteries in Remote Control, pull off the battery
cover on the back of Remote Control, take out old batteries, insert
new batteries with correct polarity, and slide the battery cover back in,
ensuring it clicks into place.
* The Remote Control comes paired with WINBOT.
Remote Control
Direction Control
Buttons

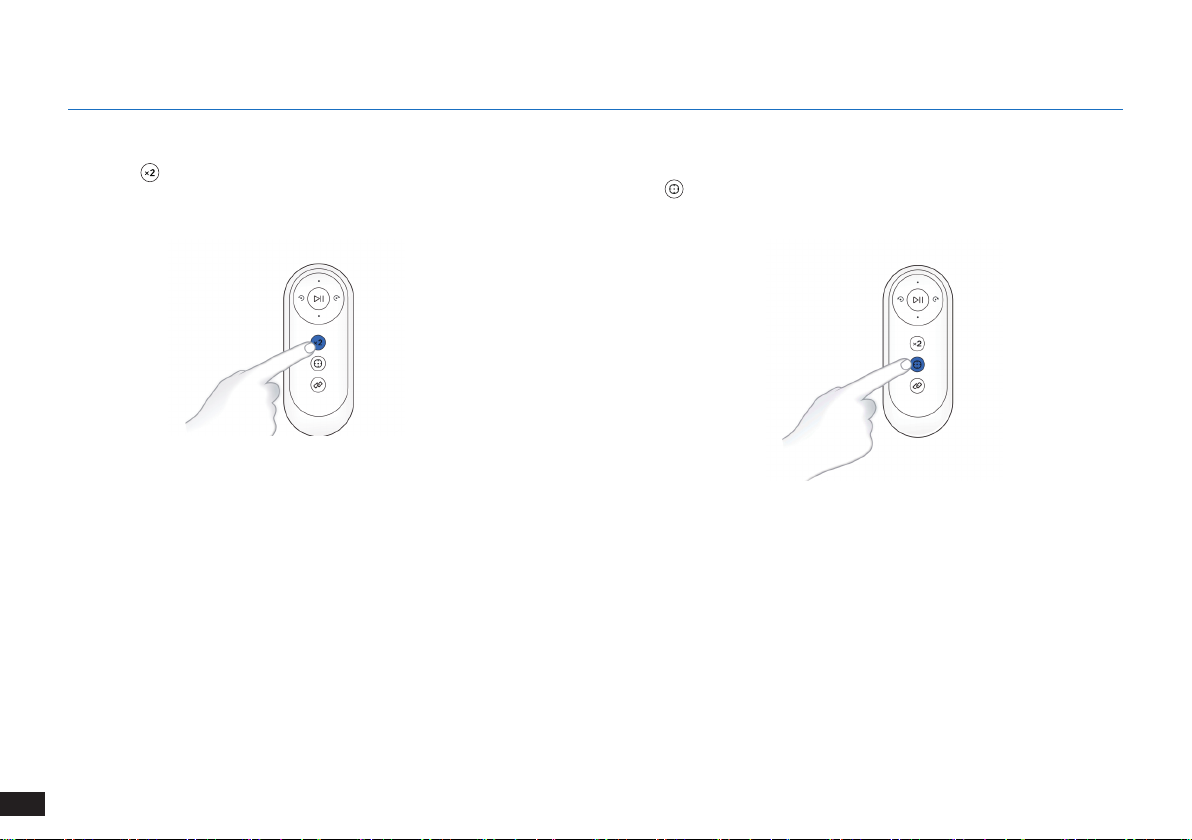

Deep Cleaning Mode
Button
Spot Cleaning
Mode Button
START/PAUSE Button
Remote Control
Pairing Button
Front
Back

11 EN
Before first use, make sure to remove the protection strips. Connect the Power Adapter to the WINBOT Charging Port, and then
plug it into a power supply.
* Please only use WINBOT on a smooth, firm surface with a frame that
is thicker than 3mm/0.12”.
* Before first use, make sure to fully charge WINBOT for about 2.5
hours.
Remove Protection Strips Charge
2. Operating WINBOT / 2.1 Notes Before Cleaning
2. Operating WINBOT
1 2

12
EN

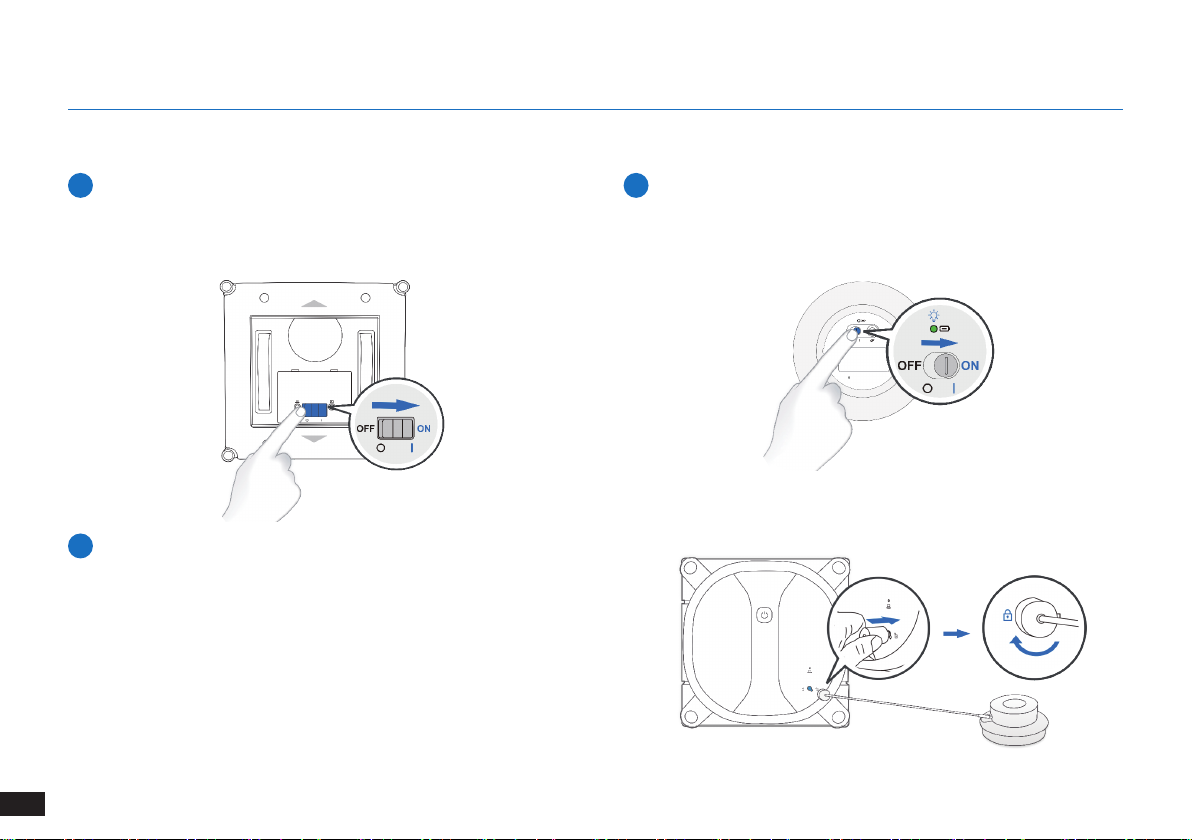

Turn the power switch at the bottom of WINBOT to “I”. (“I”= ON,
“O”= OFF)
When using WINBOT, Safety Pod MUST be used to fasten WINBOT
for security.
Insert the Safety Pod Connector into the WINBOT Safety Pod Port,
press, and turn it clockwise until it locks into place.
* Safety Pod comes with batteries pre-installed.
Power ON WINBOT
Connect Safety Pod
Power ON Safety Pod
2. Operating WINBOT / 2.2 Notes Before Cleaning
2. Operating WINBOT
1
3
2

13 EN
2. Operating WINBOT
Attach Safety Pod
4Spray Cleaning Solution 5
* Press Safety Pod to an adjacent window before cleaning. If there is
only one window, please attach Safety Pod to the corner to enhance
cleaning performance. When attaching Safety Pod, wipe it clean with
the finishing cloth to ensure good suction.
* For safety reasons, Safety Pod must be attached to an indoor window
pane. * When spraying the Cleaning Solution, keep the spray nozzle about
1-2cm /0.39-0.78” away from the Cleaning Pad.
* It is recommended to use WINBOT with the WINBOT Cleaning
Solution from ECOVACS. Using tap water or other cleaners could
have an adverse effect on cleaning performance. Using other cleaning
solutions could potentially void the warranty.

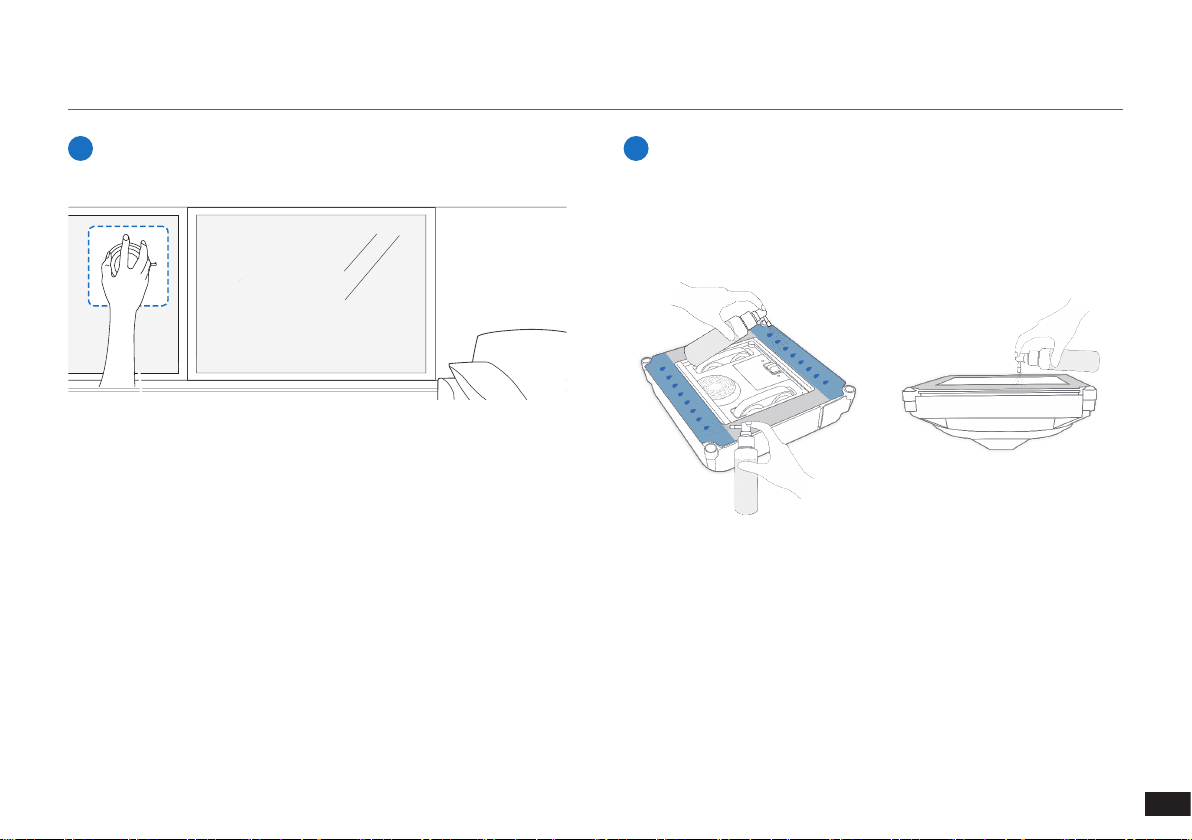

Spray the cleaning solution evenly on the two widest edges of the
cleaning pad. Spray each edge approximately eight times. Use the
finishing cloth to clean the cleaning pad, fan, drive treads and edge
detection sensors. This helps to prevent the robot from sliding out of
position during use.

14
EN
Start Cleaning
6

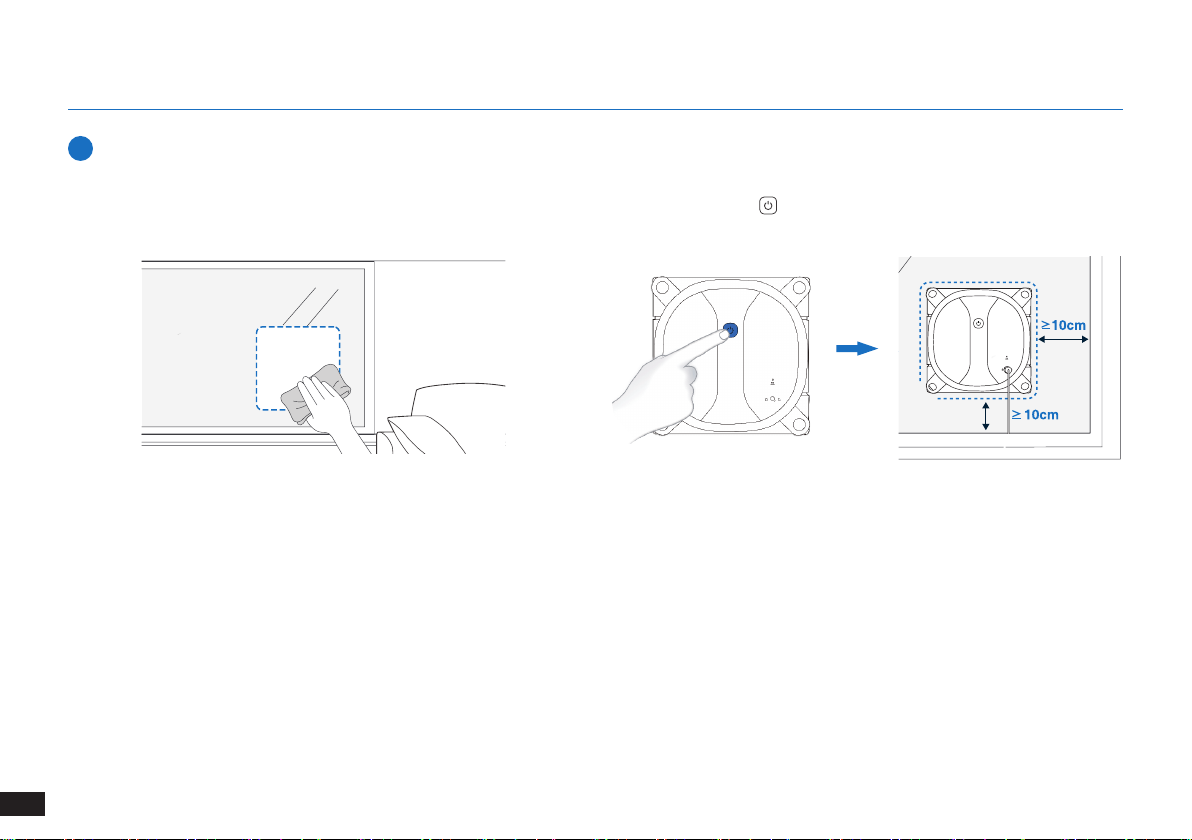

* When cleaning a frameless glass, keep Safety Pod more than
10cm/3.94” away from the edge.
* After WINBOT is started, keep the fan away from hair or any debris.
If there’s too much dirt on the glass, use the finishing cloth to clean an
area on the glass where Safety Pod is to be attached.
Make sure the bottom power switch is switched to “I”. (“I” = ON,
“O” =OFF) Press to start the fan. After Safety Pod is attached
successfully, WINBOT starts cleaning automatically.
2. Operating WINBOT

15 EN
2. Operating WINBOT
Pause WINBOT
7
During the cleaning, WINBOT can be paused by pressing on
WINBOT or on the Remote Control.
The most commonly used cleaning mode. WINBOT cleans in a back-
and-forth cleaning pattern. AUTO Cleaning Mode can be started by
pressing on WINBOT or on the Remote Control.
OR
OR
Cleaning Modes
8
WINBOT features three cleaning modes: AUTO Cleaning Mode,
Deep Cleaning Mode, and Spot Cleaning Mode. You can choose the
cleaning modes as needed.
a. AUTO Cleaning Mode

16
EN
Press the on the Remote Control. This mode can be used for a
better cleaning performance as WINBOT repeats the cleaning cycle
during cleaning.
This mode can be used for an area with concentrated dirt and dust.
Press on the Remote Control to start Sport Cleaning Mode.
b. Deep Cleaning Mode c. Spot Cleaning Mode
2. Operating WINBOT

17 EN
2. Operating WINBOT
2. Operating WINBOT / 2.3 Stop Cleaning
Stop Cleaning: After WINBOT completes a cleaning cycle, it returns to the starting spot and reports “Cleaning complete.”
Remove WINBOT
Detach Safety Pod Power Safety Pod OFF
Power WINBOT OFF
1
3 4
2
After pausing WINBOT, grasp the handle, press and hold the for
about 5 seconds until the fan stops. Detach WINBOT from the window.
Turn the power switch at the bottom of WINBOT to “O”. (“I”= ON,
“O”= OFF)

18
EN
3. Maintenance
Cleaning Pad
a. Replace Cleaning Pad b. Clean the Cleaning Pad
Pause WINBOT. Remove the dirty cleaning pad and insert a new one
in the correct orientation.
Remove the Cleaning Pad from WINBOT. Immerse the Cleaning Pad
in lukewarm water for about 2 minutes, and rub a soft brush along the
grooves on the cleaning pad to remove dirt. Fold the Cleaning Pad
and squeeze it gently to remove excess water, and then place it in a
flat position to dry.
3. Maintenance
* The dark side of Cleaning Pad faces outwards. Make sure the side
with is attached to WINBOT Cleaning Pad Plate with the same .
* Do not squeeze the pad with excessive force or hang it up to dry as
it may cause it to lose its shape and impair its ability to absorb dirt.
* Do NOT use a damp Cleaning Pad on WINBOT. This helps to prevent
the robot from sliding out of position during use.
* If the Cleaning Pad becomes worn or no longer fits exactly within the
fastener area, replace it with a new one to achieve optimal cleaning
performance.

19 EN
Before cleaning, make sure the Power Switch is turned to “I” and the
Fan is off.
Inspect the Driving Treads by using the Direction Control Buttons on
the Remote Control. Stop the Driving Treads if you see dirt, and clean
them with the finishing cloth.
After cleaning the Driving Treads, attach the Cleaning Pad and start
cleaning the window, or switch the Power Switch on WINBOT to “O”
to power WINBOT OFF.
3. Maintenance
Cleaning the Driving Treads

20
EN
Fan: Clean it with the finishing cloth to keep the suction at the peak
performance.
Edge Detection Sensors: Clean them with the finishing cloth.
Side Rollers: Clean the Side Rollers with the finishing cloth to ensure
sensitivity.
Other Components
3. Maintenance
* After WINBOT emits a low battery report, please fully charge WINBOT
to prolong the battery service life before using or storing WINBOT.
* If WINBOT will not be used for a long time, please fully charge
WINBOT and then power OFF before storing it. Charge it every 6
months to prevent potential battery damage.
