ED 1580FC-24-201 User manual

BATH.EDBYELLEN.COM

ED is Ellen DeGeneres’ iconic style, values and personality shared through
collections of beautifully designed, high-quality products for home, pets and
people. All ED merchandise design and materials are approved by Ellen, ensuring
it maintains her standards and upholds her promise to make each item feel
like a personal connection between herself and consumers around the world.
INTRODUCTION
WELCOME

3
ATTACH YOUR RECEIPT HERE
Serial Number__________________ Purchase Date__________________
1580FC-24-201 24" White Finish Floor Cabinet
1580FC-24-242 24" Light Gray Finish Floor Cabinet
MODEL NUMBER DESCRIPTION
ITEM #
3629288; 3629294
MODEL #
1580FC-24-201; 1580FC-24-242
24-IN FLOOR CABINET
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 1-855-571-1044, 9 a.m. - 5 p.m., EST, Monday - Friday.

4
TABLE OF CONTENTS
Package Contents............................................................................................................................5
Hardware Contents..........................................................................................................................5
Safety Instructions...........................................................................................................................5
Preparation....................................................................................................................................6
Assembly or Installation Instructions...............................................................................................6
Change Door Panels (Optional)....................................................................................................11
Care and Maintenance...................................................................................................................11
Warranty........................................................................................................................................11
Replacement Parts List..................................................................................................................12

5

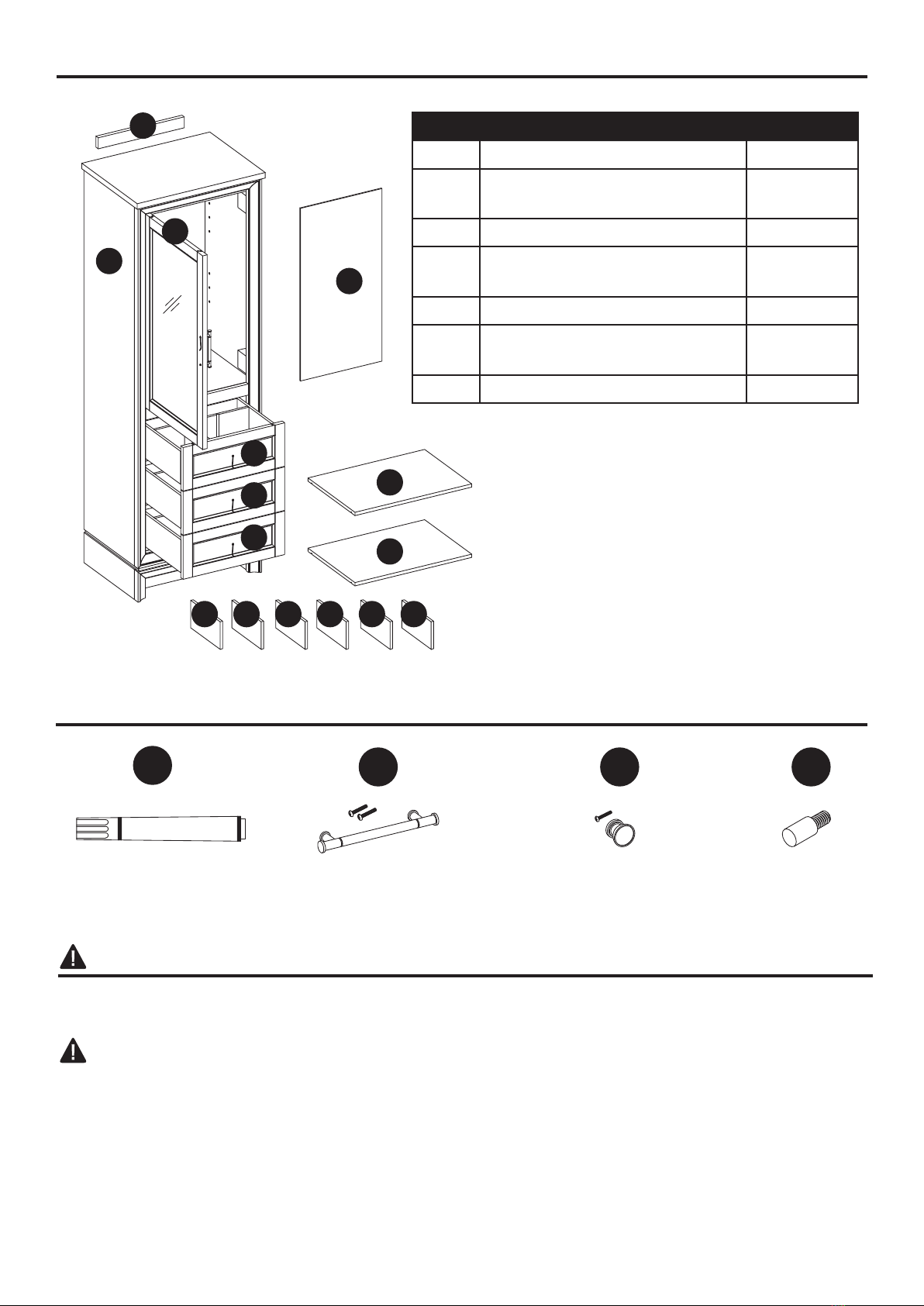

HARDWARE CONTENTS (NOT SHOWN ACTUAL SIZE)
PACKAGE CONTENTS
SAFETY INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
WARNING
• There are several assembly steps, including unpacking, that require two adults.
CAUTION
•
Before installation, carefully use scissors or utility knife to cut and unwrap all parts. Make sure
you DO NOT discard the hardware.
• Follow these instructions closely, take your time, and use care while assembling this floor cabinet.
KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
PART DESCRIPTION QUANTITY
A Cabinet 1
BWall Mounting Spacer Bar
(preassembled to Cabinet (A)) 1
C Shelf 2
DDoor (preassembled to
Cabinet (A)) 1
EWood Door Panel 1
FDrawer (preassembled to
Cabinet (A)) 3
G Drawer Divider 6
AA
Touch Up Pen
Qty. 1
Door Handle (2 Options)
Brushed Nickel (Qty. 1)
Champagne Brass (Qty. 1)
BB CC
Drawer Handle (2 Options)
Brushed Nickel (Qty. 3)
Champagne Brass (Qty. 3)
DD
Shelf Pin
Qty. 8
B
C
C
D
E
F
F
F
A
G G G G G G

6
INSTALLATION INSTRUCTIONS
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents list. If any part is missing or damaged, do not attempt
to assemble the product.
Estimated Installation Time: 30 minutes.
Tools Required for Installation (not included): Phillips screwdriver, utility knife or scissors,
power drill with drill bit.
Helpful Tools (not included): Measuring tape, level
BB
Hardware Used
Door Handle x 1
1
A
D
1
2
3
BB
2. Repeat the same step for the drawer
handles (CC) and drawers (F).
CC
Hardware Used
Drawer Handle x 3
F
A
2
1
2
3
CC

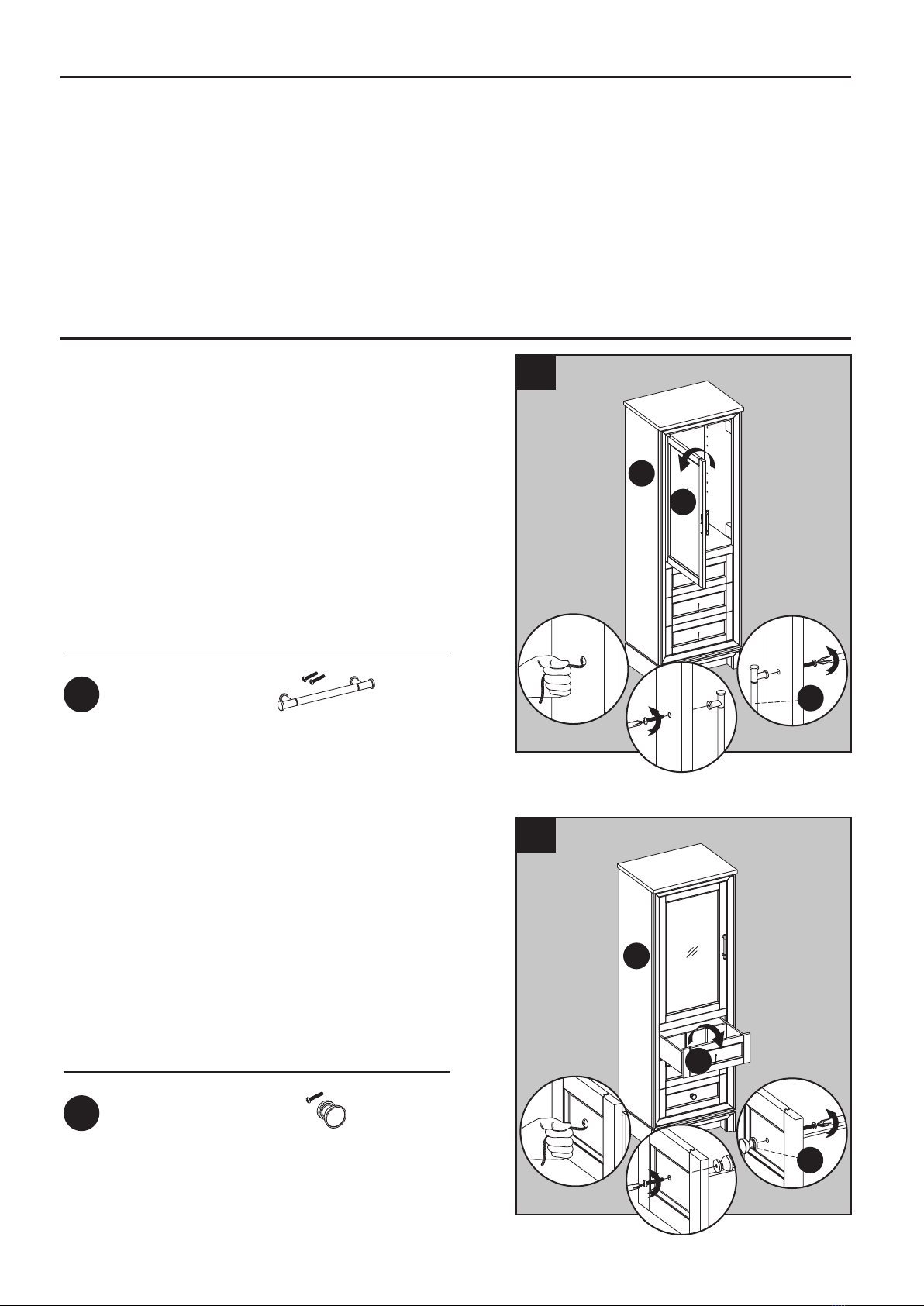

1. One of the door handles (BB) is attached to
the inside of the door (D) and the other set is
located with the hardware pack. Use the
attached string to open the door initially.
Unscrew the door handle (BB) and attach your
preferred handle to the outside of the door (D),
as illustrated in the diagram.
Note: This floor cabinet comes with two
different door and drawer handle options.

7
INSTALLATION INSTRUCTIONS

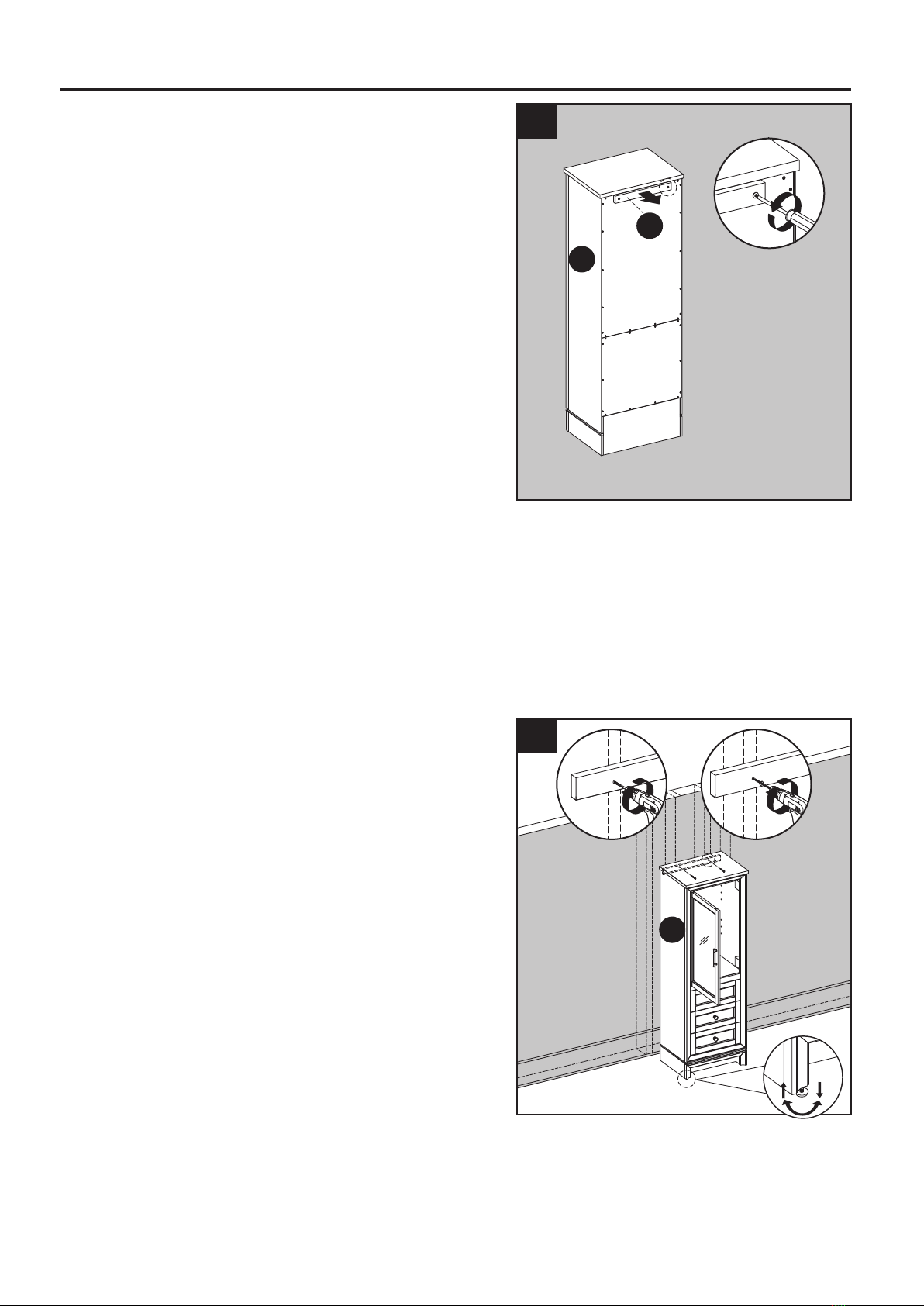

3. If the location you will be installing the floor
cabinet has baseboard molding, proceed to
Step 4.
If the location you will be installing the floor
cabinet does not have baseboard molding,
unscrew and remove the wall mounting spacer
bar (B) from the back of the cabinet before
proceeding to Step 4.
4. Clean area where the cabinet (A) will be
permanently located prior to beginning
installation, ensuring the cabinet (A) will not
interfere with any plumbing or electrical lines
once mounted.
Locate wall studs and mark locations. With the
help of another adult, place completed cabinet
assembly in its final location. Adjust the height
of the cabinet (A) by twisting the adjustable
leveler foot pins on the bottom of each leg.
Twist clockwise to decrease height or twist
counter-clockwise to increase cabinet height.
Using hardware appropriate for your wall type
such as cabinet screw or toggle bolt (not
included), secure cabinet (A) to preferably
two wall studs anywhere through the cabinet
mounting bar. Be careful not to disturb
any electrical or water lines that may be
concealed in the wall.
3
1
A
B
2
Baseboard
4
12
A

8
INSTALLATION INSTRUCTIONS
DD
5. Screw shelf pins (DD) hand tight into the threaded
holes of cabinet (A). Place shelf (C) on top of shelf
pins (DD).
Repeat for the remaining shelf (C).
Hardware Used
Shelf Pin x 8
5
1
DD
2
C
C
A
6.
If you need to adjust the doors, do so in the following manner.
To adjust door up or down, loosen screws (a) on both hinges, adjust door, and retighten screws.
To adjust door left or right, turn screws (b) on both hinges, in and out.
To adjust door in or out, loosen screws (c) on both hinges, adjust door, and retighten screws.
6
a
1
1
1
2
2
b
1
1
c3
33
2
2
2
2

9
7. Insert two drawer dividers (G) into the notch of
drawers (F) inside.
INSTALLATION INSTRUCTIONS
8. As shown in the diagram, fully extend the
drawer and locate the plastic levers on the
metal glide tracks. Push the left-side and
right-side levers at the same time to
disengage the drawer from the drawer glides.
Gently lift the drawer up to remove it from
cabinet (A).
7
G
F
G
8
2
1
A

10
INSTALLATION INSTRUCTIONS
10. As shown in Illustration 10, the cabinet door (D)
is reversible, and can be hinged on the left side
or the right side. To switch, simply unscrew the
4 screws on the base of the hinges, flip the
door to the other side of the cabinet, and
reattach the hinges to the pre-drilled holes on
the side panel.
9. To reinstall drawer(s) into cabinet (A), fully
extend metal glide tracks. Gently lower and
slide drawer box into rear glide catch. Next,
lower drawer box down to completely rest
on extended glides. Then, push plastic levers
to lock the drawer box in place.
Note: Drawer box alignment can be adjusted,
if necessary. As shown in the diagram, spin
the adjustment wheel to the left to raise the
drawer box, or to the right to lower the drawer
box. The left and right-side glide heights can
also be adjusted independently in order to find
the drawers best alignment position.
CAUTION
DO NOT force drawer or damage to glide(s) may
occur. If drawer does not slide in with ease,
remove and try again from the start.
9
1
2
3
A
10
OR
1
D
2
D

11
CARE AND MAINTENANCE
WARRANTY
• Dust the floor cabinet regularly with a soft, non-lint producing cloth or household dusting product.
• You can clean the floor cabinet with a gentle, non-abrasive household cleaner.
• Make sure to dry the wood immediately with a soft cloth or towel.
• Tips for using touch-up pen (AA): For scratches, stroke in direction of scratch. Rub off excess
colorant promptly with a soft cloth.
The manufacturer warrants this item against defects in materials and workmanship for a period of
one (1) year from the date of original retail purchase. This warranty applies only to the original
purchaser. This warranty does not apply to any damage on the product by accident, misuse, or
modified, improper installation or by affixing accessories not produced by the manufacturer. The
manufacturer is not accountable whatsoever for product installation during the warranty period.
There is no further expressed warranty. The manufacturer shall not be legally responsible for
incidental, consequential or special damages arising at or in connection with product use or
performance except as may otherwise be accorded by law. The manufacturer disclaims any and
all implied warranties.
CHANGE DOOR PANELS (OPTIONAL)
2. Remove the glass panel from the door frame, then insert the included wood door panel (E).
Note: The pre-installed glass door panels can be switched out with the included wood door
panel (E).
1. Remove the silicone trim along the outer edges of the glass panel on the inside of the door.
Start at a corner and pull to remove the four pieces. Be careful not to damage the silicone trim
as it will be used to secure the new panel.
3. Using your finger press the silicone trim back into place. Move around the outer edge of the
panels until all four sides are secure.
123
1
2
3
4
E
1
2
3
4

12

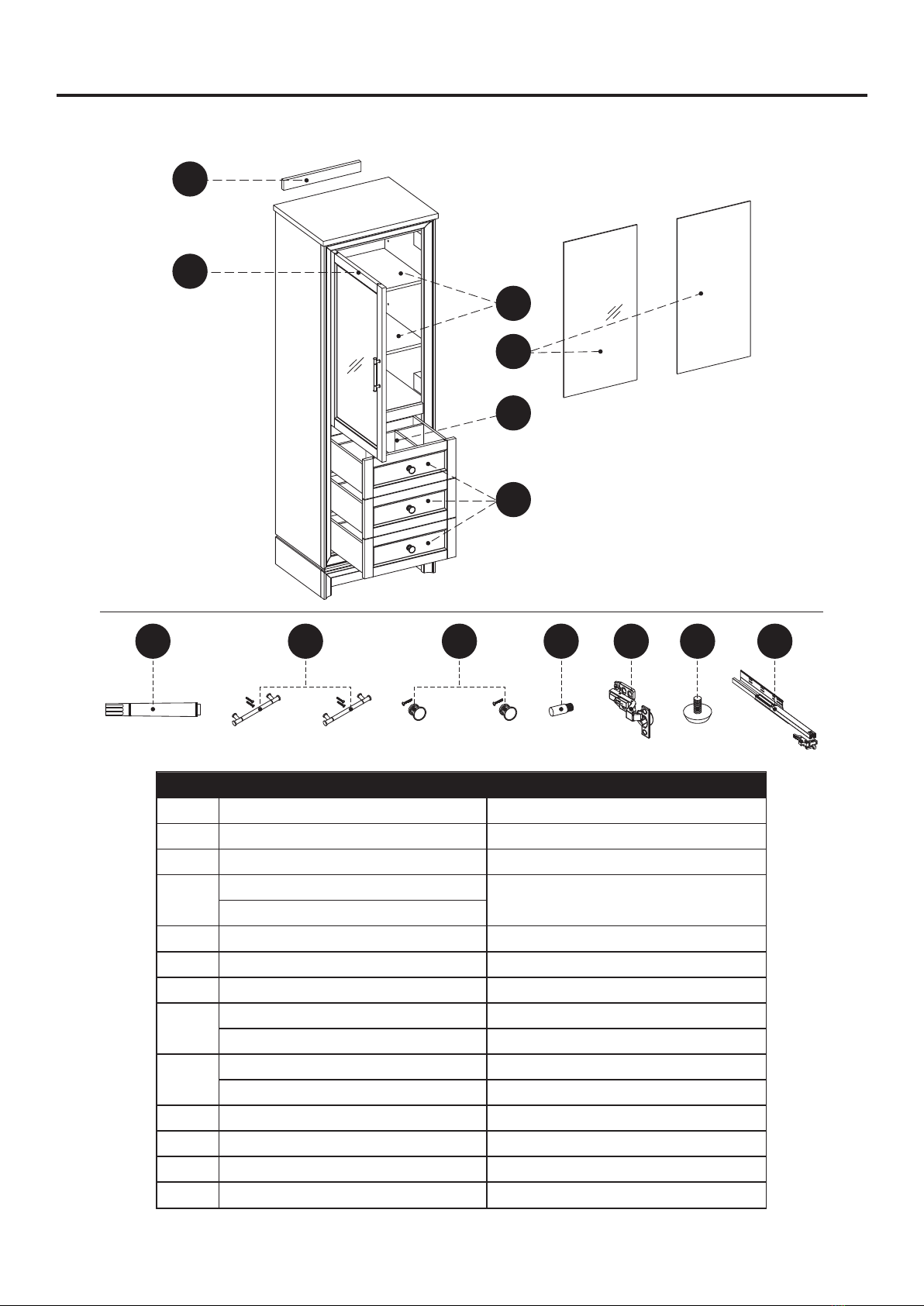

REPLACEMENT PARTS LIST FOR 1580FC-24-201
For replacement parts, call our customer service department at 1-855-571-1044, 9 a.m. - 5 p.m.,
EST, Monday - Friday.
PART DESCRIPTION PART #
B Wall Mounting Spacer Bar FC-WALL MOUNTING BAR-201
1580FC-24-201-SHELF
C Shelf
1580FC-24-201-DIVIDER
1580FC-24-201-DOOR
D Door
1580FC-24-201-DOOR PANEL
EWood Door Panel
Glass Door Panel
G Drawer Divider
1580FC-24-201-DRAWER FRONTH Drawer Front
AA Touch-up Pen OF-0010
BB Door Handle-brushed nickel 1580-BN DOOR HARDWARE
Door Handle-champagne brass 1580-CB DOOR HARDWARE
CC Drawer Handle-brushed nickel 1580-BN DRAWER HARDWARE
Drawer Handle-champagne brass 1580-CB DRAWER HARDWARE
DD Shelf Pin PU17-SP-002
EE Hinge SH-ABC-HINGES
FF Leveler T-1007
GG 14-IN Glide Track Set SH-ABC-14IN-3A
AA BB DD EE FF GGCC
B
E
H
D
C
G

13
REPLACEMENT PARTS LIST FOR 1580FC-24-242
For replacement parts, call our customer service department at 1-855-571-1044, 9 a.m. - 5 p.m.,
EST, Monday - Friday.
PART DESCRIPTION PART #
B Wall Mounting Spacer Bar FC-WALL MOUNTING BAR-242
1580FC-24-242-SHELF
C Shelf
1580FC-24-242-DIVIDER
1580FC-24-242-DOOR
D Door
1580FC-24-242-DOOR PANEL
EWood Door Panel
Glass Door Panel
G Drawer Divider
1580FC-24-242-DRAWER FRONTH Drawer Front
AA Touch-up Pen OF-0120R
BB Door Handle-brushed nickel 1580-BN DOOR HARDWARE
Door Handle-champagne brass 1580-CB DOOR HARDWARE
CC Drawer Handle-brushed nickel 1580-BN DRAWER HARDWARE
Drawer Handle-champagne brass 1580-CB DRAWER HARDWARE
DD Shelf Pin PU17-SP-002
EE Hinge SH-ABC-HINGES
FF Leveler T-1007
GG 14-IN Glide Track Set SH-ABC-14IN-3A
AA BB DD EE FF GGCC
B
E
H
D
C
G
