Edco Numatic CVC370 User manual

numatic.com
numatic.com
Original Instructions
Original Instructions
CAUTION,
CAUTION,
Read the Instructions before using the machine.
Read the Instructions before using the machine.
CVC370CVC370
WV370WV370
WVT370WVT370
WV380WV380
WV470WV470
KitKit
AS21AS21
A11/85A11/85
WV370CVC370
WV470
AustralianAustralian

Wet - Assembling the machine for use
Kit AS21
Kit A11/85
A
B
C
D
EF
G
A
B
C
D
E
F
Wet Use
A
B
C
D
F
A

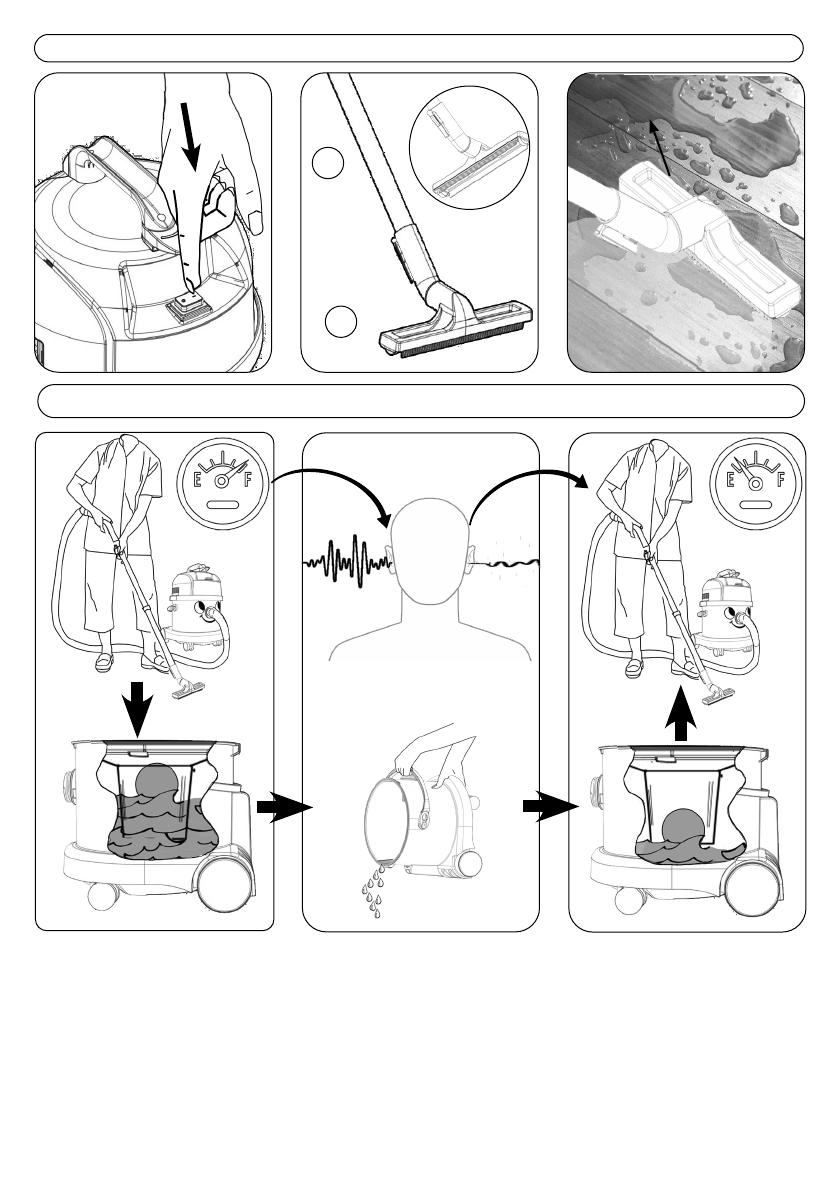

Wet - Using the machine
Emptying your machine,
D
F

Cleaning you machine,
470 Handle Locking

Assembling the machine for dry use
A
B
C
E
G
D
A
C
C
D
21
2
1
Dry Use

E
A
D

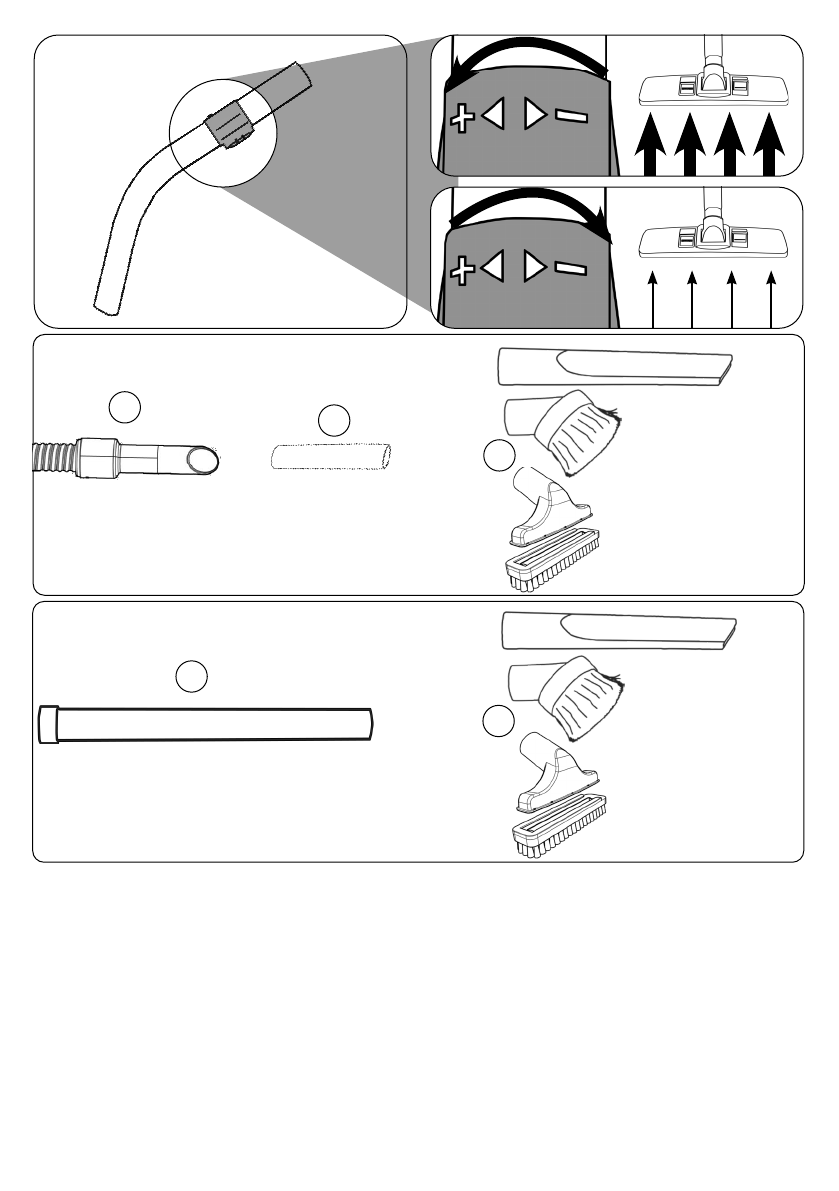

Dry - Using the machine

}
+
+
}
+
A
D
G
G
G

Accessory TidyFloor Tool Tidy

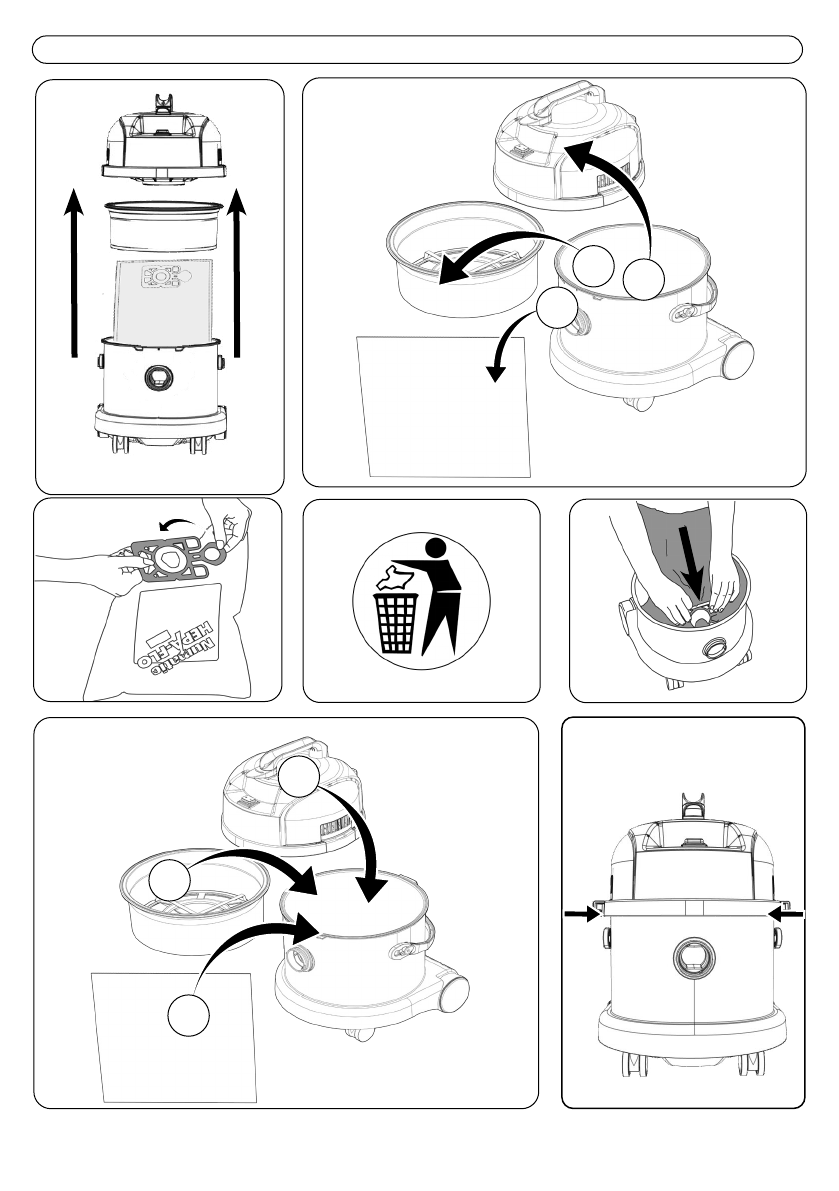

Dry - Cleaning the machine
Dry Use
1
2
3

Dry- Cleaning the machine
Dry Use
1
2
3
1
2
3
Dry Use

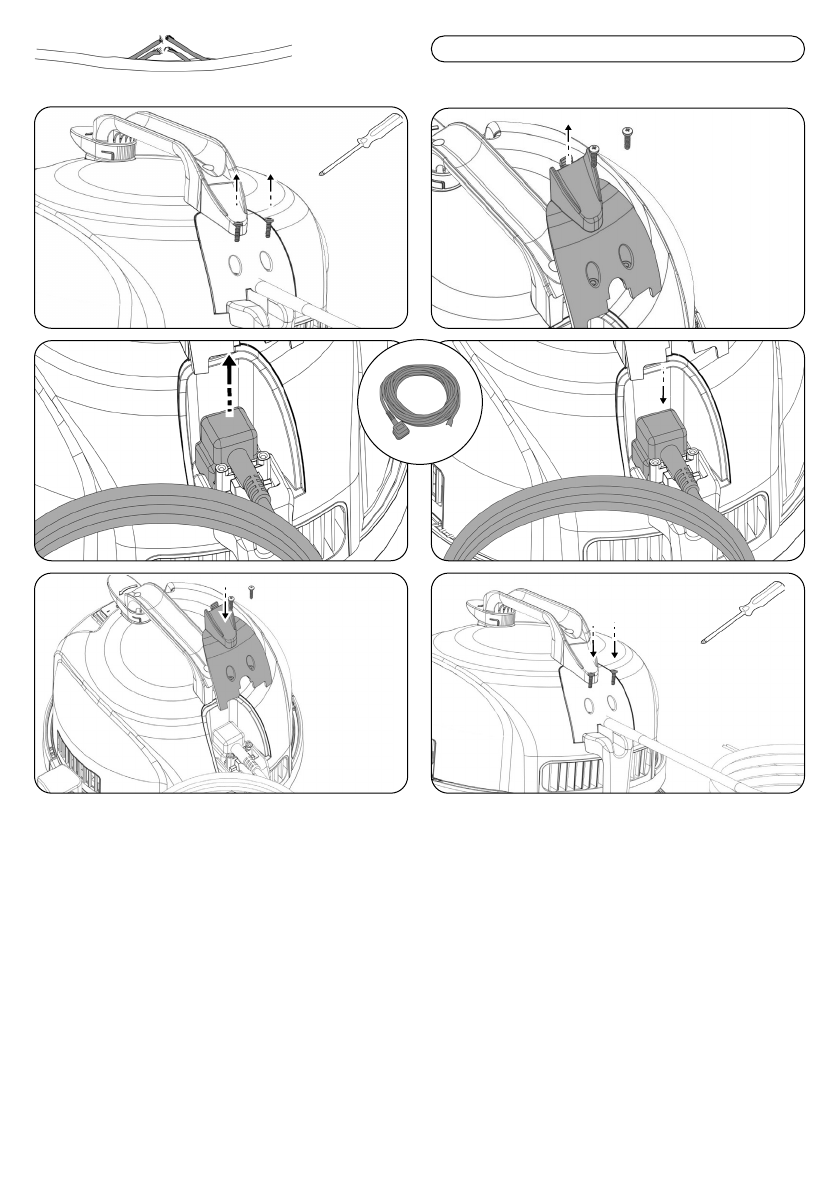

NuCable

(GB) About your machine
PPE (personal protective equipment). That may be required for certain operations.
Ear Protection Safety Footwear Head Protection Safety Gloves
Eye Protection Protective Clothing Dust / Allergens
Protection Hi Viz Jacket Caution Floor Sign
NOTE: A risk assessment should be conducted to determine which PPE should be worn.
Safety Critical Components
Mains leads:
Daily
Keep the machine clean, including hoses and tubes.
.
Empty dust bag if required.
C
Regularly examine the power cord.

Weekly - as daily and:-
Check for any worn or damaged parts and replace immediately.
MAINTENANCE

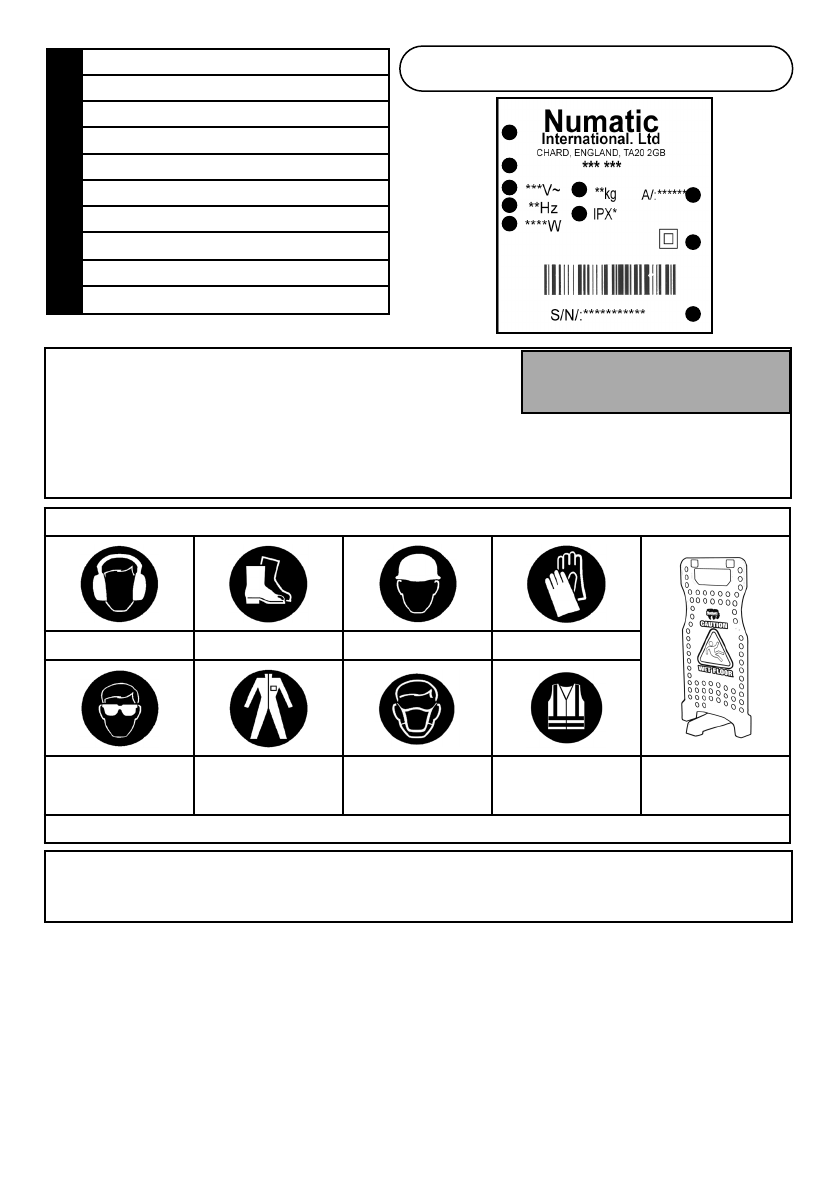

1Company Name & Address
2Model
3Voltage/Alternating Current
Frequency
5Rated Input Power
6Weight
7Ingress Protection
8Approval Mark
9Protection Class 2 Symbol
10 Machine yr/wk Serial Number
1
2
3
7
4
5
9
8
6
10
HO5-VV-F 10 m x 2 Core x 1.00 mm2

Information for WET & DRY use Vacuum Cleaners
Warning
Read the instruction manual before using the machine.
Operators shall be adequately instructed on the use of these machines.
As with all electrical equipment, care and attention must be exercised at all times during use,
in addition to ensuring that routine and preventative maintenance is carried out periodically to ensure safe operation.
Failure to carry out maintenance as necessary, including the replacement of parts to the correct standard could render
this equipment unsafe and the manufacturer can accept no responsibility in this respect.
The machine shall be disconnected from the mains power by removing the plug from the power supply socket during
cleaning or maintenance and when replacing parts or converting the machine to another function.
This machine is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of
experience or knowledge.
Children being supervised are NOT to play with the machine.
This appliance is intended to be assembled, cleaned and maintained by an adult.
This machine is not a toy.
This machine is not suitable for picking up hazardous or explosive dust. Contact your local distributor if you require a
machine capable of performing these tasks.
Caution
󰀨

operation, empty the container if full of liquid, reassemble the machine.
Immediately upon start up there will be a certain amount of liquid issuing from the machine exhaust which will be the
residue of liquid still within the power head. This will be quickly discharged after which the machine should function
normally.
Liquid ejected from the machine could be hazardous as a result of its temperature, pressure or chemical content.

This machine is for indoor use only.
This machine shall be stored indoors only. .
When moving from one place to another, consider the weight of the machine.
Notes

This product complies with the requirements of clause 20 of IEC/EN 60335-2-69 Stability and Mechanical Hazards.
󰀩
If the vacuum cleaner stops working, remove the plug from the power supply before investigating where the fault lies.
The vacuum cleaner should be inspected after use for damage.

Do
•

•
Keep your machine clean.
•

•

•
Keep hoses and tubes clear.
•
Replace any worn or damaged parts immediately.
•
Regularly examine the power cord, if damage is found, the power cord must be replaced by a special cord
available from Numatic or its service agents.
Don’t
•
Use steam cleaners or pressure washers to clean the machine or use the machine in the rain.
•
Immerse in water for cleaning.
•
Allow any inexperienced repairs. Call the experts.
•

•
Use to suck up hot ashes, or lighted cigarette ends.
•
Run the machine over the power cable during operation as a hazard may occur.
•
Pull on the cable to unplug the machine from the power supply.
•
Walk over-wet carpets, upholstery or fabrics.
•
Walk on clean carpets until fully dry.
•
Attempt machine maintenance or cleaning unless the power supply plug has been removed from the supply outlet.
•


machine and may invalidate the machine warranty.

Motor AirFlo Suction Cleaning Range Class
1000W 49 L/sec 2400mm 26.0m II
Capacity
Dry
Capacity
Wet 


Weight
370: 15 L
380: 15 L
470: 27 L
9 L
9 L
20 L
360mm x 370mm x 510mm
360mm x 370mm x 510mm
360mm x 370mm x 710mm

0.5 dB
9 kg
9 kg
9.6 kg
604016  236029 
604018  604165 TriTex Filter
Recommended Spares
DATA
Fault Finding
Dry Mode maintenance/fault fi nding
󰀨
󰀨


Wet mode
󰀨
󰀨
󰀨

wands and hose are not blocked.
Flush the system with clean water after use.
After use always inspect the machine for damage.

Schematic
NOTES
...................................................................................................................
...................................................................................................................
...................................................................................................................
...................................................................................................................
...................................................................................................................
...................................................................................................................
...................................................................................................................
...................................................................................................................
...................................................................................................................
...................................................................................................................
...................................................................................................................

Warranty

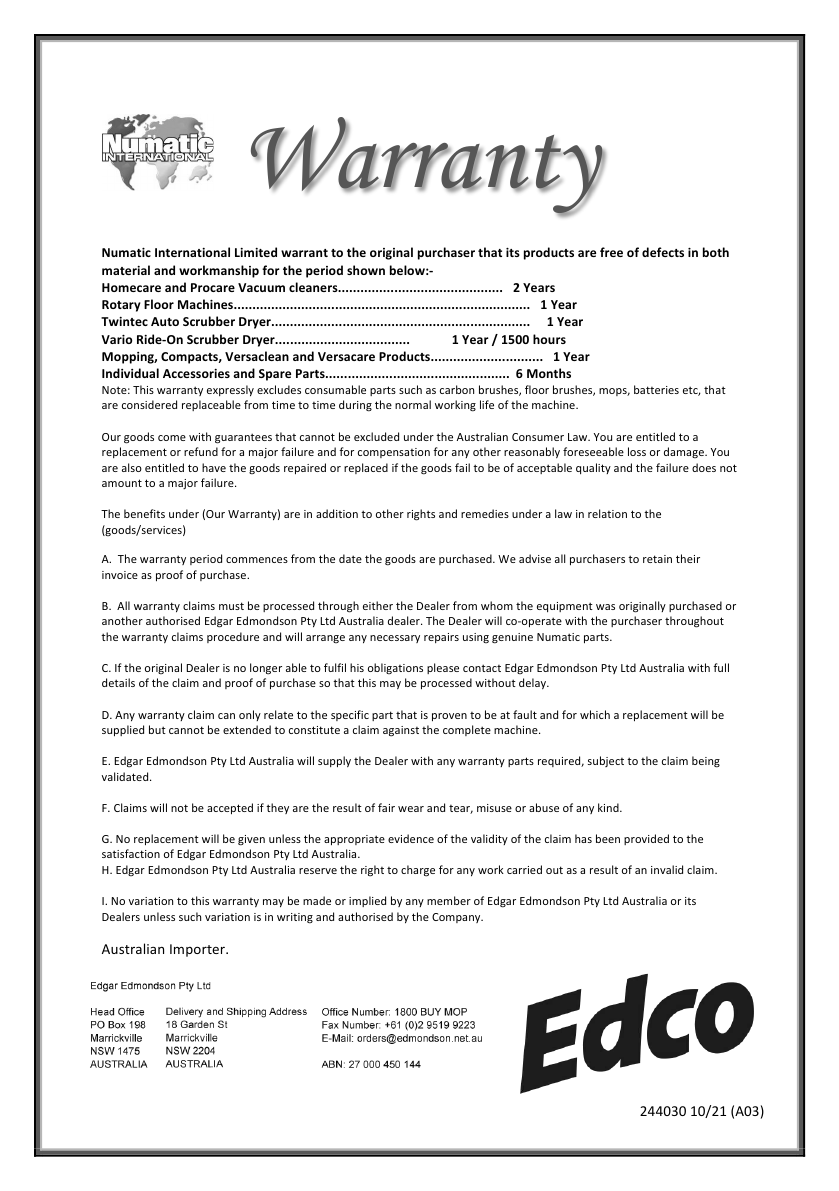

NumaticInternationalLimitedwarranttotheoriginalpurchaserthatitsproductsarefreeofdefectsinboth
materialandworkmanshipfortheperiodshownbelow:
HomecareandProcareVacuumcleaners............................................2Years
RotaryFloorMachines...............................................................................1Year
TwintecAutoScrubberDryer.....................................................................1Year
VarioRideOnScrubberDryer....................................1Year/1500hours
Mopping,Compacts,VersacleanandVersacareProducts..............................1Year
IndividualAccessoriesandSpareParts.................................................6Months
Note:Thiswarrantyexpresslyexcludesconsumablepartssuchascarbonbrushes,floorbrushes,mops,batteriesetc,that
areconsideredreplaceablefromtimetotimeduringthenormalworkinglifeofthemachine.
OurgoodscomewithguaranteesthatcannotbeexcludedundertheAustralianConsumerLaw.Youareentitledtoa
replacementorrefundforamajorfailureandforcompensationforanyotherreasonablyforeseeablelossordamage.You
arealsoentitledtohavethegoodsrepairedorreplacedifthegoodsfailtobeofacceptablequalityandthefailuredoesnot
amounttoamajorfailure.
Thebenefitsunder(OurWarranty)areinadditiontootherrightsandremediesunderalawinrelationtothe
(goods/services)
A. Thewarrantyperiodcommencesfromthedatethegoodsarepurchased.Weadviseallpurchaserstoretaintheir
invoiceasproofofpurchase.
B. AllwarrantyclaimsmustbeprocessedthrougheithertheDealerfromwhomtheequipmentwasoriginallypurchasedor
anotherauthorisedEdgarEdmondsonPtyLtdAustraliadealer.TheDealerwillcooperatewiththepurchaserthroughout
thewarrantyclaimsprocedureandwillarrangeanynecessaryrepairsusinggenuineNumaticparts.
C. IftheoriginalDealerisnolongerabletofulfilhisobligationspleasecontactEdgarEdmondsonPtyLtdAustraliawithfull
detailsoftheclaimandproofofpurchasesothatthismaybeprocessedwithoutdelay.
D. Anywarrantyclaimcanonlyrelatetothespecificpartthatisproventobeatfaultandforwhichareplacementwillbe
suppliedbutcannotbeextendedtoconstituteaclaimagainstthecompletemachine.
E. EdgarEdmondsonPtyLtdAustraliawillsupplytheDealerwithanywarrantypartsrequired,subjecttotheclaimbeing
validated.
F. Claimswillnotbeacceptediftheyaretheresultoffairwearandtear,misuseorabuseofanykind.
G. Noreplacementwillbegivenunlesstheappropriateevidenceofthevalidityoftheclaimhasbeenprovidedtothe
satisfactionofEdgarEdmondsonPtyLtdAustralia.
H. EdgarEdmondsonPtyLtdAustraliareservetherighttochargeforanyworkcarriedoutasaresultofaninvalidclaim.
I. NovariationtothiswarrantymaybemadeorimpliedbyanymemberofEdgarEdmondsonPtyLtdAustraliaorits
DealersunlesssuchvariationisinwritingandauthorisedbytheCompany.
AustralianImporter.
24403010/21(A03)

Numatic International Limited.
Chard, Somerset TA20 2GB ENGLAND
Tel: [phone] www.numatic.co.uk

www.numatic.com © Numatic International Limited
Distributed by:-
UNITED KINGDOM: www.numatic.com GERMANY: www.numatic.de SWITZERLAND: www.numatic.ch
FRANCE: www.numatic.fr NETHERLANDS: www.numatic.nl SOUTH AFRICA: www.numatic.co.za
PORTUGAL: www.numatic.pt SPAIN: www.numatic.es DENMARK: www.numatic-online.dk

