HZC 390S-2 / HZC 390L-2

1000W (Kit AA16)

(Australia)

Kit AA16

2

1 3

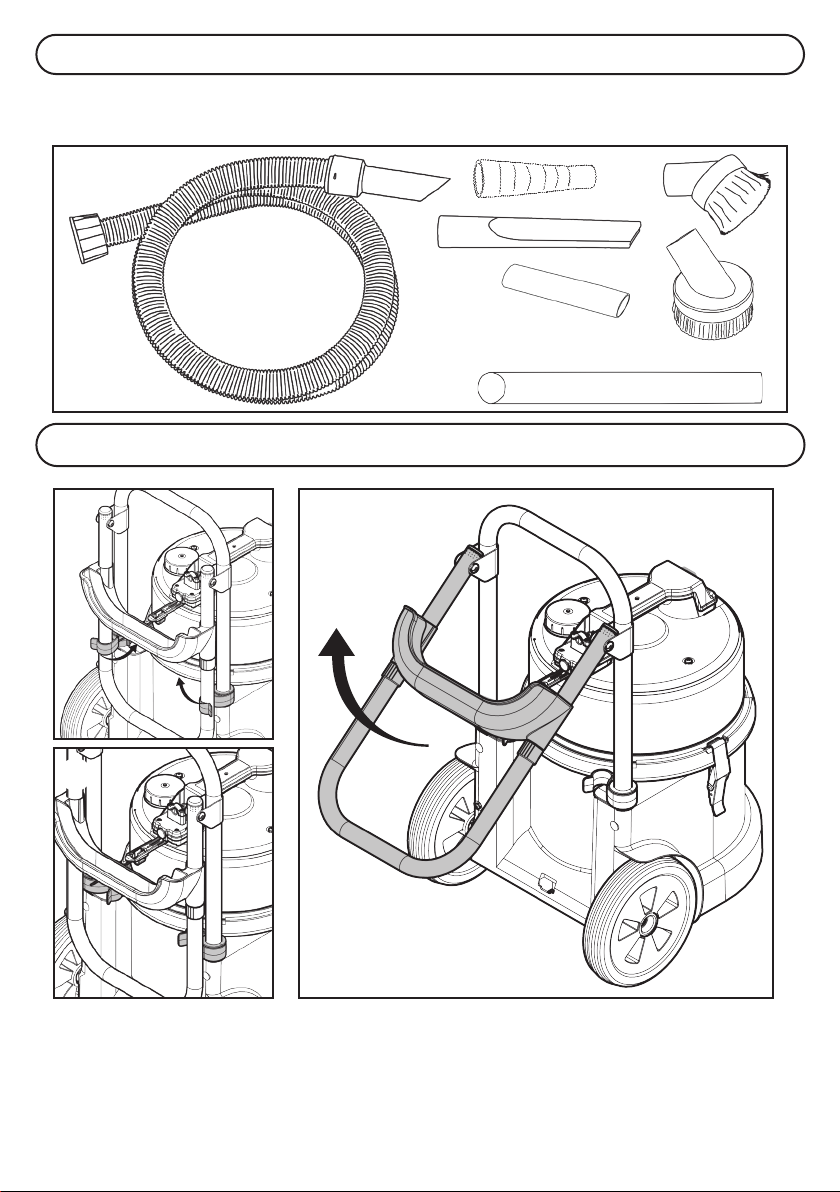

Assembly

54 6

Air Di󰀨user

Hose

Using your machine

I

-

0

Start

Netzschalter

Démarrage

Start

Ligar

Avvio

Encender

Otwarty

Moving your Machine

3

24

1

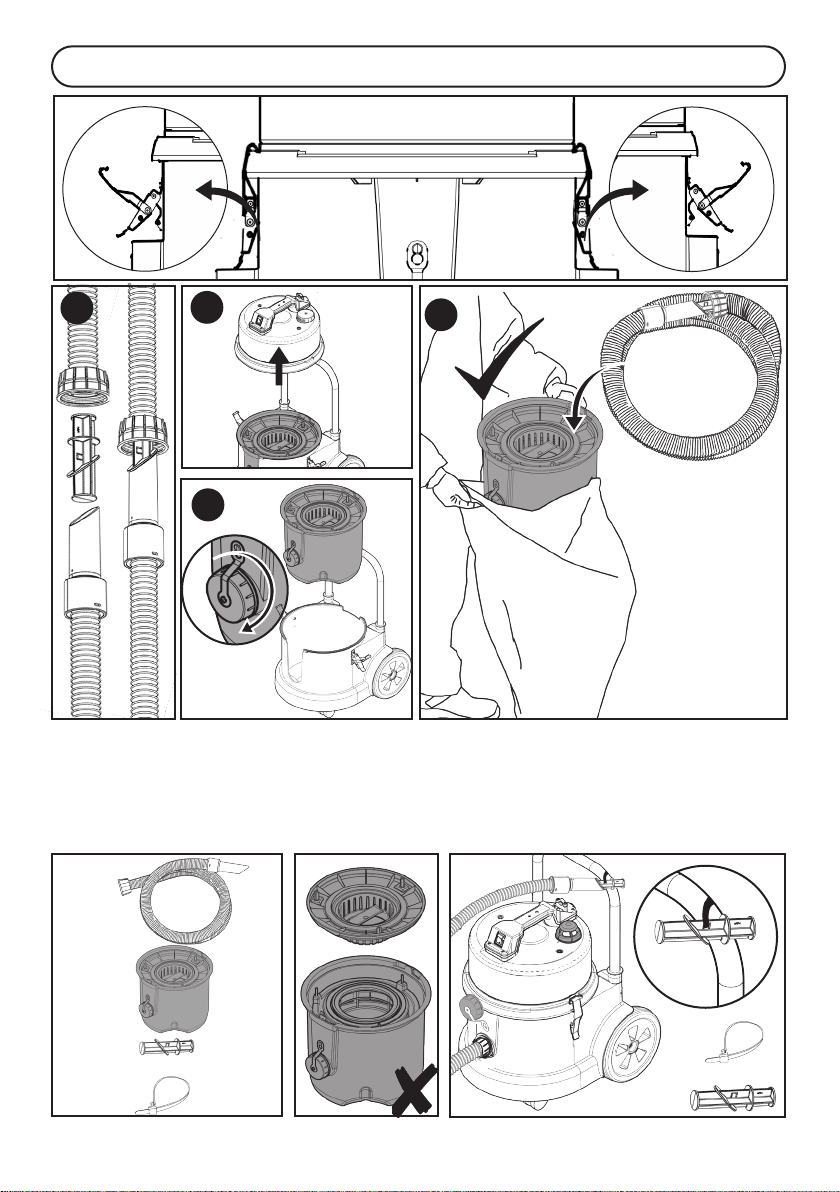

1. Seal contaminated hose using bung supplied.

2/3. Remove the sealed H Class Filter Unit from the drum.

4. Place the Filter Unit and Hose Assembly inside an impervious plastic bag and seal the bag.

Dispose of the plastic bag, depending on contamination, in an appropriate manner.

Note* Filter unit is sealed do not attempt to open and reuse.

Replacing the Cartridge Filter

Lo - Flo Indicator.

Slow Repeated Flash.

The vacuum cleaner is tted with a warning lamp that will illuminate and ash when the air speed in the suction

hose falls below <20m/s.

This indicates that the lter cartridge requires changing.

Low Flow Warning Light

Cause Solution

Suction hose blocked or kinked. Remove blockage or kink.

Filter clogged or blocked. Replace lter cartridge.

Notes

......................................................................................................................................................................................................

32

1

654

98

7

10 11

Changing / Replacing Cable

H05VV-F 10 m x Core x 1.0mm²

GTSA 10 m x 3 Core x 1.0mm²

Failure to rectify the problem or in the event of a breakdown contact your Numatic dealer or the

Numatic Technical helpline +44 (0)1460 269268

Safety Critical Components

Mains leads:

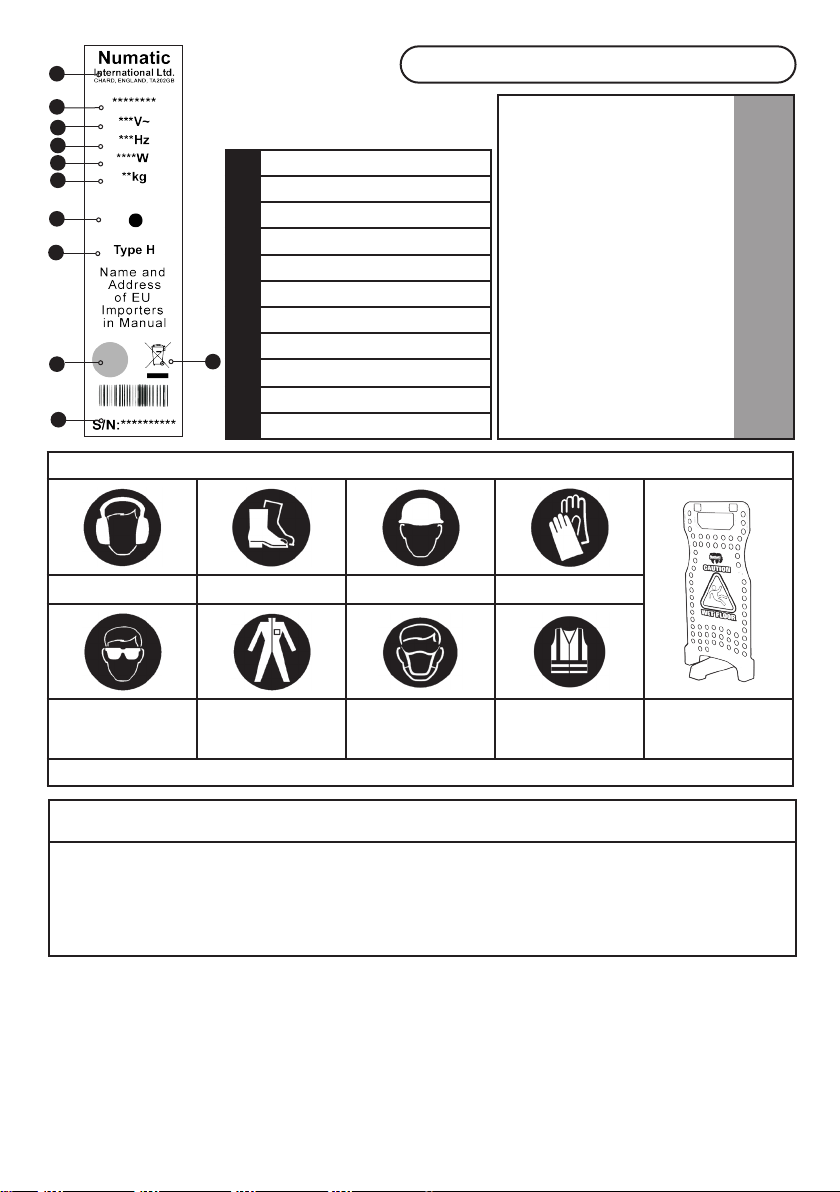

Rating Label

About your machine 24.3

PPE (personal protective equipment). That may be required for certain operations.

Ear Protection Safety Footwear Head Protection Safety Gloves

Eye Protection Protective Clothing Dust / Allergens

Protection Hi Viz Jacket Caution Floor Sign

NOTE: A risk assessment should be conducted to determine which PPE should be worn.

1Company Name & Address

2Model

3Voltage / Alternating Current

4Frequency

5Rated Input Power

6Weight

7Low Flow Indicator *(If applicable)

8Hazardous Rating

9WEEE Logo

10 Approval Mark

11 Machine yr/wk Serial Number

Maintenance

Daily

Keep the machine clean,

including hoses and tubes.

Ensure the bag and  lter are

 tted.

Regularly examine the power

cord.

Check dust bag frequently.

Check  lters are clean.

Weekly - as daily and:-

Check for any worn or damaged

parts and replace immediately.

1

2

3

4

5

6

7

9

11

8

10

Information for DRY use Vacuum cleaners 24.3

WARNING

Read the instruction manual before using the machine.

Operators shall be adequately instructed on the use of these machines.

As with all electrical equipment, care and attention must be exercised at all times during use, in

addition to ensuring that routine and preventative maintenance is carried out periodically to ensure safe

operation.

Failure to carry out maintenance as necessary, including the replacement of parts to the correct standard

could render this equipment unsafe and the manufacturer can accept no responsibility in this respect.

This machine is for DRY USE only and must not be stored outside or used in wet conditions.

The machine shall be disconnected from the mains by removing the plug from the supply socket during

cleaning or maintenance and when replacing parts or converting the machine to another function.

This machine is not to be used by children or persons with reduced physical, sensory or mental

capabilities, or lack of experience or knowledge.

Children should be supervised to ensure they do not play with the machine

This machine is not a toy.

Ensure that the  ltration system  tted to the machine is suitable for the material being collected.

CAUTION

This machine is for use indoors only.

This machine should be stored indoors only.

NOTES

This product complies with the requirements of clause 20 of IEC/EN 60335-2-69 Stability and Mechanical

Hazards.

This machine is intended for commercial use, for example in hotels, schools, hospitals,

factories, shops, rental businesses and oﬃ ces for other than normal housekeeping purposes.

DO

• Keep your machine clean.

• Keep hoses and tubes clear.

• Replace any worn or damaged parts immediately.

• Regularly examine the power cord. If damage is found such as cracking or ageing the power cord

must be replaced by a quali ed person using the correct Numatic original part.

• Change 908082 H Class Filter Unit with the correct Numatic approved replacement part.

• Only use the brushes provided with the machine. The use of other brushes may impair safety.

• Only replace the power cord with the correct Numatic approved replacement part.

DO NOT

• Unreel the cable with one pull or pull on the cable to unplug the machine from the power supply.

• Use to suck up hot ashes or lighted cigarette ends.

• Use steam cleaners or pressure washers to clean the machine or use in the rain.

• Immerse in water for cleaning.

• Attempt machine maintenance or cleaning unless the power supply plug has been removed from the

supply outlet.

• Under any circumstances place foreign objects including (but not limited to) air fresheners, air

freshener capsules or scented beads of any type into the top  lter of the machine. Doing so can be

dangerous and risk damage to the machine and may invalidate the machine warranty.

Installation / Removal / Disposal of the cartridge ﬁ lter.

The cartridge  lter holding the dust and debris must be removed and renewed by authorised personnel

only, wearing appropriate personnel protective equipment, in a speci ed de-contamination area.

Never operate without the full  ltration system in place.

Process of disposal:

Disconnect the hose,  t the Dust Cap on the Hose Flange, un-clip the two Toggle Clamps.

Remove the cartridge  lter from the Drum. Place the cartridge  lter inside an impervious plastic bag and

seal the bag.

Dispose of the plastic bag, depending on contamination, in an appropriate manner.

24.3

IMPORTANT USER INFORMATION

Before use operators shall be provided with information, instruction and training for the use of the

machine and the substances for which it is to be used, including the safe method of disposing of material

collected.

The cartridge  lter has to be replaced when necessary.

This vacuum cleaner has a lamp that illuminates when air velocity drops below a preset level, which

indicates that the cartridge  lter must be changed.

This machine is not suitable for connection with dust generating machines.

The cartridge  lter must be undamaged and in correct position before this machine can be used safely.

WARNING:

1. This machine must only be operated by suitably trained and authorised personnel.

2. This machine or its accessories must not be modi ed.

3. The machine must not be stored or used in a wet environment.

4. Do not allow the cartridge  lter to become so full as to reduce the eﬀ ective pick-up of the

vacuum. (Lamp will illuminate at preset air velocity levels < 20 m/s).

5. This machine must only be repaired by suitably trained and authorised personnel.

6. Only use genuine Numatic International Ltd spare parts, for repairs.

7. This machine must not be installed as a  xed extraction system or run unattended.

8. Do not re-use the essential  lter element after removal out of the machine.

Operators should observe any safety regulations appropriate to materials being handled.

This machine is for dry use only.

PREPARATION FOR USE

Unpack and identify each item of equipment from the delivery note.

Check that the details given match the information on the “rating plate” mounted on the head assembly.

MAINTENANCE

All machine parts should be regarded as contaminated when removed from the hazardous area and

appropriate action taken to prevent dust dispersal.

Disconnect from the power supply during cleaning, maintenance or when replacing parts.

Ensure the plug is removed from the socket outlet.

Maintenance must be carried out in a suitable non hazardous area with facilities for cleaning the area

after servicing, and with suitable ventilation.

Maintenance and cleaning work must always be carried out by competent authorised personnel equipped

with suitable personal protection.

The cartridge  lter must be taken out and checked for degree of contamination, and damage to seals.

If the cartridge  lter is found to be damaged or badly contaminated, you must replace.

Items that can not be satisfactorily cleaned (e.g.  lter) need to be disposed of in an impervious

plastic bag and disposed of in accordance with current regulations.

Replace the items that cannot be satisfactorily cleaned using approved manufacturer parts.

Regularly examine the supply cord for damage, such as cracking or ageing. If damage is found,

replace the cord before further use.

All parts of this vacuum are safety critical only replace with the genuine Numatic spare parts.

For user servicing, the machine must be dismantled, cleaned and serviced, as far as is

reasonably practicable, without causing risk to maintenance staﬀ and others.

Suitable precautions include decontamination before dismantling, provision for local  ltered exhaust

ventilation where the machine is dismantled, cleaning of the maintenance area and suitable personal

protection.

In class H machines the outside of the machine should be decontaminated by vacuum cleaning methods

and wiped clean or treated with a sealant before being taken out of the hazardous area and appropriate

action taken to prevent dust dispersal. (HSE Risk Assessment needed).

A quali ed person must perform at least once a year - or more frequently if national requirements dictate

- the  ltering eﬃ ciency of the  lter cartridge must be checked, or the  lter cartridge must be replaced, a

 lter inspection to look for signs of damage, checking the tightness of the machine and correct operation

of the control mechanism.

Also the  ltration eﬃ ciency should be tested at least annually, or more frequently as speci ed in

national requirements.

The test methods that can be used to verify the machine’s  lter eﬃ ciency are speci ed in EN 60335-2-69

Annex AA (AA22.201.2). If the test fails it should be repeated with a new cartridge  lter.

24.3

909007 H Class Filter Unit (Sealed)

601101 Hose

909221 Sealing Bung

909244 Cable Tie

Replacement parts

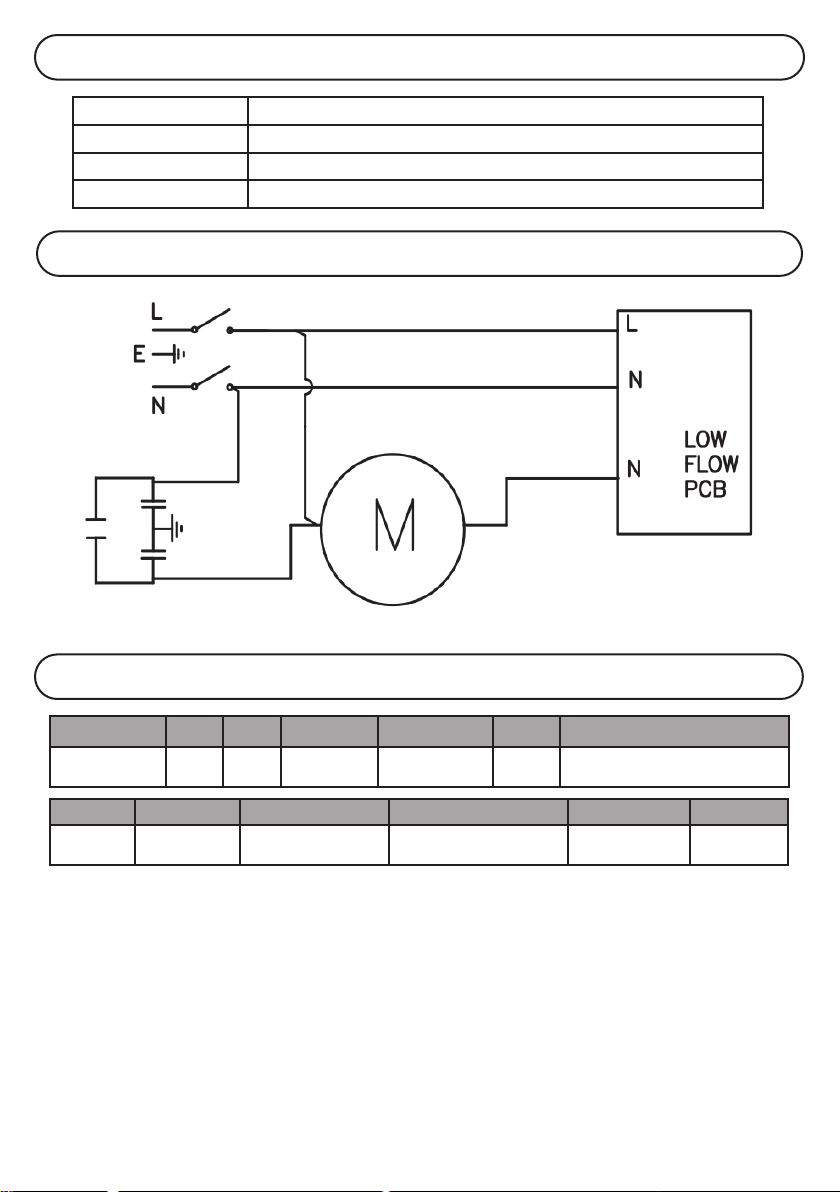

Schematic Diagram

Data

1 2 3 4 5 6

Drum Size Cleaning

Range

Weight

(Ready to work) Sound Pressure Protection Class Dimensions

1 2 3 4 5 6

HZC 390S-2

HZC 390L-2 13 L 26.8 m 12.2 kg

13.0 kg LpA ≤ 70 dB (A) Class I 450 mm x 400 mm x 600 mm

450 mm x 400 mm x 1010 mm

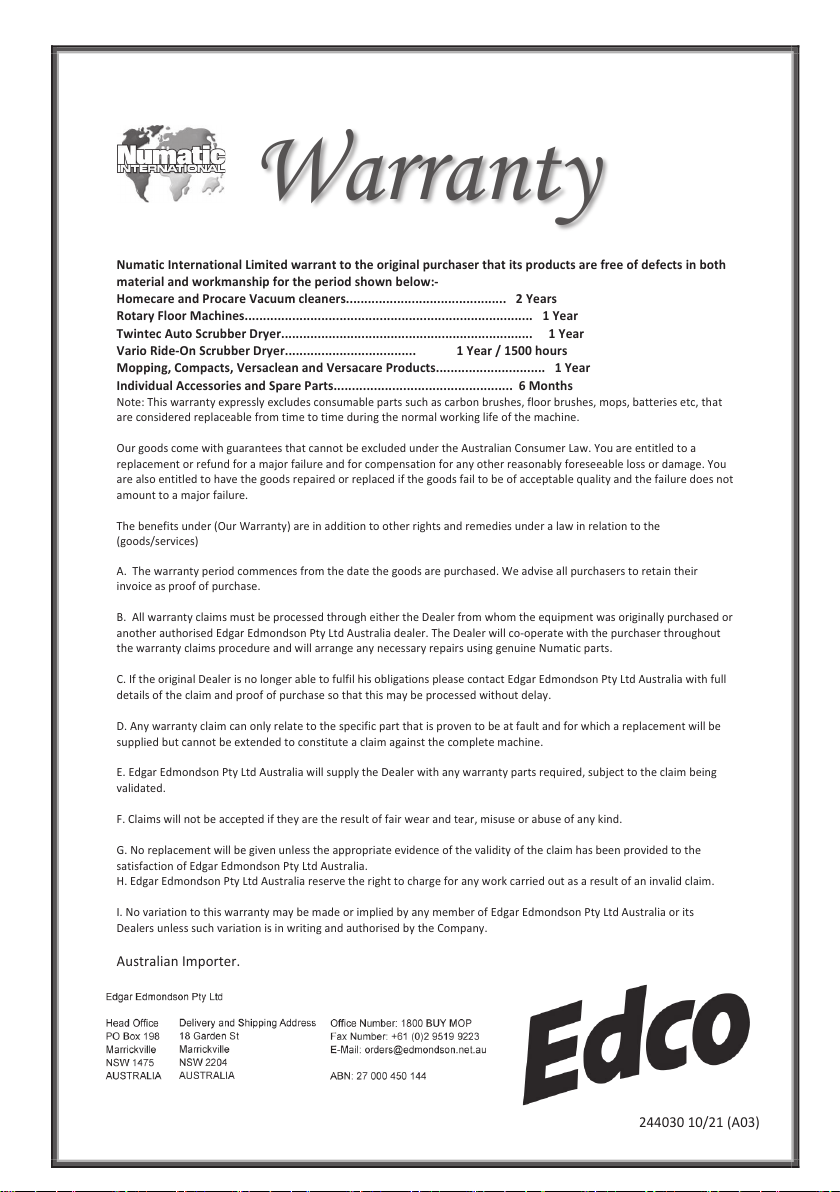

Warranty

NumaticInternationalLimitedwarranttotheoriginalpurchaserthatitsproductsarefreeofdefectsinboth

materialandworkmanshipfortheperiodshownbelow:

HomecareandProcareVacuumcleaners............................................2Years

RotaryFloorMachines...............................................................................1Year

TwintecAutoScrubberDryer.....................................................................1Year

VarioRideOnScrubberDryer....................................1Year/1500hours

Mopping,Compacts,VersacleanandVersacareProducts..............................1Year

IndividualAccessoriesandSpareParts.................................................6Months

Note:Thiswarrantyexpresslyexcludesconsumablepartssuchascarbonbrushes,floorbrushes,mops,batteriesetc,that

areconsideredreplaceablefromtimetotimeduringthenormalworkinglifeofthemachine.

OurgoodscomewithguaranteesthatcannotbeexcludedundertheAustralianConsumerLaw.Youareentitledtoa

replacementorrefundforamajorfailureandforcompensationforanyotherreasonablyforeseeablelossordamage.You

arealsoentitledtohavethegoodsrepairedorreplacedifthegoodsfailtobeofacceptablequalityandthefailuredoesnot

amounttoamajorfailure.

Thebenefitsunder(OurWarranty)areinadditiontootherrightsandremediesunderalawinrelationtothe

(goods/services)

A. Thewarrantyperiodcommencesfromthedatethegoodsarepurchased.Weadviseallpurchaserstoretaintheir

invoiceasproofofpurchase.

B. AllwarrantyclaimsmustbeprocessedthrougheithertheDealerfromwhomtheequipmentwasoriginallypurchasedor

anotherauthorisedEdgarEdmondsonPtyLtdAustraliadealer.TheDealerwillcooperatewiththepurchaserthroughout

thewarrantyclaimsprocedureandwillarrangeanynecessaryrepairsusinggenuineNumaticparts.

C. IftheoriginalDealerisnolongerabletofulfilhisobligationspleasecontactEdgarEdmondsonPtyLtdAustraliawithfull

detailsoftheclaimandproofofpurchasesothatthismaybeprocessedwithoutdelay.

D. Anywarrantyclaimcanonlyrelatetothespecificpartthatisproventobeatfaultandforwhichareplacementwillbe

suppliedbutcannotbeextendedtoconstituteaclaimagainstthecompletemachine.

E. EdgarEdmondsonPtyLtdAustraliawillsupplytheDealerwithanywarrantypartsrequired,subjecttotheclaimbeing

validated.

F. Claimswillnotbeacceptediftheyaretheresultoffairwearandtear,misuseorabuseofanykind.

G. Noreplacementwillbegivenunlesstheappropriateevidenceofthevalidityoftheclaimhasbeenprovidedtothe

satisfactionofEdgarEdmondsonPtyLtdAustralia.

H. EdgarEdmondsonPtyLtdAustraliareservetherighttochargeforanyworkcarriedoutasaresultofaninvalidclaim.

I. NovariationtothiswarrantymaybemadeorimpliedbyanymemberofEdgarEdmondsonPtyLtdAustraliaorits

DealersunlesssuchvariationisinwritingandauthorisedbytheCompany.

AustralianImporter.

24403010/21(A03)

Notes

......................................................................................................................................................................................................

.....................................................................................................................................................................................................

......................................................................................................................................................................................................

Notes

......................................................................................................................................................................................................

.....................................................................................................................................................................................................

......................................................................................................................................................................................................

909985 10/21 (A04)

Numatic International Limited.

Chard, Somerset TA20 2GB ENGLAND

Tel: 01460 68600 www.numatic.co.uk

Specication subject to change without prior notice

Distributed by:-

Australian Importer

Edco Numatic HZC 390S-2 User manual

Popular Vacuum Cleaner manuals by other brands
