Eddylight DS-1404A User manual

GOBO LED Light
DS-1404A
USER MANUAL!

2
1. Introduction
Thank you for purchasing our GOBO LED light. Please read these
instructions carefully before operating to avoid any possible damage and
accidents caused by misuse.
The GOBO LED light has a hydrodynamic aluminum shell. One 10W white
LED is used to create a bright light output. It draws low power and is low
weight.
Packing List
-LED GOBO Light
-User manual
-Power cord
2. Safety Information
-Please consult skilled service technicians for any repairs required
-Always disconnect from the power source before setting up, moving and
servicing
-Avoid direct eye contact to the light when in operation
-Make sure the power supply voltage is compatible with this light
-Before installation, please check the light’s fasteners and mechanical
structure is in good condition and not damaged
-The light is designed for indoor use, below 40 degrees celsius
-The fixture may be mounted in any position provided there is adequate
room for ventilation. Make sure there are no flammable and explosive
items within 0.5 meters.
-Please ensure the ground is always connected

3
3. Dimensions and Specifications
Voltage: AC100V/264 VAC
Frequency: 47-63 Hz
Power Consumption: 25 W
Lamp: 10W white LED
Beam Angle: 13 degrees
Net Weight: 2 Kg
IP Rating: IP20
Dimensions:

www.EddyLight.com 1-800-914-3538

4
4. GOBO Installation
Unscrew the 2 knobs on the
top of the projector and
remove the piece from inside
Place the GOBO in the center
hole. Squeeze the ring and
place it on top of the GOBO
to ensure the GOBO stays in
place.
After the GOBO is placed in the
correct orientation, place the GOBO
holder back into the projector and
screw it on.

5
5. Operation
The easiest way to operate your projector is through the remote control.
You can also use the buttons on the projector to go through the options.
All of the options are set using a scale of 0-255. To set it to the number
you desire, move UP or DOWN to that number and press ENTER. The
light will turn off, then press ENTER again.
R- Red light intensity (0 off, 1 dimmest, 255 brightest)
G- Green light intensity (0 off, 1 dimmest, 255 brightest)
B- Blue light intensity (0 off, 1 dimmest, 255 brightest)
W- White light intensity (0 off, 1 dimmest, 255 brightest)
SHUT - Strobe effect.
0 = no strobe effect.
1-255 different strobe pattern and speed
GOBO - Rotation feature.
000 = off
1-100 = different positions
101-170 = different speeds of counterclockwise rotation
185 - 250 = different speeds of clockwise rotation
NOTE: R, G, B options are only for color projector. You can mix different values of red,
green and blue to create any color.
!
www.EddyLight.com 1-800-914-3538
x
x
x
x
x
x
x
x
0 0
0 0
MENU UP DOWN ENTER
x
MADE IN CHINA
IR
RoHS

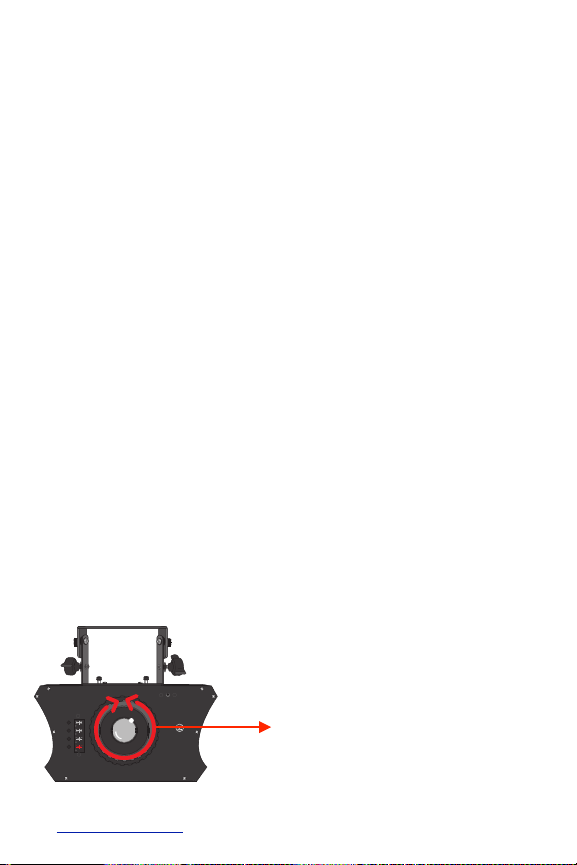

To focus the projector, rotate the
lens. Every time you adjust the
distance of the projector to the
projection surface, you will need
to adjust the focus
Focus

6
6. DMX Control Function
3CH
5CH
VALUE
FUNCTION
CH1
CH1
0-255
Intensity
CH2
0-5
No strobe
6-20
Random burst strobe(slow to fast)
21-60
Normal strobe(slow to fast)
61-100
Electronic Sinewave(slow to fast)
101-140
Random Strobe(slow to fast)
141-180
Opening pulse(slow to fast)
181-220
Closing pulse(slow to fast)
221-255
Electronic Squarewave(slow to fast)
CH3
CH3
0-100
0-360°
101-170
CW(slow to fast)
171-180
Stop
181-250
CCW(slow to fast)
251-255
Stop
-
CH4
0-70
No effect
71-75
AUTO 1(W + GOBO CW)
76-80
AUTO 2(W↑,W↓+ GOBO CW)
81-85
AUTO 3(W + GOBO CCW)
86-90
CHASE 1
91-95
CHASE 2
96-100
CHASE 3
101-255
Reserved
-
CH5
0-10
Use the dimmer mode which menu has set up
11-20
Dimmer off
21-30
Dimmer 1
31-40
Dimmer 2
41-50
Dimmer 3
51-60
Dimmer 4
61-254
Use the dimmer mode which menu has set up

7
7. Display Operation Instruction
Instructions：
Master mode sends a DMX signal to all other LED light units connected
via DMX."
Slave mode receives the incoming DMX signal from the Master, using the
values set by the Master unit.This allows for a large group of lights to be
connected and controlled by only one light.
For Master mode, press ENTER on the unit to display “*” on the LED
display.
When there is no"“*” being displayed on the LED display, the light is set to
Slave"by default.

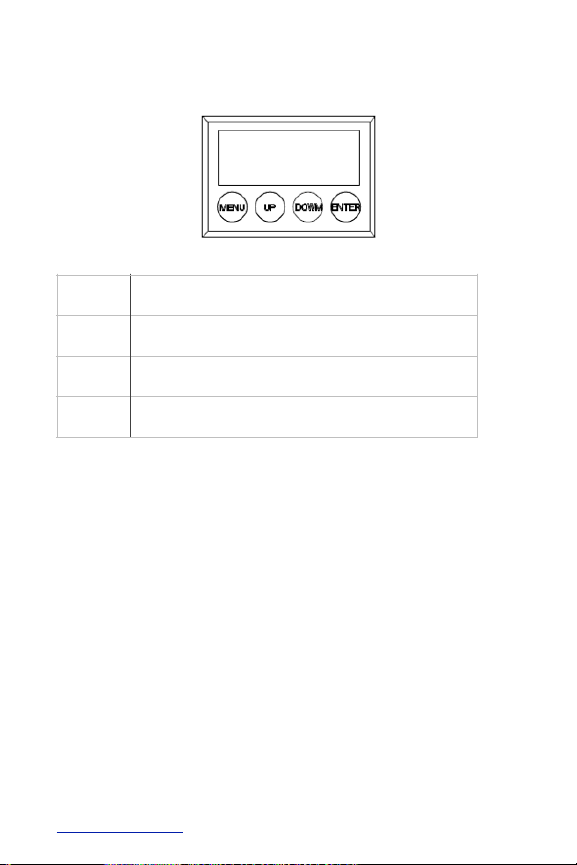

MENU
access the menu or return to a previous menu option
ENTER
select the current menu option
UP
menu selection or parameter increments
DOWN
menu selection or parameters decrease
www.EddyLight.com 1-800-914-3538

8
Tab
Level 1
Level 2
Level 3
Level 4
ADDR(Address)
001-512
STAT(Static
control)
W
0-255*
SHUT
0-255*
GOBO
0-255*
SET(Set)
CHMD(Channe
l mode)
5CH
3CH
DIM(Dimming
mode)
OFF
DIM1
DIM2
DIM3
DIM4
DISY(Display
set)
ON(Perma
nent on)
2MIN (2
minutes off)
CALP(Calibrate
position)
0-255
AUTO(Auto)
AT01
RUN..*
AT02
RUN..*
AT03
RUN..*
CHS1
RUN..*
CHS2
RUN..*
CHS3
RUN..*
PROG（Program）
CHS1（Chase
1）
SC01（Sce
ne 1）
W
0-255
.
.
SHUT
0-255
.
.
GOBO
0-255
.
.
TIME
0-255(S)
.
.
WAIT
0-25.5(S)
.
.
USE
YES/NO
.
SC20（Sce
ne 20）
CHS3（Chase
3）
INFO（Information
）
SOFT(Software
version)
Vx.x
POW(Power
reduction)
100%/80%/
50%
LOAD(Load)
ST L（Setting
load)
YES/NO
PR
L（Program
load)
YES/NO
SEND(Send)
YES/NO

9
6.1 DMX Address Setting
1. Select the ADDR Menu by navigating to it and pressing ENTER.
2. Press the UP/DOWN buttons to navigate between channels 1 - 512.
3. Press ENTER to select your desired channel.
6.2 Static Setting
1. Select the STAT menu by navigating to it and pressing ENTER
2. Press the UP/DOWN buttons to select WHITE, SHUT, or GOBO.
3. Press the UP/DOWN buttons to set up the【0-255】numerical value.
4. Press the ENTER button to escape and save.
6.3 Channel Mode Setting
1. Select the SET menu by navigating to it and pressing ENTER
2. Select the CHMD menu by pressing ENTER
3. Press the UP/DOWN buttons to select 3CH or 5CH
4. Press the ENTER button to escape and save.
6.4 Dimming Mode Setting
1. Select the SET menu by navigating to it and pressing ENTER
2. Select the DIM menu by pressing ENTER
3. Press the UP/DOWN buttons to select OFF, DIM1, DIM2, DIM, 3 or
DIM4
4. Press the ENTER button to escape and save.
When off is selected there will be no delay dimming effect
DIM1 is the slowest. DIM4 is the fastest.
www.EddyLight.com 1-800-914-3538

10
6.5 Display Setting
1. Select the SET menu by navigating to it and pressing ENTER
2. Select the DISY menu by pressing ENTER
3. Press the UP/DOWN buttons to select ON, 2MIN.
4. Press the ENTER button to escape and save.
6.6 Calibrating the GOBO to Original Position
1. Select the SET menu by navigating to it and pressing ENTER
2. Select the CALP menu by pressing ENTER
3. Press the UP/DOWN buttons to set up the 0-255 numerical value.
4. Press the ENTER button to escape and save.
6.7 Auto Run, Self-Program
1. Select the AUTO menu by navigating to it and pressing ENTER
2. Press the UP/DOWN buttons to select AT01, AT02,AT03, CHS1,
CHS2, CHS3
3. Press the ENTER button to escape and save.

11
6.8 Edit Self-Program
1. Select the PROG menu by navigating to it and pressing ENTER
2. Press the UP/DOWN buttons to select CHS1, CHS2, or CHS3
3. Press the ENTER button for confirmation and enter to the next menu.
4. Press the UP/DOWN buttons to select from SC1-SC20
5. Press the ENTER button for confirmation and enter to the next menu.
6. Press the UP/DOWN buttons to select W, GOBO, TIME, WAIT, USE,
or SHUT
7. Press the UP/DOWN buttons to set the parameter which are needed.
8. Press the ENTER button to escape and save.
When USE is set to NO，or the parameter of TIME is 0, it will not run
this scene.
When WAIT is set to be FADE time, the running process is as the
following chart showing.
6.9 Checking Lighting Information
1. Select the INFO menu by navigating to it and pressing ENTER
2. SOFT is for software version information.
3. POW is for the current information of power reduction.
100% is the normal output. Projector will reduce to 80% or 50%
output to protect from over-heating.
www.EddyLight.com 1-800-914-3538

12
6.10 Lighting Setting Parameter Reset
1. Select the LOAD menu by navigating to it and pressing ENTER
2. Select the ST L menu by navigating to it and pressing ENTER
3. Press the UP/DOWN buttons to select YES or NO.
4. Press the ENTER button to escape and save.
ADDR, CALP and “PROG” are not reset, the others reset to the
underlined value of the word.
6.11 PROG: SELF-PROGRAMMING
PARAMETER RESET
1. Select the LOAD menu by navigating to it and pressing ENTER
2. Select the PR L menu by navigating to it and pressing ENTER
3. Press the UP/DOWN buttons to select YES or NO.
4. Press the ENTER button to escape and save.
6.11 Lighting ParameterDownload Via DMX
Cable
1. Select the SEND menu by navigating to it and pressing ENTER
2. Press the UP/DOWN buttons to select YES or NO.
3. Press the ENTER button to escape and save.
Please disconnect the connection of projector and DMX console
before sending the parameter.
ADDR and CALP information can’t be sent or downloaded
There will be an automatic reset of the other projectors after
receiving parameter correctly

13
7. Remote Control
MENU, UP, DOWN, ENTER are the same as the corresponding buttons
on the projector
R - Red, G - Green, B - Blue, W - White,
SHUT - Strobe, GOBO - Rotation
AT01, AT02, AT03, CHS01, CHS02, CHS03 are shortcuts of AUTO
www.EddyLight.com 1-800-914-3538

14
8. Operating Control Instruction
Master/Slave
When the device is in MASTER mode it will automatically send out the
signal to its slave.
To avoid the host and DMX512 signals from interfering with each other,
DMX512 signals should be shut off.
If signal lines are longer than 60 meters or 20 lamps, you should use a
single amplifier.

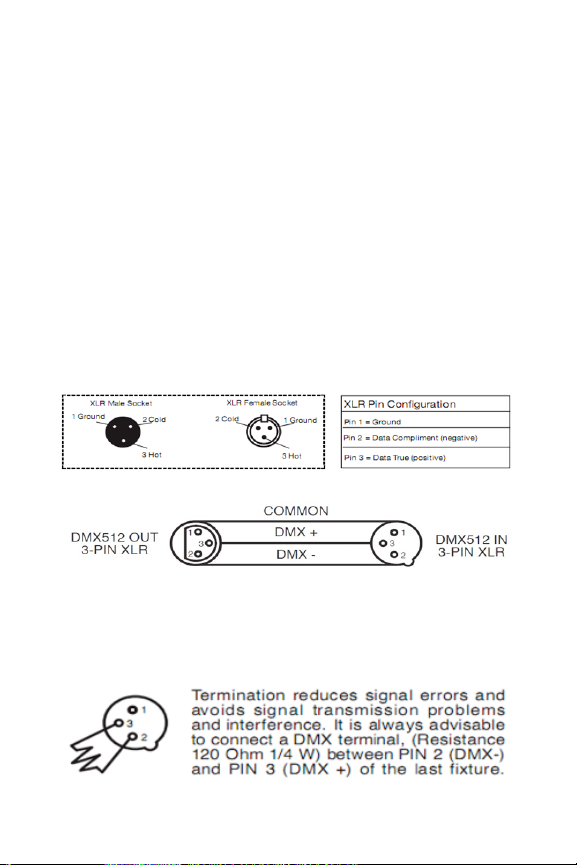

9. XLR Connection
In order to avoid failures and interference, connect a resistance
120Ω(1/4W) at the end of the DMC connection.

15
If the output cable of the DMX512 controller is 5PIN, use 5PIN to 3PIN
cable
www.EddyLight.com 1-800-914-3538

16
