Show Tec Phantom HTI-150 MKII User manual

Phantom HTI-150 MKII
ORDERCODE 40166

Congratulations!
You have bought a great, innovative product from Showtec.
The Showtec Phantom brings excitement to any venue. Whether you want simple plug-&-play action or a
sophisticated DMX show, this product provides the effect you need.
You can rely on Showtec, for more excellent lighting products.
We design and manufacture professional light equipment for the entertainment industry.
New products are being launched regularly. We work hard to keep you, our customer, satisfied.
For more information: [e-mail]
You can get some of the best quality, best priced products on the market from Showtec.
So next time, turn to Showtec for more great lighting equipment.
Always get the best -- with Showtec !
Thank you!

1
2
2
3
4
5
5
6
7
7
8
9
9
9
10
10
12
14
14
14
15
16
16
17
18
19
19
20
20
20
21
21
21
23
Showtec
Showtec Phantom™Product Guide
Warning.................................................................................…...……………..…………………………….………..….
Safety-instructions…………………………………………………………………………………………………………
Operating Determinations.……………………………………………………………………………………………..
Rigging.……………………………………………………………………………………………………………………..
Description...............................................................................…...………………………………………….………..…
Features and Overview ………………………………...….……………….………….……….……….………………
Backside…………………………………………………...…...….……………….…………………...….………………
Installation...............................................................................…...…………………………………………………..…..
Installing the Lamp ........................................................…………………………………………………….………..
Lamp Adjustment.….......................................................………………………………………….………..………..
Set Up and Operation.....................................................................……..………………………………………………
One Phantom ............................................................................……………………………………………………..
Multiple Phantoms..............................................................................……………………………………………….
DMX-Protocol…...................................................………………………………………………………………………….
Mode 1-8 bit protocol........................................……………………………………………………………………....
Mode 2-16 bit protocol........................................………………………………………………………………….....

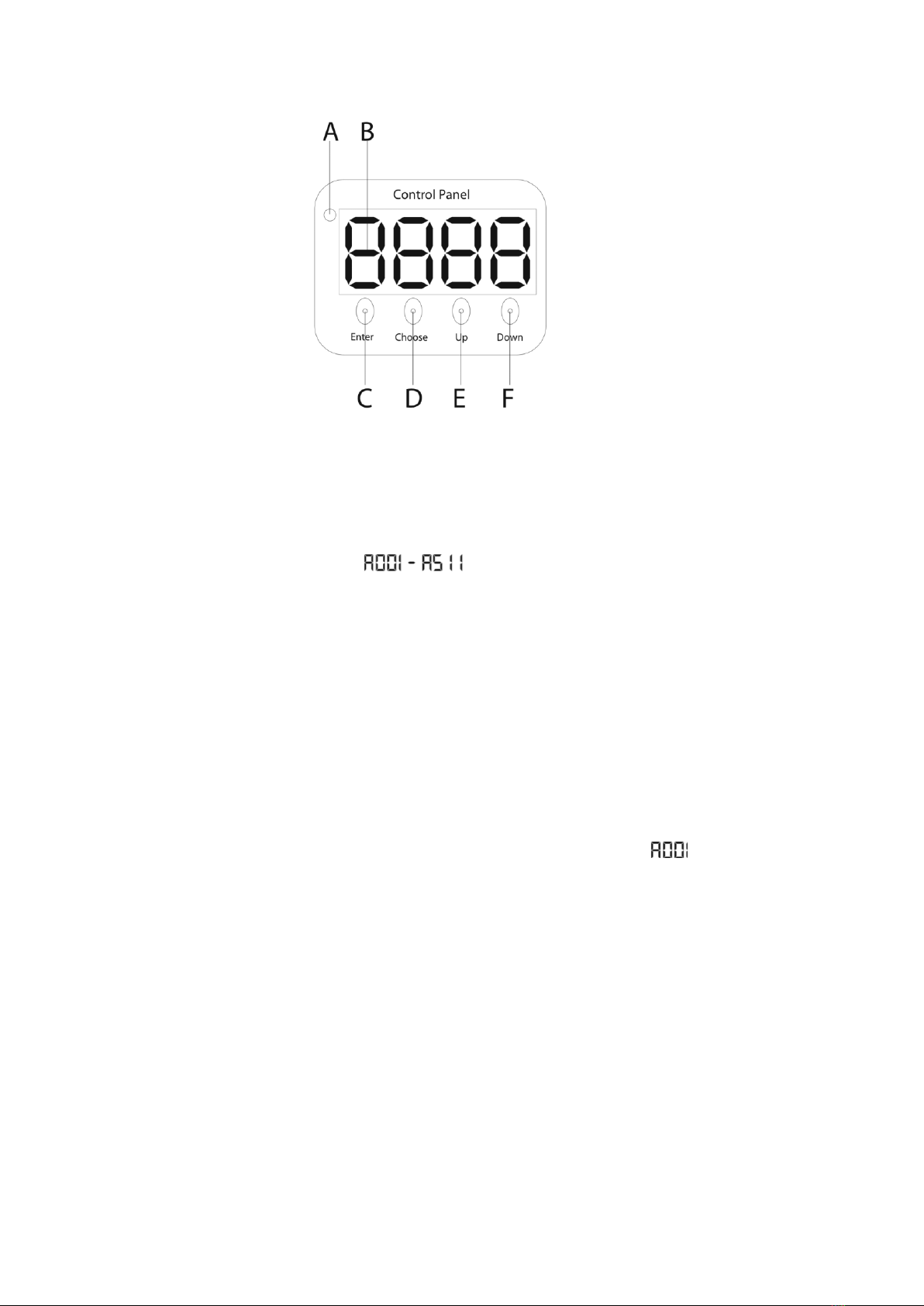

Control Panel….............……....................................…………………………………………………………………..
Control Mode........................................…………………………………………………………………………………
DMX addressing...................................………………………………………………………………………………….

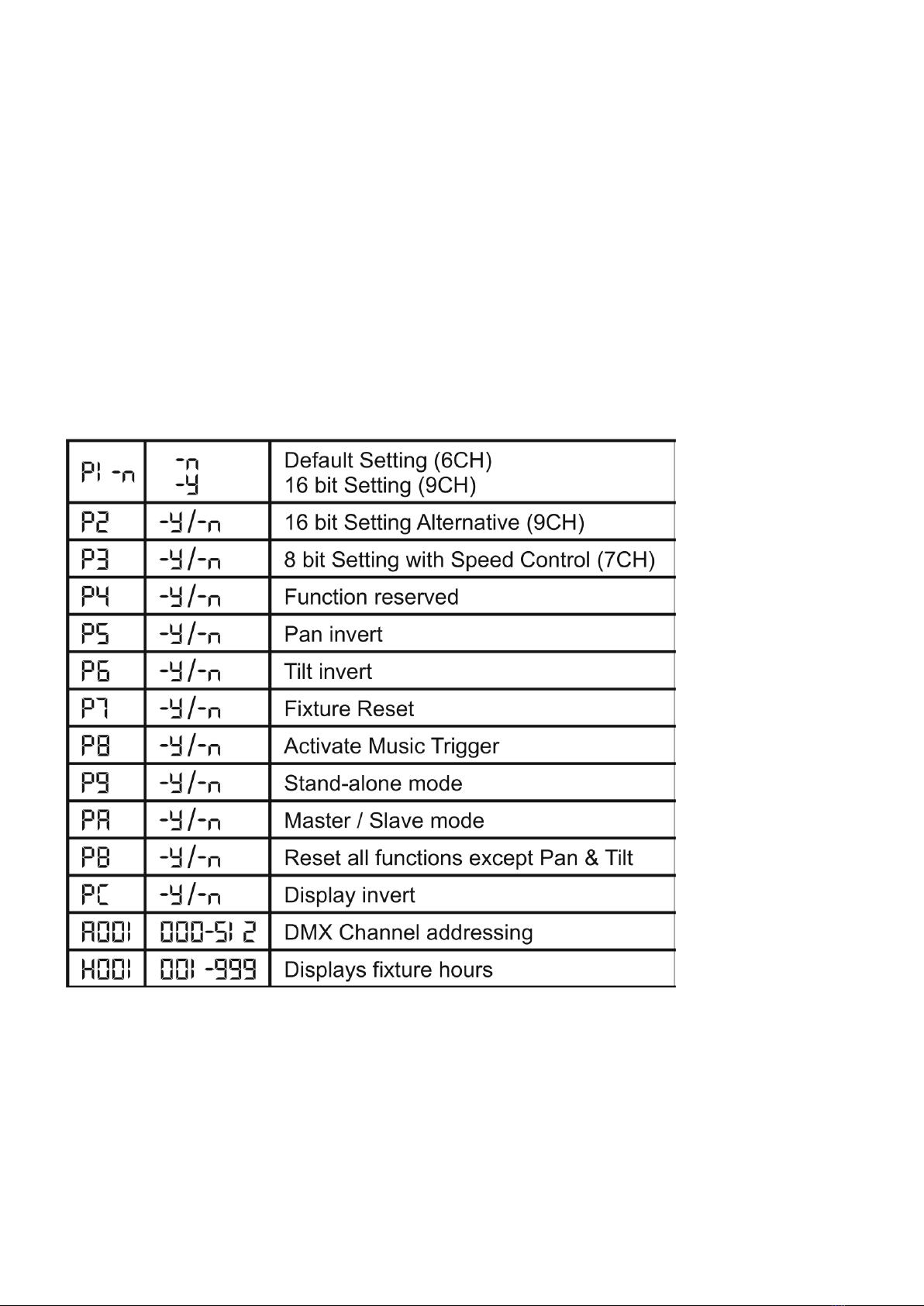

Control panel functions...................................………………………………………………………………………..
Stand –alone mode...................................……………………………………………………………………………
Master/Slave mode...................................……………………………………………………………………………..
Slave mode...................................……………………………………………………………………….………………
DMX Configurations……………………………………………………………………………………………………....
Channel settings…………………………………………………………………………………………………………..
Maintenance...................................................................................………..………….…….……………………….….
Changing the Lamp........................................................................…………………….……………………..……
Replacing the Fuse........................................................................…………………….…………………………….
Replacing a Gobo….......................................................................…………………….……………………..……
Troubleshooting............................................................................………………….………………….………………...
No Light, No Movement - All Products............................................………………….……………………..……..
No Response to DMX ....................................................................………………….………………………..……..
Product Specifications.................................................................……………….…….…………………………….…..

2
WARNING
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE YOUR INITIAL START-UP!
SAFETY INSTRUCTIONS
Every person involved with the installation, operation and maintenance of this device has to:
-be qualified
-follow the instructions of this manual
Before your initial start-up, please make sure that there is no damage caused by transportation. Should
there be any, consult your dealer and do not use the device.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes written in this manual.
Please consider that damages caused by manual modifications to the device are not subject to
warranty.
This device contains no user-serviceable parts. Refer servicing to qualified technicians only.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-
observance of this manual or any unauthorized modification to the device.
Never let the power-cord come into contact with other cables! Handle the power-cord and all
connections with the mains with particular caution!
Never remove warning or informative labels from the unit.
Never use anything to cover the ground contact.
Never run the device without lamp!
Never ignite the lamp if the objective-lens or any housing-cover is open, as discharge lamps may
expose and emit a high ultraviolet radiation, which may cause burns.
Never lift the fixture by holding it at the projector-head, as the mechanics may be damaged.
Always hold the fixture at the transport handles.
Never look directly into the light source.
Never leave any cables lying around.
Never unscrew the screws of the rotating gobo, as the ball bearing will otherwise be opened.
Do not insert objects into air vents.
Do not connect this device to a dimmerpack.
Do not switch the device on and off in short intervals, as this would reduce the lamp’s life.
Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).
Do not shake the device. Avoid brute force when installing or operating the device.
Only use device indoor, avoid contact with water or other liquids.
Only operate the fixture after having checked that the housing is firmly closed and all screws are
tightly fastened.
Only operate the device after having familiarized with its functions.
Avoid flames and do not put close to flammable liquids or gases.
Always replace the lamp, when it is damaged or deformed due to the heat.
CAUTION!
Keep this device away from rain and moisture!
Unplug mains lead before opening the housing!
CAUTION! Be careful with your operations.
With a dangerous voltage you can suffer
a dangerous electric shock when touching the wires!

3
Always keep case closed while operating.
Always allow free air space of at least 50 cm around the unit for ventilation.
Always disconnect power from the mains, when device is not used, before cleaning or when
replacing lamp! Only handle the power-cord by the plug. Never pull out the plug by tugging the
power-cord.
To ensure the longest and most efficient use of the lamp always wait 15 minutes before re-
applying power after a shutdown. Failure to do so could result in premature aging of the lamp
and failure to the electronics that drive it.
Make sure that the device is not exposed to extreme heat, moisture or dust.
Make sure that the available voltage is not higher than stated on the rear panel.
Make sure that the power-cord is never crimped or damaged. Check the device and the power-
cord from time to time.
If the lens is obviously damaged, it has to be replaced. So that its functions are not impaired, due
to cracks or deep scratches.
If device is dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do
not switch it on immediately. The arising condensation water might damage your device. Leave
the device switched off until it has reached room temperature.
If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Showtec dealer for service.
For adult use only. Movinghead must be installed out of the reach of children. Never leave the
unit running unattended.
For replacement use lamps and fuses of same type and rating only.
Allow time to cool down, before replacing lamp.
This device falls under protection class I. Therefore it is essential to connect the yellow/green
conductor to earth.
During the initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective.
Repairs, servicing and electric connection must be carried out by a qualified technician.
WARRANTY: Till one year after date of purchase.
OPERATING DETERMINATIONS
This device is not designed for permanent operation. Consistent operation breaks will ensure that the
device will serve you for a long time without defects.
The minimum distance between light-output and the illuminated surface must be more than 1.3 meter.
The maximum ambient temperature tamust never be exceeded.
If this device is operated in any other way, than the one described in this manual, the product may suffer
damages and the warranty becomes void.
Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash
etc.
You endanger your own safety and the safety of others!
CAUTION ! EYEDAMAGES !.
Avoid looking directly into the light source.
(meant especially for epileptics) !

4
Rigging
Please follow the European and national guidelines concerning rigging, trussing and all other
safety issues.
Do not attempt the installation yourself !
Always let the installation be carried out by an authorized dealer !
Procedure:
If the projector is lowered from the ceiling or high joists, professional trussing systems have to be
used.
Use a clamp to mount the projector, with the mounting-bracket, to the trussing system.
The projector must never be fixed swinging freely in the room.
The installation must always be secured with a safety attachment, e.g. an appropriate safety net
or safety-cable.
When rigging, derigging or servicing the projector, always make sure, that the area below the
installation place is blocked and staying in the area is forbidden.
The Phantom can be placed on a flat stage floor or mounted to any kind of truss by a clamp.
Mounting a clamp to the underside of the Phantom moving head
1) Safety-cable
2) Mounting plate
3) Eye bolt
4) Clamp
Connection with the mains
Connect the device to the mains with the power-plug.
Always pay attention, that the right color cable is connected to the right place.
International
EU Cable
UK Cable
US Cable
Pin
L
BROWN
RED
YELLOW/COPPER
FASE
N
BLUE
BLACK
SILVER
NUL
YELLOW/GREEN
GREEN
GREEN
EARTH
Make sure that the device is always connected properly to the earth!
Improper installation can cause serious damage to people and property !

5
Description of the device
Features
The Showtec Phantom is a moving-head with high output and great effects.
• 1 Color-wheel with 9 colored gobos, and open
• 1 Gobo-wheel with 5 metal and 2 glass interchangeable rotating gobos plus open
• DMX-control via standard DMX-controller
• 6/9 DMX-control channels required
• Mechanical Dimmer/Shutter/Strobe
• Strobe-effect with adjustable speed (1 - 10 flashes/sec.)
• Sound-controlled via built-in microphone
• Manual focus
• Pan 0º -- 540º
• Tilt 0º -- 270º
• Pan/Tilt speed & reset control channel
• Gobo Bounce™
• Automatic Pan/Tilt correction
• User selectable 8 or 16 bit movement
• LED display menu with invert
• Pan/Tilt Invert option
• Micro-stepping motors
• Thermal switch
• Lamp HTI 150
• Fuse T3,5A / 250V
Overview 1
Fig. 1
1) Lens

6
Backside
2 3 4 5 Fig. 2
2) DMX signal connector (IN)
3) DMX signal connector (OUT)
4) ON / OFF
5) IEC power connector + Fuse 3,5A 250V

7
Installation
Installing the Lamp
The Showtec Phantom uses the HTI 150 (ordercode 80922) reflectorbulb as manufactured by all popular
manufacturers. Use only the appropriate lamp for your unit.
Note that, product versions that use other lamps, may be offered in the future. Check your product
specification label for information.
Always disconnect from electric mains power supply before changing lamps.
The lamp has to be replaced when it is damaged or deformed due to the heat.
Do not install lamps with a higher wattage! Lamps with a higher wattage generate temperatures the
device was not designed for.
Damages caused by non-observance are not subject to warranty.
Procedure :

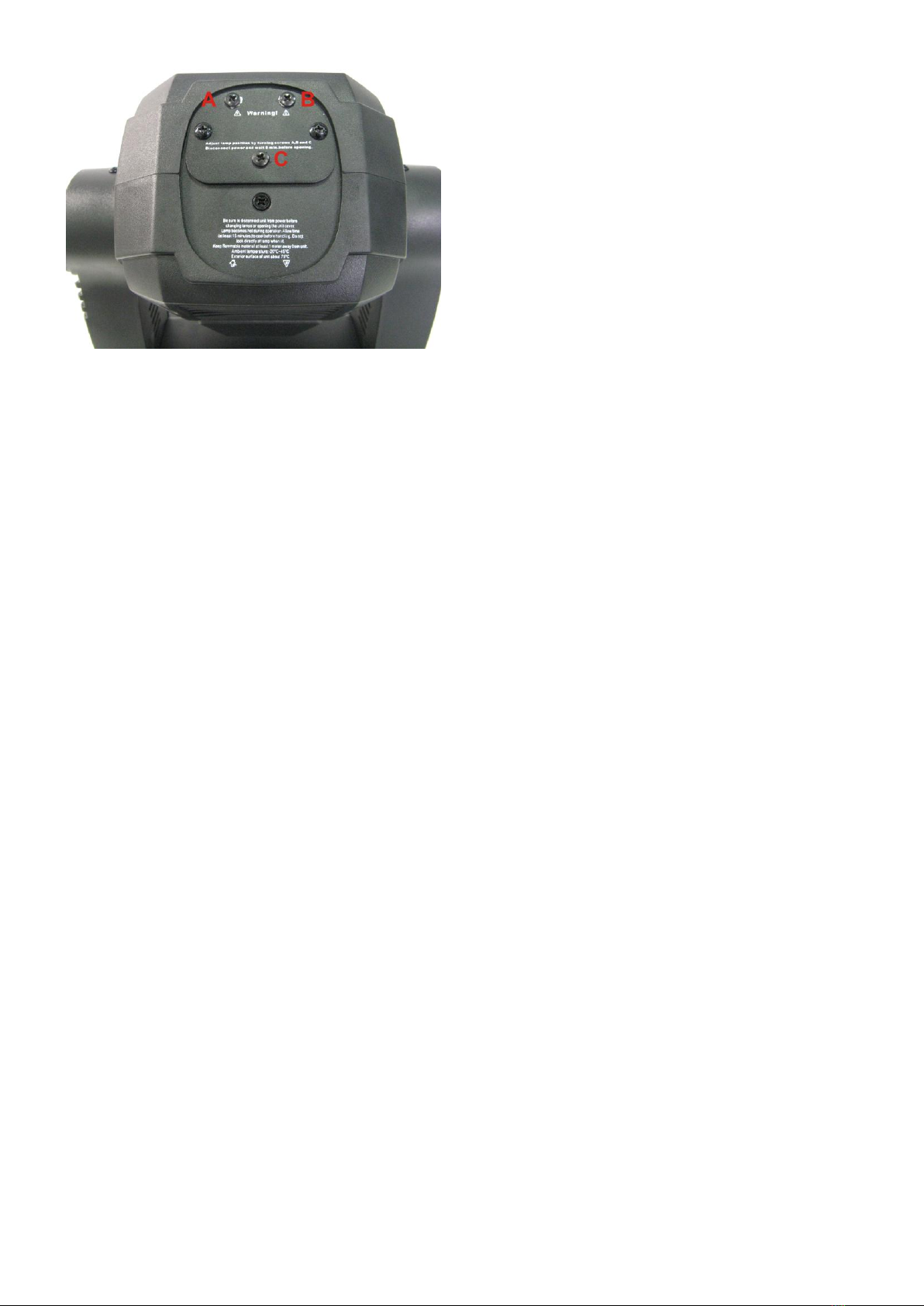

1. Loosen the 2 screws on the back of the housing.
2. Gently remove the small metal housing.
3. Read lamp instructions. Do not touch the lamp bulb glass. (See Figure 3.)
Oil on hands shortens the lamp life. (If you touch the bulb glass, wipe off the glass with a clean, lint-free
towel and rubbing alcohol.).
4. Insert the lamp pins into the small holes in the lamp socket. You can adjust the distance between the
lamp and the lens on the back of the cover.
5. Put the lamp cover back and fasten the screws snugly. Then put the plastic housing back and fasten
the screws snugly.
1 2 3
Fig. 3

8
Backside Lamp Board
Fig. 4
Lamp Adjustment
You can adjust the lamp’s position by turning the screws A, B, C.
The lamp position is set in the factory. As the lamps, which can be used, differ from manufacturer to
manufacturer, it can be necessary to readjust the position. The lamp must be readjusted e.g., if the light
does not seem to be evenly distributed within the ray of light.
Ignite the lamp and focus the ray of light on an even surface (wall). As the optimal distance between the
lamp and the lens was already set during the installation with screw "A", only the "Hot Spot" ( the brightest
part of the ray of light) must be centered. Turn in addition screw "B". If the Hot Spot appears too bright,
you can weaken its intensity, by moving the lamp closer to the reflector. Turn in addition screw "A", until
the light is evenly distributed. If the light at the outside edge of the ray of light appears brighter as in the
center, the lamp is too close to the reflector. In this case move the lamp away from the reflector, until the
light is evenly distributed and the ray of light appears bright enough.

9
Set Up and Operation
Follow the directions below, as they pertain to your preferred operation mode.
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
One Phantom
1. Fasten the moving head onto firm trussing (Use a 30-kg rated or stronger C-clamp fastened onto the
Phantom ). Leave at least 1 meter on all sides for air circulation.
2. Plug one end of the electric mains power cord into the IEC socket on the unit.
Then plug the other end of the cord into a proper electric power supply socket.
3. Turn on the music. If F8 (Audio) is set, then the fixture will react to the beat of the music.
Multiple Phantoms
1. Fasten the effect light onto firm trussing (Use a 30-kg rated or stronger C-clamp fastened onto the
Phantom ). Leave at least 1 meter on all sides for air circulation.
2. Use a 3-p XLR cable to connect the Phantoms and other devices.
The pins:
1. Earth
2. Signal -
3. Signal +
3. Link the units as shown in (figure 5), Connect a DMX signal cable from the first unit's DMX "out" socket to
the second unit's "in" socket. Repeat this process to link the second, third, and fourth units.
4. Supply electric power: Plug electric mains power cords into each unit's IEC socket, then plug the other
end of the mains power cord into proper electric power supply sockets, starting with the first unit.
Do not supply power before the whole system is set up and connected properly.
5) Press , until the display shows PA-n or PA-y (with actually stored address).
6) Select , the display shows . Select , the display shows “ . Then select F8-y (audio-
controlled) on the master device. Only one fixture can be the master.
7) On the slave devices you must select PA-n and F8-n. The DMX light on the slave devices will start
blinking. The slave devices must have address A001.
Multiple Phantoms Set Up
DMX-Set up
Master/Slave Set up
Fig. 5
Note : Link all cables before connecting electric power

10
DMX Protocol
This DMX is set as default (F1-n). With 8 bit control you’ve got 7channels.
Mode 1- 8 bit protocol
Channel 1 - Horizontal movement (Pan)
Push the slider up, in order to move head horizontally (PAN).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 540°and stopped at any position you wish.
Channel 2 - Vertical movement (Tilt)
Push the slider, up in order to move head vertically (TILT).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 270°and stopped at any position you wish.
Channel 3 –Shutter / Dimmer / Strobe
Channel 4 –Rotating Gobos
0-3
Shutter closed / Blackout
4-63
Dimmer, from closed to open (0-100%)
64-95
Variable strobe, from slow to fast
96-159
Shutter open
160-191
Pulse-effect 1, in sequences from slow to fast
192-223
Pulse-effect 2, in sequences from fast to slow
224-255
Shutter open
0-15
Open
16-31
Gobo 1 (glass)
32-47
Gobo 2
48-63
Gobo 3
64-79
Gobo 4
80-95
Gobo 5 (glass)
96-111
Gobo 6
112-127
Gobo 7
128-132
Open
133-144
Shaking gobo 1, with variable speed
145-156
Shaking gobo 2, with variable speed
157-168
Shaking gobo 3, with variable speed
169-180
Shaking gobo 4, with variable speed
181-192
Shaking gobo 5, with variable speed
193-204
Shaking gobo 6, with variable speed
205-216
Shaking gobo 7, with variable speed
217-228
Open
229-255
Gobo wheel rotation from slow to fast

11
Channel 5 –Colours
Linear color change following the movement of the slider. In this way you can stop the color-wheel in any
position –also between two colors creating double-colored beams. Between 191 - 220 and between
225 - 255, the color-wheel rotates continuously the so-called “Rainbow” effect.
0-12
Open / White
13-24
Red
25-37
Blue
38-49
Yellow
50-62
Green
63-74
Pink
75-87
UV
88-99
Light Blue
100-112
Orange
113-127
Purple
128-190
Linear color change following the movement of the slider
(color backward change)
191-220
Forwards rainbow effect from fast to slow
221-225
No rotation
225-255
Backwards rainbow effect from slow to fast
Channel 6 –Rotating gobo index, rotating gobo rotation
0-127
Gobo indexing
128-189
Forwards gobo rotation from fast to slow
190-193
No rotation
194-255
Backwards gobo rotation from slow to fast

12
Mode 2–16 bit protocol
Set F1-y for 16-bit control. With 16 bit control you’ve got 9channels.
Mode 1- 16 bit protocol
Channel 1 - Horizontal movement (Pan)
Push the slider up, in order to move head horizontally (PAN).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 540°and stopped at any position you wish.
Channel 2 - Vertical movement (Tilt)
Push the slider, up in order to move head vertically (TILT).
Gradual head adjustment from one end of the slider to the other (0-255, 128-center).
The head can be turned by 270°and stopped at any position you wish.
Channel 3 - Pan fine 16 bit
Channel 4 - Tilt fine 16 bit
Channel 5 –PAN/TILT Speed
Channel 6 –Shutter / Dimmer / Strobe
Channel 7 –Rotating Gobos
0
Max. Speed (tracking mode)
1
Max. Speed (vector mode)
2-200
From Max Speed (2) to Min. Speed (200) in vector mode
201-204
Fixture reset (hold 10 sec.)
205-255
Max. Speed tracking mode blackout while PAN / TILT is
moving and / or color (gobo changes)
0-3
Shutter closed / Blackout
4-63
Dimmer, from closed to open (0-100%)
64-95
Variable strobe, from slow to fast
96-159
Shutter open
160-191
Pulse-effect 1, in sequences from slow to fast
192-223
Pulse-effect 2, in sequences from fast to slow
224-255
Shutter open
0-15
Open
16-31
Gobo 1 (glass)
32-47
Gobo 2
48-63
Gobo 3
64-79
Gobo 4
80-95
Gobo 5 (glass)
96-111
Gobo 6
112-127
Gobo 7
128-132
Open
133-144
Shaking gobo 1, with variable speed
145-156
Shaking gobo 2, with variable speed
157-168
Shaking gobo 3, with variable speed
169-180
Shaking gobo 4, with variable speed
181-192
Shaking gobo 5, with variable speed
193-204
Shaking gobo 6, with variable speed
205-216
Shaking gobo 7, with variable speed
217-228
Open
229-255
Gobo wheel rotation from slow to fast

13
Channel 8 –Colours
Linear color change following the movement of the slider. In this way you can stop the color-wheel in any
position –also between two colors creating double-colored beams. Between 191 - 220 and between 225
- 255, the color-wheel rotates continuously the so-called “Rainbow” effect.
0-12
Open / White
13-24
Red
25-37
Blue
38-49
Yellow
50-62
Green
63-74
Pink
75-87
UV
88-99
Light Blue
100-112
Orange
113-127
Purple
128-190
Linear color change following the movement of the slider
(color backward change)
191-220
Forwards rainbow effect from fast to slow
221-225
No rotation
225-255
Backwards rainbow effect from slow to fast
Channel 9 –Rotating gobo index, rotating gobo rotation
The Phantom can be operated with a controller in control mode or without the controller in stand-alone
mode.
0-127
Gobo indexing
128-189
Forwards gobo rotation from fast to slow
190-193
No rotation
194-255
Backwards gobo rotation from slow to fast

14
Control Panel
When the indicator light is on, means the Phantom is working
Fig. 6
A. LED D. [CHOOSE] Button
B. Display E. Up Button
C. [ENTER] Button F. Down Button
Control Mode
The fixtures are individually addressed on a data-link and connected to the controller.
The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it,
the controller will display the saved DMX address the next time.)
DMX Addressing
The control panel on the front side of the base allows you to assign the DMX fixture address, which is the
first channel from which the Phantom will respond to the controller.
Please note when you use the controller, the unit has 9channels.
When using multiple Phantoms, make sure you set the DMX addresses right.
Therefore, the DMX address of the first Phantom should be 1(A001); the DMX address of the second
Phantom
should be 1+9=10(A010); the DMX address of the third Phantom should be 10+9=19(A019), etc.
Please, be sure that you don’t have any overlapping channels in order to control each Phantom
correctly.
If two or more Phantoms are addressed similarly, they will work similarly.
For address settings, please refer to the instructions under ”Addressing’ (menu )
Controlling:
After having addressed all Phantom fixtures, you may now start operating these via your lighting
controller.
Note: After switching on, the Phantom will automatically detect whether DMX 512 data is received or
not. If there is no data received at the DMX-input, the “LED “ on the control panel will not flash.
The problem may be:
- The XLR cable from the controller is not connected with the input of the Phantom.
- The controller is switched off or defective, the cable or connector is detective, or the signal wires are
swapped in the input connector.
Note: It’s necessary to insert a XLR termination plug (with 120 Ohm) in the last fixture in order to ensure
proper transmission on the DMX data link.

15
Remotely controllable functions
Colour-wheel
The Phantom contains a colour-wheel with 9 colours and one white. The colour-wheel can be positioned
between two adjacent colours in any position. It is also possible to rotate the colour-wheel continuously
at different speeds ( “Rainbow effect” in both directions).
Rotating gobo-wheel
This rotating gobo-wheel has 5 metal gobos, 2 glass gobos and open.
Shutter/Dimmer/Strobe
The dimming (0-100%) is provided by a simple mechanical shutter unit. This unit may also be used for
strobe effect (1-10 flashes per second).
Control Panel Functions
Function Options Notes

16
Stand-alone Mode
The fixtures on a data-link are not connected to the controller, but can execute pre-set programs, which
can be different for every fixture.
To set the program to be played, see the “Stand-alone setting“ ( menu and ).
Stand-alone operation” can be applied to a single fixture (the fixture may be set to the master/slave
mode or controller mode) or to multiple fixture operating synchronously.
For synchronous operation of multiple fixtures the fixtures must all be connected on a data-link and one
of them is set as a master (master mode) and the rest as slaves (slave mode). The DMX address of all the
slaves are assigned to and on that particular slave address only one fixture can be connected. To
the fixture as the master or slave, see “Addressing” (menu ).
If the master fixture resets or runs a test (program), all slaves will execute these acts too.
You can’t play or edit any program on a slave, if the master is switched on and connected to the
master/slave chain.
Note: Disconnect the fixtures from the DMX controller before master/slave operating, otherwise data
collisions can occur and the fixtures will not work properly!
It’s necessary to insert the XLR termination plug (with 120 Ohm ) into the input of the master fixture and
into the output of the last slave fixture in the data-link, in order to ensure proper transmission on the data
link.
From the master’s control panel it is possible to control any slave in a master/slave chain.
Addressing
With this menu you can set the DMX address or address a fixture as a master/slave.
- DMX addressing
1) Press Choose, until the display shows .
2) Press Enter to confirm, the display will show (with actually stored address).
And press Up / Down to select the required address , press Enter to confirm.
3) Press Choose, the chosen address is shown on the display.
- Master / slave addressing
- Master
1) Press Choose, until the display shows or (with actually stored address).
2) If the display shows message (with actually stores address).
Select Down, the display shows .
Select Enter, the display shows “ , (with actually stored address).
If you want to address no master or slave, don’t select .
3) Only one fixture can be the master. Up to the 16 slaves may be connected to the master.
Note: Disconnect the fixture from the DMX controller before master/slave operating, otherwise data
collisions can occur and the fixtures will not work properly!
In master/slave mode, the master fixture can execute the built-in program and the remote
control function , all the slave fixtures will work the same.
In master/slave mode, the built-in program ID prior to the remote control function.

17
When operation, you can identify the master fixture from the slave fixture easily. The master doesn’t
connect any cable to the DMX input plug. When execute the remote control, the display of the
master will flash according to the music, while the display of the slave will light.
You can also use the Pan invert and Tilt invert . It doesn’t matter whether you choose -Y or –n,
when using Pan invert or Tilt invert.
4) Make sure that the settings for , , are the same for the Master unit and the Slave units.
- Slave control
This function allows you to control the slaves from the master’s control panel in a master/slave operation.
1) Press Choose, until the display shows or (with actually stored address).
2) If the display shows message (with actually stores address).
Select Down, the display shows .
Select Enter, the display shows “ , (with actually stored address).
If you want to address no master or slave, don’t select .
3) In Slave mode, the slave units should be set to and .
Note: Disconnect the fixture from the DMX controller before master/slave operating, otherwise data
collisions can occur and the fixtures will not work properly!
4) Select this function from the main menu and press Choose until the display shows
(with actually stored address)
5) In master/slave mode, the setting of , , for the slave units, must be the same as the master
unit. Pan invert and Tilt invert can be set to –Y or -n.

18
DMX configurations
There are 4 fixture DMX configurations in both fixtures. These settings are user selectable by using the
control panel interface.
1. Default Setting =
CH1 Pan
CH2 Tilt
CH3 Shutter/Dimmer
CH4 Gobo
CH5 Color
CH6 Gobo Rotation
2. Setting =
CH1 Pan
CH2 Tilt
CH3 Pan Fine
CH4 Tilt Fine
CH5 Pan/Tilt Speed
CH6 Shutter/Dimmer
CH7 Gobo
CH8 Color
CH9 Gobo Rotation
3. Setting =
CH1 Pan
CH2 Pan Fine
CH3 Tilt
CH4 Tilt Fine
CH5 Pan/Tilt Speed
CH6 Shutter/Dimmer
CH7 Gobo
CH8 Color
CH9 Gobo Rotation
4. Setting =
CH1 Pan
CH2 Tilt
CH3 Pan/Tilt Speed
CH4 Shutter/Dimmer
CH5 Gobo
CH6 Color
CH7 Gobo Rotation
