qtran Q-VAULT-5 User manual

© 2016, Q-Tran Inc. 155 Hill St. Milford, CT06460. All rights reserved - 203-367-8777 - [email protected] - www.q-tran.com
PROJECT NAME DATE TYPE NOTECOMPANY
1
NOTE: Q-SET Sold separately
Q-VAULT-5
LAWN GUARD RING INSTALLATION
Q-VAULT-5 INSTALLED
CASSETTE SIZE
Four
3/4"
NPT
KO’s
Two
1/2"
NPT
KO’s
Door Gasket
HOUSING: Inside View HOUSING: Outside View
Hole Drill Guide Label: Refer to sticker instructions provided in
installation kit bag.
DIMENSIONS
HOUSING DOOR: Underside View
CSA Label
Desiccant Pouch
Spare Parts
Support flaps for easy
access while wiring.
QVAULT-5 ( Housing )
5.0’’
( Cassette )
2.5’’
Q-SET 1 : Fits up to 2
Q-SET 2 : Fits 1
Q-SET 3 : Fits 1
Q-SET-eLED : Fits up to 2
Q-SET-mLED : Fits up to 2
Q-SET 1
6.25"
9.5"
Front View
Side View
Top View
16.5"
6"
6" 9"9.25"
Land
Soil
Drain Pipe
At lowest slope for proper drainage
30"
12"
4"
Soil
Gravel
9.5"
16.5"

© 2016, Q-Tran Inc. 155 Hill St. Milford, CT06460. All rights reserved - 203-367-8777 - [email protected] - www.q-tran.com 2

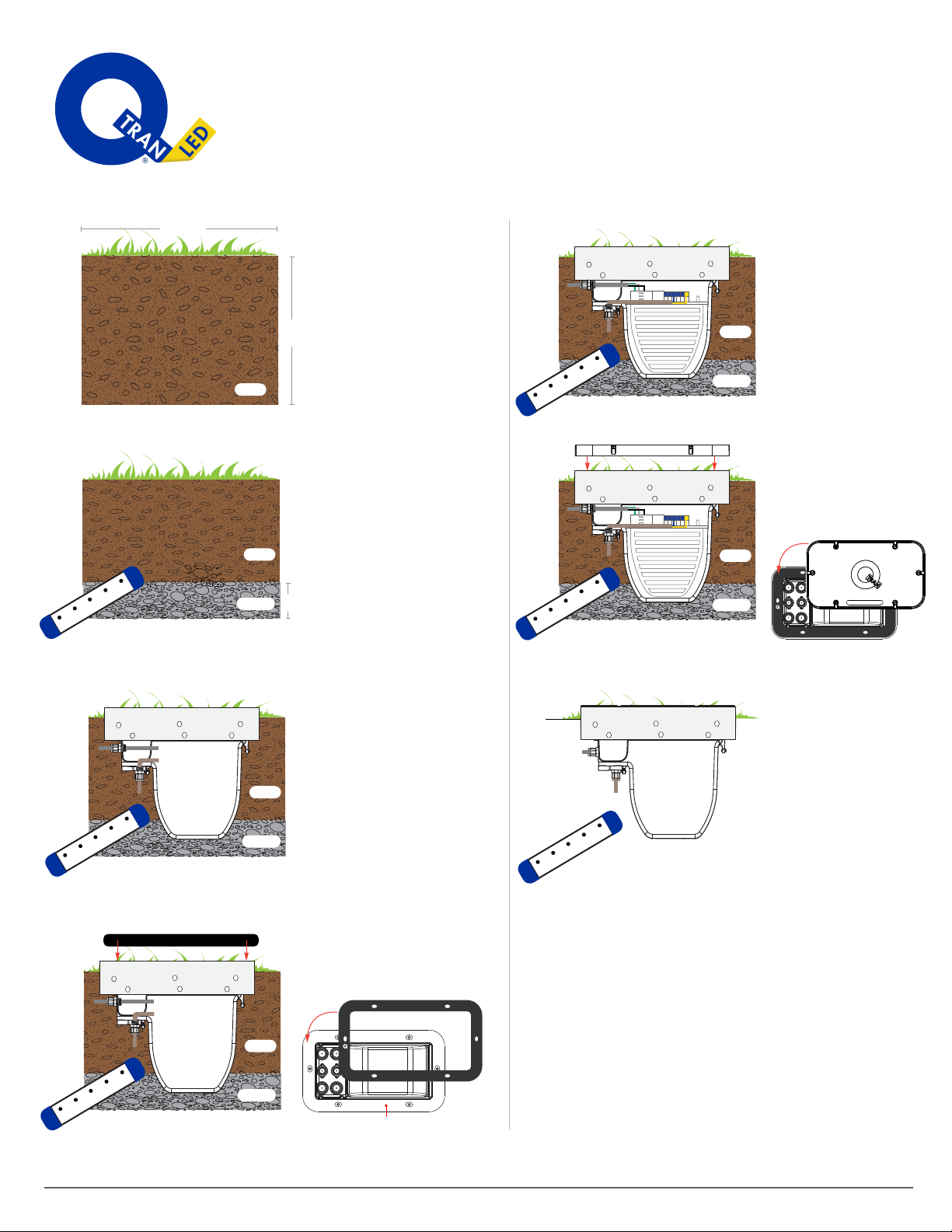

• Install cover with Hex
screw by following the
number sequence.
Housing top before placing gasket
NOTE: Q-SET Installation Instruction
on separate sheet in shipping box.
Soil
Gravel
Drain Pipe
1.
• Place drain pipe at the lowest
slope of land for proper
drainage. Fill bottom of pit with
4" of gravel.
16"
3. • Place housing into Hole then
bringall primaryand secondary
wiring into housing.
NOTE: Using the Field Drill Guide
Labels provided in the installation
kit you are able to drill for various
fitting sizes.
2.
Soil
Gravel
Soil
30"
4. • Install Gasket.
• Prepare Excavated Hole:
30" x 16".
Gasket
• Make Q-SET connection.
٭Q-SET1: Fits 2
٭Q-SET2: Fit 1
٭Q-SET3: Fit 1
• Close hole with earth.
5.
6.
Drain Pipe
Soil
Gravel
Drain Pipe
Soil
Gravel
Drain Pipe
Q-VAULT-5
LAWN GUARD RING INSTALLATION Continued
Soil
Gravel
Drain Pipe
7.
4"
NOTE: Maximum torque 50"lbs
1
24
56
3
Gasket
Land
Drain Pipe
