Eden 97/8799 User manual

MADE IN
BRITAIN
Dimensions
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk
or email: [e-mail] (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928.
For any other queries please contact the Customer Helpline on: 0345 640 2020
Important - Please read these instructions fully before starting assembly
Eden - 3+1 Sideboard
Assembly Instructions - Please keep for future reference
ALR3156
397/8799
411/3508
Width - 98.5cm
Depth - 38.1cm
Height - 83.2cm
Issue 1 - 20/07/15

Safety and Care Advice
Important - Please read these instructions fully before starting assembly
• Warning: This unit weighs
approximately 32kgs.
Please lift with care.
• Check you have all the
components and tools listed on
pages 2 and 3.
• Remove all fittings from the
plastic bags and separate them
into their groups.
• Keep children and animals
away from the work area, small
parts could choke if swallowed.
• Parts of the assembly will be
easier with 2 people.
• Make sure you have enough
space to layout the parts before
starting.
• Do not stand or put weight on
the product, this could cause
damage.
• Assemble the item as close to
its final position (in the same
room) as possible.
• Assemble on a soft level
surface to avoid damaging the
unit or your floor (use opened
out unit carton).
1
Care and maintenance
• Only clean using a damp cloth
and mild detergent, do no use
bleach or abrasive cleaners.
• From time to time check that
there are no loose screws on
this unit.
• This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
Note: If required the next page
can be cut out and used as
reference throughout the
assembly. Keep this page with
these instructions for future
reference.

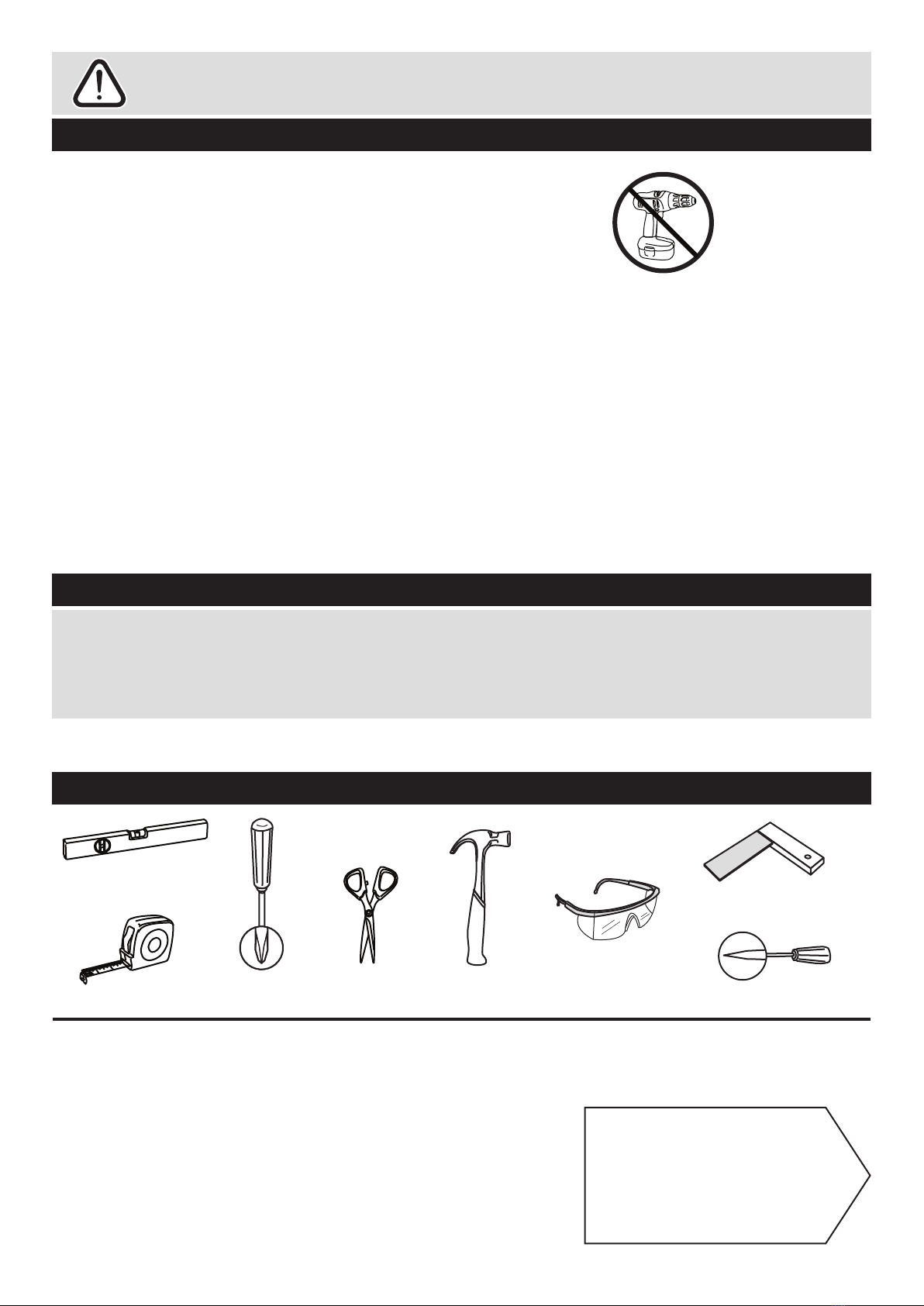

Tools required
Rule
Scissors Hammer
Eye protection
(when using a
hammer or drill)
Cross-head
screwdriver
Square
Bradawl
Spirit
level
• We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
• Safety note: It is
recommended that this unit is
secured to a wall using the
overbalance protector kit
supplied or, an alternative fixing
method of your choice.
• Dispose of all packaging
carefully and responsibly.

Components - Panels
Please check you have all the panels listed below
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk
or email: [e-mail] (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928.
For any other queries please contact the Customer Helpline on: 0345 640 2020
2
80%
12
4
Left Side (DF3034)
(79.7 x 37.8cm)
Top (DF3036)
(98.5 x 38.1cm)
Shelf (DF3040)
(48.1 x 34.9cm)
Door (DF3038)
(72.6 x 49.5cm)
Base (DF3037)
(90.9 x 37.2cm)
3
Right Side (DF3035)
(79.7 x 37.8cm)
Divider (DF1197)
(73.2 x 35cm)
5
Drawer Base (T389-327)
(38.9 x 32.7cm) x 3
Back (X927-762)
(92.7 x 76.2cm)
Drawer Back
(W378-195)
(37.8 x 19.5cm) x 3
Left Drawer
Side (W330-195LH)
(33 x 19.5cm) x 3
Right Drawer
Side (W330-195RH)
(33 x 19.5cm) x 3
6
8
Drawer Front (DF3039)
(40.5 x 24cm) x 3
7 9 10
11
12 13

Please check you have all the fittings listed below
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
Components - Fittings
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk
or email: [e-mail] (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928.
For any other queries please contact the Customer Helpline on: 0345 640 2020
3
Ruler - Use this ruler to help correctly identify the screws
mm 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170
Note: The quantities below are the correct amount to complete the assembly. In some cases
more fittings may be supplied than are required.
B
D E F
G H I
C
R
K L
Small metal dowel (F893) x 8
Hollow core
locking nut
(F892) x 8
Wooden dowel (F22) x 4
J
N
13mm Screw (F63) x 4
Knock-in Peg (F171GY) x 12
9mm Screw (F74) x 6 9mm Screw (F73) x 12
Drawer runner (F1004) x 6
Wedgefix (F639) x 6
Large locking
nut (F900) x 4
A
Metal dowel (F901) x 10
Nail (F51) x 20
M
QO P
Door stop (F110) x 4
Hinge plate
(F523) x 2 Hinge (F522) x 2
Small locking
nut (F3) x 6
19mm Screw (F461) x 8
Handle (F414) x 4
SStrap Screw Washer x 2
Overbalance protector kit (F269) x 1

7
Assembly Instructions
4
Step 1
A
B
A
C
C
CC
89
Step 2
Prepare the 3 drawer
fronts
Screw 2 metal dowels
into each of the drawer
fronts .
Note: Tighten the metal
dowels up fully against
the panels.
A
7
Prepare the drawer
sides
Insert a small locking
nut into the hole
shown on the left drawer
side and the right
drawer side .
Note: The arrow on the
locking nut must point
towards the hole in the
edge of the panel.
Step 3
C
8
9
Attach the large
drawer sides to the
large drawer front
Push the left drawer side
. and right drawer side
. onto the back of the
drawer front .
Turn the small locking
nuts on the left
drawer side and right
drawer side .
Note: Turn the locking
nuts clockwise to
secure panels - more
than 1/2 a turn.
8
9
7
C
C
9
8
A
A
7
8
9
x 3
x 3
x 3
x 3

7
Assembly Instructions
5
Step 4
Drawer Back
(W378-195)
(37.8 x 19.5cm) x 3
Left Drawer
Side (W330-195LH)
(33 x 19.5cm) x 3
Right Drawer
Side (W330-195RH)
(33 x 19.5cm) x 3
8
Drawer Front (DF3039)
(40.5 x 24cm) x 3
7 9 10
E
E
Fit the drawer base
Slide the drawer base
down the grooves in the
large drawer sides
and and down into
the groove in the large
drawer front .
Step 5
Fit the large drawer
back
Fit the large drawer back
. between the large
drawer sides and .
Make sure that the
drawer base fits into
the groove in the large
drawer back .
Hold the large drawer
back in position and
tap the knock-in pegs
through the holes in the
large drawer sides
and .
11
8
9
7
10
8 9
11
10
10
E
8
9
9
8
11
9
10
11
8
E
E
Step 6
Step 7
Fit the wedgefixes
Turn the 3 drawer
assemblies over and
slide 2 wedgefixes
into the front and back
grooves, as shown, and
tighten up the screws.
F
F
F
F
x 3
x 3
x 3
x 3
Attach the handles
Attach the handle to
each drawer front
using screws .
G
7
R
G
G
7
R

Assembly Instructions
6
Step 8
D
D
Finished
front edge
Finished
front edge
Finished
front edge
I
N
I
N
I
N
I
I
I
Prepare the divider
a: Place 3 runners on
the divider as shown.
Slide back the top of
runner and use the 2nd
hole from the front to fit
the 1st screw .
b: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the divider .
c: Insert 4 large locking
nuts into the divider
. .
Note: The arrow on the
locking nuts must point
towards the hole in the
edge of the panel.
Tap 4 wooden dowels
into the divider .
Note: Wooden dowels
must not stick out from
the edge by more than
10mm or they may
damage other panels.
3
I
I
3
3
3
N
Na:
b:
I
N
B
B
B
B
D
10mm
D
D
B
D
B
3
3
3

Assembly Instructions
7
Step 9
L
L L

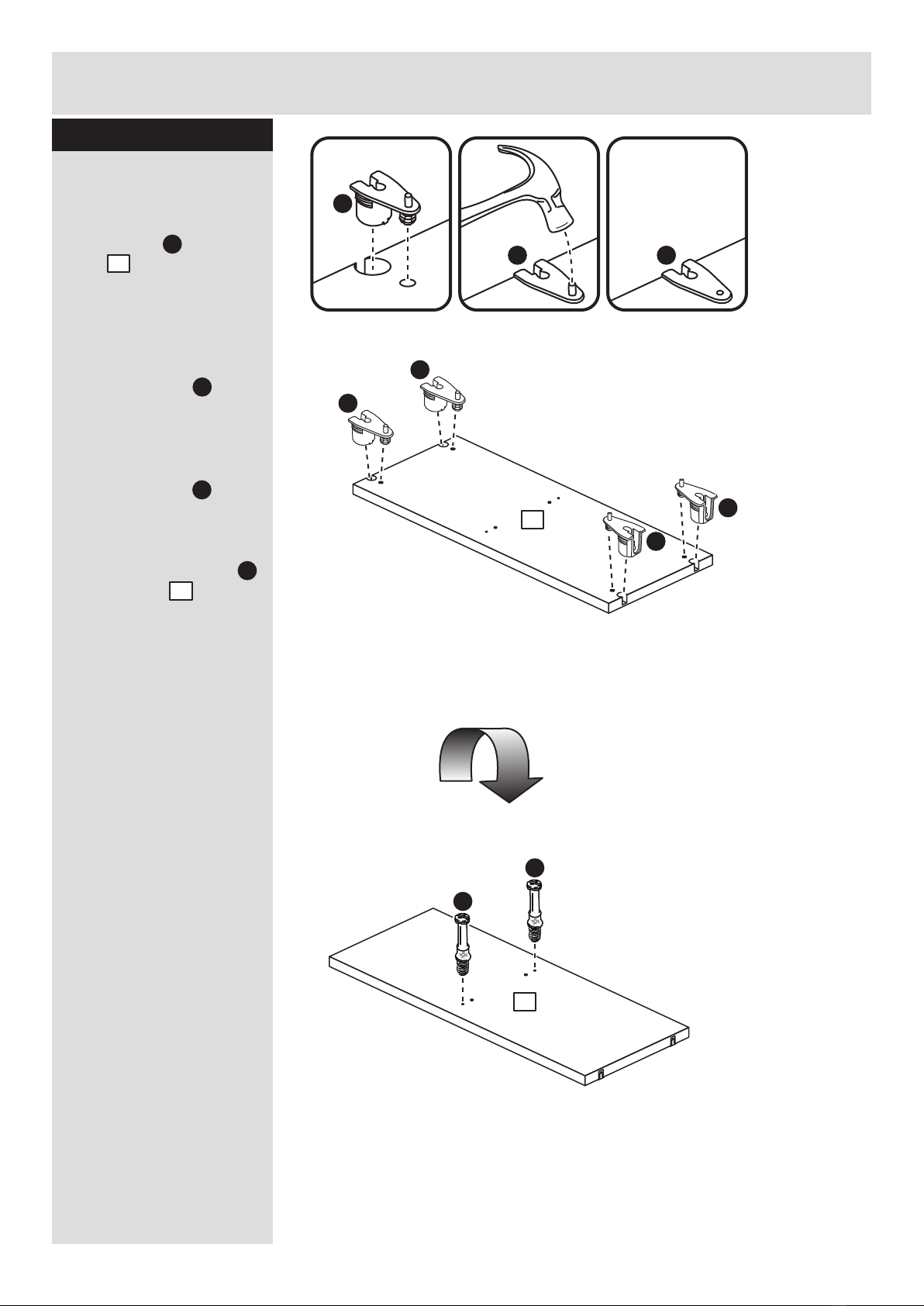

Prepare the base
Push 4 hollow core
locking nuts into the
base , making sure
that they are flush
against the panel’s
surface.
Using a hammer, tap in
the pin on the hollow
core locking nut .
Note: The pin should be
tapped in flush with the
top surface of the hollow
core locking nut .
Turn the base over
Screw 2 metal dowels
into the base .
L
L
5
L
A
5
L
L
L
Turn the base over
5
L
5
A
A

Assembly Instructions
8
Step 10
Fit the divider to the
base
Push the divider onto
the base .
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the divider .
Note: Turn the large
locking nuts as far as
they will go - more than
1/2 a turn.
Finished
front edge
L
L
K
K
O
O
O
Step 11
Prepare the left side
Screw 2 small metal
dowels into the left
side .
Push 2 hollow core
locking nuts into the
left side , making sure
that they are flush
against the panel’s
surface.
Using a hammer, tap in
the pin on the hollow
core locking nut .
Fit 2 hinge plates onto
the left side , making
sure that the slot is
facing towards the
finished front edge.
K
1
L
L
1
O
1
1
Finished
front edge
Finished
front edge
A
B
5
3
B
B
3
5
3

Assembly Instructions
Step 12
L
L

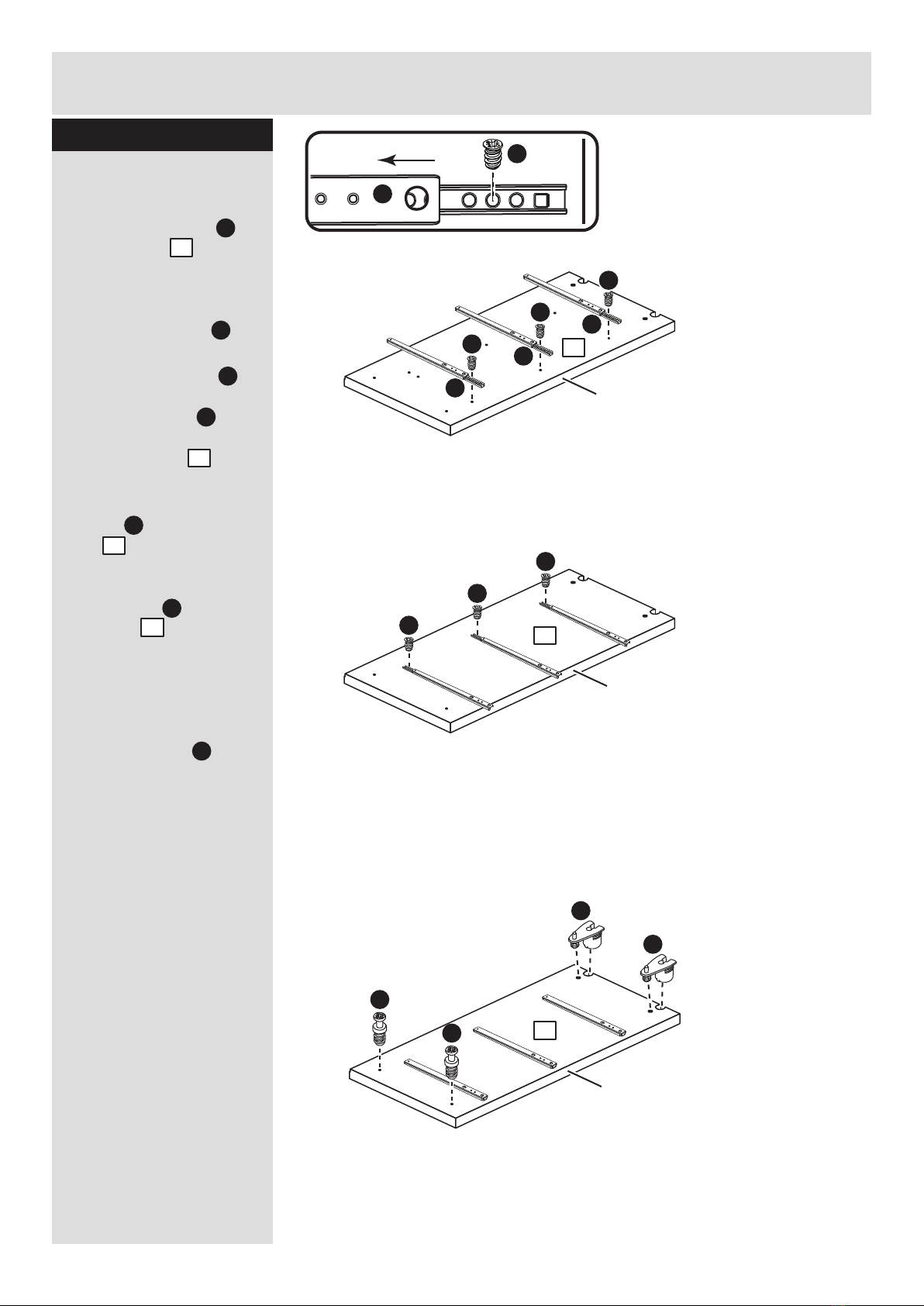

Prepare the right side
a: Place 3 runners on
the right side as
shown. Slide back the
top of runner and use the
2nd hole from the front
to fit the 1st screw .
b: Slide the runner
back the other way and
fit the 2nd screw into
the corresponding hole
in the right side .
c: Screw 2 small metal
dowels into the right
side .
Push 2 hollow core
locking nuts into the
right side , making
sure that they are flush
against the panel’s
surface.
Using a hammer, tap in
the pin on the hollow
core locking nut .
2
I
I
2
N
Na:
b:
c:
I
N
I
N
I
N
I
NFinished
front edge
I
I
I
Finished
front edge
K
K
Finished
front edge
K
2
L
L
2
2
2
2
9

Assembly Instructions
10
Step 13
Step 14
Finished front edge
Fit the base to the
right end
Push the base onto
the right end .
The 2 small metal dowels
. fitted to the right end
. must slide into the
top of the 2 hollow core
locking nuts fitted to
the base . .
Insert a screwdriver into
the 2 hollow core locking
nuts and turn the nuts
inside as far as they will
go.
K
L L
2
5
K
2
L
5
L
2
5
Prepare the top
Screw 2 metal dowels
into the top .
Screw 4 small metal
dowels into the top .
A
4
A
A
K
K
K
K
K44
Finished
front edge

Finished front edge
Assembly Instructions
Step 15
11
2
34
Finished front edge
1
4
Fit the top
Push the top onto the
right end and the
divider .
The 2 hollow core
locking nuts fitted to
the right end must
slide over the 2 small
metal dowels fitted to
the top . .
Insert a screwdriver into
the 2 hollow core locking
nuts and turn the nuts
inside as far as they will
go.
Use a screwdriver to
tighten the 2 large
locking nuts fitted to
the divider .
3
2
4
L
2
K
4
B
3
L
Fit the left side
Push the left side
onto the top and the
base .
Insert a screwdriver into
the 4 hollow core locking
nuts and turn the nuts
inside as far as they will
go.
4
5
1
L
Step 16
5

Assembly Instructions
12
Step 17
b:
Fit the back
a: Square up the unit by
making sure that
measurement x to x
equals y to y.
b: Place the back
onto the unit.
Nail around the
outside edges of the
back .
Note: Nails should be
spaced about 150mm
apart.
Stand the unit up for
the next step.
13
M
The measurement from top corner X to bottom corner X must be
equal to the measurement from top corner Y to bottom corner Y
a:
13
yy
xx
yy
xx
M
13
Fit the drawers
Starting with the bottom
drawer, slide both the
runners forward and
locate the drawer
sides and
between them, lining up
the holes in the drawer
wrap with the 2nd
'threaded' holes in the
runners .
Working from the inside
of the drawer, insert 2
screws through the
drawer sides and out into
the 2nd threaded hole in
the runner.
Note: Do not overtighten
the screws .
If they catch on the
runner you may need to
loosen them slightly.
H
N
N
H
2nd threaded
hole
N
H
8 9
I
I
13
14
H
H
Step 18
Warning: The
unit is heavy.
Lift with care.
8
9

Assembly Instructions

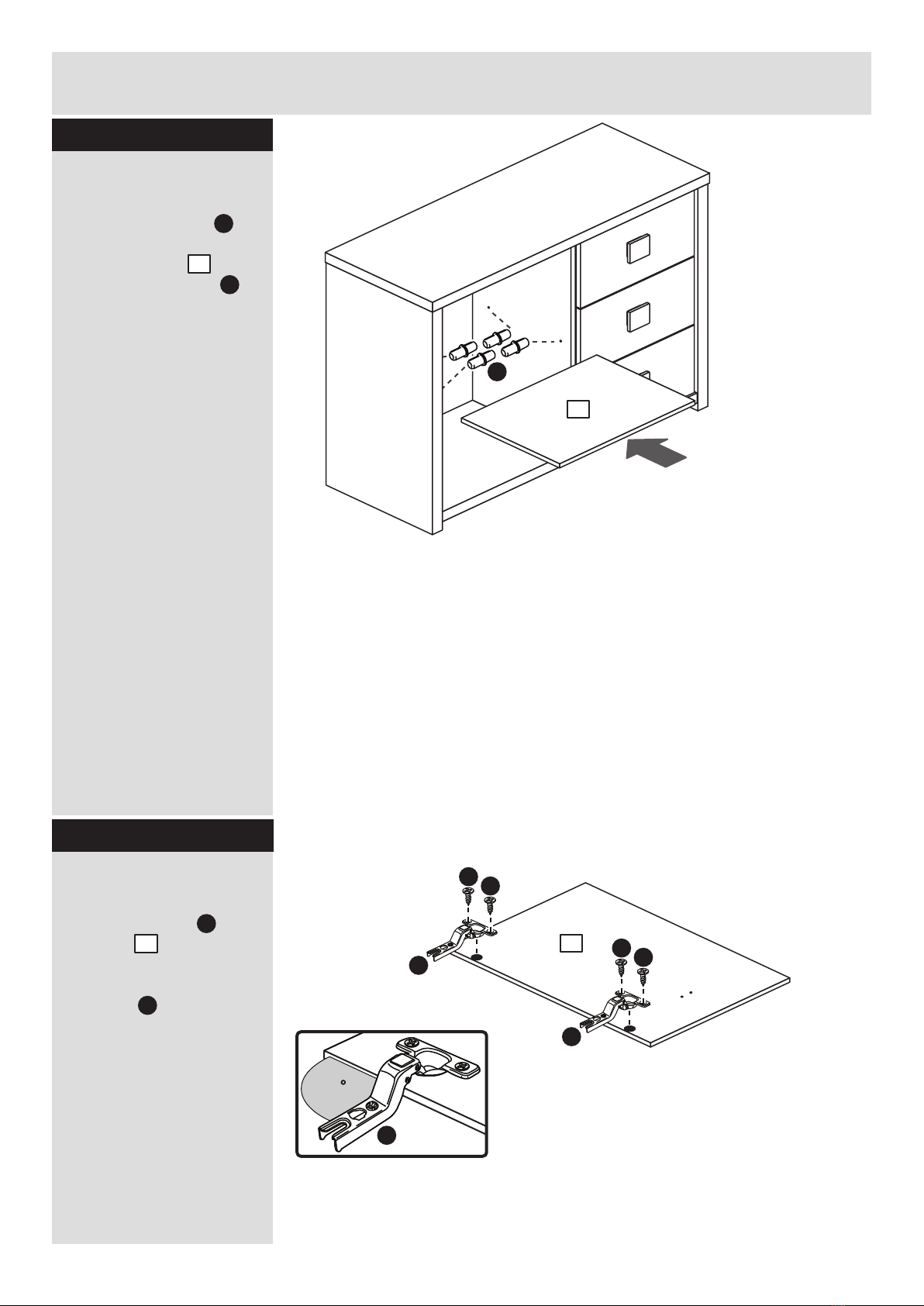

Step 19
13
Fit the shelf
Insert 4 shelf studs .
Lower the shelf down
onto the shelf studs .
Q
Qx 4
6
Q
6
Prepare the door
Push fit 2 hinges into
the door .
Secure each hinge with
2 screws .
Note: Before securing
with the screws, make
sure that the hinges are
positioned at 90 degrees
with the edge of the
door.
J
P
12
90
P
Step 20
P
J
J
P
J
J
12

G
G
R
12
Assembly Instructions
14
Step 21
I
I
13
14
Fit door and handle
Note: The easiest way to
attach the door is to
fit the top hinge first,
then align and fit the
bottom hinge.
a: Push the hinge
onto the front part of the
hinge plate .
b: Keep the hinge
FLAT against the hinge
plate as you slide it
across as far as it will go.
Tighten screw A.
c: The hinge must be
flat against the hinge
plate prior to any
adjustment.
d: The hinge must
NOT be AT AN ANGLE
to the hinge plate
when assembled.
This would indicate that
the recess at the bottom
of screw B had not
located in the slot in the
hinge plate and the hinge
would not be secure.
Remove the hinge from
the hinge plate and then
re-assemble being
careful to follow
instructions a-c.
e: Attach a handle to
the door using screws .
P
P
P
O
O
O
P
O
R
G
12
e:
a: b:
c: d:
O
P
O
O
B
O
P
P
P
A
P
O
B

Assembly Instructions
Step 22
15
b:
c:
d:
a:
Adjust the door if
needed
a: Before adjusting the
door, use a spirit level to
check the top (or base)
of the unit is level, front-
to-back and side-to-side
in the 3 positions shown.
Use suitable packing
pieces (not supplied) to
make the unit level
BEFORE making any
adjustment to the hinges,
as shown.
b: Height adjustment.
Loosen screws A on
hinge plates and move
door up or down as
required.
Retighten screw A.
c: Forward and Back
adjustment.
Loosen screw B on hinge
plate and move door in
or out as required.
Retighten screw B.
d: Sideways
adjustment.
To move door ‘out’
loosen screw C.
To move door ‘in’ tighten
screw C.
A
A
B
C

Assembly Instructions
16
Step 23
If you need help or have damaged or missing parts, please visit www.argos-support.co.uk
or email: [e-mail] (quoting your original order number)
Alternatively, call the Spares Helpline on: 0370 112 1928.
For any other queries please contact the Customer Helpline on: 0345 640 2020
Fit the overbalance
protector kit
To prevent possible
overbalancing we
recommend that this unit
is secured to a suitable
wall by fitting of the
overbalance protector kit
. to the unit, or an
alternative fixing method
of your choice.
Wall fixings are not
supplied as they will
need to suit the wall
type.
Note: Take care when
drilling the wall that you
do not drill into any
pipes, wires etc.
If in doubt, consult an
expert.
Assembly is complete
S
Attach the
strap to the unit
Attach the
strap to the wall
Wall fixing
(not supplied)
Washer
Strap Strap
SS
Example
Screw
(not supplied)
Washer
Screw
UNIT

ALR3156
