Eden ED-505 User manual

Model#:ED-505
Portable Speaker
USER GUIDE
____________________________________________
BASS BOOM POWER COLORS LIGHTS
INSTRUCTION MANUAL

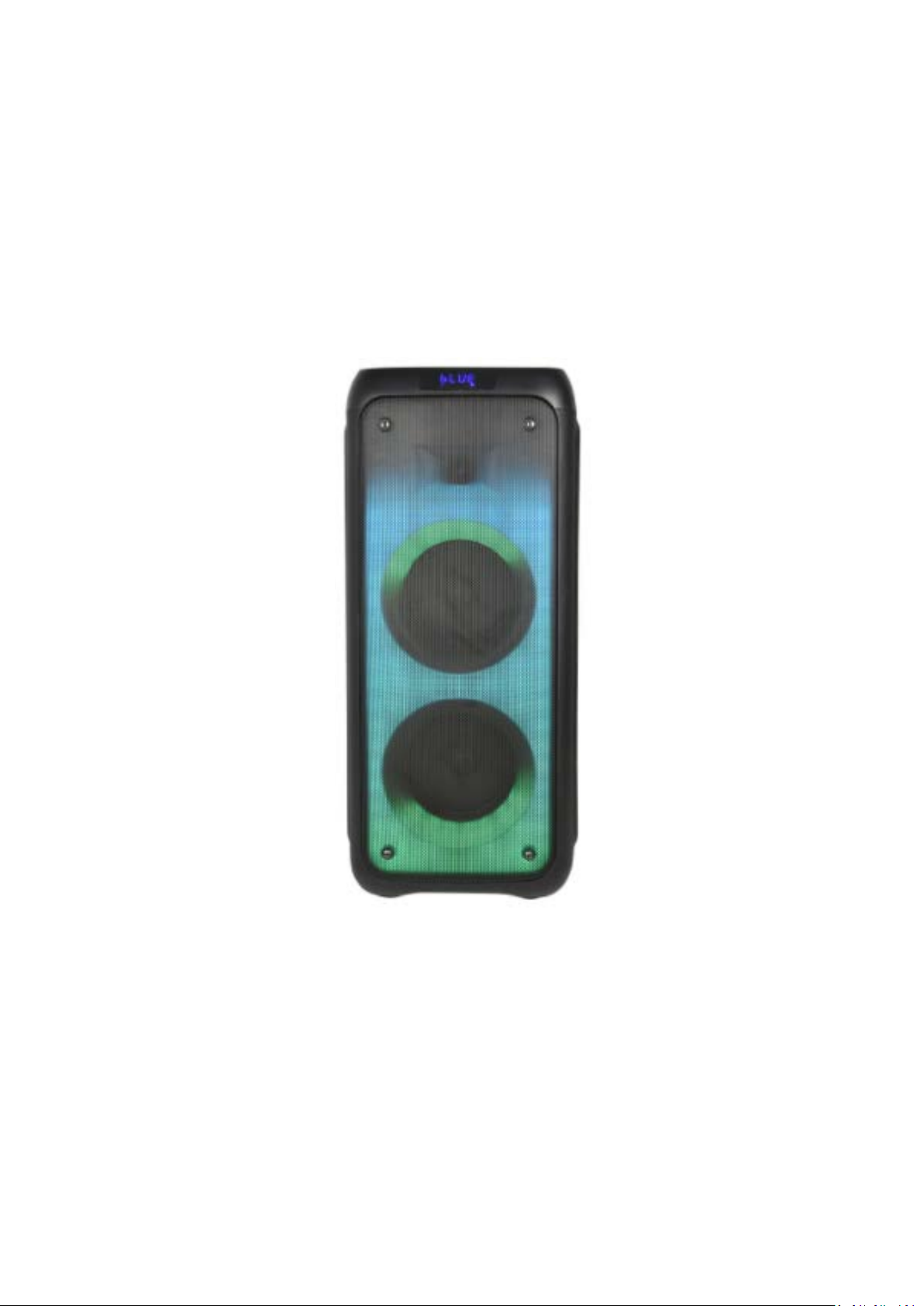

*The picture is only provided for reference. Please refer to actual the unit!

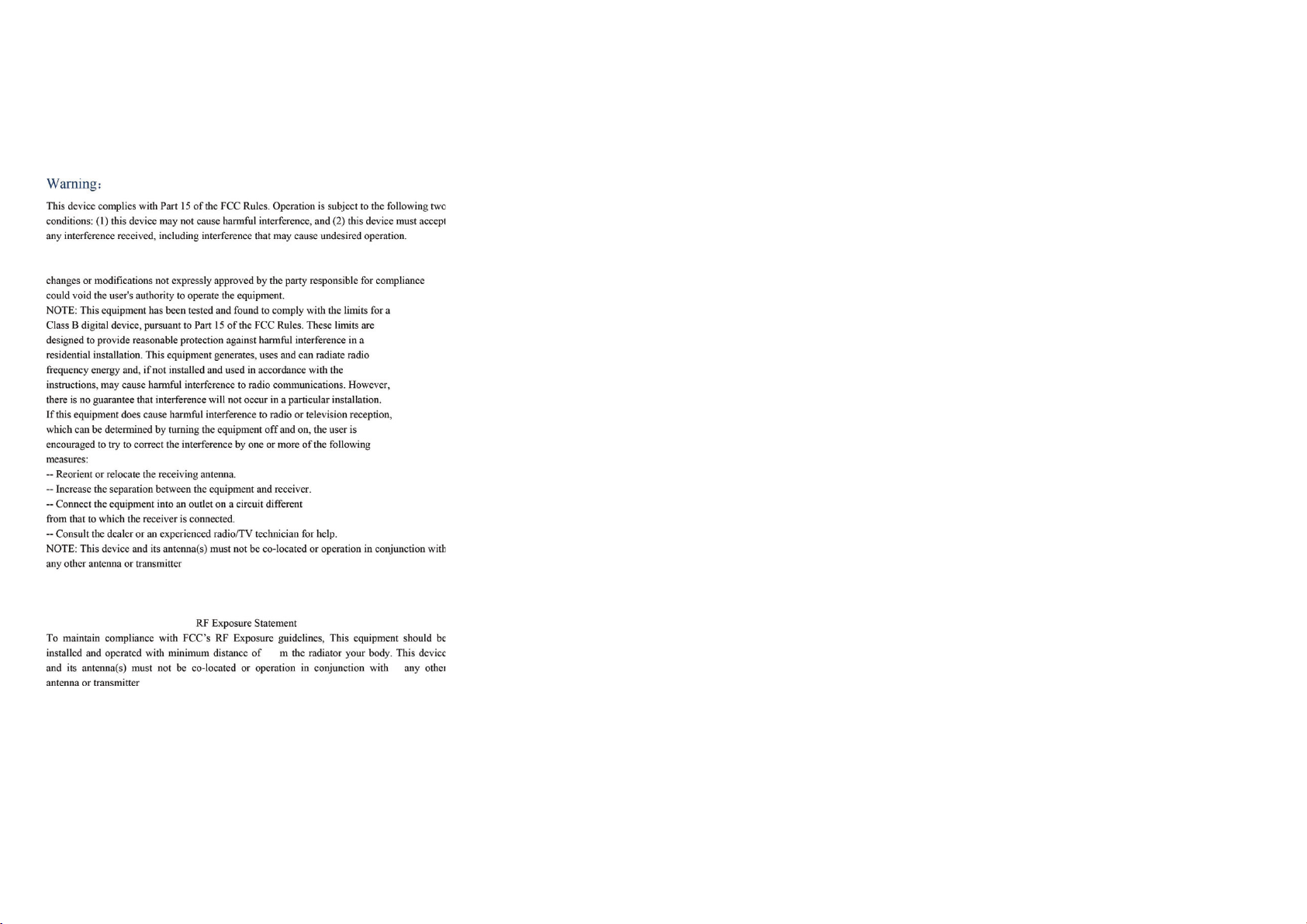

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Accessories

Speaker Unit x1
Instruction Manual x1
Adapter x1
Remote Control x1
Specification:
5.5" +5.5" woofer,
2" tweeter
Battery:7.4V/5,400mA
Power:32W RMS
3.5mm Aux-in
TWS function: Wireless connection, up to 2pcs speakers playing together to enable
sound to be double
USB/Micro SD Card play; FM Radio, Bluetooth connect
Support USB version: USB2.0, USB3.0, up to 64GB storage.
Support Micro SD card up to 64GB storage.
Microphone inputx2
BASS/Treble/Microphone Volume/Echo control
Product Dimension:25x24.2x59.5cm
Product net weight:5.8KG
Play time: 3.5 hours at 100% volume
Charging time:6 hours
Matters need attention:
Keep the speaker far away from flame ignition source, water-drop, water-splash.
It is strictly prohibited to open the speaker without professional guidance.
Top panel operation

1:Microphone Input
2:Microphone Input
3:Aux-in(3.5mm)
4:TF/Micro SD Card input
5:USB Play back
6:DC 9V input(charging slot)
7:Charging indicator(red-low power/charging, green-full)
8:Power on/off
9:Short press to Record songs from microphone to USB/TF, press again to play
recording, long press again to delete recording
10:Microphone priority(when playing USB/TF and press this button, the microphone
volume will override songs in USB/TF
11:MODE switch
12:TWS function(check last part of user manual to see operation)
13:Light effect switch and on/off.
14:MENU(Bass/Treble/MIC volume/MIC bass/MIC treble/MIC echo),long press this
button to restore factory settings
15:MIC volume
16:Short press to get previous song, long press to fast backward

17:Short press to play/pause under USB/TF/BT, and press once to scan all stations
and store automatically in FM mode.
18: Short press to get next song, long press to fast forward
19:Main Volume.
Remote control
1.Mute
Available to be mute at any mode.
2.Previous Song
Under USB/TF card mode -previous song.
Under BT connection mode- previous song.
3.Mode
Press shortly to skip to Wireless BT/LINE IN/USB/TF /FM mode.
4.Record function
Under USB mode, press the “REC” button to record
5. Echo-
Press to decrease the volume in any mode.
6.BASS+/-

Press to increase or decrease the bass.
7.EQ function
Press to switch between the different EQ settings.
8. Microphone Volume+/-
Press to increase or decrease the microphone volume.
9. Stand by
10.Pause&Play
Pause/Play and press once to scan all stations and store automatically in FM mode.
11.Next song
Under USB/TF card mode -next song.
Under BT connection mode- next song.
12.Light mode
Light effect switch and on/off
13.Repeat function
Press to repeat one song or repeat all songs.
In Wireless BT mode, this button has no function.
14.Record play
In USB mode, press to play the record.
15.Record delete
In USB mode, press to delete the record.
16.Echo+
Press to increase the Echo in any mode.
17.Microphone priority
When the Microphone is in use, press once to take priority over the music
program, press again to turn off this function.
18.Treble+/-
Press to increase or decrease the Echo in any mode.
19.Main Volume
20.Number buttons
Under USB/TF mode to choose songs.
In other modes, these buttons have no functions.
OPERATING INSTRUCTIONS
●Wireless BT Pairing Mode:
Press MODE or Blue button on the unit or the remote control until BT is selected.
1. Put the cell phone within 10 meters;
2. Activate the BT features on your cell phone so that the cell phone starts to search for the BT
device. Please refer to the users' manual for details
3. Select the correct model No. (ED-505)The device found by the cell phone;
4. Shortly press PLAY/PAUSE button to play or pause music. Short press “ ” or “ ”

key to select the previous or next track.
●LI N E I N M ODE:
Press the MODE button on the unit or the remote control until the LINE is selected. Play the
music of the device connected to the LINE input.
●USB /TF CARD Mode :
1.After start-up, press mode button to select 'USB or TF card' mode, or insert the USB or TF card
in this speaker, the unit will play the songs automatically.
2. Press “ ” key shortly to pause or play.
3. Shortly press “ ” key to the previous song.
4. Shortly press “ ” key to the next song
●FM Mode
-Turn on the power and press the MODE button repeatedly to select the FM function
(the frequency is displayed on the display).
-Press the play button to activate the automatic memorization (the tuner searches
for stations available and memorizes automatically). The number of memorized
stations depends on the reception in your area.
-Use the next/previous buttons to listen to the memorized stations.
-To select a memorized station directly, press the corresponding numeric key on
the remote control.
●TWS Mode
1. Turn on these 2 speakers together, press TWS button on top panels of one
speaker, speaker display will show 'BLUE' .
2. Turn on your Bluetooth devices, and put these Bluetooth devices near the speaker
within 10 meters.
3. Search the pairing name (ED-505 )from your Bluetooth devices, and tap to connect
it.

4. Press TWS button on the other speaker, this speaker display will show 'BLUE' and
keep blinking, you will hear 'ding dong' after both speakers connected successfully,
and 'BLUE' on display will stop blinking .
5. Now you can play songs from your Bluetooth devices.
6. Long press TWS button from any device to disconnect TWS function.
Note：
The speaker connect to your Bluetooth devices that means that it is Host speaker.
The other speaker is assistant speaker.
