EdgeStar AP10002BL User manual

EdgeStar, 8606 Wall St, Suite 1800, Austin, TX 78754
support.edgestar.com • [email protected] • edgestar.com
*Warrantyserviceshouldbeperformedbyanauthorizedservicerepresentativeonly.
SERVICE MANUAL
EdgeStar Small Room 115V Portable Air
Conditioner with Dehumidifier
MODEL:
AP10002BL
Document Type: Service Manual
Version: V1.0 04112018
CAUTION: READ ALL SAFETY PRECAUTIONS IN THIS
MANUAL BEFORE SERVICING THE UNIT

1
CONTENTS
CONTENTS....................................................................................................................................... 1
SAFETY PRECAUTIONS..................................................................................................................... 2
ELECTRICAL SAFETY..................................................................................................................... 3
GENERAL SAFETY......................................................................................................................... 4
1 SPECIFICATIONS ........................................................................................................................... 5
2 EXPLODED VIEW AND PARTS LIST................................................................................................ 7
3 WIRING DIAGRAM........................................................................................................................ 9
4 PCB DIAGRAM ............................................................................................................................ 10
5 REFRIGERANT SYSTEM DIAGRAM .............................................................................................. 10
6 MODES AND OPERATING CONDITIONS ..................................................................................... 11
6.1 TEMPERATURE PARAMETERS INDOOR............................................................................... 11
6.2 COOLING MODE.................................................................................................................. 11
6.3 DRY MODE........................................................................................................................... 11
6.4 FAN MODE .......................................................................................................................... 11
6.5 AUTO MODE........................................................................................................................ 12
6.6 TIMER MODE....................................................................................................................... 12
6.7 SLEEP MODE........................................................................................................................ 12
6.8 FREEZE PREVENTION MODE ............................................................................................... 12
6.9 COMPRESSOR PROTECTION MODE .................................................................................... 12
6.10 OVERFLOW PREVENTION MODE ...................................................................................... 12
7 TROUBLESHOOTING................................................................................................................... 13
7.1 TROUBLESHOOTING GUIDE ................................................................................................ 13
7.2 ERROR CODES ..................................................................................................................... 14
8 UNIT DISASSEMBLY ................................................................................................................ 17

2
SAFETY PRECAUTIONS
WARNING: This manual and the information contained herein is intended for use
by certified technicians. The manufacturer or seller is not responsible for the
interpretation or misuse of the information provided, nor does it assume any
liability in connection with its use.
The safeguards and warnings indicated in this manual do not cover all possible
conditions which may occur. Common sense, caution, and care must be
exercised.
To prevent electric shock, always unplug an appliance from the power supply before attempting
any service.
Disconnect the power cord by grasping the plug, not the cord.
Do not bypass, cut, or remove the grounding plug.
Prevent water from spilling onto electric elements or the machine parts.
Always refer to the rating label on the appliance for rated current and voltage.
Always check line voltage and amperage.
Always use exact replacement parts.
Any attempt to repair a major appliance may result in personal injury and property damage.

3
Electrical Safety
Do not exceed the power outlet ratings.
It is recommended that the unit be connected to its own circuit.
A standard electrical supply that is properly grounded in accordance with the National Electrical Code
and all state and local codes and ordinances is required.
Do not use outlets that can be turned off by a switch or pull chain.
Always turn the unit off and unplug it from the outlet when cleaning.
Unplug the unit if it is not going to be used for an extended period of time.
Do not operate the unit with a power plug missing the ground plug, a damaged cord, or a loose socket.
Be sure the appliance is properly grounded.
Do not bypass, cut, or remove the grounding plug.
If the power cord is damaged, it must be replaced by the manufacturer or a qualified technician.
Do not use extension cords or power strips with this unit. You may need to contact an electrician if it is
necessary to use a longer cord or if you do not have a properly grounded outlet. Do not modify the
power cord’s length or share the outlet with other appliances.
Do not start or stop the unit by switching the electrical circuit’s power on and off.
Immediately unplug the unit if it makes strange sounds, emits an odor or smoke and contact customer
service.
Do not remove any part of the casing unless instructed by an authorized technician.
Before the appliance is removed from service or discarded, remove any doors and cut off the power
cord.

4
General Safety
Always unplug an appliance from the power supply before attempting any service. Disconnect the
power cord by grasping the plug, not the cord.
Do not allow children or pets to play on or in the appliance.
This machine is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the machine by a person responsible for their safety.
Do not install or store this appliance where it will be exposed to the weather.
Disconnect from the power socket before cleaning or maintenance.
If the plug (power cord) is damaged, it must be replaced by the manufacturer or an authorized service
representative.
This machine shall be repaired only by an authorized service representative. Only genuine
replacement parts should be used.
If connected to a circuit protected by fuses, use time-delay fuses with this appliance.
Do not lean items against the glass door.
Please do not close the door with excessive force. If it is found difficult to close the door, please check
for obstruction.
When you plan to dispose of this unit in the future, please comply with the local waste disposal
regulations. Remove any doors so that children and pets will not be trapped in the unit.

5
1 Specifications
Parameter
Unit
Value
Model
AP10002BL
Power
Supply
Rated Voltage
V~
115
Rated Frequency
Hz
60
Phases
1
Cooling Capacity
Btu/h
10000
Heating Capacity
Btu/h
/
Cooling Power Input
W
1120
Heating Power Input
W
/
Cooling Power Current
A
9
Heating Power Current
A
/
Rated Input
W
1280
Rated Current
A
12.6
Input of Heater
W
/
Air Flow Volume(H/M/L)
CFM
230/200/180
Dehumidifying Volume
Pint/h
2.54
EER
(Btu/h)/W
8.9
COP
(Btu/h)/W
/
SEER
W/W
/
HSPF
W/W
/
Application Area
yd2
16 37/50-24
Climate Type
T1
Isolation
I
Moisture Protection
IPX0
Design Pressure Hi. Side
P.S.i
550
Design Pressure Low Side
P.S.i
240
Throttling Method
Capillary
Defrosting Method
/
Fuse
A
3.15
Operation Temp
ºF
61~86
Ambient Temp (Cooling)
ºF
64~95
Ambient Temp (Heating)
ºF
/
Sound Pressure Level (H/M/L)
dB (A)
53/51/49
Sound Power Level (H/M/L)
dB (A)
63/61/59
Dimension (WXHXD)
inch
13 2/5X30 5/7X15 1/2
Dimension of Carton Box (L/W/H)
inch
15 5/8X21 1/2X31 1/2
Dimension of Package (L/W/H)
inch
15 3/4X21 2/3X32
Net Weight
oz
882
Gross Weight
oz
1094
Refrigerant
R410A
Refrigerant Charge
oz
18.3

6
The above data is subject to change without notice. Please refer to the rating label on the unit.
Compress
or
Compressor Model
YZG-A082AFY2D2T1
Compressor Oil
RB68EP
Compressor Type
Rotary
L.R.A.
A
35
Compressor RLA
A
7.4
Compressor Power Input
W
830
Overload Protector
HPA-336
Evaporator
Fan Type
Centrifugal
Diameter Length(DXL)
inch
5 3/4;4 1/4
Fan Motor Speed(H/M/L)
r/min
1190/1090/990
Output of Fan Motor
W
45
Fan Motor RLA
A
0.6
Fan Motor Capacitor
µF
10
Form
Aluminum Fin-copper Tube
Pipe Diameter
inch
2/7
5RZ-¿Q *DS
inch
3-1/19
Coil Length (LXDXW)
mm
14 2/5X1 1/2X9
Swing Motor Model
/
Output of Swing Motor
W
/
Condenser
Fan Type
Centrifugal
Fan Diameter
inch
7 2/7X3
Form
Aluminum Fin-copper Tube
Pipe Diameter
inch
2/7
5RZV-¿Q *DS
inch
2-1/16
Coil Length (LXDXW)
inch
13 9/10X1 1/2X10 /1/2
Fan Motor Speed
rpm
/
Output of Fan Motor
W
/
Fan Motor RLA
A
/
Fan Motor Capacitor
µF
/

7

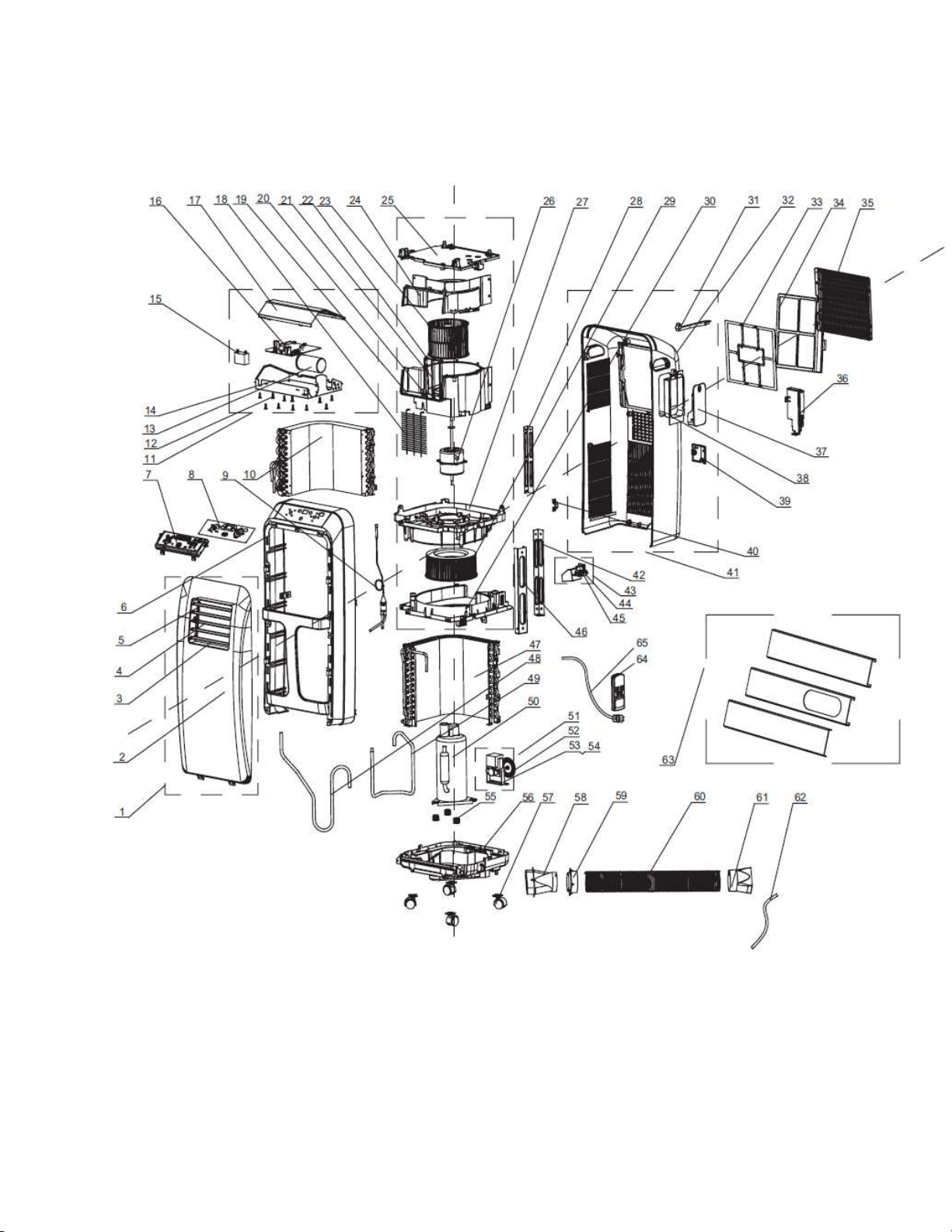

2 Exploded View and Parts List

8
No.
Part Name
No.
Part Name
1
Front Panel Assembly
34
Filter Sub-assembly 2
2
Front Panel 2
35
Front Grill
3
Guide Louver 7
36
Water Retaining Box
4
Guide Louver 6
37
Cover of Remote Control Box
5
Guide Blade Lever 2
38
Remote Control Box
6
Front Case
39
Cable Cross Plate
7
Display Board
40
Wire Clamp
8
Membrane
41
Rear Plate Assembly
9
Capillary Assembly
42
Supporting Board 2
10
Evaporator Assembly
43
Water level switch sub-assembly
11
Electric Box Assembly
44
Water level switch base
12
Partition Pole (PC board)
45
Water Level Switch
13
Capacitor CBB65
46
Supporting Board 3
14
Electric Box Sub-Assembly
47
Condenser Assembly
15
Capacitor CBB61
48
Discharge Tube Sub-assembly
16
Main Board
49
Inhalation Tube Sub-assembly
17
Electric Box Cover
50
Compressor and Fittings
18
Rear Grill
51
Motor Sub-assembly(Flutter)
19
Propeller Housing(Lower)
52
Splash Water Flywheel
20
Air Louver 2
53
Motor holder (Shaded Pole Motor)
21
Air Louver 1
54
Fan Motor
22
Swing Lever
55
Compressor Gasket
23
Centrifugal Fan
56
Chassis Assembly
24
Propeller Housing(Upper)
57
Castor
25
Cover of Propeller Housing
58
Rear Clip B
26
Fan Motor
59
Plastic Pipe End
27
Motor Holder
60
PP hose
28
Supporting Board 1
61
Joint
29
Centrifugal Fan
62
Drainage Hose
30
Diversion Circle
63
Back Plate
31
Filter Support
64
Remote Controller
32
Rear Plate
65
Power cord
33
Filter Sub-assembly 1

9

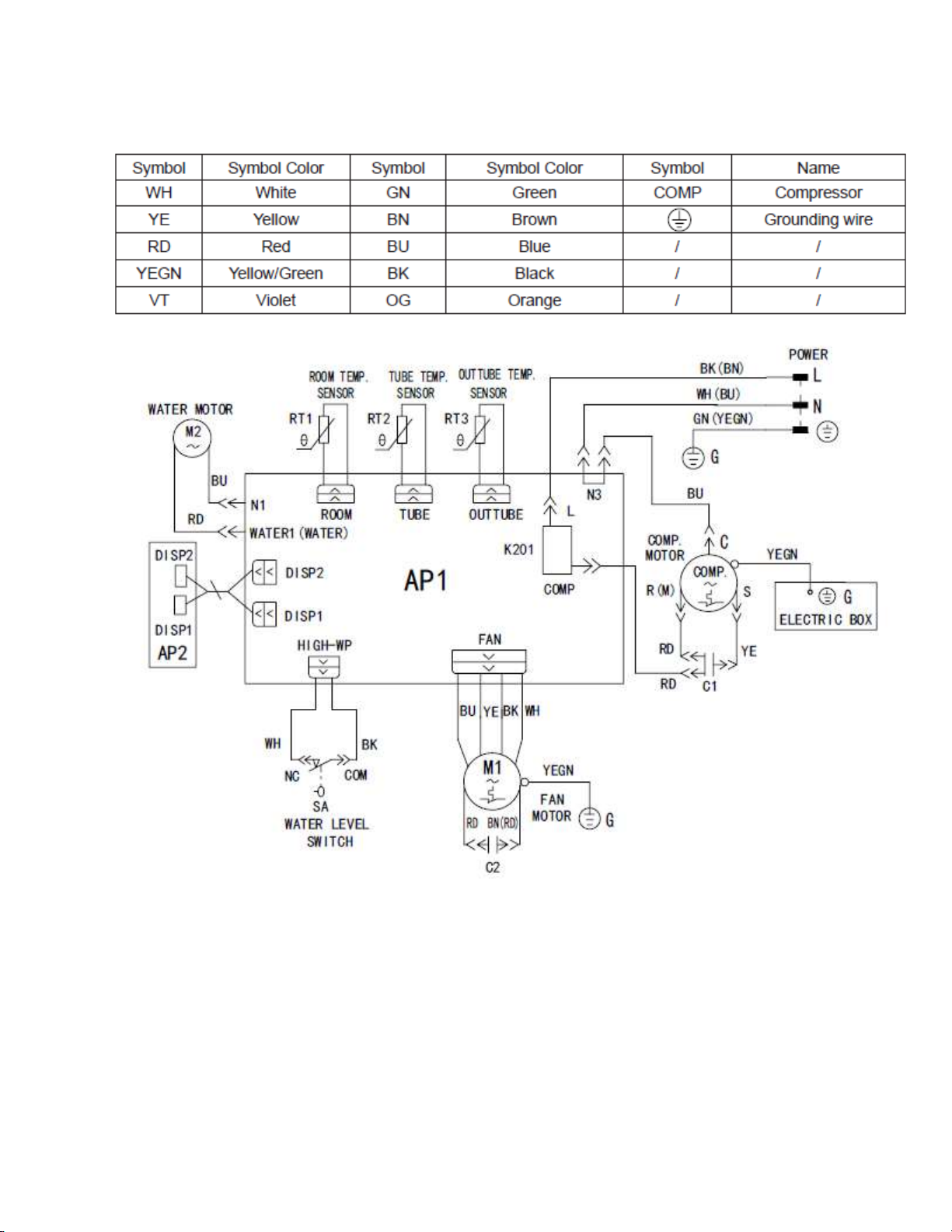

3 Wiring Diagram

10

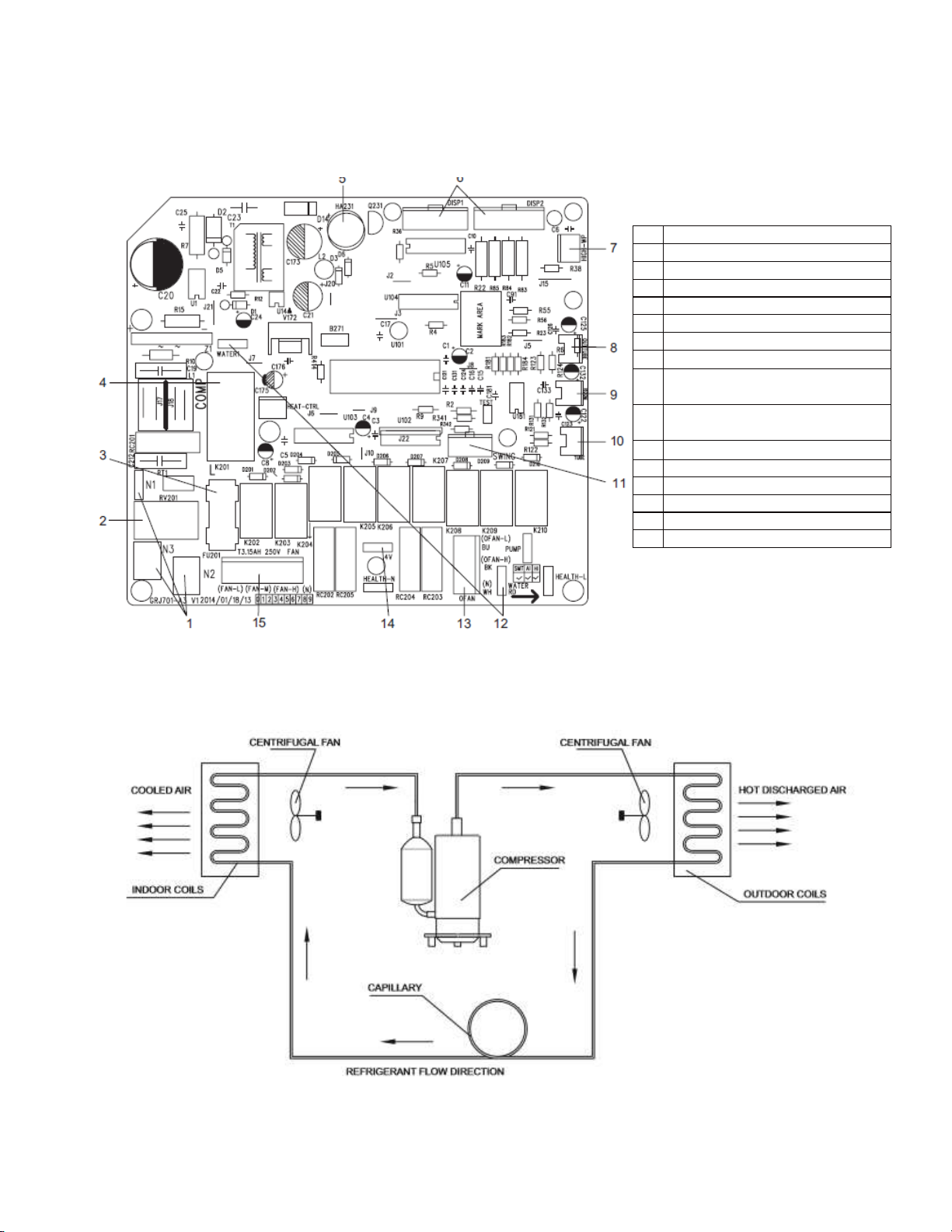

4 PCB Diagram
5 Refrigerant System Diagram
No.
Item
1
Neutral wire connectors
2
Varistor
3
Fuse
4
Compressor relay
5
Buzzer
6
Display board connectors
7
Water level switch connector
8
Condenser temperature sensor
connector
9
Room/ambient temperature
sensor connector
10
Frost sensor connector
11
Louver/Stepping motor
connector
12
Flinger/Draw water motor
connector
13
Condenser fan connector
14
NA for this model
15
Evaporator fan connector

11
6 Modes and Operating Conditions
6.1 Temperature Parameters Indoor
preset temperature (Tpreset)
Indoor ambient temperature (Tamb.)
6.2 Cooling Mode
When Tamb ≥ Tpreset +1ºC(2ºF) the unit operates in cooling mode. The compressor runs and
the indoor fan operates at the set fan speed.
When Tamb ≤ Tpreset -1ºC(2ºF) the compressor and outdoor fan stop, while the indoor fan
operates at the set fan speed.
When Tpreset-1ºC(2ºF) < Tamb < Tpreset+1ºC(2ºF) the unit stays in its current operating mode.
Under cooling mode the temperature can be set between 61 and 86ºF (16-30ºC).
6.3 Dry Mode
Under this mode the set temperature and ambient temperature won’t be displayed. The indoor fan
operates at low fan speed. The compressor and outdoor fan operate continuously.
6.4 Fan Mode
In this mode the set temperature and ambient temperature won’t be displayed. The indoor fan operates at
the set fan speed.

12
6.5 Auto Mode
In auto mode standard cooling Tpreset=77ºF(25ºC); standard heating Tpreset=68ºF(20ºC)
When Tamb > 79ºF(26ºC) the unit runs in auto cooling mode.
When Tamb < 68ºF(20ºC) the unit runs in auto fan mode.
If the unit is operating in fan mode and 68ºF(20ºC) ≥ Tambient ≥ 73ºF(23ºC), the unit will stay in
fan mode. If the is not running in fan mode it will change to dry mode.
When 79ºF(26ºC) ≥ Tamb ≥ 74ºF(24ºC) the unit runs in auto dry mode
6.6 Timer Mode
Timer ON is set with the unit OFF. The unit will turn ON when the set time is reached. The timer
set range is 0.5-24hr in 30-minute increments.
Timer OFF is set with the unit ON. The unit will turn OFF when the set time is reached. The timer
set range is 0.5-24hr in 30-minute increments.
6.7 Sleep Mode
Press the Sleep Button to enter sleep mode. The Sleep Mode can be activated when in Cool Mode or
Heat Mode and will not operate when in Fan Mode. When operating in Cool Mode, the Sleep function will
slowly raise the Temp Control by 4° Fahrenheit over the initial 2 hour Sleep Mode period. When operating
in Heat Mode (AP13500HG only), the Sleep function will slowly lower the Temp Control by 4° Fahrenheit
over the initial 2 hour Sleep Mode period. When the Sleep Mode is active, the LCD will continue to display
the Sleep Mode status.
6.8 Freeze Prevention Mode
Under freeze prevention mode the compressor stops running and the indoor fan operates at set fan
speed. After the evaporator thaws the unit will return to normal operation.
6.9 Compressor Protection Mode
If power is interrupted, the compressor will only restart after a 3 minute delay.
6.10 Overflow Prevention Mode
When water is detected in the reservoir for 3 seconds overflow prevention will occur. The malfunction
code H8 will be displayed.

13
7 Troubleshooting
7.1 Troubleshooting Guide
Problem
Possible Cause
Solution
Unit does not turn on.
Wall plug is disconnected.
Insert plug firmly into proper wall outlet.
House fuse blown or circuit breaker
tripped.
Replace fuse with time delay type or reset circuit
breaker.
Power cord is tripped.
Press the RESET button on the power cord. If
power cord is damaged replace power cord.
Unit is turned OFF.
Turn unit ON and set to desired setting.
Ribbon cable to control panel is
disconnected.
Remove outer shell and reconnect cable.
Loose or disconnected wiring on main
PCB.
Remove outer shell. Check all connections to the
PCB and reconnect any loose or disconnected
leads.
Condensate water tray is full and/or
display shows H8 error code.
Drain condensate water. Make sure water level
switch is operating correctly and not stuck in “full”
position or being interfered with.
Ambient temperature sensor has
malfunctioned and/or display shows
F1 error code.
Check sensor wiring connection on PCB. Replace
sensor if defective.
Poor cooling (or
heating)
performance.
Room temperature is below
61ºF(16ºC) or above 86ºF(30ºC).
Cooling will not occur until room temperature rises
above 61ºF(16ºC.) Heating will not occur until
room temperature falls below 86ºF(30ºC).
Fan speed is set too low.
Increase fan speed to improve air flow.
Set temperature is too high (or too
low.)
Set to a Lower (or higher) temperature.
Filter is dirty.
Clean filter.
Refrigerant leak. Display shows F0
error.
Find leak and repair. Recharge with refrigerant.
Evaporator is frosted.
The unit needs to defrost and will resume normal
operation after defrost mode is finished.
Unit continues to
operate after water
tray is full or water full
Water level switch is open or short
circuited.
Check water level switch connections or replace
water level switch if defective.
Water level switch is stuck in “empty”
position.
Make sure water level switch is operating correctly
and not stuck or being interfered with.

14
protection (H8 error)
occurs frequently.
Water flinger motor is defective.
Replace water flinger motor.
Fan louvers do not
swing.
Wire connections faulty.
Check wire connections. Repair or tighten any
broken or loose connections.
Fan swing motor damaged.
Replace motor.
Sounds or vibration.
When unit is turned on or off the outer
shell “pops” or “clicks.”
Normal sound. Outer shell is contracting or
expanding and will stop after a few minutes.
When unit is turned on or off “boiling”
or “running water” is heard.
Normal sound. The cause is refrigerant flowing
inside the system and will stop after a few minutes.
Foreign objects inside the unit are
interfering with fans or other moving
parts.
Remove foreign objects.
Compressor vibration.
Tighten bolts holding compressor to chassis.
Room too cold (or too
hot.)
Set temperature is too low (or high.)
Adjust the set temperature.
7.2 Error Codes
Code
LED
Indication
Malfunction
Possible Causes and Solutions
F1
LED blinks
once then off
for 3
seconds.
Indoor ambient
temperature sensor
is open/short
circuited.
Sensor connection is loose or disconnected.
Reconnect any loose or disconnected wires.
Sensor wire is damaged. Repair wire or replace
sensor.
Sensor is defective. Replace sensor.
Main PCB is defective. Replace PCB.
F2
LED blinks
twice then off
for 3
seconds.
Evaporator
temperature sensor
is open/short
circuited.
Sensor connection is loose or disconnected.
Reconnect any loose or disconnected wires.
Sensor wire is damaged. Repair wire or replace
sensor.
Sensor is defective. Replace sensor.
Main PCB is defective. Replace PCB.
F4
LED blinks
four times
then off for 3
seconds.
Condenser
temperature sensor
is open/short
circuited.
Sensor connection is loose or disconnected.
Reconnect any loose or disconnected wires.
Sensor wire is damaged. Repair wire or replace
sensor.

15
Sensor is defective. Replace sensor.
Main PCB is defective. Replace PCB.
F0
NA
Low refrigerant
charge due to leak
or defect.
Find leak and repair.
Recharge refrigerant.
H3
NA
Compressor
overload protection.
The coils are dirty or the air inlet or outlet is
blocked. Clean coils and/or move/remove
obstructions.
Fan is not running or set too low. Increase fan
speed or replace fan if defective.
Compressor is defective. Replace compressor.
Refrigerant leak. Repair leak and recharge system.
Restriction in refrigeration system. Locate and clear
restriction, then recharge refrigerant.
Water flinger motor defective or fly wheel
obstructed. Clear obstructions, repair alignment of
motor or replace if defective.
H8
LED blinks
eight times
then off for 3
seconds.
Condensate water
overflow protection.
Water reservoir is
full.
Water reservoir full. Drain water from unit.
Level switch stuck or being interfered with. Remove
any obstructions from water tray and/or unstick
switch. Make sure switch is free to move as water
level changes.
Loose or disconnected switch wiring. Repair
connections.
Level switch is defective. Replace switch.
Main PCB is defective. Replace PCB.
E5
LED blinks
five times
then off for 3
seconds.
Overload
malfunction.
Unstable power supply voltage or supply voltage
too low. Requires certified electrician to adjust
supply voltage to within proper operating
parameters.
The coils are dirty or the air inlet or outlet is
blocked. Clean coils and/or move/remove
obstructions.
Fan is not running or set too low. Increase fan
speed or replace fan if defective.
Compressor is defective. Replace compressor.
Restriction in refrigeration system. Locate and clear
restriction, then recharge refrigerant.

16
E8
NA
Overload
protection.
The coils are dirty or the air inlet or outlet is
blocked. Clean coils and/or move/remove
obstructions.
Fan is not running or set too low. Increase fan
speed or replace fan if defective.
Compressor is defective. Replace compressor.
Restriction in refrigeration system. Locate and clear
restriction, then recharge refrigerant.
Ambient temperature is extreme.

17
8 Unit Disassembly

18

19
