EdgeStar AP13500HG User manual

i
Portable Air Conditioner
AP13500HG
Owner’s Manual
For more information on other great EdgeStar products on the web, go to http://www.edgestar.com

EdgeStar Portable Air Conditioner ii
Important Safety Information
Improper handling can cause serious damage to the appliance and/or to the
user. Please read the following safety information.
Your portable air conditioner is supplied with a Leakage-Current
Detection and Interruption (LCDI) safety plug. This device provides
protection to reduce the risk of fire due to arcing faults in the power
supply cord. Before using your portable air conditioner, follow the
instructions below to ensure that the LCDI plug is working properly:
1. Plug the power cord to a grounded outlet.
2. Press the TEST button on the LCDI plug. This should trip the
plug and cut the power to the air conditioner. If the plug does not
trip and you are able to turn on the unit, please contact EdgeStar
support.
DO NOT USE YOUR PORTABLE AIR CONDITIONER IF THE TEST FAILS.
Press the RESET button to start using your air conditioner.
Do not use the TEST and RESET buttons as an ON/OFF switch.
Electrical products should not be disposed of with household waste.
Please contact your local recycling center for more information on how
to recycle electronic waste.
RESET
TEST
Electrical Safety
This unit is designed for indoor use only.
Do not use the unit in extremely humid or wet environments.
Do not spray water and wet the housing or control panel.
Do not pull the unit by the cord.
Always turn the unit off and unplug it from the outlet when cleaning.
Unplug the unit if it is not going to be used for a long period of time.
Do not operate the unit with a damaged plug or a loose socket.
Use only the correct power supply with appropriate amperage.
If the power cord is damaged, it must be replaced by the manufacturer,
a service agent, or qualified technician.
Do not remove any part of the casing unless instructed by an
authorized technician.
General Safety
This portable air conditioner is not intended to be used by children.
Children should be supervised to ensure that they do not play with this
product.
Do not allow children to play with the controls or drop any objects into
the air outlets or vents.
Do not place objects or let any person sit on top of the unit.
Route the power cord carefully to avoid a tripping hazard.
Only use in the upright position on a flat, level surface and provide at
least 12 inches of clearance from any walls or objects.

iii
Table of Contents
IMPORTANT SAFETY INFORMATION................................................................II
INTRODUCTION ...................................................................................................1
PARTS IDENTIFICATION.....................................................................................2
FRONT VIEW........................................................................................................2
BACK VIEW..........................................................................................................2
PARTS INCLUDED ...............................................................................................3
PREPARATIONS FOR INSTALLING THE WINDOW KIT...................................3
WINDOW KIT INSTALLATION INSTRUCTIONS.................................................4
INSTALLATION IN A DOUBLE-HUNG WINDOW ..........................................................4
INSTALLATION IN A SLIDING WINDOW.....................................................................7

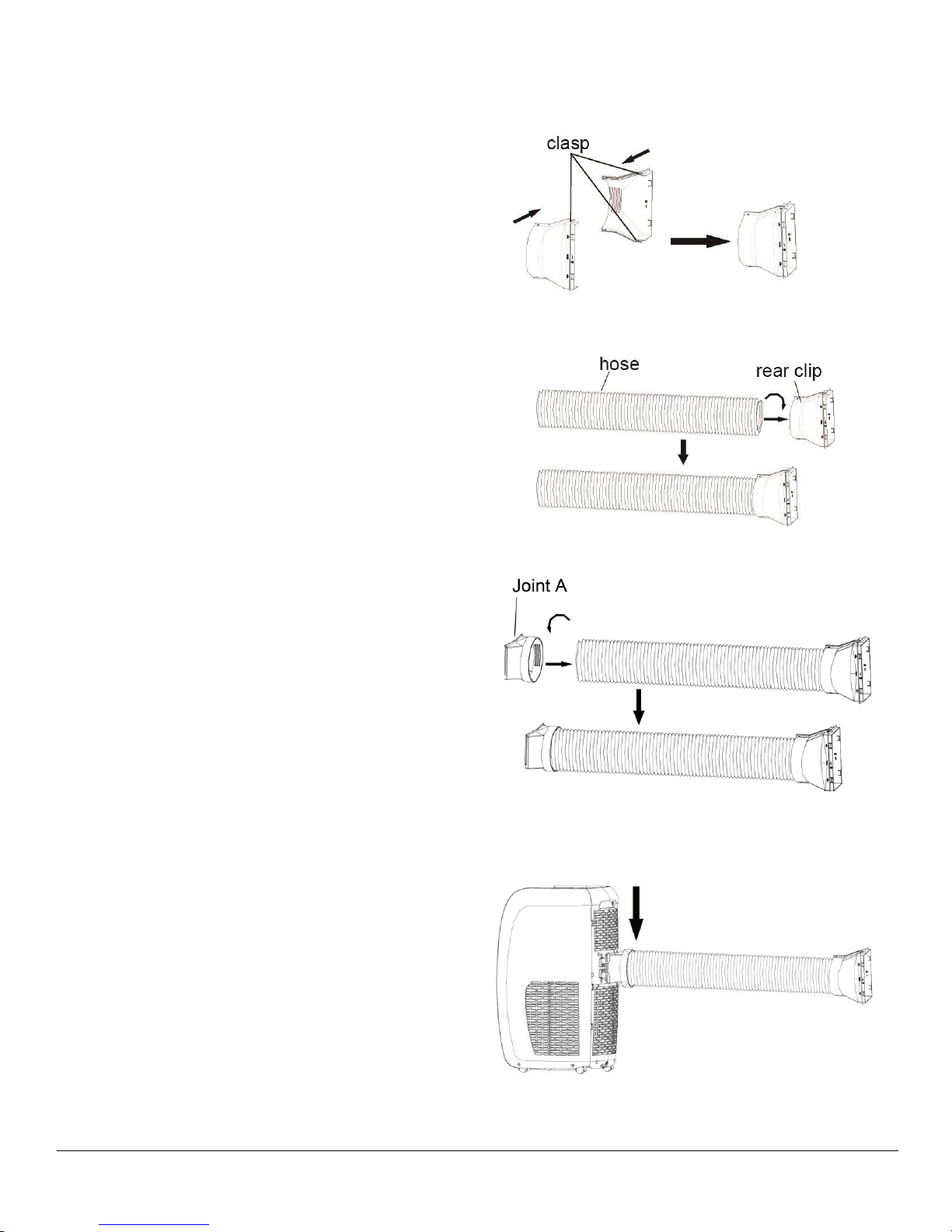

INSTALLATION OF THE EXHAUST HOSE.........................................................8
NOTES ABOUT THE EXHAUST HOSE ....................................................................10
DRAINING THE UNIT..........................................................................................12

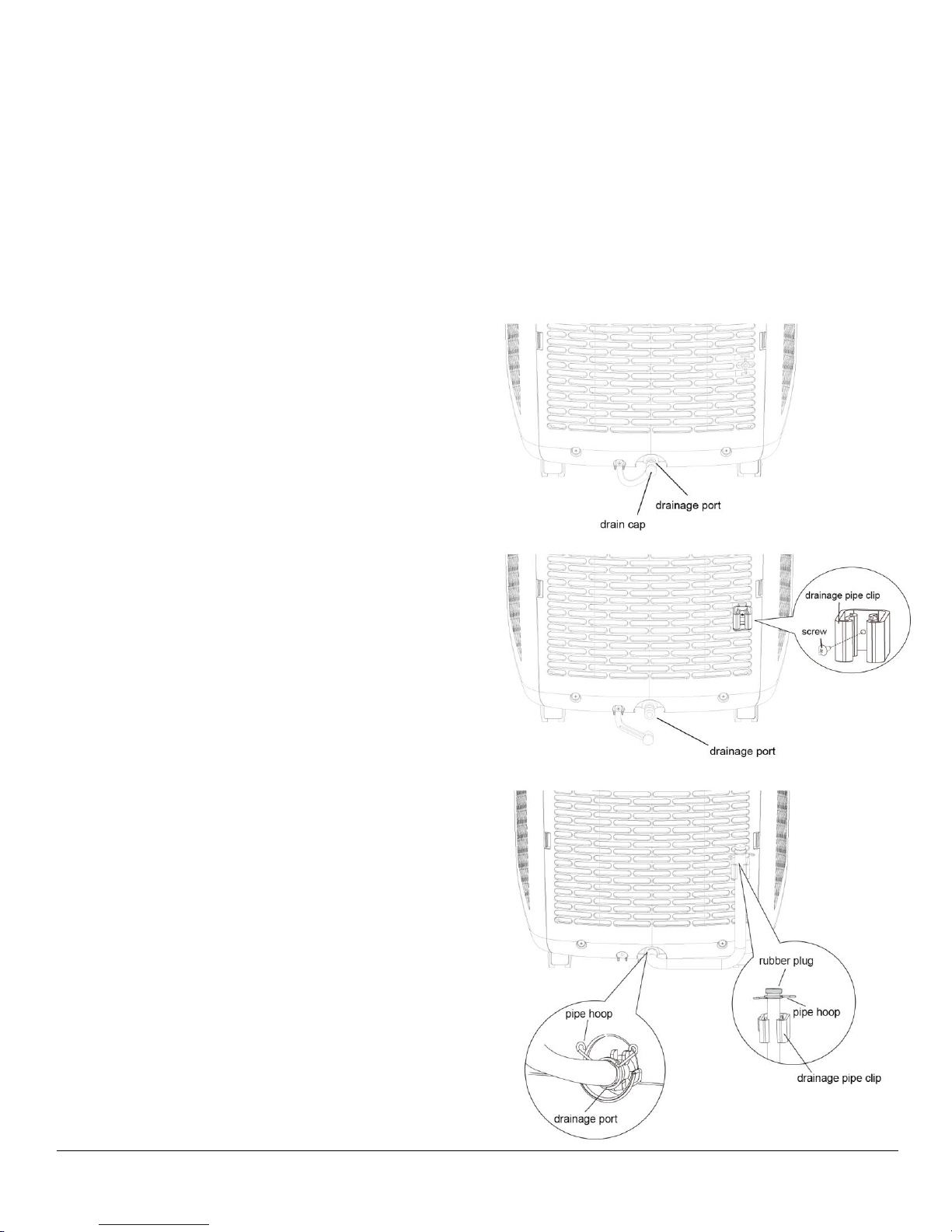

INSTALLATION OF DRAIN HOSE ...........................................................................12
MANUALLY DRAIN THE UNIT................................................................................13
FINISH INSTALLATION......................................................................................13
OPERATING INSTRUCTIONS: ..........................................................................14
CONTROL PANEL OVERVIEW ..............................................................................14

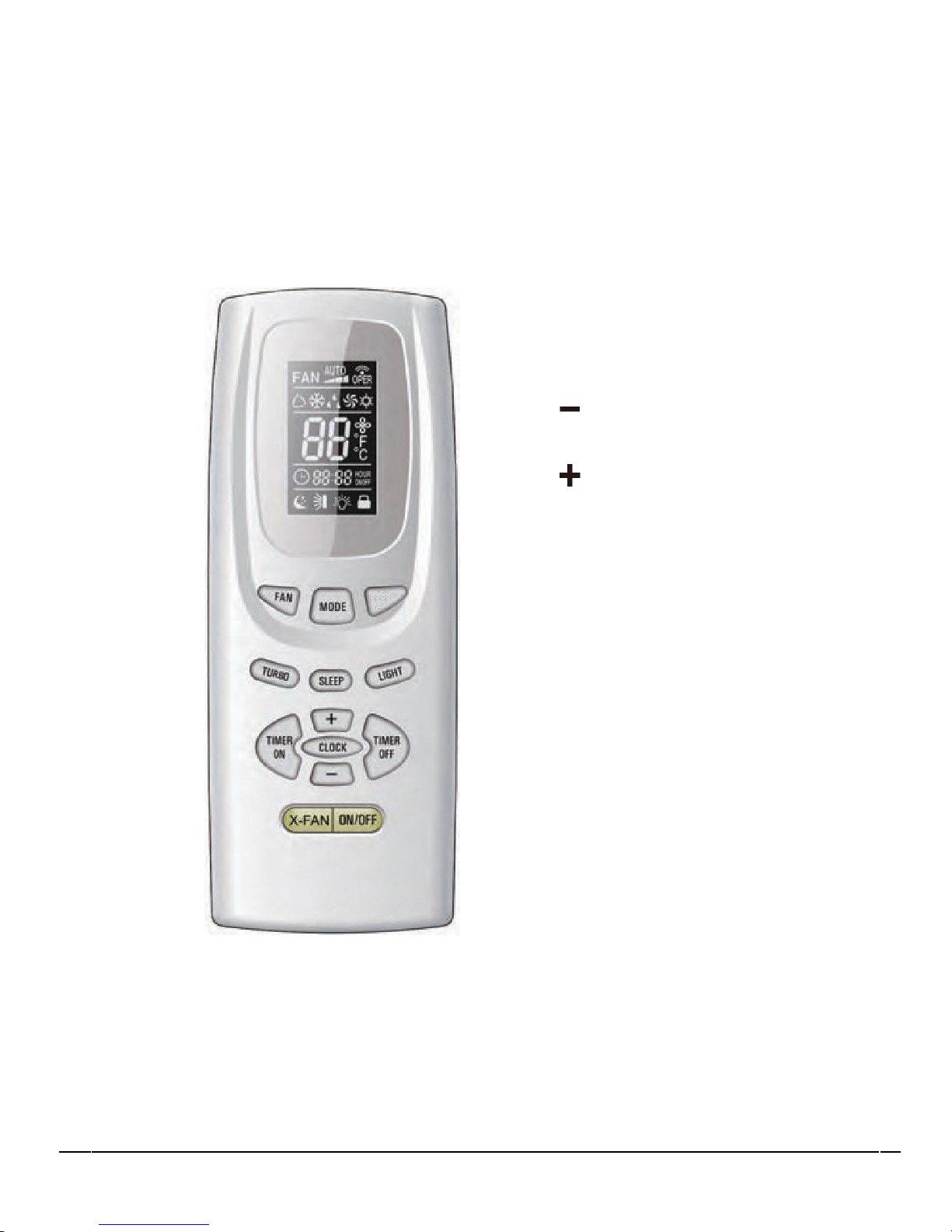

REMOTE CONTROL OVERVIEW ...........................................................................15
REPLACING THE BATTERIES................................................................................15
MODES AND FEATURES......................................................................................16
ENERGY SAVING GUIDE...................................................................................18
MAINTENANCE ..................................................................................................19
CLEANING THE PRE-FILTERS..............................................................................19
CLEANING THE EXTERIOR...................................................................................19
PREPARATION FOR STORAGE .............................................................................20
TROUBLESHOOTING ........................................................................................21
ERROR CODES ..................................................................................................23
SPECIFICATIONS...............................................................................................24
EDGESTAR LIMITED WARRANTY ...................................................................25

1
Introduction
Thank you for purchasing this EdgeStar portable air conditioner. We are glad you
chose us. We believe that your purchase of this product opens a relationship
between you and EdgeStar. We will provide the customer support needed to
nurture that relationship.
This manual contains important information regarding the proper installation, use
and maintenance of your portable air conditioner. Following this manual will
ensure that your product will work at its peak performance and efficiency.
Please save the original product packaging in case you need to safely transport
your portable air conditioner.
For Your Records:
Please write down the model number and serial number
below for future reference. Both numbers are located on the
ratings label on the back of your unit and are needed to
obtain warranty service. You may also want to staple your
receipt to this manual as it is the proof of your purchase, and
is also needed for service under your warranty.
Model Number:
Serial Number:
Date of Purchase:
To better serve you, please do the following before contacting customer service:
If you received a damaged product, immediately contact the dealer that
sold you the product.
Read and follow this instruction manual carefully to help you install, use
and maintain your portable air conditioner.
Read the troubleshooting section of this manual as it will help you
diagnose and solve common issues.
Visit us on the web at http://www.edgestar.com to register your
product, download product guides, additional troubleshooting resources
and up-to-date information.
If you need warranty service, our friendly customer service
representatives are available via email at [e-mail] or by
telephone at 1 [phone].

EdgeStar Portable Air Conditioner 2
Parts Identification
Front View
Back View
Parts Key:
1. Air outlet (Louver)
2. Control panel
3. Remote Control Sensor
4. Caster
5. Handle
6. Upper air inlet grille
7. Air exhaust outlet
8. Lower air inlet grille
9. Power Cord
3
7
5
6
8
1
4
2
9

3
Parts Included
Flexible Exhaust
Hose
Window Exhaust
Adapter
Protective Grille
(baffle)
Adjustable Window
Slider
Wood Screws (4)
“Joint A” Adapter
Foam Seal
(Adhesive Backed)
Foam Sash Seal
Window Lock
Bracket and Screw
Pipe Hoop (2)
Pipe Clip and
Screw
Drain Pipe
Rubber Drain
Stopper
Power Cord
Hook (2)
Remote Control
Holster
Remote Control
Battery
(AAA 1.5V)
User Manual
Preparations for Installing the Window Kit
You must vent your portable air conditioner when running it in Cool
or Dry (dehumidify) mode. Your unit includes a window exhaust kit
that can be used to vent moisture out a window.
Before you begin, make sure you have all the parts necessary for
installation.
If you have multiple windows, choose one that is near an electrical
outlet that will be able to provide sufficient power to your unit. See
the power requirements listed on the product label printed on the
side, or on the back of your portable air conditioner.
Please follow the installation instructions carefully to avoid personal
injury or damage.
NOTE: You may need to contact
your electrician if your room’s circuit
is not able to power your unit.
When positioning unit, please allow
for proper distance from wall as
shown below.
Suggested Tools- Phillips
Screw Driver (Medium
sized), Tape Measure/Ruler,
Scissors, Saw (In the event
that your window panel
needs to be cut down in size
for installation)

EdgeStar Portable Air Conditioner 4
Window Kit Installation Instructions
The window kit can be installed in either a double-hung sash
window or in a sliding sash window. Please refer to the instructions
below that pertain to your specific window type.
Installation in a Double-hung Window
2

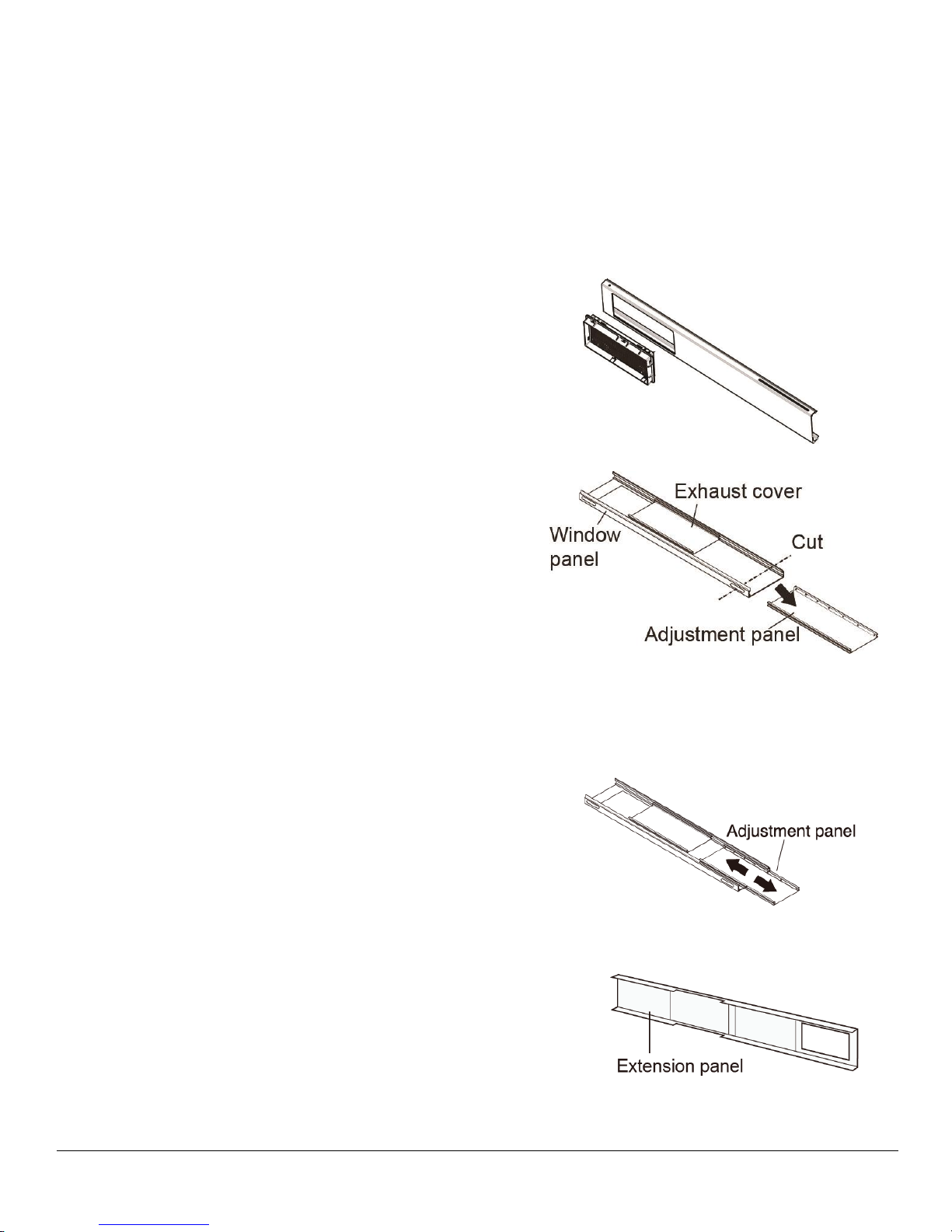

Assemble Window Panel
To assemble with window panel, start by
measuring the width of the window opening
where the window panel will be installed.
If the inner width of the window is
between 22” and 24” wide:
oRemove the adjustment panel
from the window panel, and cut
the window panel to the same
width as the window opening.
NOTE: The window panel cannot be installed in
windows less than 22” wide as you will be unable to
shut the exhaust cover
If the inner width of the window is
between 24” and 36” wide:
oSlide the adjustment panel to fit
the window frame width.
If the inner width of the window is
between 36” and 64” wide:
oAttach the extension panel to the
window panel.
oSlide the adjustment panel to fit
the window frame width.
1
Attach Grille
Attach the protective grille (baffle) to the
window panel. Push the grille firmly to
ensure that its four raised tabs are
attached firmly into the window panel.

5
3
Attach Foam Seal to Window Panel
There are 2 types of foam seal strips
included with your window panel kit.
Locate the foam seal that has the
adhesive backing. This will be used to
minimize air leakage on the top and
bottom edges of the window panel.
Verify your window panel has
been extended to the correct
width.
Cut the foam seal to the correct
length to cover the entire width of
the window panel.
Attach the adhesive backed foam
seal strip to both the top and the
bottom of the window panel.
4
Attach Window Panel to Window Sill
The window panel must now be secured
to the window sill with the screws
provided.
If the inner width of the window is
between 22” and 24” wide, attach
window panel to window sill with 2
wood screws.
If the inner width of the window is
between 24” and 36” wide, attach
window panel to window sill with 3
wood screws.
If the inner width of the window is
between 36” and 64” wide, attach
window panel to window sill with 4
wood screws.

EdgeStar Portable Air Conditioner 6

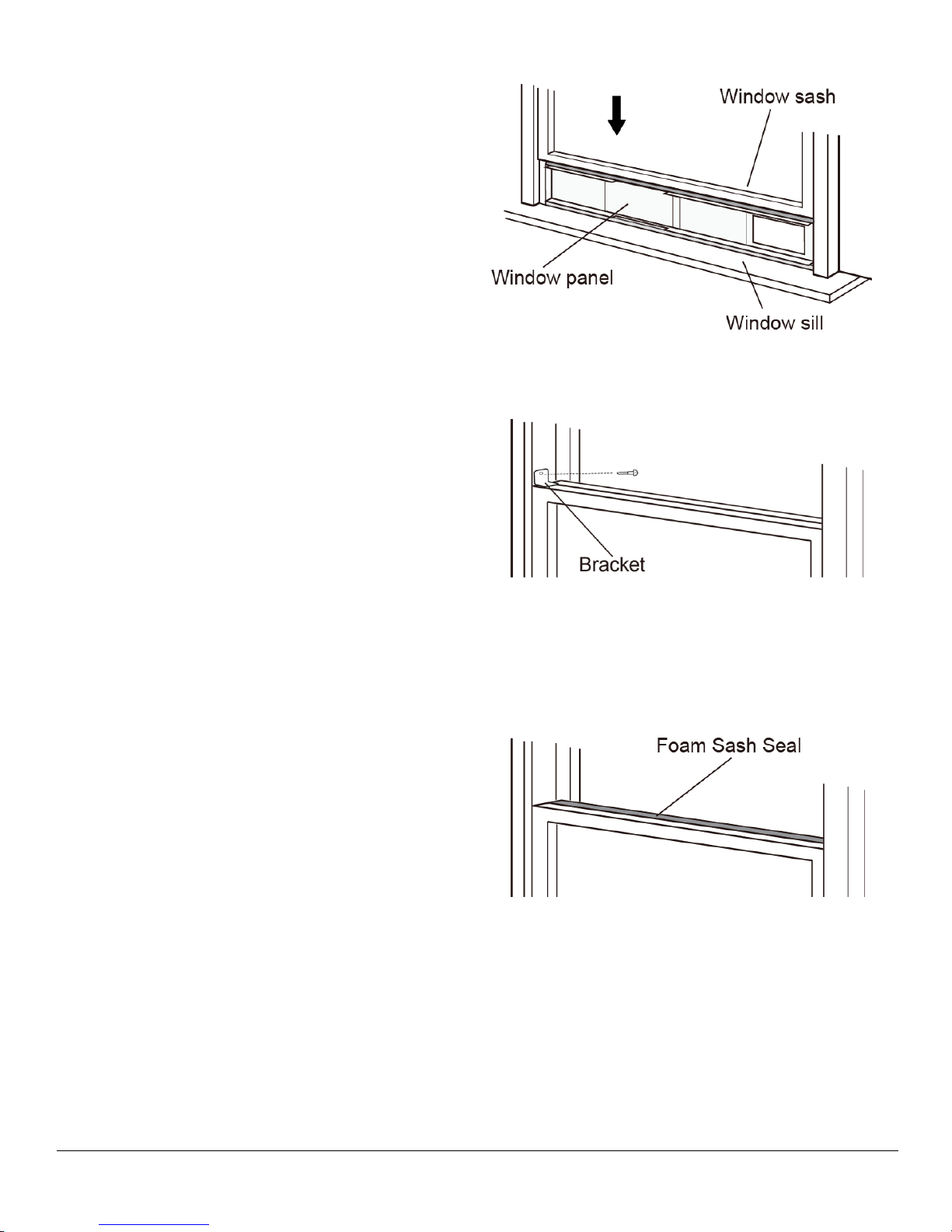

Close Window Sash
Close the window sash firmly
against the window panel.
5
Attach Window Lock Bracket
Ensure window sash is closed
firmly against Window Panel.
Place Window Lock Bracket as
shown in image.
Attach with screw.
6
Install Sash Seal
Cut the foam seal to the
appropriate length.
Insert between the top of the
inner window and outer
window to create a proper
seal.
Note: The sash seal is thicker than the
window panel seal and does not include
an adhesive backing.
7

7

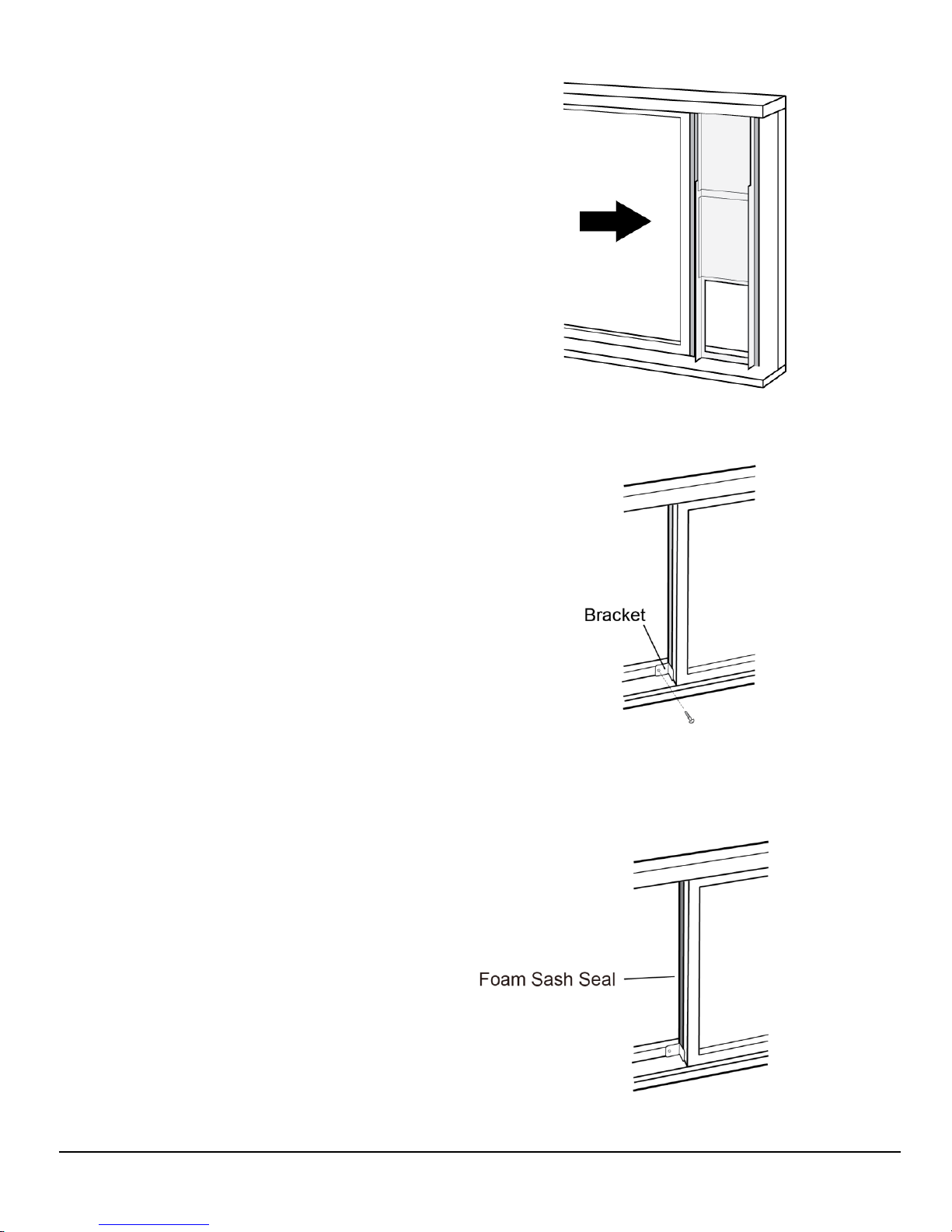

Installation in a Sliding Window
1
Attach Grille
Attach the protective grille (baffle) to the
window panel. Push the grille firmly to
ensure that its four raised tabs are
attached firmly into the window panel.
2
Assemble Window Panel
To assemble with window panel, start by
measuring the width of the window opening
where the window panel will be installed.
If the inner width of the window is
between 22” and 24” tall:
oRemove the adjustment panel
from the window panel, and cut
the window panel to the same
height as the window opening.
NOTE: The window panel cannot be installed in
windows less than 22” tall as you will be unable to
shut the exhaust cover
If the inner width of the window is
between 24” and 36” tall:
oSlide the adjustment panel to fit
the window frame height.
If the inner width of the window is
between 36” and 64” tall:
oAttach the extension panel to the
window panel.
oSlide the adjustment panel to fit
the window frame height.

EdgeStar Portable Air Conditioner 8
3
Attach Foam Seal to Window Panel
There are 2 types of foam seal strips
included with your window panel kit.
Locate the foam seal that has the
adhesive backing. This will be used to
minimize air leakage on the top and
bottom edges of the window panel.
Verify you window panel has been
extended to the correct width.
Cut the foam seal to the correct
length to cover the entire width of
the window panel.
Attach the adhesive backed foam
seal strip to both the top and the
bottom of the window panel.
4
Attach Window Panel to Window
Frame
The window panel must now be secured
to the window sill with the screws
provided.
If the inner width of the window is
between 22” and 24” wide, attach
window panel to window sill with 2
wood screws.
If the inner width of the window is
between 24” and 36” wide, attach
window panel to window sill with 3
wood screws.
If the inner width of the window is
between 36” and 64” wide, attach
window panel to window sill with 4
wood screws.

9
Close Window Sash
Slide the window sash firmly
against the window panel.
5
Attach Window Lock Bracket
Ensure window sash is closed
firmly against Window Panel.
Ensure window sash is closed
firmly against Window Panel.
Place Window Lock Bracket as
shown in image.
Attach with screw.
Place Window Lock Bracket as
shown in image.
Attach with screw.
6
Install Sash Seal
Cut the foam seal to an
appropriate length.
Insert between the top of the
inner window and outer
window to create a proper
seal.
Note: The sash seal is thicker than the
window panel seal and does not include
an adhesive backing.

7

EdgeStar Portable Air Conditioner 10
Installation of the Exhaust Hose
Assemble Window Exhaust
Adapter
Connect the two pieces of the
Window Exhaust Adapter.
Press each side together and
firmly snap the clasps into the
corresponding slots.
1
Attach Exhaust Hose to
Window Exhaust Adapter
Press the round end of the
Window Exhaust Adapter
against the end of the Exhaust
Hose.
Rotate the hose
counterclockwise into round
end of Window Exhaust
Adapter until firmly attached.
2
Attach “Joint A” Adapter to
Exhaust Hose
Press the round end of Joint A
against the open end of the
Exhaust Hose.
Rotate the hose
counterclockwise into Joint A.
3
Attach Hose Assembly to Unit
Align the cutout tabs on the
open end of Joint A with the
two tabs located on the air
exhaust outlet on the back of
the unit.
Press downward until the tabs
click securely in place.
To remove, press each of the
locking tabs and lift upward.
4

11
Notes about the Exhaust Hose
Your portable air conditioner is designed to exhaust condensate water that is collected from
the air. This water, in either gaseous or droplet form, will be expelled out the exhaust port of
the unit. Please take this into account when deciding how to vent it.
1. The exhaust hose supplied with the portable air conditioner can be extended up to 48
inches; however for maximum efficiency, use the shortest length possible.
2. Try to prevent any kinks or bends in the exhaust hose. Kinks or bends may trap exhaust air
which can radiate heat into the room or potentially cause the portable air conditioner to
overheat and shut itself off.
3. The exhaust hose supplied with the portable air conditioner has been specifically designed
for this air conditioner. Do not lengthen the hose by adding additional hoses or attachments or
replace it with any other hose.
Do not lengthen the
exhaust hose by adding
additional hoses or
attachments.
Warning: Longer hoses are not recommended.

EdgeStar Portable Air Conditioner 12
Draining the Unit
Moisture that is collected during the Cool and Dry (dehumidify) modes will condense in an
internal tank and will then be evaporated and exhausted out of the exhaust hose. In most
cases, there will be no need to manually drain your portable air conditioner; however, in humid
conditions the internal tank may fill completely which will cause the unit to automatically shut
off. When the internal tank is full, an alarm will sounds and the LED window will display error
code “H8”. When this occurs, the tank must be drained manually into a drain pain or other
suitable drain.
Installation of Drain Hose
1
Remove the drain cap from the
drainage port. The drain cap is
connected to the unit with a cord to
prevent the cap from being misplaced.
2
Attach the drainage pipe clip to
the back panel of the air
conditioner with the screw
provided as indicated in the
diagram.
Attach one end of the drain hose
to the drain port with the pipe
hoop provided.
3
Insert the rubber plug into the
other end of the drain hose,
secure with pipe hoop and attach
to drain pipe clip.
4

13
Manually Drain the Unit
When the internal tank is full the LED window will display error code
“H8”. When this occurs, the tank must be drained manually into a
drain pan.
To drain the tank manually:
1. Remove drain pipe from pipe clip on back of unit.
2. Route drain pipe to drain pan or other suitable drain.
3. Remove pipe hoop and rubber stopper from end of drain pipe.
4. Allow water to drain fully.
5. Reinstall rubber stopper and pipe hoop.
6. Reinsert drain pipe into pipe clip.
NOTE: Although not recommended, you may choose to connect a permanent
drain hose (not included) to the drain port provided that a suitable drainage
option (floor drain or sink, etc.) is available. Please note that this unit has no
drain pump; all water will drain with gravity only, i.e., only “downhill.”
Finish Installation
1. Install the Remote Control Holster into the groove located on the
side of the unit as shown below. The Remote Control Holster
provides a convenient location to store your remote control.
2. Install the Power Cord Hooks by sliding each hook into grooves
located on the back, left side of the unit until they click into
place. The Power Cord Hooks will allow a convenient place to
wind the power cord when not in use.

Edgestar Portable Air Conditioner 14
Operating Instructions:
Control Panel Overview
On/Off Press the button once to manually turn the unit on. Press once
more to turn the unit off.
Mode Select Press the MODE button to cycle between modes: COOL ÆDRY
ÆFAN ÆHEAT.
COOL: Cool indicator is bright. Display will show set temperature
(61ƕF – 86ƕF).
DRY: Dehumidify indicator is bright. Display will be blank.
FAN: Fan indicator is bright. Display will be blank.
Remember that the exhaust hose and window kit must be installed
when the unit is in Cool or Dry Mode.
HEAT: Heat indicator is bright. Display will show set temperature
(61ƕF – 86ƕF).
Buttons
In COOL or HEAT mode, press the or buttons to decrease
or increase the temperature by 1° degree Fahrenheit. Continue to
press to get to desired temperature. Cool Mode range 61° F - 86°
F. Heat Mode Range 61° F - 86° F
Fan Speed When the unit is running in Cool or Fan mode, press the arrow
buttons to select the fan speed desired. There are 4 fan settings,
LOW ÆMED ÆTURBO ÆAUTO.
Timer Mode Press the Timer button to enter timer mode. Press the or
buttons the adjust the timer setting in increments of ½ hour up to
10 hours and then in increments of 1 hour up to 24 hours while
using the remote control. The display will remain in timer mode for
5 seconds and then revert back to displaying temperature. Press
the Timer button again to cancel the timer mode.
Sleep Mode Press the Sleep Button to enter sleep mode. The Sleep Mode can
be activated when in Cool Mode or Heat Mode and will not operate
when in Fan Mode. When operating in Cool Mode, the Sleep
function will slowly raise the Temp Control by 4° degrees
Fahrenheit over the initial 2 hour Sleep Mode period. When
operating in Heat Mode, the Sleep function will slowly lower the
Temp Control by 4° degrees Fahrenheit over the initial 2 hour
Sleep Mode period. When the Sleep Mode is active, the LCD will
continue to display the Sleep Mode status.
Fan
Dry
Heat

15
Remote Control Overview
The remote control is used to operate all of your portable air
conditioner’s functions. Use the remote control to change modes,
fan speed, timer, and temperature settings.
NOTE: Be careful to not drop the remote control. Do not place the remote
control in a location exposed to direct sunlight.
Replacing the
batteries
ON/OFF
Powers the unit on or off
MODE
Changes between modes: COOL 
DRY FAN (HEAT)
Decreases the temperature and timer
setting
Increases the temperature and timer
setting
FAN
Adjusts fan speed
X-FAN
Used to enable X-Fan mode
TEMP
Used to display the temperature
setting or current temperature
TIMER ON / TIMER OFF
Turn the Timer Mode on/off
TURBO
Turn the Turbo mode on / off
SLEEP
Used to enable Sleep mode
LIGHT
Turn the light on/off
To replace the batteries:
Slide to remove the battery cover plate on the rear of the remote control.
Remove and properly dispose of old batteries.
Insert 2 new AAA 1.5 batteries.
Reinstall the battery cover plate.
CAUTION: Use only AAA batteries. Remove the batteries if the remote control will not be used for one month
or longer. Do not attempt to recharge batteries not designed to be recharged. All batteries should be replaced
at the same time. Do not mix old and new batteries. Do not dispose of batteries in a fire as they may explode.

EdgeStar Portable Air Conditioner 16
Modes and Features
AUTO: When selecting Auto Mode, the air conditioner will operate
automatically according to the ambient room temperature. The set
temperature is not adjustable in AUTO mode. This is the default
mode of operation when the unit is powered on.
COOL: If the ambient temperature drops below the temperature
you selected, the compressor turns off and the unit functions with
the fan only. When the temperature rises above the temperature
you selected, the compressor turns on again. The Cool Indicator
will be lit. You can press the “+” or “-“ to increase or decrease the
set temperature.
NOTE: Whether your desired temperature can actually be reached
depends on the ambient conditions. The room temperature remaining
slightly above the set temperature is normal.
To operate the unit in cooling mode:
1) Make sure the power cord is plugged into a power outlet.
2) Press the ON/OFF button on the remote.
3) Press the Mode button until the Cool Indicator Light on the
Control Panel lights up.
4) Select the fan speed by using the Fan button.
5) Set the thermostat by using the “+” and “-“buttons on the
remote. The thermostat is adjustable between 61°F - 86°F in one
degree increments.
DRY: When dry mode (or dehumidify mode) is selected, the air
conditioner operates under dry mode at a low fan speed. The Dry
Indicator light will be lit. Under dry mode the fan speed can’t be
adjusted.
FAN: Fan Only mode is used to circulate the air in your room. No
temperature setting is needed.
To operate the unit in Fan Only mode:
1) Make sure the power cord is plugged into a power outlet.
2) Press the ON/OFF button on the remote.
3) Press the Mode button until the Fan Indicator light on the control
panel lights up.
4) Press the Fan button to adjust fan speed.
HEAT: If the ambient temperature reaches the temperature you
selected, the heat pump turns off and the unit functions with the fan
only. When the temperature drops below the temperature you
selected, the heat pump turns on again. The Heat Indicator will be
lit. You can press the “+” or “-“ to increase or decrease the set
temperature.
NOTE: The exhaust hose must
be used in cooling mode in order
to cool a room.
NOTE: Fan Only mode does not
require that the exhaust hose be
attached.
NOTE: This unit unitizes a heat
pump to provide the heating
function. The heat pump will not
work properly if ambient
temperature is below 50F.
