EdgeStar AP10002BL User manual

Portable Air Conditioner
Owner’s Manual
For more information on other great EdgeStar products on the web, go to http://www.edgestar.com
AP10002BL

i
Important Safety Information
Improper handling can cause serious damage to the appliance and/or to the
user. Please read the following safety information.
Your portable air conditioner is supplied with a Leakage-Current
Detection and Interruption (LCDI) safety plug. This device provides
protection to reduce the risk of fire due to arcing faults in the power
supply cord. Before using your portable air conditioner, follow the
instructions below to ensure that the LCDI plug is working properly:
1. Plug the power cord to a grounded outlet.
2. Press the TEST button on the LCDI plug. This should trip the
plug and cut the power to the air conditioner. If the plug does not
trip and you are able to turn on the unit, please contact EdgeStar
support.
DO NOT USE YOUR PORTABLE AIR CONDITIONER IF THE TEST FAILS.
Press the RESET button to start using your air conditioner.
Do not use the TEST and RESET buttons as an ON/OFF switch.
Electrical products should not be disposed of with household waste.
Please contact your local recycling center for more information on how
to recycle electronic waste.
Electrical Safety
This unit is designed for indoor use only.
Do not use the unit in extremely humid or wet environments.
Do not spray water and wet the housing or control panel.
Do not pull the unit by the cord.
Always turn the unit off and unplug it from the outlet when cleaning.
Unplug the unit if it is not going to be used for a long period of time.
Do not operate the unit with a damaged plug or a loose socket.
Use only the correct power supply with appropriate amperage.
If the power cord is damaged, it must be replaced by the manufacturer,
a service agent, or qualified technician.
Do not remove any part of the casing unless instructed by an
authorized technician.
General Safety
This portable air conditioner is not intended to be used by children.
Children should be supervised to ensure that they do not play with this
product.
Do not allow children to play with the controls or drop any objects into
the air outlets or vents.
Do not place objects or let any person sit on top of the unit.
Only use in the upright position on a flat, level surface and provide at
least 20 inches of clearance from any walls or objects.
Route the power cord carefully to avoid a tripping hazard.
This unit is intended for domestic use only. Do not use the portable air
conditioner for industrial or commercial use. Any other use may
invalidate the warranty.
RESET
TEST

Edgestar Portable Air Conditioner ii
Table of Contents
IMPORTANT SAFETY INFORMATION.................................................................I
INTRODUCTION ...................................................................................................1
PARTS IDENTIFICATION.....................................................................................2
FRONT VIEW........................................................................................................2
BACK VIEW..........................................................................................................2
PARTS INCLUDED ...............................................................................................3
PREPARATIONS FOR INSTALLING THE WINDOW KIT...................................3
WINDOW KIT INSTALLATION INSTRUCTIONS.................................................4
INSTALLATION OF THE EXHAUST HOSE.........................................................6
NOTES ABOUT THE EXHAUST HOSE.......................................................................7
INSTALLATION OF THE DRAIN HOSE...............................................................8
DRAINING THE UNIT............................................................................................9
INSTALLING THE FILTER..................................................................................10
OPERATING INSTRUCTIONS............................................................................11
CONTROL PANEL OVERVIEW ..............................................................................11
DIRECTIONAL LOUVERS......................................................................................12
REMOTE CONTROL OVERVIEW ...........................................................................12
REPLACING THE BATTERIES ................................................................................13
ENERGY SAVING GUIDE...................................................................................14
MAINTENANCE ..................................................................................................15
CLEANING THE UNIT ...........................................................................................15
CLEANING THE PRE-FILTER.................................................................................15
PREPARATION FOR STORAGE .............................................................................16
TROUBLESHOOTING ........................................................................................17
SPECIFICATIONS...............................................................................................20
EDGESTAR LIMITED WARRANTY ...................................................................21

1
Introduction
Thank you for purchasing this EdgeStar portable air conditioner. We are glad you
chose us. We believe that your purchase of this product opens a relationship
between you and EdgeStar. We will provide the customer support needed to
nurture that relationship.
This manual contains important information regarding the proper installation, use
and maintenance of your portable air conditioner. Following this manual will
ensure that your product will work at its peak performance and efficiency.
Please save the original product packaging in case you need to safely transport
your portable air conditioner.
For Your Records:
Please write down the model number and serial number
below for future reference. Both numbers are located on the
ratings label on the back of your unit and are needed to
obtain warranty service. You may also want to staple your
receipt to this manual as it is the proof of your purchase, and
is also needed for service under your warranty.
Model Number:
Serial Number:
Date of Purchase:
To better serve you, please do the following before contacting customer service:
If you received a damaged product, immediately contact the dealer that
sold you the product.
Read and follow this instruction manual carefully to help you install, use
and maintain your portable air conditioner.
Read the troubleshooting section of this manual as it will help you
diagnose and solve common issues.
Visit us on the web at http://www.edgestar.com to register your
product, download product guides, additional troubleshooting resources
and up-to-date information.
If you need warranty service, our friendly customer service
representatives are available via email at [e-mail] or by
telephone at 1 [phone].

Edgestar Portable Air Conditioner 2

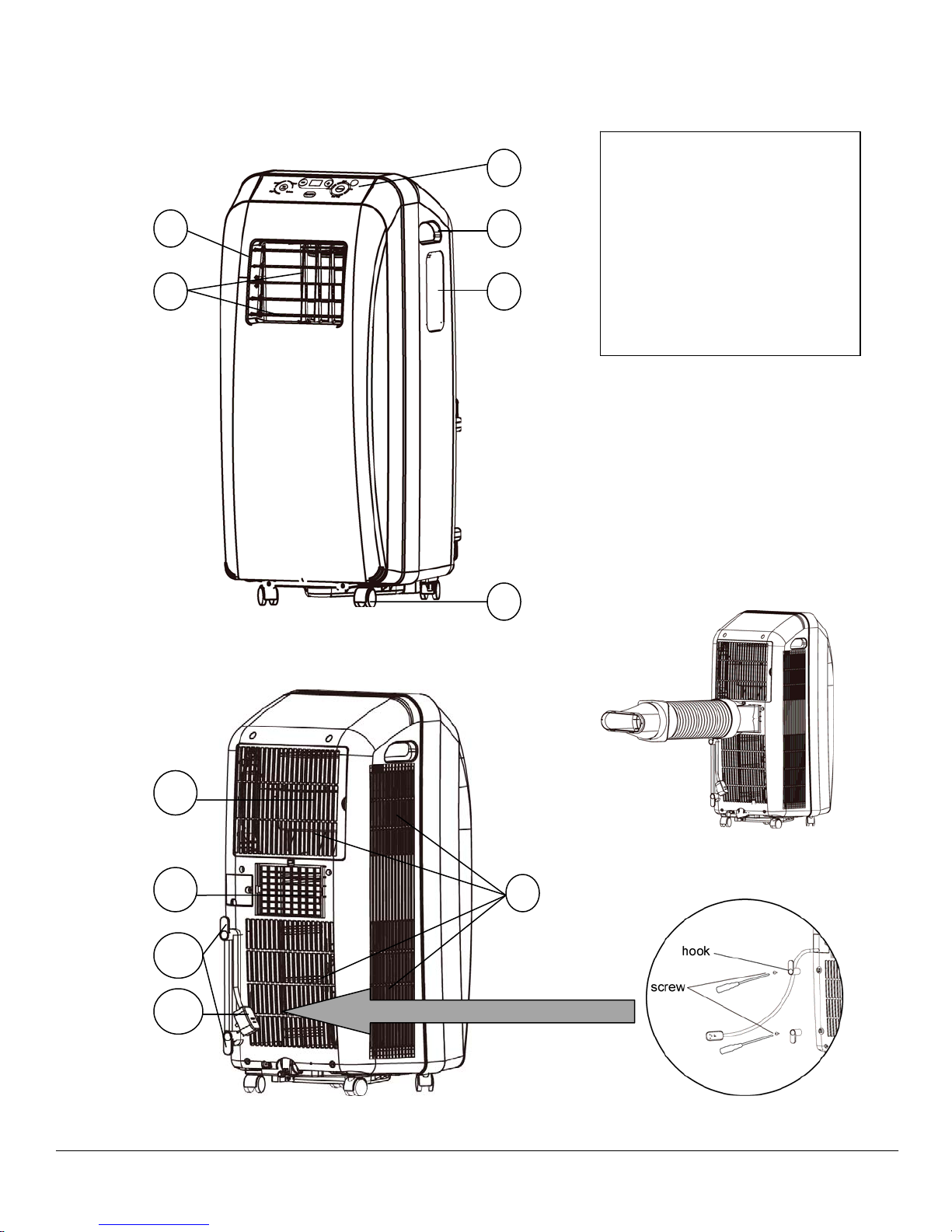

Parts Identification
Front View
Back View
Parts Key:
1. Control Panel
2. Handle
3. Remote Control Holder
4. Air Vent
5. Louvers (Vertical & Horizontal)
6. Castors (4)
7. Air Inlet
8. Filter Grill
9. Air Outlet
10. Power Cord Hook
11. Power Cord
1
2
3
4
5
6
7
8
9
10
11

3

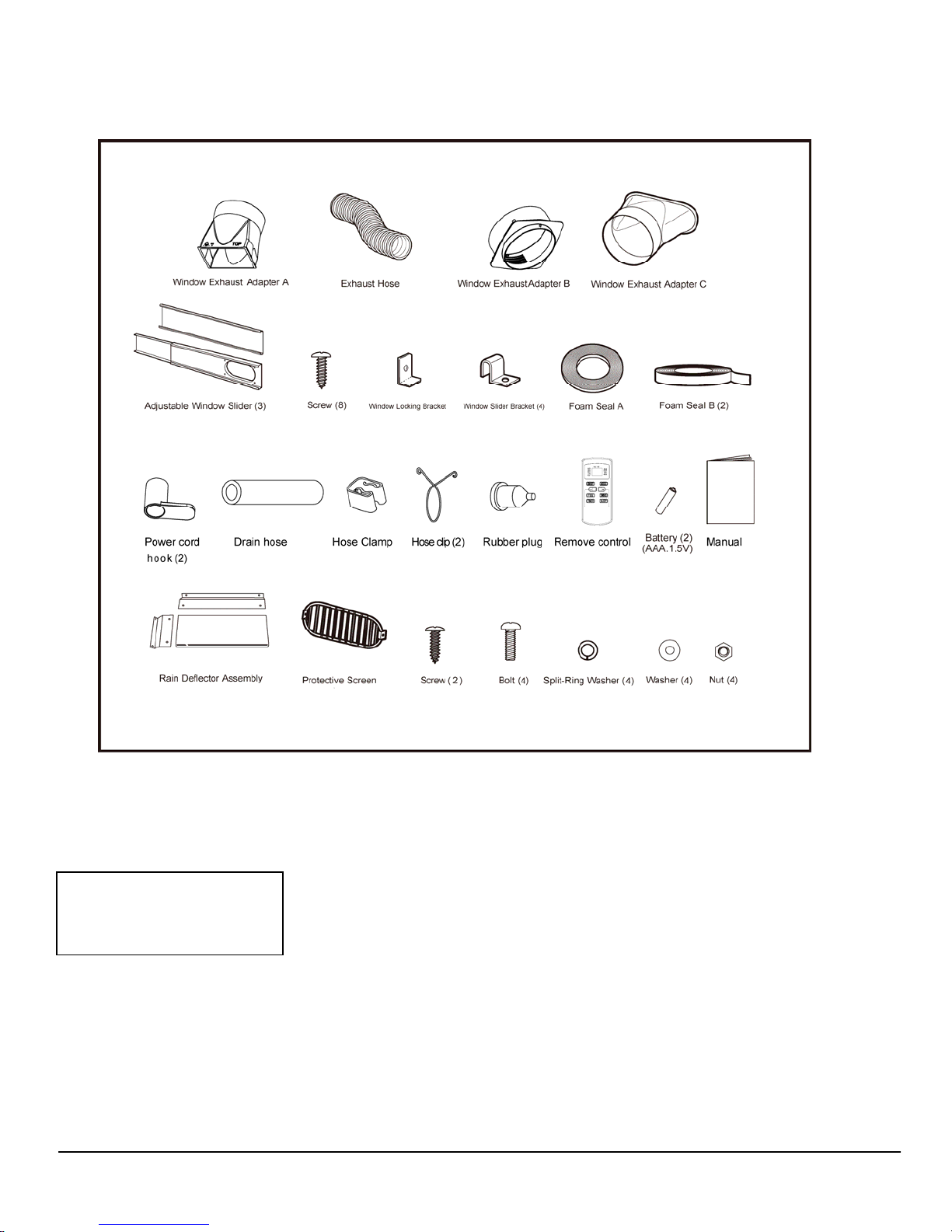

Parts Included
Preparations for installing the window kit
You must vent your portable air conditioner when running in it
cooling mode. Your unit includes a window exhaust kit that can be
used to vent the unit out a window.
Before you begin, make sure you have all the parts necessary for
installation.
If you have multiple windows, choose one that is near an electrical
outlet that will be able to provide sufficient power to your unit. See
the power requirements listed on the product label printed on the
side, or on the back of your portable air conditioner.
NOTE: You may need to
contact your electrician if
your room’s circuit is not able
to
p
ower
y
our unit.
Suggested Tools- Phillips Screw Driver (Medium sized), Tape Measure/Ruler, Scissors,
Saw (In the event that your window panel needs to be cut down in size for installation).

Edgestar Portable Air Conditioner 4
Your window kit can be installed on a horizontal or vertical sliding
window as shown in the pictures below.
Please follow the installation instructions carefully to avoid personal
injury or damage.
Window Kit Installation Instructions
1 Cut the foam seal B to the proper
length and attach it to the
windowsill.
2 Attach the window exhaust
adapter C to the window panel
inside opening.
3 Attach the protective screen to the
outside of the window exhaust
adapter with two screws.
4 Install the rain deflector to the
outside of the window panel. Line
up the holes on the rain deflector
and the window panel. Use 4
bolts, 4 washers, 4 split-ring
washers and 4 nuts to attach the
rain deflector onto window panel.

5

3 Attach the window panel to the
window panel
If the inner width of the window is
less than 28” (718 mm) wide:
1) Remove the adjustment panel
from the window panel, and cut
the window panel to the same
width as the panel.
2) Open the window sash and
place the window panel on the
windowsill.
3) Secure the window panel to the
windowsill.
If the inner width of the window is
between 28” (718mm) and 36.5”
(927mm) inclusive:
1) Open the window sash and
place the adjustable window panel
on the windowsill.
2) Slide the adjustment panel to fit
the window frame width.
3) Secure the panel to the
windowsill with four large wood
screws and four slider brackets.
If the inner width of the window is
between 36.5” (927mm) and 64”
(1625mm) inclusive:
1) Open the window wash and
place the extra window panel
provided on the windowsill.
2) Slide the adjustment panel to fit
the window frame width.
3) Secure the window panel to the
windowsill with four large wood
screws and four slider brackets.
a)
b)
c)

Edgestar Portable Air Conditioner 6
Installation of the Exhaust Hose

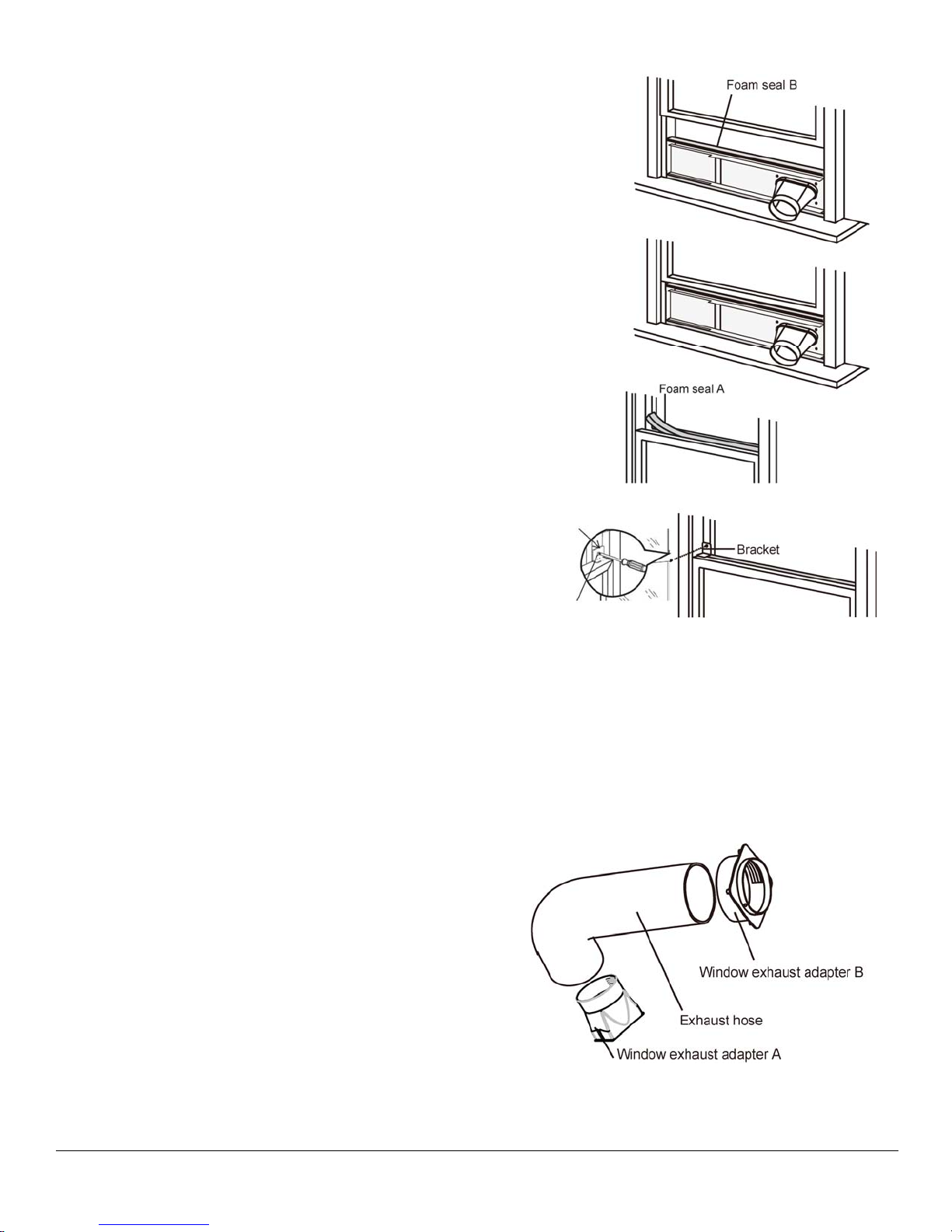

4 Cut the foam seal B to the proper
length and attach it to the window
panel.
Close the window sash securely
against the window panel.
Cut the foam seal A to an
appropriate length between the
top of the inner window sash and
outer window sash.
5
6
Attach the bracket with a screw.
7
Attach the window exhaust
adapter B and C to the exhaust
hose. Extend both ends of the
exhaust hose and insert them into
the window exhaust adapter A
and B and turn them until they
stop. Make sure they are securely
attached.
1

7
Your portable air conditioner is designed to exhaust condensate
water that is collected from the air. This water, in either gaseous or
droplet form, will be expelled out the exhaust port of the unit.
Please take this into account when deciding how to vent it.

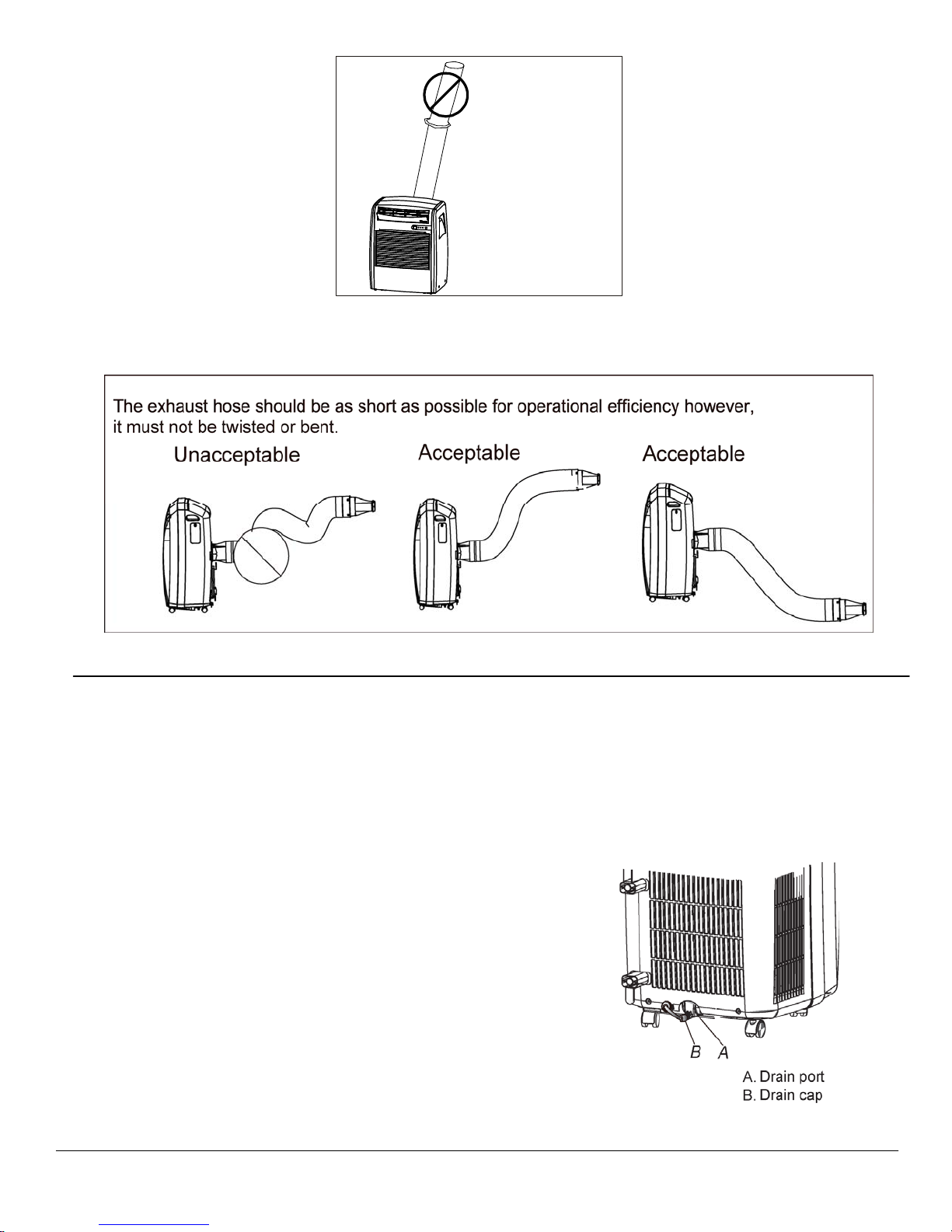

1. The exhaust hose supplied with the portable air conditioner can
be extended up to 48 inches; however for maximum efficiency, use
the shortest length possible.
2. Try to prevent any kinks or bends in the exhaust hose. Kinks or
bends may trap exhaust air which can radiate heat into the room or
potentially cause the portable air conditioner to overheat and shut
itself off.
3. The exhaust hose supplied with the portable air conditioner has
been specifically designed for this air conditioner. Do not lengthen
the hose by adding additional hoses or attachments or replace it
with any other hose.
Notes about the Exhaust
hose

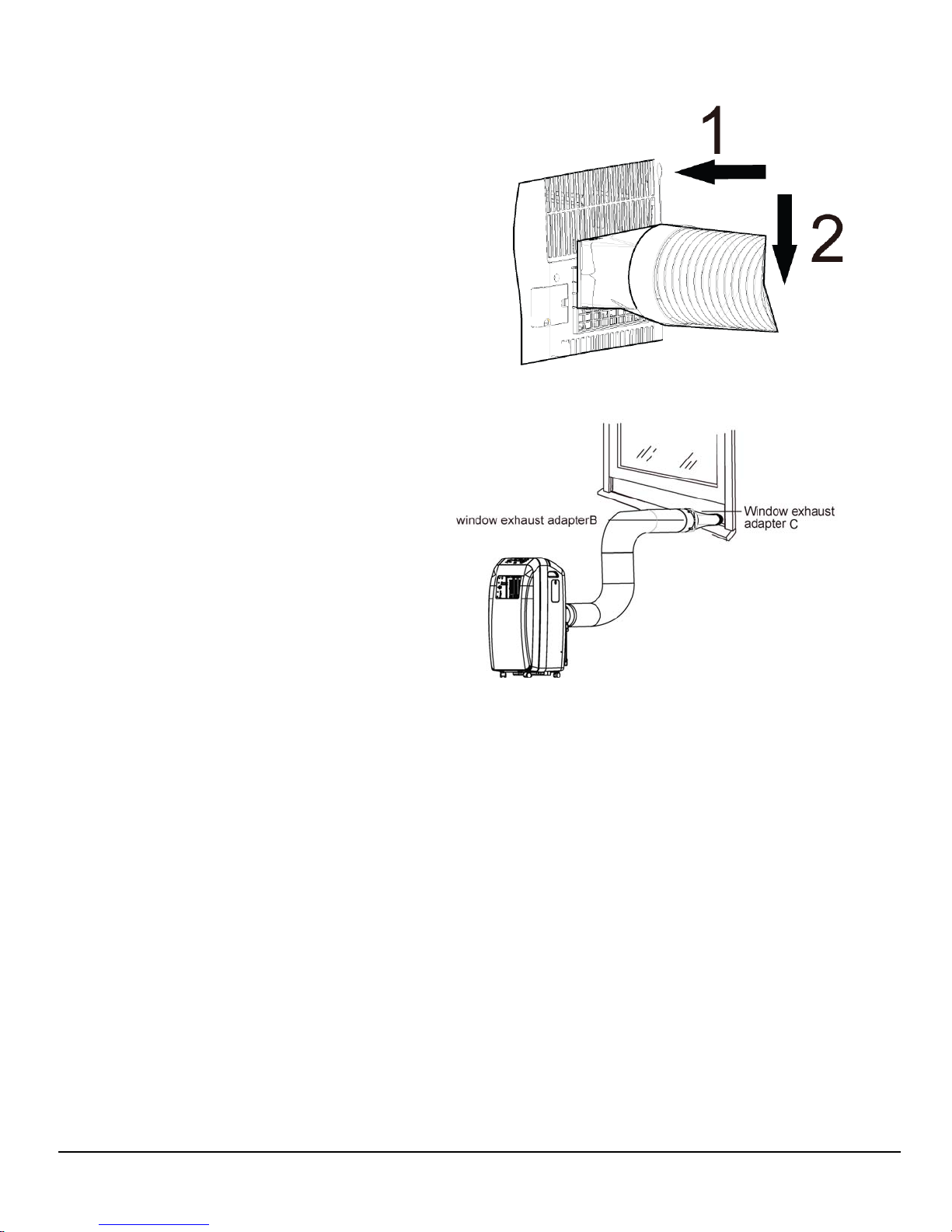

Attach the window exhaust
adapter A to the unit. Insert the
two projections on the window
exhaust adapter A into the two
holes on the unit and firmly attach
them to each other by sliding the
adapter down until it clicks. To
remove please make sure to push
down on the two projections and
lift up.
2
Attach the hose. Insert
the window exhaust
adapter B to the window
exhaust adapter C in the
window panel and turn it
to lock it in place.
3

Edgestar Portable Air Conditioner 8
Do not lengthen the
exhaust hose by adding
additional hoses or
attachments.
Warning: Longer hoses are not recommended.
Installation of the Drain Hose
Note: Drainage hose must be installed before using this unit to as
not doing so can occur in a block in the drain and prevent the unit
from functioning normally.
1 Remove the drain cap from drain
port.

9
Draining the Unit
When the portable air conditioner is in cooling mode, or dehumidify
mode, it will remove moisture from the air. The condensed water
from the air will be collected in an internal reservoir and will be
evaporated and exhausted out of the exhaust hose. However, in
very humid conditions, the internal reservoir may fill completely.
This causes the air conditioner to turn off to avoid overflowing the
internal reservoir. When water tank is full a buzzer will sound eight
times and on the LED window will display error code “H8”.
Direct drainage
1. Remove the rubber drain plug from the drain port.
2. Connect a drain hose to the drain port.
The portable air conditioner will now drain through the drain hose.
Please note that this unit has no drain pump; all water will drain
with gravity only, i.e., only “downhill.”
2 Attach the drain hose clamp to the
back panel of the air conditioner
near the drain port with the screw.
Attach one end of the drain hose
to the drain port with the clip
provided.
3
Insert the rubber plug into the
other end of the drain hose and
secure clip provided.
4

Edgestar Portable Air Conditioner 10
Installing the Filter
Your portable air conditioner ships with a pre-filter. It is
recommended you replace the filter every two to three months, or
as needed. It is necessary to clean the pre-filter periodically. Follow
the steps below to install the carbon filter:
1. Shut off the unit if it is on. In the rear of the unit pull the air filter
grill from the side.
2. Place the carbon filter between the grille and the pre-filter.
3. Close the grille.

11
Operating Instructions
Control Panel Overview
On/Off Button
Press the button once to manually turn the unit on. Press once more to turn the unit off.
“+” / “-“ Button
In COOL mode, press “-“once, the set temperature will decrease by 1° degree Fahrenheit. Continue to press
to get to desired temperature. Press “+” to increase,
follow same instructions as above.
Mode Button
Press MODE button repeatedly to cycle between modes: Cooling, Dry, and Fan Only mode. Each
press the MODE button will light up a different light on
control panel. Remember that the exhaust hose and
window kit must be installed when the unit is in Cool or
Dry Mode. It is unnecessary to have them connected
if you are on Fan Only mode.
Fan Speed
When the unit is running in Cool or Fan mode, press the Fan speed button to select the fan speed desired.
There are four fan speeds, High, Middle, Low, and
Auto.
Water Full When Cool or Dry is running condensation will drain to
the water reservoir. When the water tank is full a
buzzer will sound eight times indicating to empty. An
error code “H8” will also display on LED screen.
Please follow instructions on how to drain on page 9.
Louver Direction This unit has 4-Way directional louvers. Use the louver
guides to direct air where cooling or fan is needed
most. Hold the louver and adjust the air flow direction
as show in diagram on following page.

Edgestar Portable Air Conditioner 12

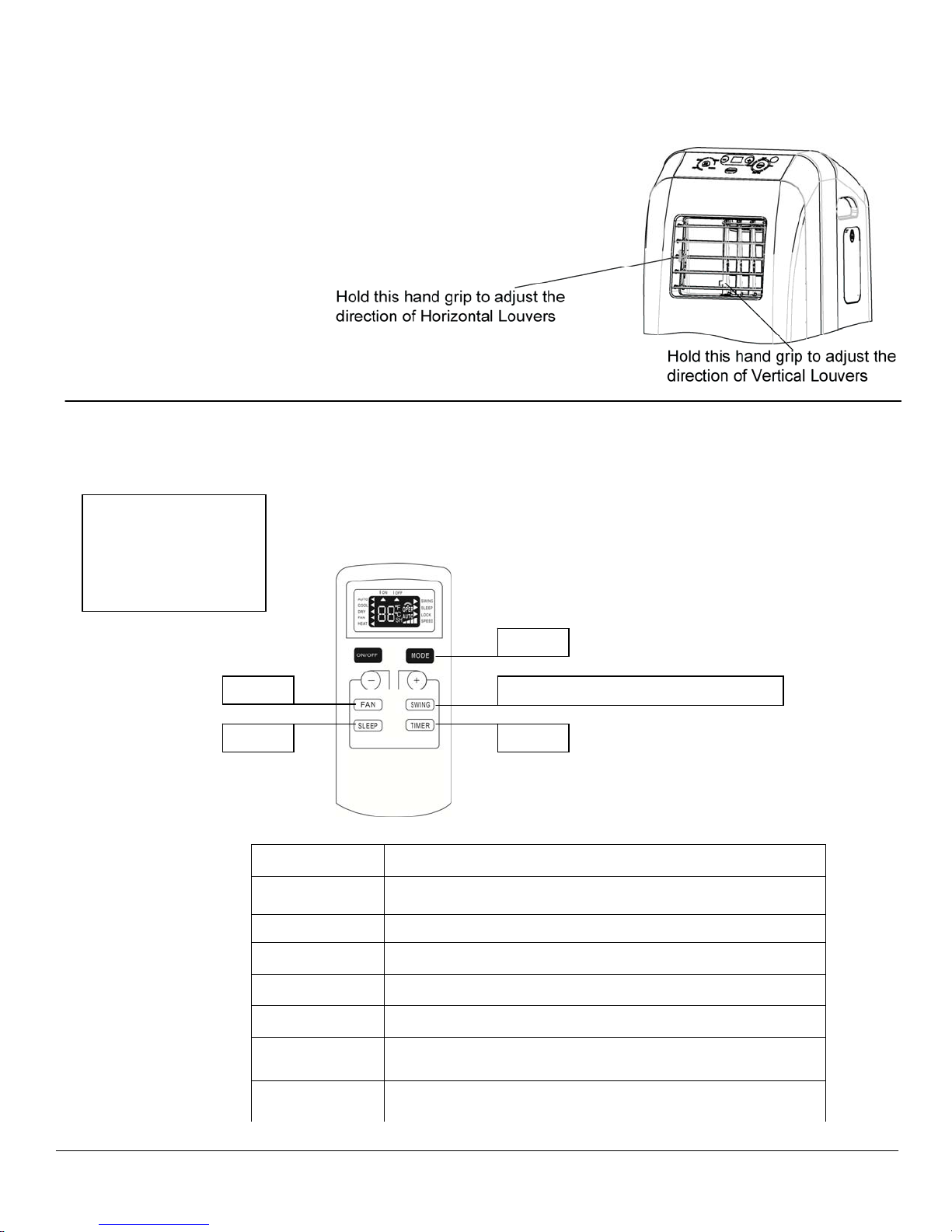

Directional Louvers
Remote Control Overview
The remote control is used to operate all of your portable air
conditioners functions. Use the remote control to change modes,
fan speed, timer, and temperature settings and sleep mode.
NOTES: Be careful not
drop the remote
control. Do not place
the remote control in a
location exposed to
direct sunli
g
ht.
Button Function
Power Powers the unit on or off.
Mode Changes between cool, dehumidify and fan modes.
Speed Sets the fan speed between high, medium, or low.
Timer Used to enable the timer.
Sleep Used to enable the sleep mode.
Up Increases the set temperature or the time when the
Timer is enabled.
Down Decreases the set temperature or time when the
Timer is enabled.
Swin
g
-
(
not available on this unit
)
Timer
Mode
Slee
p
Timer

13
Installing the batteries
Cooling Mode:
Cooling mode cools and dehumidifies the air. If the ambient
temperature drops below the temperature you selected, the
compressor turns off and the unit functions with the fan only. When
the temperature rises above the temperature you selected, the
compressor turns on again.
Whether your desired temperature can actually be reached
depends on the ambient conditions. The room temperature
remaining above the set temperature is normal.
To operate the unit in cooling mode:
1) Make sure the power cord is plugged into a power outlet.
2) Press the Power button on the remote.
3) Press the Mode button until the Mode Indicator Light on the
Control Panel turns blue.
4) Select the fan speed by using the Speed button.
5) Set the thermostat by using the Up and Down buttons. The
thermostat is adjustable between 61°F - 86°F in one degree
increments.
Fan Only Mode:
Fan Only mode is used to circulate the air in your room. No
temperature setting is needed.
To operate the unit in Fan Only mode:
1) Make sure the power cord is plugged into a power outlet.
2) Press the Power button on the remote.
3) Press the Mode button until the Mode indicator light turns green.
4) Press the Speed button to select the fan speed. You can choose
between High, Medium and Low. The LED indicator next to the
speed will light up.
CAUTION: Use only AAA
batteries. Remove the batteries
if the remote control will not be
used for one month or longer.
Do not attempt to recharge
batteries not designed to be
recharged. All batteries should
be replaced at the same time.
Do not mix old and new
batteries. Do not dispose of
batteries in a fire as they may
explode.
AAA
AAA
AAA
AAA
1) Remove the cover on the back of the remote control.
2) Insert the batteries with the (+) and (-) ends pointing in the
correct direction.
3) Install the cover on the remote.
NOTE: The exhaust hose must
be used in cooling mode in order
to cool a room.
NOTE: Fan Only mode does not
require that the exhaust hose be
attached.

Edgestar Portable Air Conditioner 14
Timer:
The timer can be used to either turn the unit on or off after a
number of elapsed hours. The timer is adjustable between 0.5-24
hours in one hour increments. .
How to set the unit to automatically turn on:
1) Press the Timer button on the remote control while the unit is
powered off.
2) Use the Up and Down buttons on the remote to set the time
(displayed in hours) you want to pass before the unit turns on. After
the selected time passes, the unit will automatically turn on.
How to set the unit to automatically turn off:
1) Press the Timer button on the remote control while the unit is
powered on. The Timer indicator LED will light up
2) Use the Up and Down buttons on the remote to set the time
(displayed in hours). The unit will automatically turn off after the
selected time elapses.
Sleep:
Press this button, Sleep On and Sleep Off can be selected. After
powered on, Sleep Off is defaulted. After the unit is turned off the
Sleep Function is canceled. After function set up, the signal of
Sleep will display. In this mode the time of the timer can be
adjusted. Under Fan/Auto Mode, this function is not available.
Energy Saving Guide
Read and follow the guide below to get the best performance and
efficiency from your portable air conditioner:
Do not cover the air outlet (exhaust) while in use.
Do not place the unit in front of curtains or drapes- to ensure
they do not obstruct the air intake.
Minimize the length of the exhaust hose.
Make sure the exhaust hose is as straight as possible and avoid
kinks or bends.
Keep curtains, blinds or drapes closed during the sunniest part
of the day.
Use the timer to operate the unit before it is needed. For
example, set the timer to turn on the unit in cooling mode for 3
or more hours to cool the room before you arrive. You may want
to operate the unit all day if you live in a warmer climate.
Minimize the heat sources (direct sunlight, computers, servers,
people, etc.) in the room.
Close all windows and doors.
Use the unit in a contained room. For example, a room with four
walls and a ceiling, instead of a partitioned studio, or
warehouse.
Make sure the unit is on a level surface.

15
Minimize the amount of humidity in the room. For example, run
the unit as a dehumidifier.
To prolong the compressor's life, please wait at least 3 minutes
before turning the unit back on after shutting it off.
Inspect and keep the pre-filters clean by cleaning regularly.
Inspect and replace the activated carbon filters regularly.
Perform routine maintenance.
Maintenance
Clean the air conditioner and filters regularly to maximize
performance and efficiency, and prolong the unit’s life. Be sure to
always unplug the air conditioner from the power outlet before
cleaning.
Cleaning the unit
Use a soft dry cloth to wipe the body clean. If necessary, use
lukewarm water to dampen a cloth to clean the unit.
Use a soft bristle brush to clean between the vents.
Carefully use a vacuum cleaner to clean the condenser coils.
Never use abrasive chemicals, volatile substances, gasoline,
detergents, chemically treated cloths, or other cleaning solvents
that may damage the cabinet exterior.
Never spray water directly on the unit.
Cleaning the pre-filter
To clean the pre-filter, follow the steps below:
1) Power off the unit and remove the pre-filter.
2) Remove the activated carbon filter.
3) Use a vacuum cleaner or tap the filter lightly to remove loose
dust and dirt, then rinse thoroughly under lukewarm running water
(below 104°F). You may use a mild soap and water solution if
needed. Allow the pre-filter to air dry in a cool and shaded place.
Dry thoroughly before reinstalling.
Clean the pre-filter periodically. If the unit is used in a dusty
environment you may need to clean it on a weekly basis.
Warning: Never operate the unit without the pre-filter.
NOTE: Filters should be
replaced every 2-3 months or as
needed. Contact EdgeStar
retailers for replacement filters.

Edgestar Portable Air Conditioner 16
Preparation for Storage
If you are not going to be using the unit for an extended period of
time, follow the instructions below before storing your unit:
1) Drain all the water from the unit’s reservoir. Operate the unit in
fan mode for a few hours to thoroughly dry any moisture left on the
coils inside the unit.
2) Power off the unit, and clean or change the filters.
3) Unplug and carefully wind the power cord.
4) Remove the exhaust hose and duct connectors and keep them
in a safe place.

17
Troubleshooting
Follow the troubleshooting guide below to resolve common issues.
Issue Possible Cause Solution
My air conditioner is
not functioning at all. Unit is not receiving power. Make sure the unit is plugged in to a
grounded outlet.
LCDI power cord is
tripped. Press the Reset button on the LCDI cord.
Insufficient power. Move the unit to
another outlet. Check
your circuit breaker.
(Refer to the rating
label on the back of
the unit to determine
the Amperage draw).
Water reservoir is full. Drain the unit and
restart.
Control panel is
disconnected. If no indicator lights turn on, contact
customer service.
My remote control
does not work and the
indicator light on
remote does not turn
on.
Batteries not installed. Install new batteries.
Bad batteries. Replace the batteries.
Batteries installed
incorrectly. Reinstall the batteries correctly.
A defective remote
control. Contact customer service.
My air conditioner is
making a loud noise. The unit is not level. Make sure the unit is on a level surface.
A foreign object has
jammed the fan. Remove the object from the fan.
The floor below the
unit is uneven. Move the unit to a level surface.
My air conditioner is
making a continuous
metallic knocking or
pinging sound.
Unit may have been
shipped on its side. Shut off the unit. Let the unit sit on a level
surface for at least 24
hours and restart.
Damaged compressor. Contact customer
service.
My air conditioner is
leaking. Drain plug is removed. Attach the drain plug.
Cracked base pan. Contact customer
service.
My air conditioner runs
for a little while and
then it trips the power
cord or the circuit
breaker.
The air conditioner
may be plugged into
an outlet that can not
supply the correct
amount of current.
Contact an electrician
if the unit works in a
different room or
circuit.
The control panel
lights blink randomly. Unit may have a faulty control panel. Contact customer service.
No air comes out the
left side of the air vent. The unit is designed to blow air from the right. This is normal operation.
