EdgeStar AP14003W User manual

Po able Air Conditioner
Owneffs Manua_
For more information on other great £dgeStar products on the web, go to http://www.edgestar.com

ant Safety r atien
improper handling can cause serious damage to the appliance and/or to the user.
Please read the following safety information.
Electrical Safety
• This unit is designed for indoor use only.
• Do not use the unit in extremely humid or wet environments.
• Do not spray water and wet the housing or control panel.
• Do not pull the unit by the cord.
• Always turn the unit off and unplug it from the outlet when cleaning.
• Unplug the unit if it is not going to be used for a long period of time.
• Do not operate the unit with a damaged plug or a loose socket.
• Use only the correct power supply with appropriate amperage.
• if the power cord is damaged, it must be replaced by the manufacturer, a
service agent, or qualified technician.
• Do not remove any part of the casing unless instructed by an authorized
technician.
General Safety
• This portable air conditioner is not intended to be used by children.
•Children should be supervised to ensure that they do not play with this
product.
• Do not allow children to play with the controls or drop any objects into the
air outlets or vents.
• Do not place objects or let any person sit on top of the unit.
• Only use in the upright position on a flat, level surface and provide at least
2o inches of clearance from any walls or objects.
• Route the power cord carefully to avoid a tripping hazard.
• This unit is intended for domestic use only. Do not use the portable air
conditioner for industrial or commercial use. Any other use may invalidate
the warranty.
TEST
Your portable air conditioner is supplied with a Leakage-Current
Detection and Interruption (LCDI) safety plug. This device provides
protection to reduce the risk of fire due to arcing faults in the power
supply cord. Before using your portable air conditioner, follow the
instructions below to ensure that the LCDI plug is working properly:
1. Plug the power cord to a grounded outlet.
2. Press the TEST button on the LCDI plug. This should trip the plug
and cut the power to the air conditioner. If the plug does not trip and
you are able to turn on the unit, please contact EdgeStar support.
DO NOT USE YOUR PORTABLE AIR CONDITIONER IF THE TEST FAILS.
Press the RESETbutton to start using your air conditioner.
Do not use the TEST and RESET buttons as an ON/OFF switch.
Electrical products should not be disposed of with household waste.
Please contact your local recycling center for more information on how to
recycle electronic waste.

'Vable, o 60 ten ts
iMPORTANT SAFETY iNFORMATiON ................................................................. I
INTRODUCTION ................................................................................................... 1
PARTS IDENTIFICATION ..................................................................................... 2
FRONT VIEW .......................................................................................................... 2
PARTS KEY: ............................................................................................................ 2
BACK VIEW ............................................................................................................ 2
WINDOW KIT AND EXHAUST HOSE INSTALLATION INSTRUCTIONS .......... 3
PREPARATIONS FOR INSTALLING THE WINDOW KIT ........................................................... 3
INSTALLATION OF THE EXHAUST HOSE ........................................................................... 5
NOTES ABOUT THE EXHAUST HOSE ............................................................................... 7
DRAINING THE UNIT ............................................................................................ 8
CONTROL PANEL OVERVIEW ............................................................................ 9
USING THE CONTROL PANEL/REMOTE CONTROL ..................................... 10
LED DISPLAY ....................................................................................................... 10
MODE INDICATOR LIGHTS ........................................................................................ 1 0
POWER BUTTON ................................................................................................... 10
AUTO-RESTART: .................................................................................................... 10
REMOTE CONTROL SENSOR ..................................................................................... 11
TIMER ................................................................................................................. 11
SLEEP .................................................................................................................11
INCREASE/DECREASE .............................................................................................. 11
FAN INDICATOR LIGHTS ........................................................................................... 1 1
MAINTENANCE .................................................................................................. 14
CLEANING THE UNIT ............................................................................................... 14
CLEANING THE PRE-FILTER ....................................................................................... 14
PREPARATION FOR STORAGE .................................................................................... 14
TROUBLESHOOTING ........................................................................................ 15
TROUBLESHOOTING CONTINUED ................................................................. 16
SPECIFICATIONS ............................................................................................... 17
WARRANTY ........................................................................................................ 18
EdgeStar Portable Air Conditioner ii

Thank you for purchasing this EdgeStar portable air conditioner. We are glad you
chose us. We believe that your purchase of this product opens a relationship
between you and EdgeStar. EdgeStar appliances are built to enhance and celebrate
the modern lifestyle. Please visit wwwoed_estar,com for our full list of products.
This manual contains important information regarding the proper installation, use
and maintenance of your portable air conditioner. Following this manual will help to
ensure that your product will work at its peak performance and efficiency.
Please save the original product packaging in case you need to safely transport your
portable air conditioner.
For Your Records:
Please write down the model number and serial number below
for future reference. Both numbers are located on the rating
label on the back of your unit and are needed to obtain warranty
service. You may also want to staple your receipt to this manual
as it is the proof of your purchase, and is also needed for service
under your warranty.
Model Number:
Serial Number:
Date of Purchase:
To better serve you, please do the following before contacting customer service:
• If you received a damaged product, immediately contact the dealer where
you purchased this item.
• Read and follow this instruction manual carefully to help with installation,
proper use and maintenance of your portable air conditioner.
• Read the troubleshooting section of this manual as it will help you diagnose
and solve common issues.
• Visit us on the web at http:llwww.edgestar.com to register your product,
download product guides, additional troubleshooting resources and up-to-
date information.
• If you need warranty service, our friendly customer service representatives
are available via email at [email protected] or by telephone at 1(866)
319-5473.

Parts Id @
I0_
Front View
Parts Key;
1. Control Panel
2. Louver- Air Flow
3. Handle
4. Front Panel
5. Castors (4)
6. Upper Air Filter (behind grill)
7. Upper Air Intake (Evaporator)
8. Drain Outlet (Continuous Drain
-Dehumidify mode)
9. Air Outlet (Heat Exhaust)
lo. 9. Power Cord Outlet
11. Lower Air Filter (behind grill)
12. Power Cord Buckle for Storage
13. Lower Air Intake (Condenser)
14. Power Plug Hooks (for storage use)
15. Bottom Tray Drain Outlet (Manual
Drain)
Back View
EdgeStar Portable Air Conditioner 2

dow Kit an Exhaust
IHs IlstioH IHstru ioHs Hose
Preparations for
installing the
window kit
You must vent your portable air conditioner when running in it cooling
mode. Your unit includes a window exhaust kit that can be used to
vent the unit out of a window.
Before you begin, make sure you have all the parts necessary for
installation and a location is picked.
Window Kit Parts List:
Exha_ Ho_ Widow E_sust
Remote Con#el Foam :Seal
,_:h BaieHes Drain _se and
Drain Hose Adap_r
If you have multiple windows, choose one that is near an electrical
outlet that will be able to provide sufficient power to your unit. See the
power requirements listed on the product label printed on the side, or
on the back of your portable air conditioner.
Your window kit can be installed on a horizontal or vertical sliding
window as shown in the following pictures and instructions. Follow the
instructions for which desired window kit installation.
NOTE: You may need to contact your electrician if your room's circuit is not able to power your unit.

_nsta_ati©n in a s_idin_ sash windew
Step i:
Step 1: Cut the foam seal to the proper length and attach
it to the window sill.
Step 2_
Step 2: Attach the window slider kit to the window sill.
Adjust the length of the window slider kit according to
the width of the window. Shorten the adjustable
window kit if the width of the window is less than 26.5
inches. Open the window sash and place the window
slider kit on the window sill.
Step 3:
Step 3: Cut the foam seal to the proper length and attach
it on the top of the window slider kit. Close the window
sash securely against the window slider kit.
Foam _al
Step 4: Finally, cut the foam seal to an appropriate
length and seal the open gap between the top window
sash and outer window sash.
EdgeStar Portable Air Conditioner 4

I_sta_atien in a s_iding sash wir_dew (vertical)
Wini _o
'_ Frame
Step 2:
ii _!i,i
Wi
P3:
1
Step 4:
Foam Sea!
Step 1: Cut the foam seal to the proper length and attach
it to the window frame.
Step 2: Attach the window slider kit to the window
frame. Adjust the length of the window slider kit
according to the height of the window. Shorten the
adjustable window kit if the height of the window is less
than 26.5 inches. Open the window sash and place the
window slider kit on the window sill against the frame
securely.
Step 3: Cut the foam seal to the proper length and attach
it on the top of the window slider kit. Close the window
sash securely against the window slider kit.
Step 4: Finally, cut the foam seal to an appropriate
length and seal the open gap between the top window
sash and outer window sash.

Insta atien ef the exhaust hese
a.
Step 1: Attaching the oval adapter to the exhaust hose.
Extend the end of the exhaust hose and the thread the Window
Exhaust Adapter A (as listed in parts section). Turn the adapter
onto the hose clockwise until you cannot turn anymore and the
adapter is secure to the exhaust hose.
Step 2: Roll the unit towards the window kit you have installed
already.
Make sure to leave a space that is at least 20 inches from the wall.
Step 3: Connecting the exhaust hose to unit.
Align the slots on the hose adapter to the air outlet and slide
downward as pictured on the left.
Step 4: Connect oval adapter to the window kit.
Push the oval adapter through the window kit hole until it snaps in
place. After you have installed the exhaust hose and window kit,
you can plug in your portable air conditioner and power on.
EdgeStar Portable Air Conditioner 6

Hetes abeut the exhaust hese
Your portable air conditioner is designed to exhaust condensate water
that is collected from the air. This water, in either gaseous or droplet
form, will be expelled out the exhaust port of the unit.
Please take this into account when deciding how to vent it.
1. The exhaust hose supplied with the portable air conditioner can be
extended up to approximately 48 inches; however for maximum
efficiency, use the shortest length possible.
2. Try to prevent any kinks or bends in the exhaust hose. Kinks or
bends may trap exhaust air which can radiate heat into the room or
potentially cause the portable air conditioner to overheat and shut
itself off.
3. The exhaust hose supplied with the portable air conditioner has
been specifically designed for this air conditioner. Do not lengthen the
hose by adding additional hoses or attachments. Do not replace it with
any other hose.
Do not lengthen the
exhaust hose by adding
additional hoses or
attachments,
Warning: Longer hoses are not recommended.

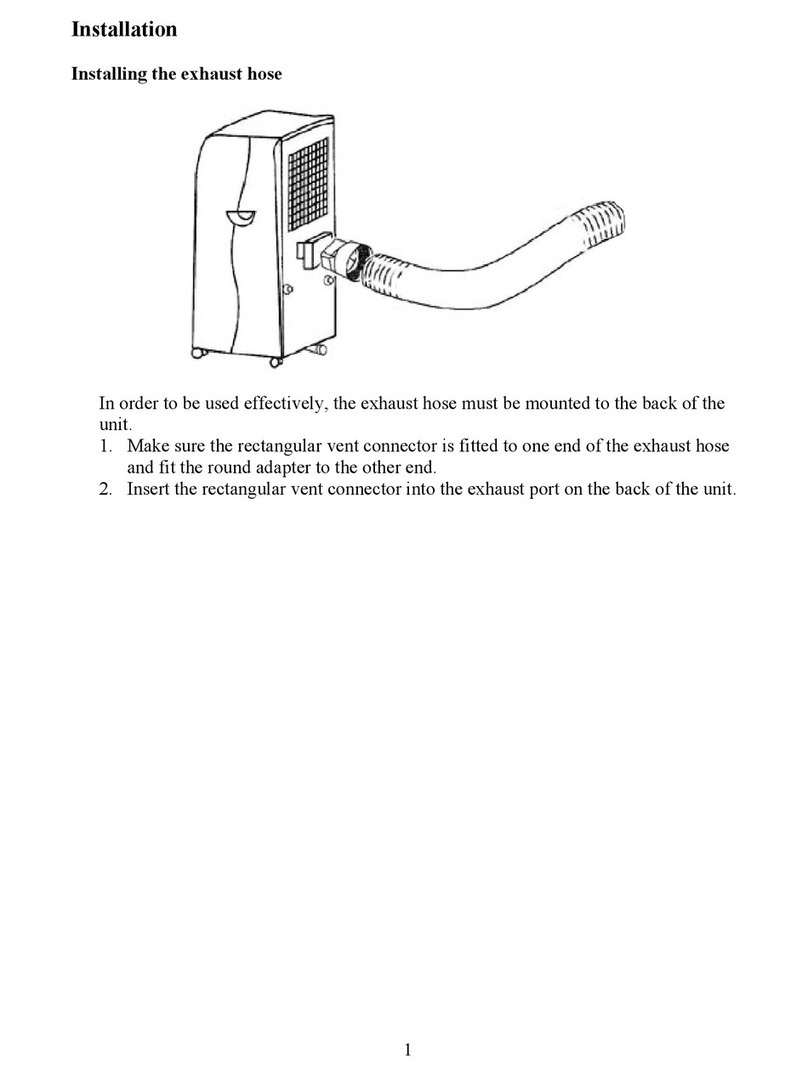

The exhaust hose must be installed or removed in accordance with
the usage modes:
A: You must install the exhaust hose if the unit is in Cooling Mode.
B:You must remove the exhaust hose if the unit is in Fan Mode or
Dehumidify mode.
NOTE: The exhaust hose may be compressed or extended according to your installation requirements;
however, it is recommended to keep the exhaust hose length at a minimum.
