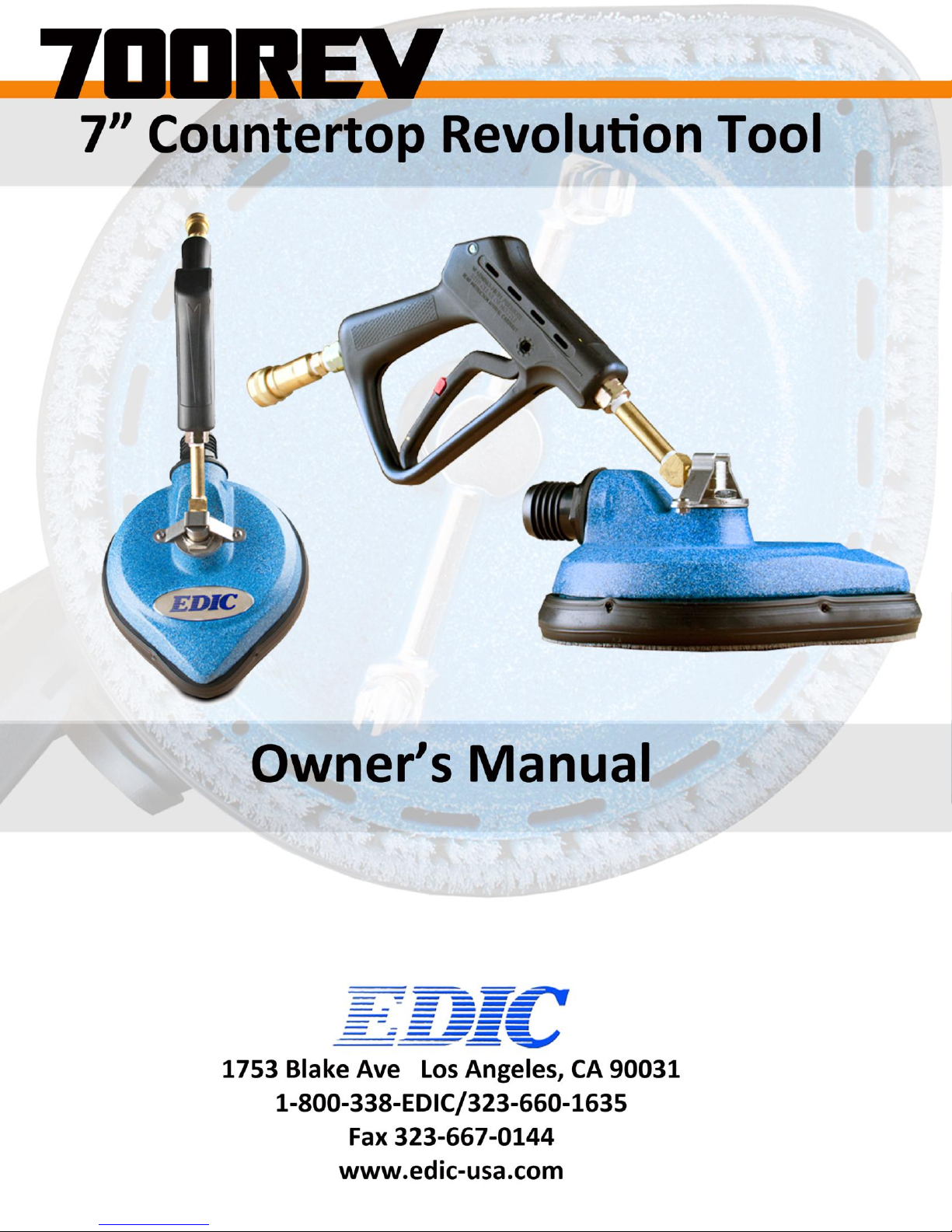

Edic 700REV User manual

7”REVOLUTION COUNTERTOP TOOL OVERVIEW
Thank you for purchasing a 700REV, 7”Revolution Countertop Tool. The 700REV is a smaller,
hand held version of the larger 1200REV. The 700REV allows you to clean vertical and horizontal
surfaces, both indoor and outdoor, such as grouted tile and outdoor brick, concrete, and limestone
surfaces. Its pointed front end enables you to clean efficiently against floor and wall corners.
Although it has been optimized for use with our EDIC ENDEAVOR series, It can be used with any
high pressure extractor with 500 psi –2500 psi pressure range.
WHEN THE PACKAGE IS DELIVERED
Check the box and packaging carefully for signs or rough handling. Remove the tool from the
carton. If the tool is damaged, notify the carrier IMMEDIATELY and request an inspection. Be sure
to keep the carton, packing inserts, packing lists and carrier’s receipt until the inspector has
verified your claim.
EDIC’s liability ceases when the carrier picks up the shipment but our customer service staff will be glad to furnish any
information needed in connection with the claim and will expedite repair of the machine.
BEFORE OPERATING THE REVOLUTION COUNTERTOP TOOL
Read this manual carefully and completely before attempting to operate the unit. This manual has
important information for the use and safe operation of the tool. Keep this manual handy at all
times. This tool will provide you with many years of satisfactory service if operated and maintained
according to recommendation in this manual. If additional information is needed, please contact
your local distributor or write to:
EDIC 1753 Blake Ave
Los Angeles, CA 90031-1006
E-mail:[e-mail]
All information and specifications printed in the manual and parts list are current at the time of printing; however,
because of EDIC’s policy of continual product development, we reserve the right to make changes at any time without
notice.

WARNING

This tool is not designed to handle or use combustible/volatile substances such as gasoline
or kerosene, in, on, or near the tool. The use of such materials may cause extreme hazardous
conditions.
Do not leave the tool exposed to harsh weather elements. Temperatures below freezing may
damage components and void warranty.
This is not a toy. Ensure children do not have access to the equipment. Do not allow children
to play with or near the unit.
Keep hair, loose clothing, fingers and all parts of the body away from all moving parts.
The Revolution was designed for use on hard surfaces only such as grouted tile, stone, or
concrete as per the instructions and recommendations written in this manual. Any deviation
from its proper use or purpose and the consequential damage that may occur is the sole
responsibility of the end-user.
Repairs are only allowed by a qualified service center. Do not attempt to disassemble or
repair the unit if you are not qualified to do so.
Do not drop or throw the unit. Treatment of this type can cause damage to the components
and create hazardous condition
FAILURE TO COMPLY WITH THE ABOVE WARNING INSTRUCTIONS WILL VOID THE
WARRANTY.
PREPARATION
Remove furniture from cleaning area, and remove any large debris and fibers by vacuuming
or wiping the surface to be cleaned.
Protect any cabinets, painted surfaces, walls, carpets, and other delicate materials from
overspray by masking, using painter’s tape, drop cloths, plastic, or spray shields.
Identify the type of surface you are going to clean to ensure that you are using the proper
chemicals, brushes and equipment and will not damage the floor.
After identifying the surface, apply the appropriate pre-spray to the floor. To avoid longer dry
time before sealing, use only 5 minute dwell time or less and do not over wet the surface.
OPERATION
(Pressure range of 700-1500 psi and temperature up to 200°F)
Connect the Revolution to the vacuum and solution hoses from the extractor.
Turn on the extractor to engage the vacuum.
Make sure the bottom of the Revolution is flush with the surface to be cleaned to ensure
proper suction.
Squeeze the trigger to release the solution and move the Revolution at a moderate rate
overlapping just enough to ensure complete coverage. Moving too fast may create a spiral
pattern in the grout or tile.

AFTER USE
Disconnect hoses and inspect them for any damage.
Wipe the machine with a clean, soft damp cloth.
Store indoors, in a clean, dry place.
Do not store sitting on the brush.
Do not store in freezing temperatures.
REGULAR MAINTENANCE

Clean and inspect hoses.
Check for loose hardware.
Clean machine with a clean, soft, damp cloth.
WEEKLY MAINTENANCE
Inspect spray tips. Do not adjust angle of the tips.
TROUBLE SHOOTING
Problem Cause
The spinning arm does not spin
Inspect the jets to make sure they are not clogged.
Disconnect and check the solution line reaching the tool for normal
flow.
Try to spin the arm by hand. If it doesn’t move, take the tool to a
qualified service center for repair or replacement of the swivel fitting.

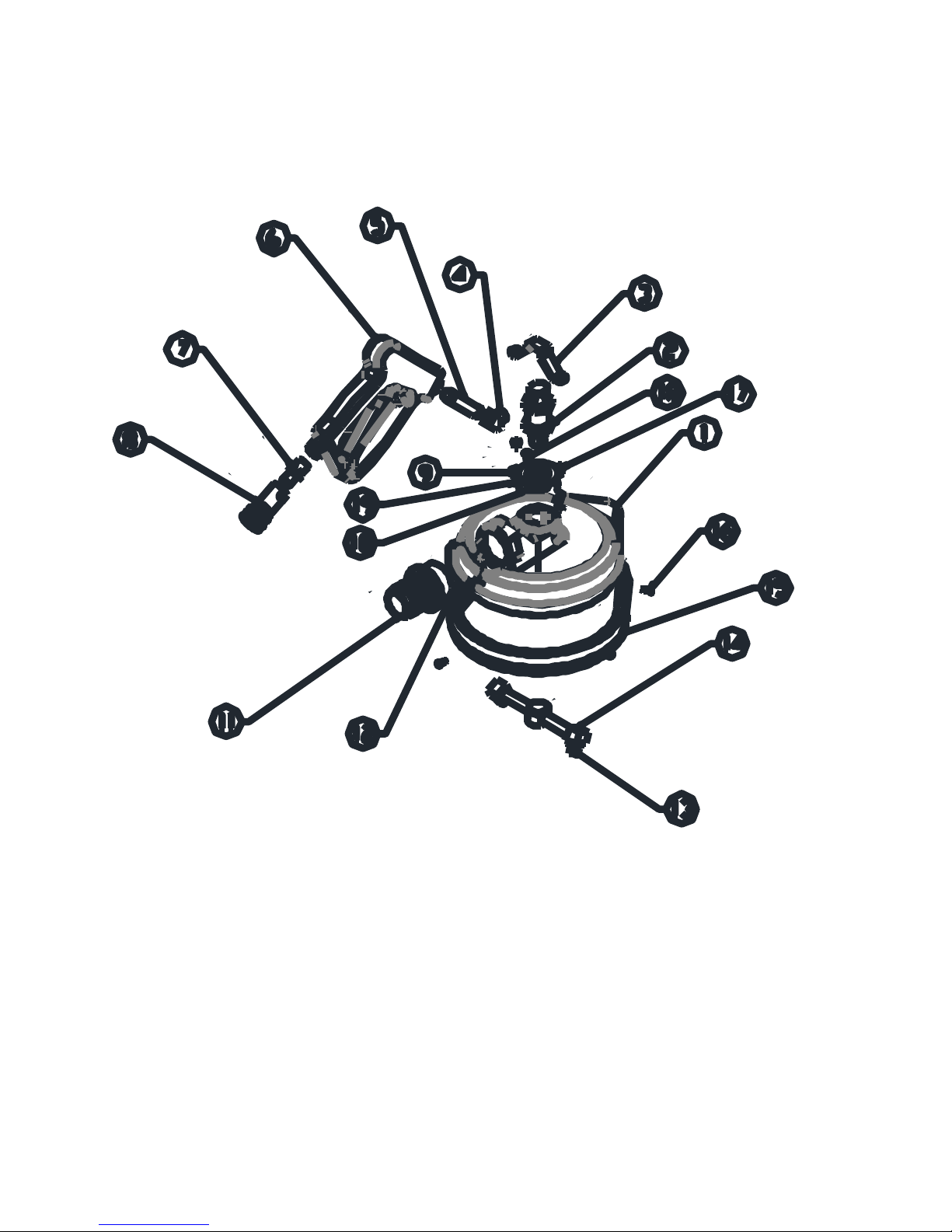

EXPLODED VIEW

PARTS LIST
Item Part Number Description Quantities
1 F13526 Housing 1
2 D13311 Swivel Fitting 1
3 D13928 Swivel Fitting Clamp 1
4 A00053 Elbow, 45° 1/4M-1/4F 1
5 A00163 Long Nipple ¼ x 3 1
6 G13298 Spray Gun 1
7 A13375 Reducing Hex Nipple 3/8-1/4 1
8 A00102 QD (Female) Coupler ¼ 1
9 D13717 Swivel Fitting Washer 1 1
10 D13929 Swivel Fitting Washer 2 1
11 K00655-1 Flanged Hose Adapter 1-1/2 1
12 E11128 Gasket 1
13 A13323 Spray Tip #2 2
14 D13718 Spinner Arm 1
15 F13485 Skirt Brush 1
16 C13674 Thread forming screw #6 5
17 C00311 Screw, 8-32 x 3/8 2
18 C11237 Nut, 8-32 2
19 C02237 Thread forming screw #8 1
