Edimax IC-5170SC User manual

IC-5170SC
Quick Installation Guide
09-2016 / v1.0

2
Package Contents
QIG
CD-ROM
Power
Adapter
Ethernet
Cable
Screws
IC-5170SC
Temperature
& Humidity
Sensor
USB Sensor
Dongle
PIR Sensor
Door/Windows
Sensor x2
Battery

3
LED Status
IC-5170SC
LED
LED Color
LED Status
Description
Power
Green
On
Network camera is on and connected
to cloud server.
Quick Flashing
Network camera is restarting.
Slow Flashing (1 x per
second)
Network camera is starting upor
network camera is not connected to
cloud server.
LAN
Green
On
Network camera is connected to the
local network.
Quick Flashing
LAN activity (transferring data).
Slow Flashing (1 x per
second)
WPS is active.
Internet
Orange
On
Connected to Internet.
Quick Flashing
Network camera is restarting.
Slow Flashing (1 x per
second)
Not connected to Internet.
Sensor
LED
LED Color
LED Status
Description
Status
Red
Flashing
Pairing active
Sensor Hub
LED
LED Color
LED Status
Description
Status
Red
Flashing
Pairing active

4
Camera Setup
Follow the instructions below to first connect your network camera to your
Wi-Fi using the EdiLife smartphone app. Then refer to the next chapter
SmartSensors to setup your smart sensors.
Your network camera’s unique SSID is displayed on the product label on
the network camera and consists of “EdiView.Setup **” where ** are the
last two characters of your camera’s unique MAC address.

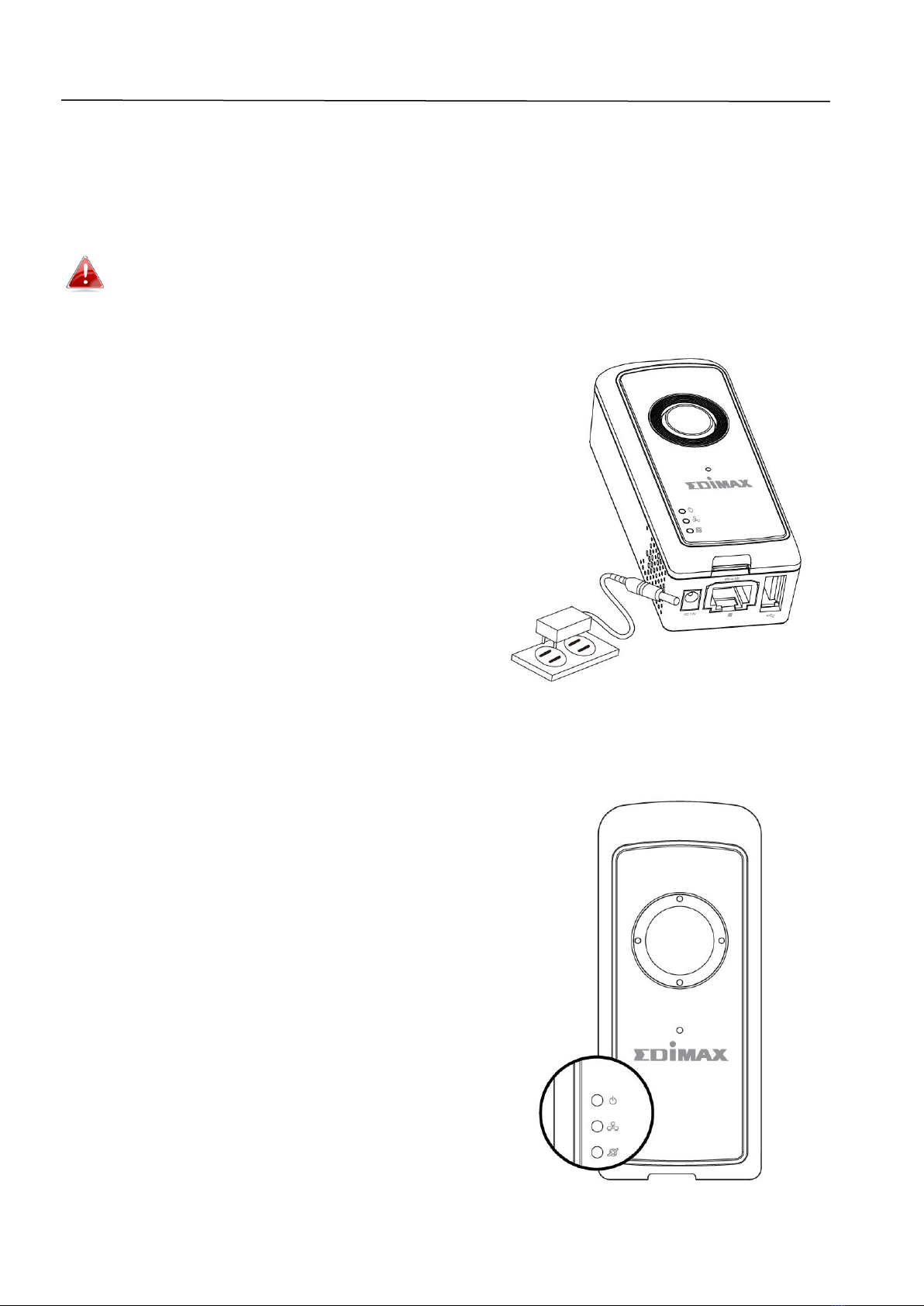

1.Connect the network camera to a
power supply using the included
power adapter.
2.Wait a moment for the camera to
power on. The greenpower LED willflash slowlywhen it’s ready.

5

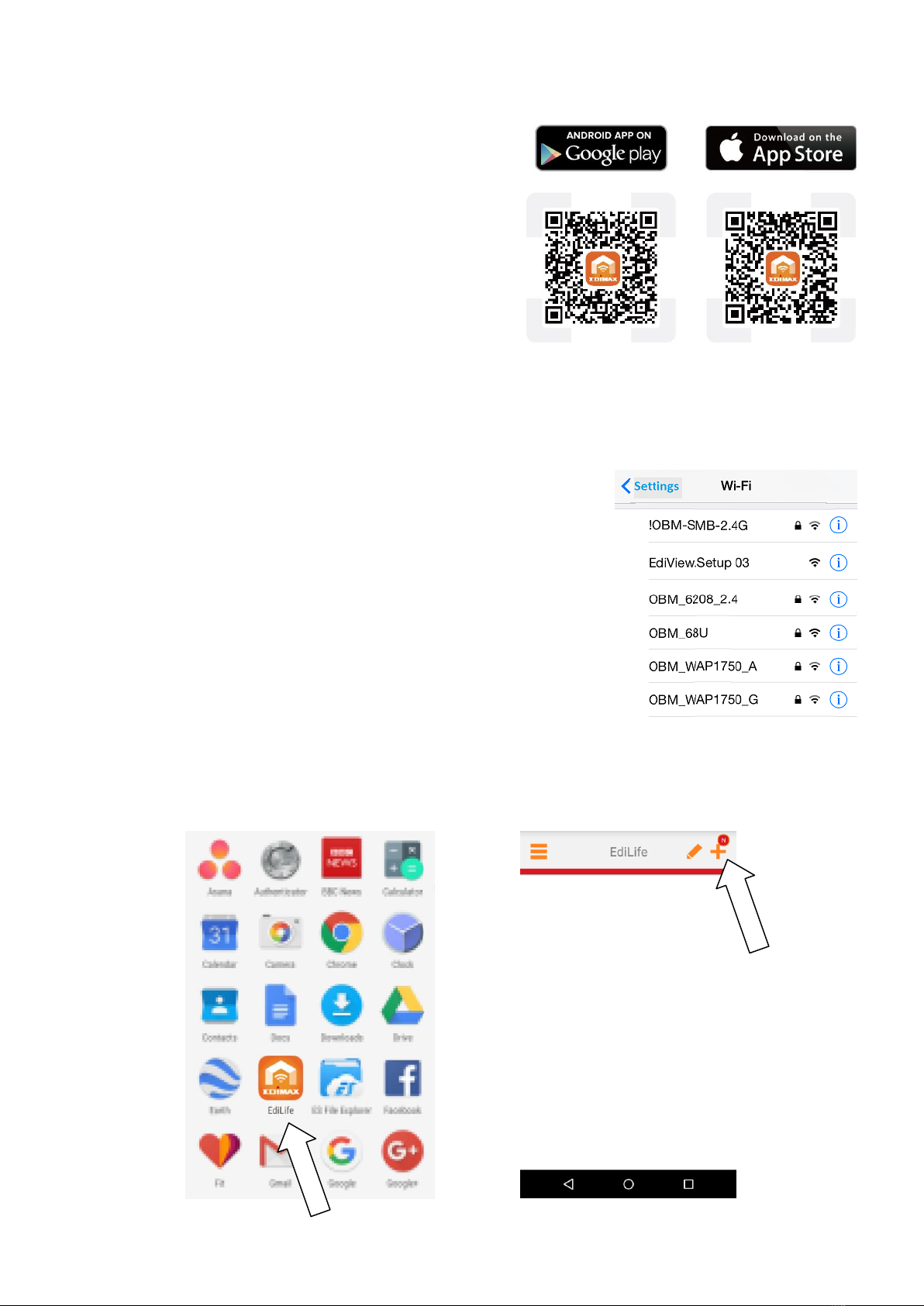

3.Use a smartphone or tablet to search, download and install the EdiLifeapp
from Google Play or the Apple App Store.
4.For iOS users, go to your iPhone’s Wi-Fi settings and connect to your
network camera’s SSID (EdiView.Setup**), before opening the EdiLife app.
Continue to Step 7.
5.Android users open the EdiLife app and tap the +icon in the top-right
corner of the screen.

6
6.Android usersselect your camera from the available wireless device list
and wait a moment for the app to make a connection.
Tap refresh in the top right corner if your
camera isn’t listed.
7.For better security, enter a new device name and password when
prompted. Tap Done to continue.

7
8.Select your Wi-Fi from the list and enter your Wi-Fi password. Tap OK to
continue.
Tap refresh in the top right corner if your Wi-Fi
isn’t listed.
9.Please wait a moment while your camera connects to your Wi-Fi. When
you see the Setup complete screen, click the LIVEicon or tap the arrow to
continue.

8
10. Setup is complete. The camera’s greenpower LED &orange Internet LED
should display on.Your camera should be listed on the EdiLife home
screen.Tap your camera to see a live stream which you can view anytime
you are connected to the Internet.
You can configure your camera’s settings and functions using the icons
below the live image.
11. If you have a microSD card, insert the card into the microSD slot on
the back on the network camera.

9
WPS
The WPS (Wi-Fi Protected Setup) button is a quick and easy alternative to
establish a secure wireless connection between your network camera and
your wireless router/access point.
1. Press and hold the WPS button on your wireless router/access point for
the correct length of time to activate its WPS.
Please check the instructions for your
wireless router/access point for how long
you need to hold down its WPS button to
activate WPS.
2. Within two minutes, press the WPS/Reset button on the network camera
for 2 –5 seconds to activate WPS. The greenLAN LED will flashslowlyto
indicate that WPS is active.
Take care not to hold the WPS/Reset button too long and reset
your network camera.
3. The devices will establish a secure
wireless connection. The greenLANLED
will flashquicklyfor two minutes to
indicate a successful WPS connection.

10
Smart Sensors
Your IC-5170SC includes a variety of smart sensors that can alert, notify and
interact with smart rules via the EdiLife app.
Eachdoor/windowsensor consists of two parts (larger sensor unit and smaller
magnetic contact) and can monitor when a door or window is opened. The
PIRsensor is a heat-based motion detector, and the temperature and
humidity sensor can report temp & humidity data.
1.Connect the USB sensor hub to your IC-5170SC camera.
2. Insert the included AAA batteries into each smart sensor by removing the
back covers.
3.You need to pair each sensor to your sensor hub. Press the small button on
the sensor hub. The green LED will flash.

11

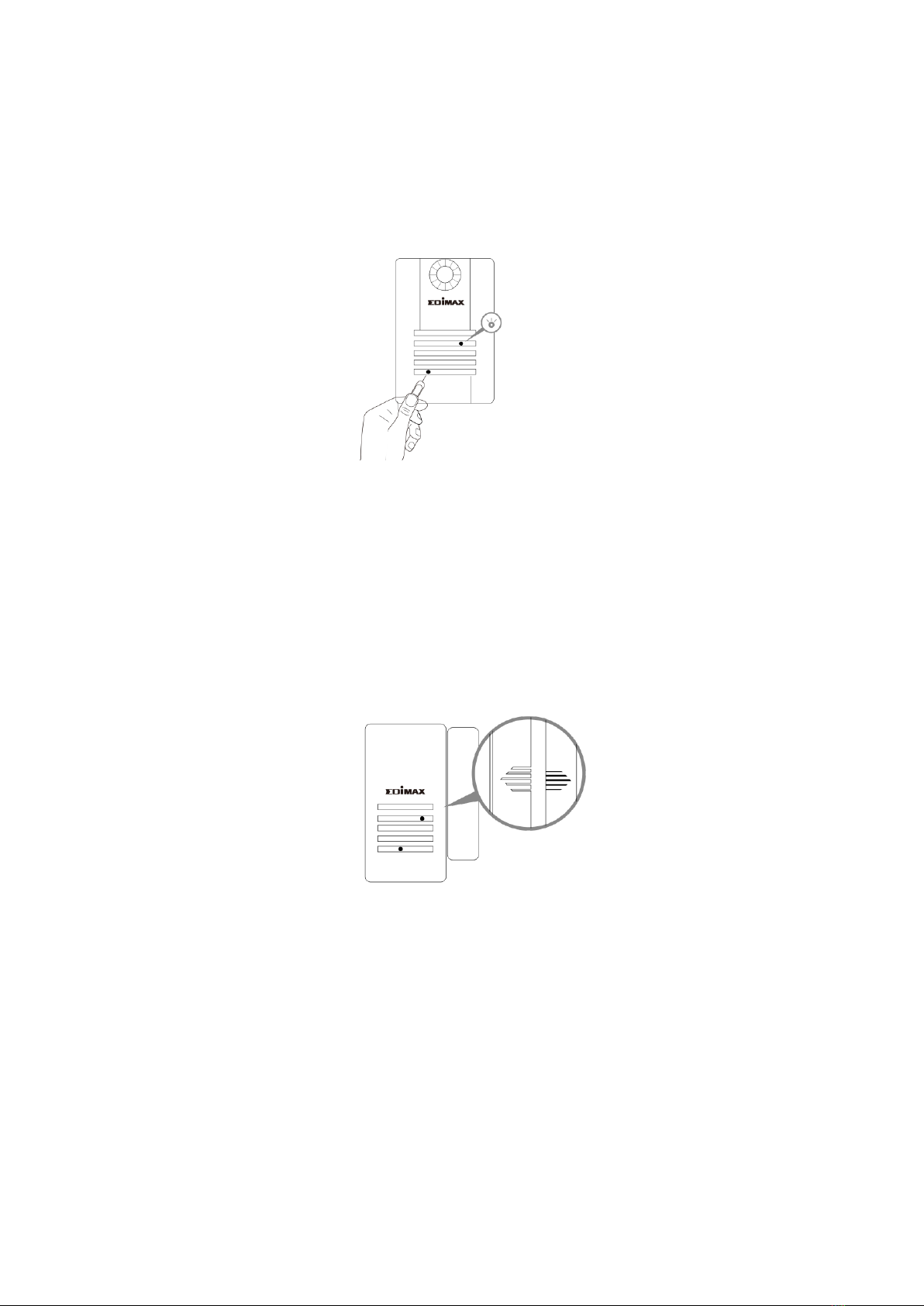

4.Within 10 seconds use a pencil or other object to press the small button on
the front of your sensor for two seconds.
5.The sensor hub will pair with the sensor. The sensor’s LED will display red
for a few seconds to indicate successful pairing. Repeat for each sensor.
6.Fix your sensors into the desired location using the high-strength adhesive
strips on the back on each sensor.
7.For the two-piece door/window sensors, fix the larger sensor unit to the
wall beside the door at a convenient height and close to the door frame.
8.Fix the small magnetic contact sensor to the door itself at the same height
as the sensor unit, and on the same side of the door.

12
Smart Sensors: EdiLife App
You can monitor the status of all your sensors using the EdiLife app, as well as
setup your notifications and smart rules, or disable sensors as you wish. The
app is easy and intuitive to use, but you can follow the guide below:

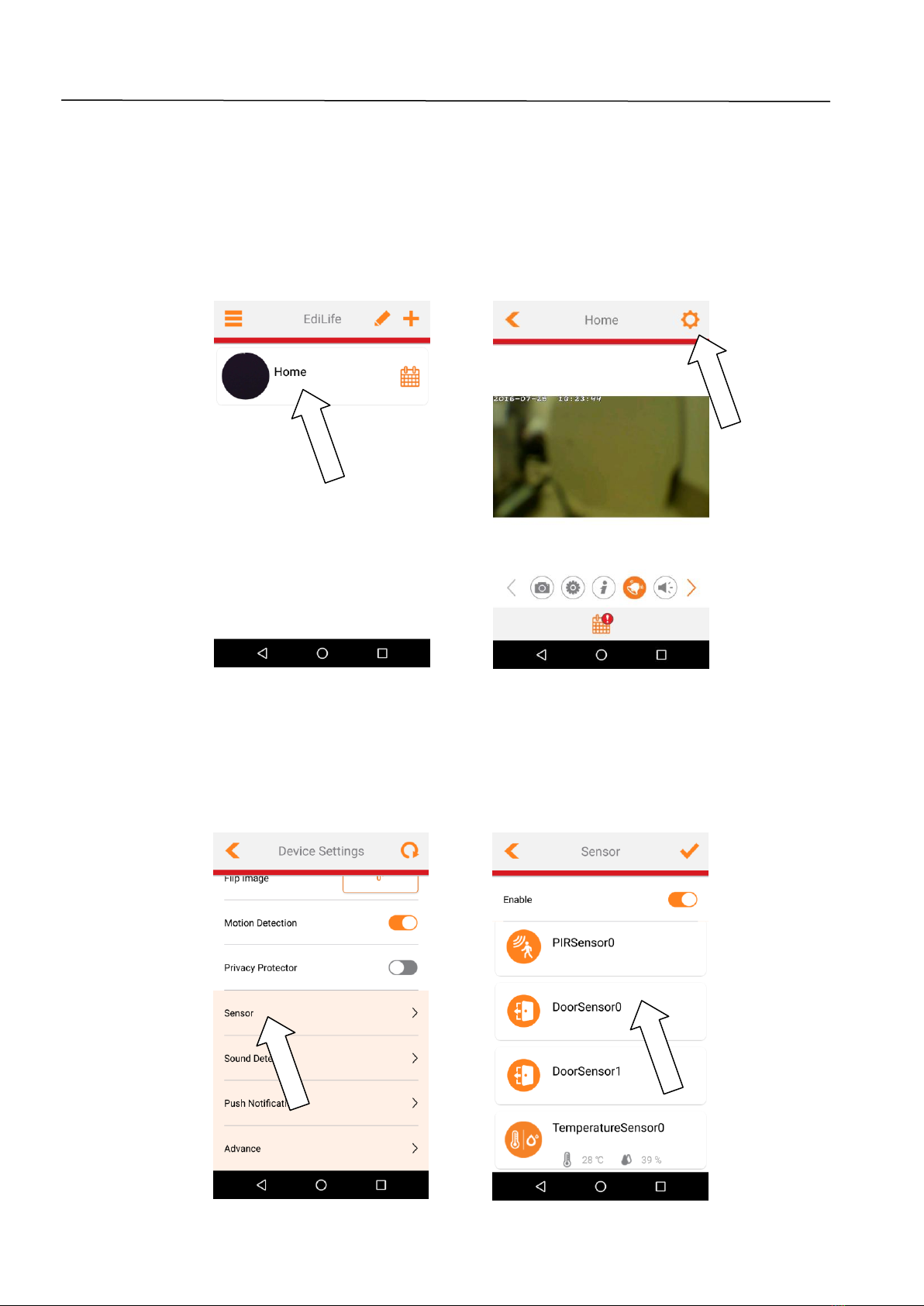

1.Select your IC-5170SC and tap the Settings icon in the top right corner.
2.Tap Sensors in the list and choose any of your sensors. If any of your
sensors are not displayed, try pairing them again as explained in the
previous chapter.

13

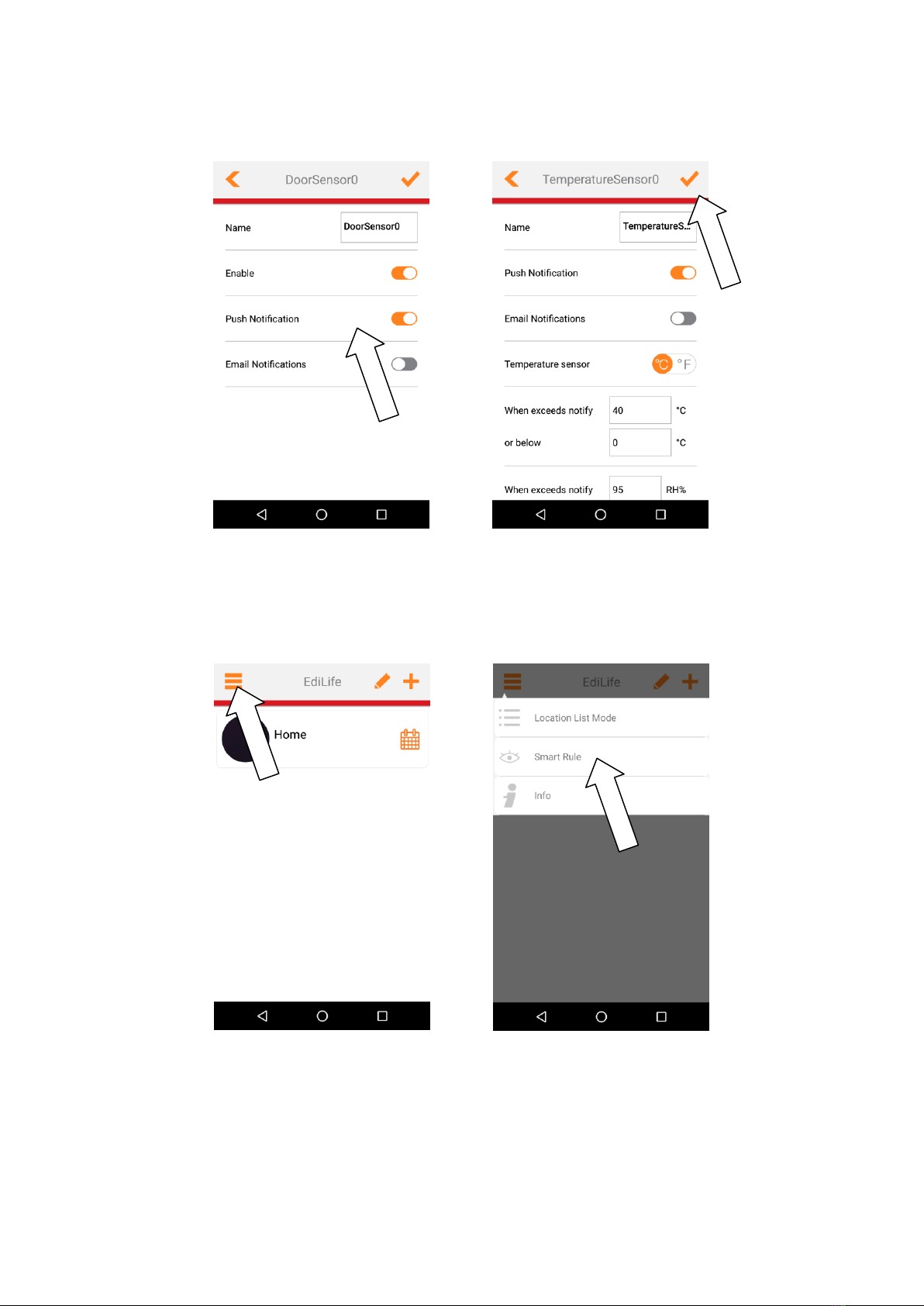

3.Adjust the settings for each sensor as you like and tap the check in the top
right corner to confirm.
4.To setup SmartRules, go back to the home screen and tap the menu icon in
the top left, then select SmartRules.

14

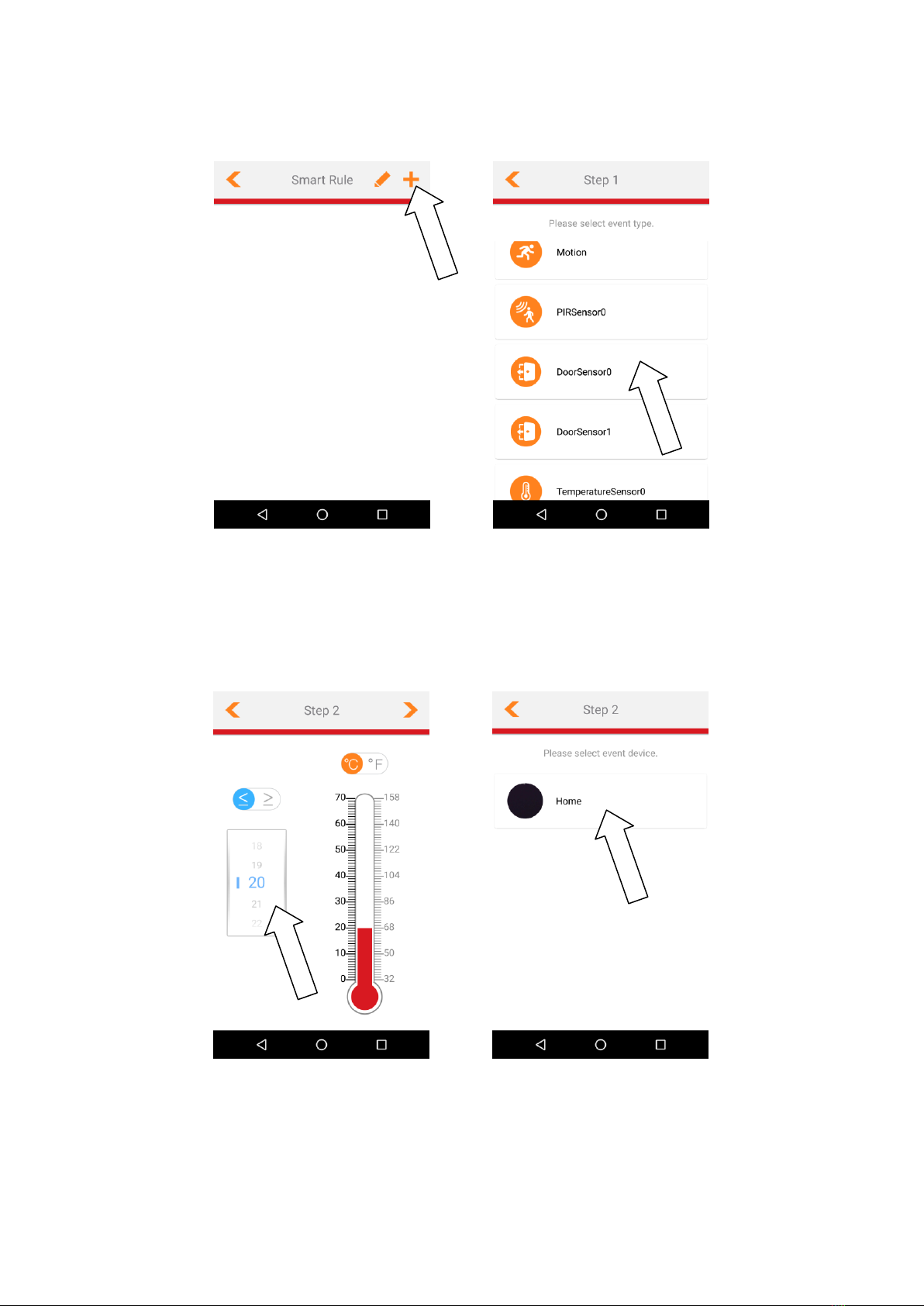

5.SmartRules will be displayed here after you create them. Tap the +to
create a new rule and choose which sensor to use.
6.Select which device will be triggered by your sensor’s event. (For the
temperature/humidity sensor, you can additionally set the level which will
trigger the rule e.g. above or below a specified temp/humidity.)

15
Using Your Network Camera
As well as the EdiLife app, you can use the camera’s web-based management
interface to see a live stream and to configure the camera’s functions such as
motion and sound detection.
Go to the camera’s IP address in a web browser on a computer connected to
the same local network:
You can find your network camera’s IP address using EdiView Finder on a
computer, or using the EdiLife smartphone app (go to Settings). Check the
user manual for help.

16
Reset
If you experience problems with your network camera, you can reset the
camera back to its factory default settings. This resets all settings back to
default.
1.Press and hold the WPS/Reset button found on the side panel for at least
10 seconds.
2.Release the button when the orange InternetLED is flashing quickly.
3.Wait for the network camera to restart.
The camera is ready when the green
power LED is flashing slowly.
After setup, the green power LED
will display on to indicate a
successful connection to the cloud
server.

17
Federal Communication Commission Interference Statement
Thisequipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a
residential installation. Thisequipmentgenerates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with theinstructions, maycause harmful interference to radio
communications.However, there is no guarantee that interference will not occur in a particular installation.If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one ormore of the
following measures:
1.Reorient or relocate the receiving antenna.
2.Increase the separation between the equipment and receiver.
3.Connect the equipment into an outlet on a circuit different from that towhich the receiver is connected.
4.Consult the dealer or an experienced radio technician for help.
FCC Caution
Any changes or modifications not expressly approved by the party responsible for compliance could void the
authority to operate equipment.
This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept anyinterference received, including
interference that may cause undesired operation.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels
is not possible. This device and its antenna(s) must not be co-located or operating in conjunction with any other
antenna or transmitter.
R&TTE Compliance Statement
This equipment complies with all the requirements of DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT AND
THE COUNCIL of March 9, 1999 on radio equipment and telecommunicationterminal equipment and the mutual
recognition of theirconformity (R&TTE). The R&TTE Directive repeals and replaces in the directive 98/13/EEC
(Telecommunications TerminalEquipment and Satellite Earth Station Equipment) As of April 8, 2000.
Safety
This equipment is designed with the utmost care for the safety of those who install and use it. However, special
attention must be paid to the dangers of electric shock and static electricity when working with electrical
equipment. All guidelines of this and of the computer manufacture must therefore be allowedat all times to
ensure the safe use of the equipment.
EUCountriesIntendedforUse
TheETSIversionofthisdeviceisintendedforhomeandofficeuseinAustria,Belgium, Bulgaria, Cyprus, Czech, Denmark,
Estonia, Finland,France,Germany,Greece, Hungary, Ireland,Italy, Latvia, Lithuania, Luxembourg, Malta,
Netherlands, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,Sweden, Turkey,
andUnitedKingdom.TheETSIversionof this device is also authorized for use in EFTA member
states:Iceland,Liechtenstein,Norway, and Switzerland.
EU Countries Not Intended for Use
None

18
EU Declaration of Conformity
English: This equipment is in compliance with the essential requirements and other relevant
provisions of Directive 1995/95/EC, 2011/65/EC.
Français: Cetéquipementestconforme aux exigencesessentielles et autres dispositions de la directive
1995/95/CE, 2011/65/CE.
Čeština:Toto zařízení je v souladu se základnímipožadavky a
ostatnímipříslušnýmiustanovenímisměrnic1995/95/ES, 2011/65/ES.
Polski: Urządzenie jest zgodne z ogólnymi wymaganiami oraz szczególnymi warunkami
określonymi Dyrektywą UE 1995/95/EC, 2011/65/EC..
Română:Acestechipamentesteînconformitate cu cerinţeleesenţialeşialteprevederirelevante ale
Directivei1995/95/CE, 2011/65/CE.
Русский: Этооборудованиесоответствуетосновнымтребованиям и положениямДирективы
1995/95/EC, 2011/65/EC.
Magyar: Ez a berendezésmegfelelazalapvetőkövetelményeknekésmásvonatkozóirányelveknek
(1995/95/EK, 2011/65/EK).
Türkçe: Bu cihaz1995/95/EC, 2011/65/ECdirektiflerizorunluisteklervediğerhükümlerleileuyumludur.
Українська: Обладнаннявідповідаєвимогам і умовамдирективи1995/95/EC, 2011/65/EC.
Slovenčina: Toto zariadeniespĺňazákladnépožiadavky a ďalšiepríslušnéustanoveniasmerníc1995/95/ES,
2011/65/ES.
Deutsch: Dieses Geräterfüllt die Voraussetzungengemäß den Richtlinien 1995/95/EC, 2011/65/EC.
Español: El presenteequipocumplelosrequisitosesenciales de la Directiva1995/95/EC, 2011/65/EC.
Italiano: Questoapparecchio è conformeairequisitiessenziali e
allealtredisposizioniapplicabilidellaDirettiva1995/95/CE, 2011/65/CE.
Nederlands: Ditapparaatvoldoetaan de essentiëleeisenenandere van toepassingzijndebepalingen van
richtlijn1995/95/EC, 2011/65/EC..
Português: Este equipamentocumpreosrequesitosessênciais da Directiva1995/95/EC, 2011/65/EC.
Norsk: Detteutstyreterisamsvar med de
viktigstekraveneogandrerelevanteregleriDirektiv1995/95/EC, 2011/65/EC.
Svenska: Dennautrustningäriöverensstämmelse med de
väsentligakravenochövrigarelevantabestämmelseridirektiv1995/95/EG, 2011/65/EG.
Dansk: Detteudstyrerioverensstemmelse med de
væ sentligstekravogandrerelevanteforordningeridirektiv1995/95/EC, 2011/65/EC.
suomenkieli: Tämälaitetäyttäädirektiivien1995/95/EY, 2011/65/EYoleellisetvaatimukset ja
muutasiaankuuluvatmääräykset.
-----------------------------------------------------------------------------------------------------------------------
WEEE Directive & Product Disposal
At the end of its serviceable life, this product should not be treated as household or general waste. It
should be handed over to the applicable collection point for the recycling of electrical and electronic
equipment, or returned to the supplier for disposal.

19
Declaration of Conformity
We, Edimax Technology Co., Ltd., declare under our sole responsibility, that the
equipment described below complies with the requirements of the European R&TTE
directive (1999/5/EC, 2006/95/EC) .
Equipment:
Wi-Fi Cam Smart Sensor Kit
Model No.:
IC-5170SC
The following European standards for essential requirements have been followed:
Spectrum:
ETSI EN 300 328 V1.9.1 (2015-02)
EMC:
EN 301 489-1 V1.9.2 (2011-09);
EN 301 489-17 V2.2.1 (2012-09)
EMF:
EN 62311:2008
Safety (LVD):
IEC 60950-1:2005 (2nd Edition);Am1:2009;Am2:2013
EN-60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
Edimax Technology Europe B.V. a company of :
Nijverheidsweg 25, Edimax Technology Co., Ltd.,
5683 CJ BEST No. 3, Wu Chuan 3rd Road,
THE NETHERLANDS Wu-Ku Industrial Park,
New Taipei City, Taiwan
Date of Signature:
Sep.30, 2016
Signature:
Printed Name:
Albert Chang
Title:
Director
Edimax Technology Co.,Ltd.
Signature:
Printed Name:
Vivian Ma
Title:
Director
Edimax Technology Europe B.V.

20
Notice According to GNU General Public License Version 2
This product includes software that is subject to the GNU General Public License version 2. The program is free software and
distributed without any warranty of the author. We offer, valid for at least three years, to give you, for a charge no more
than the costs of physically performing source distribution, a complete machine-readable copy of the corresponding source
code.
Das Produktbeinhaltet Software, die den Bedingungen der GNU/GPL-Version 2 unterliegt. Das Programmisteinesog. „Free
Software“, der Autorstellt das ProgrammohneirgendeineGewährleistungenzurVerfügung. WirbietenIhnenfüreinenZeitraum
von dreiJahren an, einevollständigemaschinenlesbareKopie des Quelltextes der ProgrammezurVerfügungzustellen –
zunichthöherenKostenalsdenen, die durch den physikalischenKopiervorganganfallen.
GNU GENERAL PUBLIC LICENSE
Version 2, June 1991
Copyright (C) 1989, 1991 Free Software Foundation, Inc.51 Franklin Street, Fifth Floor, Boston, MA02110-1301, USA
Everyone is permitted to copy and distribute verbatim copiesof this license document, but changing it is not allowed.
Preamble
The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General
Public License is intended to guarantee your freedom to share and change free software--to make sure the software is free
for all its users. This General Public License applies to most of the Free Software Foundation’s software and to any other
program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Lesser
General Public License instead.) You can apply it to your programs, too.
When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make
sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive
source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that
you know you can do these things.
To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender
the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you
modify it.
For example,if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights
that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms
so they know their rights.
We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal
permission to copy, distribute and/or modify the software.
Also, for each author’s protection and ours, we want to make certain that everyone understands that there is no warranty for
this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they
have is not the original, so that any problems introduced by others will not reflect on the original authors’ reputations.
Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a
free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have
made it clear that any patent must be licensed for everyone’s free use or not licensed at all.
The precise terms and conditions for copying, distribution and modification follow.
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION
0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be
distributed under the terms of this General Public License. The ‘“Program’“, below, refers to any such program or work, and a
‘“work based on the Program’“ means either the Program or any derivative work under copyright law: that is to say, a work
containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language.
(Hereinafter, translation is included without limitation in the term ‘“modification’“.) Each licensee is addressed as ‘“you’“.
Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The
act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a
work based on the Program (independent of having been made by running the Program). Whether that is true depends on
what the Program does.
