Edwards Signaling 94PLEDM Series Assembly instructions

© 2017 United Technologies Corporation 1 / 3 P/N 3101962-EN • REV 003 • ISS 26OCT17
94PLEDM Series Rotating
Polaris LED Beacon
Installation Sheet
Description
The 94PLEDM Series Rotating Polaris LED Beacon is UL and cUL
listed for general signaling use. The beacon is available in
120 VAC or multivoltage 12 VDC, 24 VAC, or 24 VDC models. There
are six lens colors to choose from, and a choice of black or gray bases.
The beacon utilizes high-power LED lights and is suitable for indoor or
outdoor use. The beacon is provided with an enclosure rated for NEMA
Type 4X and IP66.
The beacon is well suited for high ambient noise level areas, especially
where ear protection must be worn. The beacon is also ideal for high
vibration applications and areas where long lamp life is advantageous.
The beacon features a 360-degree beam of light with 16 user-
selectable flash or rotation patterns including Steady. The patterns are
selected by pressing the Edwards logo push button. The factory setting
is Light Burst.
The beacon is designed to be mounted on 3/4 in. NPT conduit (indoor
or outdoor). To maintain the NEMA Type 4X and IP66 ratings for
outdoor installation, the beacon must be mounted with the dome facing
directly up. When installing the beacon indoors in dry environments, it
can be mounted in any position.
Installation
Install the beacon in accordance with the applicable requirements in
the latest edition of the National Electrical Code, Canadian Electrical
Code, and local codes.
WARNINGS
Electrocution hazard. To prevent electrical shock, ensure that
power is disconnected before installing the beacon
Electrocution hazard. To prevent leakage and potential electrical
shock, use care when disassembling the beacon to prevent
tearing of the permanently affixed gaskets provided for the
environmental integrity and ratings.
Electrocution hazard. To prevent leakage and potential electrical
shock when mounting outdoors, install the beacon with the lens or
dome facing directly up.
Note: The beacon is designed to be conduit mounted.
To install the beacon:
1. Release the latch on the clamp ring and remove the ring holding
the protective dome to the signal base. Lift the dome straight up off
of the beacon base (Figure 1).
2. Loosen the three screws in the keyhole slots in the base of the
lens, turn the lens clockwise, and lift it off of the LED light source
support plate.
3. Remove the three screws holding the LED light source support
plate to the beacon base.
4. Gently grasp the LED tower and carefully lift the support plate off
of the beacon base.
Note: The beacon mounts on a 3/4 in. NPT conduit pipe. The
female threaded entry is located on the bottom of the base.
5. Route the field wiring from the appropriate power source through
the conduit, and then through the conduit entrance hole in the
beacon base.
6. Install the base on the conduit. Wrench-tighten for a leak free seal.
7. Wire in accordance with “Wiring” below.
8. Place the connected wires inside the base and reassemble the
beacon (Figure 1).
9. Apply power and verify that the beacon operates properly.
Wiring
Wire this unit in accordance with all applicable local codes and
standards and the local authority having jurisdiction.
To wire the beacon for 120 VAC:
1. Using wire nuts (not supplied), connect the field wiring to the
beacon wiring.
2. Connect the beacon’s black lead to hot, and the white lead to
neutral. Connect the beacon’s green lead to the grounding point
located in the signal base.
To wire the beacon for 12 VDC:
1. Using wire nuts (not supplied), connect the field wiring to the
beacon wiring.
2. Connect the beacon’s red lead to positive (+) and the black lead to
negative (−).
To wire the beacon for 24 VAC/VDC:
1. Connect the field wiring to the beacon wiring using wire nuts (not
supplied).
2. Connections depend on the voltage supply. Choose the
connections that match your power supply:
24 VAC: Connect the black lead to hot and the red lead to neutral.
24 VDC: Connect the red lead to positive (+), and the black lead to
negative (−). Connect the green lead to the grounding point
located in the beacon base.
Selecting the flash or rotation pattern
The beacon can be configured with one of 16 user-selectable flash or
rotation patterns using a push button (membrane switch). The push
button is located in the center of the Edwards shield logo on the base
of the beacon (Figure 1).
firealarmresources.com

2 / 3 P/N 3101962-EN • REV 003 • ISS 26OCT17
Table 1: Flash and rotation patterns
Pattern
Description
1.
Steady On steady
2. S65
65 Single FPM
3. Light Burst
1,100 FPM (seven pulses),
440 ms off,
Repeat
4. Singular Burst
310 Single FPM
5. Binary Burst
200 Double FPM
6. Quad Burst
100 Quad FPM
7. iBurst
4 pulses at 750 FPM, Off,
4 pulses at 750 FPM, Off,
6 pulses at 870 FPM, Off,
Repeat
8. Rotating
80 RPM 80 RPM
9. Rotating
95 RPM 95 RPM
10. Rotating
130 RPM 130 RPM
11. Rotating
200 RPM 200 RPM
12. Slow Rotating with Burst
2 rotations at 84 RPM,
2 pulses at 940 FPM,
Repeat
13.
Flash Rotating with Burst 3 rotations at 174 RPM,
4 pulses at 900 FPM,
Repeat
14. Quad Flash with Pop
4 pulses at 650 FPM, 160ms Off,
1 pulse at 410 FPM, 410 ms Off,
Repeat
15. Variable Rotating
83 to 420 RPM repeated every 6.6s
16. Variable
Flashing 137 - 535 Single FPM repeated
every 4.1s
FPM
– Flashes Per Minute
RPM – Rotations Per Minute
To select a flash or rotation pattern:
1. Press and hold the push button for one second to switch the
beacon to the next pattern (Table 1).
2. Press and hold the push button for three seconds to set the
beacon to the first pattern (Steady).
Maintenance
Lens and dome replacement
WARNING: Electrocution hazard. To prevent electrical shock,
disconnect the beacon from the supply circuit and allow five minutes
for stored energy to dissipate before disassembling.
Caution: Do not overtighten the screws or damage to the dome may
occur.
To replace the lens or dome:
1. Release the latch on the clamp ring and remove the ring holding
the protective dome to the signal base. Lift the dome straight up off
of the signal base.
2. Loosen the three screws in the keyhole slots in the base of the
lens. Turn the lens clockwise and lift it straight up off of the support
plate.
3. Replace the lens by turning it counter-clockwise in the keyhole
slots, and then tightening the three screws.
4. Replace the dome and reinstall the clamp ring.
Cleaning
Caution:To prevent damage to the lens or dome, do not use abrasive
materials or cleaners.
Periodically clean the lens surface with a soft cloth or sponge and
water or a mild detergent solution to maintain optimum light visibility.
Make sure the lens is completely dry before assembling the beacon.

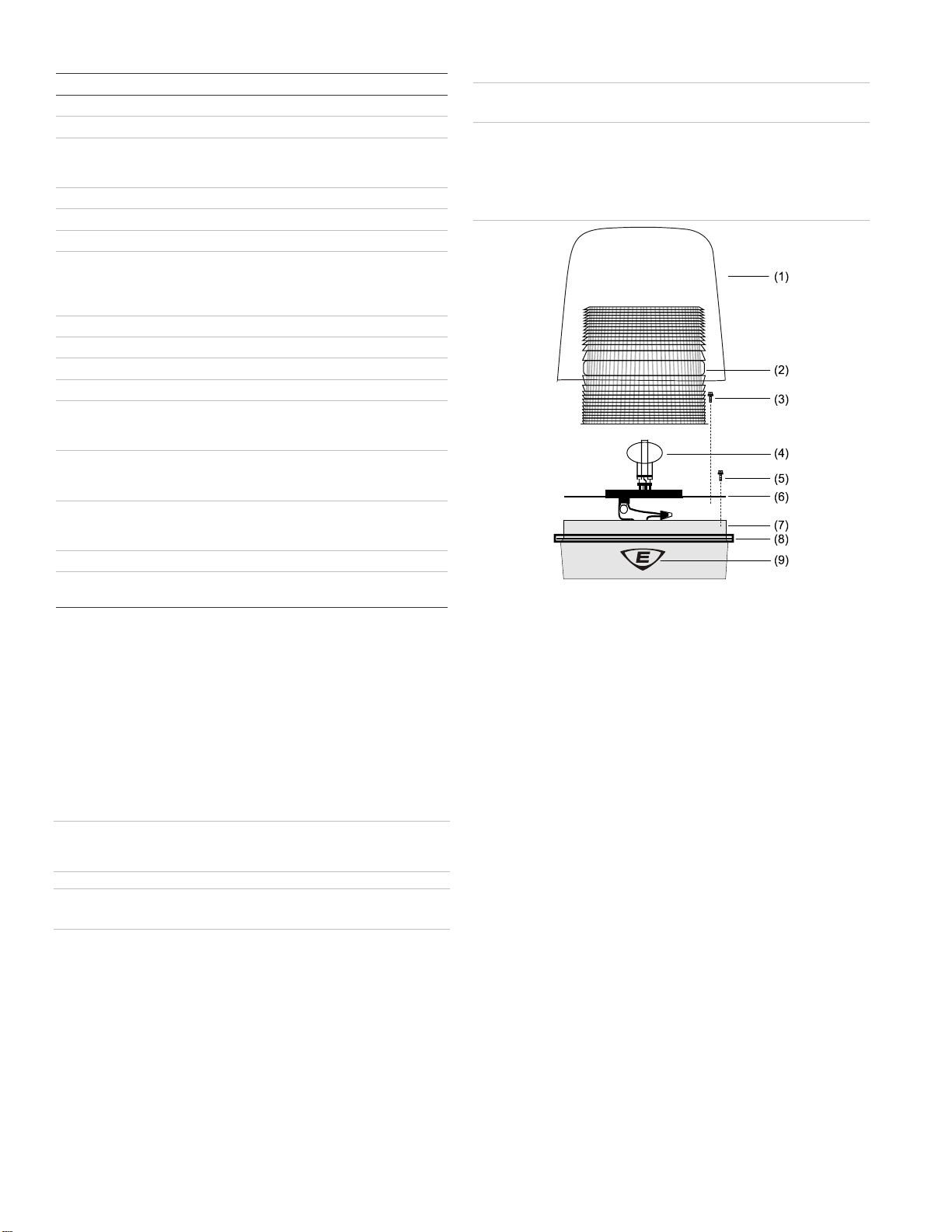

Figure 1: Installation
(1) Dome
(2)
Lens
(3)
Screw (3X)
(4)
LED tower
(5) Screw (3X)
(6) LED light source support plate
(
7) Beacon base
(
8) Clamp ring
(9)
Push button
firealarmresources.com

P/N 3101962-EN • REV 003 • ISS 26OCT17 3 / 3
Specifications
Table 2: Specifications
Model number
Electrical specs
Dimensions
Color
G
ray base Black base
94PLEDMA24AD
94PLEDMA24ADB 12 VDC, 0.700 A
24 VAC/VDC 0.550 A 8.25 × 7.75 in. (210 × 200 mm) Amber
94PLEDMB24AD
94PLEDMB24ADB 12 VDC, 0.700 A
24 VAC/VDC 0.550 A 8.25 × 7.75 in. (210 × 200 mm) Blue
94PLEDMG24AD
94PLEDMG24ADB 12 VDC, 0.700 A
24 VAC/VDC 0.550 A 8.25 × 7.75 in. (210 × 200 mm) Green
94PLEDMM24AD
94PLEDMM24ADB 12 VDC, 0.700 A
24 VAC/VDC 0.550 A 8.25 × 7.75 in. (210 × 200 mm) Magenta
94PLEDMR24AD
94PLEDMR24ADB 12 VDC, 0.700 A
24 VAC/VDC 0.550 A 8.25 × 7.75 in. (210 × 200 mm) Red
94PLEDMW24AD
94PLEDMW24ADB 12 VDC, 0.700 A
24 VAC/VDC 0.550 A 8.25 × 7.75 in. (210 × 200 mm) White
94PLEDMA120A
94PLEDMA120AB 120 VAC, 0.250 A 8.25 × 7.75 in. (210 × 200 mm) Amber
94PLEDMB120A
94PLEDMB120AB 120 VAC, 0.250 A 8.25 × 7.75 in. (210 × 200 mm) Blue
94PLEDMG120A
94PLEDMG120AB 120 VAC, 0.250 A 8.25 × 7.75 in. (210 × 200 mm) Green
94PLEDMM120A
94PLEDMM120AB 120 VAC, 0.250 A 8.25 × 7.75 in. (210 × 200 mm) Magenta
94PLEDMR120A
94PLEDMR120AB 120 VAC, 0.250 A 8.25 × 7.75 in. (210 × 200 mm) Red
94PLEDMW120A
94PLEDMW120AB 120 VAC, 0.250 A 8.25 × 7.75 in. (210 × 200 mm) White
Figure 2: Dimensions
Table 3: Electrical specifications
Specification
94PLEDM(*)24AD 94PLEDM(*)120A
Operating voltage
12 VDC
24 VAC/VDC 120 VAC
Off state leakage
current
5 mA 5 mA
Continuous
On current 700 mA (12 VDC)
550 mA (24 VAC/VDC) 250 mA
Surge (inrush/duration)
8.5 A / 2 ms 4.5 A / 1 ms
* The letter in this position denotes color.
Table 4: Replacement parts
Component
Catalog number
Clear outer
dome 94DV2-DC
Lens*
93-L(*)
*
The letter in this position signifies the color of the lens. A = amber,
B
= blue, C = clear, G = green, M = magenta, or R = red.
For example,
a part number for a red lens would be 93-LR.
Note: 94PLEDMW uses a clear lens.
Regulatory information
North American
standards
UL 1638A, cUL C22.2 No. 205
Contact information
For contact information, see www.edwardsfiresafety.com.
