SIGA-MFT Map Fault Tool Installation Sheet
Description
The SIGA-MFT Map Fault Tool is a diagnostic tool intended to
help you locate and resolve sources of mapping faults in a
Signature signaling line circuit (SLC). The SIGA-MFT ships
with these accessories:
•A USB flash drive with the SIGA-MFT Software
•A USB cable
•A 24 VDC external power supply
The SIGA-MFT is wired directly to the SLC and connected to
your PC using a USB cable and port. The SIGA-MFT simulates
the mapping operation of the panel SLC controller, and the
SIGA-MFT Software provides enhanced troubleshooting
information.
The SIGA-MFT and the Signature SLC are powered by the
USB port on your PC. An external power supply (provided) can
be connected to the SIGA-MFT when needed. For example,
when you connect to a USB hub, which does not include
power, or if communication is lost when connecting to the SLC.
Diagnostic LEDs indicate communication by flashing:
•Green = PC communication
•Red = SLC communication
Features
Figure 1 shows the connectors and indicators located on the
front face of the SIGA-MFT. Figure 2 shows the connectors
and fuse located on the back of the device.
Figure 1: Front view of the SIGA-MFT
(1) USB connection
(2) External power jack
(3) Green LED
(4) Red LED
Figure 2: Back view of the SIGA-MFT
(1) Fuse
(2) SLC connection terminals
Installation
Refer to Figure 3 when installing the SIGA-MFT.
To install the SIGA-MFT:
1. Insert the USB flash drive into any USB port on your PC,
and then double-click Setup.exe to install the SIGA-MFT
Software.
You must install the software before connecting the device
so that the PC can recognize it.
2. Connect the SLC wiring to the SIGA-MFT observing the
polarity indicated on the device.
You must disconnect the SLC from the panel, and connect
it only to the SIGA-MFT.
(1) (2) (3) (4)
(1) (2)

2 / 2 P/N 3102062-EN • REV 002 • ISS 16NOV17
For Class A circuits, disconnect the Class A return wires. If
the SLC controller has a removable terminal block, simply
remove the block. The Class A return wires are not used.
3. Connect the USB cable to the SIGA-MFT, and then to
your PC.
4. Click Start > All Programs > Edwards Software >
SIGA-MFT Software to start the program.
During operation, the program may display a message
indicating that the external power supply is required. You can
plug in the external supply at any time during installation or
operation.
Refer to the SIGA-MFT Map Fault Tool User Guide
(P/N 3102035-EN) for instructions on using the tool to
troubleshoot the Signature SLC. A copy of the guide is
installed in the Edwards Software folder during installation of
the SIGA-MFT Software.
Wiring

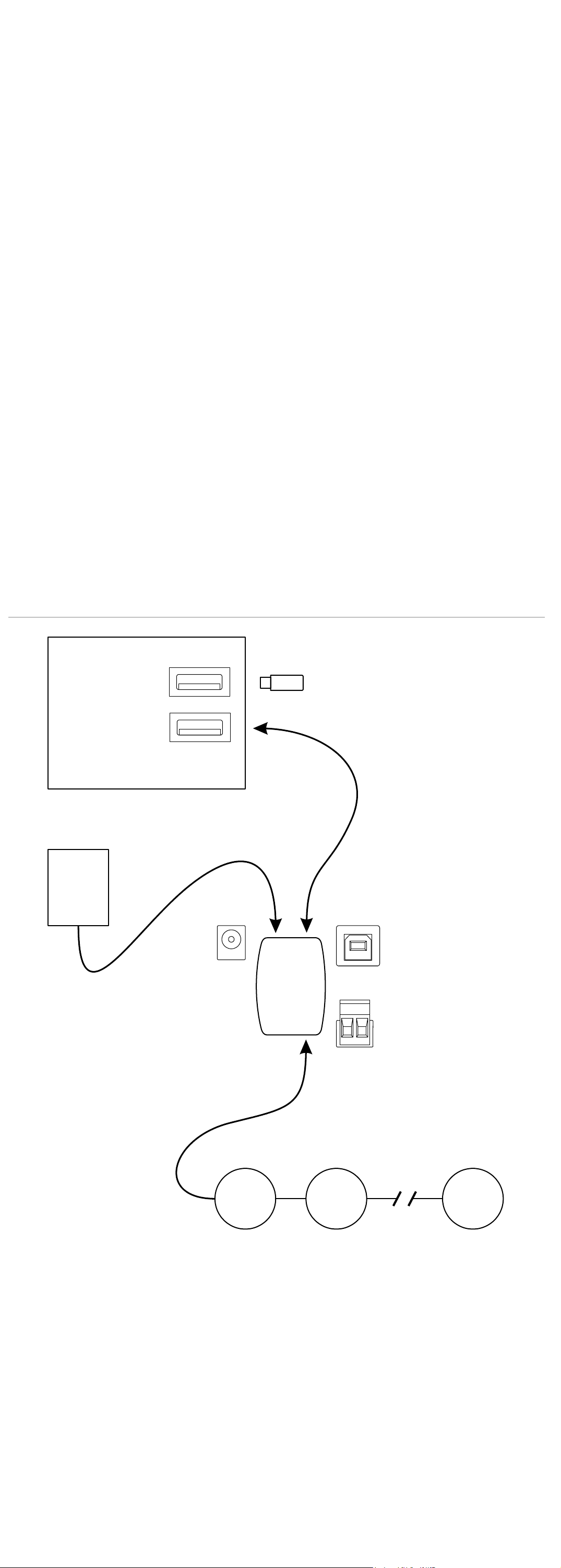

Figure 3: Connecting the SIGA-MFT
(1) USB flash drive with SIGA-MFT Software
(2) Field wiring from Signature SLC under test
(3) USB cable
(4) PC with SIGA-MFT Software installed
(5) 24 VDC external power supply (optional)
(6) SIGA-MFT
Maintenance
The SIGA-MFT does not require any periodic maintenance. If
needed, use a replacement fuse with the values shown in
“Specifications” below.
Specifications
Voltage
24 VDC [1]
Current
500 mA
Fuse
250 V, 125 mA
Wire size
12 to 26 AWG
External power supply
Voltage
Current
24 VDC
1 A
External supply plug
Positive center
2.1 mm ID × 5.5 mm OD × 9.5 mm (female)
PC operating system
Windows XP or Windows 7
Operating environment
Temperature
Relative humidity
32 to 120°F (0 to 49°C)
0 to 93% noncondensing
[1] When power is supplied by the USB port, the device operates on
5 VDC. The USB supply is limited to 500 mA by definition.
Regulatory information
FCC compliance
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
Contact information
For contact information, see www.edwardsfiresafety.com.
(1)
(2)
(3)
(4)
(5)
(6)
