Edwards EPS 800 User manual

EPS 800 Power supply
INSTRUCTION MANUAL
B8J204880_B
300903164_002_C1
Original instrucons
edwardsvacuum.com

Copyright noce
©Edwards Limited 2021. All rights reserved.
Trademark credit
Edwards and the Edwards logo are trademarks of Edwards Limited, Innovaon Drive,
Burgess Hill, West Sussex RH15 9TW.
Disclaimer
The content of this manual may change from me to me without noce. We accept
no liability for any errors that may appear in this manual nor do we make any
expressed or implied warranes regarding the content. As far as praccal we have
ensured that the products have been designed and constructed to be safe and without
risks when properly installed and used in accordance with their operang instrucons.
We accept no liability for loss of prot, loss of market or any other indirect or
consequenal loss whatsoever.
Product warranty and limit of liability are dealt with in our standard terms and
condions of sale or negoated contract under which this document is supplied.
You must use this product as described in this manual. Read the manual before you
install, operate, or maintain the product.

Contents
1. Important safety informaon. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2. Descripon. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.1 Supplied equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.2 Ordering informaon. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.3 Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.4 Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3. Installaon. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.1 Use as a benchtop unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.2 Installaon to the pump. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4. Operaon. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4.1 Start up. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4.2 Shut down. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4.3 Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5. Cercates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
06/2021 - ©Edwards Limited
Page 3B8J204880_B
300903164_002_C1

1. Important safety informaon
CAUTION: SAFETY INFORMATION
Refer to the individual pump operang instrucons for applicable safety informaon.
CAUTION: DANGEROUS VOLTAGE
Risk of electric shock and damage to the equipment. Make sure that the mains power
supply is switched o before you connect or disconnect the mains cable.
The EPS 800 must only be opened by cered Edwards Service Centres. Opening by
unauthorised personnel voids warranty.

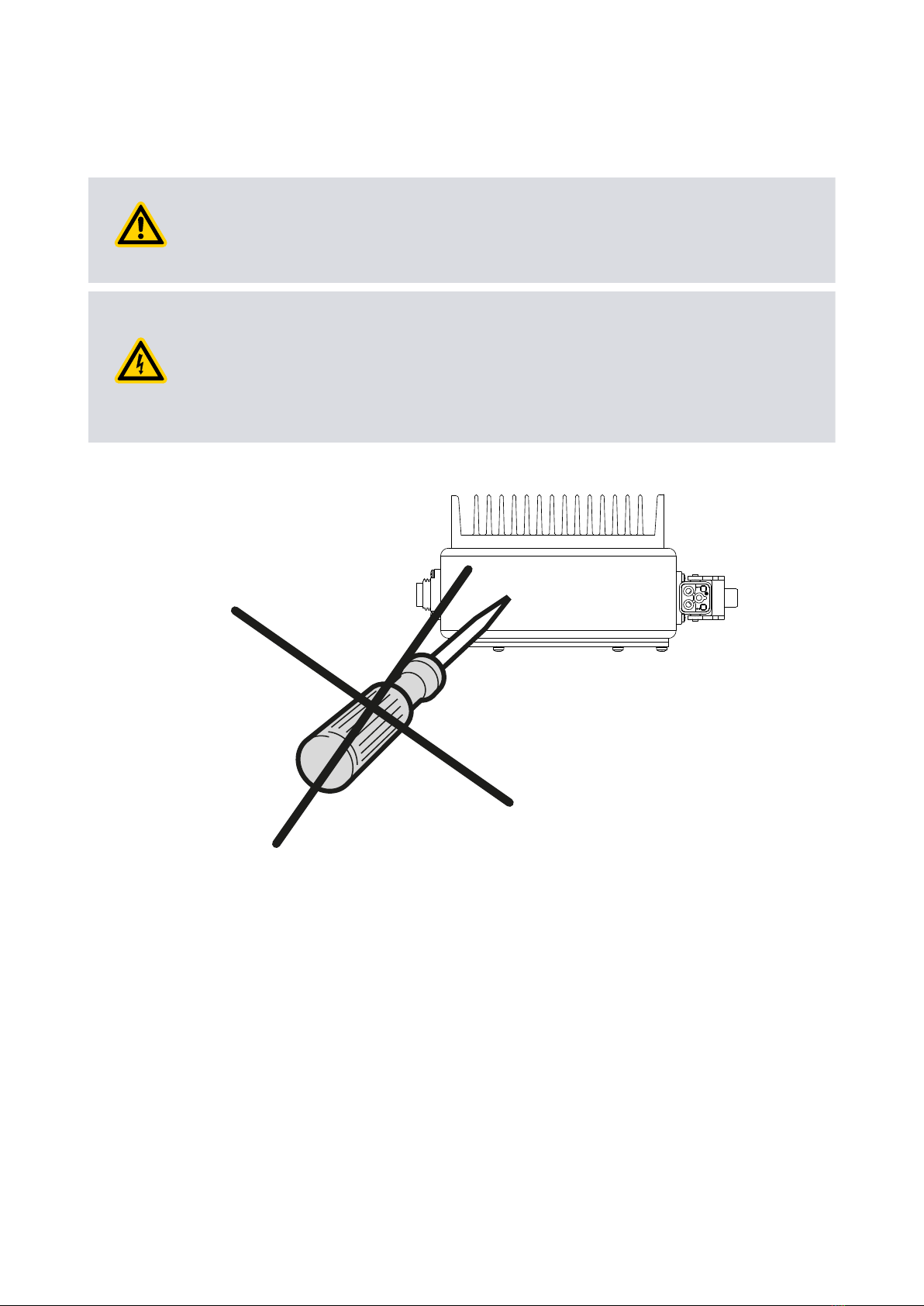

Figure 1 Do not open
BC-0028-A
06/2021 - ©Edwards Limited
Page 4B8J204880_B
300903164_002_C1
B8J204880_B - Important safety informaon

2. Descripon
The EPS 800 is a power supply unit for powering the nEXT 730D/930D/1230D
turbomolecular pumps. It is for indoor use only.
The mains input is protected by a fuse.
The EPS 800 can be ed to the pump or used as a benchtop unit.
2.1 Supplied equipment
▪ EPS 800
▪ 4 feet (to be assembled for use as a benchtop unit)
2.2 Ordering informaon
EPS 800 B8J200819
2.3 Accessories
Cable nEXT 730D/930D/1230D - EPS 800
3 m
5 m
B8J200824
B8J200825
Mains cable for EPS 800, 2.5 m long
with Euro plug
with US plug 5-15 P
with UK plug
Mains input socket (only)
B8J200829
B8J200830
B8J200831
B8J200833
Bracket for mounng to the pump (washers and bolts enclosed) B8J200832
2.4 Technical data
Input
Mains voltage 100 - 240 V a.c. ± 10%, 50/60 Hz
Maximum power consumpon 1100 VA
Eciency 84 %
Leakage current 2 mA / 230 V a.c.
AC fusing 15 A slow-blow
Output
Nominal DC output voltage 48 V ± 5% /-10%
Maximum DC connuous current 10.65 A
DC peak current (30 min) (limited by pump, con-
trolled by power supply)
17.1 A
Maximum rated power output 800 W
Other data
06/2021 - ©Edwards Limited
Page 5B8J204880_B
300903164_002_C1
B8J204880_B - Descripon

Weight 4.9 kg
Protecon type EN 60529
UL50 E
IP 54
Type 1
Ambient temperature
during operaon
in storage
5 – 40 °C
-15 – +70 °C
Relave air humidity 5 to 85 % non condensing
Overvoltage category II
Contaminaon grade 2
Resistance to interference 61000-6-2 Industry
Interference sourcing 61000-6-3 Household
Maximum operang altude 2000 m above sea level without any
power derang
>2000 m up to 3000 m with a derat-
ing of 1%/100 m
Figure 2 Dimensions in mm
210
177.5
36.5
242
103
53
39
53.5
75
40
150
BC-0024-A
06/2021 - ©Edwards Limited
Page 6B8J204880_B
300903164_002_C1
B8J204880_B - Descripon

3. Installaon
Refer to the individual pump operang instrucons for installaon informaon.
3.1 Use as a benchtop unit
Figure 3 Benchtop unit
BC-0027-A
Fix the supplied adhesive feet to the power supply unit and place the unit on an even,
level surface.
3.2 Installaon to the pump
1. Aach the bracket to the power supply unit using 6x M4x14 bolts, washers and
spring washers. Tighten with a torque of 3 Nm. Refer to Figure: Mount the bracket
to the power supply.
2. Aach the bracket with the power supply unit to the pump. Refer to Figure: Mount
the bracket to the pump.
▪ If there is no air cooler, aach the bracket using 4x M5x14 bolts, washers and
spring washers and ghten with a torque of 5 Nm.
▪ If the air cooler is mounted, aach the bracket using 4x M5x16 bolts, washers
and spring washers and ghten with a torque of 5 Nm.
3. Insert the connecng cable between the pump and EPS 800.
4. Tighten the cable through the plug at the connecon end.
The unit is not equipped with a mains switch. It will power up aer the mains cable is
connected.
06/2021 - ©Edwards Limited
Page 7B8J204880_B
300903164_002_C1
B8J204880_B - Installaon

Figure 4 Mount the bracket to the power supply
BC-0023-B
06/2021 - ©Edwards Limited
Page 8B8J204880_B
300903164_002_C1
B8J204880_B - Installaon

Figure 5 Mount the bracket to the pump
BC-0029-B
06/2021 - ©Edwards Limited
Page 9B8J204880_B
300903164_002_C1
B8J204880_B - Installaon

4. Operaon
CAUTION: DANGEROUS VOLTAGE
Risk of electric shock and damage to the equipment. The turbomolecular pump and
the EPS 800 must only be operated if installed in compliance with the informaon
provided in the Operang Instrucons.
The disconnecng device must be easily accessible.
4.1 Start up
CAUTION: DANGEROUS VOLTAGE
Risk of electric shock and damage to the equipment. Make sure that the mains power
supply is switched o before you connect or disconnect the mains cable.
The mains power supply must have a suitable earth connecon.
To start the EPS 800 do the steps that follow:
1. Plug in the mains cable.
2. Secure the mains cable so that it cannot be pulled out inadvertently.
To test the connecon, switch the turbomolecular pump on and o. Refer to the
applicable turbomolecular pump operang instrucons for informaon.
The turbomolecular pump will start only when the mains cable is plugged and a start
command is provided.
4.2 Shut down
To shut down the EPS 800 do the steps that follow:
1. Switch o the turbomolecular pump.
2. Wait for the rotor of the pump to stop. The Green status LED will stop ashing to
conrm that the rotor is ideal.
Note:
The rotor can take several minutes to stop. With the DC power supply o, the
turbomolecular pump will act as a generator supplying the frequency converter
with energy as indicated by the yellow power LED.
3. Disconnect the mains plug from the power supply.
In case of an emergency shutdown, disconnect the mains plug.
4.3 Maintenance
The EPS 800 is maintenance free. Repairs must only be done by Edwards.
You must disconnect the mains plug from power supply and make sure that the system is
protected against automac restart during any repair work.
06/2021 - ©Edwards Limited
Page 10B8J204880_B
300903164_002_C1
B8J204880_B - Operaon

5. Cercates
The EPS 800 have been successfully tested by the TÜV Rheinland of North America
according to the requirements of
▪ UL 61010-1:2012
CSA C22.2 No. 61010-1-12
cTUVus Cercate No. CU 72204401.01
cTUVus File No. 32084633.001
The TÜV Rheinland of North America is a “Naonally Recognised Tesng
Laboratory” (NRTL) for the USA and Canada.
06/2021 - ©Edwards Limited
Page 11B8J204880_B
300903164_002_C1
B8J204880_B - Cercates
