Eeg De285 hd User manual

EEG DE285 HD Caption

Decoder/VANC Monitor

Product Manual

EEG Enterprises, Inc.

586 Main Street

Farmingdale, New York 11735

TEL: (516) 293-7472 FAX: (516) 293-7417

DE285 HD Caption Decoder/VANC Monitor

Contents

1. Introduction .............................. 3

1.1. Product Description . . . . . . . . . . . . . . . . . . . . . . . 3

2. Installation .............................. 4

2.1. Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2.2. Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

3. Front Panel Menus . . . . . . . . . . . . . . . . . . . . . . . . . . 7

3.1. Decoder Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3.2. System Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3.3. Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

4. OSD ...................................14

4.1. XDS Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

4.2. AFD Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

4.3. Caption Service Monitor . . . . . . . . . . . . . . . . . . . . . 15

4.4. Audio Metadata Monitor . . . . . . . . . . . . . . . . . . . . . 15

4.5. Audio Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

4.6. Error Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

5. Web Tools Suite . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

5.1. Packet Display Module . . . . . . . . . . . . . . . . . . . . . . 18

5.2. Data Decoder Module . . . . . . . . . . . . . . . . . . . . . . 19

5.2.1. AFD Decoder . . . . . . . . . . . . . . . . . . . . . . . . 19

5.2.2. XDS Decoder . . . . . . . . . . . . . . . . . . . . . . . . 20

5.2.3. SCTE104 Decoder . . . . . . . . . . . . . . . . . . . . . 21

5.3. Caption Decoder Module . . . . . . . . . . . . . . . . . . . . . 21

5.4. ANC Trigger . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

5.5. VANC Capture . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

5.6. Logging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

5.6.1. Log Viewer . . . . . . . . . . . . . . . . . . . . . . . . . 27

5.6.2. Logging/OSD Alarm Settings . . . . . . . . . . . . . . . 28

5.7. OSD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

5.7.1. Screen Conﬁguration . . . . . . . . . . . . . . . . . . . 34

5.7.2. Alarm/Error Conﬁguration . . . . . . . . . . . . . . . . 36

5.7.3. Audio Monitor Conﬁguration . . . . . . . . . . . . . . . 36

5.8. Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

DE285 HD Caption Decoder/VANC Monitor

5.8.1. Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . 36

5.8.2. System Settings . . . . . . . . . . . . . . . . . . . . . . 37

5.8.3. Alarm Settings . . . . . . . . . . . . . . . . . . . . . . . 38

5.8.4. VANC Settings . . . . . . . . . . . . . . . . . . . . . . . 38

5.8.5. Log Settings . . . . . . . . . . . . . . . . . . . . . . . . 38

5.8.6. SNMP Settings . . . . . . . . . . . . . . . . . . . . . . . 39

5.8.7. Remote Settings . . . . . . . . . . . . . . . . . . . . . . 39

Appendices ................................40

Appendix A GPI/GPO . . . . . . . . . . . . . . . . . . . . . . . . . . 40

A1. GPI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

A1.1. Layout Scrolling . . . . . . . . . . . . . . . . . . . . . . 40

A2. GPO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

A2.1. Caption Presence Alarm . . . . . . . . . . . . . . . . . 41

Appendix B SNMP Traps .......................41

Appendix C Video/Connector Speciﬁcations . . . . . . . . . . . 42

Appendix D Binary ANC Dump Data Format . . . . . . . . . . . 43

The contents of this manual may not be transmitted or reproduced

in any form without the written permission of EEG.

The revision date for this manual is September 20, 2011.

DE285 HD Caption Decoder/VANC Monitor

1. Introduction

1.1. Product Description

The DE285 HD Caption Decoder/VANC Monitor is an all purpose closed

caption decoder which creates an HD open caption display for moni-

toring CEA–708 data quality and full standards compliance, while also

providing an extensive VANC monitoring suite. The DE285 can be con-

ﬁgured from the front panel to display caption data in HD Services 1

through 6, and all caption channels present in the EIA-608 compatibility

bytes. In addition to producing broadcast quality open–captioned video,

the DE285 decodes a wide array of metadata types, including AFD (Ac-

tive Format Descriptors), audio metadata and XDS. The DE285 also fea-

tures HANC embedded AES audio decoding with channel levels, peaks,

and phase detection.

The DE285 comes equipped with a powerful Web-based VANC Analysis

Tool for viewing and capturing live VANC data, sorted by service type,

DID/SDID or line number. The DE285 Web Tools offer an efﬁcient new

way to monitor VANC packets, providing programmable triggers with

logging for packet drop-outs or changes, as well as other features.

The EEG DE285 offers a comprehensive VANC monitoring solution and

HD closed caption decoder with the proven quality and full standards

compliance of the industry’s leading provider of HD closed caption de-

coding equipment.

DE285 HD Caption Decoder/VANC Monitor

2. Installation

2.1. Front Panel

The DE285 front panel is shown below, followed by a brief guide to its

functions.

Power On LED The Power On LED will light steady green when

the unit is powered on.

Active Button

Toggles the Decoder between active operation

(LED on) and Relay Bypass mode (LED off). In

Relay Bypass mode, the signal at the Program

video input is routed directly through to the Pro-

gram video output, with no on-screen display cre-

ated. All other inputs and outputs are inactive

and the web analysis tools cannot be used.

Control Pad

The Control Pad navigates menus and changes

settings in the front panel conﬁguration menus.

The control pad buttons are: ENTER (marked

by a check), CANCEL (marked by an X), LEFT,

RIGHT, UP and DOWN. In most conﬁguration

menus, use LEFT and RIGHT to navigate be-

tween parameters, UP and DOWN to change the

value of the selected parameter, ENTER to se-

lect a category or save a change, and CANCEL

to return to the previous menu without saving

changes. See Front Panel LCD Menu in Decoder

Operation for further details.

USB Port A front panel USB port is provided to enable

quick and easy software upgrade.

DE285 HD Caption Decoder/VANC Monitor

LCD Screen

The LCD Screen will provide access to the unit’s

front panel conﬁguration menu. When the menu

is not in use, video status is shown. See the next

section for front panel conﬁguration options.

DE285 HD Caption Decoder/VANC Monitor

2.2. Rear Panel

The DE285 rear panel is shown below, followed by a guide to the con-

nectors located there.

Power

AC power input, 120–240 V, 50–60 Hz tolerant.

Connect to the unit’s primary power source. Turn

on/off with switch next to connector.

Program In

Video input for the Program video chain. The on-

screen display will be burned onto this video sig-

nal.

Program Out 1 Relay-bypass protected decoder video output

Program Out 2 Non relay-bypass protected copy of the decoder

output signal

USB Port Can be used for data capture

P1 & P2 Two RS232 serial data ports

LAN 100-Base Ethernet port for network features in-

cluding web tools suite

GPIO

GPI and GPO connector for changing presets and

detecting caption presence. See Appendix A.1 for

GPI and GPO pinouts and instructions

DE285 HD Caption Decoder/VANC Monitor

3. Front Panel Menus

The front panel LCD screen and Control Pad are used to conﬁgure de-

coder settings and networking, and to perform ﬂash updates. The inter-

face is organized in a series of hierarchical menus; use the LEFT and

RIGHT keys to scroll between menu options and the ENTER or DOWN

keys to select options or enter sub-menus. Press the CANCEL key from

any menu screen to return to the top of the menu hierarchy.

The default display on the front panel is the decoder status screen. The

top left shows the format of the Source video input. The bottom left

shows the format of the Program video input. The top right will display

“LAN” if the Ethernet connection is active. If the front panel display

is inactive for 20 seconds or more, the display will revert to the status

screen, unless an update is in progress or the audio level meter is in use.

When this timeout occurs, press any key on the Control Pad to return to

the sub-menu that was in use.

The front panel can also be put into Preset Mode at any time by holding

down the CANCEL key (marked by an ’x’) for 5 seconds. The default

display in Preset Mode is the full title of the current layout. To change

the current layout, use the LEFT and RIGHT keys to scroll between

layout choices. When you have reached the desired layout press the

ENTER button to accept the new layout. Once you have entered Preset

Mode, the display will stay in this mode and will not automatically revert

back to the default decoder status screen. To return to Normal mode,

hold down the CANCEL key for 5 seconds.

Note:

The preset mode will only display custom layouts saved from the

OSD web conﬁguration. The factory defaults will not be a selectable

option.

DE285 HD Caption Decoder/VANC Monitor

3.1. Decoder Setup

Decoder On/Off

Turns the on-screen caption decoder display on

or off. Use the UP and DOWN keys to select

an option, then press ENTER to exit and apply

changes or CANCEL to exit and cancel changes.

Set HD Service

Selects the service that is decoded to create the

HD caption display on the decoder output if HD

video input is present. The DE285 can display

708 caption Services 1 through 6, or 608 com-

patibility data for caption channels CC1 through

CC4.

Set SD Service

Selects the service that is decoded to create the

SD caption display on the decoder output if SD

video input is present. The DE285 can display

608 caption channels CC1 through CC4.

708 Font

Selects the display font for the decoder output.

Choose “default” to see the font style as it is

encoded in the 708 caption data. Fonts are only

selectable when a 708 caption service is selected

for decoding.

708 Size

Selects the size of the display text for the de-

coder output. Choose “default” to see the text

size as it is encoded in the 708 caption data.

Text sizes are only selectable when a 708 caption

service is selected for decoding.

708 Opacity

Selects the opacity of the caption display for

the decoder output. Choose “default” to see the

colors and opacity as they are encoded in the 708

caption data. Opacity is only selectable when a

708 caption service is selected for decoding.

DE285 HD Caption Decoder/VANC Monitor

Subtitle Mode

Turns subtitle mode on or off for caption display

on the decoder output. Subtitle mode removes

the black background and displays yellow text

with a black shadowed outline. This feature is

useful for creating easy–to–read subtitles.

DE285 HD Caption Decoder/VANC Monitor

3.2. System Setup

LCD Display

åContrast

Sets the contrast level of the display screen. The

value ranges from 0 (lightest) to 20 (darkest). Use

the UP and DOWN keys to make changes. When

you are ﬁnished making changes, use the ENTER

key to exit the menu and save changes, or the

CANCEL key to exit the menu and reject changes.

åBacklight

Sets the brightness level of the display screen’s

backlighting. The value ranges from 0 (darkest)

to 50 (brightest). Use the UP and DOWN keys

to make changes. When you are ﬁnished making

changes, use the ENTER key to exit the menu

and save changes or the CANCEL key to exit the

menu and reject changes.

Network

åIP Address

Sets a ﬁxed network address for the unit on your

LAN. Use the LEFT and RIGHT keys to move the

cursor between digits and the UP and DOWN

keys to change the selected digit. When you are

ﬁnished making changes, use the ENTER key to

exit the menu and save changes or the CANCEL

key to exit the menu without saving.

åSubnet Mask

The subnet mask should be set to match the bit

mask used on your LAN.

åGateway

The gateway should be set to the address of

the computer or device that the unit will use to

communicate outside of your local network.

Version

Provides version information about the unit,

including build number and ﬁrmware version.

DE285 HD Caption Decoder/VANC Monitor

Set Layout

Allows you to choose a layout from the list of

available layouts. Use the LEFT and RIGHT

keys to select the name of the layout, then press

ENTER to exit and apply changes or CANCEL to

exit and cancel changes.

Update

The Update utility allows you to upgrade your

ﬁrmware to the most recent version. Begin by

downloading a ﬁrmware update ﬁle from the EEG

website to any USB memory device. Insert the

memory stick into the front panel USB port, navi-

gate to the Update option, and press ENTER. The

update utility will ﬁnd the installation ﬁle on the

memory device, display the revision number, and

prompt you to continue. Press ENTER to pro-

ceed and install the new ﬁrmware, or CANCEL

to end the utility. A message will appear on the

LCD screen when the update utility has ﬁnished.

Do NOT remove the memory device while the

update utility is running. When the update

utility is ﬁnished, the new ﬁrmware is completely

installed; there is no need to reboot the unit. De-

pending on the size and type of memory device

used, there may be a momentary delay before the

device is detected. If you see “Cannot Update: In-

sert USB Disk”, wait a few seconds and try again.

DE285 HD Caption Decoder/VANC Monitor

3.3. Utilities

Capture VANC

Captures VANC data of the selected DID/SDID

from the Master video input and loads it onto

a USB storage device. Use the UP and DOWN

keys to select the desired DID/SDID and insert

a USB device into the box. Press ENTER to

begin downloading the VANC data or CANCEL

to exit. To stop capturing VANC data press

any front panel key. Depending on the size and

type of memory device used, there may be a

momentary delay before the device is detected.

If you see “Failed: Insert USB Disk”, wait a few

seconds and try again. For help on opening and

interpreting your USB VANC capture please see

Appendix C.

Capture All VANC

Captures VANC data of all DID/SDIDs from the

Master video input and loads it onto a USB stor-

age device. Insert a USB device into the box and

press ENTER to begin downloading the VANC

data or CANCEL to exit. To stop capturing VANC

data press any front panel key. Depending on the

size and type of memory device used, there may

be a momentary delay before the device is de-

tected. If you see “Failed: Insert USB Disk”, wait

a few seconds and try again. For help on opening

and interpreting your USB VANC capture please

see Appendix C.

DE285 HD Caption Decoder/VANC Monitor

Capture 608

Captures 608 data from Line 21 of the Master

video input and loads it onto a USB storage de-

vice. Insert a USB device into the box and press

ENTER to begin downloading the VANC data or

CANCEL to exit. To stop capturing 608 data

press any front panel key. Depending on the size

and type of memory device used, there may be a

momentary delay before the device is detected.

If you see “Failed: Insert USB Disk”, wait a few

seconds and try again. For help on opening and

interpreting your USB 608 capture please see Ap-

pendix C.

DE285 HD Caption Decoder/VANC Monitor

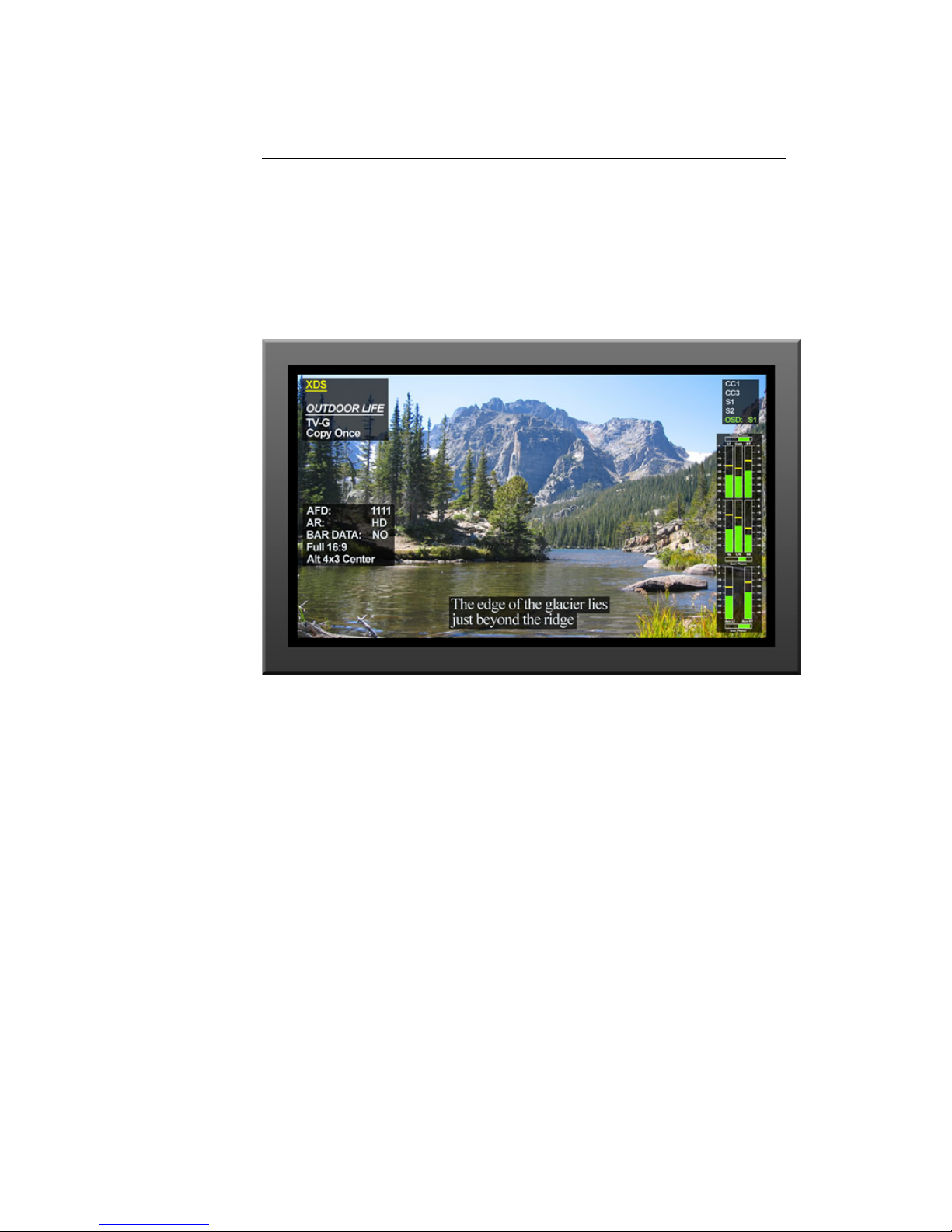

4. OSD

The OSD monitors offer a variety of information about the video signal.

This includes decoded ANC data such as XDS, AFD, audio, closed caption

services and a full 608 and 708 closed caption decoder.

4.1. XDS Monitor

The OSD XDS Monitor shows common XDS ﬁelds such as:

• Net Station

• Program Name

• Rating (turns red to indicate invalid rating)

• CGMS

DE285 HD Caption Decoder/VANC Monitor

• Description

• Program Type

• Program ID

The XDS Monitor found at the top left corner of the OSD in the default

layouts.

4.2. AFD Monitor

The OSD AFD Monitor displays the AFD code present, AR, bar data

present and a description of the AFD code. This monitor is found on

the bottom left corner of the OSD in the default layouts.

4.3. Caption Service Monitor

The Caption Service Monitor displays any caption services currently

present on the video signal, as well as the service that the OSD is cur-

rently decoding. The service being decoded is displayed in green. This

monitor is found at the top right corner of the OSD in the default layouts.

4.4. Audio Metadata Monitor

The OSD Audio Metadata Monitor displays audio metadata that is present

on the video signal.

4.5. Audio Monitor

The OSD Audio Monitor shows real-time audio volume levels for each

channel, as well as well as phase values for each channel pair. This

DE285 HD Caption Decoder/VANC Monitor

monitor is found at the bottom right corner of the OSD in the default

layouts.

Note: Blue bars are displayed at -40 dB to indicate the presence of Dolby

E or other compressed audio data which is not decoded by this monitor.

4.6. Error Monitor

The OSD Error Monitor is used to display alarms/triggers/errors which

are user conﬁgurable from the Web Tools Suite. These messages are

displayed at the top center of the OSD in the default layouts.

DE285 HD Caption Decoder/VANC Monitor

5. Web Tools Suite

The Web Tools module is a high-powered network-driven remote appli-

cation for the DE285 that provides new ways to view VANC data, as well

as advanced conﬁguration and monitoring tools. To use Web Conﬁgura-

tion, the Decoder ﬁrst must be connected to a 100-Base LAN, and con-

ﬁgured with a valid IP address and subnet mask for that LAN through

the front panel Network menu. Once the decoder has been given an

address, access the web tools by typing the Decoder’s IP address into a

web browser from any computer on the same LAN.

Using an intuitive interface, the Web Tools module displays the detailed

options tabs on the upper left hand side while showing the current video

standard selected on the upper right hand side. Below the video stan-

dard on the right side, the error status is displayed in a continuously

updated list which can be hidden or expanded by clicking on the arrow

button located at the top of the error list. This list will brieﬂy display

any current video errors that appear on–screen. There is also a Clear

Errors button that clears past errors and restarts the error count.

Below the error status display on the left is the System Info button,

which displays the version number of each software component of the

DE285 to make sure the current software loaded is up to date.

To the right of the System Info button is the ANC Packet Key button

DE285 HD Caption Decoder/VANC Monitor

which provides a fully customizable reference for seeing which DID/SDID

value maps to which service.Pre-deﬁned DID/SDID values are listed in

rows giving the DID value, the SDID value, the name of the data and the

option to remove this mapping. These mappings determine the name of

the service corresponding to a particular DID/SDID listed in the Packet

Display tab. To add a new mapping you can use the top row of the chart

to enter a DID value, a SDID value, and the corresponding name you

would like associated with the DID/SDID and then click the Add button.

5.1. Packet Display Module

The Packet Display Module displays real–time VANC data on the website

which can be sorted by one of three methods. This is the starting page

in the main pane of the DE285 Web Tools module and is shown on the

previous page. The VANC packets can be sorted by DID/SDID, Service

Type or Line Number. The sorting method can be selected from the drop

down menu located at the top of the packet display module.

DE285 HD Caption Decoder/VANC Monitor

The default viewing mode for the Packet Display Module gives an overview

of which service types are present, along with their line numbers, DID/SDID

values and frequency. A more detailed view is available by clicking on

the ‘+’ button located to the left of each VANC packet. The expanded

view displays the hex dump, ﬁeld, checksum and location/type of the

data. The hex dump begins with the sample offset in the line followed by

a colon and the hex value of each sample in the packet. The checksum

ﬁeld evaluates whether or not the checksum is valid. The Location/Type

ﬁeld displays whether it is VANC or HANC and which type it is. To return

to the default view click on the ‘-’ button at the top of packet line.

The VANC packets are continuously updated and displayed in the chart.

If you would like the current data to remain on the screen temporarily,

click the Pause button on the top left of the Packet Display Module. To

resume seeing the live updated data, click the Resume button.

5.2. Data Decoder Module

The Data Decoder Module is a three part visualization tool which dis-

plays decoded AFD data on the top part of the screen, decoded XDS

data alongside raw XDS packets on the middle portion of the screen and

SCTE104 data on the bottom of the screen.

5.2.1. AFD Decoder

The upper portion of the screen contains the AFD Decoder module which

displays the current AFD code on the top right of the module, the de-

coded aspect ratio description below the code, and a visual representa-

tion of the AFD code on the left hand side. The default viewing option

shows the AFD Decoder display. To hide the AFD decoder module, click

on the upwards arrow at the top right hand corner. To expand the mod-

ule, click the downwards arrow at the top right hand corner.

This manual suits for next models

Table of contents

Other EEG Media Converter manuals

EEG

EEG HD1430 User manual

EEG

EEG iCap HD492 User manual

EEG

EEG iCap Connect AV650 User manual

EEG

EEG HD490 User manual

EEG

EEG HD1492 User manual

EEG

EEG DE1285 User manual

EEG

EEG 491 Series User manual

EEG

EEG EN537 Lexi User manual

Popular Media Converter manuals by other brands

Texas Instruments

Texas Instruments H.264 High Profile Encoder user guide

Viking

Viking PF-6A Technical practice

Digiever

Digiever VD Series user manual

SPL

SPL Diamond user manual

HEIDENHAIN

HEIDENHAIN ERA 4202 Mounting instructions

Inovonics

Inovonics 732 quick start guide

Apogee

Apogee PSX-100 operating manual

CYP

CYP DCT-1 Operation manual

Meridian

Meridian Ultra user guide

KanexPro

KanexPro EXT-HDSDIX Setup guide

Pepperl+Fuchs

Pepperl+Fuchs KCD2-UT2-1 manual

CYP

CYP CP-294 Operation manual

YOKOGAWA

YOKOGAWA JUXTA PF1 user manual

SKYDANCE

SKYDANCE D4-WPS quick start guide

Sencore

Sencore AG 4400 user manual

Toshiba

Toshiba LF620 manual

Transition Networks

Transition Networks DataBand EV user manual

Blankom

Blankom EMA 308 Device manual

EEG DE285 HD User manual

Popular Media Converter manuals by other brands
