effegibi Logica Operating instructions

Logica
Steam Bath Acquasteam: CSA certicated
Sauna Heater: CSA Certication Pending
Service 70031713 - 70031714
CSA C22.2 No. 218.1
UL Std 1463
CSA Class: C699103, C699183
EN - Logica operating and maintenance manual
ES - Manual de uso y mantenimiento Logica
FR - Manuel d’utilisation et d’entretien Logica
US
®
C
PERFECT WELLNESS

The data and features referred to are not binding on EFFEGIBI and the company reserves the right to make any appropriate changes
without having to give prior notice or replace this manual.
OPERATING AND MAINTENANCE MANUAL FOR LOGICA EN
1
Dear Customer, we would like to thank you for choosing one of our LOGICA and we are sure you will be completely satised
with your purchase.
For optimal operation and to benet fully from the heat and sense of well-being given by your Sauna and Hammam/Turkish
Bath, please read this manual carefully before starting the LOGICA up for the rst time and before maintaining it.
Please remember that the product MUST NOT be used by children under 3 years of age. Children over 3 years of age must
always be closely supervised at all times!
Should you have any doubt on how operate and/or maintain the product, please contact our area dealer or contact us
directly at our head oce.
All reproduction, even partial, of this manual without the Manufacturer’s authorisation is strictly prohibited.
INDEX
CHAPTER 1 INTRODUCTION Page 3
1.1 WARNINGS AND SAFETY SYMBOLS Page 3
1.2 INTENDED USE Page 4
1.3 WARNINGS SAFETY INSTRUCTIONS Page 5
CHAPTER 2 SCOPE OF THE MANUAL Page 7
2.1 PRODUCT IDENTIFICATION DETAILS Page 8
2.2 MANUFACTURER’S IDENTIFICATION DETAILS Page 9
2.3 DISPOSAL AND RECYCLING Page 9
CHAPTER 3 YOUR HAMMAM/TURKISH BATH - GENERAL INFORMATION Page 10
CHAPTER 4 YOUR SAUNA - GENERAL INFORMATION Page 10
CHAPTER 5 “HAMMAM/TURKISH BATH” FUNCTION Page 11
5.1 CONTROL PANEL Page 11
5.2 STAND-BY Page 12
5.3 “ON/OFF”BUTTON Page 12
CHAPTER 6 “HAMMAM/TURKISH BATH” FUNCTION Page 13
6.1 “HAMMAM/TURKISH BATH” BUTTON Page 13
6.2 INTERIOR“AQUASTEAM”PANEL Page 15
6.3 AROMATHERAPY AND ESSENTIAL OILS Page 15
6.4 TEMPERATURE CONTROL Page 16
6.5 “WHITE LIGHT” BUTTON Page 17
6.6 “RGB COLOUR-THERAPY” BUTTON Page 17
6.7 “SPRING”BUTTON Page 19
CHAPTER 7 “SAUNA” FUNCTION Page 19
7.1 “SAUNA” BUTTON Page 19
7.2 TEMPERATURE CONTROL Page 20
7.3 AROMATHERAPY AND ESSENTIAL OILS Page 20
CHAPTER 8 “SHOWER” FUNCTION Page 21
8.1 USING THE MIXER Page 21
8.2 “SHOWER WHITE LIGHT” BUTTON Page 22
CHAPTER 9 LOCK CONTROL PANEL Page 23

2The data and features referred to are not binding on EFFEGIBI and the company reserves the right to make any appropriate changes
without having to give prior notice or replace this manual.
OPERATING AND MAINTENANCE MANUAL FOR LOGICA
EN
CHAPTER 10 ECC - EFFEGIBI COMFORT CONTROL Page 25
10.1 ECC FUNCTIONS Page 25
10.2 PROGRAMMING Page 26
CHAPTER 11 CLEANING AND MAINTENANCE Page 28
11.1 HAMMAM/TURKISH BATH ROUTINE MAINTENANCE Page 28
11.2 HAMMAM/TURKISH BATH SPECIAL MAINTENANCE Page 29
11.3 SAUNA MAINTENANCE Page 30
CHAPTER 12 HAMMAM/TURKISH BATH TROUBLE-SHOOTING Page 31
12.1 CRITICAL ERRORS Page 31
12.2 NON-CRITICAL ERRORS Page 32
CHAPTER 13 SAUNA TROUBLE-SHOOTING Page 34
CHAPTER 14 TRANSPORT AND HANDLING Page 34
CHAPTER 15 HOW TO TAKE A TURKISH BATH Page 35
CHAPTER 16 USING YOUR SAUNA Page 36
PLEASE NOTE:
For information about the Hammam/Turkish Bath and sauna tradition and how to get the very best out
of it, please read pages 36 and 37 of this manual.

The data and features referred to are not binding on EFFEGIBI and the company reserves the right to make any appropriate changes
without having to give prior notice or replace this manual.
OPERATING AND MAINTENANCE MANUAL FOR LOGICA EN
3
1. INTRODUCTION
1.1 WARNINGS AND SAFETY SYMBOLS
Whenever you see one of these symbols in the manual you must read the information given alongside as it is vital to ensure
correct use of your steam generator. Failure to read and take into account the information could seriously compromise the
safety of both objects and people.
DANGER - ATTENTION
This indicates situations of grave danger which, if ignored, could seriously compromise the health
and safety of the persons concerned.
CAUTION - PRECAUTION
This indicates you need to take all necessary measures and precautions to prevent accidents and/or
damage to objects and/or harm to people
NOTE
This indicates technical information of particular importance and which must not be overlooked.
DO NOT
Tells you not to do certain things that could cause accidents and/or damage property and/or
harm people.
DANGER OF ELECTROCUTION
All servicing and/or maintenance must be executed by an experienced and qualied technician
taking all thenecessary precautions.
Carefully read and follow the instructions and warnings given in the manual.

4The data and features referred to are not binding on EFFEGIBI and the company reserves the right to make any appropriate changes
without having to give prior notice or replace this manual.
OPERATING AND MAINTENANCE MANUAL FOR LOGICA
EN
1.2 INTENDED USE
The product must be used exclusively in the ways and for the purposes for
which it was designed. Any other usage is to be considered improper and
therefore hazardous.
ANY OTHER APPLICATION IS NOT CONSIDERED USE FOR THE INTENDED
PURPOSE.
THE MANUFACTURER CANNOT BE MADE LIABLE FOR ANY DAMAGE
OR HARM RESULTING FROM INCORRECT USE.
As the appliance contains live electrical components and hot surfaces, all servicing and/or maintenance
must be executed by an experienced and qualied technician taking all the necessary precautions.
Read the Assembly manual COD. MAHA000237.

The data and features referred to are not binding on EFFEGIBI and the company reserves the right to make any appropriate changes
without having to give prior notice or replace this manual.
OPERATING AND MAINTENANCE MANUAL FOR LOGICA EN
5
1.3 WARNINGS SAFETY INSTRUCTIONS
We recommend seeking medical advice before using the Hammam/Turkish bath.
Children under 3 years of age must not use the Hammam/Turkish bath.
The Sauna and/or Hammam/Turkish bath must not be used by anyone suering from serious
heart disorders, internal inammation, contagious diseases, epilepsy or who wears a pacemaker.
Pregnant women may use the Sauna and/or Hammam/Turkish bath under medical supervision.
Carefully follow all the safety instructions and hazard warnings issued by the authorities of
individual countries.
Use of the Sauna and/or Hammam/Turkish bath by people (adults or children) with impaired
physical, sensorial or mental capacities that may prevent the Hammam/Turkish bath being used
in total safety must be supervised or given special instructions.
Always carry out the prescribed checks, inspections and scheduled maintenance (see Chapter 7
of this manual).
Children over 3 years of age may use the Hammam/Turkish bath but only when supervised by an
adult and after seeking medical advice.
Do not allow children to use the equipment without supervision unless they have been fully in-
structed in its safe use, ensuring that they understand the risks associated with improper use.
Ensure children are not able to play with the equipment.
This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
WARNING: Only allow children to use the appliance without supervision when adequate
instructions have been given so that the child is able to use the appliance in a safe way and
understands the hazards of improper use.

6The data and features referred to are not binding on EFFEGIBI and the company reserves the right to make any appropriate changes
without having to give prior notice or replace this manual.
OPERATING AND MAINTENANCE MANUAL FOR LOGICA
EN
Do not introduce other electrical appliances into the steam generator or bring them into the
Sauna and/or Hammam/Turkish bath cubicle.
Do not, for any reason, remove the adhesive labels xed to the generator. If these deteriorate,
order replacements.
Enter the Turkish bath cubicle once it is full of steam.
All users must be informed and given instructions about how to use it.
Do not use portable steam or moisture-producing equipment inside the cubicle.
The steam and warm air outlet is located in the area underneath the column. Do not cover or
place objects in this area since this may interfere with the proper functioning of the equipment.
The front panel of the AQUASTEAM/EASYSTEAM steam generator is made of glass and therefore
when installing the appliance all the precautions necessary for glass must be taken.
The optional LED light is safe and does not entail any risk for the user in accordance with the IEC
standard TR 62471-2: 2009 and with the relevant local laws and regulations.
The rst few times the sauna is used, you may notice some steam condensate on the inner glass
of the door. This is due to the natural moisture in the wood and it will disappear with use.

The data and features referred to are not binding on EFFEGIBI and the company reserves the right to make any appropriate changes
without having to give prior notice or replace this manual.
OPERATING AND MAINTENANCE MANUAL FOR LOGICA EN
7
2 SCOPE OF THE MANUAL
The purpose of this manual is to provide a guide to the proper use and maintenance of a LOGICA product.
Keeping your product in good working order depends largely on eective cleaning and maintenance (see chapter 7 of this
manual).
Therefore it is extremely important to learn how to clean and maintain it properly.
The instructions for the functions and ways to use the product provide only the necessary basic information and only
experience can teach you how to get the best out of it and to exploit its full potential for meeting the needs of your body.
The LOGICA has been built in compliance with the following mandatory safety standards:
- CSA Standard C22.2 No 0 General Requirements - Canadian Electrical Code, Part II;
- CSA Standard C22.2 No 0.4 Bonding and Grounding of Electrical Equipment
(Protective Grounding);
- CSA Standard C22.2 No 218.1 Spas, Hot Tubs and Associated Equipment;
- ANSI/UL Standard 1563 - Spas and Hot Tubs [Certied to US Standards].
On the basis of our on-going quest for improvement, your product may present some variations that are not referred to in
this manual, but any dierences are minor and of no great importance.

6x
8The data and features referred to are not binding on EFFEGIBI and the company reserves the right to make any appropriate changes
without having to give prior notice or replace this manual.
OPERATING AND MAINTENANCE MANUAL FOR LOGICA
EN
2.1 PRODUCT IDENTIFICATION DETAILS
All the information necessary for identifying your product (product type, model, electrical power, voltage,
registration number, year of construction, manufacturer and CE markings), can be found on the plate under the
heater guard on the wall behind the heater.
208V 1P 60Hz 10,5kW 40A fuse
240V 1P 60Hz 10,5kW 40A fuse
Steam Bath Acquasteam: CSA certicated
Sauna Heater: CSA Certication Pending
Service 70031713 - 70031714
CSA C22.2 No. 218.1
UL Std 1463
CSA Class: C699103, C699183

The data and features referred to are not binding on EFFEGIBI and the company reserves the right to make any appropriate changes
without having to give prior notice or replace this manual.
OPERATING AND MAINTENANCE MANUAL FOR LOGICA EN
9
2.2 MANUFACTURER’S IDENTIFICATION DETAILS
Your product has been entirely manufactured and distributed by
EFFEGIBI S.R.L.
Via Gallo 769, 47522 Borello di Cesena (FC)
Tel. [phone] - Fax [phone]
info@eegibi.it - www.eegibi.it
2.3 DISPOSAL AND RECYCLING
This equipment comes within the scope of EU Directive 2012/19/EU (the WEEE Directive).
Therefore, at the end of its lifetime, this product must be disposed of separately and not treated as urban waste.
The equipment must be delivered to a collection centre licensed under the terms of Directive 2012/19/EU. The
user may request the supplier to take the equipment back when an equivalent new appliance is delivered.
An adhesive label bearing the symbol shown to the right is xed to the equipment. This
symbol indicates that the equipment must not be disposed of as urban waste.

10 The data and features referred to are not binding on EFFEGIBI and the company reserves the right to make any appropriate changes
without having to give prior notice or replace this manual.
OPERATING AND MAINTENANCE MANUAL FOR LOGICA
EN
3. YOUR HAMMAM/TURKISH BATH - GENERAL INFORMATION
The principle on which the Turkish Bath works is by heating the air inside a closed cubicle with steam, reaching a
maximum temperature of 118°F and a relative humidity of 100%.
The non-pressurised steam is produced by the generator whose heating elements are immersed in the water
inside the boiler. The steam thus generated then lls the Turkish bath cubicle.
The sophisticated electronics with which every EFFEGIBI generator is equipped ensure perfect functioning with
constant water-exchange, optimised energy consumption and automated boiler-cleaning.
The quality of the water used does not aect the evaporation process and therefore the generator may be fed
with non-treated water, provided it is drinking water, or water treated with a softener. The evaporated water is
automatically reintegrated through a relling valve.
This equipment has been designed exclusively to humidify by way of steam conveyed into the cubicle by internal
distributors. It performs this function provided that installation, use and maintenance are carried out according
to the instructions given in this manual and to the information shown on the labels axed inside and outside the
unit.
The environmental conditions and the voltage must be according to the specications given.
4. YOUR SAUNA - GENERAL INFORMATION
The sauna functions on the principle of applying dry heat to the air inside the sauna cabin by
means of a stainless steel electric heater with an element, regulated by an external control panel.
Since it can reach temperatures close to 212°F, the body reacts by sweating heavily, a physioLOGICAl
reaction intended to maintain a stable body temperature of about 37°C. While the body is
sweating, it burns energy, thus helping to dissolve fat and eliminate the toxins that accumulate in
the body tissues, also helping to regulate the blood pressure and prevent respiratory disorders.

The data and features referred to are not binding on EFFEGIBI and the company reserves the right to make any appropriate changes
without having to give prior notice or replace this manual.
OPERATING AND MAINTENANCE MANUAL FOR LOGICA EN
11
5. “HAMMAM/TURKISH BATH” FUNCTION
5.1 CONTROL PANEL
The control panel enables the user to control the generator functions.
From standby status it is possible to press individual or combinations of buttons to access the menus and
functions.
KEY TO SYMBOLS
Press the button to switch on the function.
Press the button a second time to switch o the function previously activated.
Hold down for a few seconds.
“SAUNA”
button
“HAMMAM/TURKISH
BATH” button
“COLOUR CHOICE”
button “HAMMAM/TURKISH
BATH RGB COLOUR-
THERAPY”button
“HAMMAM/TURKISH
BATH TEMPERATURE”
button
“SAUNA
TEMPERATURE”
button
“COLOUR CHOICE”
button
“WHITE LIGHT”SHO-
WER button
“SAUNA RGB
COLOUR-THERAPY”
button
ECC
function icon
ECC
function icon

12 The data and features referred to are not binding on EFFEGIBI and the company reserves the right to make any appropriate changes
without having to give prior notice or replace this manual.
OPERATING AND MAINTENANCE MANUAL FOR LOGICA
EN
5.2 STAND-BY
t %JTQMBZ
1. The“ON/OFF”button is on but with a dimmer light.
2. The EFFEGIBI icon is always on, but with a dimmer light.
3. All the other buttons and icons are o.
t 1PTTJCMFBDUJPO
1. Press the“ON/OFF”button to switch to“PANEL ON”.
All the icons come on with a dimmer light.
5.3 “ON/OFF” BUTTON
Press the “ON/OFF” button to switch on all the control panel functions.
The icons will light up with a dim light until you activate one of the functions.
The lights inside the sauna and Hammam/Turkish bath will also come on with a white light.
When you press the“ON/OFF”button again, the panel and all the functions activated will switch o.

The data and features referred to are not binding on EFFEGIBI and the company reserves the right to make any appropriate changes
without having to give prior notice or replace this manual.
OPERATING AND MAINTENANCE MANUAL FOR LOGICA EN
13
6 “HAMMAM/TURKISH BATH” FUNCTION
6.1 “HAMMAM/TURKISH BATH” BUTTON
Press the “Hammam/Turkish bath”button to start generating steam.
Steam will start coming out after about 15/20 minutes.
PLEASE NOTE: when it starts working for the rst time, before it emits steam, the Aquasteam generator will
automatically clean the boiler, a process that takes about 15 minutes.
During this phase the“Hammam/Turkish bath”icon will ash.
If you press the“Hammam/Turkish bath”button while it is functioning, this will interrupt steam emission.
PLEASE NOTE: after steam emission has been interrupted for about 30 minutes, the Aquasteam smart
electronic system automatically switches to the boiler empty and clean function.
This operation takes about 15 minutes and leaves the Aquasteam generator clean and ready
for the next use.
During the automatic rinsing phase, the“Hammam/Turkish bath”icon will ash.
The“Hammam/Turkish bath”boiler switch-o function immediately stops steam production.
If the Hammam is not started up after 30 minutes, the generator will switch to boiler-empty mode, otherwise,
if the boiler is still full and hot, pressing the“Hammam/Turkish bath”button will produce steam in a short time.
DO NOT CUT OFF THE ELECTRIC POWER TO THE GENERATOR for about an hour after steam emission has been
interrupted.

N.B.
14 The data and features referred to are not binding on EFFEGIBI and the company reserves the right to make any appropriate changes
without having to give prior notice or replace this manual.
OPERATING AND MAINTENANCE MANUAL FOR LOGICA
EN

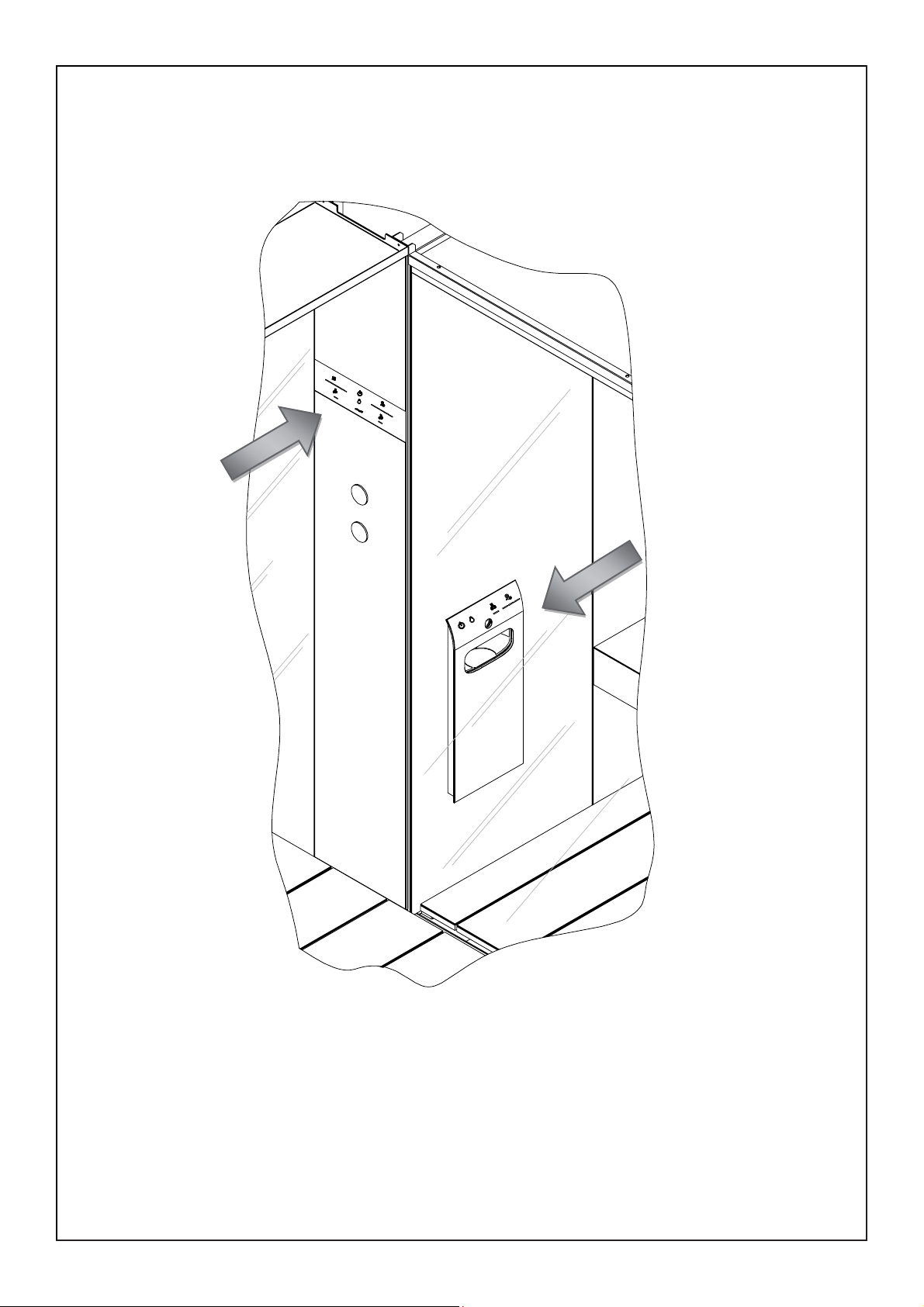

The functions of the Hammam/Turkish bath can be operated both from the main control
panel on the outside, or from the generator panel inside the cubicle.

ABC
The data and features referred to are not binding on EFFEGIBI and the company reserves the right to make any appropriate changes
without having to give prior notice or replace this manual.
OPERATING AND MAINTENANCE MANUAL FOR LOGICA EN
15
6.2 INTERIOR “AQUASTEAM” PANEL
ON/OFF
“RGB COLOUR-
THERAPY”
button
“HAMMAM/TURKISH BATH”
button
Control icons “TEMPERATURE”
button
“COLOUR CHOICE”
button
“WATER SPRING”
button
All steam generators for Eegibi Hammams are specially designed to take essential
oils, enabling you to enjoy the aromatherapy experience in your own Turkish bath.
The Aquasteam has small removable holders for essential oils on the lower part of the
generator.
Once you have added a few drops of your chosen oil, the steam picks up its fragrance
in precisely the right dosage which then permeates throughout your Hammam.
6.3 AROMATHERAPY AND ESSENTIAL OILS

16 The data and features referred to are not binding on EFFEGIBI and the company reserves the right to make any appropriate changes
without having to give prior notice or replace this manual.
OPERATING AND MAINTENANCE MANUAL FOR LOGICA
EN
6.4 TEMPERATURE CONTROL
There are 3 temperature-set buttons.
While the“HAMMAM/TURKISH BATH” is working:
PLEASE NOTE: every time the system is switched on, it stores the last temperature setting in its memory.
Low
temperature
108°F
Medium
temperature
113°F
High
temperature
118°F
Press the button corresponding to the desired temperature and the generator will produce steam until this
temperature has been reached, indicated when the slider for the correct temperature comes on.
Temperature of 113°F
reached
Example:

The data and features referred to are not binding on EFFEGIBI and the company reserves the right to make any appropriate changes
without having to give prior notice or replace this manual.
OPERATING AND MAINTENANCE MANUAL FOR LOGICA EN
17
6.6 “RGB COLOUR-THERAPY” BUTTON
Colour-therapy has properties that restore the balance of the mind and body.
Each colour inuences your state of mind and it is a good idea to enjoy them for a several minutes to feel the
benet.
This is why EFFEGIBI uses RGB LED technology. In addition to using each colour alone, you can programme a slow,
gradual tonal variation in the basic colour chosen.
The user has direct control over changes of colour or programmed tonal variation. Repeated and constant tonal
variations are not recommended as the most relaxing way of enjoying your Hammam/Turkish bath combined
with colour therapy.
In “Home Spa” products complete with a sauna and Turkish bath (LOGICA, LOGICA SH), the colour-therapy
function can be operated separately in either the sauna or the Turkish bath environment, from the outside panel
and the panel inside the Hammam/Turkish bath.
Press the “RGB COLOUR-THERAPY” button to switch on either the red light or the colour/programme previously
set. Press the“RGB COLOUR-THERAPY”button again to switch it o.
6.5 “WHITE LIGHT” BUTTON
When you press the“ON/OFF”button on the outside panel, the light inside the sauna and Hammam/Turkish bath
will come on with a white light.
Press it again to switch it o.
“COLOUR CHOICE”
button
External panel
“COLOUR CHOICE”
button

18 The data and features referred to are not binding on EFFEGIBI and the company reserves the right to make any appropriate changes
without having to give prior notice or replace this manual.
OPERATING AND MAINTENANCE MANUAL FOR LOGICA
EN
Press the “COLOUR CHOICE” button (see gures above) to change the colour of the light.
You can choose from:
- 5 xed colours: RED, YELLOW, GREEN, BLUE, AQUAMARINE, and after that,
- 4 programmes providing tonal variations within one colour: DAWN, SUNSET, SEA, FOREST.
An example:
If, when you last switched o, the xed colour AQUAMARINE was in use, when you switch the colour-therapy
function on again, the rst colour will be AQUAMARINE.
Press the “COLOUR CHOICE” button to move to the programme DAWN.
“COLOUR CHOICE”
button
Interior Aquasteam panel
Programmes with tonal
variations
RED YELLOW GREEN BLUE AQUAMARINE
FOREST SEA SUNSET DAWN
Fixed colours
