EFFILUX EFFI-Line3 User manual

USER MANUAL
www.elux.com1/5USER MANUAL EN EFFI-LINE3-V1.0.2022
GENERAL PRODUCT INFORMATION
Une version française de cette notice est disponible sur la page produit correspondante de notre site web.
User manual 


www.elux.com


                     

GENERAL WARNINGS AND PRECAUTIONS OF USE






Operating environment Temperature: 0 to 50°C - Humidity: 20 to 85RH% (without condensation) - Altitude: Up to 2000m
Storage environment Temperature: -20 to 60°C - Humidity: 20 to 85RH% (without condensation)
Informations Overvoltage category I - Protective class III - Pollution degree 3


Well-ventilated places with minimal dust. Places free from any liquid, chemical product or steam.
Places free from corrosive or combustible gas. Places that are not subject to sudden temperature changes.
Places away from water taps, boilers, humidiers, air conditioners, heaters or stoves.


Do not disassemble or modify the product. Do not look directly at the LED light without protection.
Do not try to x any damages on the product by yourself. Make sure special protective glasses are used with UV products (<420nm).
Do not touch the product with wet hands. Do not use homemade cables.
Wire and keep the ying leads cables in a dry area (regardless of the product’s
degree of protection).
Make sure the product does not show any moisture or liquid inside before
switching it ON.
Make sure the power supply and the cable/connector are adapted to the
product specications.
The device must be powered by a 24V safety power supply in accordance to
local Electrical Safety rules
Do not inverse electrical polarity - check your connections and the conventions. The product packaging must be removed before use.
The cTÜVus certication is only applicable for the white (000) and red (625) devices, with a power consumption under 150W and, powered with a power supply
that fullls SELV and Limited Energy according IEC 61010-1 9.4) With a power consumption under 150W (depending on the size and the software version) and,
powered with a power supply that fullls SELV and Limited Energy according IEC 61010-1 9.4

www.elux.com2/5USER MANUAL EN EFFI-FLEX-LG V1.1.2022
PART NUMBER KEY

*YY = Type of outlet UK, CH, EU, US, ...
EFFI-LINE3 -XXX -ZZZ -... -...
Optical
Length [mm]
Wavelength
[nm]
Optical options Electronics Options
200 465
(Blue)
POL
(Polarizer)
SWxxxxxx (Customized software)
300 625
(Red)
NPN (NPN trigger on Pin/Wire 4)
... All 100mm 850
(Infrared)
FL1-LXX* (Flying leads - 1 input)
2900 000
(White)
FL2-LXX* (Flying leads - 2 inputs)
*XX=Length in m [2 / 5 / 10]
IP67 version
EFFI-LINE3 -IP67 -XXX -ZZZ


BLIP67WTRPWR.
EFFI-LINE3 -WTR -XXX -ZZZ -PWR
POWER version with watercooling

WTR) 

BACKLIGHT version
EFFI-LINE3 -BL -XXX -ZZZ




EXTENSION CABLES
2 meters: EFFC-CAB-M12-FM-5-D-L2
5 meters: EFFC-CAB-M12-FM-5-D-L5
10 meters: EFFC-CAB-M12-FM-5-D-L10
FASTENERS T-Nut Kit: EFFV-BOLT-0011
Pivot joint Kit: EFFM-1-0002
CAMERA FILTERS EFFO-FLR-...


www.elux.com3/5USER MANUAL EN EFFI-FLEX-LG V1.1.2022

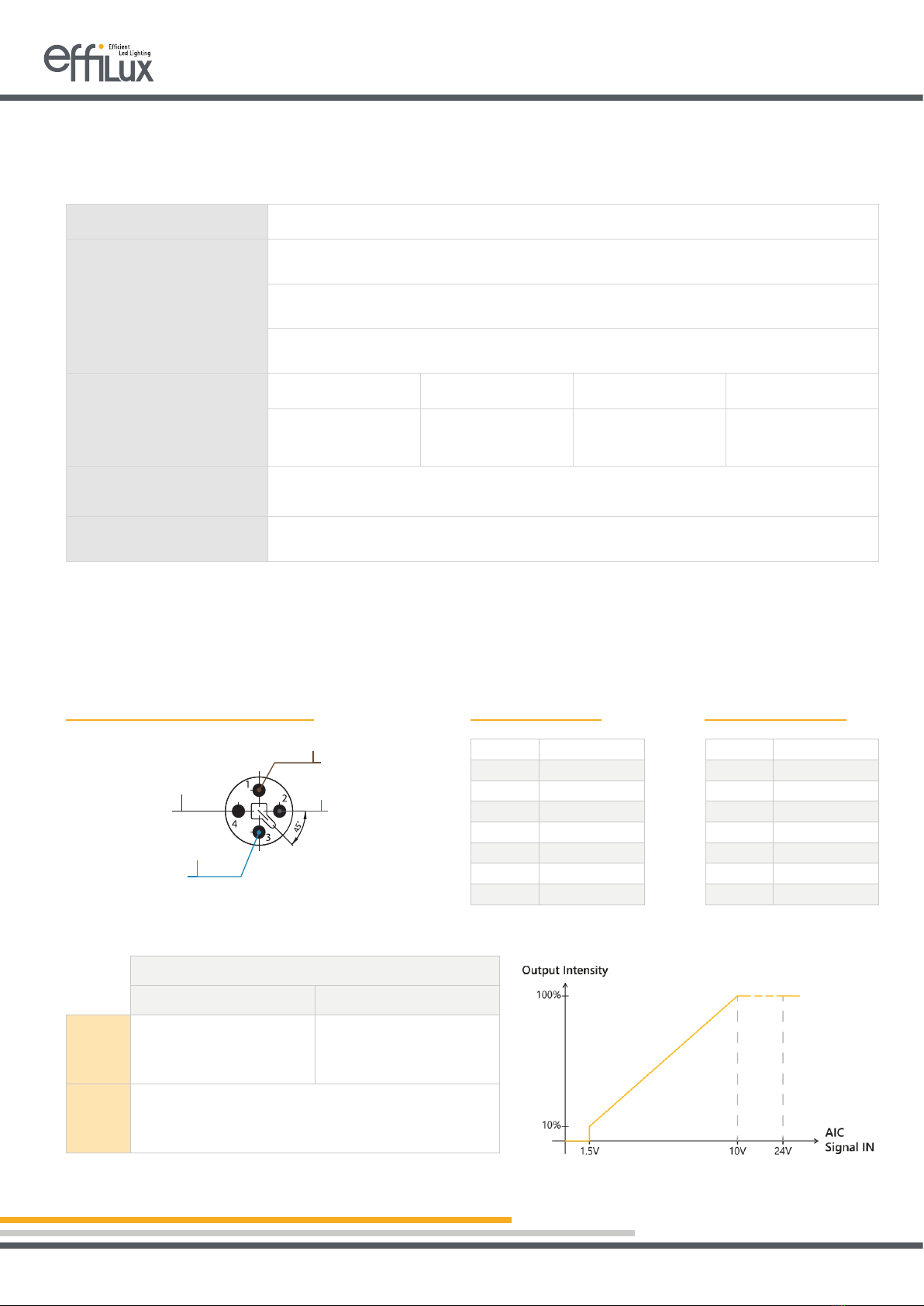

How to connect the EFFI-LINE3 ?
Power Supply

ELECTRICAL INSTALLATION -STD CONNECTOR CONFIGURATION
Power Supply Voltage 24V DC +10%/-0
Connector(s)
(Depending on the power consump-
tion - See page 6)
M12 Power (T-Coded) - (See wiring layout page 6)
4 pins at the end of a 500 mm cable length
Flying leads 1 - 1 power input - (See wiring layout page 6)
XX m long, section 2.5 mm²
Flying leads 2 - 2 power inputs - (See wiring layout page 6)
XX m long, section 2.5 mm² x2
Average Power Consumption
Standard version
(Cable not included in the calcu-
lation)
IR 850 nm Red 625 nm Blue 465 nm White 5500K
Max. 8W per 100 mm Max. 10W per 100 mm Max. 12W per 100 mm Max. 12W per 100 mm
Analog Intensity Control (AIC)
The output optical power is adjustable from 10% to 100% by applying a signal from [1.5V-10VDC]
Total voltage range [1.5V-24VDC] / Don’t exceed 24V DC
Max. signal consumption: 4mA
Trigger Input signal PNP trigger input: Light ON: from 5V to 24V / Don’t exceed 24V DC / Max. signal consumption: 4mA
(Option NPN on PIN4: Light ON: from 0V to 1.5V / Don’t exceed 24V DC / Max. signal consumption: 4mA)
Note : 

Mode control
1 +24V
Brown cable
TRIGGER PNP 4
Enable pin
Light ON if VPNP> 5V DC)
Black cable
GND 3
Blue cable
2AIC 1.5-10V
Analog Intensity Control
Grey cable

(See the tables below)
M12 Power (T-coded) - 4 pins
male connector - 500 mm cable length
Flying leads FL1 Flying leads FL2*
Wire index Designation
+24V

GND
Trigger PNP (or NPN)
5AIC


Wire index Designation
+24V
GND
GND
Trigger PNP (or NPN)
5AIC
+24V

*WARNING with FL2: 

Illumination mode
Continuous Strobe
Signal to
apply on
PNP
A continuous signal must be
applied with VPNP> 5V DC
A trigger signal must be applied
Light ON if VPNP> 5V DC
Light OFF if VPNP< 2.5V DC
Signal to
apply on
AIC
By default, if AIC is not connected, the light is ON at 100%
VAIC [1.5-10V]to adjust the intensity from 10% to 100% (see the graph)

www.elux.com4/5USER MANUAL EN EFFI-FLEX-LG V1.1.2022
MECHANICAL CONSIDERATION
IP rating IP5X (dust protected) / IP67 version available
Dimensions 52mm x 86.3mm x Length = Optical length + 39mm
Fixing One T-slot on the back for M6 T-nuts 8mm slot (2x M6 T-nuts included)
REGULATIONS COMPLIANCY
Regulations & Marking CE - UKCA
Environmental Standards RoHS Directives (2011/65/EU, 2015/863/EU and China RoHS) - REACH Regulation - WEEE Regulation
Country of Origin France - Manufactured by Elux

www.elux.com5/5USER MANUAL EN EFFI-FLEX-LG V1.1.2022










CONTACT INFORMATION


                   

               
             


EU RoHS Directive
ENVIRONMENTAL REGULATIONS




China RoHS



WARRANTY



For more information, please refer to the warranty information available on Elux’s website.
