1. Introduction and Setup
Unpacking and In the Box
Thank you for choosing our Leko Toro. For your own safety, please read this manual before
installing or using the device. This manual covers the important information on installation and
applications. Please install and operate the fixture with following instructions. Meanwhile,
please keep this manual for future needs.
n the box you will receive:
•Leko Toro: 1
•DMX Cable: 1
•Power Cable 1
•User Manual 1
Mounting and Operation
Use a clamp rated for the full weight of the Leko Toro to hang the fixture from the mount(s) on
the fixture’s yoke.
As an added safety measure be sure to attached at least one properly rated safety cable
to the fixture using on of the safety cable rigging point integrated in the base assembly or
on the yoke.
Safet Precautions
Caution: For added protection mount the fixtures in areas outside walking paths, seating ar-
eas, or in areas were the fixture might be reached by unauthorized personnel.
Before mounting the fixture to any surface, make sure that the installation area can hold a
minimum point load of 10 items the device’s weight.
Fixture installation must always be secured with a secondary safety attachment, such as an
appropriate safety cable.
Do not clamp the safety cable to the U bracket or clamp. That is not a secondary safety point.
A secondary safety point is any point that will adequately hold the led profile spotlight if the
clamp fails.
Leko Toro– GAMMA LED Vision Pa e 3 of 13

 
Then the safety cable would be the backup and stop the fixture from falling to the ground. So
do NOT fix the safety cable to the same place that the C-Clamp is attached
Never stand directly below the device when mounting, removing, or servicing the fixture.

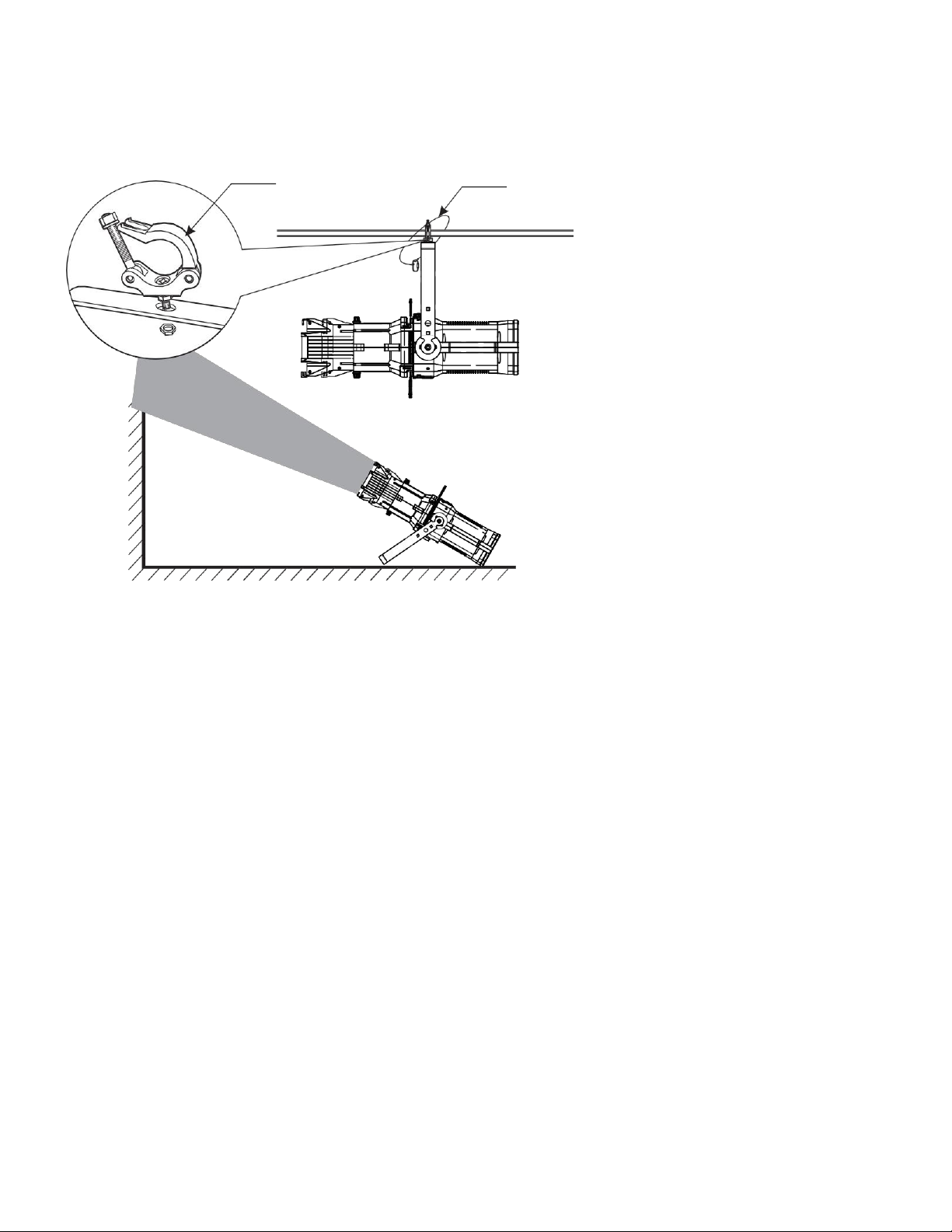

From a ceiling, or set on a flat level surface (see illustration below). Be sure this fixture is kept
at least 0.5m (1.5ft) away from any flammable materials (decoration etc.).
Always use and install the supplied safety cable as a safety measure to prevent accidental
damage and/or injury in the event the clamp fails.
∙Don’t try to modify the fixture without any instruction by the manufacturer or the appointed re-
pairing agencies.
∙Warranty is voided if there are any malfunctions from not following the user manual while op-
erating or any hazardous operation, like shock short circuit, electronic shock, lamp broken,
etc.
Leko Toro– GAMMA LED Vision Pa e 4 of 13

Customer Support
WARRANTY POLICY
GAMMA LED Vision warrants its products for the periods set below from the date of pur-
chase to be free of manufacturer and workmanship defects. Warranty does not cover nor-
mal wear and tear caused by force, ne li ence or misuse of products. GAMMA LED Vi-
sion is not responsible for any dama es or injury caused by misuse or improper handlin
of the products and in accordance with instructions and specifications of manual.
Warranty terms are as follows:
LED Fixtures:
Indoor: 2 Years
Outdoor (IP 54 or hi her): 1 Year
Lamp Fixtures: 1 year / excludes the lamp
LED Video Products:
Indoor: 2 Years
Outdoor (IP 54 or hi her): 1 Year
Controllers: 2 years
Batteries: 6 months
All Trussin Related Products and Accessories: 1 Year
Please visit WWW.GAMMALEDVISON.COM for complete Limited Warranty terms and con-
tact information.
Leko Toro– GAMMA LED Vision Pa e 5 of 13

2. Setup and Operation
The LCD system includes Menu, Down, Up, and Enter buttons. Press “Menu” to enter the
menu or to o back from a sub-menu. Use “Up”/”Down” to navi ate throu h the choices,
and use “Enter” to save your choices.
The menu options are as follows:
Using the LCD Menu and Buttons
Menu Display Key Operation
  
   
! ! ! 
" " " 
# # $% 
&'! &'! "%%()*
& & (%%()*
+( +( )((
+%( +%( (,- ((
Leko Toro– GAMMA LED Vision Pa e 6 of 13

DMX Setup
DMX Basics
DMX512 stands for di ital multiplex 512. This means that 512 channels are controlled
di itally throu h 1 data cable.
A channel is a set of 255 steps that are assi ned to control attributes in each li ht. This
may be a color like red, reen or blue, and intensity, strobe, pan/tilt or other attributes.
Multiple sets of 512 “universes” may be used. Only 1 universe will travel on a DMX cable,
but throu h networked DMX (Art-Net or sACN E1.31), many universes can travel over a
network.
DMX Wiring
DMX works by connectin 1 or multiple li hts to the output of a DMX li htin console or
software with a DMX interface.
DMX li hts connect in what is called a “daisy-chain”. Your first DMX cable will plu it’s
male DMX connector into the female DMX connector on your li htin console. The re-
mainin female connector will then connect to the DMX input on your first li ht.
You may then connect your next fixture to the output of your first li ht, and continue the
chain.
32 Fixture Rule – DMX only allows you to connect up to 32 fixtures in a sin le daisy
chain for si nal stren th. Sometimes, dependin on the fixtures and cable len th, this
number is less (or more).
DMX Cables can be 3-pin or 5-pin. These use the same type of data, and in the 5-pin
only pins 1, 2, and 3 are used. The cable should be a 2 conductor, shielded cable of at
least 110 ohms resistance. Microphone cable is not DMX cable.

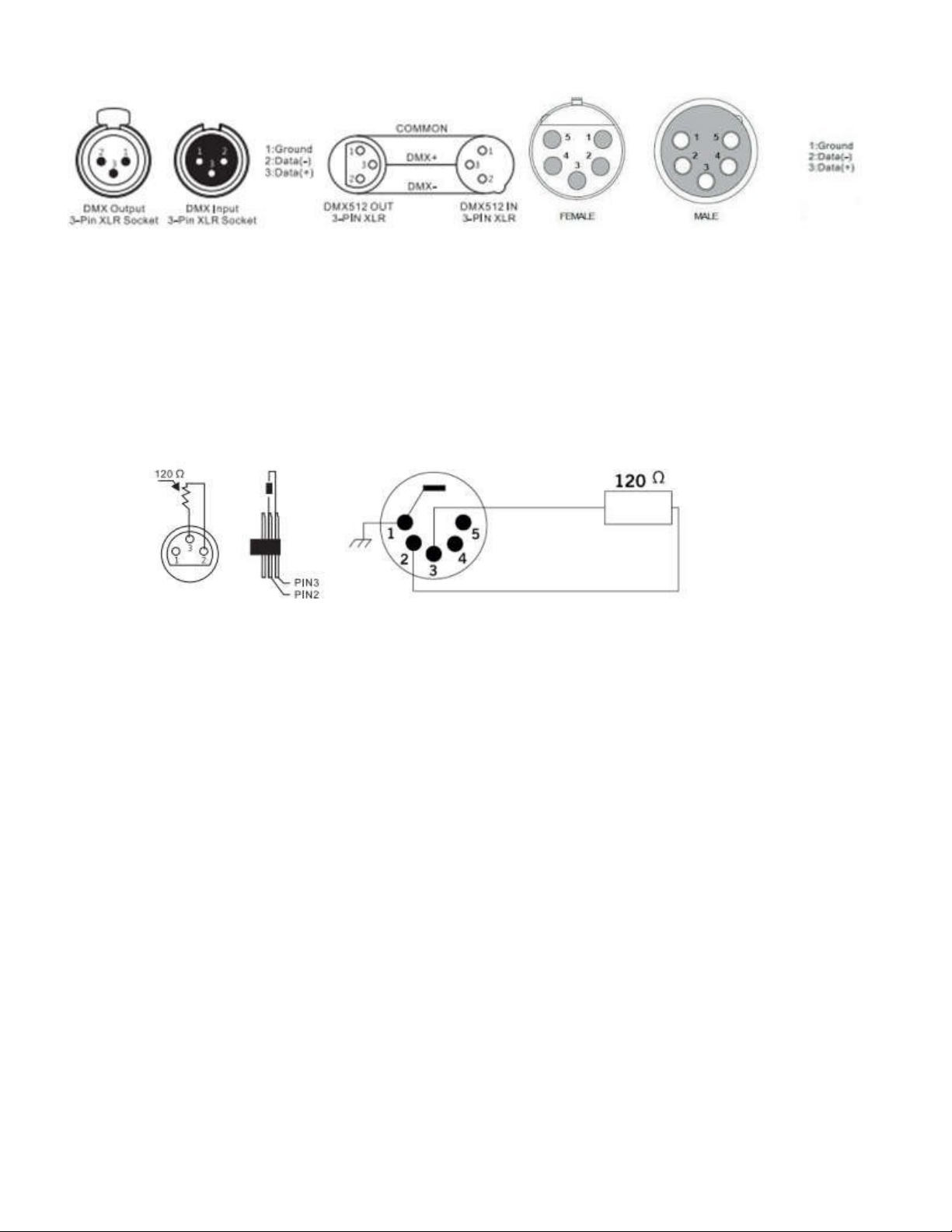

Please refer to the dia ram below:
Leko Toro– GAMMA LED Vision Pa e 7 of 13

For installations where the DMX cable has to run a lon distance or is in an electrically
noisy environment, it is recommended to use a DMX terminator. This helps in preventin
corruption of the di ital control si nal by electrical noise and reflections. The DMX ter-
minator is simply an XLR plu with a 120 Ω resistor connected between pins 2 and 3,
which is then plu ed into the output XLR socket of the last fixture in the chain. Please
see illustrations below:
Leko Toro– GAMMA LED Vision Pa e 8 of 13

DMX Modes and Configuration
The Leko Toro has multiple DMX modes, sometimes called “personalities”, “profiles”, or as
we will use here “modes”.
In eneral, modes with more DMX channels offer a reater level of control or options but
take up more of your output channels on your li htin console or software.
Modes with less DMX channels often offer less control, but may be plenty for your needs.
Dependin on your needs and control solution, you may not need channels for auto-
mated pro rams, strobes, or macros – your console may have reat effects! In this case,
you can use a lesser channel mode and fit more li hts per DMX universe.
View the DMX mode charts below to find the mode that best suits your needs.
Leko Toro– GAMMA LED Vision Pa e 9 of 13

DMX Channel Mode Sheet:
On the left side of the sheet you will see the different modes and which channel cor-
res onds to each function listed on the right in the given mode.
9CH Function Channel Value Descri tion
1 Dimmer 0-255 Master Dimmer
2 Strobe 0-255 Strobe, Slow to Fast
3 Red 0-255 Red Dimmer
4 Green 0-255 Green Dimmer
5 Blue 0-255 Blue Dimmer
6 White 0-30 White Dimmer
7 Color Macros 0-255 Color Macros
8 Auto-Pro ram
Macros
0-10 No Function
11-120 Chase Macros
121-180 Fade Macros
181-244 Strobin Macros
245-255 Sound-Active Mode
Leko Toro– GAMMA LED Vision Pa e 10 of 13

3. Maintenance
Routine Maintenance
Fan Cleaning
Periodically do a visual inspection of the fans. If they are dirty, power off the unit and use
a small electronics vacuum to clean the fans out. Do not use a can of C02 or an Air Com-
pressor. These will simply blow the dust into the unit and may leave other residue.
Front Lens and Shutter Blade Cleaning
The front lens should be cleaned so that li ht output is maintained. The shutter blades
may also occasionally need cleanin .
With the li ht powered off, use a moist, lint-free cloth. Never use alcohol of solvents to
clean the fixture.
Never spray any cleaners on the fixture.
Troubleshooting Problems
The followin are a few common problems that may occur durin operation. Here are
some su estions for easy troubleshootin :
A. The unit does not work:
•Check that the unit is plu ed in to a workin power connector.
•Press the menu button to confirm that the unit is powered on. If the screen does
not li ht up, the unit has no power.
B. Not Responding to the DMX Controller
•Check DMX cables to verify that they are plu ed in and functional.
•Check the DMX address and mode – does it match the address and mode patched
in the li htin console or software?
•Plu the li ht directly into the DMX controller with a cable that you know is ood.
Unplu all other li hts – does it work?
•Try to use another DMX controller.
Leko Toro– GAMMA LED Vision Pa e 11 of 13

4. Technical Specifications
•1*200W COB LED CW/WW
•50,000 hours life and low power consumption
•Lens tube interchan eable with filed an les available for 19°/26°/36°/50°
•0-100% Smooth and precise linear dimmer
•9 DMX channel USITT DMX-512
•DMX512 and manual modes.
•4-Button LCD display
•PowerCon connector IN/OUT
•3-Pin XLR connectors IN/OUT
•Low noise fan
•40°C Max ambient temperature
•IP20 protection ratin
•AC100-230V 50-60HZ
• Max. Power: 220W

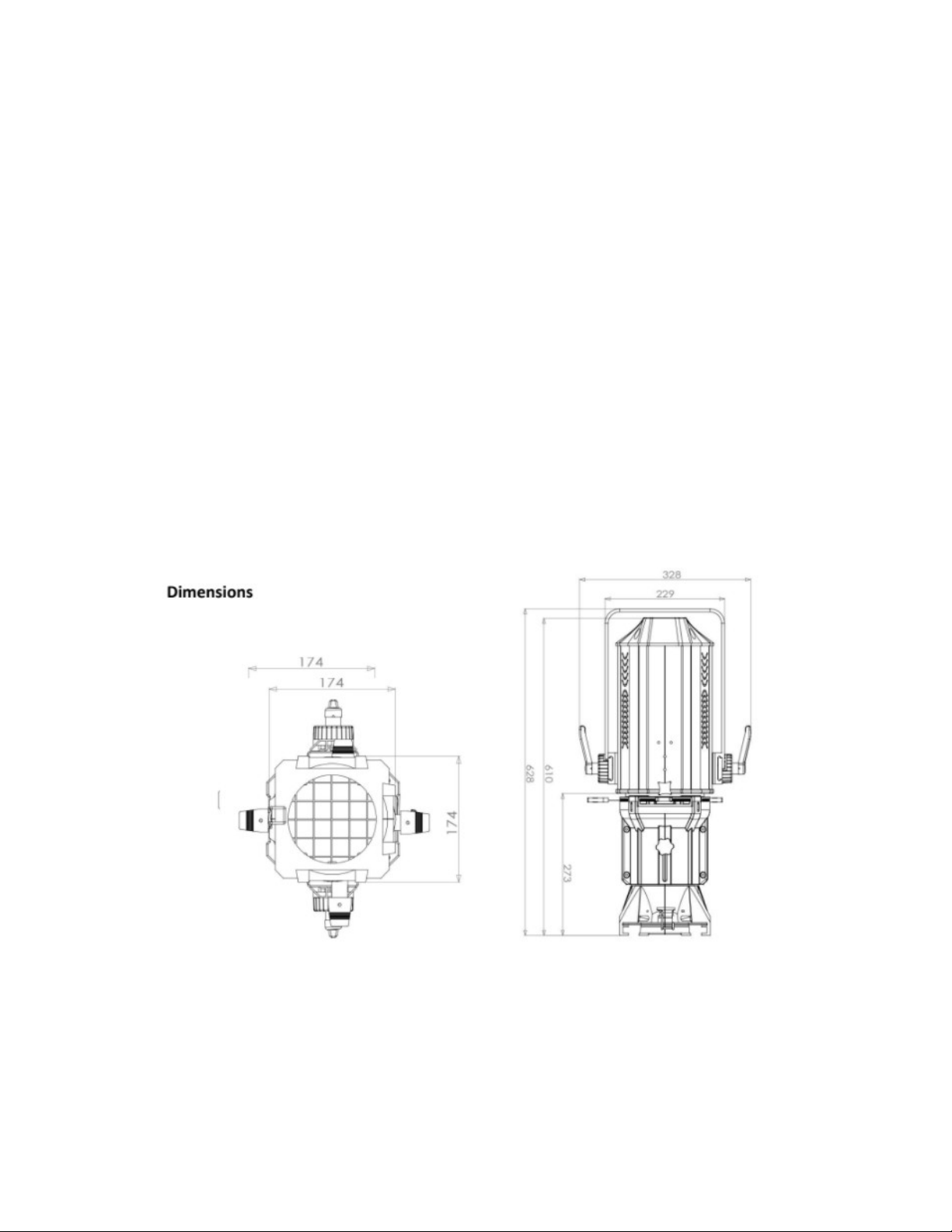

• Dimensions: 340(D)*270(W)*650(H)mm
•Net Wei ht: 9.3k
Leko Toro– GAMMA LED Vision Pa e 12 of 13

Photometric Reports
26 De ree Lens – FC at Center
Distance RGBW at Full
15’ 130
20’ 81
25’ 52
30’ 40
