eFOLDi HBLD3-D User manual

eFOLDi User Manual
Model: Power Chair HBLD3-D
SunTech UK Ltd

Purchased from:
Date of purchase:
Serial number:

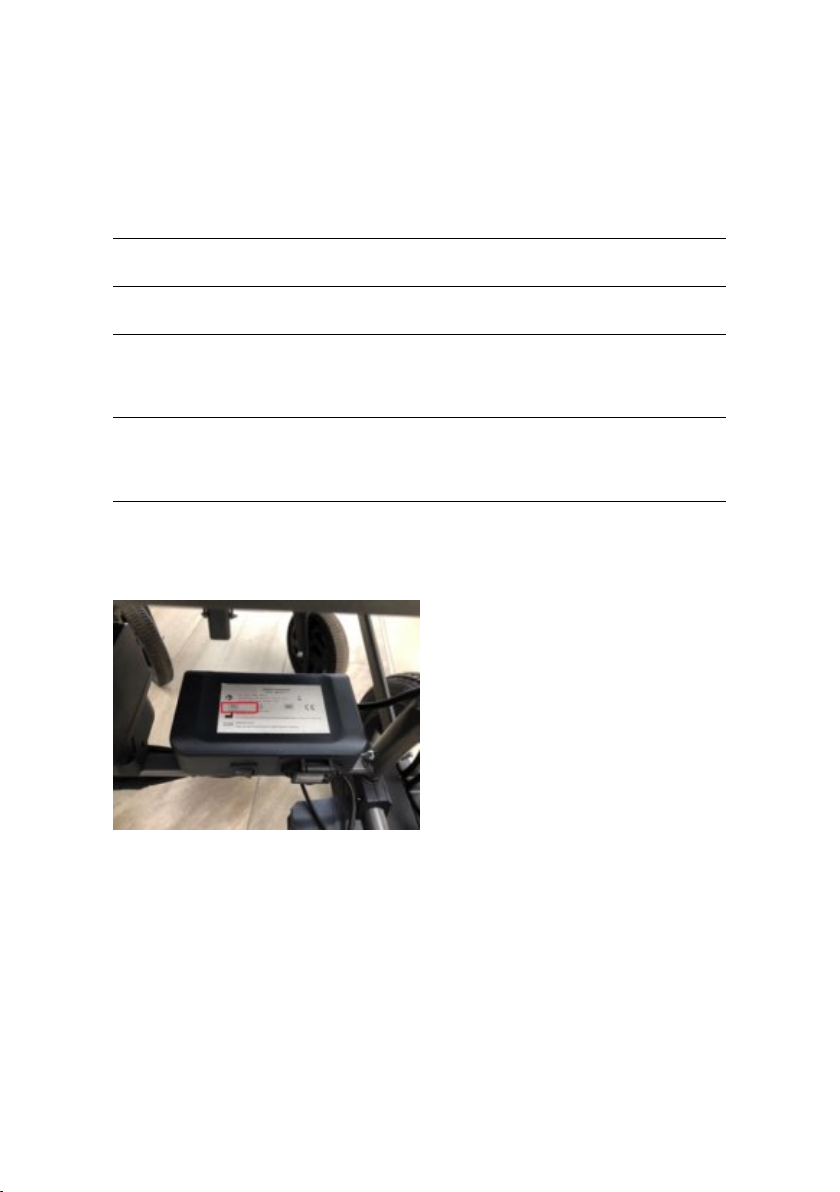

Please see image showing the location of the
serial number.

Contents
1 Welcome 2
2 Terms, conditions and disclaimers 3
3 Product overview 6
4 Components 7
5 Safety guidance 9
6 Folding instructions 13
7 Drive your power chair 17
8 Battery and Charging 21
9 Checks and maintenance 25
10 Technical specication 26
11 Appendix 27
Page 1

Welcome
Thank you for choosing an eFOLDi product as your mobility solu-
tion.
I’m Sumi Wang, the founder of SunTech UK and would like to wel-
come you to the eFOLDi family of users.
SunTech UK manufactures a range of assistive technologies to
help you get the most from life. Our mission is to give our cus-
tomers freedom, friendship and fun with a range of easy to use,
convenient and market leading mobility solutions.
Your eFOLDi has been manufactured to the highest standards and
quality checked by our own pre-sales technicians before deliv-
ery, to provide you with a product that will give many years of
freedom and fun with reliable service.
Please take some time to read the user manual and the supplied
documents before using your eFOLDi for the rst time, this will
help you understand the product and help you obtain maximum
enjoyment and safety from your new eFOLDi product(s). You will
quickly become familiar with the features of your eFOLDi with a
little practice.
SunTech UK prides itself on its high-quality products and cus-
tomer support so please remember to register your product(s) at:
https://efoldi.com/register-warranty
These will help us to assist you in the event of any diculties you
may experience in the future. I am sure you will nd your eFOLDi
to be a reliable friend and companion and I thank you for your
custom and your trust in our products.
Yours,
Sumi Wang
Page 2

Terms, conditions and disclaimers
The terms ‘us’, ‘we’, ‘our’, ‘SunTech UK’ and ’SunTech UK Ltd’ mean
SunTech UK Limited, which is a UK registered company, limited by
guarantee, registered with Companies House, number 06906908.
The terms ‘website’ means the website found online at
www.efoldi.com. The terms ‘you’, ‘your’, ‘user’ and ‘rider’, mean
the person using the eFOLDi not withstanding any person(s) han-
dling the eFOLDi on behalf of the user, if dierent to the user, in-
cluding general handling, maintenance, repairs and so on.
Purchase agreement
By accepting delivery of this eFOLDi, you undertake to not change,
alter or modify this eFOLDi and/or any parts supplied with it or
subsequently for it, and/or render inoperable or unsafe, any guards,
shields or other safety features of this product; fail, refuse or ne-
glect to install any retrot kits from time to time, as may be pro-
vided by SunTech UK Ltd to enhance and/or preserve the safe
use of this product . You also agree to accept and abide, by/with
the terms and conditions contained herein and as may be revised
from time to time and updated on our website, being immedi-
ately applicable. By using the eFOLDi and/or accessories and/or
components supplied with/or for the eFOLDi, the user acknowl-
edges having read and understood the use(s) and limitations of
the product(s) without exceptions. This shall not act as a waiver
of any implied warranties, which customer retains, as provided by
law.
Warranties will be void and SunTech UK Ltd will accept no re-
sponsibility whatsoever or howsoever, in instances of misuse and/or
abuse of the products, in part or in full, by the user and/or any
unauthorised persons, which may include (but not to be limited
to); the user(s) failing to comply with all legal requirements and
guidelines, wherever and/or however it is used or intended to be
used, lack of/or inappropriate maintenance, maintenance (apart
from the routine maintenance as described in this manual by the
user) by anyone not approved to do so, unapproved repairs, unau-
thorised disassembly of the vehicle and/or components includ-
Page 3

ing (but not limited to) battery pack(s) and controllers, unapproved
modications or alterations, failure to ensure correct folding and
unfolding procedures are followed precisely and in full, damage
or injury howsoever caused, failure to apply all reasonable and
appropriate safety precautions at all times, improper use of the
vehicle and/or parts and/or accessories being used by more than
one person at any times, use in any competitive sport, racing, stunts,
jumping or other similar activity.
Our liability and the liability of our suppliers, to you/or any third
parties in any circumstances is limited to the user’s cost of quali-
fying products purchased. Qualifying products as acceptable for
the return, as outlined in the return policy, as stated on the web-
site online at: www.efoldi.com/return-policy.
Information in this user manual is subject to change without prior
notice. For the latest updates and information, please go to our
website online at: www.efoldi.com.
Page 4

The power chair should NOT be used by
people:
•With a mental impairment which requires on going supervision
or assistance;
•With slow reaction and who have diculty in handling power mo-
bility devices;
•Who cannot operate all controls fully and as intended; *
•Who cannot steer competently and appropriately at all times
and in all conditions;
•Who cannot maintain appropriate awareness of all relevant cir-
cumstances for each journey and take appropriate action as may
be required to avoid mishap;
•Who cannot lift it in whole or in part as may be required depen-
dent upon user’s needs*.
* Unless accompanied by a person suciently able and competent to
carry out that task.
Product compliance:
Safety: EN12184
EMC: ISO7176-21
Risk management: ISO14971
The European Medical Devices: Directive of 93/42/EEC
Class 1
Shipping and delivery:
By checking against your sales order or invoice, make sure your
delivery is complete, as some components may be individually
packaged. If you do not receive a complete delivery, please con-
tact us immediately. Where damage has occurred during trans-
port, either to the packaging or the content, please contact the
delivery company responsible.
Page 5

Product overview

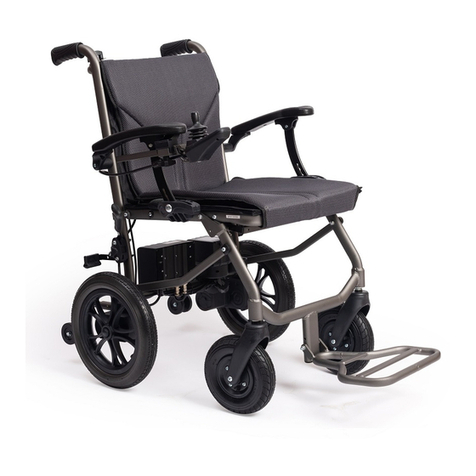

Thank you for purchasing our eFOLDi power chair. This ultra-light
electric wheelchair has been carefully researched and developed
to be light, energy ecient and easy to operate. Please read this
manual carefully before use, so that you are familiar with all the
various func-tions, and understand the required maintenance. This
will ensure that the power chair remains in good condition and is
safe to use.
(a) Power chair mode (b) Storage mode
Model: Power chair HBLD3-D
Page 6

Components
1 Joystick control 2 Armrest
3 Push handle 4 Seatbelt
5 Handbrakes (both sides) 6 Batteries
7 Rear wheel 12 inch 8 Attendant control
9 Footrest 10 Folding mechanism bar
11 Anti-tip wheels 12 Seat cover
13 Front wheel 14 Control box
15 Push bar height adjustment knob
Table 1: Model HBLD3-D Components
Page 7

Control components
1 Joystick control 2 Speed adjustment (slower)
3 Battery power display 4 Power switch
5 Horn 6 Speed adjustment (faster)
7 Speed indicator 8 Attendant control
Table 2: Power chair HBLD3-D controls
Page 8

Safety guidance
Attention
•It is the user’s responsibility to read the manual and sup-
plied documents before using the eFOLDi and to follow all
of the recommendations contained within, to fully com-
ply with all local laws of their countries and localities and
to use the eFOLDi with due diligence and regard to other
road users and pedestrians.
•The eFOLDi is simple to use, but its folding mechanism can
cause signicant injury if used inappropriately and han-
dled without due care and diligence. To avoid any risk of
injury ensure hands, ngers, jewellery, clothing and other
objects are not allowed to interfere with the folding mech-
anism or moving parts of the eFOLDi and study the manual
carefully before you start operating your eFOLDi.
•It is advised that the user familiarise themselves with the
folding and unfolding procedure before venturing outside.
The user should also ensure that they familiarise them-
selves with the controls and handling of the power chair
in a safe area away from obstacles and other pedestrians
or road users.
•Fully charge the battery(ies) before rst use and follow the
guidelines in this manual for prolonging the life of your
battery.
Caution:
Do NOT ride over rough, cobbled, muddy or loose gravel surfaces.
Your eFOLDi is designed for smooth and rm footpaths, roads and
pedestrian areas only.
The stopping distance on slopes can be signicantly greater than
on level ground; The power chair surface temperatures can in-
crease when exposed to external sources of heat (e.g. sunlight)
Page 9

Cannot be driven on the road.
Be sure to slow down before turning. Do not make sharp turns at
high speed. Do not park the eFOLDi power chair on a ramp. Never
make turns on a slope.
Do not ride over rough, cobbled, muddy or loose gravel surfaces.
Your eFOLDi power chair is designed for smooth and rm foot-
paths and pedestrian areas only.
Any vehicle can be dangerous to its rider/driver and other road
users and pedestrians. Always ride/drive responsibly, respect-
fully and with due care to others.
Your eFOLDi power chair is NOT a toy and is not recommended
for people under the age of 14. Do not allow children to play with
or on the power chair. The internal folding mechanism can cause
injury to small hands.
Do not operate your eFOLDi power chair until you have read and
fully understood this manual.
Do not operate your eFOLDi power chair until assembly and in-
spection is complete. It is suggested that people with mental ab-
normality, slow reactions and diculty in handling powered de-
vices should not use the eFOLDi power chair on their own.
Do not get on or o the eFOLDi power chair when the power is on,
or when the power chair is in freewheel mode or with the hand-
brakes disengaged, or there is no carer to provide assistance.
Do not drive your eFOLDi power chair in violation of national and
local trac regulations.
Do NOT rush when folding or unfolding the eFOLDi power chair.
Do not use the eFOLDi power chair on sandy or soft ground. Avoid
driving on slopes greater than 6 degrees or over obstacles greater
than 4 cm in height.
Do NOT disassemble or change parts of the eFOLDi power chair
or replace parts not manufactured by the manufacturer without
the manufacturer’s permission.
Never operate the power chair without the anti-tip wheels se-
Page 10

curely in place.
Do NOT for any reason put your hands into the mainframe of the
power chair. This is because your hands and ngers can get trapped
in the levers and pivots and serious injuries can be caused.
When unfolding/folding your power chair
ensure:
•The eFOLDi is positioned on a level oor or ground.
•Main switch is switched o.
•All latch pins are properly secured in place, as stated on
the instructions and shown on the illustrations.
•Handbrake is disengaged.
Safety check before use:
It is highly recommended that you perform a safety check be-
fore each use to make sure your eFOLDi operates smoothly and
safely.
•Check for correct tyre ination. Maintain but do not exceed
the manufacturer recommended tyre pressure rating indi-
cated on the pneumatic tyres;
•Check all electrical connections. Make sure they are se-
cure and not corroded;
•Check and test the brake system;
•Check frequently for any loose fasteners, xings and other
components.
•Check Anti-tip wheels are securely attached.
Page 11

EMC warning statement
The interference from radio wave sources such as radio stations,
TV stations, two way radios or cellular phones can cause the mo-
bility product to release its brakes, move by itself, or move in unin-
tended directions. It can also permanently damage the mobility
power chair control system.
The intensity of the interfering EM energy can be measured in
volts per meter (V/m). Each mobility product can resist EMI up
to a certain intensity. This is called the "EMI immunity level". The
higher the EMI immunity level, the greater the protection from
EMI. Currently the eFOLDi power chair has an immunity level of
at least 20V/m, which provides useful protection from the com-
mon sources of EMI.
The sources of radiated EMI can be broadly classied into three
types: 1) Hand-held portable transceivers. (normally with antenna
mounted on the device) 2) Medium-range mobile transceivers,
such as those used in police cars, re trucks, ambulances and
taxis. (normally with antenna mounted on the vehicle) 3) Long-
range transmitters and transceivers, such as commercial broad-
cast transmitters (radio and TV broadcast antenna towers) and
amateur (HAM) radios.
Other types of hand-held devices, such as cordless phones, lap-
top computers, AM/FM radios, TV sets and small appliances such
as electric shavers and hair dryers are usually not likely to cause
EMI problems.
Page 12

Folding instructions
To a Power chair mode
Please study the instruction and image illumination to fa-
miliarise the folding procedures and please only operate one mov-
ing part at the same time.
A B C
A Once removed from the packaging place the wheelchair on a
stable surface. Place one hand on the top of the backrest and the
other hand on the folding mechanism bar underneath the seat, in
the front part of the folded power chair.
B Finally push your two hands apart until the seat is open at 90°
degrees and you hear a distinct “click” sound.
C Unfold the footrest, from a vertical position to a 90°degrees
horizontal position.
Page 13

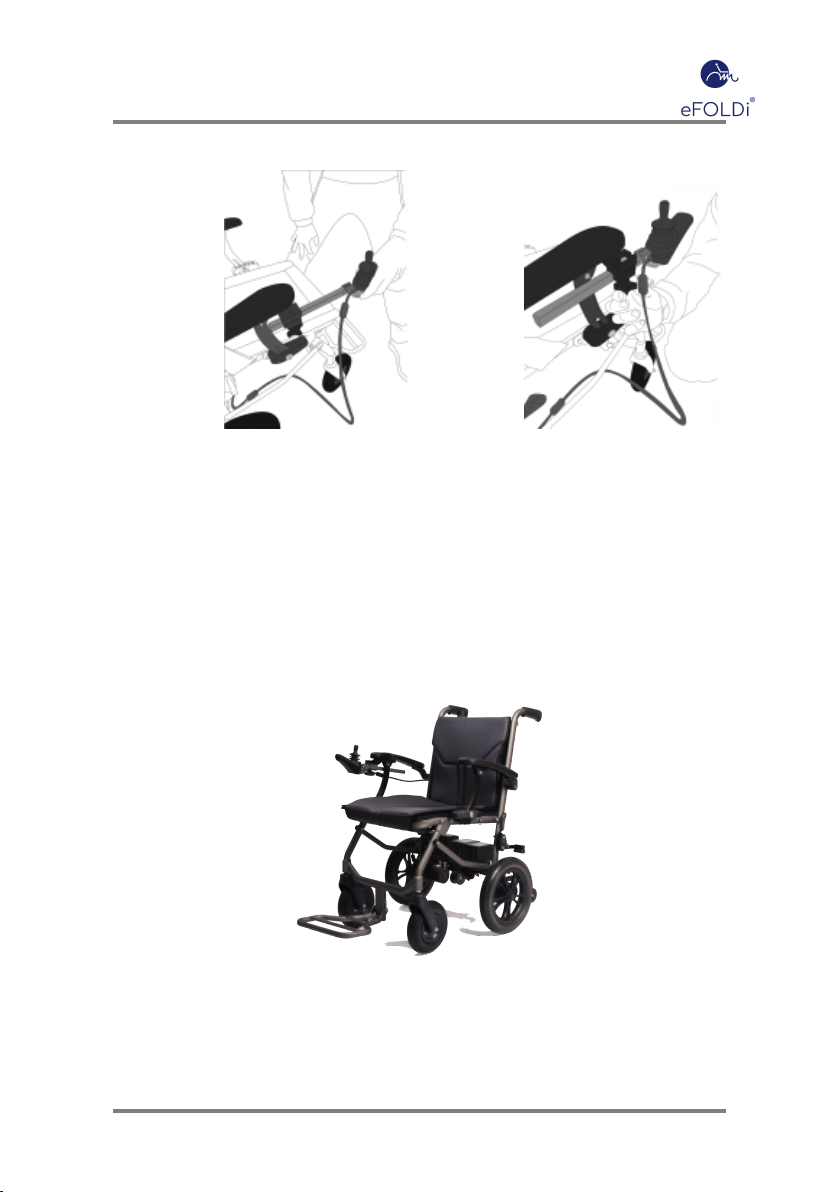

D E
D Slot the joystick arm inside the frame and push it, into a com-
fortable horizontal position, where it is easy for your hand to reach
the joystick.
E Once you are happy with the horizontal position of the joystick
arm, lock it by tightening the clamp. Finally attach Anti-tip wheels
securely on the back of the power chair before driving o.
Power chair mode
Page 14

To a Storage mode
Please study the instruction and image illumination to fa-
miliarise the folding procedures and please only operate one mov-
ing part at the same time.
A B C
A Loosen the tightening clamp, to release the joystick arm.
B Take out the joystick arm and place it on the power chair seat.
C Fold the footrest, at 90°degrees position vertically.
Page 15

E F
E Then place one hand at the top on the backrest bar and the
other on the folding mechanism bar underneath the seat.
F By pressing the folding mechanism bar and bringing your hand
together to close and fold the eFOLDi Power chair. Your power
chair is ready to be stored or transported.
Front wheel should face backwards for proper folding.
Storage mode
Page 16

Drive your power chair
Safety check before use - see Safety Guid-
ance
eFOLDi power chair is suitable to use indoor or drive on the pave-
ment only and is designed to drive on smooth even surfaces. When
driving your eFOLDi, choose a route with good road conditions.
Unevenly paved roads or paths, potholes and other hazards, will
reduce the life of the power chair and impact on your safety.
Any deviation from level/horizontal surfaces should not exceed
a gradient of 1:10 (6 degrees). For any climbing there are many
factors that need to be considered. Such as: the tyre pressure
and condition, the surface condition (if wet, icy or slippery, and
this includes leaf cover and/or other debris, we advise against
driving the slope), batteries charge and the weight of the user, all
of these will aect performance.
Caution:
The stopping distance on slopes can be signicantly greater than
on level ground; The power chair surface temperatures can in-
crease when exposed to external sources of heat (e.g. sunlight)
Page 17

Joystick and Controlbox
Page 18
