EGO PH1400E User manual

OPERATOR'S MANUAL
56-VOLT LITHIUM-ION
CORDLESS POWER HEAD
MODEL NUMBER PH1400E
WARNING: To reduce the risk of injury, the user must read and understand the
Operator’s Manual before using this product. Save these instructions for future reference.
FOR USE WITH EGO POWER+POWER HEAD
ATTACHMENTS(BCA1200, STA1500,
EA0800, HTA2000, PSA1000)

B
CD
8. Adjustable Front- Assist Handle
9. Coupler
10. Shaft-Release Button
7. Threshold Ring
6. Shoulder-strap Mount Hanger
4. Lock-off
Button
3. Rear Handle
5. High/low-Speed Switch
15. Latch
17. Ejection Mechanism
Wing Knob
Arrow on the Coupler
Arrow on the Attachment Shaft
Attachment Shaft
Power-head Shaft
Shaft-Release Button
2. Air Inlet
14. Rubber Pad Protection
13. Battery-Release Button
18. Shoulder Strap
(special accessory)
12. Trigger
A
11. Wing Knob
16. Electric
Contacts

E
Strap Hook
Shoulder-strap
Mount Hanger
F
G H
1
2
Mounting Slot
High/Low-Speed Switch
Lock-off Button Trigger
Rib

56 VOLT MULTI-TOOL POWER HEAD — PH1400E4
READ ALL INSTRUCTIONS!
READ OPERATOR’S MANUAL
Residual risk! People with electronic devices, such
as pacemakers, should consult their physician(s) before
using this product. Operation of electrical equipment
in close proximity to a heart pacemaker could cause
interference or failure of the pacemaker.
WARNING: To ensure safety and reliability, all repairs
and replacements should be performed by a qualied
service technician.
SAFETY SYMBOLS
The purpose of safety symbols is to attract your attention
to possible dangers. The safety symbols and the
explanations with them deserve your careful attention
and understanding. The symbol warnings do not, by
themselves, eliminate any danger. The instructions and
warnings they give are no substitutes for proper accident
prevention measures.
WARNING: Be sure to read and understand all
safety instructions in this Operator’s Manual, including
all safety alert symbols such as “DANGER,” “WARNING,”
and “CAUTION” before using this tool. Failure to follow all
instructions listed below may result in electric shock, re,
and/or serious personal injury.
SYMBOL MEANING
SAFETY ALERT SYMBOL: Indicates DANGER,
WARNING, OR CAUTION. May be used in conjunction with
other symbols or pictographs.
WARNING: The operation of any power
tools can result in foreign objects being thrown
into your eyes, which can result in severe
eye damage. Before beginning power tool
operation, always wear safety goggles or
safety glasses with side shields and a full face
shield when needed. We recommend a Wide
Vision Safety Mask for use over eyeglasses or
standard safety glasses with side shields.
SAFETY INSTRUCTIONS
This page depicts and describes safety symbols that may
appear on this product. Read, understand, and follow all
instructions on the machine before attempting to assem-
ble and operate it.
Safety Alert Indicates a potential personal
injury hazard.
Read
operator’s
manual
To reduce the risk of
injury, user must read and
understand operator’s manual
before using this product.
Wear Eye
Protection
Always wear safety goggles
or safety glasses with side
shields and a full face shield
when operating this product.
IPX4
Ingress
Protection
Degree
Protection from splashing
water
V Volt Voltage
mm Millimeter Length or size
cm Centimeter Length or size
in. Inch Length or size
kg Kilogram Weight
lb Pound Weight
Direct
Current
Type or a characteristic of
current
GENERAL POWER TOOL SAFETY WARNINGS
WARNING:Read all safety warnings and
instructions. Failure to follow the warnings and instructions
may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future
reference.
The term “power tool” in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.

56 VOLT MULTI-TOOL POWER HEAD — PH1400E 5
WORK AREA SAFETY
◾Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
◾Do not operate power tools in explosive
atmospheres, such as in the presence of
ammable liquids, petrol or dust. Power tools create
sparks which may ignite the dust or fumes.
◾Keep children and bystanders away while
operating a power tool. Distractions can cause you
to lose control.
ELECTRICAL SAFETY
◾Power tool plugs must match the outlet. Never
modify the plug in anyway. Do not use any adaptor
plugs with earthed (grounded) power tools.
Unmodied plugs and matching outlets will reduce risk
of electric shock.
◾Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
◾Do not expose power tools to rain or wet
conditions. Water entering a power tool will increase
the risk of electric shock.
◾Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electric shock.
◾When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
◾If operating a power tool in a damp location is
unavoidable, use a Ground-fault circuit interrupter
protected supply. Use of GFCI reduces the risk of
electric shock.
PERSONAL SAFETY
◾Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the inuence of drugs, alcohol, or medication. A
moment of inattention while operating power tools may
result in serious personal injury.
◾Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personal injuries.
◾Prevent unintentional starting. Ensure the switch
is in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your nger on the
switch or energising power tools that have the switch
on invites accidents.
◾Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result
in personal injury.
◾Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
◾Dress properly. Do not wear loose clothing or
jewelry. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewelry or long hair
can be caught in moving parts.
◾If devices are provided for the connection of dust
extraction and collection facilities, ensure these
are connected and properly used. Use of dust
devices can reduce dust-related hazards.
POWER TOOL USE AND CARE
◾Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
◾Do not use the power tool if the switch does not turn it
on and off. Any power tool that cannot be controlled with
the switch is dangerous and must be repaired.
◾Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
◾Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the
power tool or these instructions to operate the
power tool. Power tools are dangerous in the hands of
untrained users.
◾Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and
any other condition that may affect the power
tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by
poorly maintained power tools.
◾Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.

56 VOLT MULTI-TOOL POWER HEAD — PH1400E6
◾Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations different
from those intended could result in a hazardous situation.
◾This 56V power head PH1400E may be used with
only the following EGO attachments or subsequently
introduced by EGO for use with this power head:
ATTACHMENT TYPE MODEL NUMBER
Edger EA0800
Brushcutter BCA1200
Line Trimmer STA1500
Pole Saw PSA1000
Pole Hedge Trimmer HTA2000
BATTERY TOOL USE AND CARE
◾Recharge only with the charger specied by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of re when used
with another battery pack.
◾Use power tools only with specically designated
battery packs listed below. Use of any other battery
packs may create a risk of injury and re.
BATTERY CHARGER
BA1120E, BA1400, BA2240E, BA2800,
BA3360, BA4200 (BA3360 & BA4200
are not applicable when equipped with
brushcutter attachment)
CH5500E,
CH2100E
◾When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause
burns or a re.
◾Under abusive conditions, liquid may be ejected from
the battery; avoid contact. If contact accidentally
occurs, ush with water. If liquid contacts eyes,
additionally seek medical help. Liquid ejected from the
battery may cause irritation or burns.
SERVICE
◾Have your power tool serviced by a qualied repair
person using only identical replacement parts. This will
ensure that the safety of the power tool is maintained.
◾If situations occur that are not covered in this manual,
use care and good judgment. Contact the EGO Service
Center for assistance.
SAVE THESE INSTRUCTIONS
ADDITIONAL SPECIFIC SAFETY RULES CAN BE
FOUND IN THE APPLICABLE ATTACHMENT’S
OPERATOR’S MANUAL
SPECIFICATIONS
Voltage 56 V
Weight (Without battery pack) 2.73 kg
PACKING LIST
PART NAME QUANTITY
Power Head 1
Adjustable Front-Assist Handle 1
Shoulder Strap 1
Hex Wrench 1
Operator’s Manual 1
DESCRIPTION

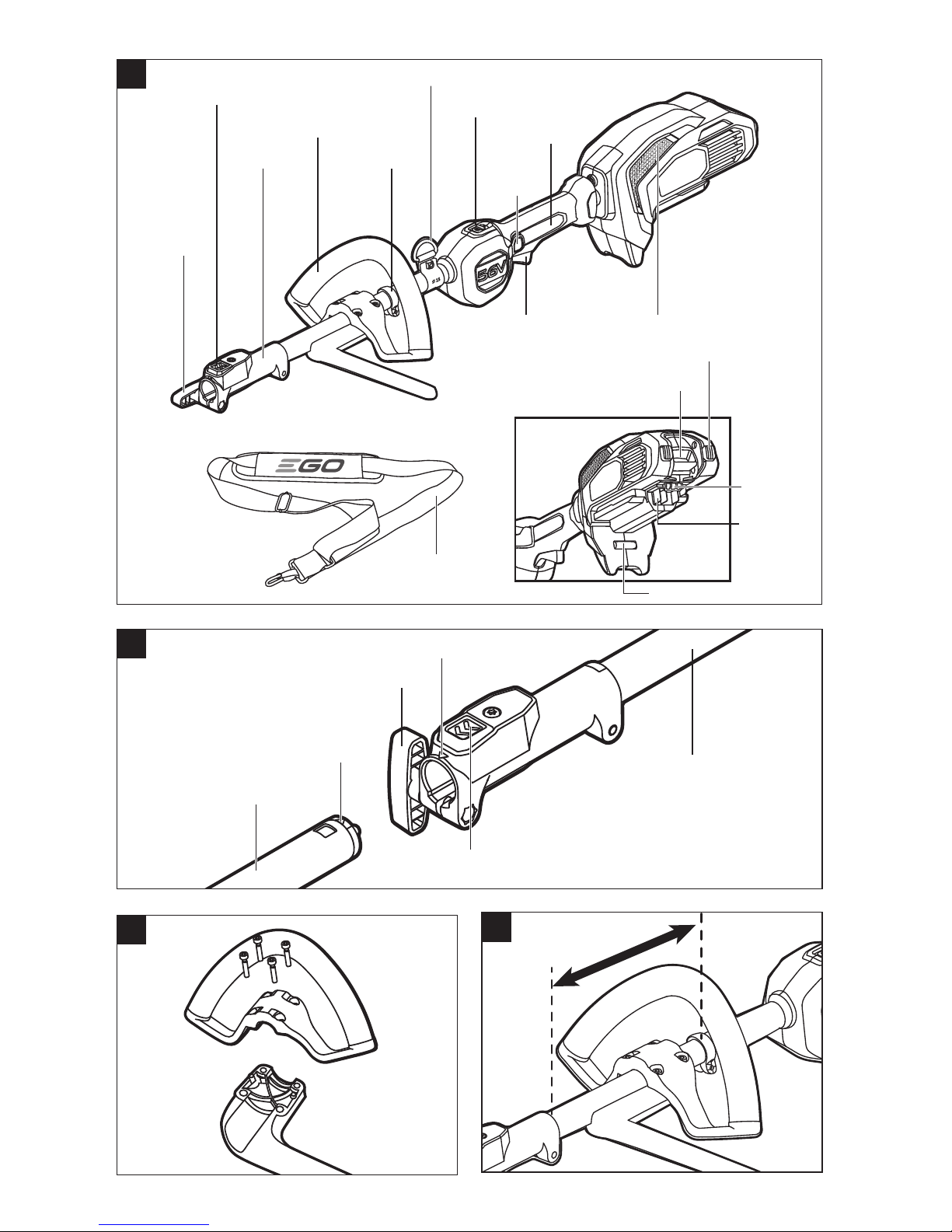

KNOW YOUR POWER HEAD (Fig. A)
1. Air Outlet
2. Air Inlet
3. Rear Handle
4. Lock-off Button
5. High/low-Speed Switch
6. Shoulder-strap Mount Hanger
7. Threshold Ring
8. Adjustable Front-Assist Handle
9. Coupler
10. Shaft-Release Button
11. Wing Knob
12. Trigger
13. Battery-Release Button
14. Rubber Pad Protection
15. Latch
16. Electric Contacts
17. Ejection Mechanism
18. Shoulder Strap (special accessory)

56 VOLT MULTI-TOOL POWER HEAD — PH1400E 7
ASSEMBLY
WARNING: If any parts are damaged or missing,
do not operate this product until the parts are replaced.
Use of this product with damaged or missing parts could
result in serious personal injury.
WARNING: Always remove the battery pack from
the product when you are assembling parts, making
adjustments, cleaning, or when the product is not in use.
INSTALLING AN ATTACHMENT TO THE POWER HEAD
WARNING: Read and understand entire Operator’s
Manual for each optional attachment used on this power
head and follow all warnings and instructions. Failure to
follow all instructions could result in electric shock, re
and/or serious personal injury.
WARNING: This 56V power head PH1400E is
designed to be used only with the EGO attachment
models that are specied in this Operator’s Manual or
subsequently introduced by EGO for use with this power
head. Use of other, unauthorised attachments could cause
serious personal injuries or property damage.
WARNING: Never install, remove, or adjust any
attachment while the power head is running or with the
battery installed. Failure to stop the motor and remove the
battery can cause serious personal injury.
NEVER OPERATE THE POWER HEAD WITHOUT AN
ATTACHMENT.
The attachment connects to the power head by means of
a coupler device.
1. Stop the motor and remove the battery pack.
2. Loosen the wing knob.
3. Remove the end cap from the attachment. Align the
arrow on the attachment shaft with the arrow on
the coupler and push the attachment shaft into the
coupler until you hear a clear “click” sound, which
indicates that the attachment shaft is mounted into
place (Fig. B).
4. Pull the shaft of the attachment to verify it is securely
locked into the coupler. If not, rotate the attachment shaft
from side to side in the coupler until it snaps into place.
5. Tighten the wing knob securely.
WARNING: Be certain the wing knob is fully
tightened before operating equipment; check it
periodically for tightness during use to avoid serious
personal injury.
REMOVING THE ATTACHMENT FROM THE POWER
HEAD
1. Stop the motor and remove the battery pack.
2. Loosen the wing knob.
3. Press the shaft-release button, with the button
depressed, pull or twist the attachment shift out of
the coupler.
MOUNTING AND ADJUSTING THE FRONT-ASSIST
HANDLE
1. Stop the motor and remove the battery pack, if installed.
2. Loosen the four screws in the front-assist handle with
the supplied hex wrench and remove the screws and
lower clamp from the front-assist handle (Fig. C).
3. Attach the front-assist handle and lower clamp on the
power-head shaft between the threshold ring and the
coupler (Fig. D).Secure them by pretightening the four
screws. Turn the front-assist handle upwards so that it
points toward the top of the rear handle.
4. Adjust the front-assist handle position between the rear
handle housing and the coupler on the power-head shaft.
5. Tighten the four screws so that the handle cannot be
rotated on the shaft.
WARNING: Never operate the tool without the front-
assist handle rmly in place.
MOUNTING THE SHOULDER STRAP
Depress the strap hook to open it and attach it onto
shoulder-strap mount hanger on the power head (Fig. E).
OPERATION
WARNING: Do not allow familiarity with this product
to make you careless. Remember that a careless fraction
of a second is sufcient to inict serious injury.
WARNING: Always wear eye protection. Failure to do
so could result in objects being thrown into your eyes and
other possible serious injuries.
WARNING: Do not use any attachments or
accessories not recommended by the manufacturer of
this product. The use of attachments or accessories not
recommended can result in serious personal injury.

56 VOLT MULTI-TOOL POWER HEAD — PH1400E8
WARNING: NEVER OPERATE THE POWER HEAD
WITHOUT AN ATTACHMENT.
INSTALLING/REMOVING THE BATTERY PACK
NOTE: Fully charge the battery pack before rst use.
To Install
Align the battery ribs with the mounting slots and press
the battery pack down until you hear a “click” (Fig. F).
To Remove
Depress the battery-release button and pull the battery
pack out (Fig. G).
WARNING: To avoid serious personal injury, always
remove the battery pack and keep hands clear of the
lock-off button and trigger when carrying or transporting
the tool.
STARTING/STOPPING THE POWER HEAD (Fig. H)
To Start
Press down the lock-off button and hold it in that position.
Depress the trigger to turn on the power head. Different
pressure on the trigger results in variable rotating speed
of the power head. More pressure, higher speed.
To Stop
Release the trigger.
NOTICE: The motor runs only when the lock-off button
and trigger are both pressed.
Speed Adjustment Function (Fig. H)
The power head has two speeds. Position“1” is for low speed
while Position “2” for high speed. Push or pull the high/low-
speed switch to choose the suitable speed during operation.
MAINTENANCE
WARNING: Before inspecting, cleaning or servicing
the unit, stop the motor, wait for all moving parts to stop, and
remove the battery pack. Failure to follow these instructions
can result in serious personal injury or property damage.
WARNING: When servicing, use only identical
replacement parts. Use of any other parts can create a
hazard or cause product damage. To ensure safety and
reliability, all repairs, other than the items listed in these
maintenance instructions, should be performed by a
qualied service technician.
NOTICE: Before each use, inspect the entire product
for damaged, missing, or loose parts such as screws,
nuts, bolts, caps, etc. Tighten securely all fasteners and
caps and do not operate this product until all missing or
damaged parts are replaced. Please contact customer
service or a qualied service technician.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use.
Use clean cloths to remove dirt, dust, oil, grease, etc.
CLEANING THE POWER HEAD
1. Stop the motor and remove the battery pack.
2. Clean dirt and debris from the power head using a
damp cloth with a mild detergent.
NOTICE: Do not use any strong detergents on the plastic
housing or the handle. They can be damaged by certain
aromatic oils such as pine and lemon.
STORING THE POWER HEAD
1. Remove the battery pack from the power head before
storing.
2. Clean all foreign material from the power head.
3. Store it in a place that is inaccessible to children.
4. Keep away from corrosive agents such as garden
chemicals and de-icing salts.
Protecting the environment
Do not dispose of electrical appliances as
unsorted municipal waste, use separate
collection facilities.
Contact your local government for infor-
mation regarding the collection systems
available.
If electrical appliances are disposed of in
landfills or dumps, hazardous substances
can leak into the groundwater and get
into the food chain, damaging your health
and well-being.
TROUBLESHOOTING
See the applicable attachment’s operator’s manual.

56 VOLT MULTI-TOOL POWER HEAD — PH1400E 9
WARRANTY
EGO WARRANTY POLICY
5 year warranty on EGO outdoor power equipment and 3 year warranty on EGO Power+ System battery packs and
chargers.
Please contact EGO customer service on Australia 1300 000 EGO(1300 000 346),
New Zealand 0508 000 EGO (0508 000 346) any time you have questions or warranty claims.
LIMITED SERVICE WARRANTY
FOR FIVE YEARS from the date of original retail purchase, this EGO product is warranted against defects in material or
workmanship. Defective product will receive free repair.
FOR THREE YEARS from the date of original retail purchase, the EGO Power+ System battery pack and charger are
warranted against defects in material or workmanship. Defective product will receive free repair.
This warranty does not cover routine maintenance parts and consumables that can wear out from normal use within the
warranty period.
◾This warranty applies only to the original purchaser at retail and may not be transferred.
◾The warranty period for any EGO product or part used for industrial, professional or commercial purpose is one year.
◾This warranty is void if the product has been used for rental purpose.
◾This warranty does not cover the damage resulting from modication, alteration or unauthorised repair.
◾This warranty only covers defects arising under normal usage and does not cover any malfunction, failure or defect
resulting from misuse, abuse (including overloading of the product beyond capacity and exposure to water or rain),
accidents, neglect or lack of proper installation, and improper maintenance or storage.
◾This warranty does not cover normal deterioration of the exterior nish, including but not limited to scratches, dents,
paint chips, or to any corrosion or discoloring by heat, abrasive and chemical cleaners.
HOW TO OBTAIN SERVICE
For warranty service, please contact EGO customer service on Australia 1300 000 EGO(1300 000 346),
New Zealand 0508 000 EGO (0508 000 346). When requesting warranty service, you must present the original dated
sales receipt. An authorized service center will be selected to repair the product according to the stated warranty terms.
ADDITIONAL LIMITATIONS
Chervon Australia Pty Ltd ABN 36 165 077 501(“Chervon”) warrants to the original domestic purchaser that this
product will be free from defects in materials and workmanship for 5 years from date of purchase, and any battery or
charger will be free from defects in materials and workmanship for 3 years from date of purchase. To make a claim,
return the faulty item together with proof of purchase directly to your closest service agent or to the place of purchase.
Any handling and transportation costs (and other expenses incurred in claiming this warranty) are not covered by this
warranty and will not be borne by Chervon. The replacement product or part or repaired product will be made available
for your collection at an address nominated by Chervon. Where a valid warranty claim is made, Chervon will replace the
defective product or repair the fault. Where the product is repaired, Chervon may use refurbished parts. This warranty
does not cover normal wear and tear, misuse or abuse. This warranty may also be further limited or voided as specifi-
cally detailed in the product Manual. Chervon has no other liability under this warranty.The benefits to you given by this
warranty are in addition to other rights and remedies imposed by State and Federal legislation that cannot be excluded.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You
are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does
not amount to a major failure. Chervon Australia Pty Ltd, Unit 13, 1488 Ferntree Gully Rd, Knoxfield, VIC. 3180.
Phone Number: Australia 1300 000 EGO(1300 000 346), New Zealand 0508 000 EGO (0508 000 346).
Email address: [e-mail].
