Ei Electronics BROOKS EIB160e Series User manual

© Brooks 2018P/N B18646 Rev1
230V~ SMOKE & HEAT ALARMS
EIB160e Series
Instruction Manual
with Rechargeable Battery Backup
The EIB160e series is supplied with an Easi-Fit base that
allows very quick and simple installation of the Smoke
Alarm, combined with simple detector head removal
and replacement. The Easi-Fit base automatically
connects both mains power and battery as the detector
head slides on to the Easi-Fit base.
Up to 12 Smoke/Heat Alarms can be interconnected
so that when one senses fire all the units alarm. (More
Alarms can be interconnected. Please contact your
local distributor for more information.)
Interconnection can be achieved by hardwire or through
a modular RF module, the EIB100MRF, which can be
inserted into the base of the Alarm.
A green LED indicates the presence of mains power. A
red LED will flash rapidly in an alarm scenario.
The Smoke/Heat Alarms feature a large combined test/
hush button.
The “Test/Hush” button will either silence false alarms
or perform a unit self-test.
In “Test” mode the Alarm will perform a self-test and
sound the horn.
In “Hush” mode the Alarm will be silenced for a period
of approximately ten minutes to overcome false alarm
conditions. It will then automatically reset itself.
Introduction to EIB160e
Smoke/Heat Alarms
User Section

The EIB160e series may be interconnected with any
other RadioLINK or RadioLINK+products through
inserting the EIB100MRF RadioLINK+Module. This
module will enable the EIB160e series Alarms to
communicate RF messages to other products such as
the EIB450 RadioLINK Alarm Controller where you can
remotely locate, test and hush your EIB160e Series
Alarms using this wireless controller.
For detailed user instructions on using the RF
interconnection module EIB100MRF with the EIB160e
series, please consult the EIB100MRF instruction
manual.
Important Information
Check all Alarms weekly, especially after initial
installation or re-occupation (e.g. following a holiday)
1. Check that the green mains indicator light is on. (if
it is off check circuit breakers, fuses and wiring etc.)
2. Check that the red LED on the cover flashes once
every 40 seconds to indicate normal operation.
The EIB160e series also has a memory function
indicating if the Alarm has been activated in the past
24 hours. If the memory has been set by an alarm
event, the red LED will flash twice every 40 seconds.
The cause of the alarm should be investigated. After
24 hours the memory will be cleared.
3. Press the test button for up to 10 seconds to ensure
the sensor chamber, electronics and sounder are
working. A red light on the cover, will flash while horn
is sounding. The Alarm will stop when the button
is released. Pressing the test button simulates the
effect of smoke or heat during a real fire and is the
best way to ensure the Alarm is operating correctly.
This action will also clear the memory.
WARNING: DO NOT TEST WITH FLAME
This can set fire to the Alarm and damage the house.
We do not recommend testing with smoke or heat as
the results can be misleading unless special apparatus
is used.
4. Check for any sign of contamination such as
2
Do’sDon’ts
Regularly check green mains
indicator is lit
Do not paint your Alarm. Do
not allow paint, water or dust
to contaminate the Alarm
Test Weekly – See testing
and maintenance
Your Alarm is powered by
230VAC. Do not open or
insert anything into the Alarm
If nuisance alarms occur –
press the test/hush button to
silence the Alarm for 10 mins
Remove or completely cover
your Alarm when decorating
to prevent dust or other
contamination damaging the
unit
Clean your Alarm regularly
RF Interconnection
Testing and Maintenance

cobwebs or dust and clean the Alarm as described in
the “cleaning” section if necessary.
5. Interconnected Alarms only - Test the first unit by
pressing the button for 10 seconds. All the units
should alarm within 10 seconds of the first horn
sounding. The red light on the first unit only will flash
about once a second. On releasing the button the
local Alarm will stop sounding immediately and the
remote Alarms will stop sounding approximately 3
seconds later (if testing using RF interconnection
this could take slightly longer). This will verify that
the interconnect is working. Check all the other units
similarly.
6. Check the functioning of the mains battery back-up
directly after installation and then at least yearly as
follows:
- Turn off the mains power at the distribution board and
check that the green indicator light is extinguished.
- Press the test button and ensure the horn sounds
loudly for 10 seconds.
Turn on the mains supply at the distribution board only if
the unit passes the above test.
Note: If the mains is disconnected and the battery is
almost depleted the unit will beep every 40 seconds for
at least 30 days.
7. Monitor the Alarm over a short period of time for any
beeps.
Switching off Mains for long periods
If the premises are regularly being left without mains
power for long periods the Smoke/Heat Alarms should be
removed from their mounting plates to prevent the batteries
becoming fully depleted. (This is sometimes done with
holiday homes which are only occupied in the Summer).
The Alarms must be re-attached to the mounting plates
when the premises are re-occupied.
Note: Long term storage (over 1 year) can damage the
batteries such that they will not recharge when the units
are re-connected to the mains supply.
If the unit is beeping
Check that the green mains power light is on. If it is off
the Alarm is not receiving mains power and is being
powered from its internal back-up cells. The beeps
indicate that they are depleted. The cells are not
replaceable. Re-connect the mains, check fuse, circuit
breakers and wiring. If in doubt contact a licensed
electrician. The beeps should cease within 2 hours as
the cells charge up. Fully charged, the cells will provide
up to 6 months back-up without mains power.
On the Optical Smoke Alarm only (EIB166e or
EIB166e-DHHS) if the unit beeps and the red light does
not flash at the same time it indicates a problem with the
smoke chamber - see “Cleaning” section.
If all of the above possible causes of beeps have been
ruled out, but the beeping has still persisted for over 2
hours with the green light on - the rechargeable cells
may be defective. The Smoke / Heat Alarm must be
returned to the manufacturer for repair or replacement -
see “Service and Guarantee” section.
3

Cleaning
WARNING: Electrical shock hazard. Disconnect the AC
mains at the fuse box or circuit breaker powering the
Alarm before following the cleaning instructions.
Clean your Alarm regularly, particularly in dusty areas.
Use the narrow nozzle attachment of your vacuum
cleaner to remove dust, insects and cobwebs from the
sides and cover slots where the smoke or heat enters.
To clean the cover, wipe with a damp cloth. Dry cover
thoroughly with a lint free cloth.
WARNING: Do not paint your Alarm.
Other than the cleaning described above, no other
customer servicing of this product is required. Repairs,
when needed, must be performed by the manufacturer.
All Alarms are prone to dust and insect ingress which
can cause nuisance/false alarms or failure to alarm.
In certain circumstances even with regular cleaning,
contamination can build up in the smoke sensing
chamber causing the Alarm to sound or fail. If this
happens the Alarm must be returned to the manufacturer
for servicing or replacement. Contamination is beyond
our control, it is totally unpredictable and is considered
normal wear and tear.
For this reason, contamination is not covered by the
guarantee and a charge is made for servicing such units.
If you experience persistent nuisance/false alarms it may
mean that the environment may not be suitable for your
particular Alarm type.
When sure that it is just a nuisance/false alarm, simply
press the test/silence button briefly on the Alarm to
silence the unit for 10 minutes.
If, when the Alarm sounds, there is no sign of smoke,
heat or noise to indicate that there is a fire, you should
get your family into a safe place, before you start
investigating.
Check the house carefully in case there is a small fire
smouldering somewhere.
Check whether there is some source of smoke or fumes,
for example cooking fumes being drawn past the Smoke
Alarm by an extractor.
If there are frequent nuisance/false alarms it may be
necessary to re-locate the device away from the source
of the fumes or replace an Ionisation Alarm with an
Optical Alarm. If for some reason the Alarm continues
to sound without smoke or heat being present (due to
insect infestation or contamination build-up for example)
the units can be silenced by disconnecting the mains
power and removing the unit - see “ALARM REMOVAL”
section - page 10 (Installer)
If cleaning the Alarm does not correct the problem
it can be returned to the manufacturer for repair or
replacement - see “Service and Guarantee” section.
Silence Feature
All the Smoke Alarms have a combined Test/Silence
Button to help you control nuisance/false alarms.
1. To silence a nuisance/false alarm, press the Test/
Silence Button located on the cover. The Alarm will
automatically switch to a reduced sensitivity condition
for a 10 minute period (very large levels of smoke
from a nearby fire will override the silence period).
4
Nuisance / False Alarms

The unit will flash the red light every 10 seconds (instead
of the normal 40 seconds) to indicate the sensitivity is
reduced.
On interconnected Alarms, pressing the Test/Silence
Button on the one sensing smoke (i.e. the one with the
red light flashing every second) will silence all Alarms.
Pressing the Test/Silence Button on any other Alarm will
not silence the Alarms in the system.
2. The unit will reset to normal sensitivity at the end of
the silenced period.
Use the Smoke / Heat Alarm Test Buttons to familiarise
your family with the alarm sound and to practice fire drills

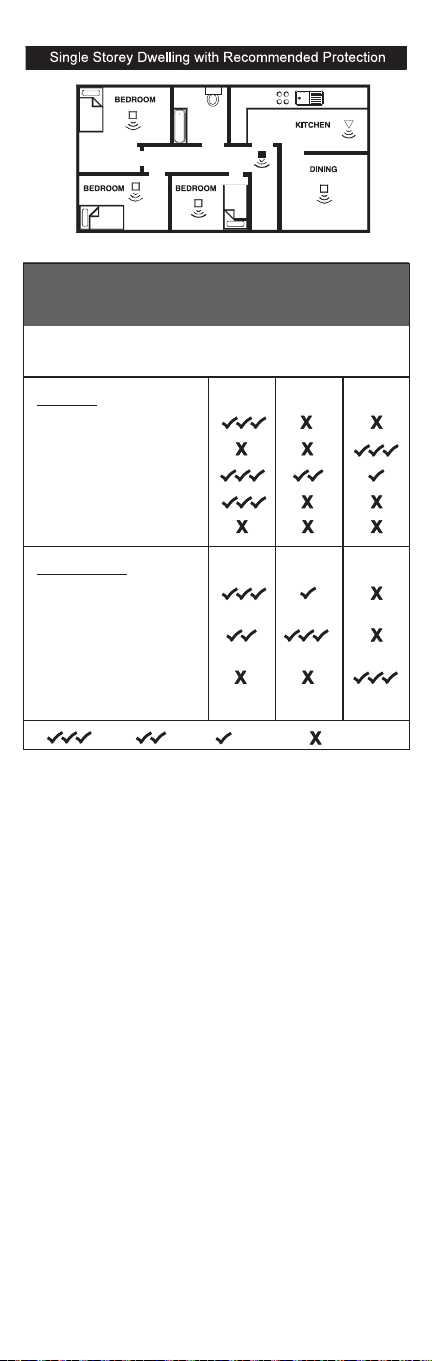

regularly with all family members. Draw up a floor plan
that will show each member at least 2 escape routes
from each room in the house.
Children tend to hide when they don’t know what to do.
Teach children how to escape, open windows, and use
roll up fire ladders and stools without adult help. Make
sure they know what to do if the alarm sounds.
1. Check room doors for heat
or smoke. Do not open a hot
door. Use an alternate escape
route. Close doors behind you
as you leave.
2. If smoke is heavy, crawl
out, staying close to floor.
Take short breaths, if possible,
through a wet cloth or hold your
breath. More people die from
smoke inhalation than from
flames.
3. Get out as fast as you can.
Do not stop for packing. Have
a prearranged meeting place
outside for all family members.
Check everybody is there.
4. Call the Fire Brigade
immediately on a mobile
phone or from a neighbour’s
house. Make sure to call
the Brigade for all fires no
matter how small - fires can
suddenly spread. Also call the
Brigade even if the alarm is
automatically transmitted to a
remote monitoring centre - the
link may have failed.
5. NEVER re-enter a burning house.
5
Planning Your Escape Route
NEVER

6
Limitations of Smoke / Heat Alarms
Service and Guarantee
Smoke / Heat Alarms have significantly helped to reduce
the number of fire fatalities in countries where they are
widely installed.
However independent authorities have stated that they
may be ineffective in some circumstances. There are a
number of reasons for this:
• NOTE: Constant exposure to high or low temperatures
or high humidity may reduce the life of the battery.
• Smoke / Heat Alarms will not detect fire if sufficient
smoke / heat does not reach the Alarm. Smoke / heat
may be prevented from reaching the Alarm if the fire is
too far away, for example, if the fire is on another floor,
behind a closed door, in a chimney, in a wall cavity,
or if the prevailing air draughts carry the smoke / heat
away. Installing Smoke / Heat Alarms on both sides
of closed doors and installing more than one Smoke
/ Heat Alarm as recommended in the ‘INSTALLER
INSTRUCTIONS’ section significantly improves the
probability of early detection.
• The alarm may not be heard.
• A Smoke / Heat Alarm may not wake a person who has
taken drugs or alcohol.
• Smoke / Heat Alarms may not detect every type of fire
to give sufficient early warning.
• Optical Smoke Alarms should be fitted as 1st choice for
minimum protection. Ionisation Smoke Alarms may be
fitted after this.
• Smoke / Heat Alarms don’t last indefinitely. For
example if there is a build up of contamination,
performance will be impaired.
It is recommended that the Smoke / Heat Alarms are
replaced after 10 years as a precaution.
If your Alarm fails to work after you have carefully read
all the instructions, checked the unit has been installed
correctly, and is receiving AC power (green light on)
contact Customer Assistance at the address given at
the end of this leaflet. If it needs to be returned for repair
or replacement put it in a padded box and send it to
“Customer Assistance and Information” at the nearest
address given on the Alarm or in this leaflet. Do not snap
on to the mounting plate as this connects the battery and
the unit may beep or alarm in the post. State the nature
of the fault, where the Alarm was purchased and the
date of purchase.
Brooks guarantees this Alarm for five years from date
of purchase against any defects that are due to faulty
materials or workmanship. This guarantee only applies
to normal conditions of use and service, and does
not include damage resulting from accident, neglect,
misuse, unauthorised dismantling, or contamination
howsoever caused. This guarantee excludes incidental
and consequential damage. If this Alarm should become
defective within the guarantee period, it must be
returned to Brooks, with proof of purchase, carefully
packaged, with the problem clearly stated. We shall at
our discretion repair or replace the faulty unit.

7
Do not interfere with the Alarm or attempt to tamper with
it. This will invalidate the guarantee, but more importantly
may expose the user to shock or fire hazards.
This guarantee is in addition to your statutory rights as
a consumer.
1. ALARM SOUNDS FOR NO APPARENT REASON:
(1) Identify the alarm source. On interconnected units,
the red light on the cover will flash rapidly only on the unit
which is the source of the alarm. If an optional Control
Switch is installed, press Locate when the system is
sounding to identify source of alarm.
(2) Check for fumes, steam etc. from the kitchen or
bathroom. Paint and other fumes can cause nuisance/
false alarms.
(3) Press the test/silence button to silence the Smoke/
Heat Alarm for 10 minutes.
(4) If the alarm does not stop, switch off mains and
remove unit - see “Important Information” section. (Only
remove the Alarm with the red light flashing, the others
are probably satisfactory).
2. LOW BATTERY & OTHER BEEPS:
Check the green mains power light is on. If not, check
fuse, circuit breakers and wiring connections. If the
green light is off, the Lithium cells will deplete after some
months without mains and will need to be recharged. If
turning on the mains fails to stop the beeps, a fault may
exist. Switch off mains and remove the unit.
(1) If the green mains light is on and recharging the
Lithium cells or cleaning the unit has not stopped the
beeps, a fault may exist. Disconnect the mains first and
replace the unit - see “ALARM REMOVAL” diagrams in
the Installer Section.
(2) If the EIB166e/EIB166e-DHHS beeps without the red
light flashing at the same time, the chamber is defective.
Clean the chamber.
3. INTERCONNECTED ALARMS DO NOT ALL
SOUND:
(1) Hold test button for 10 seconds after first Alarm has
sounded to ensure signal is transmitted to all units.
(2) One or more of the connections may not be correctly
connected. We recommend you consult a licensed
electrician.
Troubleshooting

8
Brooks Australia PTY Ltd.
4 Pike Street, Rydalmere NSW 2116
Australia
Tel: [phone]
www.brooks.com.au
Ei Electronics. Shannon, Co Clare, Ireland.
Tel: [phone]
www.eielectronics.com
Contact Us
Certified To AS3786 2014

9

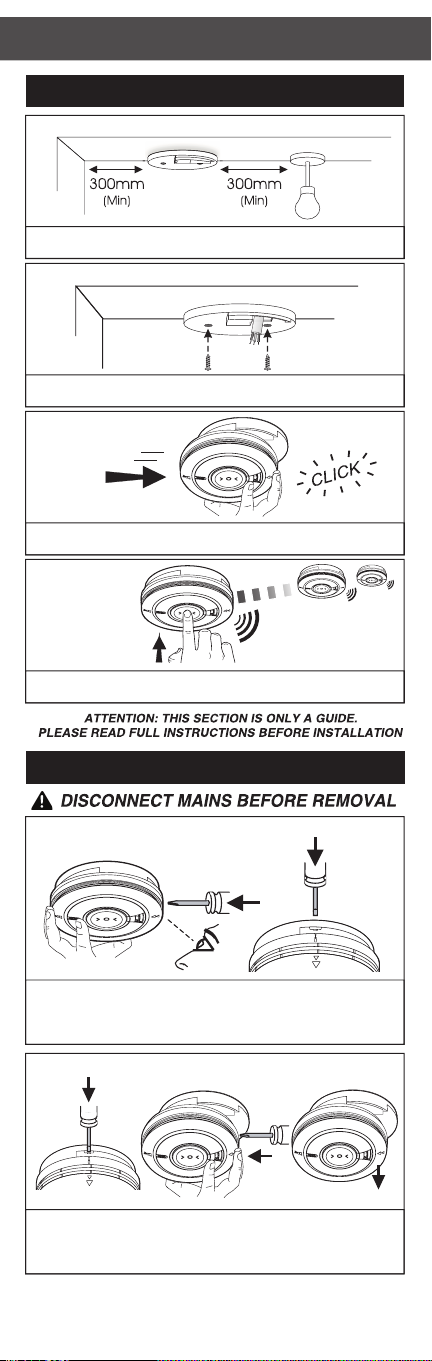

Installer Section
Installation Guide
Alarm Removal
ALARM SHOULD BE CEILING MOUNTED AT LEAST 300mm FROM
WALLS & OBSTRUCTIONS, IDEALLY CENTRALLY IN ROOM/AREA
WIRE TO TERMINALS ON THE BASEPLATE AND FIX BASEPLATE
TO CEILING USING THE FIXINGS PROVIDED
LOCATE CORRECT SITING POINT
1
SLIDE ALARM ONTO BASEPLATE. A CLICK SHOULD BE HEARD
AS THE TAMPER-PROOF CATCH ENGAGES
SLIDE ON ALARM
3
LOCATE THE ARROW ON THE FRONT FACE OF THE ALARM
THE SLOT IS LOCATED DIRECTLY ABOVE THE ARROW
INSERT A FLAT-BLADED SCREWDRIVER HORIZONTALLY
APPROX. 1cm INTO THE CENTRE OF THE REMOVAL SLOT
LOCATE REMOVAL SLOT & INSERT SCREWDRIVER
1
WITH THE SCREWDRIVER STILL INSERTED, PUSH THE LOWER
HALF OF THE ALARM AWAY FROM THE SCREWDRIVER, IN THE
DIRECTION OF THE ARROW ON THE COVER
SLIDE ALARM OFF BASE & REMOVE ALARM
2
PRESS AND HOLD THE TEST BUTTON ON THE ALARM. THE
ALARM AND ANY OTHER INTERCONNECTED UNITS SHOULD SOUND
TEST ALARMS
4
FIX & WIRE BASEPLATE
2

The minimum number of smoke Alarms is set out in the
National Construction Code (NCC) Building Code of
Australia: Volumes 1 and 2, and/or the relevant State or
Territory Building Regulations.
The main reason for fitting Smoke & Heat Alarms in
dwellings is to ensure that when there is a fire, sufficient
early warning is given so that everybody can escape safely.
This may require more smoke Alarms than the minimum
number due to the size or shape of the building.
This means that the fire Alarms should ideally be located
near all potential sources of fires and that the alarm
should be heard throughout the house – particularly in
the bedrooms.
It is also important that nuisance/false alarms are
minimised to ensure the units are not disabled or ignored.
The Australian Standard AS1670.1 gives guidance on:
- how many Alarms to install
- what type of Alarm to use
- where to position Alarms
The above points will depend on the type of dwelling to
be protected and the level of fire risk.
Fire Risk Assessment
The type of system that should be installed depends
on the fire risk. The risk assessment is based on a
combination of probabilities:
- fire occurring
- injury or death to occupant
- system operating correctly with a fire
- early detection and warning to occupants in the event
of a fire.
The greater the risks, the more comprehensive and
reliable systems need to be.
How Many Alarms To Install
10

1Optical Smoke Alarms are recommended due to their excellent
response to smouldering fires. Optical Alarms can have issues
with steam and dust and Ionisation Alarms have isues with
cooking fumes. These factors should be taken into account when
choosing Alarm type.
2Ionisation and Optical Smoke Alarms should be fitted for the
fastest response to all types of fires.
3Some Fire authorities (concerned with the slow response of
Heat Alarms) advise that Smoke Alarms should be fitted. This is
acceptable provided there are clearly not going to be problems
with nuisance/false alarms. Fit Heat Alarms only if nuisance/false
alarms are very likely and it is acceptable that a warning will
only be given by the Heat Alarm when there is a very significant
flaming fire in the room. If the door(s) and windows are not
closed to contain the fire and heat, it is extremely unlikely that the
Heat Alarm would respond before a Smoke Alarm sited outside
in the corridor.
4In enclosed kitchens with doors closed.
5Greatly depends on ventilation and distance from source of
fumes.
Locations
Hall, Corridors, Escape Routes
Alarm Type
Optical Ionisation Heat
Bedrooms
Shower / Bathroom
Kitchens
Living Rooms
Fire Response
Slow Smouldering Fires
(polyurethane foam, ignited bedding etc.)
Fast Flaming Fires
(chip pans, flaming wood/plastic, oil,
solvents etc.)
- Best - Good - Acceptable - Not Suitable
Temperature >58
0
C
(only in areas with cooking fumes, steam,
very dirty/dusty)
Optical/Ionisation/Heat Alarm Selection
Locations & Performance
12
3
4
11

The locations must comply with applicable building
regulations.
Hot smoke rises and spreads out, so a central ceiling
position is the preferred location. The air is “dead” and does
not move in corners, therefore Smoke & Heat Alarms must
be mounted away from corners. Place the unit:
- At least 0.3m away from walls. See Figure 1.
- At least 0.3m from any light fitting or decorative object
which might obstruct smoke / heat entering the Alarm.
Sloping Ceiling
With a sloping or peaked ceiling install a Smoke or Heat
Alarm between 500mm min. and 1500mm max. of the
peak (measured vertically). If this height is between
300mm min. and 500mm max. for Smoke Alarms or for
Heat Alarms it is regarded as being flat (see Figure 2).
Wall mounting of smoke Alarms (only):
If ceiling mounting is impractical, smoke Alarms may
be mounted on a wall, provided that:
a) the top of the detection element is between
150mm and 300mm below the ceiling;
b) the bottom of the detection element is above the
level of any door openings;
Wall mounting should only be considered where
close spaced beams or similar obstructions may
preclude ceiling mounting. It is considered to be the
responsibility of the installer/client to determine if the
presence of asbestos in the ceiling material would
make ceiling mounting ‘impractical’.
Locations To Avoid
DON’T place Smoke Alarms in any of the following
areas:
• Bathrooms, kitchens, shower rooms, garages or other
rooms where the smoke Alarm may be triggered by steam,
condensation, normal smoke or fumes. Keep at least 6
metres away from sources of normal smoke/fumes.
DON’T place Heat Alarms in any of the following
areas:
• Bathrooms, shower rooms or other rooms where the unit
may be triggered by steam or condensation.
DON’T place Smoke or Heat Alarms in any of the
following areas:
• Places where the normal temperature can exceed 40°C
or be below 4°C (e.g. attics, roof spaces, furnace rooms,
directly above ovens or kettles etc.) as the heat/steam
could cause nuisance/false alarms.
Positioning Alarms
0.3m
500 mm
1500 mm max.
300 mm
min.
Ceiling line
Exposed oor joists
Side Wall
DEAD AIRSPACE AND PROPER MOUNTING OF SMOKE
ALARMS ON SIDE WALLS
300 mm
500 mm max.
min.
Dead air space
Suitable smoke
alarm location
Key:
Figure 1 Figure 2
12

• Near a decorative object, door, light fitting, window
moulding etc., that may prevent smoke or heat from
entering the Alarm.
• Surfaces that are normally warmer or colder than the rest of
the room (e.g. attic hatches). Temperature differences might
stop smoke or heat from reaching the unit.
• Next to or directly above heaters or air conditioning vents,
windows, wall vents etc. that can change the direction of
airflow.
• In very high or awkward areas (e.g. over stairwells) where
it may be difficult to reach the Alarm (for testing, hushing
or cleaning).
• Locate away from very dusty or dirty areas as dust build-up
in the chamber can impair performance. It can also block the
insect screen mesh and prevent smoke from entering the
smoke detector chamber.
• Locate the unit at least 1m from dimmer controlled lights
and wiring as some dimmers can cause interference.
• Locate unit at least 1.5m and route wiring at least 1m away
from fluorescent light fittings as electrical “noise” and/or
flickering may affect the unit. Do not wire into the same
circuit as fluorescent lights or dimmers.
• Do not locate in insect infested areas. Small insects getting
into the smoke detector chamber can cause intermittent
alarms. Insects and contamination on the Heat Alarm
sensor can increase its response time.
The Alarm is designed to be permanently mounted,
using it’s own built-in terminal block to connect it to the
mains. The mounting plate can be screwed directly to
the ceiling. Alternatively it can be screwed to a junction
box. It requires a current of 50mA. The Alarm must not
be exposed to dripping or splashing. There are important
markings on the underside of the Alarm.
Caution
Alternative Energy Sources - (Wind, Solar, UPS etc.)
This product is designed to be connected to a Pure or
True Sine Wave 230 Vac supply.
If connecting to a power source that utilises an inverter,
e.g. PV solar panel, the Total Harmonic Distortion (THD)
must be less than 5%. If in doubt please check with the
manufacturer of the inverter.
This also applies to battery powered UPS (Uninterruptible
Power Supply) inverters.
Light Dimmer Circuits – The Alarms must not be
powered from a light dimmer circuit.
IMPORTANT PRECAUTION: Do not install the
Alarms in new or renovated buildings until all work
is completed (including floor coverings) and the
building has been fully cleaned. The wiring can be
installed when appropriate. (Excessive dust and
debris from building work can contaminate the
smoke chamber or heat sensor and cause problems,
it will also invalidate the guarantee). If it must
be installed, first cover it completely, particularly
around the edges, with a dust cover (eg. with the
elasticated cover supplied or a plastic bag), until all
cleaning is finished.
The Alarm must not be connected when the house wiring
insulation is being checked with high voltages. i.e. Do
not use a high voltage insulation tester on the Alarm.
13
Installation

WARNING: Mains operated Alarms should be installed
and interconnected by a licensed electrician in
accordance with the Australian wiring rules AS3000.
Failure to install this Alarm correctly may expose the
user to shock or fire hazards.
WARNING: The Alarm must be continuously powered
24 hours a day so it is important that it is not on a circuit
that can be turned off by a switch.
Note: The EIB100MRF RadioLINK+Module can be used to
eliminate interconnect wiring, make system extensions and
provide a simple and cost effective solution.
Mounting & Wiring Alarms
1. Select a location complying with the advice in the
(Positioning Alarms section).
2. Disconnect the AC mains supply from the circuit that
is going to be used.
3. Lift off the wiring cover as shown in Figure 3.
The house wiring must be connected to the terminal block
on the mounting plate as follows:
L: Live - connect to the house wires coloured brown or
marked L.
N: Neutral - connect to the house wires coloured blue
or marked N.
See page 16 for information on interconnection.
Note: Wiring must be installed in compliance with
AS3000.
Warning: Mixing the Live and Neutral connections
when interconnecting Alarms will damage all the
Alarms - ensure that the same colours are used
throughout the premises for Live, Neutral and
Interconnect wires.
We strongly recommend that you check for the following
before connecting the Alarm:
• check for Live and Neutral using a two probe tester.
• check for Live using a neon tester.
• check that the Interconnect wire is NOT connected to
Live, Neutral or Earth. Do not use an Earth wire for
the Interconnect line.
N.B. The Alarm does not need to be earthed. However the
terminal marked is provided for the convenience of the
installer so that any copper Earth wire or cable coloured
green & yellow, can be safely terminated.
To interconnect the Alarms connect all the IC terminals
together as shown in Figure 4 (see “Interconnecting
Alarms” section on page 16).
4. If the mains wires are recessed, bring the wires
through the rear hole in the mounting plate as shown
in Figure 4.
14
FOAM CEILING GASKET
INSERT SCREWDRIVER
TO LIFT AND REMOVE
WIRING COVER
Figure 3

If the mains wires are being brought along the surface:
(a) position the mounting plate so the cable trunking is
as shown in Figure 4.
(b) the mounting plate has a removable section, take
it out to interface directly with 25mm conduit as shown
in Figure 5. If interfacing to 16mm conduit carefully cut
around the marked section, leaving the top intact and
replace the section. (If you are not using surface wiring,
the removable section must be left in place for electrical
safety reasons).
There are two other positions which are also suitable for
the surface wiring to enter (and exit) the Alarm, one next
to the removable section and another directly opposite.
5. Carefully align the mounting plate and screw into
place. Connect the wires to the terminal block. With
recessed wiring, ensure the rear gasket seals around the
edge of the hole in the ceiling or wall. This is to prevent
air draughts affecting the smoke/heat entering the
Alarm. If the hole is too large or the Alarm does not seal
it, it should be sealed with silicone rubber or equivalent.
6. Carefully line up the unit on the base and slide on.
7. Press and hold the test/hush button for 10 seconds. The
horn will sound. On release of the test button the local alarm
will stop sounding immediately and the interconnected
Alarms will stop sounding a few seconds later.
8. Connect the mains power to the alarm circuit. Check
the green light is on.
9. Attach the ‘Smoke Alarm’ identification label provided
to the distribution board to identify the alarm circuit.
10. Attach the ‘Mains Smoke / Heat Alarms’ label
provided on or near the distribution board and write in
date installed and the number of Alarms on the circuit.
Ensure the Alarm operates correctly - see “TESTING &
MAINTENANCE” section on page 2.
15
REMOVEABLE
TRUNKING DOOR FOR
Figure 4
Figure 5

Interconnecting Alarms
Note: A maximum of twelve EIB161e / EIB164e /
EIB166e / EIB166e DHHS Smoke or Heat Alarms may
be interconnected. Up to 8 additional accessories may
also be connected.
If you wish to connect more than 12 Alarms contact your
local distributor.
Systems using more than 3 or 4 Alarms must be very
carefully planned to ensure nuisance/false alarms are
not excessive. e.g. from cooking fumes or steam. The
following is suggested:
• An Alarm Control Switch should be incorporated into
the system and be readily accessible to all occupants
so that the source of an alarm can be quickly identified.
• All Alarms must be cleaned and maintained regularly.
• A qualified person must be on call to quickly remove
any nuisance units (i.e. units with red light flashing
rapidly) which are causing all the other Alarms to
sound.
WARNING: Do not connect these Alarms to any
other model produced by another manufacturer.
Doing so may damage the Alarms and could result in
a shock or fire hazard.
Wiring must be installed in compliance with AS3000.
230V supply Brown, red or marked L
Neutral Blue, black or marked N
Interconnect Connect to the third core
The interconnect wire (minimum 0.75mm2cable) must
be treated as if it was Live. It should be insulated and
sheathed.
A maximum of 250 metres of wire can be used (maximum
resistance between detectors 50 Ohms).
These Smoke/Heat Alarms should be interconnected
only within the confines of a single family living unit. If
they are connected between different units there may be
excessive nuisance/false alarms. Everybody may not be
aware that they are being tested or that it is a nuisance/
false alarm caused by cooking etc.
16
