MODEL NUMBER TT-DH 1600

Demolition Breaker
What your 3year warranty means
Great care has gone into the manufacture of this product and it should therefore provide you with years
of good service when used properly. In the event of product failure within its intended use over the course
of the rst 3years after the date of purchase, we will remedy the problem as quickly as possible once it has been
brought to our attention. In the unlikely event of such an occurrence, or if you require any information about
the product, please contact us via our after sales support services, details of which can be found in this manual
and on the product itself.
Welcome Section
Congratulations on choosing to buy a TAURUS TITANIUM® product.
All products brought to you by TAURUS TITANIUM® are manufactured to the highest standards of performance
and safety, and, as part of our philosophy of customer service and satisfaction, are backed by our
comprehensive 3Year Warranty.
We hope you will enjoy using your purchase for many years to come.
Table of Contents
1. General Safety Rules Pg. 4
2. Additional Safety Rules Pg. 5
3. Layout Pg. 5
4. Proper Use Pg. 5
5. Technical Data Pg. 5
6. Before Starting the Equipment Pg. 6
7. Starting Up Pg. 6
8. Replacing the Power Cable Pg. 6
9. Cleaning, Maintenance and Ordering of Spare Parts Pg. 7
10. Disposal and Recycling Pg. 7
After Sales Support EMAIL: [e-mail]: 1300 922 271
1

After Sales Support EMAIL: [e-mail]: 1300 922 271
2
2 3
2.
180° 1.
1
2
3
5
6
7
1
4
3
a
–
+

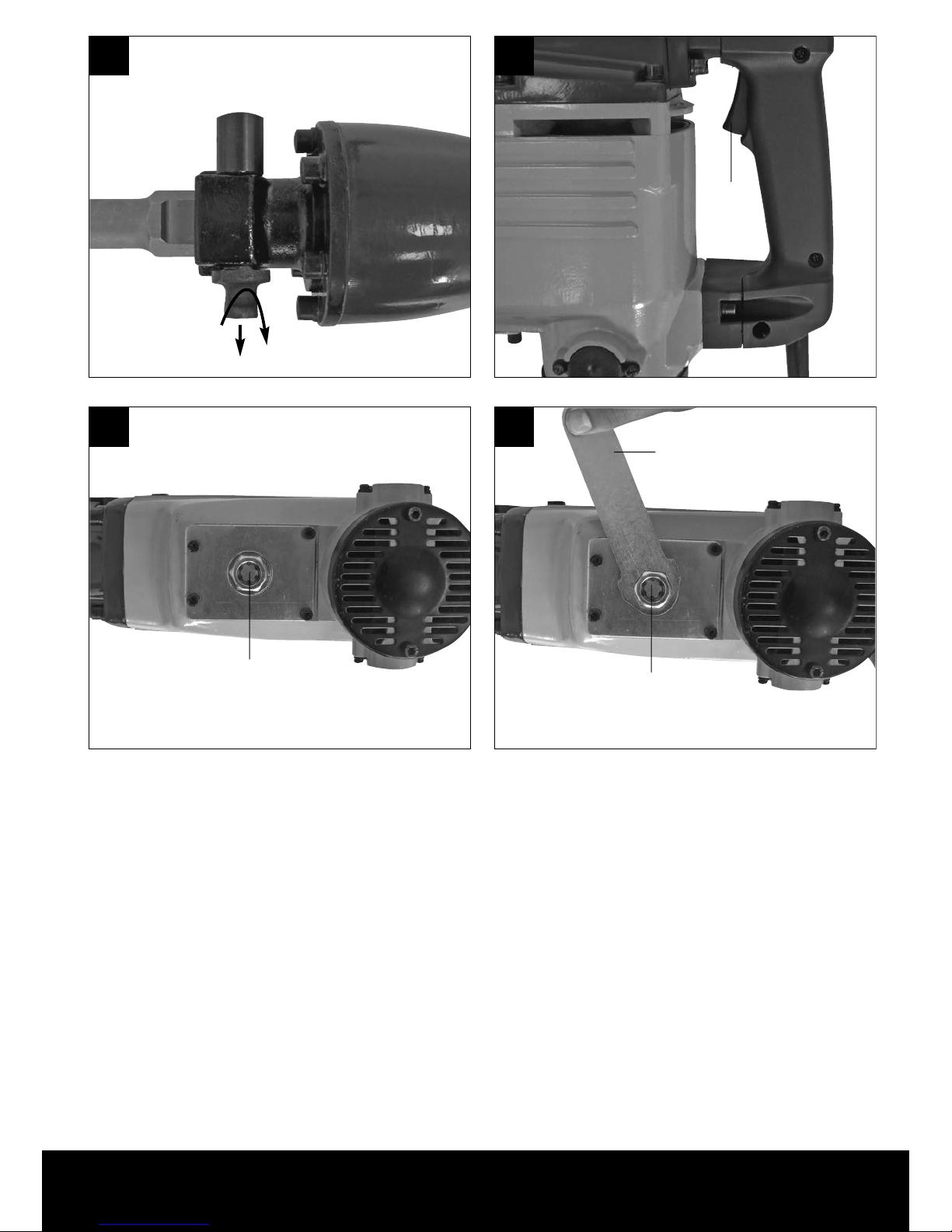

After Sales Support EMAIL: [e-mail]: 1300 922 271
3
5
6 7
2
4
2.
180°
1.
6
7
6

After Sales Support EMAIL: [e-mail]: 1300 922 271
1. General Safety Rules
WARNING! Read all instructions Failure to follow
all instructions listed below may result in electric
shock, re and/or serious injury. The term ’’power
tool’’ in all of the warnings listed below refers to your
mains-operated (corded) power tool or battery-
operated (cordless) power tool.
SAVE THESE INSTRUCTIONS
CAUTION
Read all safety regulations and instructions.
Any errors made in following the safety regulations
and instructions may result in an electric shock, re
and/or serious injury.
Keep all safety regulations and instructions in a
safe place for future use.
1. Work area
a. Keep work area clean and well lit. Cluttered
and dark areas invite accidents.
b. Do not operate power tools in explosive
atmospheres, such as in the presence of
ammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
2. Electrical safety
a. Power tool plugs must match the outlet.
Never modify the plug in any way.Do not use
any adapter plugs with earthed (grounded) power
tools. Unmodied plugs and matching outlets will
reduce risk of electric shock.
b. Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord
for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp
edges or moving parts. Damaged or entangled
cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use
of a cord suitable for outdoor use reduces the risk
of electric shock.
f. If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD
reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and
use common sense when operating a power
tool. Do not use a power tool while you are
tired or under the inuence of drugs, alcohol
or medication. A moment of inattention while
operating power tools may result in serious personal
injury.
b. Use safety equipment. Always wear eye
protection. Safety equipment such as a dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will
reduce personal injuries.
c. Avoid accidental starting. Ensure the switch
is in the off-position before plugging in.
Carrying power tools with your nger on the switch
or plugging in power tools that have the switch on
invites accidents.
d. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key
left attached to rotating part of the power tool may
result in personal injury.
e. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing
or jewellery. Keep your hair, clothing and
gloves away from moving parts. Loose clothes,
jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection
of dust extraction and collection facilities,
ensure these are connected and properly
used. Use of these devices can reduce dust-related
hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
b. Do not use the power tool if the switch does
not turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and
must be repaired.
c. Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
d. Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions
to operate the power tool. Power tools are
dangerous in the hands of untrained users.
e. Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may affect the
power tools operation. If damaged, have the
power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits
etc. in accordance with these instructions
4

After Sales Support EMAIL: [e-mail]: 1300 922 271
a. and in the manner intended for the particular
type of power tool, taking into account
the working conditions and the work to be
performed. Use of the power tool for operations
different from those intended could result in a
hazardous situation.
5. Service
a. Have your power tool serviced by a
qualied repair person using only identical
replacement parts. This will ensure that the safety
of the power tool is maintained.
6. Recommendation
We recommend that the tool always be supplied via
residual curtrent device with a rated residual current of
30 mA or less.
2. Additional Safety Rules
Safety Information for hammer
1. Wear ear protection. The impact of noise can
cause damage to hearing.
2. Use the additional handles supplied with the
tool. Losing control of the tool can cause
injuries.
3. Hold the equipment by the insulated handles
when carrying out work during which the
plug-in tool could strike concealed power
cables or its own mains lead. Contact with a
live cable can also make the metal parts of
the equipment live and will cause an electric
shock.
Caution
Read the operating instructions to
reduce the risk of injury.
Wear ear-muffs.
The impact of noise can cause damage
to hearing.
Wear safety goggles.
Sparks generated during working or
splinters, chips and dust emitted by the
device can cause loss of sight.
Wear a breathing mask.
Dust which is injurious to health can be
generated when working on wood and
other materials. Never use the device
to work on any materials containing
asbestos!
Important!
When using equipment, a few safety precautions
must be observed to avoid injuries and damage.
Please read the complete operating manual with
due care. Keep this manual in a safe place, so that
the information is available at all times. If you give
the equipment to any other person, give them
these operating instructions as well.
We accept no liability for damage or accidents
which arise due to non-observance of these
instructions and the safety information.
3. Layout
1. Handle
2. ON/OFF switch
3. Additionalhandle
4. Lockingbolt
5. Toolchuck
6. Inspection window / Oil filler opening
7. Wrench
4. Proper Use
This machine is designed for heavy duty
demolition and chiseling work using the
appropriate chisel.
The equipment is to be used only for its
prescribed purpose. Any other use is deemed to
be a case of misuse. The user / operator and not
the manufacturer will be liable for any damage or
injuries of any kind caused as a result of this.
Please note that our equipment has not been
designed for use in commercial, trade or industrial
applications. Our warranty will be voided if the
machine is used in commercial, trade or industrial
businesses or for equivalent purposes.
5. Technical data
Mains voltage 230 V ~ 50 Hz.
Power input 1600 W
Blow rate 1500 min-1
Protection class II/ a
Weight 14.7 kg
Sound and vibration
Sound and vibration values were measured in
accordance with EN 60745.
5

After Sales Support EMAIL: [e-mail]: 1300 922 271
LpA sound pressure level 86 dB(A)
KpA uncertainty 3 dB
LWA sound power level 104 dB(A)
KWA uncertainty 1.54 dB
Wear ear-muffs.
The impact of noise can cause damage to hearing.
Total vibration values (vector sum of three directions)
determined in accordance with EN 60745.
Total vibration values (vector sum of three directions)
determined in accordance with EN 60745.
Chiseling
Vibration emission value ah = 18.6 m/s2 K uncertainty =
1.5 m/s2
Important!
The vibration value changes according to the area of
application of the electric tool and may exceed the
specied value in exceptional circumstances.
Keep the noise emissions and vibrations to a
minimum.
• Only use appliances which are in perfect working
order.
• Service and clean the appliance regularly.
• Adapt your working style to suit the appliance.
• Do not overload the appliance.
• Have the appliance serviced whenever necessary.
• Switch the appliance off when it is not in use.
• Wear protective gloves
6. Before starting the
equipment
Before you connect the equipment to the mains supply
make sure that the data on the rating plate are identical
to the mains data.
Always pull the power plug before making adjustments to
the equipment.
Check the drilling point for concealed electrical cables,
gas and water pipes using a cable/pipe detector.
6.1 Additional handle (Fig. 2 / Item 3)
For safety reasons you must only use the demolition
hammer with the additional handle. The additional handle
(3) enables you to achieve better stability whilst using
the demolition hammer. The additional handle (3) can
be turned into any required position. Undo the screw (a)
by turning it in the “+” direction. Now turn the additional
handle (3) into the most comfortable working position for
yourself and then tighten the screw (a) again by turning it
in the “-” direction.
6.2 Inserting the accessory (Fig. 3-4)
• Clean the accessory before tting it and apply a
thin coating of grease to the accessory shaft.
• Pull out the locking bolt (4) as far as possible, turn it
through 180° and release it.
• Insert the accessory into the tool mounting (5) and
push it in as far as possible. (see Fig. 3)
• Pull out the locking bolt (4) again, turn it through
180° in the opposite direction and release it.
• Check the lock by pulling the accessory.
6.3 Removing the accessory
To remove the accessory, proceed in reverse order.
7. Starting up
Important!
To avoid danger, the machine must only be held using
the two handles (1/3). Otherwise you may suffer an
electric shock if you chisel into cables.
7.1 Switching on and off (Fig. 5)
To switch on:
Press the control switch (2).
To switch off:
Release the control switch (2).
7.2 Practical tips
7.2.1 Sharpening chisel accessorys
You will only achieve good results if you use sharp
chisels. You should therefore sharpen the chisels
promptly to ensure that they produce good results and
provide a long service life.
Important!
You only require slight contact pressure for chiseling.
Excessive contact pressure will place an unnecessary
strain on the motor. Check the chisels at regular
intervals. Sharpen or replace blunt chisels
8. Replacing the power cable
If the power cable for this equipment is damaged, it must
be replaced by the manufacturer or its after- sales service
or similarly trained personnel to avoid danger.
6

After Sales Support EMAIL: [e-mail]: 1300 922 271
9. Cleaning, maintenance and
ordering of spare parts
Always pull out the mains power plug before starting any
cleaning work.
9.1 Cleaning
• Keep all safety devices, air vents and the motor
housing free of dirt and dust as far as possible.
Wipe the equipment with a clean cloth or blow it
with compressed air at low pressure.
• We recommend that you clean the device
immediately each time you have nished using it.
• Clean the equipment regularly with a moist cloth
and some soft soap. Do not use cleaning agents
or solvents; these could attack the plastic parts of
the equipment. Ensure that no water can seep into
the device.
9.2 Carbon brushes
In case of excessive sparking, have the carbon brushes
checked only by a qualied electrician. Important! The
carbon brushes should not be replaced by anyone but a
qualied electrician.
9.3 Servicing
9.3.1 Check the oil level (Fig. 6)
Check the oil level before using the machine.
Place the machine on the oor with the tool mounting
pointing downwards. The oil must be at least 3 mm
above the bottom edge of the inspection window (6).
Changing the oil: The oil should be changed after around
40-50 hours of use.
Recommended oil: 25ml SAE 15W/40 or an alternative of
the same quality.
9.3.2 Oil change (Fig. 7)
Switch off the machine and pull the mains plug out of the
socket.
Undo the hexagonal head screw with the inspection
window (6) using the wrench (7) and drain the oil. To
prevent the oil from running out in an uncontrolled
manner, hold a small metal chute under the opening and
collect the oil in a vessel until it has fully drained out of
the machine.
Important: The waste oil must be disposed of in
the appropriate collection point for waste oil.
Add new oil (approx. 25 ml) through the oil ller opening
(6) until the oil level reaches the required level. Tighten
the hexagonal screw again.
Re-check the oil level after a short period of operation.
9.4 Ordering Spare Parts
Contact our After Sales Support on 1300 922 271 and
quote the following data when ordering spare
parts:
• Type of machine
• Article number of the machine
• Identication number of the machine
• Replacement part number of the part required
10. Disposal and recycling
The unit is supplied in packaging to prevent its being
damaged in transit. This packaging is raw material
and can therefore be reused or can be returned to
the raw material system.
The unit and its accessories are made of various
types of material, such as metal and plastic.
Defective components must be disposed of as
special waste.
7

After Sales Support EMAIL: [e-mail]: 1300 922 271
8

After Sales Support EMAIL: [e-mail]: 1300 922 271
9

After Sales Support EMAIL: [e-mail]: 1300 922 271
10

After Sales Support EMAIL: [e-mail]: 1300 922 271
11
08/2013
Art.Nr: 41.390.76_11012
